Sayfa 9-31 - Isuzu EPC

9-31 — REAR BODY; FLOOR AND FENDER (#21643) — 275 parça

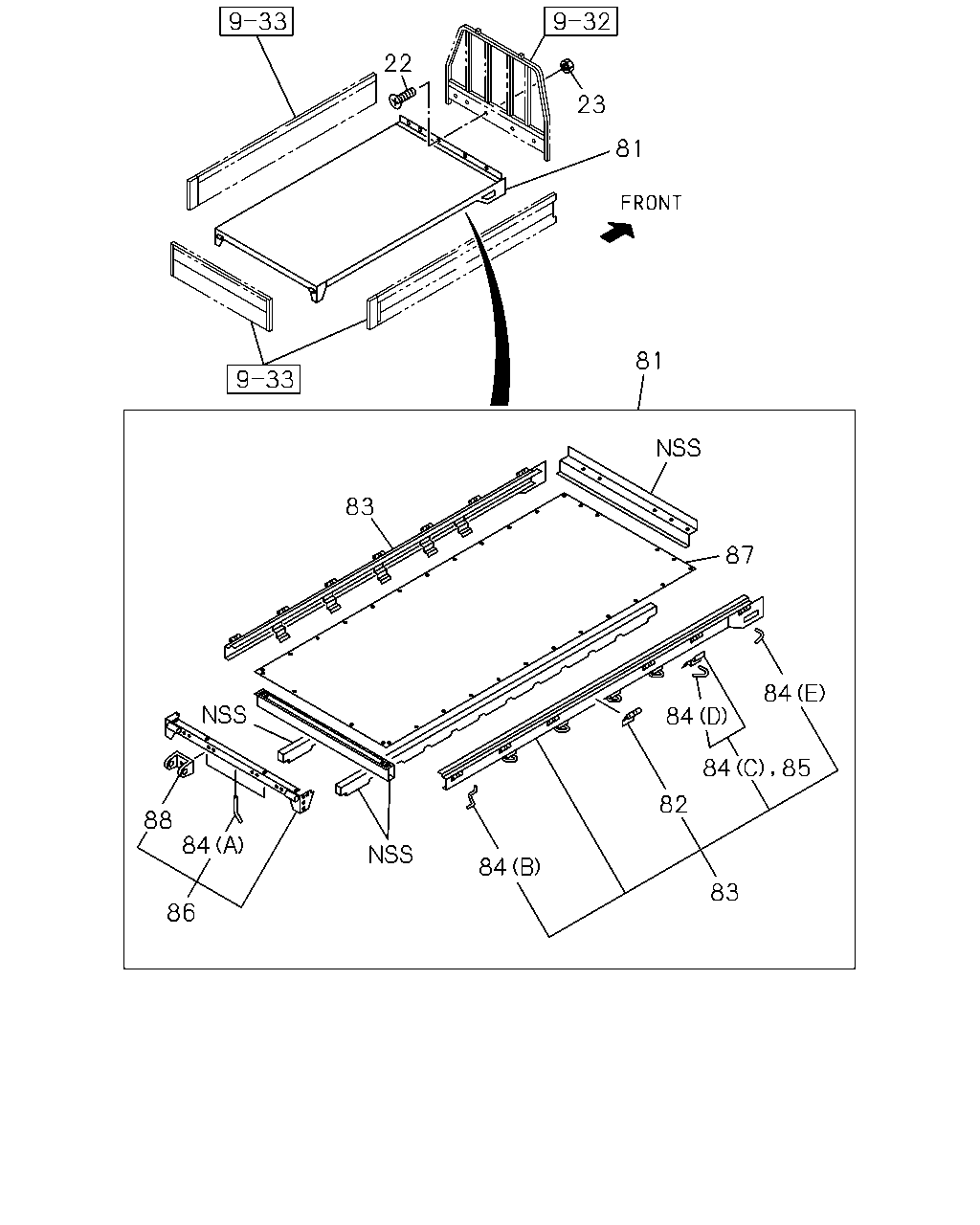

22 23 81 81 83 87 84 84 82 88 84 84 83 86 84 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	17.405 SCREW; ANGLE RR BODY FLAT BED<RS6>	8-97065-437-0	04	1	9811-	●
22	17.405 SCREW; ANGLE RR BODY FLAT BED<RS6>	8-97065-437-0	05	1	9811-0105		●	●	●
22	17.405 SCREW; ANGLE RR BODY FLAT BED<RS6>	8-97065-437-0	05	1	0106-		●	●
23	17.405 NUT; ANGLE RR BODY FLAT BED<RS6> 09.011 M8 W/LK WASHER	8-97065-435-0	04	1	9811-	●
23	17.405 NUT; ANGLE RR BODY FLAT BED<RS6> 09.011 M8 W/LK WASHER	8-97065-435-0	05	1	9811-0105		●	●	●
23	17.405 NUT; ANGLE RR BODY FLAT BED<RS6> 09.011 M8 W/LK WASHER	8-97065-435-0	05	1	0106-		●	●
81	17.400 FLOOR ASM; RR BODY BODY COLOR ARC WHITE(729),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR MARINE BLUE(890) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94194-912-2	01	1	9811-0007	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3>	8-97590-478-3	01	1	0008-	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-94194-615-2	01	1	9811-0007	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-97590-479-3	01	1	0008-	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97590-515-2	01	1	0010-		●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-94196-592-2	01	1	9811-0007		●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-97590-480-0	01	1	0008-0009		●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97590-480-2	01	1	0010-		●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-94196-598-2	01	1	9811-0007			●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-97590-481-2	01	1	0008-			●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-94196-675-1	01	1	9811-0007				●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-97590-482-0	01	1	0008-0105				●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED<RS6> 17.208	8-94193-345-0	12	1	9811-0007	●	●		●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED<RS6> TAKADA	8-97590-219-0	12	1	0008-0105	●	●		●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED<RS6> TAKADA	8-97590-219-0	12	1	0106-	●	●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED<RS6> 17.208	8-94193-345-0	14	1	9811-0007			●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED<RS6> TAKADA	8-97590-219-0	14	1	0008-			●
83	08.309 FRAME; SIDE BODY COLOR ARC WHITE(729),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR MARINE BLUE(890) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94196-235-0	01	1	9811-0007	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3>	8-97590-521-0	01	1	0008-	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97590-545-0	01	1	0010-		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97590-546-0	01	1	0010-		●
83	08.309 FRAME; SIDE BODY COLOR ARC WHITE(729),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR MARINE BLUE(890) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94196-234-0	01	1	9811-0007	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3>	8-97590-520-0	01	1	0008-	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-94196-201-0	01	1	9811-0007	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-97590-524-0	01	1	0008-	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-94196-200-0	01	1	9811-0007	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-97590-523-0	01	1	0008-	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-94196-237-0	01	1	9811-0007		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-97590-527-0	01	1	0008-0009		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97590-527-0	01	1	0010-		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-94196-236-0	01	1	9811-0007		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-97590-526-0	01	1	0008-0009		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97590-526-0	01	1	0010-		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-94196-298-0	01	1	9811-0007			●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-97590-530-0	01	1	0008-			●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-94196-297-0	01	1	9811-0007			●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-97590-529-0	01	1	0008-			●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-94196-211-0	01	1	9811-0007				●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-97590-532-0	01	1	0008-0105				●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-94196-210-0	01	1	9811-0007				●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-97590-531-0	01	1	0008-0105				●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (G) HOOK BRACKET WO/HOLE	8-94194-283-0	10	1	9811-0007	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (B)	8-97590-221-0	10	1	0008-	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (A)	8-97590-252-0	02	1	0008-	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (F) TAKADA	8-94194-318-0	03	1	9811-0007	●	●	●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (E)	8-97590-218-0	02	1	0008-0101	●	●	●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (E)	8-97590-218-0	02	1	0102-0105	●	●	●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> VIETNAM KD BREAKDOWN<R5F> BODY COLOR CARDINAL RED(736) (E)	8-97590-218-0	02	1	0102-0105			●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (E)	8-97590-218-0	02	1	0106-	●	●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> VIETNAM KD BREAKDOWN<R5F> BODY COLOR CARDINAL RED(736) (E)	8-97590-218-0	02	1	0106-			●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (D)	8-97590-232-0	05	1	0008-		●
84	08.820 HOOK; ROPE BODY COLOR ARC WHITE(729),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> (G) HOOK BRACKET WO/HOLE	8-94194-283-0	04	1	9811-0007		●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (B)	8-97590-221-0	02	1	0008-0101		●	●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (B)	8-97590-221-0	02	1	0102-0105		●	●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> VIETNAM KD BREAKDOWN<R5F> (B)	8-97590-221-0	02	1	0102-0105			●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (B)	8-97590-221-0	02	1	0106-		●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (A)	8-97590-252-0	03	1	0008-0101		●	●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (A)	8-97590-252-0	03	1	0102-0105		●	●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> VIETNAM KD BREAKDOWN<R5F> (A)	8-97590-252-0	03	1	0102-0105			●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (A)	8-97590-252-0	03	1	0106-		●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (G) HOOK BRACKET W/HOLE	8-94194-384-0	06	1	9811-0007		●		●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (C)	8-97590-231-0	05	1	0008-		●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (G) HOOK BRACKET W/HOLE	8-94194-383-0	06	1	9811-0007		●		●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (C)	8-97590-230-0	05	1	0008-		●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (G) HOOK BRACKET W/HOLE	8-94194-384-0	08	1	9811-0007			●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (C)	8-97590-231-0	08	1	0008-			●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (G) HOOK BRACKET W/HOLE	8-94194-383-0	08	1	9811-0007			●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (C)	8-97590-230-0	08	1	0008-			●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (D)	8-97590-232-0	08	1	0008-			●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (G) HOOK BRACKET WO/HOLE	8-94194-283-0	02	1	9811-0007				●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (C)	8-97590-230-0	06	1	0008-0105				●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (D)	8-97590-232-0	06	1	0008-0105				●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (C)	8-97590-231-0	06	1	0008-0105				●
85	08.212 BRACKET; SIDE FRAME RR BODY FLAT BED<RS6>	8-94194-354-0	02	1	9811-0007	●
85	08.212 BRACKET; SIDE FRAME RR BODY FLAT BED<RS6>	8-97590-227-0	02	1	0008-	●
85	08.212 BRACKET; SIDE FRAME RR BODY FLAT BED<RS6>	8-94194-353-0	02	1	9811-0007	●
85	08.212 BRACKET; SIDE FRAME RR BODY FLAT BED<RS6>	8-97590-226-0	02	1	0008-	●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6>	8-94196-256-0	01	1	9811-0007	●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6>	8-97590-522-0	01	1	0008-	●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97590-239-0	01	1	0010-		●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6>	8-94196-258-0	01	1	9811-0007		●	●	●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6>	8-97590-528-0	01	1	0008-0009		●	●	●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97590-528-0	01	1	0010-0105		●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6>	8-97590-528-0	01	1	0010-0105			●	●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97590-528-0	01	1	0106-		●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6>	8-97590-528-0	01	1	0106-			●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-94196-271-0	01	1	9811-0007	●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-97590-098-0	01	1	0008-	●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97590-544-0	01	1	0010-		●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-94196-288-0	01	1	9811-0007		●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-97590-525-0	01	1	0008-0009		●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97590-525-0	01	1	0010-		●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-94196-276-0	01	1	9811-0007			●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-97590-111-0	01	1	0008-			●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-94196-277-0	01	1	9811-0007				●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-97590-112-0	01	1	0008-0105				●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED<RS6>	8-94193-345-0	04	1	9811-0007	●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED<RS6> TAKADA	8-97590-250-0	03	1	0008-	●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED<RS6>	8-94193-520-0	04	1	9811-0007		●	●	●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED<RS6> TAKADA	8-97590-251-0	04	1	0008-0101		●	●	●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED<RS6> TAKADA	8-97590-251-0	04	1	0102-0105		●	●	●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED<RS6> VIETNAM KD BREAKDOWN<R5F> TAKADA	8-97590-251-0	04	1	0102-0105			●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED<RS6> TAKADA	8-97590-251-0	04	1	0106-		●	●

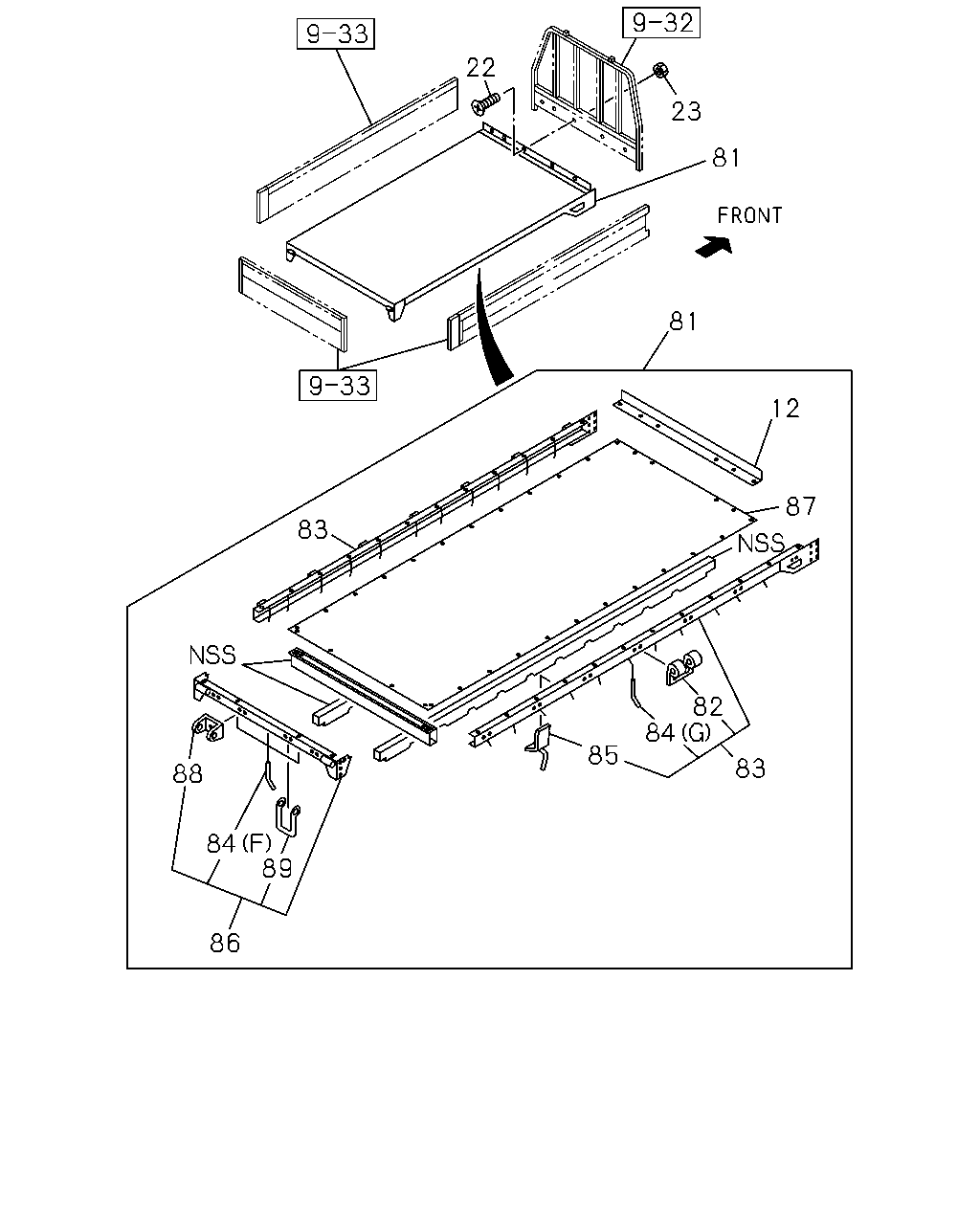

22 23 81 81 12 87 83 82 84 85 83 88 84 89 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	17.405 ANGLE; SETTING,RR BODY RR BODY FLAT BED<RS6>	8-94196-293-0	01	1	9811-0007	●
12	17.405 ANGLE; SETTING,RR BODY RR BODY FLAT BED<RS6>	8-94196-294-0	01	1	9811-0007		●	●	●
22	17.405 SCREW; ANGLE RR BODY FLAT BED<RS6>	8-97065-437-0	04	1	9811-	●
22	17.405 SCREW; ANGLE RR BODY FLAT BED<RS6>	8-97065-437-0	05	1	9811-0105		●	●	●
22	17.405 SCREW; ANGLE RR BODY FLAT BED<RS6>	8-97065-437-0	05	1	0106-		●	●
23	17.405 NUT; ANGLE RR BODY FLAT BED<RS6> 09.011 M8 W/LK WASHER	8-97065-435-0	04	1	9811-	●
23	17.405 NUT; ANGLE RR BODY FLAT BED<RS6> 09.011 M8 W/LK WASHER	8-97065-435-0	05	1	9811-0105		●	●	●
23	17.405 NUT; ANGLE RR BODY FLAT BED<RS6> 09.011 M8 W/LK WASHER	8-97065-435-0	05	1	0106-		●	●
81	17.400 FLOOR ASM; RR BODY BODY COLOR ARC WHITE(729),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR MARINE BLUE(890) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94194-912-2	01	1	9811-0007	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3>	8-97590-478-3	01	1	0008-	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-94194-615-2	01	1	9811-0007	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-97590-479-3	01	1	0008-	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97590-515-2	01	1	0010-		●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-94196-592-2	01	1	9811-0007		●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-97590-480-0	01	1	0008-0009		●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97590-480-2	01	1	0010-		●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-94196-598-2	01	1	9811-0007			●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-97590-481-2	01	1	0008-			●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-94196-675-1	01	1	9811-0007				●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-97590-482-0	01	1	0008-0105				●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED<RS6> 17.208	8-94193-345-0	12	1	9811-0007	●	●		●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED<RS6> TAKADA	8-97590-219-0	12	1	0008-0105	●	●		●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED<RS6> TAKADA	8-97590-219-0	12	1	0106-	●	●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED<RS6> 17.208	8-94193-345-0	14	1	9811-0007			●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED<RS6> TAKADA	8-97590-219-0	14	1	0008-			●
83	08.309 FRAME; SIDE BODY COLOR ARC WHITE(729),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR MARINE BLUE(890) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94196-235-0	01	1	9811-0007	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3>	8-97590-521-0	01	1	0008-	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97590-545-0	01	1	0010-		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97590-546-0	01	1	0010-		●
83	08.309 FRAME; SIDE BODY COLOR ARC WHITE(729),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR MARINE BLUE(890) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94196-234-0	01	1	9811-0007	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3>	8-97590-520-0	01	1	0008-	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-94196-201-0	01	1	9811-0007	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-97590-524-0	01	1	0008-	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-94196-200-0	01	1	9811-0007	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-97590-523-0	01	1	0008-	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-94196-237-0	01	1	9811-0007		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-97590-527-0	01	1	0008-0009		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97590-527-0	01	1	0010-		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-94196-236-0	01	1	9811-0007		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-97590-526-0	01	1	0008-0009		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97590-526-0	01	1	0010-		●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-94196-298-0	01	1	9811-0007			●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-97590-530-0	01	1	0008-			●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-94196-297-0	01	1	9811-0007			●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-97590-529-0	01	1	0008-			●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-94196-211-0	01	1	9811-0007				●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-97590-532-0	01	1	0008-0105				●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-94196-210-0	01	1	9811-0007				●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6>	8-97590-531-0	01	1	0008-0105				●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (G) HOOK BRACKET WO/HOLE	8-94194-283-0	10	1	9811-0007	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (B)	8-97590-221-0	10	1	0008-	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (A)	8-97590-252-0	02	1	0008-	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (F) TAKADA	8-94194-318-0	03	1	9811-0007	●	●	●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (E)	8-97590-218-0	02	1	0008-0101	●	●	●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (E)	8-97590-218-0	02	1	0102-0105	●	●	●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> VIETNAM KD BREAKDOWN<R5F> BODY COLOR CARDINAL RED(736) (E)	8-97590-218-0	02	1	0102-0105			●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (E)	8-97590-218-0	02	1	0106-	●	●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> VIETNAM KD BREAKDOWN<R5F> BODY COLOR CARDINAL RED(736) (E)	8-97590-218-0	02	1	0106-			●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (D)	8-97590-232-0	05	1	0008-		●
84	08.820 HOOK; ROPE BODY COLOR ARC WHITE(729),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> (G) HOOK BRACKET WO/HOLE	8-94194-283-0	04	1	9811-0007		●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (B)	8-97590-221-0	02	1	0008-0101		●	●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (B)	8-97590-221-0	02	1	0102-0105		●	●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> VIETNAM KD BREAKDOWN<R5F> (B)	8-97590-221-0	02	1	0102-0105			●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (B)	8-97590-221-0	02	1	0106-		●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (A)	8-97590-252-0	03	1	0008-0101		●	●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (A)	8-97590-252-0	03	1	0102-0105		●	●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> VIETNAM KD BREAKDOWN<R5F> (A)	8-97590-252-0	03	1	0102-0105			●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (A)	8-97590-252-0	03	1	0106-		●	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (G) HOOK BRACKET W/HOLE	8-94194-384-0	06	1	9811-0007		●		●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (C)	8-97590-231-0	05	1	0008-		●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (G) HOOK BRACKET W/HOLE	8-94194-383-0	06	1	9811-0007		●		●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (C)	8-97590-230-0	05	1	0008-		●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (G) HOOK BRACKET W/HOLE	8-94194-384-0	08	1	9811-0007			●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (C)	8-97590-231-0	08	1	0008-			●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (G) HOOK BRACKET W/HOLE	8-94194-383-0	08	1	9811-0007			●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (C)	8-97590-230-0	08	1	0008-			●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (D)	8-97590-232-0	08	1	0008-			●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (G) HOOK BRACKET WO/HOLE	8-94194-283-0	02	1	9811-0007				●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (C)	8-97590-230-0	06	1	0008-0105				●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (D)	8-97590-232-0	06	1	0008-0105				●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (C)	8-97590-231-0	06	1	0008-0105				●
85	08.212 BRACKET; SIDE FRAME RR BODY FLAT BED<RS6>	8-94194-354-0	02	1	9811-0007	●
85	08.212 BRACKET; SIDE FRAME RR BODY FLAT BED<RS6>	8-97590-227-0	02	1	0008-	●
85	08.212 BRACKET; SIDE FRAME RR BODY FLAT BED<RS6>	8-94194-353-0	02	1	9811-0007	●
85	08.212 BRACKET; SIDE FRAME RR BODY FLAT BED<RS6>	8-97590-226-0	02	1	0008-	●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6>	8-94196-256-0	01	1	9811-0007	●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6>	8-97590-522-0	01	1	0008-	●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97590-239-0	01	1	0010-		●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6>	8-94196-258-0	01	1	9811-0007		●	●	●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6>	8-97590-528-0	01	1	0008-0009		●	●	●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97590-528-0	01	1	0010-0105		●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6>	8-97590-528-0	01	1	0010-0105			●	●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97590-528-0	01	1	0106-		●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6>	8-97590-528-0	01	1	0106-			●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-94196-271-0	01	1	9811-0007	●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-97590-098-0	01	1	0008-	●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-97590-544-0	01	1	0010-		●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-94196-288-0	01	1	9811-0007		●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-97590-525-0	01	1	0008-0009		●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH>	8-97590-525-0	01	1	0010-		●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-94196-276-0	01	1	9811-0007			●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-97590-111-0	01	1	0008-			●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-94196-277-0	01	1	9811-0007				●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-97590-112-0	01	1	0008-0105				●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED<RS6>	8-94193-345-0	04	1	9811-0007	●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED<RS6> TAKADA	8-97590-250-0	03	1	0008-	●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED<RS6>	8-94193-520-0	04	1	9811-0007		●	●	●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED<RS6> TAKADA	8-97590-251-0	04	1	0008-0101		●	●	●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED<RS6> TAKADA	8-97590-251-0	04	1	0102-0105		●	●	●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED<RS6> VIETNAM KD BREAKDOWN<R5F> TAKADA	8-97590-251-0	04	1	0102-0105			●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED<RS6> TAKADA	8-97590-251-0	04	1	0106-		●	●
89	17.400 STEP; RR BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED<RS6>	8-94194-289-0	01	1	0009-0009	●
89	17.400 STEP; RR RR BODY FLAT BED<RS6>	8-94194-289-0	01	1	9811-0007	●

59 37 58 57 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED<RS6>	8-97069-729-0	02	1	9811-	●
8	08.212 HOLDER; FLAP RUBBER RR BODY NON FLAT BED(RS5)	8-97069-729-0	02	1	9811-					●
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED<RS6>	8-97179-829-0	02	1	9811-0105		●	●	●
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED<RS6>	8-97179-829-0	02	1	0106-		●	●
37	08.212 BRACKET; MUD COVER RR BODY FLAT BED<RS6>	5-66900-382-2	02	1	9811-	●
37	08.212 BRACKET; MUD COVER RR BODY NON FLAT BED(RS5)	8-94197-195-0	02	1	9811-					●
57	08.214 RUBBER; FLAP RR RR BODY FLAT BED<RS6> H=330 B=280	8-97089-827-1	02	1	9811-	●
57	08.214 RUBBER; FLAP RR RR BODY NON FLAT BED(RS5) H=330 B=280	8-97089-827-1	02	1	9811-					●
57	08.214 RUBBER; FLAP RR RR BODY FLAT BED<RS6> H=440 B=430	8-97214-177-0	02	1	9811-0105		●	●	●
57	08.214 RUBBER; FLAP RR RR BODY FLAT BED<RS6> H=440 B=430	8-97214-177-1	02	1	0106-		●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6X16 FLANGE	8-97065-432-2	06	1	9811-0105	●	●	●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6X16 FLANGE	8-97065-432-2	06	1	0106-	●	●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY NON FLAT BED(RS5) M6X12 W/LK&PL WASHER	8-94197-192-0	10	1	9811-					●
59	17.208 NUT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6 FLANGE	8-97065-431-0	06	1	9811-0105	●	●	●	●
59	17.208 NUT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6 FLANGE	8-97065-431-0	06	1	0106-	●	●	●
59	17.208 NUT; RUBBER,RR FENDER RR BODY NON FLAT BED(RS5) M6 FLANGE	8-94197-193-0	10	1	9811-					●

71 50 71 1 50 59 37 3 3 8 58 58 59 57 1 52 71 64 53 57 58 59 53 8 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> (A)	8-94195-139-0	02	1	9811-	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> (B)	8-97162-720-0	02	1	9811-0105		●	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> (B)	8-97162-720-0	02	1	0106-		●	●
3	08.203 BOLT; FENDER TO RR BODY RR BODY FLAT BED<RS6> 17.447	8-94194-113-0	08	1	9811-0007	●
3	08.203 BOLT; FENDER TO RR BODY RR BODY FLAT BED<RS6>	8-94194-999-0	08	1	0008-	●
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED<RS6>	8-97069-729-0	02	1	9811-	●
8	08.212 HOLDER; FLAP RUBBER RR BODY NON FLAT BED(RS5)	8-97069-729-0	02	1	9811-					●
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED<RS6>	8-97179-829-0	02	1	9811-0105		●	●	●
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED<RS6>	8-97179-829-0	02	1	0106-		●	●
37	08.212 BRACKET; MUD COVER RR BODY FLAT BED<RS6>	5-66900-382-2	02	1	9811-	●
37	08.212 BRACKET; MUD COVER RR BODY NON FLAT BED(RS5)	8-94197-195-0	02	1	9811-					●
50	17.447 NUT; RR FENDER RR BODY FLAT BED<RS6>	8-94194-114-0	16	1	9811-	●
52	17.447 BOLT; FENDER STAY,RR RR BODY FLAT BED<RS6> 01.252 M8X60 W/LK WASHER	0-50040-860-0	08	1	9811-0105		●	●	●
52	17.447 BOLT; FENDER STAY,RR RR BODY FLAT BED<RS6> 01.252 M8X60 W/LK WASHER	0-50040-860-0	08	1	0106-		●	●
53	17.447 NUT; FENDER STAY,RR RR BODY FLAT BED<RS6> 07.633 M8 FLANGE	0-91150-108-0	16	1	9811-0105		●	●	●
53	17.447 NUT; FENDER STAY,RR RR BODY FLAT BED<RS6> 07.633 M8 FLANGE	0-91150-108-0	16	1	0106-		●	●
57	08.214 RUBBER; FLAP RR RR BODY FLAT BED<RS6> H=330 B=280	8-97089-827-1	02	1	9811-	●
57	08.214 RUBBER; FLAP RR RR BODY NON FLAT BED(RS5) H=330 B=280	8-97089-827-1	02	1	9811-					●
57	08.214 RUBBER; FLAP RR RR BODY FLAT BED<RS6> H=440 B=430	8-97214-177-0	02	1	9811-0105		●	●	●
57	08.214 RUBBER; FLAP RR RR BODY FLAT BED<RS6> H=440 B=430	8-97214-177-1	02	1	0106-		●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6X16 FLANGE	8-97065-432-2	06	1	9811-0105	●	●	●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6X16 FLANGE	8-97065-432-2	06	1	0106-	●	●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY NON FLAT BED(RS5) M6X12 W/LK&PL WASHER	8-94197-192-0	10	1	9811-					●
59	17.208 NUT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6 FLANGE	8-97065-431-0	06	1	9811-0105	●	●	●	●
59	17.208 NUT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6 FLANGE	8-97065-431-0	06	1	0106-	●	●	●
59	17.208 NUT; RUBBER,RR FENDER RR BODY NON FLAT BED(RS5) M6 FLANGE	8-94197-193-0	10	1	9811-					●
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED<RS6> 02.334 ID=8.4 OD=26	9-09164-808-0	08	1	9811-0105		●	●	●
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED<RS6> 02.334 ID=8.4 OD=26	9-09164-808-0	08	1	0106-		●	●
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED<RS6> 02.334 ID=8.4 OD=26	9-09164-808-0	07	1	9811-			●
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED<RS6> 03.706 ID=10.5 OD=32	9-09164-810-0	24	1	9811-			●
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6> FRONT SIDE	8-94194-878-0	04	1	9811-0007	●
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3> FRONT SIDE	8-94194-878-0	04	1	0008-	●
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6> REAR SIDE	8-94194-879-0	04	1	9811-0007	●
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3> REAR SIDE	8-94194-879-0	04	1	0008-	●
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-94194-894-0	08	1	0008-	●
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6>	8-97179-830-0	08	1	9811-0105		●	●	●
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6>	8-97179-830-0	08	1	0106-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
