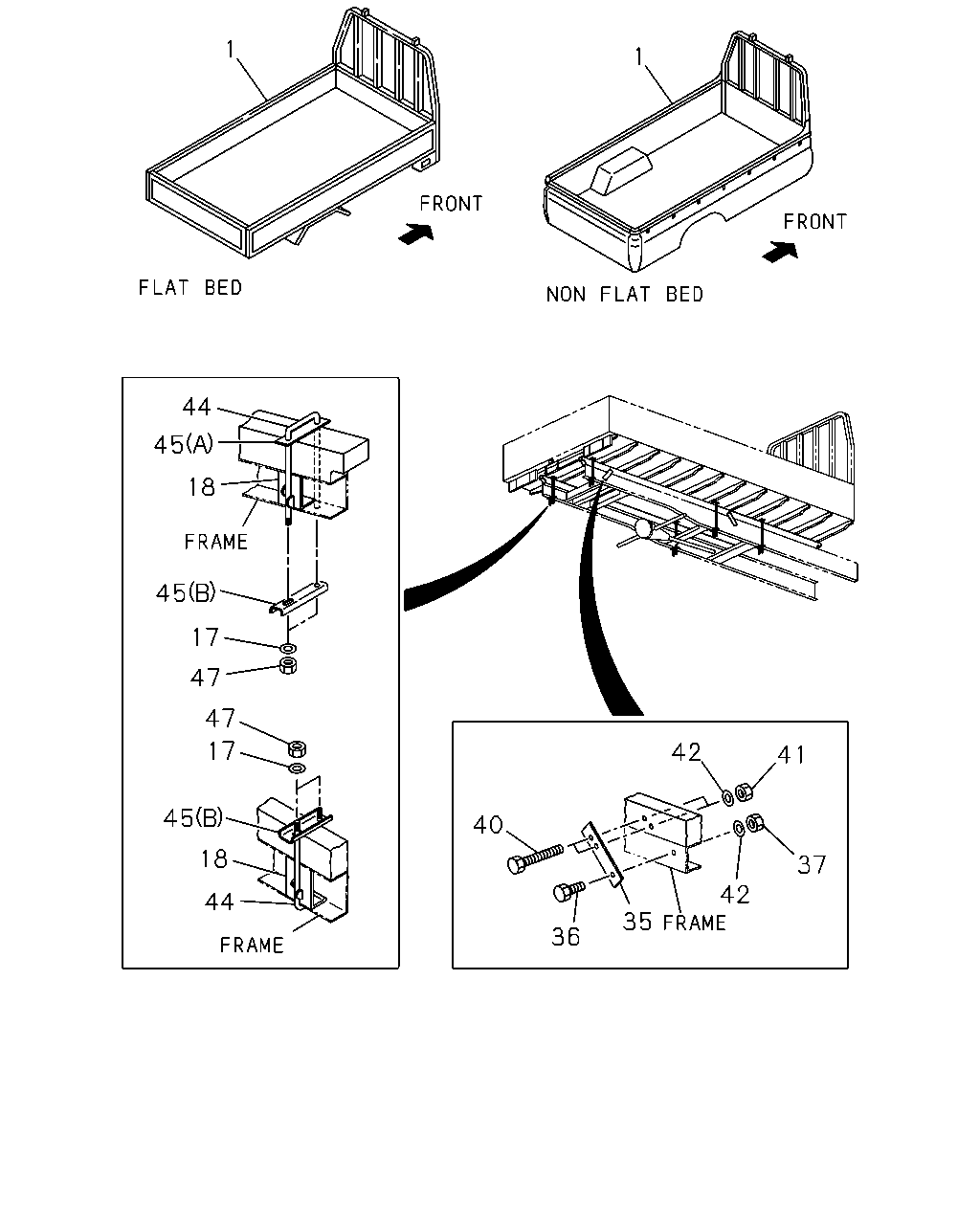

9-30 — REAR BODY ASM AND MOUNTING (#21642) — 119 parça

1 1 44 45 18 45 17 47 47 17 42 41 45 40 18 37 42 44 35 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> BLUE	8-97158-927-1	01	1	9811-0007	●
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> BLUE	8-97296-846-1	01	1	0008-	●
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC> BLUE	8-97199-095-0	01	1	9811-0007	●
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC> BLUE	8-97296-855-1	01	1	0008-	●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729),BODY COLORCARDINAL RED(736) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> WHITE	8-97158-925-1	01	1	9811-0007	●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729),BODY COLORCARDINAL RED(736) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> WHITE	8-97296-844-0	01	1	0008-0101	●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> WHITE	8-97296-844-1	01	1	0102-	●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729),BODY COLORCARDINAL RED(736) RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC> WHITE	8-97199-093-0	01	1	9811-0007	●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729),BODY COLORCARDINAL RED(736) RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC> WHITE	8-97296-853-0	01	1	0008-0101	●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC> WHITE	8-97296-853-1	01	1	0102-	●
1	17.090 BODY ASM; REAR BODY COLOR POLAR SILVER MET(845) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> SILVER	8-97297-870-1	01	1	0009-	●
1	17.090 BODY ASM; REAR BODY COLOR CARDINAL RED(736) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> RED	8-97298-797-1	01	1	0102-	●
1	17.090 BODY ASM; REAR BODY COLOR CARDINAL RED(736) RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC> RED	8-97298-798-1	01	1	0102-	●
1	17.090 BODY ASM; REAR BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC> SILVER	8-97297-873-1	01	1	0009-	●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> BLUE	8-97158-926-1	01	1	9811-0007	●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> BLUE	8-97296-845-1	01	1	0008-	●
1	17.090 BODY ASM; REAR BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH> SILVER	8-97297-871-1	01	1	0009-		●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC> BLUE	8-97199-094-0	01	1	9811-0007	●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC> BLUE	8-97296-854-1	01	1	0008-	●
1	17.090 BODY ASM; REAR BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED<RS6> SILVER	8-97297-872-1	01	1	0009-			●
1	17.090 BODY ASM; REAR BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED<RS6> SILVER	8-97297-875-0	01	1	0009-0105				●
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) RR BODY NON FLAT BED(RS5) BLUE	8-97154-217-0	01	1	9811-					●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) RR BODY NON FLAT BED(RS5) WHITE	8-97154-216-0	01	1	9811-					●
1	17.090 BODY ASM; REAR BODY COLOR CARDINAL RED(736) RR BODY NON FLAT BED(RS5) RED	8-97154-218-0	01	1	9811-					●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY NON FLAT BED(RS5) BLUE	8-97154-219-0	01	1	9811-					●
1	17.090 BODY ASM; REAR BODY COLOR POLAR SILVER MET(845) RR BODY NON FLAT BED(RS5) SILVER	8-97296-910-0	01	1	0009-0112					●
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> BLUE	8-97199-059-2	01	1	9811-0007		●
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> BLUE	8-97296-849-0	01	1	0008-0009		●
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH> BLUE	8-97296-849-1	01	1	0010-		●
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH> BLUE	8-97297-863-1	01	1	0010-		●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729),BODY COLORCARDINAL RED(736) RR BODY FLAT BED<RS6> WHITE	8-97199-057-2	01	1	9811-0007		●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729),BODY COLORCARDINAL RED(736) RR BODY FLAT BED<RS6> WHITE	8-97296-847-0	01	1	0008-0009		●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729),BODY COLORCARDINAL RED(736) RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH> WHITE	8-97296-847-0	01	1	0010-0101		●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH> WHITE	8-97296-847-1	01	1	0102-		●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729),BODY COLORCARDINAL RED(736) RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH> WHITE	8-97297-861-0	01	1	0010-0101		●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH> WHITE	8-97297-861-1	01	1	0102-		●
1	17.090 BODY ASM; REAR BODY COLOR CARDINAL RED(736) RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH> RED	8-97298-802-1	01	1	0102-		●
1	17.090 BODY ASM; REAR BODY COLOR CARDINAL RED(736) RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH> RED	8-97298-799-1	01	1	0102-		●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> BLUE	8-97199-058-2	01	1	9811-0007		●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> BLUE	8-97296-848-0	01	1	0008-0009		●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY LAGER WIDTH<8EH> BLUE	8-97296-848-1	01	1	0010-		●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH> BLUE	8-97297-862-1	01	1	0010-		●
1	17.090 BODY ASM; REAR BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> REAR BODY LAGER WIDTH<8EH> SILVER	8-97297-860-1	01	1	0010-		●
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> BLUE	8-97199-061-2	01	1	9811-0007			●
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> BLUE	8-97296-851-1	01	1	0008-			●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729),BODY COLORCARDINAL RED(736) RR BODY FLAT BED<RS6> BLUE	8-97199-062-2	01	1	9811-0007			●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729),BODY COLORCARDINAL RED(736) RR BODY FLAT BED<RS6> WHITE	8-97296-852-0	01	1	0008-0101			●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> WHITE	8-97296-852-1	01	1	0102-			●
1	17.090 BODY ASM; REAR BODY COLOR CARDINAL RED(736) RR BODY FLAT BED<RS6> RED	8-97298-800-1	01	1	0102-			●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> BLUE	8-97199-060-2	01	1	9811-0007			●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> BLUE	8-97296-850-1	01	1	0008-			●
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> BLUE	8-97199-065-1	01	1	9811-0007				●
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> BLUE	8-97296-858-0	01	1	0008-0105				●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729),BODY COLORCARDINAL RED(736) RR BODY FLAT BED<RS6> WHITE	8-97199-063-1	01	1	9811-0007				●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729),BODY COLORCARDINAL RED(736) RR BODY FLAT BED<RS6> WHITE	8-97296-856-0	01	1	0008-0101				●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> WHITE	8-97296-856-0	01	1	0102-0105				●
1	17.090 BODY ASM; REAR BODY COLOR CARDINAL RED(736) RR BODY FLAT BED<RS6> RED	8-97298-801-0	01	1	0102-0105				●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> BLUE	8-97199-064-1	01	1	9811-0007				●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> BLUE	8-97296-857-0	01	1	0008-0105				●
17	17.447 WASHER; PL,U-BOLT RR BODY FLAT BED<RS6> 06.172 ID=12.5	9-09164-512-0	06	1	9811-	●
17	17.447 WASHER; PL,U-BOLT RR BODY FLAT BED<RS6> 00.029 ID=15 OD=26	9-09164-514-0	04	1	9811-		●
17	17.447 WASHER; PL,U-BOLT RR BODY FLAT BED<RS6> 00.029 ID=15 OD=26	9-09164-514-0	06	1	9811-0105			●	●
17	17.447 WASHER; PL,U-BOLT RR BODY FLAT BED<RS6> 00.029 ID=15 OD=26	9-09164-514-0	06	1	0106-			●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED<RS6> H=161 B=50 D=52	5-53119-093-2	04	1	9811-	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED<RS6> 121X47.5	5-53119-094-2	02	1	9811-	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED<RS6> 102.1X55.5 H=161 B=50 D=68	5-53119-091-3	02	1	9811-		●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED<RS6>	8-94378-296-0	02	1	9811-		●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED<RS6> H=161 B=50 D=68	5-53119-091-3	04	1	9811-0105			●	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED<RS6> H=161 B=50 D=68	5-53119-091-3	04	1	0106-			●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED<RS6> H=91 B=50 D=68	5-53119-092-3	02	1	9811-0105			●	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED<RS6> H=91 B=50 D=68	5-53119-092-3	02	1	0106-			●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED<RS6> L=215	8-97100-408-0	02	1	9811-0105	●			●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED<RS6> L=215	8-97100-408-0	02	1	0106-	●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED<RS6> L=185	9-53459-602-0	02	1	9811-0105	●			●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED<RS6> L=185	9-53459-602-0	02	1	0106-	●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED<RS6> L=185	9-53459-602-0	04	1	9811-		●	●
36	17.447 BOLT; FRAME RR BODY FLAT BED<RS6> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	9811-0105	●	●	●	●
36	17.447 BOLT; FRAME RR BODY FLAT BED<RS6> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0106-	●	●	●
37	17.447 NUT; STOPPER TO FRAME RR BODY FLAT BED<RS6> 08.917 M10 FLANGE	0-91150-210-0	04	1	9811-0105	●	●	●	●
37	17.447 NUT; STOPPER TO FRAME RR BODY FLAT BED<RS6> 08.917 M10 FLANGE	0-91150-210-0	04	1	0106-	●	●	●
40	17.447 BOLT; STOPPER TO RR BODY RR BODY FLAT BED<RS6> 01.840 M8X70 FLANGE	0-28080-870-0	08	1	9811-0105	●	●	●	●
40	17.447 BOLT; STOPPER TO RR BODY RR BODY FLAT BED<RS6> 01.840 M8X70 FLANGE	0-28080-870-0	08	1	0106-	●	●	●
41	17.447 NUT; STOPPER TO RR BODY RR BODY FLAT BED<RS6> 03.023 M8 FLANGE	9-09130-408-0	08	1	9811-0105	●	●	●	●
41	17.447 NUT; STOPPER TO RR BODY RR BODY FLAT BED<RS6> 03.023 M8 FLANGE	9-09130-408-0	08	1	0106-	●	●	●
42	17.447 WASHER; PL,STOPPER TO RR BODY RR BODY FLAT BED<RS6> 07.633 ID=8.4 OD=22	9-09164-708-0	08	1	9811-0105	●	●	●	●
42	17.447 WASHER; PL,STOPPER TO RR BODY RR BODY FLAT BED<RS6> 07.633 ID=8.4 OD=22	9-09164-708-0	08	1	0106-	●	●	●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED<RS6> L=326	8-94151-368-0	04	1	9811-	●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED<RS6> L=280	8-94151-372-0	02	1	9811-	●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED<RS6> L=345	8-94317-633-0	02	1	9811-		●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED<RS6> L=297	5-51171-009-1	02	1	9811-0105		●		●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED<RS6> L=297	5-51171-009-1	02	1	0106-		●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED<RS6> L=272	5-51171-007-1	02	1	9811-			●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED<RS6> L=345	8-94317-633-0	04	1	9811-			●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED<RS6> L=367	5-51171-008-1	04	1	9811-0105				●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED<RS6> (B) L=115 B=40	9-61200-629-2	06	1	9811-	●
45	17.447 PLATE; U-BOLT 4JB1 ENG(RLF) RR BODY FLAT BED<RS6> (A) L=100 B=30	8-94148-715-0	05	1	9811-0112	●
45	17.447 PLATE; U-BOLT 4JH1 ENG(RJX),4JB1 ENG(RLF) RR BODY FLAT BED<RS6> (A) L=100 B=30	8-94148-715-0	05	1	0201-	●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED<RS6> (A) L=116 B=35	5-66900-203-0	03	1	9811-0004		●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED<RS6> (A) L=116 B=35	5-66900-203-0	02	1	0005-0105		●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED<RS6> (A) L=116 B=35	5-66900-203-0	03	1	0106-		●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED<RS6> (B) L=120 B=45	5-66900-204-3	04	1	9811-		●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED<RS6> (A) L=116 B=35	5-66900-203-0	06	1	9811-			●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED<RS6> (B) L=120 B=45	5-66900-204-3	06	1	9811-0105			●	●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED<RS6> (B) L=120 B=45	5-66900-204-3	06	1	0106-			●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED<RS6> (A) L=116 B=35	5-66900-203-0	05	1	9811-0105				●
47	17.447 NUT; U-BOLT RR BODY FLAT BED<RS6> M12	9-09130-412-0	12	1	9811-	●
47	17.447 NUT; U-BOLT RR BODY FLAT BED<RS6> 06.008 M14	9-09130-414-0	08	1	9811-		●
47	17.447 NUT; U-BOLT RR BODY FLAT BED<RS6> 06.008 M14	9-09130-414-0	12	1	9811-0105			●	●
47	17.447 NUT; U-BOLT RR BODY FLAT BED<RS6> 06.008 M14	9-09130-414-0	12	1	0106-			●

13 13 14 15 15 15 14 16 14 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E
13	09.008 BOLT; RR BODY MTG RR BODY NON FLAT BED(RS5) 09.003 M12X40 FLANGE	0-28681-240-0	08	1	9811-				●
13	09.008 BOLT; RR BODY MTG RR BODY FLAT BED<RS6> M8X100	8-97090-620-0	02	1	9811-0105	●	●	●
13	09.008 BOLT; RR BODY MTG RR BODY FLAT BED<RS6> M8X100	8-97090-620-0	02	1	0106-	●	●
14	09.011 WASHER; PL,RR BODY MTG RR BODY NON FLAT BED(RS5) 07.633 ID=12.5 OD=32	9-09164-712-0	14	1	9811-				●
14	09.011 WASHER; PL,RR BODY MTG RR BODY FLAT BED<RS6> 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	9811-0105	●	●	●
14	09.011 WASHER; PL,RR BODY MTG RR BODY FLAT BED<RS6> 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0106-	●	●
15	09.011 NUT; RR BODY MTG RR BODY NON FLAT BED(RS5) 05.816 M12	9-99110-412-0	16	1	9811-				●
15	09.011 NUT; RR BODY MTG RR BODY FLAT BED<RS6> M8 W/LK WASHER	8-97065-435-0	02	1	9811-0105	●	●	●
15	09.011 NUT; RR BODY MTG RR BODY FLAT BED<RS6> M8 W/LK WASHER	8-97065-435-0	02	1	0106-	●	●
16	09.011 WASHER; FRAME END,RR BODY RR BODY NON FLAT BED(RS5) ID=12.5 OD=26	9-09164-612-0	02	1	9811-				●
