◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#21632) — 105 parça
çizim 8895
66 25 316 316
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
25 09.180 PULLEY ASM; IDLER,CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE 		8-97161-198-0 01 1 9811- ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE 		8-94334-696-2 01 1 9811-0105 ●
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE 		8-94334-696-2 01 1 0106- ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE 		8-94334-873-0 01 1 9811-0105 ●
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE 		8-94334-873-0 01 1 0106- ●
31 09.181 BOLT; ADJ,IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 9811- ● ● ● ●
33 09.181 NUT; IDLER PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 9811- ● ● ● ●
66 01.066 BELT; A/C CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-2 01 1 9811- ● ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 M8X50 FLANGE 		0-28080-850-0 01 1 9811- ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE 		8-94344-540-1 01 1 9811- ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X100 FLANGE 		0-28181-000-0 01 1 9811-0105 ●
316 09.242 BOLT; BRKT FIX
AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X100 FLANGE 		0-28181-000-0 01 1 0106- ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.330 M10X60 FLANGE 		0-28181-060-0 02 1 9811-0105 ●
316 09.242 BOLT; BRKT FIX
AIR CONDITIONER MANUAL CONT(C60) 03.330 M10X60 FLANGE 		0-28181-060-0 02 1 0106- ●

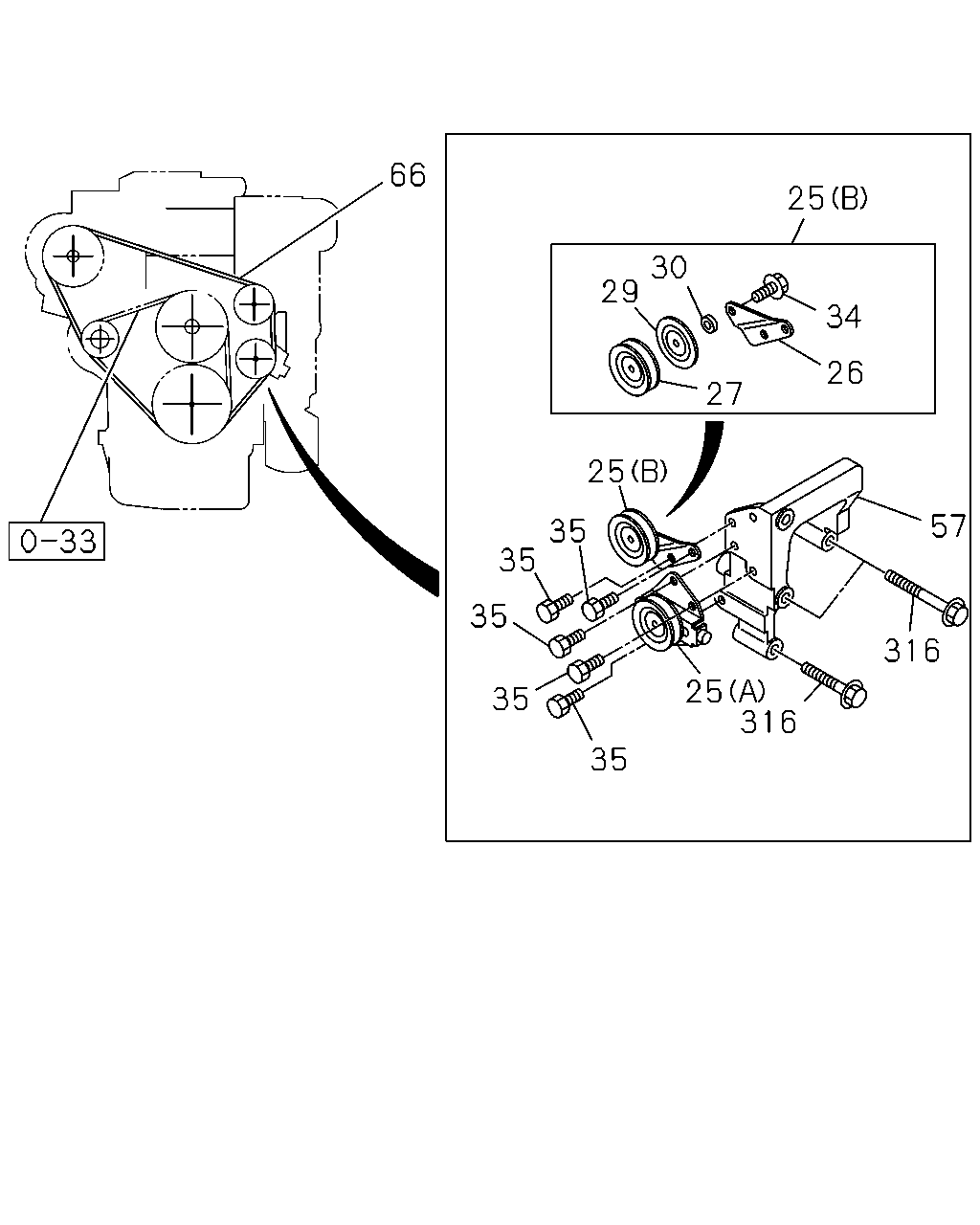

çizim 43259
66 25 30 29 34 26 27 25 57 35 35 35 316 25 316 35 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
25 09.180 PULLEY ASM; IDLER,CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE 		8-97161-198-0 01 1 9811- ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE 		8-94334-696-2 01 1 9811-0105 ●
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE 		8-94334-696-2 01 1 0106- ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE 		8-94334-873-0 01 1 9811-0105 ●
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE 		8-94334-873-0 01 1 0106- ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97060-362-0 01 1 9811-0105 ●
26 09.180 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97060-362-0 01 1 0106- ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97161-031-0 01 1 9811- ● ● ● ●
27 09.180 PULLEY; IDLE,A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		9-13663-606-0 01 1 9811-0105 ●
27 09.180 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT(C60) 		9-13663-606-0 01 1 0106- ●
27 09.180 PULLEY; IDLE,A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97386-869-0 01 1 9811- ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		9-13669-603-0 02 1 9811-0105 ●
29 09.181 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) (A) 		9-13669-603-0 02 1 0106- ●
29 09.181 COVER; DUST,IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-114-0 01 1 9811- ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97384-115-0 01 1 9811- ● ● ● ●
30 09.181 COLLAR; IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-94207-192-0 01 1 9811-0105 ●
30 09.181 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-94207-192-0 01 1 0106- ●
30 09.181 COLLAR; IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-117-0 01 1 9811- ● ● ● ●
31 09.181 BOLT; ADJ,IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 9811- ● ● ● ●
33 09.181 NUT; IDLER PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 9811- ● ● ● ●
34 09.181 SHAFT; IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X30 		0-28121-030-0 01 1 9811-0105 ●
34 09.181 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X30 		0-28121-030-0 01 1 0106- ●
34 09.181 SHAFT; IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-116-0 01 1 9811- ● ● ● ●
35 09.181 BOLT; IDLER PULLEY TO C/BL
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE 		0-28080-816-0 05 1 9811-0105 ●
35 09.181 BOLT; IDLER PULLEY TO C/BL
AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE 		0-28080-816-0 05 1 0106- ●
57 09.171 BRACKET; IDLER PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97081-262-2 01 1 9811-0105 ●
57 09.171 BRACKET; IDLER PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97081-262-2 01 1 0106- ●
66 01.066 BELT; A/C CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-2 01 1 9811- ● ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 M8X50 FLANGE 		0-28080-850-0 01 1 9811- ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE 		8-94344-540-1 01 1 9811- ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X100 FLANGE 		0-28181-000-0 01 1 9811-0105 ●
316 09.242 BOLT; BRKT FIX
AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X100 FLANGE 		0-28181-000-0 01 1 0106- ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.330 M10X60 FLANGE 		0-28181-060-0 02 1 9811-0105 ●
316 09.242 BOLT; BRKT FIX
AIR CONDITIONER MANUAL CONT(C60) 03.330 M10X60 FLANGE 		0-28181-060-0 02 1 0106- ●
çizim 47393
78 378 177 166 210 177
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
31 09.181 BOLT; ADJ,IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 9811- ● ● ● ●
33 09.181 NUT; IDLER PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 9811- ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9811- ● ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CON PREPARATORY PACK<S6D> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9811- ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9811- ● ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CON PREPARATORY PACK<S6D> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9811- ●
166 09.226 BRACKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 		8-97090-310-1 01 1 9811- ● ● ● ● ● ● ●
177 09.242 BRACKET; PIPE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-192-0 01 1 9811- ● ● ● ● ● ● ●
177 09.242 BRACKET; PIPE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97090-311-1 01 1 9811- ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HF1 ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9811- ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 9811- ● ● ● ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-97096-815-0 01 1 9811- ● ● ● ● ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97096-815-0 01 1 9811- ●
378 09.211 HOSE; DRAIN,EVAPORATOR
AIR CON PREPARATORY PACK<S6D> 		8-97096-815-0 01 1 9811- ●

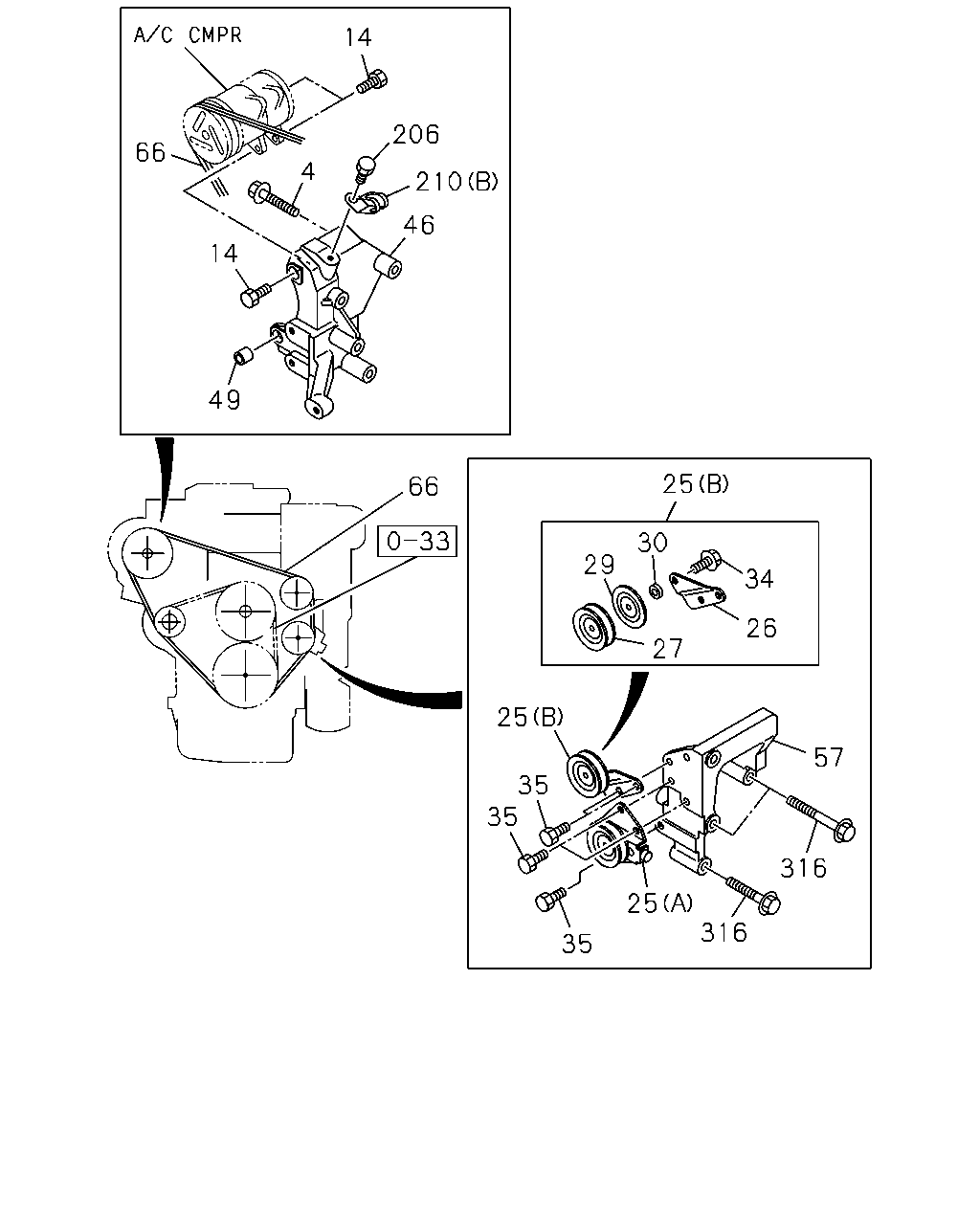

çizim 48971
14 206 66 4 210 46 14 49 25 66 30 29 34 26 27 25 57 35 35 316 25 316 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
4 09.171 BOLT; A/C CMPR BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE 		0-28181-090-0 01 1 9811- ● ● ● ● ●
4 09.171 BOLT; A/C CMPR BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE 		8-94399-863-1 02 1 9811- ● ● ● ● ●
14 09.171 BOLT; CMPR
4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) 03.613 M10X40 FLANGE 		0-28681-040-0 04 1 0201- ● ●
14 09.171 BOLT; CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40 		0-28281-040-0 04 1 9811- ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE 		8-97161-198-0 01 1 9811- ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE 		8-94334-696-2 01 1 9811-0105 ●
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE 		8-94334-696-2 01 1 0106- ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE 		8-94334-873-0 01 1 9811-0105 ●
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE 		8-94334-873-0 01 1 0106- ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97060-362-0 01 1 9811-0105 ●
26 09.180 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97060-362-0 01 1 0106- ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97161-031-0 01 1 9811- ● ● ● ●
27 09.180 PULLEY; IDLE,A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		9-13663-606-0 01 1 9811-0105 ●
27 09.180 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT(C60) 		9-13663-606-0 01 1 0106- ●
27 09.180 PULLEY; IDLE,A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97386-869-0 01 1 9811- ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		9-13669-603-0 02 1 9811-0105 ●
29 09.181 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) (A) 		9-13669-603-0 02 1 0106- ●
29 09.181 COVER; DUST,IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-114-0 01 1 9811- ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97384-115-0 01 1 9811- ● ● ● ●
30 09.181 COLLAR; IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-94207-192-0 01 1 9811-0105 ●
30 09.181 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-94207-192-0 01 1 0106- ●
30 09.181 COLLAR; IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-117-0 01 1 9811- ● ● ● ●
31 09.181 BOLT; ADJ,IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 9811- ● ● ● ●
33 09.181 NUT; IDLER PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 9811- ● ● ● ●
34 09.181 SHAFT; IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X30 		0-28121-030-0 01 1 9811-0105 ●
34 09.181 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X30 		0-28121-030-0 01 1 0106- ●
34 09.181 SHAFT; IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-116-0 01 1 9811- ● ● ● ●
35 09.181 BOLT; IDLER PULLEY TO C/BL
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE 		0-28080-816-0 05 1 9811-0105 ●
35 09.181 BOLT; IDLER PULLEY TO C/BL
AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE 		0-28080-816-0 05 1 0106- ●
46 09.171 BRACKET; CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97147-029-0 01 1 9811- ● ● ● ● ●
49 09.171 COLLAR; BRKT,CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97147-059-0 02 1 9811- ● ● ● ● ●
57 09.171 BRACKET; IDLER PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97081-262-2 01 1 9811-0105 ●
57 09.171 BRACKET; IDLER PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97081-262-2 01 1 0106- ●
66 01.066 BELT; A/C CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-2 01 1 9811- ● ● ● ● ●
206 09.242 BOLT; CLIP BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE 		0-28280-612-0 01 1 9811- ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HF1 ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9811- ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 9811- ● ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 M8X50 FLANGE 		0-28080-850-0 01 1 9811- ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE 		8-94344-540-1 01 1 9811- ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X100 FLANGE 		0-28181-000-0 01 1 9811-0105 ●
316 09.242 BOLT; BRKT FIX
AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X100 FLANGE 		0-28181-000-0 01 1 0106- ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.330 M10X60 FLANGE 		0-28181-060-0 02 1 9811-0105 ●
316 09.242 BOLT; BRKT FIX
AIR CONDITIONER MANUAL CONT(C60) 03.330 M10X60 FLANGE 		0-28181-060-0 02 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
