0-31 — THERMOSTAT AND HOUSING (#2163) — 40 parça

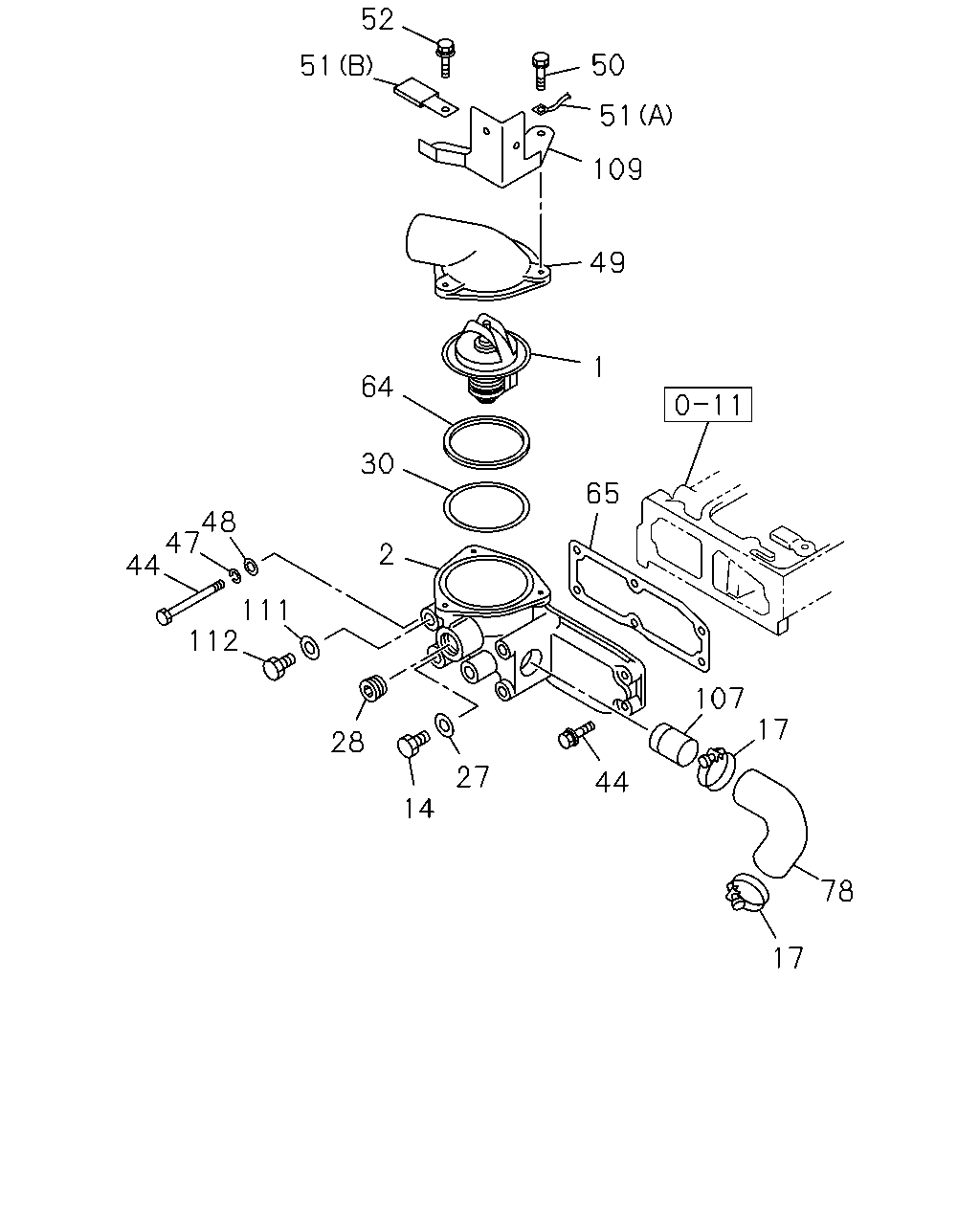

çizim 93318
52 50 51 51 109 49 1 64 30 65 48 47 44 2 111 112 107 17 28 27 44 14 78 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 THERMOSTAT
82?C 		5-13770-031-0 01 1 9101-9108 ● ●
1 THERMOSTAT
82?C 		1-13770-073-0 01 1 9109- ● ●
2 HOUSING; THERMOSTAT
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E) 		1-13716-157-1 01 1 9101-9108 ● ●
2 HOUSING; THERMOSTAT
LEFT HAND DRIVE(MTR6FB) 		1-13716-157-1 01 1 9101-9108 ● ●
2 HOUSING; THERMOSTAT
RIGHT HAND DRIVE(MTR5FB) ENGINE OIL COOLER HEAVY DUTY(E1E) 		1-13716-159-1 01 1 9101-9108 ●
2 HOUSING; THERMOSTAT 1-13716-131-2 01 1 9109- ● ●
14 PLUG; SW
M16X8 PLUG 		9-09661-005-0 01 1 9101- ● ●
17 CLIP; WATER HOSE
ID=40 		5-09704-046-0 02 1 9101- ● ●
27 GASKET; SW
ID=16.2 OD=24 		9-09571-416-0 01 1 9101- ● ●
28 PLUG; HTR
PT3/4 		9-09664-005-0 01 1 9101- ● ●
30 SPACER
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) ID=74 OD=82 T=1.2 		5-13749-001-0 01 1 9410-0203 ●
30 SPACER
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> ID=74 OD=82 T=1.2 		5-13749-001-0 01 1 9410-0203 ●
44 BOLT; HSG TO HD
M10X95 		0-10806-095-0 03 1 9101- ● ●
44 BOLT; HSG TO HD
M10X35 W/LK&PL WASHER 		0-50141-035-0 03 1 9101-9707 ● ●
44 BOLT; HSG TO HD
M10X35 FLANGE 		0-28681-035-0 03 1 9708- ● ●
47 WASHER; LK,THERMOSTAT HSG
ID=10.2 		9-09150-510-0 03 1 9101- ● ●
48 WASHER; PL,THERMOSTAT HSG
ID=10.5 OD=18 		9-09160-510-0 01 1 9101- ● ●
49 PIPE; WATER OUTLET
ENGINE OIL COOLER HEAVY DUTY(E1E) 		1-13713-039-0 01 1 9101-9108 ● ●
49 PIPE; WATER OUTLET 1-13713-039-0 01 1 9109- ● ●
49 PIPE; WATER OUTLET
EXC. ENGINE OIL COOLER HEAVY DUTY(E1E) 		5-13713-009-1 01 1 9101-9108 ● ●
50 BOLT; OUTLET PIPE
M8X35 W/LK&PL WASHER 		0-50140-835-0 02 1 9101- ● ●
51 CLIP; JOINT,THERMOSTAT
(B) L=60 		1-09700-304-0 01 1 9101- ● ●
51 CLIP; JOINT,THERMOSTAT
(A) L=63 		1-09700-418-1 01 1 9101- ● ●
52 BOLT; JOINT,THERMOSTAT
M8X25 W/LK&PL WASHER 		0-50140-825-0 01 1 9101- ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) WO/SPACER 		1-13743-016-0 01 1 9101- ● ●
65 GASKET; HSG TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-13741-010-0 01 1 9101-9510 ● ●
65 GASKET; HSG TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-13741-013-0 01 1 9511-0012 ● ●
65 GASKET; HSG TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97235-789-1 01 1 0101- ● ●
78 HOSE; RUBBER,WATER PIPE 1-13721-094-0 01 1 9101- ● ●
107 PIPE; WATER,BYPASS 5-13721-015-2 01 1 9101-9409 ● ●
107 PIPE; WATER,BYPASS 5-13721-015-2 01 1 9410-9410 ●
107 PIPE; WATER,BYPASS
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 		5-13721-015-2 01 1 9410-9410 ●
107 PIPE; WATER,BYPASS
LEFT HAND DRIVE(MTR6FB) 		5-13721-015-2 01 1 9410-9410 ●
107 PIPE; WATER,BYPASS 5-13721-015-2 01 1 9411- ● ●
107 PIPE; WATER,BYPASS
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) 		1-13721-544-0 01 1 9410-0203 ●
107 PIPE; WATER,BYPASS
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		1-13721-544-0 01 1 9410-0203 ●
109 BRACKET; FAN GUIDE 1-21559-161-1 01 1 9101-9108 ● ●
109 BRACKET; FAN GUIDE 1-21559-198-1 01 1 9109- ● ●
111 GASKET; PLUG,WATER PIPE HOLE
ID=14.2 OD=20.0 		9-09571-414-0 01 1 9101- ● ●
112 PLUG
M14X9 		9-99202-314-0 01 1 9101- ● ●
