Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#21625) — 599 parça

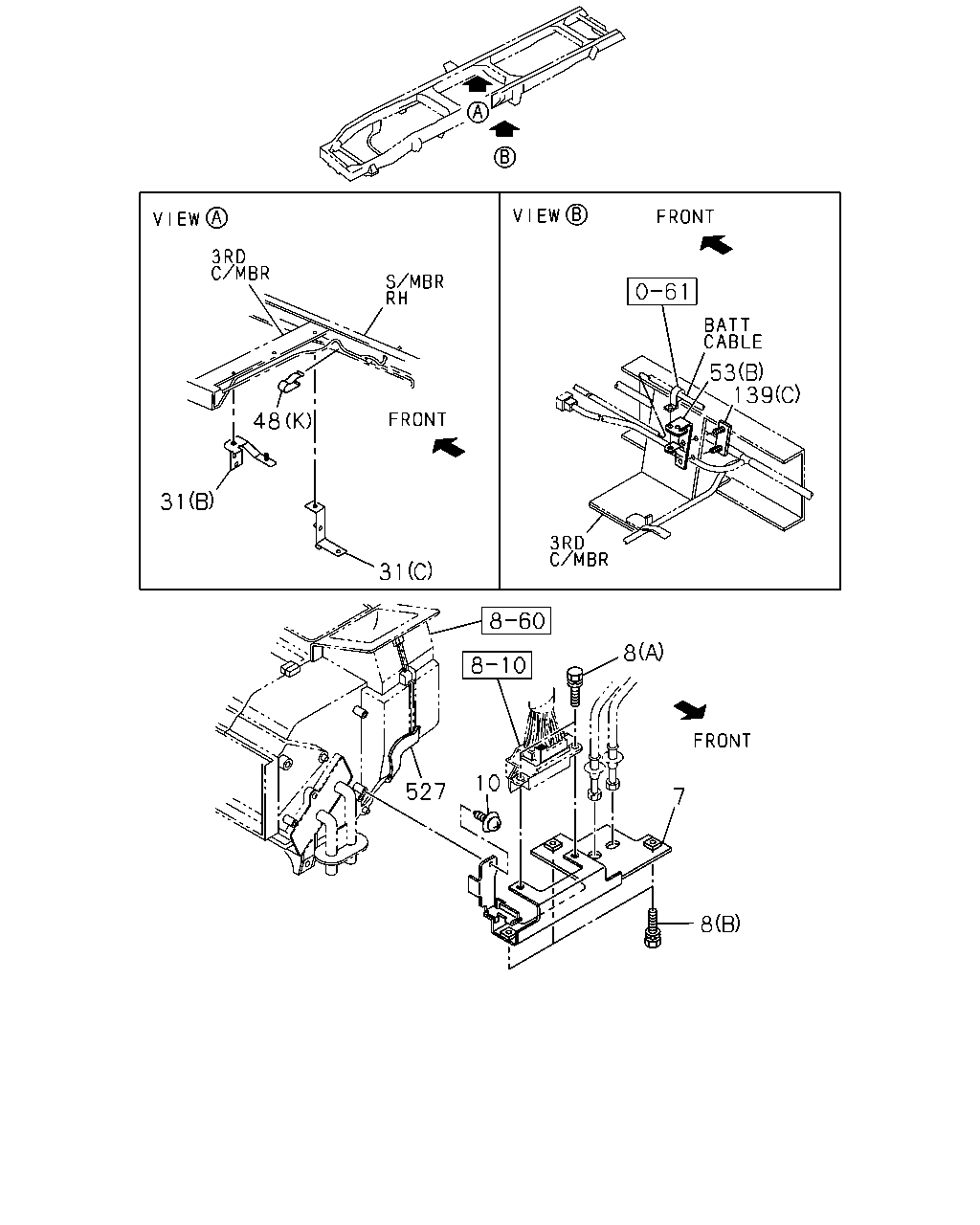

16 16 116 48 16 183 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
16	02.559 CLIP; HARNESS (A) L=250	5-09707-030-1	AR	1	9811-	●	●	●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=100	8-94442-388-0	AR	1	9811-		●				●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (E) L=100	8-94327-067-1	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (G) L=140	5-09707-031-1	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (H) ID=6 & 10-13	8-97069-515-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (I) L=155	8-97173-307-0	AR	1	9905-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.166 (J) ID=22 & 22	8-94464-837-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (K) L=60	8-94457-053-0	AR	1	9811-0105		●				●
16	02.559 CLIP; HARNESS 04.342 (L) ID=14-12	8-94379-592-0	AR	1	9811-0006		●				●
16	02.559 CLIP; HARNESS (M) L=80	5-09700-307-1	AR	1	9811-		●
16	02.559 CLIP; HARNESS (N) ID=15-32	8-97174-404-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (O) L=170.3	1-09987-182-0	AR	1	9811-			●
16	02.559 CLIP; HARNESS (P) L=175	8-97110-167-0	AR	1	9811-9904	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (Q) ID=12	5-09700-331-0	AR	1	0201-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (D) ID=9.6	8-94147-870-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (F) ID=10 & 11	8-94438-996-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.855 (E) ID=8.3 & 16.5	8-94169-027-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=35 L=35	1-09700-895-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (H) ID=14-20	8-97061-603-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.516 (I) ID=13 L=20	9-09525-235-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) T=9.2	5-09709-013-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=25 L=60	1-09701-041-1	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=20	5-09700-321-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=9	8-97063-874-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=20	8-94169-650-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (P) L=140	5-09707-031-1	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (Q) L=170.3	1-09987-182-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) ID=5-12 L=14.5	1-09987-221-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (S) ID=19 L=60	9-09525-893-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) ID=28 L=32	1-09701-064-1	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.866 (U) ID=24 H=60 L=27	1-09701-004-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (V) ID=19 H=70 L=25	1-09700-773-0	AR	1	0008-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (W) L=250	5-09707-030-1	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (X) ID=31 L=33.5	1-09987-165-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (Y) ID=24 L=49	8-94149-610-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (Z) T=4.5 & 9	5-09709-023-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (AA) ID=11 L=16	9-09525-025-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (AB) T=9.2 & 9	5-09709-025-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (AC) L=330	5-09709-118-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (AD) ID=27	5-09700-323-0	AR	1	9811-	●	●	●	●	●	●	●
116	02.559 CLIP; ROOF HARNESS CAB-LOW ROOF<6XQ> 16.065 1 SET=5 PIECE	1-09987-214-0	01	1	9811-			●
183	02.559 CLIP; CONNECTOR 4HF1 ENG(RLS) 02.480 (A) ID=10.5 & 4.8	8-97019-966-0	01	1	9811-	●		●	●	●	●
183	02.559 CLIP; CONNECTOR (B) L=15	8-94315-436-1	02	1	9811-		●				●

219 219 219 294 515 524 219 469 515 524 519 55 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
55	02.559 WASHER; PL,CLIP 02.587 ID=6.4 OD=18	9-09160-706-0	AR	1	9811-	●	●	●	●	●	●	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	AR	1	9811-	●	●	●	●	●	●	●
219	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	AR	1	9811-	●	●	●	●	●	●	●
219	02.559 NUT 09.744 (A) M5 FLANGE	5-09440-003-0	AR	1	9811-	●	●	●	●	●	●	●
219	02.559 NUT (E)	8-97108-658-0	AR	1	9811-	●	●	●	●	●	●	●
219	02.559 NUT 07.829 (D) M6 FLANGE	5-09440-004-0	AR	1	9811-	●		●	●	●	●
294	02.559 NUT 04.594 M6 FLANGE	0-91150-106-0	AR	1	9811-	●	●	●	●	●	●
469	02.559 NUT; PROTECTOR 07.633 M8 FLANGE	0-91150-108-0	AR	1	9811-	●	●	●	●	●	●	●
515	02.559 NUT; BRKT 4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9811-0012	●				●	●
515	02.559 NUT; BRKT 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9811-0012			●
515	02.559 NUT; BRKT 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9811-0012				●
515	02.559 NUT; BRKT 4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0101-0105	●			●	●	●
515	02.559 NUT; BRKT 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0101-0105			●
515	02.559 NUT; BRKT 4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0106-0112	●			●	●
515	02.559 NUT; BRKT 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0106-0112			●
515	02.559 NUT; BRKT 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0106-0112						●
515	02.559 NUT; BRKT 4JH1 ENG(RJX),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0201-	●		●	●	●	●
515	02.559 NUT; BRKT 4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9811-			●
519	02.559 NUT; EARTH CABLE 05.586 M12 FLANGE	0-91150-112-0	AR	1	9811-	●	●	●	●	●	●	●
524	02.559 NUT; HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) POWER STEERING<N40> 01.540 (A) M8 FLANGE	0-91150-208-0	01	1	0201-	●				●
524	02.559 NUT; HARNESS 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FIRE TRUCK CHASSIS(V4F) 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9811-0105			●
524	02.559 NUT; HARNESS 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9811-0105			●

48 483 48 483 48 48 48 48 16 49 206 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
16	02.559 CLIP; HARNESS (A) L=250	5-09707-030-1	AR	1	9811-	●	●	●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=100	8-94442-388-0	AR	1	9811-		●				●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (E) L=100	8-94327-067-1	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (G) L=140	5-09707-031-1	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (H) ID=6 & 10-13	8-97069-515-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (I) L=155	8-97173-307-0	AR	1	9905-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.166 (J) ID=22 & 22	8-94464-837-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (K) L=60	8-94457-053-0	AR	1	9811-0105		●				●
16	02.559 CLIP; HARNESS 04.342 (L) ID=14-12	8-94379-592-0	AR	1	9811-0006		●				●
16	02.559 CLIP; HARNESS (M) L=80	5-09700-307-1	AR	1	9811-		●
16	02.559 CLIP; HARNESS (N) ID=15-32	8-97174-404-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (O) L=170.3	1-09987-182-0	AR	1	9811-			●
16	02.559 CLIP; HARNESS (P) L=175	8-97110-167-0	AR	1	9811-9904	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (Q) ID=12	5-09700-331-0	AR	1	0201-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (D) ID=9.6	8-94147-870-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (F) ID=10 & 11	8-94438-996-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.855 (E) ID=8.3 & 16.5	8-94169-027-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=35 L=35	1-09700-895-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (H) ID=14-20	8-97061-603-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.516 (I) ID=13 L=20	9-09525-235-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) T=9.2	5-09709-013-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=25 L=60	1-09701-041-1	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=20	5-09700-321-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=9	8-97063-874-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=20	8-94169-650-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (P) L=140	5-09707-031-1	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (Q) L=170.3	1-09987-182-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) ID=5-12 L=14.5	1-09987-221-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (S) ID=19 L=60	9-09525-893-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) ID=28 L=32	1-09701-064-1	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.866 (U) ID=24 H=60 L=27	1-09701-004-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (V) ID=19 H=70 L=25	1-09700-773-0	AR	1	0008-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (W) L=250	5-09707-030-1	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (X) ID=31 L=33.5	1-09987-165-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (Y) ID=24 L=49	8-94149-610-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (Z) T=4.5 & 9	5-09709-023-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (AA) ID=11 L=16	9-09525-025-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (AB) T=9.2 & 9	5-09709-025-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (AC) L=330	5-09709-118-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (AD) ID=27	5-09700-323-0	AR	1	9811-	●	●	●	●	●	●	●
49	02.559 CLIP; GEN HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) POWER STEERING<N40> ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0201-	●				●
206	02.559 CLIP; FUEL TANK HARNESS 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 03.162 (A) L=140	5-09707-031-1	01	1	9811-0105			●
206	02.559 CLIP; FUEL TANK HARNESS 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 03.162 (B)	5-09709-095-0	01	1	9811-0105			●
206	02.559 CLIP; FUEL TANK HARNESS 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FIRE TRUCK CHASSIS(V4F) 03.162 (B)	5-09709-095-0	01	1	9811-0105			●
483	02.559 CLIP; ENG HARNESS 04.342 (A) L=197	1-83574-032-0	AR	1	9811-	●	●	●	●	●	●	●
483	02.559 CLIP; ENG HARNESS (C) ID=11 L=20	9-09525-035-0	AR	1	9811-	●	●	●	●	●	●	●
483	02.559 CLIP; ENG HARNESS 03.162 (B) L=140	5-09707-031-1	AR	1	9811-	●		●	●	●	●
483	02.559 CLIP; ENG HARNESS 02.343 (D) ID=16 L=20	9-09525-535-0	AR	1	9811-	●	●	●	●	●	●	●

31 31 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1 ENG(RJX) (D)	8-97288-169-0	01	1	0201-					●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	02	1	9811-0012	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	9811-0012			●			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	9811-0012					●		●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	02	1	0101-0105	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0101-0105			●			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC) (B)	8-97077-845-0	02	1	0101-0105				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0101-0105					●		●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B)	8-97077-845-0	02	1	0106-0112	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	02	1	0106-0112		●					●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0106-0112			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC) (B)	8-97077-845-0	02	1	0106-0112				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0106-0112					●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	02	1	0201-	●	●					●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0201-			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC) (B)	8-97077-845-0	02	1	0201-				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0201-					●
31	02.559 BRACKET; HARNESS CLIP,PIPE (A) L=20	8-94165-263-1	01	1	9811-0012	●	●		●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) L=20	8-94165-263-1	01	1	9811-0012			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=20	8-94165-263-1	01	1	9811-0012						●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=20	8-94165-263-1	01	1	9811-0012							●
31	02.559 BRACKET; HARNESS CLIP,PIPE (A) L=20	8-94165-263-1	01	1	0101-0105	●	●			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) L=20	8-94165-263-1	01	1	0101-0105			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4HF1 ENG(RLS) (A) L=20	8-94165-263-1	01	1	0101-0105				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=20	8-94165-263-1	01	1	0101-0105						●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=20	8-94165-263-1	01	1	0101-0105							●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=20	8-94165-263-1	01	1	0106-0112	●				●
31	02.559 BRACKET; HARNESS CLIP,PIPE (A) L=20	8-94165-263-1	01	1	0106-0112		●				●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) L=20	8-94165-263-1	01	1	0106-0112			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4HF1 ENG(RLS) (A) L=20	8-94165-263-1	01	1	0106-0112				●
31	02.559 BRACKET; HARNESS CLIP,PIPE (A) L=20	8-94165-263-1	01	1	0201-	●	●			●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) L=20	8-94165-263-1	01	1	0201-			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4HF1 ENG(RLS) (A) L=20	8-94165-263-1	01	1	0201-				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97017-071-2	01	1	9811-0012			●
31	02.559 BRACKET; HARNESS CLIP,PIPE (C)	8-97017-071-2	01	1	9811-0012				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) (C)	8-97017-071-2	01	1	9811-0012					●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97017-071-2	01	1	0101-0105			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) (C)	8-97017-071-2	01	1	0101-0105				●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97017-071-2	01	1	0106-			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) (C)	8-97017-071-2	01	1	0106-				●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (C)	8-97017-071-2	01	1	0106-						●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B)	8-97077-845-0	01	1	9811-0012			●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	01	1	9811-0012				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) (B)	8-97077-845-0	01	1	9811-0012					●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B)	8-97077-845-0	01	1	0101-0105			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) (B)	8-97077-845-0	01	1	0101-0105				●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B)	8-97077-845-0	01	1	0106-0112			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) (B)	8-97077-845-0	01	1	0106-0112				●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	01	1	0106-0112						●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B)	8-97077-845-0	01	1	0201-			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) (B)	8-97077-845-0	01	1	0201-				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1 ENG(RJX),4HF1 ENG(RLS) (B)	8-97077-845-0	01	1	0201-					●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	01	1	0201-						●

16 48 208 16 48 52 48 48 48 48 48 48 48 48 48 208 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
16	02.559 CLIP; HARNESS (A) L=250	5-09707-030-1	AR	1	9811-	●	●	●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=100	8-94442-388-0	AR	1	9811-		●				●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (E) L=100	8-94327-067-1	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (G) L=140	5-09707-031-1	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (H) ID=6 & 10-13	8-97069-515-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (I) L=155	8-97173-307-0	AR	1	9905-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.166 (J) ID=22 & 22	8-94464-837-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (K) L=60	8-94457-053-0	AR	1	9811-0105		●				●
16	02.559 CLIP; HARNESS 04.342 (L) ID=14-12	8-94379-592-0	AR	1	9811-0006		●				●
16	02.559 CLIP; HARNESS (M) L=80	5-09700-307-1	AR	1	9811-		●
16	02.559 CLIP; HARNESS (N) ID=15-32	8-97174-404-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (O) L=170.3	1-09987-182-0	AR	1	9811-			●
16	02.559 CLIP; HARNESS (P) L=175	8-97110-167-0	AR	1	9811-9904	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (Q) ID=12	5-09700-331-0	AR	1	0201-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (D) ID=9.6	8-94147-870-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (F) ID=10 & 11	8-94438-996-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.855 (E) ID=8.3 & 16.5	8-94169-027-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=35 L=35	1-09700-895-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (H) ID=14-20	8-97061-603-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.516 (I) ID=13 L=20	9-09525-235-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) T=9.2	5-09709-013-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=25 L=60	1-09701-041-1	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=20	5-09700-321-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=9	8-97063-874-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=20	8-94169-650-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (P) L=140	5-09707-031-1	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (Q) L=170.3	1-09987-182-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) ID=5-12 L=14.5	1-09987-221-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (S) ID=19 L=60	9-09525-893-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) ID=28 L=32	1-09701-064-1	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.866 (U) ID=24 H=60 L=27	1-09701-004-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (V) ID=19 H=70 L=25	1-09700-773-0	AR	1	0008-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (W) L=250	5-09707-030-1	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (X) ID=31 L=33.5	1-09987-165-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (Y) ID=24 L=49	8-94149-610-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (Z) T=4.5 & 9	5-09709-023-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (AA) ID=11 L=16	9-09525-025-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (AB) T=9.2 & 9	5-09709-025-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (AC) L=330	5-09709-118-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (AD) ID=27	5-09700-323-0	AR	1	9811-	●	●	●	●	●	●	●
52	02.559 CLIP; HARNESS TO BRKT EXC. FRAME-KICK UP<7EW> 01.240 ID=14 L=47	5-09700-319-0	01	1	9811-			●
52	02.559 CLIP; HARNESS TO BRKT 01.240 ID=14 L=47	5-09700-319-0	01	1	9811-				●	●
208	02.559 CLIP; HARNESS,MAG VLV 03.162 (C) L=140	5-09707-031-1	AR	1	0106-	●
208	02.559 CLIP; HARNESS,MAG VLV 01.240 (B) T=5.5	5-09709-047-0	AR	1	9811-	●	●	●	●	●	●	●
208	02.559 CLIP; HARNESS,MAG VLV 02.557 (A) ID=10	5-09700-318-0	AR	1	9811-0002	●	●	●	●	●	●	●

16 264 48 16 264 16 48 16 48 464 397 48 183 48 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
16	02.559 CLIP; HARNESS (A) L=250	5-09707-030-1	AR	1	9811-	●	●	●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=100	8-94442-388-0	AR	1	9811-		●				●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (E) L=100	8-94327-067-1	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (G) L=140	5-09707-031-1	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (H) ID=6 & 10-13	8-97069-515-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (I) L=155	8-97173-307-0	AR	1	9905-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.166 (J) ID=22 & 22	8-94464-837-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (K) L=60	8-94457-053-0	AR	1	9811-0105		●				●
16	02.559 CLIP; HARNESS 04.342 (L) ID=14-12	8-94379-592-0	AR	1	9811-0006		●				●
16	02.559 CLIP; HARNESS (M) L=80	5-09700-307-1	AR	1	9811-		●
16	02.559 CLIP; HARNESS (N) ID=15-32	8-97174-404-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (O) L=170.3	1-09987-182-0	AR	1	9811-			●
16	02.559 CLIP; HARNESS (P) L=175	8-97110-167-0	AR	1	9811-9904	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (Q) ID=12	5-09700-331-0	AR	1	0201-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (D) ID=9.6	8-94147-870-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (F) ID=10 & 11	8-94438-996-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.855 (E) ID=8.3 & 16.5	8-94169-027-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=35 L=35	1-09700-895-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (H) ID=14-20	8-97061-603-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.516 (I) ID=13 L=20	9-09525-235-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) T=9.2	5-09709-013-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=25 L=60	1-09701-041-1	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=20	5-09700-321-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=9	8-97063-874-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=20	8-94169-650-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (P) L=140	5-09707-031-1	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (Q) L=170.3	1-09987-182-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) ID=5-12 L=14.5	1-09987-221-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (S) ID=19 L=60	9-09525-893-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) ID=28 L=32	1-09701-064-1	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.866 (U) ID=24 H=60 L=27	1-09701-004-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (V) ID=19 H=70 L=25	1-09700-773-0	AR	1	0008-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (W) L=250	5-09707-030-1	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (X) ID=31 L=33.5	1-09987-165-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (Y) ID=24 L=49	8-94149-610-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (Z) T=4.5 & 9	5-09709-023-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (AA) ID=11 L=16	9-09525-025-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (AB) T=9.2 & 9	5-09709-025-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (AC) L=330	5-09709-118-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (AD) ID=27	5-09700-323-0	AR	1	9811-	●	●	●	●	●	●	●
183	02.559 CLIP; CONNECTOR 4HF1 ENG(RLS) 02.480 (A) ID=10.5 & 4.8	8-97019-966-0	01	1	9811-	●		●	●	●	●
183	02.559 CLIP; CONNECTOR (B) L=15	8-94315-436-1	02	1	9811-		●				●
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	03	1	9811-0101	●	●	●	●	●	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	02	1	0102-	●	●	●	●	●	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0102-	●	●	●	●	●	●	●
397	02.559 CLIP; RR DOOR HARNESS AUTO DOOR LOCK<AU4> 10.154 ID=7	8-97014-713-0	02	1	9811-		●				●
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (B) ID=6.5	8-94257-639-0	AR	1	9811-	●	●	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 02.587 (A) L=112	8-94232-618-0	AR	1	9811-	●		●	●	●	●

53 31 312 312 510 504 514 514 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1 ENG(RJX) (D)	8-97288-169-0	01	1	0201-					●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	02	1	9811-0012	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	9811-0012			●			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	9811-0012					●		●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	02	1	0101-0105	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0101-0105			●			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC) (B)	8-97077-845-0	02	1	0101-0105				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0101-0105					●		●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B)	8-97077-845-0	02	1	0106-0112	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	02	1	0106-0112		●					●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0106-0112			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC) (B)	8-97077-845-0	02	1	0106-0112				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0106-0112					●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	02	1	0201-	●	●					●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0201-			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC) (B)	8-97077-845-0	02	1	0201-				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0201-					●
31	02.559 BRACKET; HARNESS CLIP,PIPE (A) L=20	8-94165-263-1	01	1	9811-0012	●	●		●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) L=20	8-94165-263-1	01	1	9811-0012			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=20	8-94165-263-1	01	1	9811-0012						●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=20	8-94165-263-1	01	1	9811-0012							●
31	02.559 BRACKET; HARNESS CLIP,PIPE (A) L=20	8-94165-263-1	01	1	0101-0105	●	●			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) L=20	8-94165-263-1	01	1	0101-0105			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4HF1 ENG(RLS) (A) L=20	8-94165-263-1	01	1	0101-0105				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=20	8-94165-263-1	01	1	0101-0105						●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=20	8-94165-263-1	01	1	0101-0105							●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=20	8-94165-263-1	01	1	0106-0112	●				●
31	02.559 BRACKET; HARNESS CLIP,PIPE (A) L=20	8-94165-263-1	01	1	0106-0112		●				●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) L=20	8-94165-263-1	01	1	0106-0112			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4HF1 ENG(RLS) (A) L=20	8-94165-263-1	01	1	0106-0112				●
31	02.559 BRACKET; HARNESS CLIP,PIPE (A) L=20	8-94165-263-1	01	1	0201-	●	●			●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) L=20	8-94165-263-1	01	1	0201-			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4HF1 ENG(RLS) (A) L=20	8-94165-263-1	01	1	0201-				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97017-071-2	01	1	9811-0012			●
31	02.559 BRACKET; HARNESS CLIP,PIPE (C)	8-97017-071-2	01	1	9811-0012				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) (C)	8-97017-071-2	01	1	9811-0012					●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97017-071-2	01	1	0101-0105			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) (C)	8-97017-071-2	01	1	0101-0105				●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97017-071-2	01	1	0106-			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) (C)	8-97017-071-2	01	1	0106-				●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (C)	8-97017-071-2	01	1	0106-						●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B)	8-97077-845-0	01	1	9811-0012			●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	01	1	9811-0012				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) (B)	8-97077-845-0	01	1	9811-0012					●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B)	8-97077-845-0	01	1	0101-0105			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) (B)	8-97077-845-0	01	1	0101-0105				●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B)	8-97077-845-0	01	1	0106-0112			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) (B)	8-97077-845-0	01	1	0106-0112				●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	01	1	0106-0112						●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B)	8-97077-845-0	01	1	0201-			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) (B)	8-97077-845-0	01	1	0201-				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1 ENG(RJX),4HF1 ENG(RLS) (B)	8-97077-845-0	01	1	0201-					●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	01	1	0201-						●
53	02.483 BRACKET; HARNESS 4HF1 ENG(RLS) (B)	8-97062-178-3	01	1	9811-0105	●		●	●	●	●
53	02.483 BRACKET; HARNESS 4HF1 ENG(RLS) (B)	8-97062-178-3	01	1	0106-0112	●		●	●	●
53	02.483 BRACKET; HARNESS (B)	8-97062-178-3	01	1	0106-0112						●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX),4HF1 ENG(RLS) (B)	8-97062-178-3	01	1	0201-	●				●
53	02.483 BRACKET; HARNESS 4HF1 ENG(RLS) (B)	8-97062-178-3	01	1	0201-			●	●
53	02.483 BRACKET; HARNESS (B)	8-97062-178-3	01	1	0201-						●
53	02.483 BRACKET; HARNESS 4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A)	8-97091-462-1	01	1	9811-			●
312	02.559 BRACKET; CLIP HARNESS 4HF1 ENG(RLS) (A)	8-97018-095-3	01	1	9811-0012	●				●	●
312	02.559 BRACKET; CLIP HARNESS 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (A)	8-97018-095-3	01	1	9811-0012			●
312	02.559 BRACKET; CLIP HARNESS (A)	8-97018-095-3	01	1	9811-0012				●
312	02.559 BRACKET; CLIP HARNESS 4HF1 ENG(RLS) (A)	8-97018-095-3	01	1	0101-0105	●			●	●	●
312	02.559 BRACKET; CLIP HARNESS 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (A)	8-97018-095-3	01	1	0101-0105			●
312	02.559 BRACKET; CLIP HARNESS 4HF1 ENG(RLS) (A)	8-97018-095-3	01	1	0106-	●			●	●
312	02.559 BRACKET; CLIP HARNESS 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (A)	8-97018-095-3	01	1	0106-			●
312	02.559 BRACKET; CLIP HARNESS (A)	8-97018-095-3	01	1	0106-						●
312	02.559 BRACKET; CLIP HARNESS 4HF1 ENG(RLS) FRAME-KICK UP<7EW> (B)	8-97046-762-0	01	1	0004-			●
504	02.559 PROTECTOR; HARNESS 16.225 L=200 SERVICED BY L=3060	9-65731-223-1	01	1	9811-0105	●	●		●	●	●	●
504	02.559 PROTECTOR; HARNESS EXC. FRAME-KICK UP<7EW> 16.225 L=200 SERVICED BY L=3060	9-65731-223-1	01	1	9811-0105			●
504	02.559 PROTECTOR; HARNESS EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 L=200	8-97096-423-0	01	1	0106-	●
504	02.559 PROTECTOR; HARNESS 04.785 L=200	8-97096-423-0	01	1	0106-		●		●	●	●	●
504	02.559 PROTECTOR; HARNESS EXC. FRAME-KICK UP<7EW> 04.785 L=200	8-97096-423-0	01	1	0106-			●
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	9811-	●	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 4JH1 ENG(RJX) (C) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0201-	●				●
514	02.559 FINISHER; HARNESS 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	9811-0105	●	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	02	1	0106-	●				●
514	02.559 FINISHER; HARNESS 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	02	1	0106-		●				●	●
514	02.559 FINISHER; HARNESS 4JB1 ENG(RLF),4HF1 ENG(RLS) 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	02	1	0106-			●
514	02.559 FINISHER; HARNESS 4JG2 ENG(RJC),4HF1 ENG(RLS) 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	02	1	0106-				●
514	02.559 FINISHER; HARNESS 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	03	1	9811-0105	●	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0106-0112	●	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0106-0112	●	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0201-	●	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0201-	●	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 4JH1 ENG(RJX) 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0201-	●				●
514	02.559 FINISHER; HARNESS 16.550 (B) L=175 SERVICED BY L=2040	1-71997-513-1	01	1	9811-	●	●	●	●	●	●	●

150 38 8 38 460 38 139 150 516 150 139 377 139 8 38 139 516 38 139 466 386 358 159 139 64 511 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
8	02.559 BOLT; BRKT,CONNECTOR (B) M8X25 FLANGE	0-28680-825-0	03	1	9811-	●	●	●	●	●	●	●
8	02.559 BOLT; BRKT,CONNECTOR 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-	●	●	●	●	●	●	●
10	02.559 SCREW; BRKT TO BODY 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9811-	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 04.329 (A) M5X16 W/LK WASHER	9-03910-516-0	AR	1	9811-	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	AR	1	9811-	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 04.930 (C) M6X20 FLANGE	0-28680-620-0	AR	1	9811-	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.334 (D) M6X25 FLANGE	0-28680-625-0	AR	1	9811-	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 06.008 (E) M8X12,M8X30 L=50	8-97032-290-0	AR	1	9811-			●
64	02.559 SCREW; CLIP 16.742 M4X16 TAPPING	1-09981-477-0	01	1	9811-		●				●
139	02.559 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	AR	1	9811-	●	●	●	●	●	●	●
139	02.559 BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	AR	1	9811-	●	●	●	●	●	●	●
139	02.559 BOLT; BRKT (C)	8-97028-451-3	AR	1	9811-	●	●	●	●	●	●	●
139	02.559 BOLT; BRKT 02.183 (D) M8X35 FLANGE	0-28680-835-0	AR	1	9811-	●	●	●	●	●	●	●
139	02.559 BOLT; BRKT 02.664 (F) M8X20 FLANGE	0-28680-820-0	AR	1	0106-	●	●	●	●	●	●	●
139	02.559 BOLT; BRKT 02.334 (E) M6X25 FLANGE	0-28680-625-0	AR	1	0004-	●	●	●	●	●	●	●
150	02.343 BOLT; CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	AR	1	9811-	●	●	●	●	●	●	●
150	02.343 BOLT; CLIP 02.334 (B) M6X25 FLANGE	0-28680-625-0	AR	1	9811-	●	●	●	●	●	●	●
150	02.343 BOLT; CLIP 02.500 (C) M6X10 FLANGE	0-28080-610-0	AR	1	0201-	●	●	●	●	●	●	●
159	02.559 BOLT; GRAND ENG ELEC 02.343 M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9811-	●	●	●	●	●	●	●
358	02.480 BOLT; EARTH 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0005-	●		●	●	●	●
377	02.559 BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9811-	●	●	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	9811-	●	●	●	●	●	●	●
460	02.559 BOLT; HARNESS PROTECTOR FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9811-0105			●
460	02.559 BOLT; HARNESS PROTECTOR FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0106-	●
460	02.559 BOLT; HARNESS PROTECTOR FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0106-			●
466	02.483 BOLT; HEAT PROTECTOR 02.183 M8X35 FLANGE	0-28680-835-0	AR	1	9811-	●	●	●	●	●	●	●
511	02.559 SCREW; HARNESS COVER 08.845 M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	9811-	●	●	●	●	●	●	●
516	02.559 BOLT; HARNESS 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FIRE TRUCK CHASSIS(V4F) (A) M8X25 FLANGE	0-28680-825-0	01	1	9811-0105			●
516	02.559 BOLT; HARNESS 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 02.334 (B) M6X25 FLANGE	0-28680-625-0	01	1	9811-0105			●

16 48 488 48 14 16 48 162 208 206 220 483 484 16 48 16 16 464 488 483 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
14	02.559 CLIP; BAND,HARNESS 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 L=140	5-09707-031-1	01	1	9811-	●		●	●	●
16	02.559 CLIP; HARNESS (A) L=250	5-09707-030-1	AR	1	9811-	●	●	●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=100	8-94442-388-0	AR	1	9811-		●				●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (E) L=100	8-94327-067-1	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (G) L=140	5-09707-031-1	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (H) ID=6 & 10-13	8-97069-515-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (I) L=155	8-97173-307-0	AR	1	9905-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.166 (J) ID=22 & 22	8-94464-837-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (K) L=60	8-94457-053-0	AR	1	9811-0105		●				●
16	02.559 CLIP; HARNESS 04.342 (L) ID=14-12	8-94379-592-0	AR	1	9811-0006		●				●
16	02.559 CLIP; HARNESS (M) L=80	5-09700-307-1	AR	1	9811-		●
16	02.559 CLIP; HARNESS (N) ID=15-32	8-97174-404-0	AR	1	9811-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (O) L=170.3	1-09987-182-0	AR	1	9811-			●
16	02.559 CLIP; HARNESS (P) L=175	8-97110-167-0	AR	1	9811-9904	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (Q) ID=12	5-09700-331-0	AR	1	0201-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (D) ID=9.6	8-94147-870-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (F) ID=10 & 11	8-94438-996-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.855 (E) ID=8.3 & 16.5	8-94169-027-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=35 L=35	1-09700-895-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (H) ID=14-20	8-97061-603-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.516 (I) ID=13 L=20	9-09525-235-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) T=9.2	5-09709-013-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=25 L=60	1-09701-041-1	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=20	5-09700-321-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=9	8-97063-874-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=20	8-94169-650-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (P) L=140	5-09707-031-1	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (Q) L=170.3	1-09987-182-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) ID=5-12 L=14.5	1-09987-221-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (S) ID=19 L=60	9-09525-893-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) ID=28 L=32	1-09701-064-1	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.866 (U) ID=24 H=60 L=27	1-09701-004-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (V) ID=19 H=70 L=25	1-09700-773-0	AR	1	0008-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (W) L=250	5-09707-030-1	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (X) ID=31 L=33.5	1-09987-165-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (Y) ID=24 L=49	8-94149-610-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (Z) T=4.5 & 9	5-09709-023-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (AA) ID=11 L=16	9-09525-025-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (AB) T=9.2 & 9	5-09709-025-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (AC) L=330	5-09709-118-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (AD) ID=27	5-09700-323-0	AR	1	9811-	●	●	●	●	●	●	●
162	02.559 CLIP; SW HARNESS 4HF1 ENG(RLS) 03.162 L=140	5-09707-031-1	01	1	9811-0105	●		●	●	●	●
162	02.559 CLIP; SW HARNESS 4HF1 ENG(RLS) 03.162 L=140	5-09707-031-1	01	1	0106-0112	●		●	●	●
162	02.559 CLIP; SW HARNESS 03.162 L=140	5-09707-031-1	01	1	0106-0112						●
162	02.559 CLIP; SW HARNESS 4JH1 ENG(RJX),4HF1 ENG(RLS) 03.162 L=140	5-09707-031-1	01	1	0201-	●				●
162	02.559 CLIP; SW HARNESS 4HF1 ENG(RLS) 03.162 L=140	5-09707-031-1	01	1	0201-			●	●
162	02.559 CLIP; SW HARNESS 03.162 L=140	5-09707-031-1	01	1	0201-						●
206	02.559 CLIP; FUEL TANK HARNESS 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 03.162 (A) L=140	5-09707-031-1	01	1	9811-0105			●
206	02.559 CLIP; FUEL TANK HARNESS 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 03.162 (B)	5-09709-095-0	01	1	9811-0105			●
206	02.559 CLIP; FUEL TANK HARNESS 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FIRE TRUCK CHASSIS(V4F) 03.162 (B)	5-09709-095-0	01	1	9811-0105			●
208	02.559 CLIP; HARNESS,MAG VLV 03.162 (C) L=140	5-09707-031-1	AR	1	0106-	●
208	02.559 CLIP; HARNESS,MAG VLV 01.240 (B) T=5.5	5-09709-047-0	AR	1	9811-	●	●	●	●	●	●	●
208	02.559 CLIP; HARNESS,MAG VLV 02.557 (A) ID=10	5-09700-318-0	AR	1	9811-0002	●	●	●	●	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 L=140	5-09707-031-1	01	1	0201-	●
220	02.559 CLIP; HARNESS TO CABLE 4JH1 ENG(RJX) 03.162 L=140	5-09707-031-1	01	1	0201-					●
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (B) ID=6.5	8-94257-639-0	AR	1	9811-	●	●	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 02.587 (A) L=112	8-94232-618-0	AR	1	9811-	●		●	●	●	●
483	02.559 CLIP; ENG HARNESS 04.342 (A) L=197	1-83574-032-0	AR	1	9811-	●	●	●	●	●	●	●
483	02.559 CLIP; ENG HARNESS (C) ID=11 L=20	9-09525-035-0	AR	1	9811-	●	●	●	●	●	●	●
483	02.559 CLIP; ENG HARNESS 03.162 (B) L=140	5-09707-031-1	AR	1	9811-	●		●	●	●	●
483	02.559 CLIP; ENG HARNESS 02.343 (D) ID=16 L=20	9-09525-535-0	AR	1	9811-	●	●	●	●	●	●	●
484	02.559 CLIP; ECGI HARNESS TO C/MBR 4HF1 ENG(RLS) 03.162 L=140	5-09707-031-1	01	1	9909-0004	●		●	●	●	●
488	02.559 CLIP; CABLE,TRAILER 02.587 (B) L=112	8-94232-618-0	AR	1	9811-	●	●	●	●	●	●
488	02.559 CLIP; CABLE,TRAILER (A) L=250	5-09707-030-1	AR	1	9811-	●	●	●	●	●	●	●

53 139 48 31 31 8 10 527 7 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
7	02.559 BRACKET; CONNECTOR	8-97102-247-2	01	1	9811-	●	●	●	●	●	●	●
8	02.559 BOLT; BRKT,CONNECTOR (B) M8X25 FLANGE	0-28680-825-0	03	1	9811-	●	●	●	●	●	●	●
8	02.559 BOLT; BRKT,CONNECTOR 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-	●	●	●	●	●	●	●
10	02.559 SCREW; BRKT TO BODY 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9811-	●	●	●	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1 ENG(RJX) (D)	8-97288-169-0	01	1	0201-					●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	02	1	9811-0012	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	9811-0012			●			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	9811-0012					●		●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	02	1	0101-0105	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0101-0105			●			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC) (B)	8-97077-845-0	02	1	0101-0105				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0101-0105					●		●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B)	8-97077-845-0	02	1	0106-0112	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	02	1	0106-0112		●					●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0106-0112			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC) (B)	8-97077-845-0	02	1	0106-0112				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0106-0112					●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	02	1	0201-	●	●					●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0201-			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC) (B)	8-97077-845-0	02	1	0201-				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97077-845-0	02	1	0201-					●
31	02.559 BRACKET; HARNESS CLIP,PIPE (A) L=20	8-94165-263-1	01	1	9811-0012	●	●		●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) L=20	8-94165-263-1	01	1	9811-0012			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=20	8-94165-263-1	01	1	9811-0012						●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=20	8-94165-263-1	01	1	9811-0012							●
31	02.559 BRACKET; HARNESS CLIP,PIPE (A) L=20	8-94165-263-1	01	1	0101-0105	●	●			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) L=20	8-94165-263-1	01	1	0101-0105			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4HF1 ENG(RLS) (A) L=20	8-94165-263-1	01	1	0101-0105				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=20	8-94165-263-1	01	1	0101-0105						●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=20	8-94165-263-1	01	1	0101-0105							●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=20	8-94165-263-1	01	1	0106-0112	●				●
31	02.559 BRACKET; HARNESS CLIP,PIPE (A) L=20	8-94165-263-1	01	1	0106-0112		●				●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) L=20	8-94165-263-1	01	1	0106-0112			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4HF1 ENG(RLS) (A) L=20	8-94165-263-1	01	1	0106-0112				●
31	02.559 BRACKET; HARNESS CLIP,PIPE (A) L=20	8-94165-263-1	01	1	0201-	●	●			●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) L=20	8-94165-263-1	01	1	0201-			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4HF1 ENG(RLS) (A) L=20	8-94165-263-1	01	1	0201-				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97017-071-2	01	1	9811-0012			●
31	02.559 BRACKET; HARNESS CLIP,PIPE (C)	8-97017-071-2	01	1	9811-0012				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) (C)	8-97017-071-2	01	1	9811-0012					●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97017-071-2	01	1	0101-0105			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) (C)	8-97017-071-2	01	1	0101-0105				●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97017-071-2	01	1	0106-			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) (C)	8-97017-071-2	01	1	0106-				●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (C)	8-97017-071-2	01	1	0106-						●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B)	8-97077-845-0	01	1	9811-0012			●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	01	1	9811-0012				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) (B)	8-97077-845-0	01	1	9811-0012					●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B)	8-97077-845-0	01	1	0101-0105			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) (B)	8-97077-845-0	01	1	0101-0105				●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B)	8-97077-845-0	01	1	0106-0112			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) (B)	8-97077-845-0	01	1	0106-0112				●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	01	1	0106-0112						●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B)	8-97077-845-0	01	1	0201-			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS) (B)	8-97077-845-0	01	1	0201-				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1 ENG(RJX),4HF1 ENG(RLS) (B)	8-97077-845-0	01	1	0201-					●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	01	1	0201-						●
48	02.559 CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (D) ID=9.6	8-94147-870-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (F) ID=10 & 11	8-94438-996-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.855 (E) ID=8.3 & 16.5	8-94169-027-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=35 L=35	1-09700-895-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (H) ID=14-20	8-97061-603-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.516 (I) ID=13 L=20	9-09525-235-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) T=9.2	5-09709-013-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=25 L=60	1-09701-041-1	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=20	5-09700-321-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=9	8-97063-874-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=20	8-94169-650-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (P) L=140	5-09707-031-1	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (Q) L=170.3	1-09987-182-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) ID=5-12 L=14.5	1-09987-221-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (S) ID=19 L=60	9-09525-893-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) ID=28 L=32	1-09701-064-1	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.866 (U) ID=24 H=60 L=27	1-09701-004-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (V) ID=19 H=70 L=25	1-09700-773-0	AR	1	0008-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (W) L=250	5-09707-030-1	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (X) ID=31 L=33.5	1-09987-165-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (Y) ID=24 L=49	8-94149-610-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (Z) T=4.5 & 9	5-09709-023-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (AA) ID=11 L=16	9-09525-025-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (AB) T=9.2 & 9	5-09709-025-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (AC) L=330	5-09709-118-0	AR	1	9811-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (AD) ID=27	5-09700-323-0	AR	1	9811-	●	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS 4HF1 ENG(RLS) (B)	8-97062-178-3	01	1	9811-0105	●		●	●	●	●
53	02.483 BRACKET; HARNESS 4HF1 ENG(RLS) (B)	8-97062-178-3	01	1	0106-0112	●		●	●	●
53	02.483 BRACKET; HARNESS (B)	8-97062-178-3	01	1	0106-0112						●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX),4HF1 ENG(RLS) (B)	8-97062-178-3	01	1	0201-	●				●
53	02.483 BRACKET; HARNESS 4HF1 ENG(RLS) (B)	8-97062-178-3	01	1	0201-			●	●
53	02.483 BRACKET; HARNESS (B)	8-97062-178-3	01	1	0201-						●
53	02.483 BRACKET; HARNESS 4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A)	8-97091-462-1	01	1	9811-			●
139	02.559 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	AR	1	9811-	●	●	●	●	●	●	●
139	02.559 BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	AR	1	9811-	●	●	●	●	●	●	●
139	02.559 BOLT; BRKT (C)	8-97028-451-3	AR	1	9811-	●	●	●	●	●	●	●
139	02.559 BOLT; BRKT 02.183 (D) M8X35 FLANGE	0-28680-835-0	AR	1	9811-	●	●	●	●	●	●	●
139	02.559 BOLT; BRKT 02.664 (F) M8X20 FLANGE	0-28680-820-0	AR	1	0106-	●	●	●	●	●	●	●
139	02.559 BOLT; BRKT 02.334 (E) M6X25 FLANGE	0-28680-625-0	AR	1	0004-	●	●	●	●	●	●	●
527	02.559 TAPE; SOFT,CONNECTOR 100X100	8-94232-622-0	01	1	9811-	●	●	●	●	●	●	●

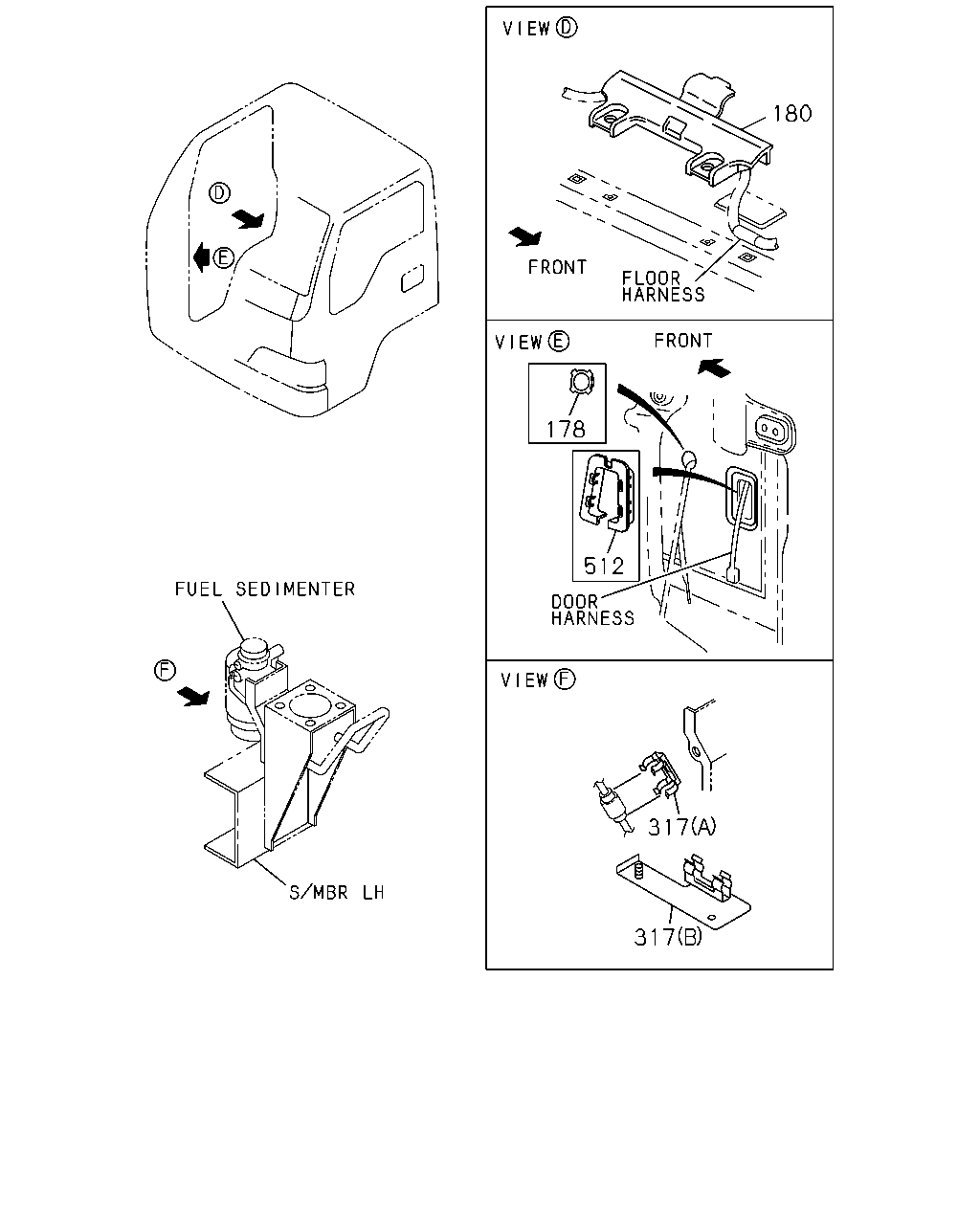

180 178 512 317 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	9811-	●	●	●	●	●	●	●
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	9811-	●	●	●	●	●	●	●
317	02.559 CLAMP; CONNECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94441-365-0	01	1	9811-0012	●	●	●		●	●	●
317	02.559 CLAMP; CONNECTOR 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94441-365-0	01	1	9811-0012	●		●	●	●	●
317	02.559 CLAMP; CONNECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94441-365-0	01	1	0101-0105	●	●	●	●	●	●	●
317	02.559 CLAMP; CONNECTOR 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94441-365-0	01	1	0101-0105	●		●	●	●	●
317	02.559 CLAMP; CONNECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94441-365-0	01	1	0106-	●	●	●	●	●		●
317	02.559 CLAMP; CONNECTOR 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94441-365-0	01	1	0106-	●		●	●	●	●
317	02.559 CLAMP; CONNECTOR 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-903-0	01	1	9811-	●		●	●	●	●
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	9811-0012	●	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	9811-0012	●	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	9811-0012	●	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97072-950-0	02	1	9811-0012	●	●	●		●	●	●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETT E 2 SPEAKERS(6VL)	8-97072-950-0	02	1	9811-0012				●
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0101-0105	●	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0101-0105	●	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97072-950-0	02	1	0101-0105	●	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0101-0105	●	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0106-	●	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0106-	●	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0106-	●	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97072-950-0	02	1	0106-	●	●	●	●	●		●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETT E 2 SPEAKERS(6VL)	8-97072-950-0	02	1	0106-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
