◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#21624) — 495 parça

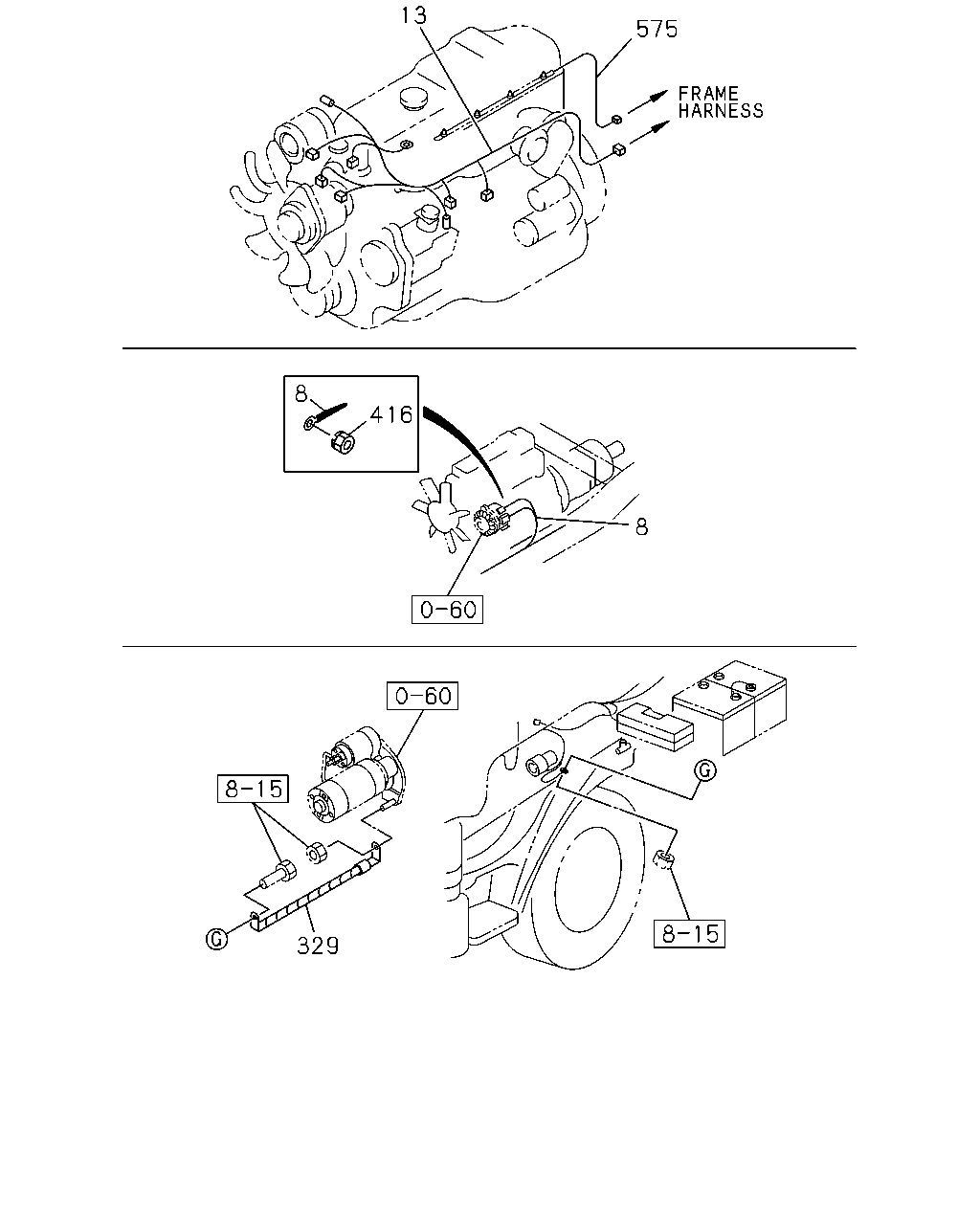

çizim 10111
13 575 8 416 8 329
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) 		8-97328-837-0 01 1 0201- ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-97312-700-0 01 1 0201- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97188-700-2 01 1 9811-9811 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97188-700-2 01 1 9811-9811 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97188-700-2 01 1 9812-0002 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97188-700-2 01 1 0003-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. REAR WIDE TREAD(V4T),CHARGE AIRCOOLER<6PL> 		8-97188-700-2 01 1 0003-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. REAR WIDE TREAD(V4T),CHARGE AIRCOOLER<6PL>,FRT INDEPENDENT SUSPENS ION(6PP) 		8-97260-496-2 01 1 0106- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW> 		8-97217-731-1 01 1 9811-0012 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-731-1 01 1 0101-0105 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW> 		8-97217-731-1 01 1 0101-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) 		8-97260-392-2 01 1 0106- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97260-392-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT 8-97260-392-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97188-699-2 01 1 9811-0002 ● ●
8 02.480 HARNESS; FRAME,FRT 8-97188-699-2 01 1 9811-0002 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) 		8-97188-699-2 01 1 9811-0002 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97188-699-2 01 1 9811-0002 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97188-699-2 01 1 0003-0105 ● ●
8 02.480 HARNESS; FRAME,FRT 8-97188-699-2 01 1 0003-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T) 		8-97188-699-2 01 1 0003-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97188-699-2 01 1 0003-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-495-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT 8-97260-495-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T) 		8-97260-495-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97260-495-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		8-97188-707-1 01 1 9811-0012 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),ENGINE POWER N-SPEC(7QV) 		8-97188-707-1 01 1 9811-0012 ●
8 02.480 HARNESS; FRAME,FRT
EXC. ENGINE POWER N-SPEC(7QV) 		8-97188-707-1 01 1 9811-0012 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		8-97188-707-1 01 1 0101-0105 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),ENGINE POWER N-SPEC(7QV) 		8-97188-707-1 01 1 0101-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97212-323-1 01 1 9811-0105 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-498-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97188-708-0 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 		8-97220-760-2 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 		8-97260-393-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 		8-97188-702-1 01 1 9811-0002 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> 		8-97188-702-1 01 1 0003-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> 		8-97260-497-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) CHARGE AIR COOLER<6PL> 		8-97255-166-1 01 1 0003-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) CHARGE AIR COOLER<6PL> 		8-97260-500-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97212-138-0 01 1 9811-9811 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97212-138-0 01 1 9812-9902 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97225-916-0 01 1 9903-0002 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97225-916-1 01 1 0003-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> EXC. REAR WIDE TREAD(V4T) 		8-97225-916-1 01 1 0003-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-499-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97260-499-1 01 1 0106- ● ●
13 02.525 HARNESS; ENG
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) GENERATOR 12V80A(K97) POWER STEERING<N40> 		8-97261-132-4 01 1 0201- ● ●
13 02.525 HARNESS; ENG
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) POWER STEERING<N40> EXC. GENERATOR 12V80A(K97) 		8-97240-032-5 01 1 0201- ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97173-694-1 01 1 9811-0105 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97173-694-1 01 1 9811-0105 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97173-694-1 01 1 0106- ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97173-694-1 01 1 0106- ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-266-0 01 1 9811- ● ● ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) FAST GLOW SYSTEM<KM6> EXC. FIRE TRUCK CHASSIS(V4F),ENGINE POWER N-SPEC(7QV) 		8-97170-515-1 01 1 9811-0105 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) FAST GLOW SYSTEM<KM6> EXC. AIR CONDITIONER MANUAL CONT(C60),SAUDI ARABIA EQUIPMENT(EU2),ENGINE POWER N-SPEC(7QV) 		8-97170-515-1 01 1 0106- ● ● ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) EXC. FAST GLOW SYSTEM<KM6>,FIRE TRUCK CHASSIS(V4F),ENGINE POWER N-SPEC(7QV) 		8-97170-517-1 01 1 9811-0012 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) VOLTAGE 24V<7AE> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTIT UDE COMPENSATOR(EE2),SAUDI ARABIA EQUIPMENT(EU2),FAST GLOW SYSTEM<KM6>,T AIWAN EQUIPMENT(RWV),FIRE TRUCK CHASSIS(V4F),ENGINE POWER N-SPEC(7QV) 		8-97170-517-1 01 1 0101-0105 ● ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) VOLTAGE 24V<7AE> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTIT UDE COMPENSATOR(EE2),SAUDI ARABIA EQUIPMENT(EU2),FAST GLOW SYSTEM<KM6>,E NGINE POWER N-SPEC(7QV) 		8-97170-517-1 01 1 0106- ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) FAN FLUID DRIVE<KA3> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97218-750-0 01 1 9901-0002 ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) FAN FLUID DRIVE<KA3> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97218-750-0 01 1 0003-0105 ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) FAN FLUID DRIVE<KA3> TURBOCHARGER<K51> COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> 		8-97218-750-0 01 1 0106- ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) FAN FLUID DRIVE<KA3> POWER STEERING<N40> TAIWAN EQUIPMENT(RWV) 		8-97173-696-1 01 1 9811-9811 ● ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) HIGH ALTITUDE COMPENSATOR(EE2) FAN FLUID DRIVE<KA3> CHILE EQUIPMENT(6KB) EURO2 SPECIFICATION<7AF> 		8-97173-696-1 01 1 9811-9811 ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) FAN FLUID DRIVE<KA3> POWER STEERING<N40> TAIWAN EQUIPMENT(RWV) 		8-97173-696-1 01 1 9812-0012 ● ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) HIGH ALTITUDE COMPENSATOR(EE2) FAN FLUID DRIVE<KA3> CHILE EQUIPMENT(6KB) EURO2 SPECIFICATION<7AF> 		8-97173-696-1 01 1 9812-0012 ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) 		8-97173-696-1 01 1 0101-0105 ● ● ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) 		8-97173-696-1 01 1 0106- ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97170-516-1 01 1 9811-0105 ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) FAN FLUID DRIVE<KA3> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97204-098-0 01 1 9811-9811 ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) FAN FLUID DRIVE<KA3> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97204-098-0 01 1 9812-9812 ● ●
329 02.480 CABLE; ENG TO FRAME
4JH1 ENG(RJX) 		8-97305-771-0 01 1 0201- ● ●
329 02.480 CABLE; ENG TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97213-192-0 01 1 9811-0012 ● ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97213-192-0 01 1 0101-0105 ● ● ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97260-486-1 01 1 0106- ● ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HF1 ENG(RLS) 		8-97177-383-0 01 1 9811- ● ● ● ● ●
416 02.559 NUT; TERMINAL
4HF1 ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9811- ● ● ● ● ●
575 02.525 HARNESS; GLOW PLUG
4JG2 ENG(RJC) FAN FLUID DRIVE<KA3> POWER STEERING<N40> TAIWAN EQUIPMENT(RWV) 		8-97212-328-0 01 1 9901-0002 ● ● ●
575 02.525 HARNESS; GLOW PLUG
4JB1 ENG(RLF) FAN FLUID DRIVE<KA3> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97212-328-0 01 1 9901-0002 ● ●
575 02.525 HARNESS; GLOW PLUG
4JG2 ENG(RJC) HIGH ALTITUDE COMPENSATOR(EE2) FAN FLUID DRIVE<KA3> CHILE EQUIPMENT(6KB) EURO2 SPECIFICATION<7AF> 		8-97212-328-0 01 1 9901-0002 ● ●
575 02.525 HARNESS; GLOW PLUG
4JB1 ENG(RLF) FAN FLUID DRIVE<KA3> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97212-328-0 01 1 0003-0012 ● ● ●
575 02.525 HARNESS; GLOW PLUG
4JG2 ENG(RJC) FAN FLUID DRIVE<KA3> POWER STEERING<N40> TAIWAN EQUIPMENT(RWV) 		8-97212-328-0 01 1 0003-0012 ● ● ●
575 02.525 HARNESS; GLOW PLUG
4JG2 ENG(RJC) HIGH ALTITUDE COMPENSATOR(EE2) FAN FLUID DRIVE<KA3> CHILE EQUIPMENT(6KB) EURO2 SPECIFICATION<7AF> 		8-97212-328-0 01 1 0003-0012 ● ●
575 02.525 HARNESS; GLOW PLUG
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97212-328-0 01 1 0101-0105 ● ● ●
575 02.525 HARNESS; GLOW PLUG
4JG2 ENG(RJC) 		8-97212-328-0 01 1 0101-0105 ● ● ● ●
575 02.525 HARNESS; GLOW PLUG
4JG2 ENG(RJC) 		8-97212-328-0 01 1 0106-0112 ● ● ●
575 02.525 HARNESS; GLOW PLUG
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97212-328-0 01 1 0106-0112 ●
575 02.525 HARNESS; GLOW PLUG
4JG2 ENG(RJC),4JH1 ENG(RJX) 		8-97212-328-0 01 1 0201- ● ● ●
575 02.525 HARNESS; GLOW PLUG
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97212-328-0 01 1 0201- ●

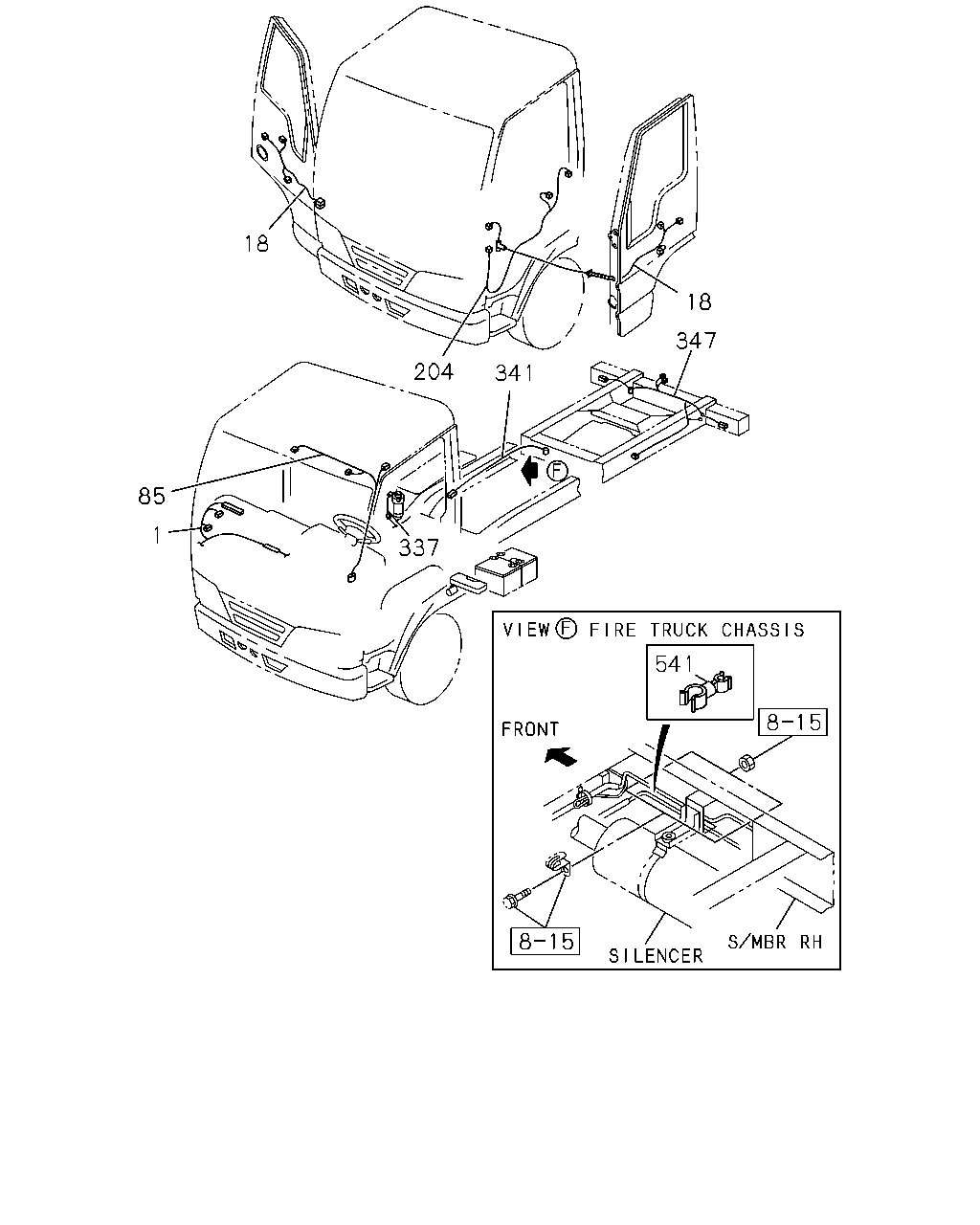

çizim 11085
18 18 347 204 341 8 1 337 541
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) 		8-97328-836-0 01 1 0201- ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97185-292-2 01 1 9811- ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-164-1 01 1 9811-0012 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-164-1 01 1 0101-0105 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-164-2 01 1 0106- ● ● ● ●
1 02.480 HARNESS; CAB
ENGINE POWER N-SPEC(7QV) 		8-97217-164-2 01 1 0106- ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		8-97185-299-2 01 1 9811- ● ● ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-97185-295-1 01 1 9811-0012 ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-97185-295-1 01 1 0101-0105 ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) 		8-97185-295-1 01 1 0101-0105 ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) 		8-97185-295-2 01 1 0106- ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) 		8-97217-322-1 01 1 0101-0105 ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) 		8-97217-322-2 01 1 0106- ● ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97212-136-0 01 1 9811-9811 ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97212-136-0 01 1 9812-9902 ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97226-912-0 01 1 9903-9905 ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97230-668-1 01 1 9906-0002 ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97230-668-1 01 1 0003-0105 ● ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> 		8-97230-668-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) 		8-97328-837-0 01 1 0201- ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-97312-700-0 01 1 0201- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97188-700-2 01 1 9811-9811 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97188-700-2 01 1 9811-9811 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97188-700-2 01 1 9812-0002 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97188-700-2 01 1 0003-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. REAR WIDE TREAD(V4T),CHARGE AIRCOOLER<6PL> 		8-97188-700-2 01 1 0003-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. REAR WIDE TREAD(V4T),CHARGE AIRCOOLER<6PL>,FRT INDEPENDENT SUSPENS ION(6PP) 		8-97260-496-2 01 1 0106- ● ● ●

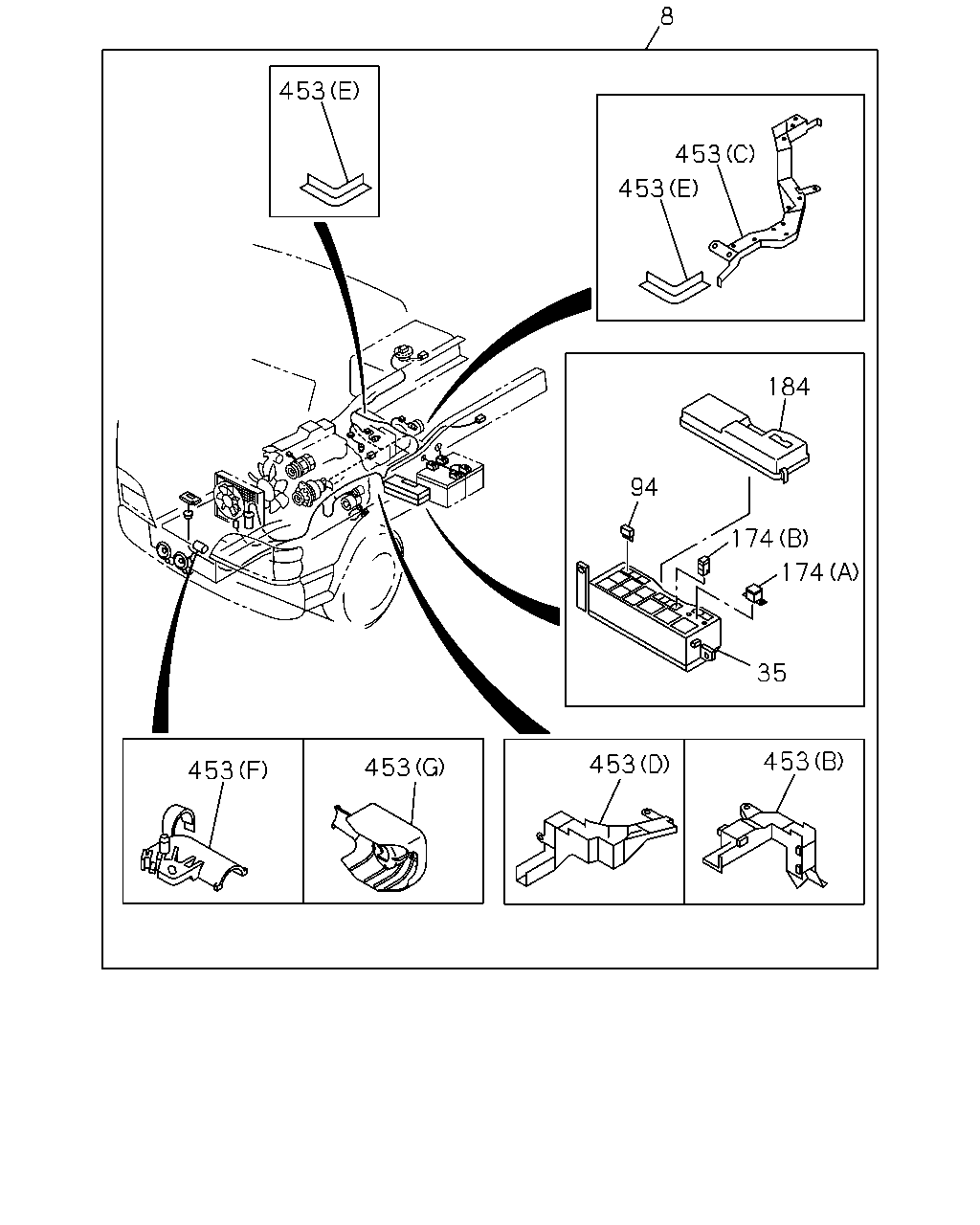

8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW> 		8-97217-731-1 01 1 9811-0012 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-731-1 01 1 0101-0105 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW> 		8-97217-731-1 01 1 0101-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) 		8-97260-392-2 01 1 0106- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97260-392-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT 8-97260-392-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97188-699-2 01 1 9811-0002 ● ●
8 02.480 HARNESS; FRAME,FRT 8-97188-699-2 01 1 9811-0002 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) 		8-97188-699-2 01 1 9811-0002 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97188-699-2 01 1 9811-0002 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97188-699-2 01 1 0003-0105 ● ●
8 02.480 HARNESS; FRAME,FRT 8-97188-699-2 01 1 0003-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T) 		8-97188-699-2 01 1 0003-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97188-699-2 01 1 0003-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-495-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT 8-97260-495-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T) 		8-97260-495-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97260-495-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		8-97188-707-1 01 1 9811-0012 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),ENGINE POWER N-SPEC(7QV) 		8-97188-707-1 01 1 9811-0012 ●
8 02.480 HARNESS; FRAME,FRT
EXC. ENGINE POWER N-SPEC(7QV) 		8-97188-707-1 01 1 9811-0012 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		8-97188-707-1 01 1 0101-0105 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),ENGINE POWER N-SPEC(7QV) 		8-97188-707-1 01 1 0101-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97212-323-1 01 1 9811-0105 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-498-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97188-708-0 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 		8-97220-760-2 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 		8-97260-393-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 		8-97188-702-1 01 1 9811-0002 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> 		8-97188-702-1 01 1 0003-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> 		8-97260-497-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) CHARGE AIR COOLER<6PL> 		8-97255-166-1 01 1 0003-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) CHARGE AIR COOLER<6PL> 		8-97260-500-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97212-138-0 01 1 9811-9811 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97212-138-0 01 1 9812-9902 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97225-916-0 01 1 9903-0002 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97225-916-1 01 1 0003-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> EXC. REAR WIDE TREAD(V4T) 		8-97225-916-1 01 1 0003-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-499-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97260-499-1 01 1 0106- ● ●

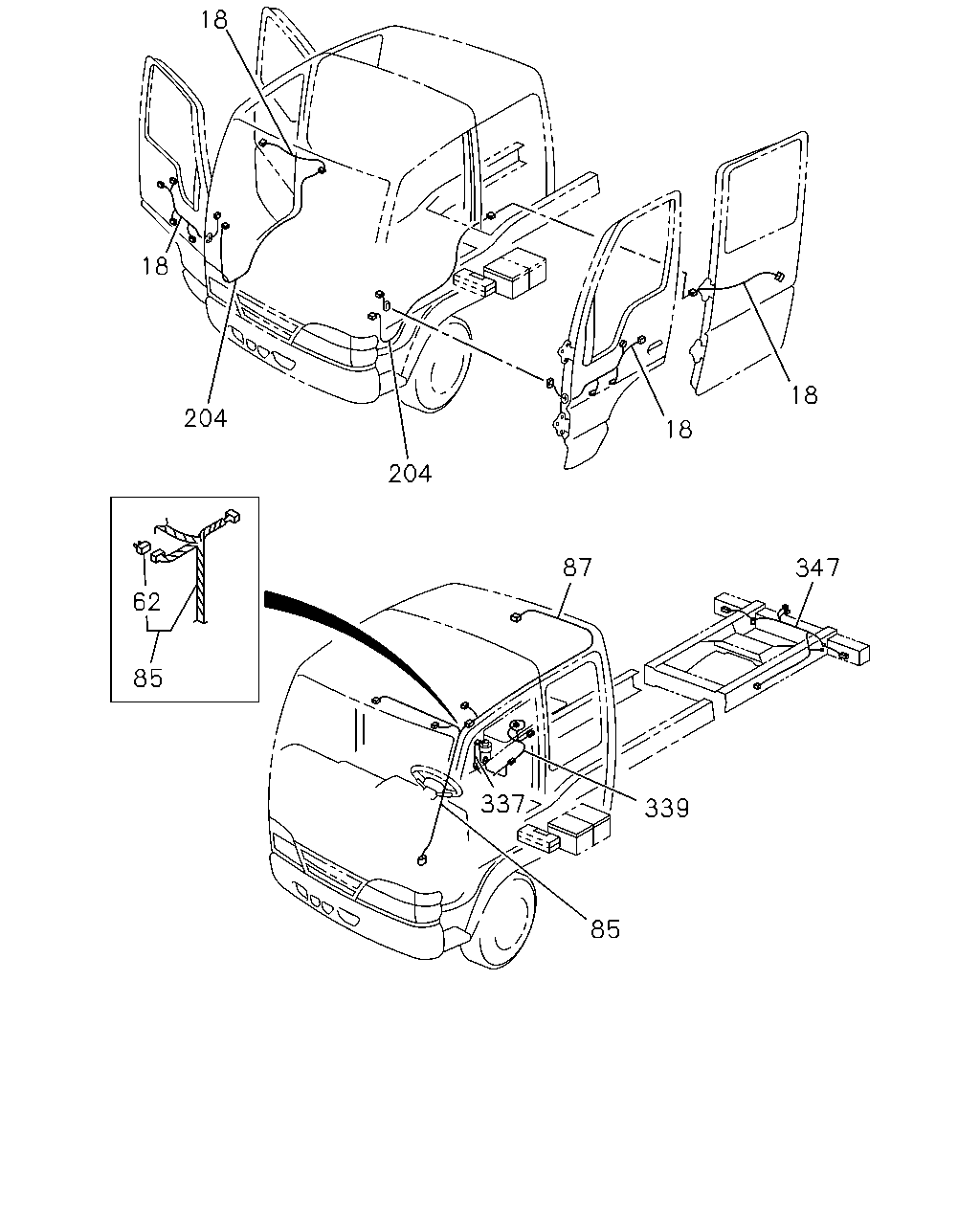

18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 9811-0012 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 9811-0012 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9811-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETT E 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9811-0012 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETT E 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 0106- ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETT E 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 9905-0012 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 9905-0012 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 9905-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETT E 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 9905-0012 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETT E 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 0106- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 9811- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-144-1 01 1 9811-9904 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 9905- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 9811- ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 9811- ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 9811- ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-626-4 01 1 9811- ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-823-0 01 1 9811-0105 ● ● ● ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97260-501-0 01 1 0106- ● ● ● ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97081-340-2 01 1 9811-0012 ● ● ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 9811-0012 ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97081-340-2 01 1 0101-0105 ● ● ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 0101-0105 ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97081-340-2 01 1 0106- ● ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 0106- ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97213-566-0 01 1 9811-0009 ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6> 		8-97213-566-0 01 1 0010-0105 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5) 		8-97213-566-0 01 1 0010-0105 ●
347 02.480 HARNESS; CABLE,RR BODY
REAR BODY LAGER WIDTH<8EH> 		8-97213-566-0 01 1 0010-0105 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97213-566-0 01 1 0010-0105 ●
347 02.480 HARNESS; CABLE,RR BODY 8-97213-566-0 01 1 0010-0105 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6> 		8-97213-566-0 01 1 0106- ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5) 		8-97213-566-0 01 1 0106- ●
347 02.480 HARNESS; CABLE,RR BODY
REAR BODY LAGER WIDTH<8EH> 		8-97213-566-0 01 1 0106- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97213-566-0 01 1 0106- ●
347 02.480 HARNESS; CABLE,RR BODY 8-97213-566-0 01 1 0106- ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97213-565-0 01 1 9811-0009 ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97213-565-0 01 1 0010-0105 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> 		8-97213-565-0 01 1 0010-0105 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97213-565-0 01 1 0106- ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> 		8-97213-565-0 01 1 0106- ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97213-564-0 01 1 9811- ●
541 02.483 CLIP
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FIRE TRUCK CHASSIS(V4F) 00.855 ID=8.3 & 16.5 		8-94169-027-0 01 1 9811-0105 ●

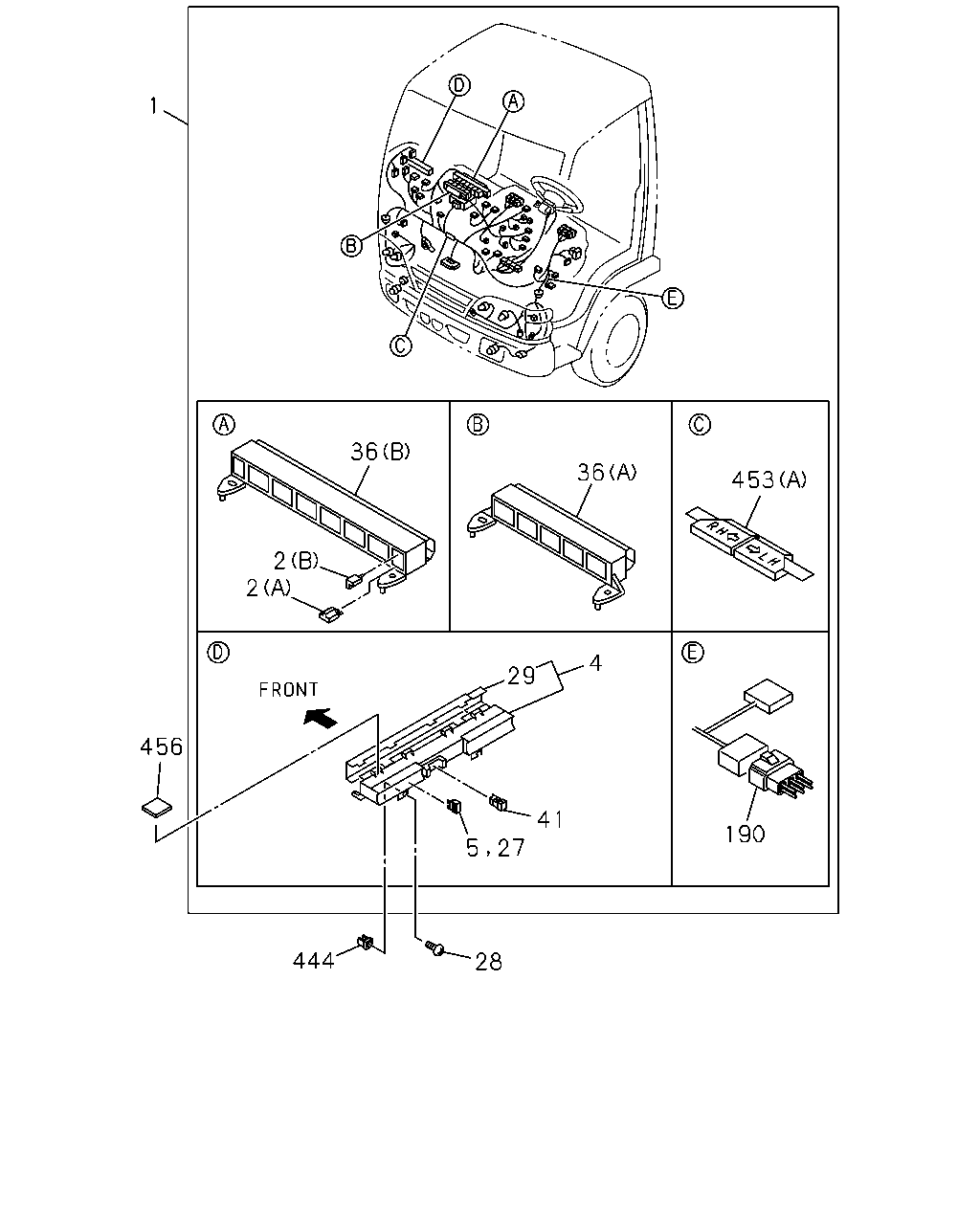

çizim 45698
1 36 36 453 2 2 4 29 456 41 190 444 28 5 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) 		8-97328-836-0 01 1 0201- ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97185-292-2 01 1 9811- ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-164-1 01 1 9811-0012 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-164-1 01 1 0101-0105 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-164-2 01 1 0106- ● ● ● ●
1 02.480 HARNESS; CAB
ENGINE POWER N-SPEC(7QV) 		8-97217-164-2 01 1 0106- ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		8-97185-299-2 01 1 9811- ● ● ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-97185-295-1 01 1 9811-0012 ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-97185-295-1 01 1 0101-0105 ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) 		8-97185-295-1 01 1 0101-0105 ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) 		8-97185-295-2 01 1 0106- ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) 		8-97217-322-1 01 1 0101-0105 ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) 		8-97217-322-2 01 1 0106- ● ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97212-136-0 01 1 9811-9811 ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97212-136-0 01 1 9812-9902 ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97226-912-0 01 1 9903-9905 ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97230-668-1 01 1 9906-0002 ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97230-668-1 01 1 0003-0105 ● ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> 		8-97230-668-2 01 1 0106- ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9811- ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9811- ● ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97077-664-0 01 1 9811-9811 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97077-664-0 01 1 9811-9811 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97077-664-0 01 1 9812-0002 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97077-664-0 01 1 9812-0002 ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97077-664-0 01 1 0003-0012 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC) 		8-97077-664-0 01 1 0003-0012 ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97077-664-0 01 1 0003-0012 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) 		8-97077-664-0 01 1 0003-0012 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97077-664-0 01 1 0003-0012 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97077-664-0 01 1 0101-0105 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) 		8-97077-664-0 01 1 0101-0105 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97077-664-0 01 1 0106-0108 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) 		8-97077-664-0 01 1 0106-0108 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97077-664-0 01 1 0109-0111 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 9811-9811 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 9811-9811 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 9812-0002 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 9812-0002 ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 0003-0012 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 0003-0012 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 0003-0012 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 0101-0105 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 0101-0105 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) 		8-97214-415-0 01 1 0101-0105 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 0106-0108 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) 		8-97214-415-0 01 1 0106-0108 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 0106-0108 ●
4 02.483 BOX ASM; FUSE,HARNESS
ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 0106-0108 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC),4HF1 ENG(RLS) 		8-97214-415-0 01 1 0109-0111 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 0109-0111 ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0112- ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 9811- ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 9811- ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A CLEAR 		5-82516-005-0 AR 1 9811- ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 02.483 		8-97077-664-0 AR 1 9811-0108 ● ● ● ● ●
27 08.965 FUSE UNIT
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 15A BLUE 		5-82516-003-0 01 1 0201- ●
27 08.965 FUSE UNIT
4JG2 ENG(RJC) 15A BLUE 		5-82516-003-0 01 1 9811-0012 ● ● ●
27 08.965 FUSE UNIT
4JG2 ENG(RJC) 15A BLUE 		5-82516-003-0 01 1 0101-0105 ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9811- ● ● ● ● ● ● ●
29 02.483 COVER; FUSE BOX
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		8-97074-955-0 01 1 0010-0012 ● ● ● ●
29 02.483 COVER; FUSE BOX
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97074-955-0 01 1 0010-0012 ● ● ●
29 02.483 COVER; FUSE BOX
4JG2 ENG(RJC) 		8-97074-955-0 01 1 0010-0012 ● ●
29 02.483 COVER; FUSE BOX 8-97074-955-0 01 1 0010-0012 ●
29 02.483 COVER; FUSE BOX
EXC. ENGINE POWER N-SPEC(7QV) 		8-97074-955-0 01 1 0010-0012 ●
29 02.483 COVER; FUSE BOX
4JB1 ENG(RLF) 		8-97074-955-0 01 1 0010-0012 ●
29 02.483 COVER; FUSE BOX
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97074-955-0 01 1 0010-0012 ●
29 02.483 COVER; FUSE BOX
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97074-955-0 01 1 0101-0105 ● ● ● ● ●
29 02.483 COVER; FUSE BOX
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		8-97074-955-0 01 1 0101-0105 ● ● ● ● ●
29 02.483 COVER; FUSE BOX
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) 		8-97074-955-0 01 1 0101-0105 ● ● ● ●
29 02.483 COVER; FUSE BOX
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97074-955-0 01 1 0106-0108 ● ● ● ● ●
29 02.483 COVER; FUSE BOX
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		8-97074-955-0 01 1 0106-0108 ● ● ● ● ●
29 02.483 COVER; FUSE BOX
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) 		8-97074-955-0 01 1 0106-0108 ● ● ●
29 02.483 COVER; FUSE BOX
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97074-955-0 01 1 0109-0111 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC),4HF1 ENG(RLS) (A) 		8-97087-640-1 01 1 0109-0111 ● ● ● ● ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> (A) 		8-97087-640-1 01 1 0109-0111 ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-1 01 1 0112- ● ● ● ● ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-638-1 01 1 9811-0108 ● ● ● ● ● ● ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-638-1 01 1 0109-0111 ● ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 9811- ● ● ● ● ● ● ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9811- ● ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 9811-0009 ● ● ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9811- ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) FRAME-KICK UP<7EW> (G) 		8-97075-706-4 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) (E) 		8-94452-553-0 02 1 0201- ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 02 1 0201- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97093-668-1 01 1 0106- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (F) 		8-97093-668-1 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (F) 		8-97093-668-1 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 03 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97120-590-0 01 1 0106-0112 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97120-590-0 01 1 0201- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (E) 		8-94452-553-0 01 1 0106- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 9811- ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97120-589-0 01 1 9811-9811 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (B) 		8-97120-589-0 01 1 9811-9811 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 9811-9811 ●
453 02.483 PROTECTOR; HARNESS
ENGINE POWER N-SPEC(7QV) (B) 		8-97120-589-0 01 1 9811-9811 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B) 		8-97120-589-0 01 1 9811-9811 ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97120-589-0 01 1 9812-0002 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (B) 		8-97120-589-0 01 1 9812-0002 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B) 		8-97120-589-0 01 1 9812-0002 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 9812-0002 ●
453 02.483 PROTECTOR; HARNESS
ENGINE POWER N-SPEC(7QV) (B) 		8-97120-589-0 01 1 9812-0002 ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0003-0007 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B) 		8-97120-589-0 01 1 0003-0007 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (B) 		8-97120-589-0 01 1 0003-0007 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97120-589-0 01 1 0008-0012 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0008-0012 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97120-589-0 01 1 0101-0105 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0101-0105 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0106-0112 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0106-0112 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (B) 		8-97120-589-0 01 1 0106-0112 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97120-589-0 01 1 0201- ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0201- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) FRAME-KICK UP<7EW> (C) 		8-97075-705-2 01 1 9811-0105 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 0106-0112 ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) FRAME-KICK UP<7EW> (C) 		8-97075-705-2 01 1 0106-0112 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 0201- ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) FRAME-KICK UP<7EW> (C) 		8-97075-705-2 01 1 0201- ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 9811- ● ● ● ● ● ● ●
çizim 46578
18 18 18 204 18 204 87 347 62 85 337 339 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 9811-0012 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 9811-0012 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9811-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETT E 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9811-0012 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETT E 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 0106- ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETT E 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 9905-0012 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 9905-0012 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 9905-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETT E 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 9905-0012 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETT E 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 0106- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 9811- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-144-1 01 1 9811-9904 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 9905- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 9811- ● ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 01 1 9811- ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-610-2 01 1 9811- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. CAB-LOW ROOF<6XQ> 		8-97164-610-2 01 1 9811- ●
85 06.495 HARNESS; ROOM LAMP 8-97162-624-3 01 1 9811- ● ●
85 06.495 HARNESS; ROOM LAMP
CAB-LOW ROOF<6XQ> 		8-97164-609-2 01 1 9811- ●
87 02.480 HARNESS; EXT,ROOM LAMP 8-97075-747-0 01 1 9811- ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 9811- ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 9811- ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-626-4 01 1 9811- ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-823-0 01 1 9811-0105 ● ● ● ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97260-501-0 01 1 0106- ● ● ● ● ● ● ●
339 02.530 HARNESS; EXT,FUEL
02.480 		8-94318-759-0 01 1 9811- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97213-566-0 01 1 9811-0009 ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6> 		8-97213-566-0 01 1 0010-0105 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5) 		8-97213-566-0 01 1 0010-0105 ●
347 02.480 HARNESS; CABLE,RR BODY
REAR BODY LAGER WIDTH<8EH> 		8-97213-566-0 01 1 0010-0105 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97213-566-0 01 1 0010-0105 ●
347 02.480 HARNESS; CABLE,RR BODY 8-97213-566-0 01 1 0010-0105 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6> 		8-97213-566-0 01 1 0106- ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5) 		8-97213-566-0 01 1 0106- ●
347 02.480 HARNESS; CABLE,RR BODY
REAR BODY LAGER WIDTH<8EH> 		8-97213-566-0 01 1 0106- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97213-566-0 01 1 0106- ●
347 02.480 HARNESS; CABLE,RR BODY 8-97213-566-0 01 1 0106- ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97213-565-0 01 1 9811-0009 ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97213-565-0 01 1 0010-0105 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> 		8-97213-565-0 01 1 0010-0105 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97213-565-0 01 1 0106- ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> 		8-97213-565-0 01 1 0106- ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97213-564-0 01 1 9811- ●
çizim 46668
8 453 453 453 184 94 174 174 35 453 453 453 453
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) 		8-97328-837-0 01 1 0201- ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-97312-700-0 01 1 0201- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97188-700-2 01 1 9811-9811 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97188-700-2 01 1 9811-9811 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97188-700-2 01 1 9812-0002 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97188-700-2 01 1 0003-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. REAR WIDE TREAD(V4T),CHARGE AIRCOOLER<6PL> 		8-97188-700-2 01 1 0003-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. REAR WIDE TREAD(V4T),CHARGE AIRCOOLER<6PL>,FRT INDEPENDENT SUSPENS ION(6PP) 		8-97260-496-2 01 1 0106- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW> 		8-97217-731-1 01 1 9811-0012 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-731-1 01 1 0101-0105 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW> 		8-97217-731-1 01 1 0101-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) 		8-97260-392-2 01 1 0106- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97260-392-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT 8-97260-392-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97188-699-2 01 1 9811-0002 ● ●
8 02.480 HARNESS; FRAME,FRT 8-97188-699-2 01 1 9811-0002 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) 		8-97188-699-2 01 1 9811-0002 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97188-699-2 01 1 9811-0002 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97188-699-2 01 1 0003-0105 ● ●
8 02.480 HARNESS; FRAME,FRT 8-97188-699-2 01 1 0003-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T) 		8-97188-699-2 01 1 0003-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97188-699-2 01 1 0003-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-495-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT 8-97260-495-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T) 		8-97260-495-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97260-495-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		8-97188-707-1 01 1 9811-0012 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),ENGINE POWER N-SPEC(7QV) 		8-97188-707-1 01 1 9811-0012 ●
8 02.480 HARNESS; FRAME,FRT
EXC. ENGINE POWER N-SPEC(7QV) 		8-97188-707-1 01 1 9811-0012 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		8-97188-707-1 01 1 0101-0105 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),ENGINE POWER N-SPEC(7QV) 		8-97188-707-1 01 1 0101-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97212-323-1 01 1 9811-0105 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-498-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97188-708-0 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 		8-97220-760-2 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 		8-97260-393-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 		8-97188-702-1 01 1 9811-0002 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> 		8-97188-702-1 01 1 0003-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> 		8-97260-497-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) CHARGE AIR COOLER<6PL> 		8-97255-166-1 01 1 0003-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) CHARGE AIR COOLER<6PL> 		8-97260-500-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97212-138-0 01 1 9811-9811 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97212-138-0 01 1 9812-9902 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97225-916-0 01 1 9903-0002 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97225-916-1 01 1 0003-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> EXC. REAR WIDE TREAD(V4T) 		8-97225-916-1 01 1 0003-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-499-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97260-499-1 01 1 0106- ● ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 9811- ● ● ● ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> BLACK 3P-1.5A 		8-94422-640-1 01 1 9811-9811 ●
94 02.483 DIODE; FRAME HARNESS
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> BLACK 3P-1.5A 		8-94422-640-1 01 1 9812-0002 ● ●
94 02.483 DIODE; FRAME HARNESS
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> BLACK 3P-1.5A 		8-94422-640-1 01 1 0003-0105 ● ● ●
94 02.483 DIODE; FRAME HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) CHARGE AIR COOLER<6PL> BLACK 3P-1.5A 		8-94422-640-1 01 1 0106- ●
174 08.965 FUSE; SLOW BLOW
(A) 60A YELLOW 		8-94388-303-0 AR 1 9811- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-0 AR 1 9811- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 50A RED 		8-94468-663-0 AR 1 9811- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 9811- ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 9811- ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) FRAME-KICK UP<7EW> (G) 		8-97075-706-4 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) CHILE EQUIPMENT(6KB) (E) 		8-94452-553-0 02 1 0201- ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 02 1 0201- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97093-668-1 01 1 0106- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (F) 		8-97093-668-1 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (F) 		8-97093-668-1 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 03 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97120-590-0 01 1 0106-0112 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97120-590-0 01 1 0201- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (E) 		8-94452-553-0 01 1 0106- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 9811- ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97120-589-0 01 1 9811-9811 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (B) 		8-97120-589-0 01 1 9811-9811 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 9811-9811 ●
453 02.483 PROTECTOR; HARNESS
ENGINE POWER N-SPEC(7QV) (B) 		8-97120-589-0 01 1 9811-9811 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B) 		8-97120-589-0 01 1 9811-9811 ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97120-589-0 01 1 9812-0002 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (B) 		8-97120-589-0 01 1 9812-0002 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B) 		8-97120-589-0 01 1 9812-0002 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 9812-0002 ●
453 02.483 PROTECTOR; HARNESS
ENGINE POWER N-SPEC(7QV) (B) 		8-97120-589-0 01 1 9812-0002 ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0003-0007 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B) 		8-97120-589-0 01 1 0003-0007 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (B) 		8-97120-589-0 01 1 0003-0007 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97120-589-0 01 1 0008-0012 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0008-0012 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97120-589-0 01 1 0101-0105 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0101-0105 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0106-0112 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0106-0112 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (B) 		8-97120-589-0 01 1 0106-0112 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97120-589-0 01 1 0201- ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0201- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) FRAME-KICK UP<7EW> (C) 		8-97075-705-2 01 1 9811-0105 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 0106-0112 ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) FRAME-KICK UP<7EW> (C) 		8-97075-705-2 01 1 0106-0112 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 0201- ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) FRAME-KICK UP<7EW> (C) 		8-97075-705-2 01 1 0201- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
