1 |

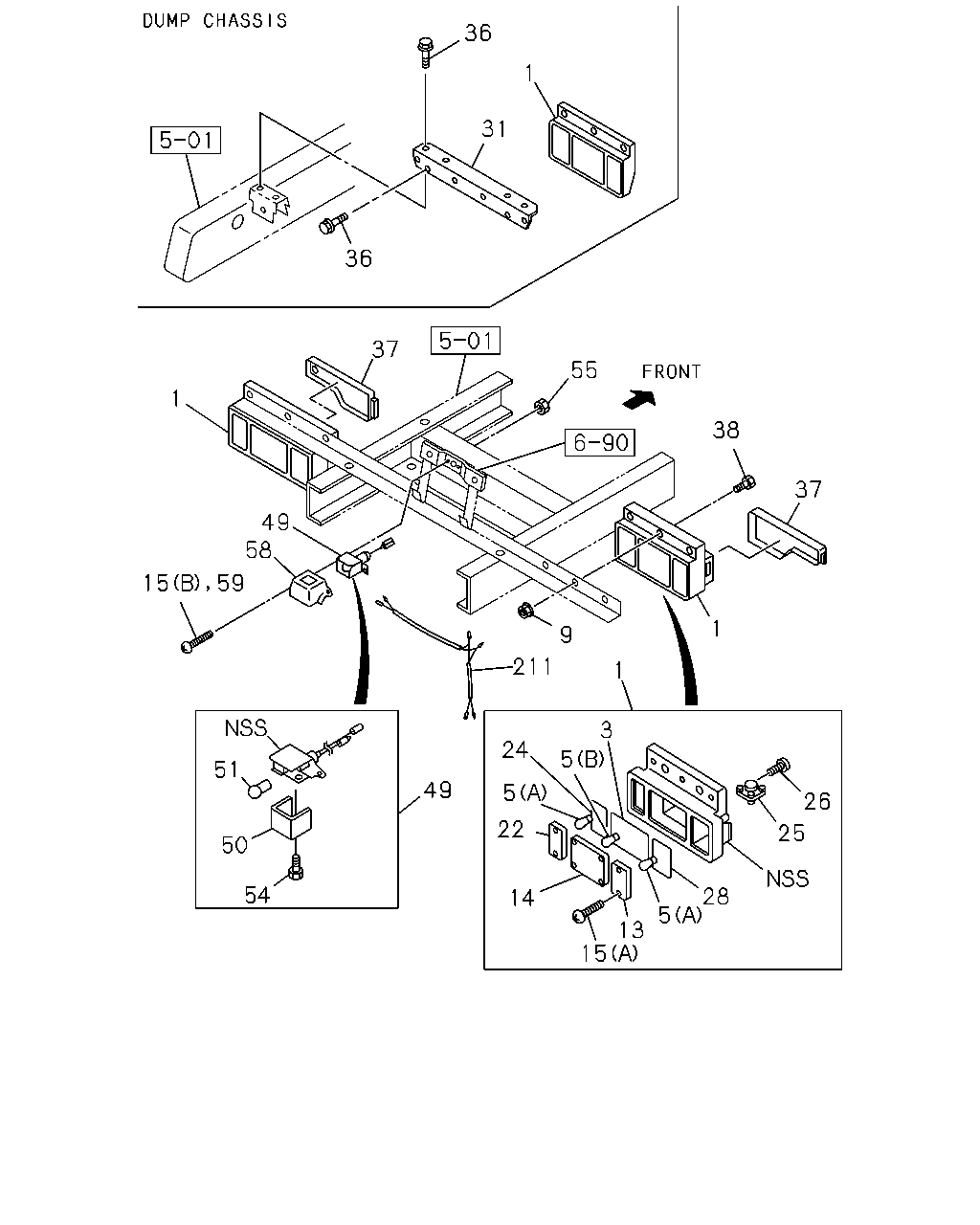

02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9>
EXC. VOLTAGE 24V<7AE>
|
8-97213-353-0 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
● |
● |
|
| |
1 |
02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9>
EXC. VOLTAGE 24V<7AE>
|
8-97213-353-0 |
01 |
1 |
0101-0105 |
● |
|
● |
● |
● |
|
● |
| |
1 |
02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9>
|
8-97213-353-0 |
01 |
1 |
0101-0105 |
|
● |
|
|
|
● |
|
| |
1 |
02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9>
EXC. VOLTAGE 24V<7AE>
|
8-97213-353-0 |
01 |
1 |
0106- |
● |
|
● |
● |
|
|
● |
| |
1 |
02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9>
|
8-97213-353-0 |
01 |
1 |
0106- |
|
● |
|
|
|
● |
|
| |
1 |
02.679 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9>,VOLTAGE
24V<7AE>
|
8-97213-351-0 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
● |
● |
|
| |
1 |
02.679 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9>,VOLTAGE
24V<7AE>
|
8-97213-351-0 |
01 |
1 |
0101-0105 |
● |
|
● |
● |
● |
|
● |
| |
1 |
02.679 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9>
|
8-97213-351-0 |
01 |
1 |
0101-0105 |
|
● |
|
|
|
● |
|
| |
1 |
02.679 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9>,VOLTAGE
24V<7AE>
|
8-97213-351-0 |
01 |
1 |
0106- |
● |
|
● |
● |
|
|
● |
| |
1 |
02.679 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9>
|
8-97213-351-0 |
01 |
1 |
0106- |
|
● |
|
|
|
● |
|
| |
1 |
02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9>
VOLTAGE 24V<7AE>
|
8-97213-370-0 |
01 |
1 |
9811-0105 |
● |
|
● |
● |
● |
|
● |
| |
1 |
02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9>
VOLTAGE 24V<7AE>
|
8-97213-370-0 |
01 |
1 |
0106- |
● |
|
● |
● |
|
|
● |
| |
1 |
02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9>
|
8-97213-370-0 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
1 |
02.679 LAMP ASM; RR COMB
VOLTAGE 24V<7AE>
EXC. BACK BUZZER<YM9>
|
8-97213-368-0 |
01 |
1 |
9811-0105 |
● |
|
● |
● |
● |
|
● |
| |
1 |
02.679 LAMP ASM; RR COMB
VOLTAGE 24V<7AE>
EXC. BACK BUZZER<YM9>
|
8-97213-368-0 |
01 |
1 |
0106- |
● |
|
● |
● |
|
|
● |
| |
1 |
02.679 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9>
|
8-97213-368-0 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
1 |
02.679 LAMP ASM; RR COMB
VOLTAGE 24V<7AE>
|
8-97213-369-0 |
01 |
1 |
9811-0012 |
● |
|
● |
● |
● |
|
|
| |
1 |
02.679 LAMP ASM; RR COMB
|
8-97213-369-0 |
01 |
1 |
9811-0012 |
|
|
|
|
|
|
● |
| |
1 |
02.679 LAMP ASM; RR COMB
VOLTAGE 24V<7AE>
|
8-97213-369-0 |
01 |
1 |
0101-0105 |
● |
|
● |
● |
● |
|
● |
| |
1 |
02.679 LAMP ASM; RR COMB
VOLTAGE 24V<7AE>
|
8-97213-369-0 |
01 |
1 |
0106- |
● |
|
● |
● |
|
|
● |
| |
1 |
02.679 LAMP ASM; RR COMB
|
8-97213-369-0 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
1 |
02.679 LAMP ASM; RR COMB
EXC. VOLTAGE 24V<7AE>
|
8-97213-352-0 |
01 |
1 |
9811-0012 |
● |
|
● |
● |
● |
|
|
| |
1 |
02.679 LAMP ASM; RR COMB
|
8-97213-352-0 |
01 |
1 |
9811-0012 |
|
● |
|
|
|
● |
|
| |
1 |
02.679 LAMP ASM; RR COMB
EXC. VOLTAGE 24V<7AE>
|
8-97213-352-0 |
01 |
1 |
0101-0105 |
● |
|
● |
● |
● |
|
● |
| |
1 |
02.679 LAMP ASM; RR COMB
|
8-97213-352-0 |
01 |
1 |
0101-0105 |
|
● |
|
|
|
● |
|
| |
1 |
02.679 LAMP ASM; RR COMB
EXC. VOLTAGE 24V<7AE>
|
8-97213-352-0 |
01 |
1 |
0106- |
● |
|
● |
● |
|
|
● |
| |
1 |
02.679 LAMP ASM; RR COMB
|
8-97213-352-0 |
01 |
1 |
0106- |
|
● |
|
|
|
● |
|
| |
3 |
02.684 GASKET; RR COMB LAMP
|
8-94257-505-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
5 |
08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE>
(A)
24V 21W
|
1-82194-036-0 |
02 |
1 |
9811-0012 |
● |
|
● |
● |
● |
|
|
| |
5 |
08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE>
(A)
24V 21W
|
1-82194-036-0 |
02 |
1 |
9811-0012 |
● |
|
● |
● |
● |
|
|
| |
5 |
08.991 BULB; RR COMB LAMP
(A)
24V 21W
|
1-82194-036-0 |
02 |
1 |
9811-0012 |
|
|
|
|
|
|
● |
| |
5 |
08.991 BULB; RR COMB LAMP
(A)
24V 21W
|
1-82194-036-0 |
02 |
1 |
9811-0012 |
|
|
|
|
|
|
● |
| |
5 |
08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE>
(A)
24V 21W
|
1-82194-036-0 |
02 |
1 |
0101-0105 |
● |
|
● |
● |
● |
|
● |
| |
5 |
08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE>
(A)
24V 21W
|
1-82194-036-0 |
02 |
1 |
0101-0105 |
● |
|
● |
● |
● |
|
● |
| |
5 |
08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE>
(A)
24V 21W
|
1-82194-036-0 |
02 |
1 |
0106- |
● |
|
● |
● |
|
|
● |
| |
5 |
08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE>
(A)
24V 21W
|
1-82194-036-0 |
02 |
1 |
0106- |
● |
|
● |
● |
|
|
● |
| |
5 |
08.991 BULB; RR COMB LAMP
(A)
24V 21W
|
1-82194-036-0 |
02 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
5 |
08.991 BULB; RR COMB LAMP
(A)
24V 21W
|
1-82194-036-0 |
02 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
5 |
08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE>
(B)
24V 21/5W
|
1-82194-038-0 |
01 |
1 |
9811-0012 |
● |
|
● |
● |
● |
|
|
| |
5 |
08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE>
(B)
24V 21/5W
|
1-82194-038-0 |
01 |
1 |
9811-0012 |
● |
|
● |
● |
● |
|
|
| |
5 |
08.991 BULB; RR COMB LAMP
(B)
24V 21/5W
|
1-82194-038-0 |
01 |
1 |
9811-0012 |
|
|
|
|
|
|
● |
| |
5 |
08.991 BULB; RR COMB LAMP
(B)
24V 21/5W
|
1-82194-038-0 |
01 |
1 |
9811-0012 |
|
|
|
|
|
|
● |
| |
5 |
08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE>
(B)
24V 21/5W
|
1-82194-038-0 |
01 |
1 |
0101-0105 |
● |
|
● |
● |
● |
|
● |
| |
5 |
08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE>
(B)
24V 21/5W
|
1-82194-038-0 |
01 |
1 |
0101-0105 |
● |
|
● |
● |
● |
|
● |
| |
5 |
08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE>
(B)
24V 21/5W
|
1-82194-038-0 |
01 |
1 |
0106- |
● |
|
● |
● |
|
|
● |
| |
5 |
08.991 BULB; RR COMB LAMP
VOLTAGE 24V<7AE>
(B)
24V 21/5W
|
1-82194-038-0 |
01 |
1 |
0106- |
● |
|
● |
● |
|
|
● |
| |
5 |
08.991 BULB; RR COMB LAMP
(B)
24V 21/5W
|
1-82194-038-0 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
5 |
08.991 BULB; RR COMB LAMP
(B)
24V 21/5W
|
1-82194-038-0 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
5 |
08.991 BULB; RR COMB LAMP
EXC. VOLTAGE 24V<7AE>
(A)
12V 21W
|
8-94124-074-0 |
02 |
1 |
9811-0012 |
● |
|
● |
● |
● |
|
|
| |
5 |
08.991 BULB; RR COMB LAMP
EXC. VOLTAGE 24V<7AE>
(A)
12V 21W
|
8-94124-074-0 |
02 |
1 |
9811-0012 |
● |
|
● |
● |
● |
|
|
| |
5 |
08.991 BULB; RR COMB LAMP
(A)
12V 21W
|
8-94124-074-0 |
02 |
1 |
9811-0012 |
|
● |
|
|
|
● |
|
| |
5 |
08.991 BULB; RR COMB LAMP
(A)
12V 21W
|
8-94124-074-0 |
02 |
1 |
9811-0012 |
|
● |
|
|
|
● |
|
| |
5 |
08.991 BULB; RR COMB LAMP
EXC. VOLTAGE 24V<7AE>
(A)
12V 21W
|
8-94124-074-0 |
02 |
1 |
0101-0105 |
● |
|
● |
● |
● |
|
● |
| |
5 |
08.991 BULB; RR COMB LAMP
EXC. VOLTAGE 24V<7AE>
(A)
12V 21W
|
8-94124-074-0 |
02 |
1 |
0101-0105 |
● |
|
● |
● |
● |
|
● |
| |
5 |
08.991 BULB; RR COMB LAMP
(A)
12V 21W
|
8-94124-074-0 |
02 |
1 |
0101-0105 |
|
● |
|
|
|
● |
|
| |
5 |
08.991 BULB; RR COMB LAMP
(A)
12V 21W
|
8-94124-074-0 |
02 |
1 |
0101-0105 |
|
● |
|
|
|
● |
|
| |
5 |
08.991 BULB; RR COMB LAMP
EXC. VOLTAGE 24V<7AE>
(A)
12V 21W
|
8-94124-074-0 |
02 |
1 |
0106- |
● |
|
● |
● |
|
|
● |
| |
5 |
08.991 BULB; RR COMB LAMP
EXC. VOLTAGE 24V<7AE>
(A)
12V 21W
|
8-94124-074-0 |
02 |
1 |
0106- |
● |
|
● |
● |
|
|
● |
| |
5 |
08.991 BULB; RR COMB LAMP
(A)
12V 21W
|
8-94124-074-0 |
02 |
1 |
0106- |
|
● |
|
|
|
● |
|
| |
5 |
08.991 BULB; RR COMB LAMP
(A)
12V 21W
|
8-94124-074-0 |
02 |
1 |
0106- |
|
● |
|
|
|
● |
|
| |
5 |
08.991 BULB; RR COMB LAMP
EXC. VOLTAGE 24V<7AE>
(B)
12V 21/5W
|
8-94125-959-0 |
01 |
1 |
9811-0012 |
● |
|
● |
● |
● |
|
|
| |
5 |
08.991 BULB; RR COMB LAMP
EXC. VOLTAGE 24V<7AE>
(B)
12V 21/5W
|
8-94125-959-0 |
01 |
1 |
9811-0012 |
● |
|
● |
● |
● |
|
|
| |
5 |
08.991 BULB; RR COMB LAMP
(B)
12V 21/5W
|
8-94125-959-0 |
01 |
1 |
9811-0012 |
|
● |
|
|
|
● |
|
| |
5 |
08.991 BULB; RR COMB LAMP
(B)
12V 21/5W
|
8-94125-959-0 |
01 |
1 |
9811-0012 |
|
● |
|
|
|
● |
|
| |
5 |
08.991 BULB; RR COMB LAMP
EXC. VOLTAGE 24V<7AE>
(B)
12V 21/5W
|
8-94125-959-0 |
01 |
1 |
0101-0105 |
● |
|
● |
● |
● |
|
● |
| |
5 |
08.991 BULB; RR COMB LAMP
EXC. VOLTAGE 24V<7AE>
(B)
12V 21/5W
|
8-94125-959-0 |
01 |
1 |
0101-0105 |
● |
|
● |
● |
● |
|
● |
| |
5 |
08.991 BULB; RR COMB LAMP
(B)
12V 21/5W
|
8-94125-959-0 |
01 |
1 |
0101-0105 |
|
● |
|
|
|
● |
|
| |
5 |
08.991 BULB; RR COMB LAMP
(B)
12V 21/5W
|
8-94125-959-0 |
01 |
1 |
0101-0105 |
|
● |
|
|
|
● |
|
| |
5 |
08.991 BULB; RR COMB LAMP
EXC. VOLTAGE 24V<7AE>
(B)
12V 21/5W
|
8-94125-959-0 |
01 |
1 |
0106- |
● |
|
● |
● |
|
|
● |
| |
5 |
08.991 BULB; RR COMB LAMP
EXC. VOLTAGE 24V<7AE>
(B)
12V 21/5W
|
8-94125-959-0 |
01 |
1 |
0106- |
● |
|
● |
● |
|
|
● |
| |
5 |
08.991 BULB; RR COMB LAMP
(B)
12V 21/5W
|
8-94125-959-0 |
01 |
1 |
0106- |
|
● |
|
|
|
● |
|
| |
5 |
08.991 BULB; RR COMB LAMP
(B)
12V 21/5W
|
8-94125-959-0 |
01 |
1 |
0106- |
|
● |
|
|
|
● |
|
| |
9 |
02.689 NUT; LAMP,RR COMB
EXC. RR BODY FLAT BED<RS6>
07.829
M6 FLANGE
|
5-09440-004-0 |
06 |
1 |
0211- |
● |
|
|
● |
|
|
|
| |
9 |
02.689 NUT; LAMP,RR COMB
EXC. RR BODY NON FLAT BED(RS5)
07.829
M6 FLANGE
|
5-09440-004-0 |
06 |
1 |
0211- |
|
● |
|
|
|
|
|
| |
9 |
02.689 NUT; LAMP,RR COMB
EXC. RR BODY FLAT BED<RS6>,DUMP
CHASSIS(V4D)
07.829
M6 FLANGE
|
5-09440-004-0 |
06 |
1 |
0211- |
|
|
● |
|
|
|
|
| |
9 |
02.689 NUT; LAMP,RR COMB
07.829
M6 FLANGE
|
5-09440-004-0 |
06 |
1 |
0211- |
|
|
|
|
● |
● |
● |
| |
13 |
02.682 LENS; TURN SIGNAL
|
8-94174-639-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
13 |
02.682 LENS; TURN SIGNAL
|
8-94174-638-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
14 |
02.682 LENS; TAIL & STOP,RR COMB LAMP
|
8-94178-625-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
14 |
02.682 LENS; TAIL & STOP,RR COMB LAMP
|
8-94178-624-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
15 |
02.664 SCREW; RR COMB LAMP
08.977
(A)
M4X20 TAPPING STAINLESS
|
0-71190-420-0 |
08 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
15 |
02.664 SCREW; RR COMB LAMP
RR BODY FLAT BED<RS6>
14.550
(B)
M5X20
|
9-93490-520-0 |
02 |
1 |
9811-0105 |
● |
|
● |
● |
● |
|
|
| |
15 |
02.664 SCREW; RR COMB LAMP
RR BODY NON FLAT BED(RS5)
14.550
(B)
M5X20
|
9-93490-520-0 |
02 |
1 |
9811-0105 |
|
● |
|
|
|
|
|
| |
15 |
02.664 SCREW; RR COMB LAMP
RR BODY FLAT BED<RS6>
EXC. BRAZIL EQUIPMENT(RWF)
14.550
(B)
M5X20
|
9-93490-520-0 |
02 |
1 |
0106- |
● |
|
|
● |
|
|
|
| |
15 |
02.664 SCREW; RR COMB LAMP
RR BODY NON FLAT BED(RS5)
14.550
(B)
M5X20
|
9-93490-520-0 |
02 |
1 |
0106- |
|
● |
|
|
|
|
|
| |
15 |
02.664 SCREW; RR COMB LAMP
RR BODY FLAT BED<RS6>
14.550
(B)
M5X20
|
9-93490-520-0 |
02 |
1 |
0106- |
|
|
● |
|
|
|
|
| |
22 |
02.697 LENS; BACKUP,RR COMB LAMP
|
8-94257-512-1 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
24 |
02.697 GASKET; BACK,LAMP
|
8-94257-506-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
25 |
02.810 HORN ASM; BACK
BACK BUZZER<YM9>
|
8-94257-518-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
26 |
02.812 SCREW; BACK HORN
09.655
M4X14 TAPPING
|
9-07076-414-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
26 |
02.812 SCREW; BACK HORN
BACK BUZZER<YM9>
02.688
M4X12 TAPPING
|
9-07076-412-0 |
02 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
26 |
02.812 SCREW; BACK HORN
EXC. BACK BUZZER<YM9>
02.688
M4X12 TAPPING
|
9-07076-412-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
28 |
02.684 GASKET; TURN,LAMP
|
8-94257-507-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
31 |
02.664 BRACKET; RR COMB LAMP
DUMP CHASSIS(V4D)
|
8-94116-145-1 |
02 |
1 |
9811- |
|
|
● |
|
|
|
|
| |
36 |
02.664 BOLT; BRKT,RR COMB
DUMP CHASSIS(V4D)
|
0-51040-820-0 |
06 |
1 |
9811- |
|
|
● |
|
|
|
|
| |
37 |
02.680 COVER; RR COMB LAMP
|
8-94129-274-2 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
37 |
02.680 COVER; RR COMB LAMP
|
8-94128-858-2 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
38 |
02.689 BOLT; LAMP,RR COMB
02.664
M6X20
|
8-94402-623-0 |
06 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
49 |
02.700 LAMP; LICENSE PLATE
VOLTAGE 24V<7AE>
24V 12W
|
5-82120-021-0 |
01 |
1 |
9811-0012 |
● |
|
● |
● |
● |
|
|
| |
49 |
02.700 LAMP; LICENSE PLATE
24V 12W
|
5-82120-021-0 |
01 |
1 |
9811-0012 |
|
|
|
|
|
|
● |
| |
49 |
02.700 LAMP; LICENSE PLATE
VOLTAGE 24V<7AE>
24V 12W
|
5-82120-021-0 |
01 |
1 |
0101-0105 |
● |
|
● |
● |
● |
|
|
| |
49 |
02.700 LAMP; LICENSE PLATE
VOLTAGE 24V<7AE>
EXC. BRAZIL EQUIPMENT(RWF)
24V 12W
|
5-82120-021-0 |
01 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
49 |
02.700 LAMP; LICENSE PLATE
VOLTAGE 24V<7AE>
EXC. BRAZIL EQUIPMENT(RWF)
24V 12W
|
5-82120-021-0 |
01 |
1 |
0106- |
● |
|
|
● |
|
|
● |
| |
49 |
02.700 LAMP; LICENSE PLATE
VOLTAGE 24V<7AE>
24V 12W
|
5-82120-021-0 |
01 |
1 |
0106- |
|
|
● |
|
|
|
|
| |
49 |
02.700 LAMP; LICENSE PLATE
24V 12W
|
5-82120-021-0 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
49 |
02.700 LAMP; LICENSE PLATE
EXC. VOLTAGE 24V<7AE>
12V 10W
|
5-82120-020-0 |
01 |
1 |
9811-0012 |
● |
|
● |
● |
● |
|
|
| |
49 |
02.700 LAMP; LICENSE PLATE
12V 10W
|
5-82120-020-0 |
01 |
1 |
9811-0012 |
|
● |
|
|
|
● |
|
| |
49 |
02.700 LAMP; LICENSE PLATE
EXC. VOLTAGE 24V<7AE>
12V 10W
|
5-82120-020-0 |
01 |
1 |
0101-0105 |
● |
|
● |
● |
● |
|
|
| |
49 |
02.700 LAMP; LICENSE PLATE
12V 10W
|
5-82120-020-0 |
01 |
1 |
0101-0105 |
|
● |
|
|
|
● |
|
| |
49 |
02.700 LAMP; LICENSE PLATE
EXC. BRAZIL EQUIPMENT(RWF),VOLTAGE
24V<7AE>
12V 10W
|
5-82120-020-0 |
01 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
49 |
02.700 LAMP; LICENSE PLATE
EXC. BRAZIL EQUIPMENT(RWF),VOLTAGE
24V<7AE>
12V 10W
|
5-82120-020-0 |
01 |
1 |
0106- |
● |
|
|
● |
|
|
● |
| |
49 |
02.700 LAMP; LICENSE PLATE
12V 10W
|
5-82120-020-0 |
01 |
1 |
0106- |
|
● |
|
|
|
● |
|
| |
49 |
02.700 LAMP; LICENSE PLATE
EXC. VOLTAGE 24V<7AE>
12V 10W
|
5-82120-020-0 |
01 |
1 |
0106- |
|
|
● |
|
|
|
|
| |
49 |
02.700 LAMP; LICENSE PLATE
BRAZIL EQUIPMENT(RWF)
VOLTAGE 24V<7AE>
24V 5W
|
8-97105-380-0 |
02 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
49 |
02.700 LAMP; LICENSE PLATE
BRAZIL EQUIPMENT(RWF)
VOLTAGE 24V<7AE>
24V 5W
|
8-97105-380-0 |
02 |
1 |
0106- |
● |
|
|
● |
|
|
● |
| |
49 |
02.700 LAMP; LICENSE PLATE
BRAZIL EQUIPMENT(RWF)
EXC. VOLTAGE 24V<7AE>
12V 5W
|
8-97105-382-0 |
02 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
49 |
02.700 LAMP; LICENSE PLATE
BRAZIL EQUIPMENT(RWF)
EXC. VOLTAGE 24V<7AE>
12V 5W
|
8-97105-382-0 |
02 |
1 |
0106- |
● |
|
|
● |
|
|
● |
| |
50 |
02.709 LENS; LICENSE PLATE LAMP
|
5-82125-004-0 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
● |
● |
● |
| |
50 |
02.709 LENS; LICENSE PLATE LAMP
|
5-82125-004-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
● |
|
| |
50 |
02.709 LENS; LICENSE PLATE LAMP
EXC. BRAZIL EQUIPMENT(RWF)
|
5-82125-004-0 |
01 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
50 |
02.709 LENS; LICENSE PLATE LAMP
EXC. BRAZIL EQUIPMENT(RWF)
|
5-82125-004-0 |
01 |
1 |
0106- |
● |
|
|
● |
|
|
● |
| |
50 |
02.709 LENS; LICENSE PLATE LAMP
|
5-82125-004-0 |
01 |
1 |
0106- |
|
● |
● |
|
● |
● |
|
| |
50 |
02.709 LENS; LICENSE PLATE LAMP
BRAZIL EQUIPMENT(RWF)
|
8-97108-212-0 |
02 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
50 |
02.709 LENS; LICENSE PLATE LAMP
BRAZIL EQUIPMENT(RWF)
|
8-97108-212-0 |
02 |
1 |
0106- |
● |
|
|
● |
|
|
● |
| |
51 |
08.991 BULB; LICENSE PLATE LAMP
VOLTAGE 24V<7AE>
24V 12W
|
1-82194-004-0 |
01 |
1 |
9811-0012 |
● |
|
● |
● |
● |
|
|
| |
51 |
08.991 BULB; LICENSE PLATE LAMP
24V 12W
|
1-82194-004-0 |
01 |
1 |
9811-0012 |
|
|
|
|
|
|
● |
| |
51 |
08.991 BULB; LICENSE PLATE LAMP
VOLTAGE 24V<7AE>
24V 12W
|
1-82194-004-0 |
01 |
1 |
0101-0105 |
● |
|
● |
● |
● |
|
|
| |
51 |
08.991 BULB; LICENSE PLATE LAMP
VOLTAGE 24V<7AE>
EXC. BRAZIL EQUIPMENT(RWF)
24V 12W
|
1-82194-004-0 |
01 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
51 |
08.991 BULB; LICENSE PLATE LAMP
VOLTAGE 24V<7AE>
EXC. BRAZIL EQUIPMENT(RWF)
24V 12W
|
1-82194-004-0 |
01 |
1 |
0106- |
● |
|
|
● |
|
|
● |
| |
51 |
08.991 BULB; LICENSE PLATE LAMP
VOLTAGE 24V<7AE>
24V 12W
|
1-82194-004-0 |
01 |
1 |
0106- |
|
|
● |
|
|
|
|
| |
51 |
08.991 BULB; LICENSE PLATE LAMP
24V 12W
|
1-82194-004-0 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
51 |
08.991 BULB; LICENSE PLATE LAMP
EXC. VOLTAGE 24V<7AE>
12V 10W
|
8-94126-494-0 |
01 |
1 |
9811-0012 |
● |
|
● |
● |
● |
|
|
| |
51 |
08.991 BULB; LICENSE PLATE LAMP
12V 10W
|
8-94126-494-0 |
01 |
1 |
9811-0012 |
|
● |
|
|
|
● |
|
| |
51 |
08.991 BULB; LICENSE PLATE LAMP
EXC. VOLTAGE 24V<7AE>
12V 10W
|
8-94126-494-0 |
01 |
1 |
0101-0105 |
● |
|
● |
● |
● |
|
|
| |
51 |
08.991 BULB; LICENSE PLATE LAMP
12V 10W
|
8-94126-494-0 |
01 |
1 |
0101-0105 |
|
● |
|
|
|
● |
|
| |
51 |
08.991 BULB; LICENSE PLATE LAMP
EXC. BRAZIL EQUIPMENT(RWF),VOLTAGE
24V<7AE>
12V 10W
|
8-94126-494-0 |
01 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
51 |
08.991 BULB; LICENSE PLATE LAMP
EXC. BRAZIL EQUIPMENT(RWF),VOLTAGE
24V<7AE>
12V 10W
|
8-94126-494-0 |
01 |
1 |
0106- |
● |
|
|
● |
|
|
● |
| |
51 |
08.991 BULB; LICENSE PLATE LAMP
12V 10W
|
8-94126-494-0 |
01 |
1 |
0106- |
|
● |
|
|
|
● |
|
| |
51 |
08.991 BULB; LICENSE PLATE LAMP
EXC. VOLTAGE 24V<7AE>
12V 10W
|
8-94126-494-0 |
01 |
1 |
0106- |
|
|
● |
|
|
|
|
| |
51 |
08.991 BULB; LICENSE PLATE LAMP
BRAZIL EQUIPMENT(RWF)
VOLTAGE 24V<7AE>
24V 5W
|
1-82194-039-0 |
02 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
51 |
08.991 BULB; LICENSE PLATE LAMP
BRAZIL EQUIPMENT(RWF)
VOLTAGE 24V<7AE>
24V 5W
|
1-82194-039-0 |
02 |
1 |
0106- |
● |
|
|
● |
|
|
● |
| |
51 |
08.991 BULB; LICENSE PLATE LAMP
BRAZIL EQUIPMENT(RWF)
EXC. VOLTAGE 24V<7AE>
12V 5W
|
8-94124-075-0 |
02 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
51 |
08.991 BULB; LICENSE PLATE LAMP
BRAZIL EQUIPMENT(RWF)
EXC. VOLTAGE 24V<7AE>
12V 5W
|
8-94124-075-0 |
02 |
1 |
0106- |
● |
|
|
● |
|
|
● |
| |
54 |
02.708 SCREW; LICENSE PLATE LAMP
02.709
M4X8
|
8-94419-312-0 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
● |
● |
● |
| |
54 |
02.708 SCREW; LICENSE PLATE LAMP
02.709
M4X8
|
8-94419-312-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
● |
|
| |
54 |
02.708 SCREW; LICENSE PLATE LAMP
EXC. BRAZIL EQUIPMENT(RWF)
02.709
M4X8
|
8-94419-312-0 |
01 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
54 |
02.708 SCREW; LICENSE PLATE LAMP
EXC. BRAZIL EQUIPMENT(RWF)
02.709
M4X8
|
8-94419-312-0 |
01 |
1 |
0106- |
● |
|
|
● |
|
|
● |
| |
54 |
02.708 SCREW; LICENSE PLATE LAMP
02.709
M4X8
|
8-94419-312-0 |
01 |
1 |
0106- |
|
● |
● |
|
● |
● |
|
| |
54 |
02.708 SCREW; LICENSE PLATE LAMP
BRAZIL EQUIPMENT(RWF)
02.709
M4X8
|
8-94419-312-0 |
02 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
54 |
02.708 SCREW; LICENSE PLATE LAMP
BRAZIL EQUIPMENT(RWF)
02.709
M4X8
|
8-94419-312-0 |
02 |
1 |
0106- |
● |
|
|
● |
|
|
● |
| |
55 |
02.708 NUT; LICENSE PLATE LAMP
03.444
M5 FLANGE
|
8-94153-039-0 |
02 |
1 |
9811-0012 |
● |
● |
● |
● |
● |
● |
● |
| |
55 |
02.708 NUT; LICENSE PLATE LAMP
03.444
M5 FLANGE
|
8-94153-039-0 |
02 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
● |
|
| |
55 |
02.708 NUT; LICENSE PLATE LAMP
EXC. BRAZIL EQUIPMENT(RWF)
03.444
M5 FLANGE
|
8-94153-039-0 |
02 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
55 |
02.708 NUT; LICENSE PLATE LAMP
EXC. BRAZIL EQUIPMENT(RWF)
03.444
M5 FLANGE
|
8-94153-039-0 |
02 |
1 |
0106- |
● |
|
|
● |
|
|
● |
| |
55 |
02.708 NUT; LICENSE PLATE LAMP
03.444
M5 FLANGE
|
8-94153-039-0 |
02 |
1 |
0106- |
|
● |
● |
|
● |
● |
|
| |
55 |
02.708 NUT; LICENSE PLATE LAMP
BRAZIL EQUIPMENT(RWF)
03.444
M5 FLANGE
|
8-94153-039-0 |
04 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
55 |
02.708 NUT; LICENSE PLATE LAMP
BRAZIL EQUIPMENT(RWF)
03.444
M5 FLANGE
|
8-94153-039-0 |
04 |
1 |
0106- |
● |
|
|
● |
|
|
● |
| |
58 |
02.705 COVER; LICENSE PLATE LAMP
|
8-97076-590-1 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
● |
● |
● |
| |
58 |
02.705 COVER; LICENSE PLATE LAMP
|
8-97076-590-1 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
● |
|
| |
58 |
02.705 COVER; LICENSE PLATE LAMP
EXC. BRAZIL EQUIPMENT(RWF)
|
8-97076-590-1 |
01 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
58 |
02.705 COVER; LICENSE PLATE LAMP
EXC. BRAZIL EQUIPMENT(RWF)
|
8-97076-590-1 |
01 |
1 |
0106- |
● |
|
|
● |
|
|
● |
| |
58 |
02.705 COVER; LICENSE PLATE LAMP
|
8-97076-590-1 |
01 |
1 |
0106- |
|
● |
● |
|
● |
● |
|
| |
58 |
02.705 COVER; LICENSE PLATE LAMP
BRAZIL EQUIPMENT(RWF)
|
8-97076-590-1 |
02 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
58 |
02.705 COVER; LICENSE PLATE LAMP
BRAZIL EQUIPMENT(RWF)
|
8-97076-590-1 |
02 |
1 |
0106- |
● |
|
|
● |
|
|
● |
| |
59 |
02.708 SCREW; TAP,LICENSE LAMP BODY
EXC. RR BODY FLAT BED<RS6>
14.550
M5X20
|
9-93490-520-0 |
02 |
1 |
9811-0012 |
● |
|
● |
● |
● |
|
|
| |
59 |
02.708 SCREW; TAP,LICENSE LAMP BODY
EXC. RR BODY NON FLAT BED(RS5)
14.550
M5X20
|
9-93490-520-0 |
02 |
1 |
9811-0012 |
|
● |
|
|
|
|
|
| |
59 |
02.708 SCREW; TAP,LICENSE LAMP BODY
14.550
M5X20
|
9-93490-520-0 |
02 |
1 |
9811-0012 |
|
|
|
|
|
● |
● |
| |
59 |
02.708 SCREW; TAP,LICENSE LAMP BODY
EXC. RR BODY NON FLAT BED(RS5),RR
BODY FLAT BED<RS6>,BRAZIL
EQUIPMENT(RWF)
14.550
M5X20
|
9-93490-520-0 |
02 |
1 |
0101- |
● |
● |
● |
● |
● |
● |
● |
| |
59 |
02.708 SCREW; TAP,LICENSE LAMP BODY
BRAZIL EQUIPMENT(RWF)
14.550
M5X20
|
9-93490-520-0 |
04 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
59 |
02.708 SCREW; TAP,LICENSE LAMP BODY
BRAZIL EQUIPMENT(RWF)
14.550
M5X20
|
9-93490-520-0 |
04 |
1 |
0106- |
● |
|
|
● |
|
|
● |
| |
211 |
02.708 HARNESS; EXT
BRAZIL EQUIPMENT(RWF)
|
5-82129-004-1 |
01 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
211 |
02.708 HARNESS; EXT
BRAZIL EQUIPMENT(RWF)
|
5-82129-004-1 |
01 |
1 |
0106- |
● |
|
|
● |
|
|
● |
