◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#21621) — 261 parça

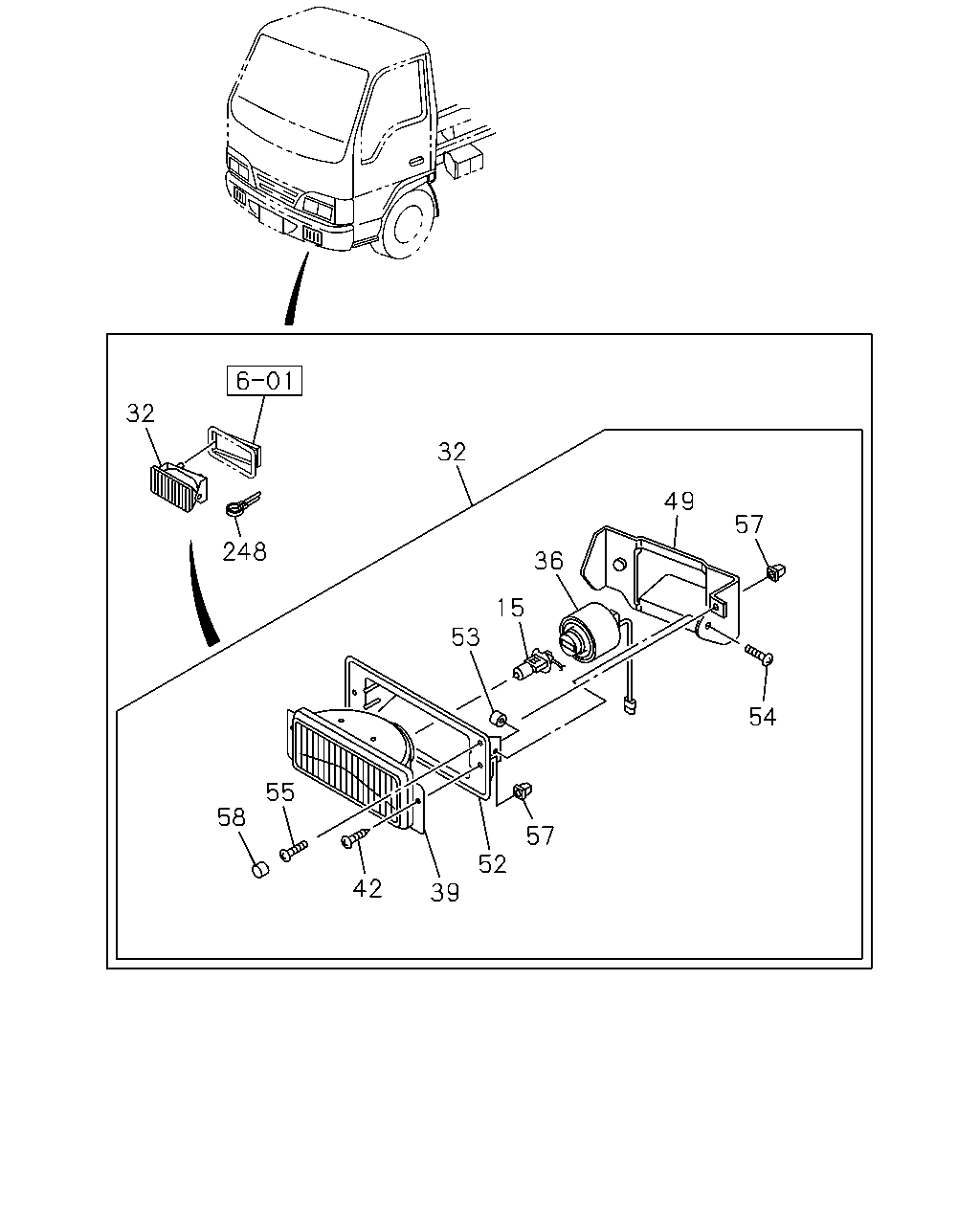

çizim 47663
32 32 49 57 248 36 15 53 54 55 58 57 52 42 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 12V 55W 		8-97093-859-0 02 1 9811-9907 ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 12V 55W 		8-97093-859-0 02 1 9908-9908 ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 12V 55W 		8-97093-859-0 02 1 9909-0012 ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 12V 55W 		8-97093-859-0 02 1 0101-0105 ● ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 12V 55W 		8-97093-859-0 02 1 0106- ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 24V 55W 		8-97093-860-0 02 1 9811-9907 ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 24V 55W 		8-97093-860-0 02 1 9908-9908 ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 24V 55W 		8-97093-860-0 02 1 9909- ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97070-959-1 01 1 9811-0003 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97248-540-0 01 1 0004-0012 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97248-540-0 01 1 0101-0105 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97248-540-0 01 1 0106- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97070-958-1 01 1 9811-0003 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97248-539-0 01 1 0004-0012 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97248-539-0 01 1 0101-0105 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97248-539-0 01 1 0106- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97080-777-1 01 1 9811-0003 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97248-542-0 01 1 0004- ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97080-776-1 01 1 9811-0003 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97248-541-0 01 1 0004- ● ● ● ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> 		8-97095-518-0 02 1 9811- ● ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97119-300-0 01 1 9811-0012 ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97119-300-0 01 1 0101-0105 ● ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97119-300-0 01 1 0106- ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-060-0 01 1 9811-0012 ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-060-0 01 1 0101-0105 ● ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-060-0 01 1 0106- ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97119-301-0 01 1 9811- ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97104-061-0 01 1 9811- ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97104-089-0 04 1 9811- ● ● ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-091-0 01 1 9811- ● ● ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-090-0 01 1 9811- ● ● ● ● ● ● ●
52 02.726 RING; MTG,FOG LAMP
FOG LAMP<T96> 		8-97104-062-0 02 1 9811- ● ● ● ● ● ● ●
53 02.726 NUT; MTG RING,FOG LAMP
FOG LAMP<T96> 		8-94379-802-0 04 1 9811- ● ● ● ● ● ● ●
54 02.726 BOLT; MTG RING,FOG LAMP
FOG LAMP<T96> M5X12 		8-94379-803-0 04 1 9811- ● ● ● ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-97104-087-0 02 1 9811- ● ● ● ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-94379-806-0 06 1 9811- ● ● ● ● ● ● ●
58 02.726 HOLDER; FOG LAMP
FOG LAMP<T96> 		8-97104-088-0 02 1 9811- ● ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
FOG LAMP<T96> 02.559 ID=20 		5-09700-321-0 02 1 9811- ● ● ● ● ● ● ●

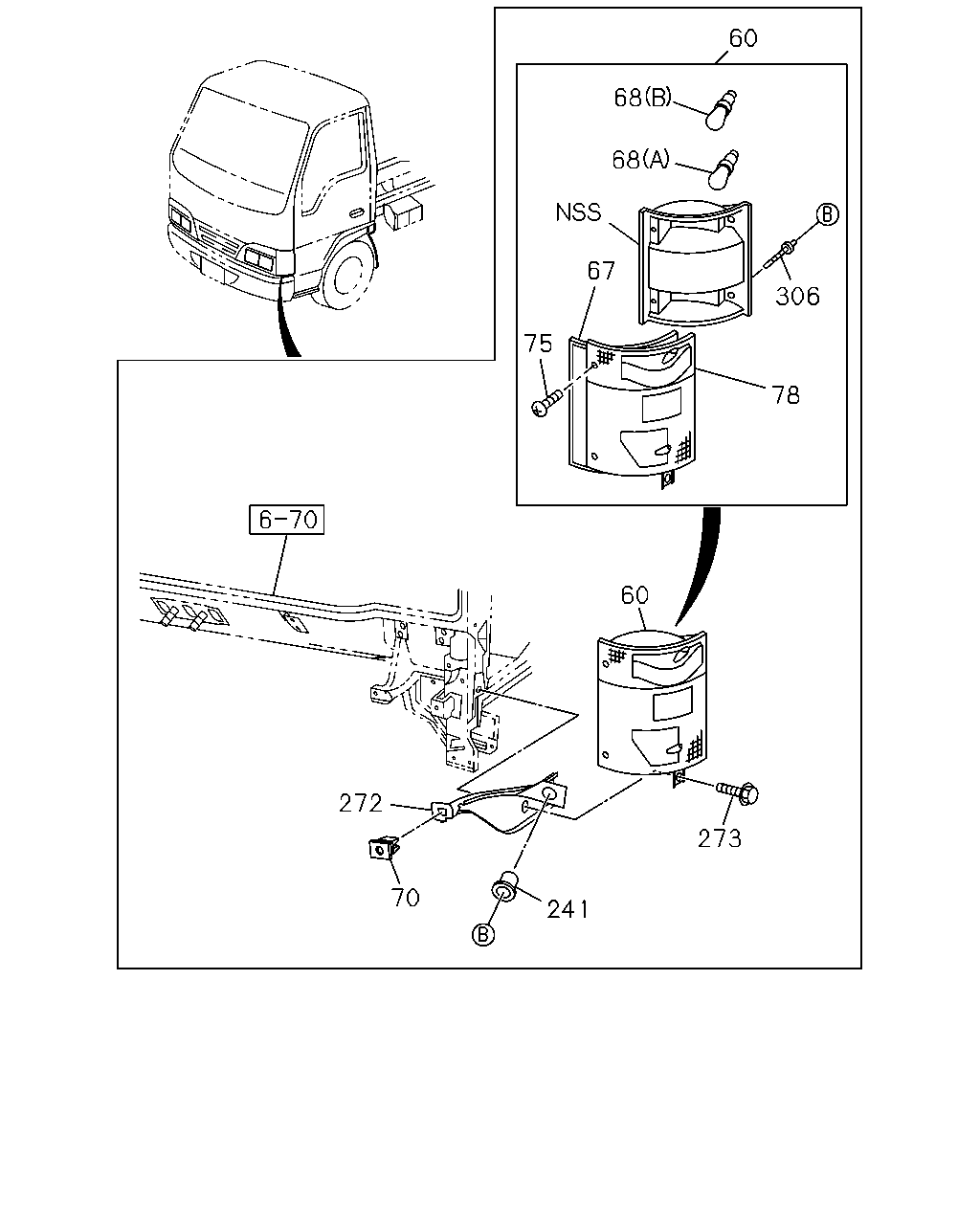

çizim 48517
60 68 68 67 306 75 78 60 272 273 70 241
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
60 02.585 LAMP ASM; FRT COMB
EXC. CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE> 		8-97855-006-2 01 1 9811-0012 ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE> 		8-97855-006-2 01 1 0101-0105 ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE> 		8-97855-006-2 01 1 0106- ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE> 		8-97855-005-2 01 1 9811-0012 ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE> 		8-97855-005-2 01 1 0101-0105 ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE> 		8-97855-005-2 01 1 0106- ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
CHINA EQUIPMENT(YT2) EXC. VOLTAGE 24V<7AE> 		8-97855-111-2 01 1 9811-0012 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
CHINA EQUIPMENT(YT2) EXC. VOLTAGE 24V<7AE> 		8-97855-111-2 01 1 0101-0105 ● ● ●
60 02.585 LAMP ASM; FRT COMB
CHINA EQUIPMENT(YT2) 		8-97855-111-2 01 1 0101-0105 ●
60 02.585 LAMP ASM; FRT COMB
BRAZIL EQUIPMENT(RWF) EXC. VOLTAGE 24V<7AE> 		8-97855-111-2 01 1 0101-0105 ●
60 02.585 LAMP ASM; FRT COMB
BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2) EXC. VOLTAGE 24V<7AE> 		8-97855-111-2 01 1 0106- ● ●
60 02.585 LAMP ASM; FRT COMB
CHINA EQUIPMENT(YT2) 		8-97855-111-2 01 1 0106- ●
60 02.585 LAMP ASM; FRT COMB
BRAZIL EQUIPMENT(RWF) EXC. VOLTAGE 24V<7AE> 		8-97855-111-2 01 1 0106- ●
60 02.585 LAMP ASM; FRT COMB
CHINA EQUIPMENT(YT2) EXC. VOLTAGE 24V<7AE> 		8-97855-110-2 01 1 9811-0012 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
CHINA EQUIPMENT(YT2) EXC. VOLTAGE 24V<7AE> 		8-97855-110-2 01 1 0101-0105 ● ● ●
60 02.585 LAMP ASM; FRT COMB
CHINA EQUIPMENT(YT2) 		8-97855-110-2 01 1 0101-0105 ●
60 02.585 LAMP ASM; FRT COMB
BRAZIL EQUIPMENT(RWF) EXC. VOLTAGE 24V<7AE> 		8-97855-110-2 01 1 0101-0105 ●
60 02.585 LAMP ASM; FRT COMB
BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2) EXC. VOLTAGE 24V<7AE> 		8-97855-110-2 01 1 0106- ● ●
60 02.585 LAMP ASM; FRT COMB
CHINA EQUIPMENT(YT2) 		8-97855-110-2 01 1 0106- ●
60 02.585 LAMP ASM; FRT COMB
BRAZIL EQUIPMENT(RWF) EXC. VOLTAGE 24V<7AE> 		8-97855-110-2 01 1 0106- ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> EXC. CHINA EQUIPMENT(YT2) 		8-97855-008-2 01 1 9811-0012 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2) 		8-97855-008-2 01 1 0101- ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> EXC. CHINA EQUIPMENT(YT2) 		8-97855-007-2 01 1 9811-0012 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2) 		8-97855-007-2 01 1 0101- ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
CHINA EQUIPMENT(YT2) VOLTAGE 24V<7AE> 		8-97855-113-2 01 1 9811-0012 ● ● ●
60 02.585 LAMP ASM; FRT COMB
CHINA EQUIPMENT(YT2) VOLTAGE 24V<7AE> 		8-97855-113-2 01 1 0101-0105 ● ● ●
60 02.585 LAMP ASM; FRT COMB
BRAZIL EQUIPMENT(RWF) VOLTAGE 24V<7AE> 		8-97855-113-2 01 1 0101-0105 ●
60 02.585 LAMP ASM; FRT COMB
BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2) VOLTAGE 24V<7AE> 		8-97855-113-2 01 1 0106- ● ●
60 02.585 LAMP ASM; FRT COMB
BRAZIL EQUIPMENT(RWF) VOLTAGE 24V<7AE> 		8-97855-113-2 01 1 0106- ●
60 02.585 LAMP ASM; FRT COMB
CHINA EQUIPMENT(YT2) VOLTAGE 24V<7AE> 		8-97855-112-2 01 1 9811-0012 ● ● ●
60 02.585 LAMP ASM; FRT COMB
CHINA EQUIPMENT(YT2) VOLTAGE 24V<7AE> 		8-97855-112-2 01 1 0101-0105 ● ● ●
60 02.585 LAMP ASM; FRT COMB
BRAZIL EQUIPMENT(RWF) VOLTAGE 24V<7AE> 		8-97855-112-2 01 1 0101-0105 ●
60 02.585 LAMP ASM; FRT COMB
BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2) VOLTAGE 24V<7AE> 		8-97855-112-2 01 1 0106- ● ●
60 02.585 LAMP ASM; FRT COMB
BRAZIL EQUIPMENT(RWF) VOLTAGE 24V<7AE> 		8-97855-112-2 01 1 0106- ●
67 02.590 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 9811- ● ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE> (A) 12V 27/8W 		8-97094-889-0 02 1 9811-0012 ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE> (A) 12V 27/8W 		8-97094-889-0 02 1 0101-0105 ● ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE> (A) 12V 27/8W 		8-97094-889-0 02 1 0106- ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
CHINA EQUIPMENT(YT2) EXC. VOLTAGE 24V<7AE> (A) 12V 10W 		8-94126-494-0 02 1 9811-0012 ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
CHINA EQUIPMENT(YT2) EXC. VOLTAGE 24V<7AE> (A) 12V 10W 		8-94126-494-0 02 1 0101-0105 ● ● ●
68 08.991 BULB; FRT COMB LAMP
CHINA EQUIPMENT(YT2) (A) 12V 10W 		8-94126-494-0 02 1 0101-0105 ●
68 08.991 BULB; FRT COMB LAMP
BRAZIL EQUIPMENT(RWF) EXC. VOLTAGE 24V<7AE> (A) 12V 10W 		8-94126-494-0 02 1 0101-0105 ●
68 08.991 BULB; FRT COMB LAMP
BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2) EXC. VOLTAGE 24V<7AE> (A) 12V 10W 		8-94126-494-0 02 1 0106- ● ●
68 08.991 BULB; FRT COMB LAMP
CHINA EQUIPMENT(YT2) (A) 12V 10W 		8-94126-494-0 02 1 0106- ●
68 08.991 BULB; FRT COMB LAMP
BRAZIL EQUIPMENT(RWF) EXC. VOLTAGE 24V<7AE> (A) 12V 10W 		8-94126-494-0 02 1 0106- ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> EXC. CHINA EQUIPMENT(YT2) (A) 24V 30/10W 		1-82194-065-0 02 1 9811-0012 ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2) (A) 24V 30/10W 		1-82194-065-0 02 1 0101- ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> EXC. CHINA EQUIPMENT(YT2) (B) 24V 25W 		9-82691-347-0 02 1 9811-0012 ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2) (B) 24V 25W 		9-82691-347-0 02 1 0101- ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (B) 12V 21W 		8-94124-074-0 02 1 9811-0012 ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(B) 12V 21W 		8-94124-074-0 02 1 9811-0012 ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (B) 12V 21W 		8-94124-074-0 02 1 0101-0105 ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(B) 12V 21W 		8-94124-074-0 02 1 0101-0105 ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (B) 12V 21W 		8-94124-074-0 02 1 0106- ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(B) 12V 21W 		8-94124-074-0 02 1 0106- ● ●
68 08.991 BULB; FRT COMB LAMP
CHINA EQUIPMENT(YT2) VOLTAGE 24V<7AE> (B) 24V 21W 		8-94125-956-0 02 1 9811-0012 ● ● ●
68 08.991 BULB; FRT COMB LAMP
CHINA EQUIPMENT(YT2) VOLTAGE 24V<7AE> (B) 24V 21W 		8-94125-956-0 02 1 0101-0105 ● ● ●
68 08.991 BULB; FRT COMB LAMP
BRAZIL EQUIPMENT(RWF) VOLTAGE 24V<7AE> (B) 24V 21W 		8-94125-956-0 02 1 0101-0105 ●
68 08.991 BULB; FRT COMB LAMP
BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2) VOLTAGE 24V<7AE> (B) 24V 21W 		8-94125-956-0 02 1 0106- ● ●
68 08.991 BULB; FRT COMB LAMP
BRAZIL EQUIPMENT(RWF) VOLTAGE 24V<7AE> (B) 24V 21W 		8-94125-956-0 02 1 0106- ●
68 08.991 BULB; FRT COMB LAMP
CHINA EQUIPMENT(YT2) VOLTAGE 24V<7AE> (A) 24V 10W 		8-97094-888-0 02 1 9811-0012 ● ● ●
68 08.991 BULB; FRT COMB LAMP
CHINA EQUIPMENT(YT2) VOLTAGE 24V<7AE> (A) 24V 10W 		8-97094-888-0 02 1 0101-0105 ● ● ●
68 08.991 BULB; FRT COMB LAMP
BRAZIL EQUIPMENT(RWF) VOLTAGE 24V<7AE> (A) 24V 10W 		8-97094-888-0 02 1 0101-0105 ●
68 08.991 BULB; FRT COMB LAMP
BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2) VOLTAGE 24V<7AE> (A) 24V 10W 		8-97094-888-0 02 1 0106- ● ●
68 08.991 BULB; FRT COMB LAMP
BRAZIL EQUIPMENT(RWF) VOLTAGE 24V<7AE> (A) 24V 10W 		8-97094-888-0 02 1 0106- ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 9811- ● ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 9811- ● ● ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB
CHINA EQUIPMENT(YT2) 		8-97855-133-0 01 1 9811-0012 ● ● ● ●
78 02.589 LENS ASM; FRT COMB
CHINA EQUIPMENT(YT2) 		8-97855-133-0 01 1 0101-0105 ● ● ● ●
78 02.589 LENS ASM; FRT COMB
BRAZIL EQUIPMENT(RWF) 		8-97855-133-0 01 1 0101-0105 ●
78 02.589 LENS ASM; FRT COMB
BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2) 		8-97855-133-0 01 1 0106- ● ●
78 02.589 LENS ASM; FRT COMB
CHINA EQUIPMENT(YT2) 		8-97855-133-0 01 1 0106- ●
78 02.589 LENS ASM; FRT COMB
BRAZIL EQUIPMENT(RWF) 		8-97855-133-0 01 1 0106- ●
78 02.589 LENS ASM; FRT COMB
CHINA EQUIPMENT(YT2) 		8-97855-130-0 01 1 9811-0012 ● ● ● ●
78 02.589 LENS ASM; FRT COMB
CHINA EQUIPMENT(YT2) 		8-97855-130-0 01 1 0101-0105 ● ● ● ●
78 02.589 LENS ASM; FRT COMB
BRAZIL EQUIPMENT(RWF) 		8-97855-130-0 01 1 0101-0105 ●
78 02.589 LENS ASM; FRT COMB
BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2) 		8-97855-130-0 01 1 0106- ● ●
78 02.589 LENS ASM; FRT COMB
CHINA EQUIPMENT(YT2) 		8-97855-130-0 01 1 0106- ●
78 02.589 LENS ASM; FRT COMB
BRAZIL EQUIPMENT(RWF) 		8-97855-130-0 01 1 0106- ●
78 02.589 LENS ASM; FRT COMB
EXC. CHINA EQUIPMENT(YT2) 		8-97855-131-0 01 1 9811-0012 ● ● ● ●
78 02.589 LENS ASM; FRT COMB 8-97855-131-0 01 1 9811-0012 ● ● ●
78 02.589 LENS ASM; FRT COMB
EXC. CHINA EQUIPMENT(YT2) 		8-97855-131-0 01 1 0101-0105 ● ● ● ●
78 02.589 LENS ASM; FRT COMB 8-97855-131-0 01 1 0101-0105 ● ●
78 02.589 LENS ASM; FRT COMB
EXC. BRAZIL EQUIPMENT(RWF) 		8-97855-131-0 01 1 0101-0105 ●
78 02.589 LENS ASM; FRT COMB
EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2) 		8-97855-131-0 01 1 0106- ● ●
78 02.589 LENS ASM; FRT COMB
EXC. CHINA EQUIPMENT(YT2) 		8-97855-131-0 01 1 0106- ●
78 02.589 LENS ASM; FRT COMB 8-97855-131-0 01 1 0106- ● ● ●
78 02.589 LENS ASM; FRT COMB
EXC. BRAZIL EQUIPMENT(RWF) 		8-97855-131-0 01 1 0106- ●
78 02.589 LENS ASM; FRT COMB
EXC. CHINA EQUIPMENT(YT2) 		8-97855-128-0 01 1 9811-0012 ● ● ● ●
78 02.589 LENS ASM; FRT COMB 8-97855-128-0 01 1 9811-0012 ● ● ●
78 02.589 LENS ASM; FRT COMB
EXC. CHINA EQUIPMENT(YT2) 		8-97855-128-0 01 1 0101-0105 ● ● ● ●
78 02.589 LENS ASM; FRT COMB 8-97855-128-0 01 1 0101-0105 ● ●
78 02.589 LENS ASM; FRT COMB
EXC. BRAZIL EQUIPMENT(RWF) 		8-97855-128-0 01 1 0101-0105 ●
78 02.589 LENS ASM; FRT COMB
EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2) 		8-97855-128-0 01 1 0106- ● ●
78 02.589 LENS ASM; FRT COMB
EXC. CHINA EQUIPMENT(YT2) 		8-97855-128-0 01 1 0106- ●
78 02.589 LENS ASM; FRT COMB 8-97855-128-0 01 1 0106- ● ● ●
78 02.589 LENS ASM; FRT COMB
EXC. BRAZIL EQUIPMENT(RWF) 		8-97855-128-0 01 1 0106- ●
241 02.726 GROMMET; FRT LAMP 8-94452-095-0 04 1 9811- ● ● ● ● ● ● ●
272 02.726 BRACKET; FRT COMB LAMP 8-97853-237-2 01 1 9811- ● ● ● ● ● ● ●
272 02.726 BRACKET; FRT COMB LAMP 8-97853-236-2 01 1 9811- ● ● ● ● ● ● ●
273 02.726 BOLT; BRKT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9811- ● ● ● ● ● ● ●
306 02.587 PIVOT; FRT COMB LAMP 8-97219-053-0 04 1 9811- ● ● ● ● ● ● ●

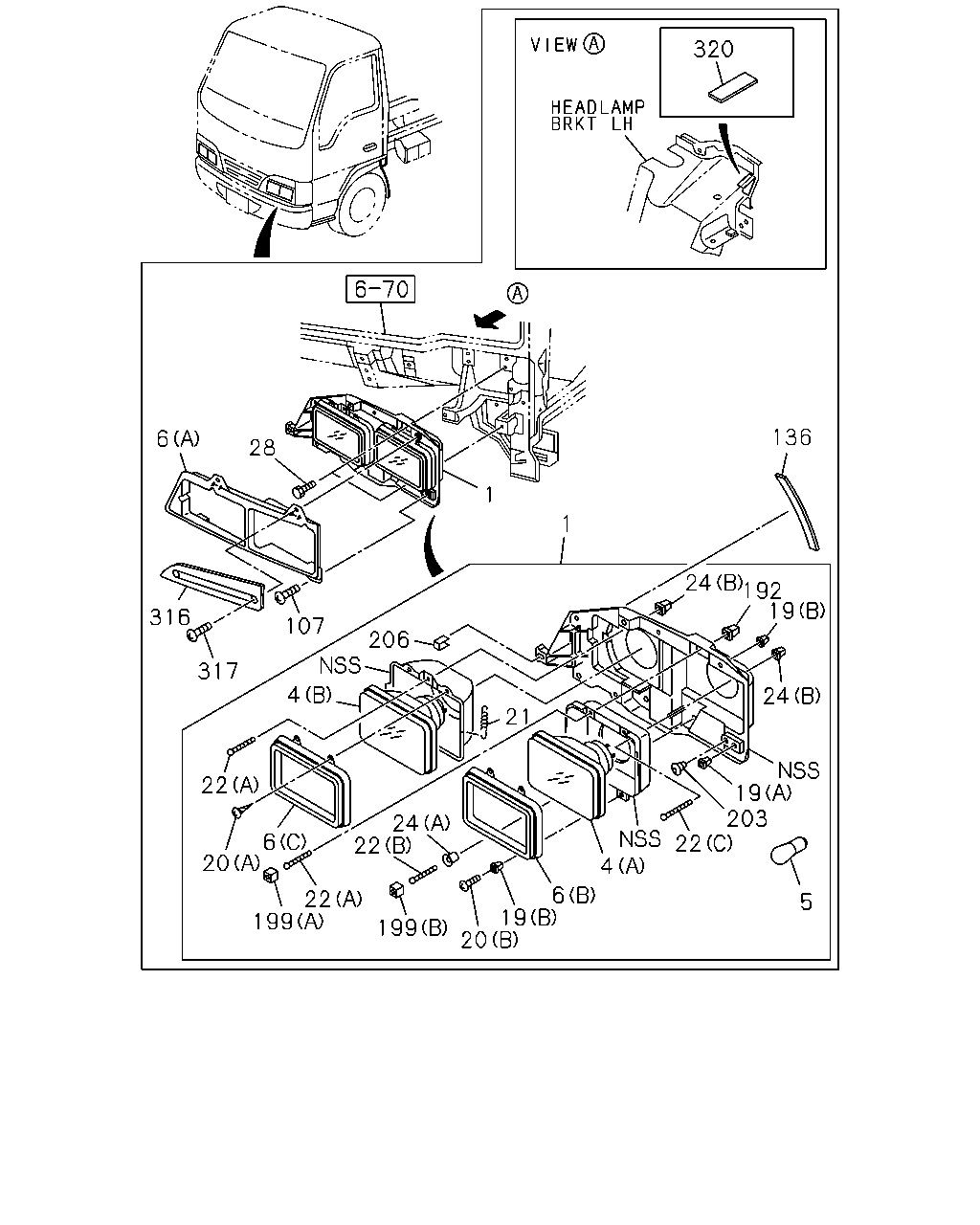

çizim 49210
320 136 6 28 1 1 24 192 19 316 107 206 317 4 24 21 19 203 22 22 24 22 4 6 20 6 19 20 22 199 5 199
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.725 LAMP ASM; HEAD
EXC. CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE> 		8-97855-048-4 01 1 9811-0012 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
CHINA EQUIPMENT(YT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>,VOLTAGE 24V<7AE> 		8-97855-048-4 01 1 9811-0012 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. YELLOW HEAD LAMP<T75>,CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE> 		8-97855-048-4 01 1 0101-0105 ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
CHINA EQUIPMENT(YT2) EXC. YELLOW HEAD LAMP<T75>, IDENTIFICATION LABEL FOR KD<6UT>,VOLTAGE 24V<7AE> 		8-97855-048-4 01 1 0101-0105 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. YELLOW HEAD LAMP<T75>,CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE> 		8-97855-048-4 01 1 0106- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
CHINA EQUIPMENT(YT2) EXC. YELLOW HEAD LAMP<T75>, IDENTIFICATION LABEL FOR KD<6UT>,VOLTAGE 24V<7AE> 		8-97855-048-4 01 1 0106- ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE> 		8-97855-047-4 01 1 9811-0012 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
CHINA EQUIPMENT(YT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>,VOLTAGE 24V<7AE> 		8-97855-047-4 01 1 9811-0012 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. YELLOW HEAD LAMP<T75>,CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE> 		8-97855-047-4 01 1 0101-0105 ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
CHINA EQUIPMENT(YT2) EXC. YELLOW HEAD LAMP<T75>, IDENTIFICATION LABEL FOR KD<6UT>,VOLTAGE 24V<7AE> 		8-97855-047-4 01 1 0101-0105 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. YELLOW HEAD LAMP<T75>,CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE> 		8-97855-047-4 01 1 0106- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
CHINA EQUIPMENT(YT2) EXC. YELLOW HEAD LAMP<T75>, IDENTIFICATION LABEL FOR KD<6UT>,VOLTAGE 24V<7AE> 		8-97855-047-4 01 1 0106- ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> VOLTAGE 24V<7AE> 		8-97189-556-0 01 1 0101-0105 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> VOLTAGE 24V<7AE> 		8-97189-556-0 01 1 0106- ● ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> 		8-97189-556-0 01 1 0106- ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> 		8-97855-089-4 01 1 9811-0012 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97855-089-4 01 1 9811-0012 ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. YELLOW HEAD LAMP<T75> 		8-97855-089-4 01 1 0101-0105 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. YELLOW HEAD LAMP<T75> 		8-97855-089-4 01 1 0106- ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. YELLOW HEAD LAMP<T75> 		8-97855-089-4 01 1 0106- ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> VOLTAGE 24V<7AE> 		8-97189-555-0 01 1 0101-0105 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> VOLTAGE 24V<7AE> 		8-97189-555-0 01 1 0106- ● ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> 		8-97189-555-0 01 1 0106- ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> 		8-97855-088-4 01 1 9811-0012 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97855-088-4 01 1 9811-0012 ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. YELLOW HEAD LAMP<T75> 		8-97855-088-4 01 1 0101-0105 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. YELLOW HEAD LAMP<T75> 		8-97855-088-4 01 1 0106- ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. YELLOW HEAD LAMP<T75> 		8-97855-088-4 01 1 0106- ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> EXC. VOLTAGE 24V<7AE> 		8-97189-558-0 01 1 0101-0105 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> 		8-97189-558-0 01 1 0101-0105 ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> EXC. VOLTAGE 24V<7AE> 		8-97189-558-0 01 1 0106- ● ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> 		8-97189-558-0 01 1 0106- ● ●
1 02.725 LAMP ASM; HEAD
CHINA EQUIPMENT(YT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. VOLTAGE 24V<7AE> 		8-97855-046-4 01 1 9811-0105 ● ● ●
1 02.725 LAMP ASM; HEAD
CHINA EQUIPMENT(YT2) IDENTIFICATION LABEL FOR KD<6UT> 		8-97855-046-4 01 1 9811-0105 ●
1 02.725 LAMP ASM; HEAD
CHINA EQUIPMENT(YT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. VOLTAGE 24V<7AE> 		8-97855-046-4 01 1 0106- ● ●
1 02.725 LAMP ASM; HEAD
CHINA EQUIPMENT(YT2) IDENTIFICATION LABEL FOR KD<6UT> 		8-97855-046-4 01 1 0106- ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> EXC. VOLTAGE 24V<7AE> 		8-97189-557-0 01 1 0101-0105 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> 		8-97189-557-0 01 1 0101-0105 ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> EXC. VOLTAGE 24V<7AE> 		8-97189-557-0 01 1 0106- ● ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> 		8-97189-557-0 01 1 0106- ● ●
1 02.725 LAMP ASM; HEAD
CHINA EQUIPMENT(YT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. VOLTAGE 24V<7AE> 		8-97855-045-4 01 1 9811-0105 ● ● ●
1 02.725 LAMP ASM; HEAD
CHINA EQUIPMENT(YT2) IDENTIFICATION LABEL FOR KD<6UT> 		8-97855-045-4 01 1 9811-0105 ●
1 02.725 LAMP ASM; HEAD
CHINA EQUIPMENT(YT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. VOLTAGE 24V<7AE> 		8-97855-045-4 01 1 0106- ● ●
1 02.725 LAMP ASM; HEAD
CHINA EQUIPMENT(YT2) IDENTIFICATION LABEL FOR KD<6UT> 		8-97855-045-4 01 1 0106- ●
4 02.727 HEADLAMP UNIT
EXC. CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE> (A) 12V 45/40W 		8-94101-733-0 02 1 9811-0105 ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
CHINA EQUIPMENT(YT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>,VOLTAGE 24V<7AE> (A) 12V 45/40W 		8-94101-733-0 02 1 9811-0105 ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE> (A) 12V 45/40W 		8-94101-733-0 02 1 0106- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
CHINA EQUIPMENT(YT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>,VOLTAGE 24V<7AE> (A) 12V 45/40W 		8-94101-733-0 02 1 0106- ● ● ●
4 02.727 HEADLAMP UNIT
EXC. CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE> (B) 12V 45W 		8-94101-739-0 02 1 9811-0105 ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
CHINA EQUIPMENT(YT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>,VOLTAGE 24V<7AE> (B) 12V 45W 		8-94101-739-0 02 1 9811-0105 ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE> (B) 12V 45W 		8-94101-739-0 02 1 0106- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
CHINA EQUIPMENT(YT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>,VOLTAGE 24V<7AE> (B) 12V 45W 		8-94101-739-0 02 1 0106- ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> (A) 24V 55/50W 		8-94101-734-0 02 1 9811-0012 ● ● ● ●
4 02.727 HEADLAMP UNIT
(A) 24V 55/50W 		8-94101-734-0 02 1 9811-0012 ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> (A) 24V 55/50W 		8-94101-734-0 02 1 0101-0105 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> (A) 24V 55/50W 		8-94101-734-0 02 1 0106- ● ● ● ●
4 02.727 HEADLAMP UNIT
(A) 24V 55/50W 		8-94101-734-0 02 1 0106- ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> (B) 24V 55W 		8-94101-740-0 02 1 9811-0012 ● ● ● ●
4 02.727 HEADLAMP UNIT
(B) 24V 55W 		8-94101-740-0 02 1 9811-0012 ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> (B) 24V 55W 		8-94101-740-0 02 1 0101-0105 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> (B) 24V 55W 		8-94101-740-0 02 1 0106- ● ● ● ●
4 02.727 HEADLAMP UNIT
(B) 24V 55W 		8-94101-740-0 02 1 0106- ●
4 02.727 HEADLAMP UNIT
CHINA EQUIPMENT(YT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. VOLTAGE 24V<7AE> (A) 12V 65/60W 		8-97855-199-0 02 1 9811-0105 ● ● ●
4 02.727 HEADLAMP UNIT
CHINA EQUIPMENT(YT2) IDENTIFICATION LABEL FOR KD<6UT> (A) 12V 65/60W 		8-97855-199-0 02 1 9811-0105 ●
4 02.727 HEADLAMP UNIT
CHINA EQUIPMENT(YT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. VOLTAGE 24V<7AE> (A) 12V 65/60W 		8-97855-199-0 02 1 0106- ● ●
4 02.727 HEADLAMP UNIT
CHINA EQUIPMENT(YT2) IDENTIFICATION LABEL FOR KD<6UT> (A) 12V 65/60W 		8-97855-199-0 02 1 0106- ●
4 02.727 HEADLAMP UNIT
CHINA EQUIPMENT(YT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. VOLTAGE 24V<7AE> (B) 12V 55W 		8-97855-203-0 02 1 9811-0105 ● ● ●
4 02.727 HEADLAMP UNIT
CHINA EQUIPMENT(YT2) IDENTIFICATION LABEL FOR KD<6UT> (B) 12V 55W 		8-97855-203-0 02 1 9811-0105 ●
4 02.727 HEADLAMP UNIT
CHINA EQUIPMENT(YT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. VOLTAGE 24V<7AE> (B) 12V 55W 		8-97855-203-0 02 1 0106- ● ●
4 02.727 HEADLAMP UNIT
CHINA EQUIPMENT(YT2) IDENTIFICATION LABEL FOR KD<6UT> (B) 12V 55W 		8-97855-203-0 02 1 0106- ●
5 02.727 BULB; HEADLAMP
EXC. CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE> 08.991 12V 45/50W 		5-82193-001-0 04 1 9811-0012 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
CHINA EQUIPMENT(YT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>,VOLTAGE 24V<7AE> 08.991 12V 45/50W 		5-82193-001-0 04 1 9811-0012 ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE> 08.991 12V 45/50W 		5-82193-001-0 04 1 0101-0105 ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
CHINA EQUIPMENT(YT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>,VOLTAGE 24V<7AE> 08.991 12V 45/50W 		5-82193-001-0 04 1 0101-0105 ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE> 08.991 12V 45/50W 		5-82193-001-0 04 1 0106- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
CHINA EQUIPMENT(YT2) EXC. IDENTIFICATION LABEL FOR KD<6UT>,VOLTAGE 24V<7AE> 08.991 12V 45/50W 		5-82193-001-0 04 1 0106- ● ● ●
5 02.727 BULB; HEADLAMP
CHINA EQUIPMENT(YT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. VOLTAGE 24V<7AE> 12V 55W 		5-82195-001-0 02 1 9811-0105 ● ● ● ●
5 02.727 BULB; HEADLAMP
CHINA EQUIPMENT(YT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. VOLTAGE 24V<7AE> 12V 55W 		5-82195-001-0 02 1 0106- ● ● ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> 24V 55/50W CLEAR 		5-82193-003-0 04 1 9811-0012 ● ● ● ●
5 02.727 BULB; HEADLAMP
24V 55/50W CLEAR 		5-82193-003-0 04 1 9811-0012 ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> 24V 55/50W CLEAR 		5-82193-003-0 04 1 0101-0105 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> 24V 55/50W CLEAR 		5-82193-003-0 04 1 0106- ● ● ● ●
5 02.727 BULB; HEADLAMP
24V 55/50W CLEAR 		5-82193-003-0 04 1 0106- ●
5 02.727 BULB; HEADLAMP
CHINA EQUIPMENT(YT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-94217-817-0 02 1 9811-0105 ● ● ●
5 02.727 BULB; HEADLAMP
CHINA EQUIPMENT(YT2) IDENTIFICATION LABEL FOR KD<6UT> 12V 60/55W 		8-94217-817-0 02 1 9811-0105 ●
5 02.727 BULB; HEADLAMP
CHINA EQUIPMENT(YT2) IDENTIFICATION LABEL FOR KD<6UT> EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-94217-817-0 02 1 0106- ● ●
5 02.727 BULB; HEADLAMP
CHINA EQUIPMENT(YT2) IDENTIFICATION LABEL FOR KD<6UT> 12V 60/55W 		8-94217-817-0 02 1 0106- ●
6 02.728 RIM; HEADLAMP
(C) 		1-82114-016-0 02 1 9811- ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
(B) 		8-97855-211-0 02 1 9811- ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
(A) 		8-97890-801-0 01 1 9811-0211 ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
(A) 		8-97581-089-0 01 1 0212- ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
(A) 		8-97890-800-0 01 1 9811-0211 ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
(A) 		8-97581-088-0 01 1 0212- ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
(A) 		8-97044-618-0 08 1 9811- ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
(B) 		8-97044-623-0 08 1 9811- ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
(A) M4X8 		8-94165-886-0 08 1 9811- ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
(B) 		8-97228-675-0 08 1 9811- ● ● ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP 1-82119-021-0 02 1 9811- ● ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(A) 		8-97855-205-0 04 1 9811- ● ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(B) 		8-97855-206-0 02 1 9811- ● ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(C) 		8-97855-207-0 02 1 9811- ● ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
(A) 		8-94387-097-0 06 1 9811- ● ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
(B) 		8-97855-208-0 02 1 9811- ● ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 9811- ● ● ● ● ● ● ●
107 02.729 SCREW; RIM,HEADLAMP
M4X20 TAPPING 		8-94279-391-0 04 1 9811-0202 ● ● ● ● ● ● ●
107 02.729 SCREW; RIM,HEADLAMP
M4X20 TAPPING 		8-97326-998-0 04 1 0203- ● ● ● ● ● ● ●
136 02.726 SEAL; HEADLAMP
AIR INTAKE SYSTEM FRONT<6PC> 170X15 		8-97853-541-0 01 1 9811-0105 ● ●
136 02.726 SEAL; HEADLAMP
170X15 		8-97853-541-0 01 1 9811-0105 ● ●
136 02.726 SEAL; HEADLAMP
AIR INTAKE SYSTEM FRONT<6PC> 170X15 		8-97853-541-0 01 1 0106- ●
136 02.726 SEAL; HEADLAMP
170X15 		8-97853-541-0 01 1 0106- ● ● ●
192 02.765 PIVOT; HEADLAMP
02.737 		8-94381-595-0 02 1 9811- ● ● ● ● ● ● ●
199 02.737 BUSHING
(A) 		8-94381-605-0 04 1 9811- ● ● ● ● ● ● ●
199 02.737 BUSHING
(B) 		8-97855-212-0 02 1 9811- ● ● ● ● ● ● ●
203 02.726 FASTENER; HEADLAMP 8-94382-231-0 04 1 9811- ● ● ● ● ● ● ●
206 02.727 HOLDER; HEADLAMP 8-97868-156-0 02 1 9811- ● ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97863-623-0 01 1 9811- ● ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97855-009-4 01 1 9811- ● ● ● ● ● ● ●
317 02.726 SCREW; ORNAMENT
02.729 M4X20 TAPPING 		8-94279-391-0 04 1 9811-0202 ● ● ● ● ● ● ●
317 02.726 SCREW; ORNAMENT
02.729 M4X20 TAPPING 		8-97326-998-0 04 1 0203- ● ● ● ● ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 9811- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
