◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#21620) — 78 parça

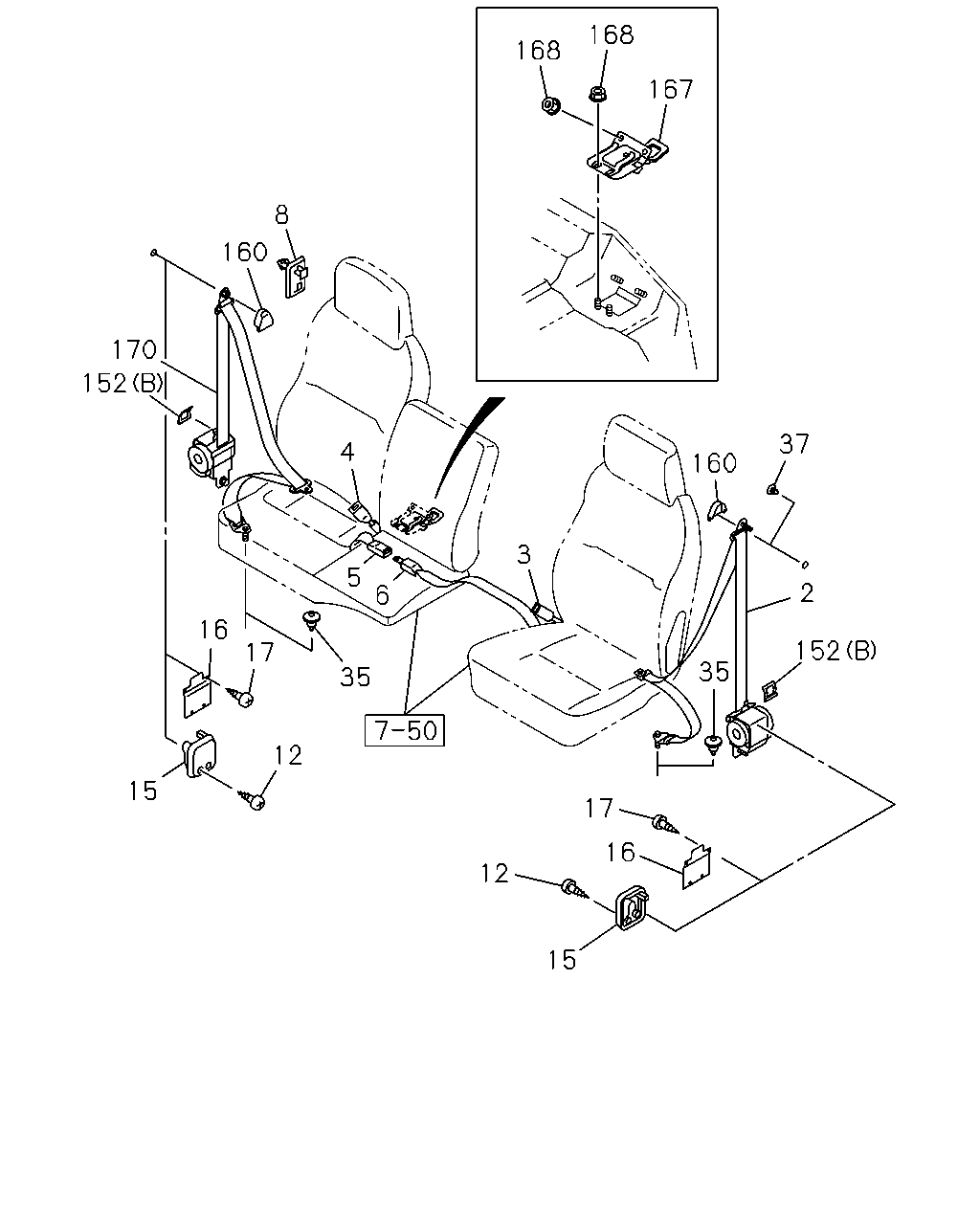

çizim 44987
168 168 167 8 160 170 152 37 4 160 3 5 2 6 16 152 17 35 35 12 15 17 16 12 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> DARK GRAY 		8-97868-467-1 01 1 9811-0004 ● ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> EXC. CHINA EQUIPMENT(YT2) DARK GRAY 		8-97868-467-1 01 1 0005-0105 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> DARK GRAY 		8-97868-467-1 01 1 0005-0105 ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> EXC. CHINA EQUIPMENT(YT2) DARK GRAY 		8-97868-467-1 01 1 0106- ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> DARK GRAY 		8-97868-467-1 01 1 0106- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97198-780-1 01 1 9811-0004 ● ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. CHINA EQUIPMENT(YT2) DARK GRAY 		8-97198-780-1 01 1 0005-0012 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97198-780-1 01 1 0005-0012 ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. CHINA EQUIPMENT(YT2) DARK GRAY 		8-97198-780-1 01 1 0101-0105 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97198-780-1 01 1 0101-0105 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97198-780-1 01 1 0101-0105 ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> CHINA EQUIPMENT(YT2) DARK GRAY 		8-97294-526-0 01 1 0005-0105 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97294-526-0 01 1 0106- ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97294-526-0 01 1 0106- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97868-451-0 01 1 0101-0105 ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97296-648-0 01 1 0106- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97868-364-0 01 1 9811- ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97868-894-0 01 1 9811-0012 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97868-894-0 01 1 9811-0012 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97868-894-0 01 1 0101- ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97868-891-2 01 1 9811- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97868-893-1 01 1 0101-0105 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97868-893-1 01 1 0106- ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97199-045-0 01 1 9811-0012 ● ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97199-045-0 01 1 0101-0105 ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97199-045-0 01 1 0101-0105 ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97199-045-0 01 1 0106- ● ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97868-479-0 01 1 9811- ● ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97868-525-0 01 1 0101-0105 ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97297-894-0 01 1 0106- ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97198-782-0 01 1 9811-0012 ● ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97198-782-0 01 1 0101-0105 ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97198-782-0 01 1 0101-0105 ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97198-782-0 01 1 0106- ● ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97890-431-1 01 1 0101-0105 ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97198-783-0 01 1 9811-0012 ● ● ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97198-783-0 01 1 0101-0105 ● ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97198-783-0 01 1 0101-0105 ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97198-783-0 01 1 0106- ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97198-783-0 01 1 0106- ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97868-488-0 01 1 0101-0105 ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97296-650-0 01 1 0106- ● ● ●
8 16.714 HOOK; SEAT BELT
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> 		8-94276-268-1 02 1 9811- ● ● ● ● ● ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.584 M6X13 		5-09981-074-0 04 1 9811- ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-94351-619-3 02 1 9811- ● ●
16 16.714 COVER; HOLE,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACT OR<A49> 		8-97854-868-1 02 1 9811- ● ●
17 16.714 SCREW; HOLE COVER,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACT OR<A49> 16.584 M6X13 		5-09981-074-0 08 1 9811- ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POI NT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 03 1 9811- ● ● ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 04 1 9811- ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POI NT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 9811- ● ● ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
L=18.5 		8-94279-726-0 02 1 9811- ● ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.570 (A) L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9811-0011 ● ● ● ● ● ● ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> (B) 		8-97287-563-0 02 1 0012- ● ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 9811- ● ● ● ● ● ● ●
167 16.714 PLATE; ANCHOR 8-97869-412-1 01 1 9811- ● ● ● ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 9811- ● ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> DARK GRAY 		8-97868-467-1 01 1 9811-0004 ● ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> EXC. CHINA EQUIPMENT(YT2) DARK GRAY 		8-97868-467-1 01 1 0005-0105 ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> DARK GRAY 		8-97868-467-1 01 1 0005-0105 ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> EXC. CHINA EQUIPMENT(YT2) DARK GRAY 		8-97868-467-1 01 1 0106- ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> DARK GRAY 		8-97868-467-1 01 1 0106- ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97198-780-1 01 1 9811-0004 ● ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. CHINA EQUIPMENT(YT2) DARK GRAY 		8-97198-780-1 01 1 0005-0012 ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97198-780-1 01 1 0005-0012 ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. CHINA EQUIPMENT(YT2) DARK GRAY 		8-97198-780-1 01 1 0101-0105 ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97198-780-1 01 1 0101-0105 ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97198-780-1 01 1 0101-0105 ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> CHINA EQUIPMENT(YT2) DARK GRAY 		8-97294-526-0 01 1 0005-0105 ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97294-526-0 01 1 0106- ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97294-526-0 01 1 0106- ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97868-451-0 01 1 0101-0105 ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF) DARK GRAY 		8-97296-648-0 01 1 0106- ● ● ●
çizim 47558
177 161 166 165 166 152
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.570 (A) L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9811-0011 ● ● ● ● ● ● ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> (B) 		8-97287-563-0 02 1 0012- ● ● ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR 8-97850-442-2 01 1 9811- ● ● ● ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-416-0 01 1 9811- ● ● ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9811- ● ● ● ● ● ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 01 1 9811- ● ● ● ● ● ● ●
