◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#21618) — 126 parça

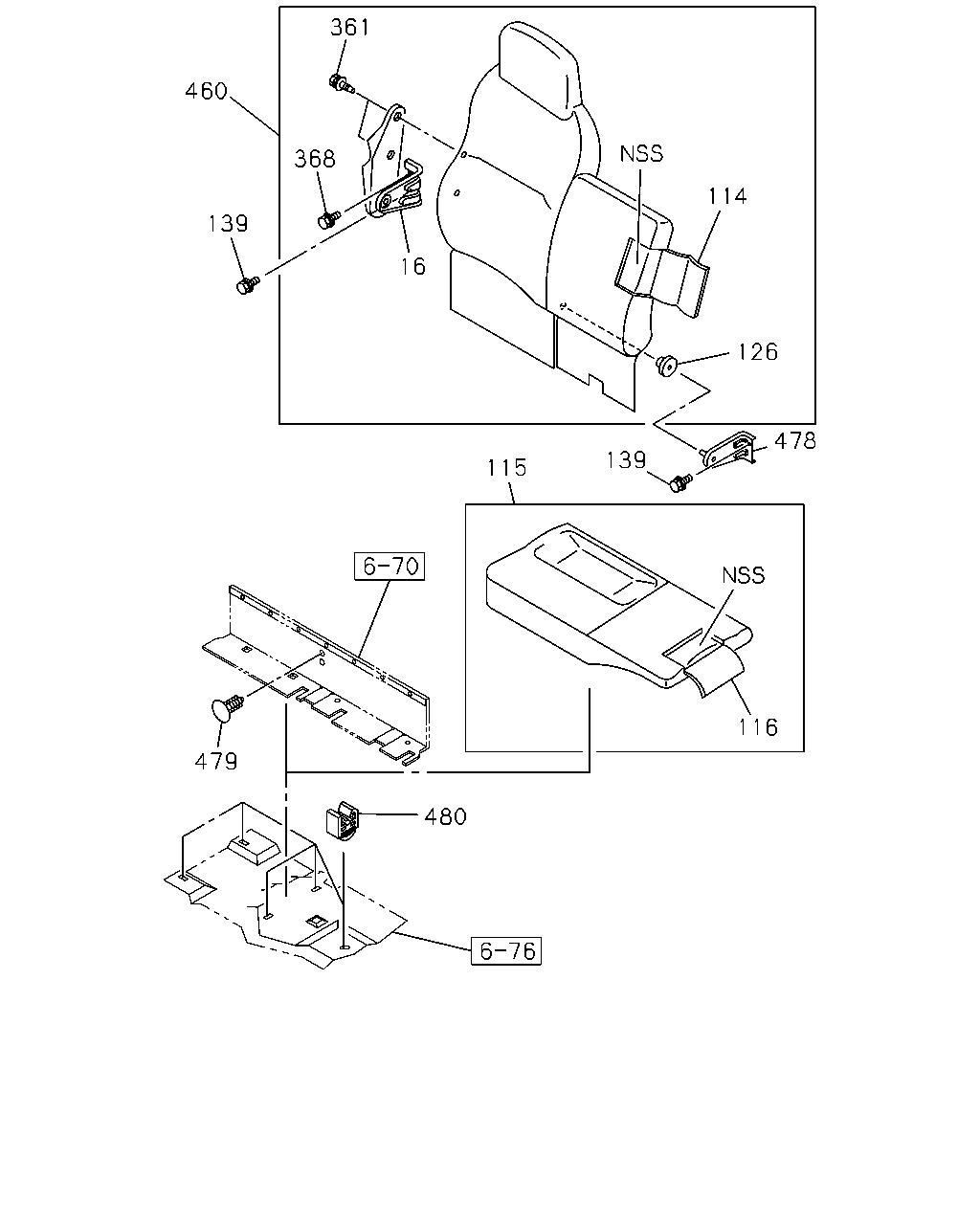

çizim 48323
361 460 368 114 139 16 126 478 139 115 116 479 480
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-274-3 01 1 9811- ● ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97869-384-5 01 1 9811- ● ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-383-5 01 1 9811- ● ● ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97868-919-4 01 1 9811- ● ● ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97868-918-4 01 1 9811- ● ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY 		8-97869-388-3 01 1 9811- ● ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-387-3 01 1 9811- ● ● ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 9811- ● ● ● ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9811- ● ● ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 9811- ● ● ● ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9811- ● ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97868-913-6 01 1 9811- ● ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97868-911-7 01 1 9811- ● ● ● ● ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-187-0 01 1 9811- ● ● ● ● ● ● ●
479 16.716 PLUG; HINGE
04.931 OD=15 L=14.5 		1-76378-157-0 02 1 9811- ● ● ● ● ● ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 9811- ● ● ● ● ● ● ●
çizim 48921
1 17 99 18 2 19 12 24 228 13 15 72 69 382 67 71 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-217-0 01 1 9811-9909 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97293-655-4 01 1 9910- ● ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-329-2 01 1 9811-0012 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-329-2 01 1 9811-0012 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-329-5 01 1 0101- ● ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-329-5 01 1 0101- ● ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-342-3 01 1 9811-0012 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL> DARK GRAY 		8-97869-342-3 01 1 0101-0105 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-342-3 01 1 0101-0105 ●
1 16.720 BACK ASM; SEAT
EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL> DARK GRAY 		8-97869-342-5 01 1 0106- ● ● ● ● ●
1 16.720 BACK ASM; SEAT
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-342-5 01 1 0106- ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97869-346-5 01 1 9811- ● ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-325-5 01 1 9811- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-218-0 01 1 9811-9909 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97293-656-3 01 1 9910- ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-330-2 01 1 9811-0012 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-330-2 01 1 9811-0012 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-330-4 01 1 0101- ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-330-4 01 1 0101- ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-343-3 01 1 9811-0012 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL> DARK GRAY 		8-97869-343-3 01 1 0101-0105 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-343-3 01 1 0101-0105 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL> DARK GRAY 		8-97869-343-4 01 1 0106- ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-343-4 01 1 0106- ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97869-347-4 01 1 9811- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-327-4 01 1 9811- ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-219-4 01 1 9811- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-331-5 01 1 9811- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-344-4 01 1 9811-0012 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-344-4 01 1 0101-0105 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL> DARK GRAY 		8-97869-344-4 01 1 0101-0105 ●
12 16.670 CUSHION; SEAT,FRT
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-344-4 01 1 0101-0105 ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL> DARK GRAY 		8-97869-344-5 01 1 0106- ● ● ●
12 16.670 CUSHION; SEAT,FRT
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-344-5 01 1 0106- ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-344-5 01 1 0106- ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-326-2 01 1 9811-0012 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-326-2 01 1 9811-0012 ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-326-2 01 1 0101-0105 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-326-2 01 1 0101-0105 ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-326-2 01 1 0101-0105 ●
12 16.670 CUSHION; SEAT,FRT
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-326-3 01 1 0106- ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-326-3 01 1 0106- ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-326-3 01 1 0106- ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-348-2 01 1 9811-0012 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97869-348-2 01 1 9811-0012 ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-348-2 01 1 0101-0105 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97869-348-2 01 1 0101-0105 ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-348-2 01 1 0101-0105 ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-348-4 01 1 0106- ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97869-348-4 01 1 0106- ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-348-4 01 1 0106- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-220-4 01 1 9811- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-332-5 01 1 9811- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-345-4 01 1 9811-0012 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-345-4 01 1 0101-0105 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL> DARK GRAY 		8-97869-345-4 01 1 0101-0105 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-345-4 01 1 0101-0105 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL> DARK GRAY 		8-97869-345-5 01 1 0106- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-345-5 01 1 0106- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-345-5 01 1 0106- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-328-2 01 1 9811-0012 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-328-2 01 1 9811-0012 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-328-2 01 1 0101-0105 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-328-2 01 1 0101-0105 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-328-2 01 1 0101-0105 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-328-3 01 1 0106- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-328-3 01 1 0106- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-328-3 01 1 0106- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-349-1 01 1 9811-0012 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97869-349-1 01 1 9811-0012 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-349-1 01 1 0101-0105 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97869-349-1 01 1 0101-0105 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-349-1 01 1 0101-0105 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-349-3 01 1 0106- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97869-349-3 01 1 0106- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-349-3 01 1 0106- ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. MANUAL TILT CAB<RWZ> 		8-97854-665-1 01 1 9811-0012 ● ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT 8-97854-665-1 01 1 9811-0012 ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. MANUAL TILT CAB<RWZ> 		8-97854-665-1 01 1 0101-0105 ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT 8-97854-665-1 01 1 0101-0105 ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> 		8-97854-665-1 01 1 0101-0105 ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> 		8-97262-070-1 01 1 0106- ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT 8-97262-070-1 01 1 0106- ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. MANUAL TILT CAB<RWZ> 		8-97262-070-1 01 1 0106- ● ●
17 16.682 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9811-0006 ● ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0007- ● ● ● ● ● ● ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97859-018-0 01 1 9811- ● ● ● ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9811- ● ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97859-019-0 01 1 9811- ● ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 		8-97854-947-2 01 1 9811-0012 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 		8-97854-947-2 01 1 0101-0105 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT FRT,LONG SIZE<7UG> 		8-97854-947-2 01 1 0101-0105 ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 		8-97854-947-3 01 1 0106- ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT FRT,LONG SIZE<7UG> 		8-97854-947-3 01 1 0106- ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> 		8-97854-670-2 01 1 9811-0012 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> 		8-97854-670-2 01 1 9811-0012 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. MANUAL TILT CAB<RWZ> 		8-97854-670-2 01 1 9811-0012 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-670-2 01 1 9811-0012 ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> 		8-97854-670-3 01 1 0101- ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL> 		8-97854-670-3 01 1 0101- ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. BRAZIL EQUIPMENT(RWF),SEAT FRT, LONG SIZE<7UG> 		8-97854-670-3 01 1 0101- ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-670-3 01 1 0101- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9811- ● ● ● ● ● ● ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 9811- ● ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 9811-0006 ● ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
01.540 M8X35 W/LK WASHER 		0-50040-835-0 02 1 0007- ● ● ● ● ● ● ●
72 16.682 SPACER; SEAT ADJ 8-97854-671-0 02 1 9811- ● ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 9811- ● ● ● ● ● ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 9811- ● ● ● ● ● ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 01 1 9811- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
