◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#21610) — 61 parça

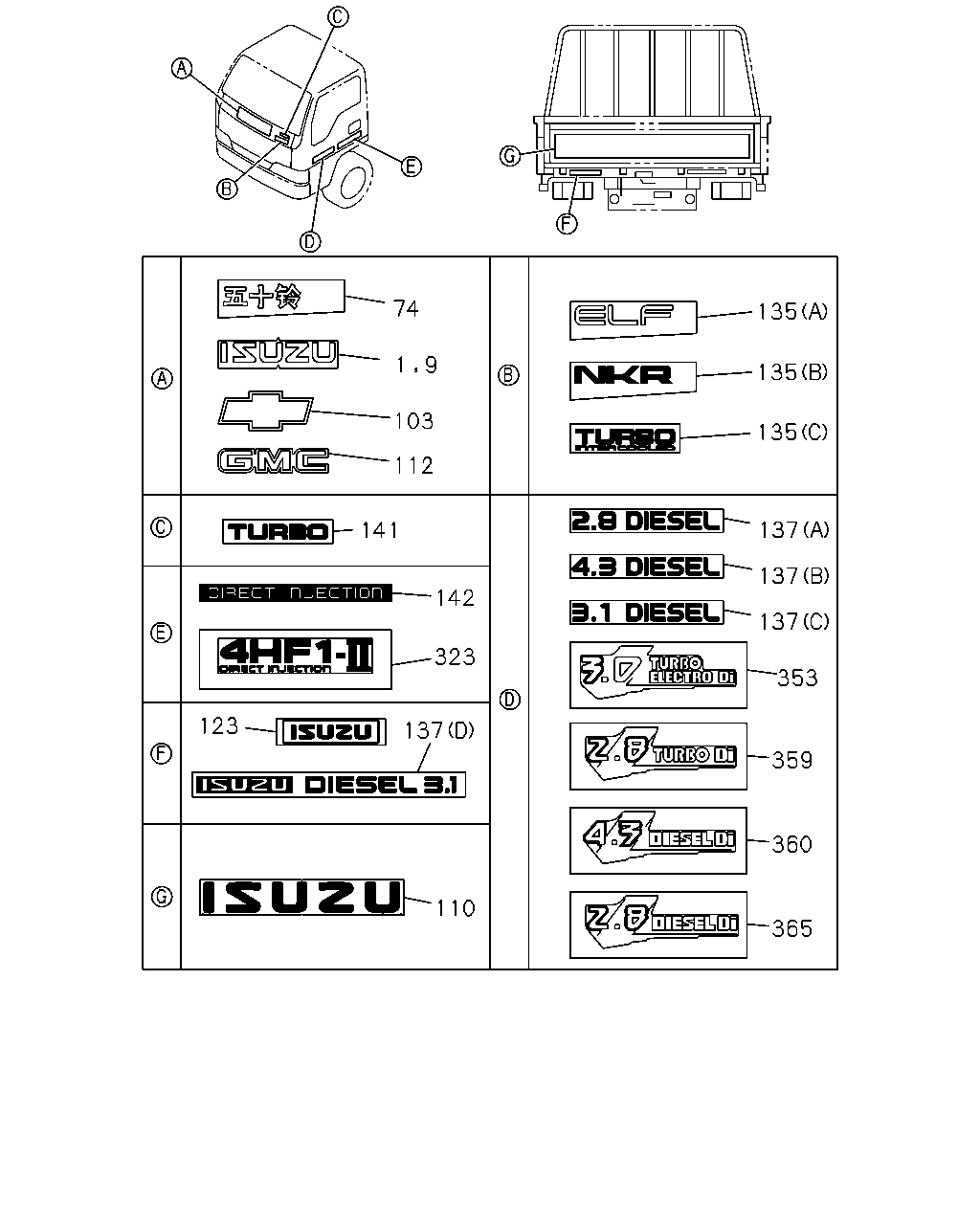

çizim 46413
74 135 9 1 135 103 135 112 137 141 137 142 137 323 353 123 137 359 360 110 365
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.303 MARK; ISUZU
EMBLEM ISUZU<YP4> 		8-97859-556-0 01 1 9811- ● ● ● ● ● ● ●
9 08.808 DECAL
EXC. MARK VEHICLE NAME<EK7>,EMBLEM ISUZU<YP4> 		8-97868-200-1 01 1 9811- ● ● ● ● ● ● ●
74 01.303 DECAL; "ISUZU"
CHINA EQUIPMENT(YT2) 		8-97869-094-1 01 1 9811-0105 ● ● ● ●
74 01.303 DECAL; "ISUZU"
CHINA EQUIPMENT(YT2) 		8-97869-094-1 01 1 0106- ● ● ●
103 01.303 EMBLEM; "CHEVROLET"
MARK VEHICLE NAME<EK7> CHEVROLET MARK<YL6> 		8-97113-896-0 01 1 9811- ● ● ● ● ● ● ●
110 17.215 EMBLEM; "ISUZU",RR BODY
BODY COLOR ARC WHITE(729),BODY COLORADRIATIC BLUE(730),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE B LUE(890),BODY COLOR HIGHWAY YELLOW(916) DECAL-ISUZU TAIL GATE<EX9> 01.303 BLACK 		8-94350-624-1 01 1 9811-0105 ● ● ● ● ● ● ●
110 17.215 EMBLEM; "ISUZU",RR BODY
BODY COLOR ARC WHITE(729),BODY COLORADRIATIC BLUE(730),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE B LUE(890) DECAL-ISUZU TAIL GATE<EX9> 01.303 BLACK 		8-94350-624-1 01 1 0106- ● ● ● ● ● ●
110 17.215 EMBLEM; "ISUZU",RR BODY
BODY COLOR CARDINAL RED(736) DECAL-ISUZU TAIL GATE<EX9> 01.303 WHITE 		8-94350-623-1 01 1 9811- ● ● ● ● ● ●
112 01.303 EMBLEM; "GMC"
MARK VEHICLE NAME<EK7> BRAZIL EQUIPMENT(RWF) EXC. CHEVROLET MARK<YL6> 		8-97898-135-0 01 1 0101-0105 ●
112 01.303 EMBLEM; "GMC"
MARK VEHICLE NAME<EK7> BRAZIL EQUIPMENT(RWF) EXC. CHEVROLET MARK<YL6> 		8-97898-135-0 01 1 0106- ● ● ●
123 17.215 PLATE; NAME,ISUZU
RR BODY FLAT BED<RS6> 		8-97089-829-0 01 1 9811-0007 ● ● ●
123 17.215 PLATE; NAME,ISUZU
RR BODY NON FLAT BED(RS5) 		8-97089-829-0 01 1 9811-0007 ●
123 17.215 PLATE; NAME,ISUZU
DUMP CHASSIS(V4D) 		8-97089-829-0 01 1 9811-0007 ●
123 17.215 PLATE; NAME,ISUZU
RR BODY FLAT BED<RS6> EXC. DUMP CHASSIS(V4D) 		8-97089-829-0 01 1 9811-0007 ●
123 17.215 PLATE; NAME,ISUZU
RR BODY FLAT BED<RS6> 		8-97089-829-0 01 1 0008-0105 ●
123 17.215 PLATE; NAME,ISUZU
RR BODY NON FLAT BED(RS5) 		8-97089-829-0 01 1 0008-0105 ●
123 17.215 PLATE; NAME,ISUZU
SAUDI ARABIA EQUIPMENT(EU2) EXC. RR BODY FLAT BED<RS6> 		8-97089-829-0 01 1 0008-0105 ● ● ●
123 17.215 PLATE; NAME,ISUZU
RR BODY FLAT BED<RS6> EXC. SAUDI ARABIA EQUIPMENT(EU2), DUMP CHASSIS(V4D) 		8-97089-829-0 01 1 0008-0105 ●
123 17.215 PLATE; NAME,ISUZU
DUMP CHASSIS(V4D) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97089-829-0 01 1 0008-0105 ●
123 17.215 PLATE; NAME,ISUZU
RR BODY FLAT BED<RS6> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97089-829-0 01 1 0008-0105 ● ●
123 17.215 PLATE; NAME,ISUZU
RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6> EXC. SAUDI ARABIA EQUIPMENT(EU2), DUMP CHASSIS(V4D) 		8-97089-829-0 01 1 0106- ● ● ● ● ●
123 17.215 PLATE; NAME,ISUZU
SAUDI ARABIA EQUIPMENT(EU2) EXC. RR BODY FLAT BED<RS6> 		8-97089-829-0 01 1 0106- ● ● ●
123 17.215 PLATE; NAME,ISUZU
DUMP CHASSIS(V4D) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97089-829-0 01 1 0106- ●
135 01.303 DECAL; CAB FRT
TAIWAN EQUIPMENT(RWV) (A) 		8-97868-668-0 01 1 9811-0105 ● ● ● ●
135 01.303 DECAL; CAB FRT
EXC. TAIWAN EQUIPMENT(RWV) (B) 		8-97868-260-0 01 1 9811-0012 ● ● ● ●
135 01.303 DECAL; CAB FRT
(B) 		8-97868-260-0 01 1 9811-0012 ● ● ●
135 01.303 DECAL; CAB FRT
EXC. TAIWAN EQUIPMENT(RWV) (B) 		8-97868-260-0 01 1 0101-0105 ● ● ● ●
135 01.303 DECAL; CAB FRT
(B) 		8-97868-260-0 01 1 0101-0105 ● ●
135 01.303 DECAL; CAB FRT
EXC. BRAZIL EQUIPMENT(RWF) (B) 		8-97868-260-0 01 1 0101-0105 ●
135 01.303 DECAL; CAB FRT
EXC. BRAZIL EQUIPMENT(RWF) (B) 		8-97868-260-0 01 1 0106- ● ● ●
135 01.303 DECAL; CAB FRT
(B) 		8-97868-260-0 01 1 0106- ● ● ● ●
135 01.303 DECAL; CAB FRT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (C) 		8-97857-435-1 01 1 9901-0105 ● ● ●
135 01.303 DECAL; CAB FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (C) 		8-97857-435-1 01 1 0106-0112 ●
135 01.303 DECAL; CAB FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (C) 		8-97857-435-1 01 1 0201- ● ● ●
137 08.147 DECAL; DOOR
4HF1 ENG(RLS) (B) 		8-94262-884-1 02 1 9811-0012 ● ● ● ●
137 08.147 DECAL; DOOR
(B) 		8-94262-884-1 02 1 9811-0012 ●
137 08.147 DECAL; DOOR
4HF1 ENG(RLS) (B) 		8-94262-884-1 02 1 0101-0105 ● ● ● ● ●
137 08.147 DECAL; DOOR
4JB1 ENG(RLF) 01.303 (A) 		8-94272-299-1 02 1 9811-0105 ● ● ● ● ●
137 08.147 DECAL; DOOR
01.303 (A) 		8-94272-299-1 02 1 9811-0105 ●
137 08.147 DECAL; DOOR
4JG2 ENG(RJC) (C) 		8-97857-430-0 02 1 9811-0105 ● ● ●
137 08.147 DECAL; DOOR
4JG2 ENG(RJC) EXC. BRAZIL EQUIPMENT(RWF) (C) 		8-97857-430-0 02 1 9811-0105 ●
137 08.147 DECAL; DOOR
4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) (D) 		8-97892-788-0 02 1 0101-0105 ●
137 08.147 DECAL; DOOR
4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) (D) 		8-97892-788-0 02 1 0106- ● ● ●
141 01.303 EMBLEM; "TURBO"
TURBOCHARGER<K51> 		8-97856-319-3 01 1 9811-9812 ● ●
141 01.303 EMBLEM; "TURBO"
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97856-319-3 01 1 9901-0105 ● ● ●
141 01.303 EMBLEM; "TURBO"
TURBOCHARGER<K51> 		8-97856-319-3 01 1 0106-0112 ● ●
141 01.303 EMBLEM; "TURBO"
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97856-319-3 01 1 0106-0112 ●
141 01.303 EMBLEM; "TURBO"
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97856-319-3 01 1 0201- ● ● ●
142 01.303 DECAL; "DIRECT INJECTION"
4JB1 ENG(RLF),4HF1 ENG(RLS) 17.507 		8-94272-302-1 02 1 9811-9904 ● ● ● ● ● ● ●
142 01.303 DECAL; "DIRECT INJECTION"
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 17.507 		8-94272-302-1 02 1 9905-0105 ● ● ● ● ● ● ●
323 01.303 DECAL; "4HF1-2"
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97892-867-0 02 1 9905-0012 ● ● ● ●
323 01.303 DECAL; "4HF1-2"
ENGINE POWER N-SPEC(7QV) 		8-97892-867-0 02 1 9905-0012 ●
323 01.303 DECAL; "4HF1-2"
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97892-867-0 02 1 0101-0105 ● ● ● ● ●
323 01.303 DECAL; "4HF1-2"
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97996-001-0 02 1 0106- ● ● ● ●
323 01.303 DECAL; "4HF1-2"
ENGINE POWER N-SPEC(7QV) 		8-97996-001-0 02 1 0106- ●
353 01.303 DECAL; "3.0 ELECTRO DI"
4JH1 ENG(RJX) 		8-97899-159-0 02 1 0201- ● ●
359 01.303 DECAL; "2.8 TURBO DI"
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97995-794-1 02 1 0106- ● ● ●
360 01.303 DECAL; "4.3 DIESEL DI"
4HF1 ENG(RLS) 08.147 		8-97995-797-1 02 1 0106- ● ● ● ●
360 01.303 DECAL; "4.3 DIESEL DI"
08.147 		8-97995-797-1 02 1 0106- ●
365 01.303 DECAL; "2.8 DIESEL DI"
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97995-795-1 02 1 0106- ● ● ●
365 01.303 DECAL; "2.8 DIESEL DI" 8-97995-795-1 02 1 0106- ● ●
