◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶
0-28 — VENTILATION SYSTEM (#2161) — 66 parça
çizim 94113
24 143 23 142 24 141 155 24 99
BalonParca AdiParca NoAdetTipApplied Date A B
23 HOSE; RUBBER,VENTILATOR PIPE
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),STARTER DENSO(RC6) L=400 		1-09360-870-0 01 1 9101-9204 ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),GLOW PLUG DELETE<E4D> L=400 		1-09360-870-0 01 1 9205-0203 ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
RIGHT HAND DRIVE(MTR5FB) 		1-09360-870-0 01 1 0204- ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
LEFT HAND DRIVE(MTR6FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E) L=246 		1-09360-752-0 01 1 9101-0203 ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
LEFT HAND DRIVE(MTR6FB) L=246 		1-09360-752-0 01 1 0204- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),STARTER DENSO(RC6) (B) ID=20 		1-09707-084-1 02 1 9101-9204 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),GLOW PLUG DELETE<E4D> (B) ID=20 		1-09707-084-1 02 1 9205-9410 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
LEFT HAND DRIVE(MTR6FB) EXC. STARTER DENSO(RC6) (B) ID=20 		1-09707-084-1 02 1 9205-9410 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
RIGHT HAND DRIVE(MTR5FB) EXC. GLOW PLUG DELETE<E4D> (B) ID=20 		1-09707-084-1 02 1 9411-9608 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
LEFT HAND DRIVE(MTR6FB) EXC. STARTER DENSO(RC6) (B) ID=20 		1-09707-084-1 02 1 9411-9608 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(B) ID=20 		1-09707-084-1 02 1 9609-0203 ●
24 CLIP; RUBBER HOSE,VENTILATOR
RIGHT HAND DRIVE(MTR5FB) EXC. GLOW PLUG DELETE<E4D>,STARTER DENSO(RC6) (B) ID=20 		1-09707-084-1 02 1 9609-0203 ●
24 CLIP; RUBBER HOSE,VENTILATOR
LEFT HAND DRIVE(MTR6FB) (B) ID=20 		1-09707-084-1 02 1 9609-0203 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(B) ID=20 		1-09707-084-1 02 1 0204- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),STARTER DENSO(RC6) (A) ID=24 		1-09701-131-0 01 1 9101-9204 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),GLOW PLUG DELETE<E4D> (A) ID=24 		1-09701-131-0 01 1 9205-0203 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
RIGHT HAND DRIVE(MTR5FB) (A) ID=24 		1-09701-131-0 01 1 0204- ● ●
99 BOLT; BRKT TO C/BL
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9101- ● ●
141 DIAPHRAGM ASM
EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),STARTER DENSO(RC6) 		8-94110-111-0 01 1 9101-9204 ● ●
141 DIAPHRAGM ASM
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),GLOW PLUG DELETE<E4D> 		8-94110-111-0 01 1 9205-9410 ● ●
141 DIAPHRAGM ASM
LEFT HAND DRIVE(MTR6FB) EXC. STARTER DENSO(RC6) 		8-94110-111-0 01 1 9205-9410 ● ●
141 DIAPHRAGM ASM
RIGHT HAND DRIVE(MTR5FB) EXC. GLOW PLUG DELETE<E4D> 		8-94110-111-0 01 1 9411-9608 ● ●
141 DIAPHRAGM ASM
LEFT HAND DRIVE(MTR6FB) EXC. STARTER DENSO(RC6) 		8-94110-111-0 01 1 9411-9608 ● ●
141 DIAPHRAGM ASM 8-94110-111-0 01 1 9609-0203 ●
141 DIAPHRAGM ASM
RIGHT HAND DRIVE(MTR5FB) EXC. GLOW PLUG DELETE<E4D>,STARTER DENSO(RC6) 		8-94110-111-0 01 1 9609-0203 ●
141 DIAPHRAGM ASM
LEFT HAND DRIVE(MTR6FB) 		8-94110-111-0 01 1 9609-0203 ●
141 DIAPHRAGM ASM 8-94110-111-0 01 1 0204- ● ●
142 COVER; PCV
EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),STARTER DENSO(RC6) 		1-14362-002-0 01 1 9101-9204 ● ●
142 COVER; PCV
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),GLOW PLUG DELETE<E4D> 		1-14362-002-0 01 1 9205-9410 ● ●
142 COVER; PCV
LEFT HAND DRIVE(MTR6FB) EXC. STARTER DENSO(RC6) 		1-14362-002-0 01 1 9205-9410 ● ●
142 COVER; PCV
RIGHT HAND DRIVE(MTR5FB) EXC. GLOW PLUG DELETE<E4D> 		1-14362-002-0 01 1 9411-9608 ● ●
142 COVER; PCV
LEFT HAND DRIVE(MTR6FB) EXC. STARTER DENSO(RC6) 		1-14362-002-0 01 1 9411-9608 ● ●
142 COVER; PCV 1-14362-002-0 01 1 9609-0203 ●
142 COVER; PCV
RIGHT HAND DRIVE(MTR5FB) EXC. GLOW PLUG DELETE<E4D>,STARTER DENSO(RC6) 		1-14362-002-0 01 1 9609-0203 ●
142 COVER; PCV
LEFT HAND DRIVE(MTR6FB) 		1-14362-002-0 01 1 9609-0203 ●
142 COVER; PCV 1-14362-002-0 01 1 0204- ● ●
143 SCREW; PCV COVER
EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),STARTER DENSO(RC6) M5X10 PAN-HD 		9-93490-510-0 01 1 9101-9204 ● ●
143 SCREW; PCV COVER
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),GLOW PLUG DELETE<E4D> M5X10 PAN-HD 		9-93490-510-0 01 1 9205-9410 ● ●
143 SCREW; PCV COVER
LEFT HAND DRIVE(MTR6FB) EXC. STARTER DENSO(RC6) M5X10 PAN-HD 		9-93490-510-0 01 1 9205-9410 ● ●
143 SCREW; PCV COVER
RIGHT HAND DRIVE(MTR5FB) EXC. GLOW PLUG DELETE<E4D> M5X10 PAN-HD 		9-93490-510-0 01 1 9411-9608 ● ●
143 SCREW; PCV COVER
LEFT HAND DRIVE(MTR6FB) EXC. STARTER DENSO(RC6) M5X10 PAN-HD 		9-93490-510-0 01 1 9411-9608 ● ●
143 SCREW; PCV COVER
M5X10 PAN-HD 		9-93490-510-0 01 1 9609-0203 ●
143 SCREW; PCV COVER
RIGHT HAND DRIVE(MTR5FB) EXC. GLOW PLUG DELETE<E4D>,STARTER DENSO(RC6) M5X10 PAN-HD 		9-93490-510-0 01 1 9609-0203 ●
143 SCREW; PCV COVER
LEFT HAND DRIVE(MTR6FB) M5X10 PAN-HD 		9-93490-510-0 01 1 9609-0203 ●
143 SCREW; PCV COVER
M5X10 PAN-HD 		9-93490-510-0 01 1 0204- ● ●
155 BOLT; CLIP
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),STARTER DENSO(RC6) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9101-9204 ● ●
155 BOLT; CLIP
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),GLOW PLUG DELETE<E4D> M8X16 W/LK WASHER 		0-50040-816-0 01 1 9205-0203 ● ●
155 BOLT; CLIP
RIGHT HAND DRIVE(MTR5FB) M8X16 W/LK WASHER 		0-50040-816-0 01 1 0204- ● ●

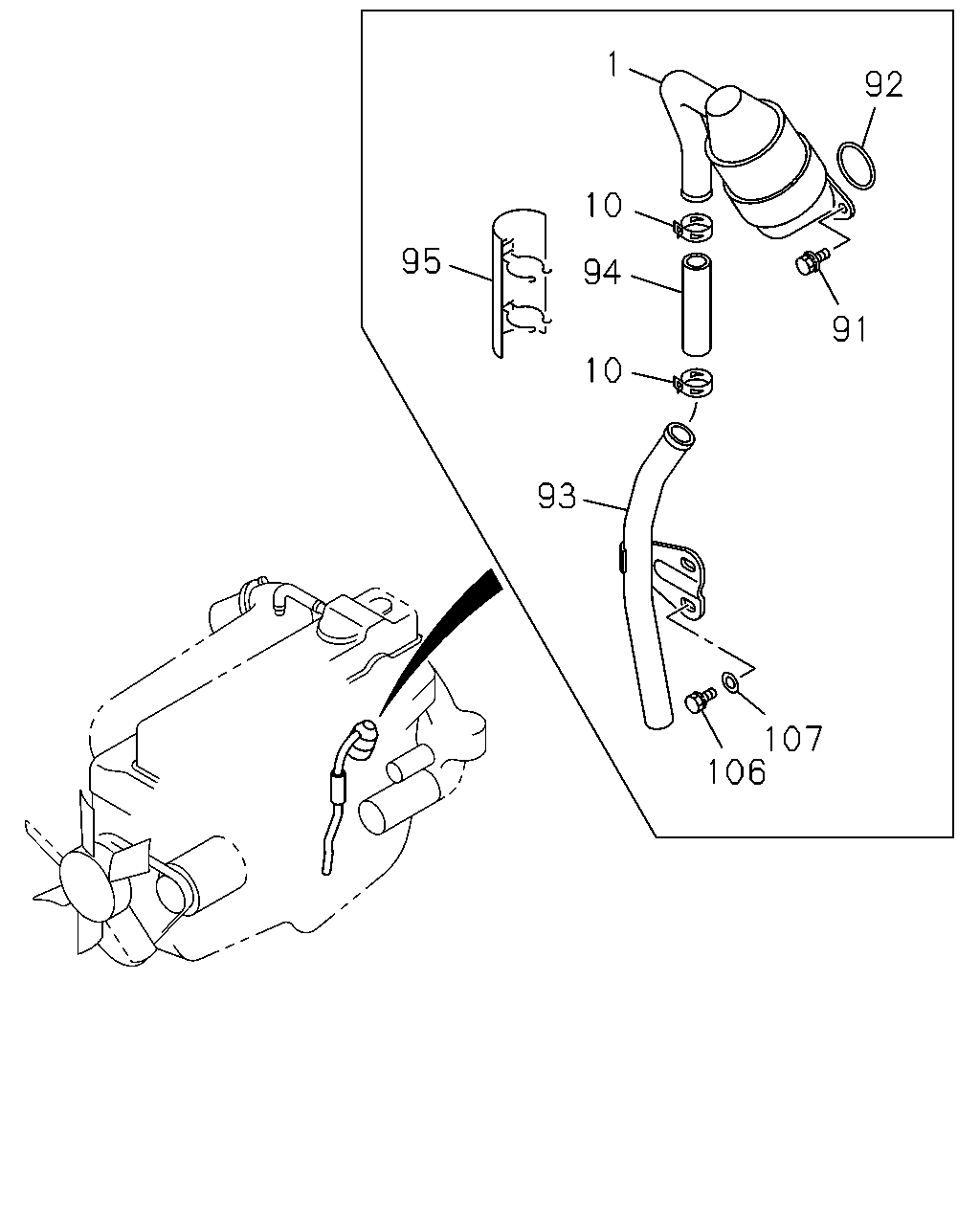

çizim 95447
1 92 10 95 94 91 10 93 107 106
BalonParca AdiParca NoAdetTipApplied Date A B
1 BREATHER; AIR
RIGHT HAND DRIVE(MTR5FB) STARTER DENSO(RC6) GENERATOR DENSO 24V-40A 1KW(SC4) 		1-11740-168-1 01 1 9101-9204 ●
1 BREATHER; AIR
RIGHT HAND DRIVE(MTR5FB) GLOW PLUG DELETE<E4D> 		1-11740-168-1 01 1 9205-0203 ●
10 CLIP; AIR BREATHER
RIGHT HAND DRIVE(MTR5FB) STARTER DENSO(RC6) GENERATOR DENSO 24V-40A 1KW(SC4) ID=28 		1-09707-124-0 02 1 9101-9204 ●
10 CLIP; AIR BREATHER
RIGHT HAND DRIVE(MTR5FB) GLOW PLUG DELETE<E4D> ID=28 		1-09707-124-0 02 1 9205-0203 ●
91 BOLT; AIR BREATHER
RIGHT HAND DRIVE(MTR5FB) STARTER DENSO(RC6) GENERATOR DENSO 24V-40A 1KW(SC4) M8X22 W/LK&PL WASHER 		0-50140-822-0 02 1 9101-9204 ●
91 BOLT; AIR BREATHER
RIGHT HAND DRIVE(MTR5FB) GLOW PLUG DELETE<E4D> M8X22 W/LK&PL WASHER 		0-50140-822-0 02 1 9205-0203 ●
92 GASKET; AIR BREATHER TO PIPE
RIGHT HAND DRIVE(MTR5FB) STARTER DENSO(RC6) GENERATOR DENSO 24V-40A 1KW(SC4) ID=38.7 		1-09623-184-0 01 1 9101-9204 ●
92 GASKET; AIR BREATHER TO PIPE
RIGHT HAND DRIVE(MTR5FB) GLOW PLUG DELETE<E4D> ID=38.7 		1-09623-184-0 01 1 9205-0203 ●
93 PIPE; DRAIN
RIGHT HAND DRIVE(MTR5FB) STARTER DENSO(RC6) GENERATOR DENSO 24V-40A 1KW(SC4) 		1-11742-029-1 01 1 9101-9204 ●
93 PIPE; DRAIN
RIGHT HAND DRIVE(MTR5FB) GLOW PLUG DELETE<E4D> 		1-11742-029-1 01 1 9205-0203 ●
94 HOSE; BREATHER TO PIPE
RIGHT HAND DRIVE(MTR5FB) STARTER DENSO(RC6) GENERATOR DENSO 24V-40A 1KW(SC4) L=100 		0-02825-100-0 01 1 9101-9204 ●
94 HOSE; BREATHER TO PIPE
RIGHT HAND DRIVE(MTR5FB) GLOW PLUG DELETE<E4D> L=100 		0-02825-100-0 01 1 9205-0203 ●
95 PROTECTOR; HEAT,RUBBER HOSE
RIGHT HAND DRIVE(MTR5FB) STARTER DENSO(RC6) GENERATOR DENSO 24V-40A 1KW(SC4) 		1-14181-175-0 01 1 9101-9204 ●
95 PROTECTOR; HEAT,RUBBER HOSE
RIGHT HAND DRIVE(MTR5FB) GLOW PLUG DELETE<E4D> 		1-14181-175-0 01 1 9205-0203 ●
106 BOLT; DRAIN PIPE
RIGHT HAND DRIVE(MTR5FB) STARTER DENSO(RC6) GENERATOR DENSO 24V-40A 1KW(SC4) M10X20 W/LK WASHER 		0-50041-020-0 02 1 9101-9204 ●
106 BOLT; DRAIN PIPE
RIGHT HAND DRIVE(MTR5FB) GLOW PLUG DELETE<E4D> M10X20 W/LK WASHER 		0-50041-020-0 02 1 9205-0203 ●
107 WASHER; PL,DRAIN PIPE
RIGHT HAND DRIVE(MTR5FB) STARTER DENSO(RC6) GENERATOR DENSO 24V-40A 1KW(SC4) ID=10.5 OD=22 		9-09164-610-0 02 1 9101-9204 ●
107 WASHER; PL,DRAIN PIPE
RIGHT HAND DRIVE(MTR5FB) GLOW PLUG DELETE<E4D> 		9-09164-610-0 02 1 9205-0203 ●
