Sayfa 6-90 - Isuzu EPC

6-90 — REAR BUMPER (#21609) — 209 parça

133 136 134 113 2 2 13 306 12 9 13 12 2 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	07.070 BUMPER; RR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ>	8-97205-849-0	01	1	0106-	●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF)	8-97174-004-1	01	1	0106-	●
1	07.070 BUMPER; RR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ>	8-94101-094-1	01	1	0101-0105		●
1	07.070 BUMPER; RR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ>	8-94101-094-1	01	1	0106-		●	●
1	07.070 BUMPER; RR BUMPER REAR<7HZ>	8-97174-005-1	01	1	0010-0105			●	●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF)	8-97174-005-1	01	1	0106-			●
1	07.070 BUMPER; RR BUMPER REAR<7HZ>	8-97174-005-1	01	1	0106-				●
2	07.874 BOLT; BACK BAR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 07.347 (B) M14X30	0-20801-430-0	04	1	0101-0105		●
2	07.874 BOLT; BACK BAR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 07.347 (B) M14X30	0-20801-430-0	04	1	0106-	●	●	●
2	07.874 BOLT; BACK BAR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> (A) M14X30 FLANGE	0-28681-430-0	02	1	0101-0105		●
2	07.874 BOLT; BACK BAR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> (A) M14X30 FLANGE	0-28681-430-0	02	1	0106-	●	●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> 01.271 (A) M10X30	8-94324-205-0	04	1	0010-0105			●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) 01.271 (A) M10X30	8-94324-205-0	04	1	0106-0202	●		●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> 01.271 (A) M10X30	8-94324-205-0	04	1	0106-0202				●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) 01.271 (A) M10X30	8-94324-205-0	04	1	0203-	●	●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> 01.271 (A) M10X30	8-94324-205-0	04	1	0203-				●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.347 (B) M14X30	0-20801-430-0	08	1	0010-0105			●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) 07.347 (B) M14X30	0-20801-430-0	08	1	0106-	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF) 07.347 (B) M14X30	0-20801-430-0	08	1	0106-			●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.347 (B) M14X30	0-20801-430-0	08	1	0106-				●
2	07.874 BOLT; BACK BAR SAUDI ARABIA EQUIPMENT(EU2) BUMPER REAR<7HZ> 07.347 (B) M14X30	0-20801-430-0	06	1	0010-			●	●
9	07.070 NUT; BUMPER BUMPER REAR<7HZ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0010-0105			●	●
9	07.070 NUT; BUMPER BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) 08.917 M10 FLANGE	0-91150-210-0	02	1	0106-	●		●
9	07.070 NUT; BUMPER BUMPER REAR<7HZ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0106-				●
12	07.833 NUT; BRKT BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	04	1	0101-0105		●
12	07.833 NUT; BRKT BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	04	1	0106-	●	●	●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	08	1	0010-0105			●	●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) 07.529 M14	9-99110-514-0	08	1	0106-	●		●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	08	1	0106-				●
13	07.833 WASHER; LK,BACK BAR TO FRAME BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 05.422 ID=14.2	9-09150-814-0	04	1	0101-0105		●
13	07.833 WASHER; LK,BACK BAR TO FRAME BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 05.422 ID=14.2	9-09150-814-0	04	1	0106-	●	●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 05.422 ID=14.2	9-09150-814-0	08	1	0010-0105			●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) 05.422 ID=14	9-09150-814-0	08	1	0106-	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF) 05.422 ID=14	9-09150-814-0	08	1	0106-			●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 05.422 ID=14	9-09150-814-0	08	1	0106-				●
13	07.833 WASHER; LK,BACK BAR TO FRAME SAUDI ARABIA EQUIPMENT(EU2) BUMPER REAR<7HZ> 05.422 ID=14.2	9-09150-814-0	06	1	0010-			●	●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.662 (A)	8-97096-644-1	01	1	9811-	●	●	●	●	●	●	●
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED<RS6> (B)	8-97077-573-2	01	1	9811-0105	●		●	●		●
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED<RS6> (B)	8-97077-573-2	01	1	0106-	●		●			●
113	07.800 BRACKET; LICENSE PLATE BODY COLOR ARC WHITE(729),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR MARINE BLUE(890) RR BODY NON FLAT BED(RS5) (C)	8-94197-117-0	01	1	9811-0008					●
113	07.800 BRACKET; LICENSE PLATE RR BODY NON FLAT BED(RS5) (C)	8-94197-117-0	01	1	0009-0112					●
113	07.800 BRACKET; LICENSE PLATE BODY COLOR ARC WHITE(729),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR MARINE BLUE(890) RR BODY NON FLAT BED(RS5) (C)	8-94197-117-0	01	1	0201-					●
113	07.800 BRACKET; LICENSE PLATE 4HF1 ENG(RLS) DUMP CHASSIS(V4D) 07.039 (D)	8-97033-248-2	01	1	9811-						●
133	07.112 HOOK 07.330	8-94183-262-0	01	1	9811-0105	●				●		●
133	07.112 HOOK DUMP CHASSIS(V4D) 07.330	8-94183-262-0	01	1	9811-0105						●
133	07.112 HOOK EXC. BRAZIL EQUIPMENT(RWF) 07.330	8-94183-262-0	01	1	0106-	●
133	07.112 HOOK 07.330	8-94183-262-0	01	1	0106-					●		●
133	07.112 HOOK DUMP CHASSIS(V4D) 07.330	8-94183-262-0	01	1	0106-						●
133	07.112 HOOK EXC. DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	9811-0012						●
133	07.112 HOOK 07.068	8-94249-270-2	01	1	9811-0012		●	●	●
133	07.112 HOOK EXC. DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	0101-0105						●
133	07.112 HOOK EXC. BRAZIL EQUIPMENT(RWF) 07.068	8-94249-270-2	01	1	0101-0105		●
133	07.112 HOOK 07.068	8-94249-270-2	01	1	0101-0105			●	●
133	07.112 HOOK EXC. DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	0106-0110						●
133	07.112 HOOK EXC. BRAZIL EQUIPMENT(RWF) 07.068	8-94249-270-2	01	1	0106-0110		●	●
133	07.112 HOOK 07.068	8-94249-270-2	01	1	0106-0110				●
133	07.112 HOOK EXC. DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	0111-0201						●
133	07.112 HOOK EXC. BRAZIL EQUIPMENT(RWF) 07.068	8-94249-270-2	01	1	0111-0201		●
133	07.112 HOOK EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF) 07.068	8-94249-270-2	01	1	0111-0201			●
133	07.112 HOOK SAUDI ARABIA EQUIPMENT(EU2) BUMPER REAR<7HZ> 07.068	8-94249-270-2	01	1	0111-0201			●
133	07.112 HOOK 07.068	8-94249-270-2	01	1	0111-0201				●
133	07.112 HOOK RR BODY FLAT BED<RS6> 07.068	8-94249-270-2	01	1	0202-			●			●
133	07.112 HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	0202-						●
133	07.112 HOOK EXC. BRAZIL EQUIPMENT(RWF) 07.068	8-94249-270-2	01	1	0202-		●
133	07.112 HOOK EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 07.068	8-94249-270-2	01	1	0202-			●
133	07.112 HOOK BUMPER REAR<7HZ> EXC. RR BODY FLAT BED<RS6>,BRAZIL EQUIPMENT(RWF) 07.068	8-94249-270-2	01	1	0202-			●
133	07.112 HOOK 07.068	8-94249-270-2	01	1	0202-				●
134	07.068 BOLT; HOOK 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	9811-0105	●				●		●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	9811-0105						●
134	07.068 BOLT; HOOK EXC. BRAZIL EQUIPMENT(RWF) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	0106-	●
134	07.068 BOLT; HOOK 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	0106-					●		●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	0106-						●
134	07.068 BOLT; HOOK EXC. DUMP CHASSIS(V4D) 07.039 M14X50	0-10806-450-0	02	1	9811-0012						●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10806-450-0	02	1	9811-0012		●	●	●
134	07.068 BOLT; HOOK EXC. DUMP CHASSIS(V4D) 07.039 M14X50	0-10806-450-0	02	1	0101-0105						●
134	07.068 BOLT; HOOK EXC. BRAZIL EQUIPMENT(RWF) 07.039 M14X50	0-10806-450-0	02	1	0101-0105		●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10806-450-0	02	1	0101-0105			●	●
134	07.068 BOLT; HOOK EXC. DUMP CHASSIS(V4D) 07.039 M14X50	0-10806-450-0	02	1	0106-0201						●
134	07.068 BOLT; HOOK EXC. BRAZIL EQUIPMENT(RWF) 07.039 M14X50	0-10806-450-0	02	1	0106-0201		●	●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10806-450-0	02	1	0106-0201				●
134	07.068 BOLT; HOOK RR BODY FLAT BED<RS6> 07.039 M14X50	0-10806-450-0	02	1	0202-			●			●
134	07.068 BOLT; HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.039 M14X50	0-10806-450-0	02	1	0202-						●
134	07.068 BOLT; HOOK EXC. BRAZIL EQUIPMENT(RWF) 07.039 M14X50	0-10806-450-0	02	1	0202-		●
134	07.068 BOLT; HOOK EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 07.039 M14X50	0-10806-450-0	02	1	0202-			●
134	07.068 BOLT; HOOK BUMPER REAR<7HZ> EXC. RR BODY FLAT BED<RS6>,BRAZIL EQUIPMENT(RWF) 07.039 M14X50	0-10806-450-0	02	1	0202-			●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10806-450-0	02	1	0202-				●
136	07.068 NUT; HOOK 00.002 M10	9-09110-510-0	02	1	9811-0105	●				●		●
136	07.068 NUT; HOOK EXC. BRAZIL EQUIPMENT(RWF) 00.002 M10	9-09110-510-0	02	1	0106-	●
136	07.068 NUT; HOOK 00.002 M10	9-09110-510-0	02	1	0106-					●		●
136	07.068 NUT; HOOK EXC. DUMP CHASSIS(V4D) 07.529 M14	9-99110-514-0	02	1	9811-0012						●
136	07.068 NUT; HOOK 07.529 M14	9-99110-514-0	02	1	9811-0012		●	●	●
136	07.068 NUT; HOOK EXC. DUMP CHASSIS(V4D) 07.529 M14	9-99110-514-0	02	1	0101-0105						●
136	07.068 NUT; HOOK EXC. BRAZIL EQUIPMENT(RWF) 07.529 M14	9-99110-514-0	02	1	0101-0105		●
136	07.068 NUT; HOOK 07.529 M14	9-99110-514-0	02	1	0101-0105			●	●
136	07.068 NUT; HOOK EXC. DUMP CHASSIS(V4D) 07.529 M14	9-99110-514-0	02	1	0106-0201						●
136	07.068 NUT; HOOK EXC. BRAZIL EQUIPMENT(RWF) 07.529 M14	9-99110-514-0	02	1	0106-0201		●	●
136	07.068 NUT; HOOK 07.529 M14	9-99110-514-0	02	1	0106-0201				●
136	07.068 NUT; HOOK RR BODY FLAT BED<RS6> 07.529 M14	9-99110-514-0	02	1	0202-			●			●
136	07.068 NUT; HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.529 M14	9-99110-514-0	02	1	0202-						●
136	07.068 NUT; HOOK EXC. BRAZIL EQUIPMENT(RWF) 07.529 M14	9-99110-514-0	02	1	0202-		●
136	07.068 NUT; HOOK BUMPER REAR<7HZ> EXC. SAUDI ARABIA EQUIPMENT(EU2),RR BODY FLAT BED<RS6>,BRAZIL EQUIPMENT(RWF) 07.529 M14	9-99110-514-0	02	1	0202-			●
136	07.068 NUT; HOOK EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	02	1	0202-			●
136	07.068 NUT; HOOK 07.529 M14	9-99110-514-0	02	1	0202-				●
306	07.836 BAR; BACK,RR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 07.829	5-71230-132-0	01	1	0101-0105		●
306	07.836 BAR; BACK,RR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 07.829	5-71230-132-0	01	1	0106-	●	●	●
306	07.836 BAR; BACK,RR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 07.829	5-71230-131-0	01	1	0101-0105		●
306	07.836 BAR; BACK,RR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 07.829	5-71230-131-0	01	1	0106-	●	●	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> STAMP BL	8-97128-333-0	01	1	0010-0105			●	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) STAMP BL	8-97128-333-0	01	1	0106-	●		●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> STAMP BL	8-97128-333-0	01	1	0106-				●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> STAMP BR	8-97128-334-0	01	1	0010-0105			●	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) STAMP BR	8-97128-334-0	01	1	0106-	●		●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> STAMP BR	8-97128-334-0	01	1	0106-				●

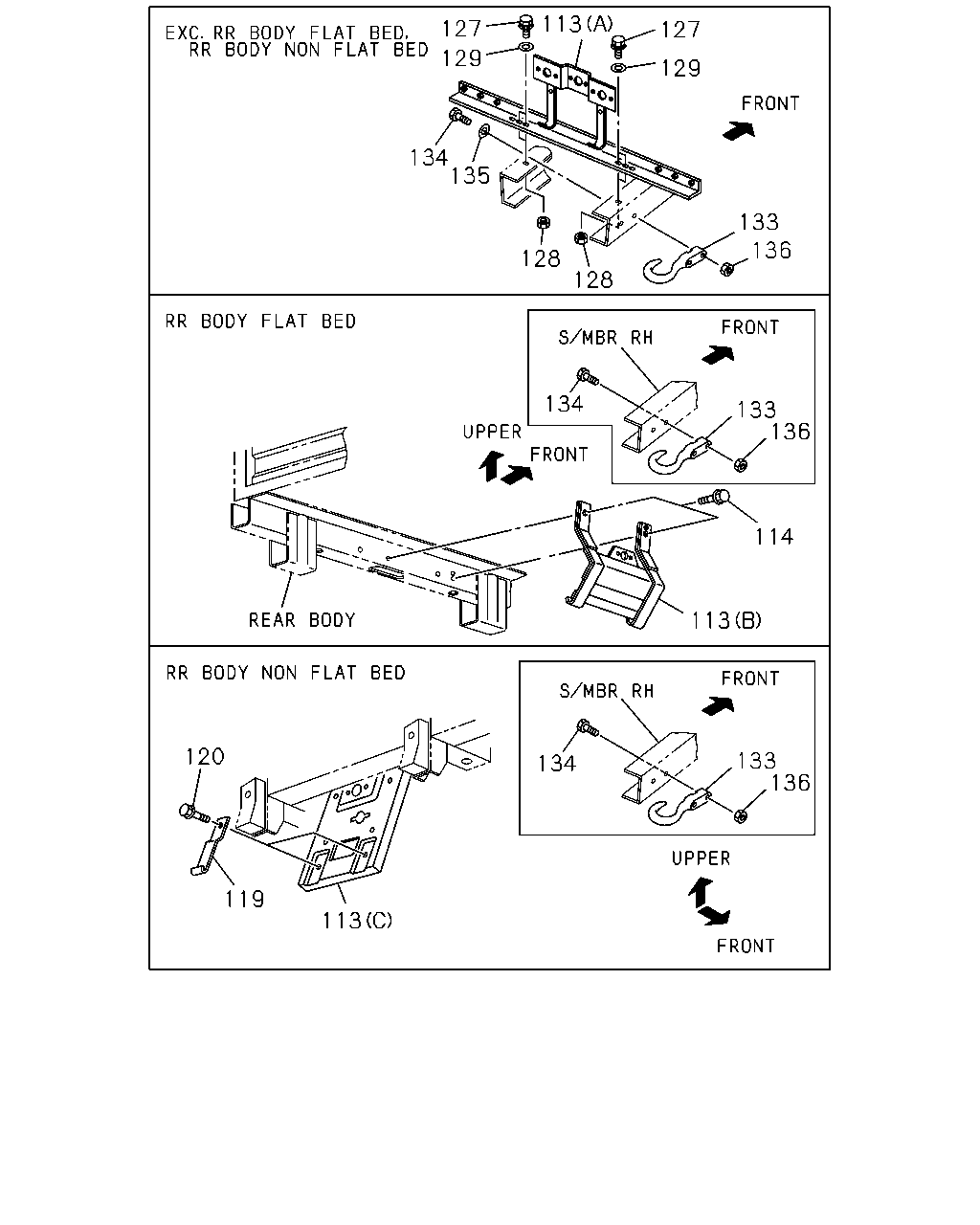

113 127 127 129 129 134 135 133 136 128 128 134 133 136 114 13 120 133 136 134 119 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
13	07.833 WASHER; LK,BACK BAR TO FRAME BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 05.422 ID=14.2	9-09150-814-0	04	1	0101-0105		●
13	07.833 WASHER; LK,BACK BAR TO FRAME BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 05.422 ID=14.2	9-09150-814-0	04	1	0106-	●	●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 05.422 ID=14.2	9-09150-814-0	08	1	0010-0105			●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) 05.422 ID=14	9-09150-814-0	08	1	0106-	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF) 05.422 ID=14	9-09150-814-0	08	1	0106-			●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 05.422 ID=14	9-09150-814-0	08	1	0106-				●
13	07.833 WASHER; LK,BACK BAR TO FRAME SAUDI ARABIA EQUIPMENT(EU2) BUMPER REAR<7HZ> 05.422 ID=14.2	9-09150-814-0	06	1	0010-			●	●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.662 (A)	8-97096-644-1	01	1	9811-	●	●	●	●	●	●	●
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED<RS6> (B)	8-97077-573-2	01	1	9811-0105	●		●	●		●
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED<RS6> (B)	8-97077-573-2	01	1	0106-	●		●			●
113	07.800 BRACKET; LICENSE PLATE BODY COLOR ARC WHITE(729),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR MARINE BLUE(890) RR BODY NON FLAT BED(RS5) (C)	8-94197-117-0	01	1	9811-0008					●
113	07.800 BRACKET; LICENSE PLATE RR BODY NON FLAT BED(RS5) (C)	8-94197-117-0	01	1	0009-0112					●
113	07.800 BRACKET; LICENSE PLATE BODY COLOR ARC WHITE(729),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR MARINE BLUE(890) RR BODY NON FLAT BED(RS5) (C)	8-94197-117-0	01	1	0201-					●
113	07.800 BRACKET; LICENSE PLATE 4HF1 ENG(RLS) DUMP CHASSIS(V4D) 07.039 (D)	8-97033-248-2	01	1	9811-						●
114	07.800 BOLT; BRKT,LICENSE PLATE RR BODY FLAT BED<RS6> 01.540 M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	9811-0004	●		●	●		●
114	07.800 BOLT; BRKT,LICENSE PLATE RR BODY FLAT BED<RS6> 02.334 M6X25 FLANGE	0-28680-625-0	02	1	0005-0105	●		●	●		●
114	07.800 BOLT; BRKT,LICENSE PLATE RR BODY FLAT BED<RS6> 02.334 M6X25 FLANGE	0-28680-625-0	02	1	0106-	●		●			●
119	07.800 HOOK; LICENSE PLATE BRKT RR BODY NON FLAT BED(RS5)	8-97069-728-0	02	1	9811-					●
120	07.800 BOLT RR BODY NON FLAT BED(RS5)	8-97069-572-0	02	1	9811-					●
127	02.662 BOLT; CROSS PLATE EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 03.483 M8X40 W/LK&PL WASHER	0-50140-840-0	02	1	9811-	●	●	●	●	●	●	●
128	02.662 NUT; CROSS PLATE EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.559 M8	9-09110-408-0	02	1	9811-	●	●	●	●	●	●	●
129	03.162 WASHER; PL,CROSS PLATE 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	9811-							●
133	07.112 HOOK 07.330	8-94183-262-0	01	1	9811-0105	●				●		●
133	07.112 HOOK DUMP CHASSIS(V4D) 07.330	8-94183-262-0	01	1	9811-0105						●
133	07.112 HOOK EXC. BRAZIL EQUIPMENT(RWF) 07.330	8-94183-262-0	01	1	0106-	●
133	07.112 HOOK 07.330	8-94183-262-0	01	1	0106-					●		●
133	07.112 HOOK DUMP CHASSIS(V4D) 07.330	8-94183-262-0	01	1	0106-						●
133	07.112 HOOK EXC. DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	9811-0012						●
133	07.112 HOOK 07.068	8-94249-270-2	01	1	9811-0012		●	●	●
133	07.112 HOOK EXC. DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	0101-0105						●
133	07.112 HOOK EXC. BRAZIL EQUIPMENT(RWF) 07.068	8-94249-270-2	01	1	0101-0105		●
133	07.112 HOOK 07.068	8-94249-270-2	01	1	0101-0105			●	●
133	07.112 HOOK EXC. DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	0106-0110						●
133	07.112 HOOK EXC. BRAZIL EQUIPMENT(RWF) 07.068	8-94249-270-2	01	1	0106-0110		●	●
133	07.112 HOOK 07.068	8-94249-270-2	01	1	0106-0110				●
133	07.112 HOOK EXC. DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	0111-0201						●
133	07.112 HOOK EXC. BRAZIL EQUIPMENT(RWF) 07.068	8-94249-270-2	01	1	0111-0201		●
133	07.112 HOOK EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF) 07.068	8-94249-270-2	01	1	0111-0201			●
133	07.112 HOOK SAUDI ARABIA EQUIPMENT(EU2) BUMPER REAR<7HZ> 07.068	8-94249-270-2	01	1	0111-0201			●
133	07.112 HOOK 07.068	8-94249-270-2	01	1	0111-0201				●
133	07.112 HOOK RR BODY FLAT BED<RS6> 07.068	8-94249-270-2	01	1	0202-			●			●
133	07.112 HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	0202-						●
133	07.112 HOOK EXC. BRAZIL EQUIPMENT(RWF) 07.068	8-94249-270-2	01	1	0202-		●
133	07.112 HOOK EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 07.068	8-94249-270-2	01	1	0202-			●
133	07.112 HOOK BUMPER REAR<7HZ> EXC. RR BODY FLAT BED<RS6>,BRAZIL EQUIPMENT(RWF) 07.068	8-94249-270-2	01	1	0202-			●
133	07.112 HOOK 07.068	8-94249-270-2	01	1	0202-				●
134	07.068 BOLT; HOOK 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	9811-0105	●				●		●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	9811-0105						●
134	07.068 BOLT; HOOK EXC. BRAZIL EQUIPMENT(RWF) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	0106-	●
134	07.068 BOLT; HOOK 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	0106-					●		●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	0106-						●
134	07.068 BOLT; HOOK EXC. DUMP CHASSIS(V4D) 07.039 M14X50	0-10806-450-0	02	1	9811-0012						●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10806-450-0	02	1	9811-0012		●	●	●
134	07.068 BOLT; HOOK EXC. DUMP CHASSIS(V4D) 07.039 M14X50	0-10806-450-0	02	1	0101-0105						●
134	07.068 BOLT; HOOK EXC. BRAZIL EQUIPMENT(RWF) 07.039 M14X50	0-10806-450-0	02	1	0101-0105		●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10806-450-0	02	1	0101-0105			●	●
134	07.068 BOLT; HOOK EXC. DUMP CHASSIS(V4D) 07.039 M14X50	0-10806-450-0	02	1	0106-0201						●
134	07.068 BOLT; HOOK EXC. BRAZIL EQUIPMENT(RWF) 07.039 M14X50	0-10806-450-0	02	1	0106-0201		●	●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10806-450-0	02	1	0106-0201				●
134	07.068 BOLT; HOOK RR BODY FLAT BED<RS6> 07.039 M14X50	0-10806-450-0	02	1	0202-			●			●
134	07.068 BOLT; HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.039 M14X50	0-10806-450-0	02	1	0202-						●
134	07.068 BOLT; HOOK EXC. BRAZIL EQUIPMENT(RWF) 07.039 M14X50	0-10806-450-0	02	1	0202-		●
134	07.068 BOLT; HOOK EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 07.039 M14X50	0-10806-450-0	02	1	0202-			●
134	07.068 BOLT; HOOK BUMPER REAR<7HZ> EXC. RR BODY FLAT BED<RS6>,BRAZIL EQUIPMENT(RWF) 07.039 M14X50	0-10806-450-0	02	1	0202-			●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10806-450-0	02	1	0202-				●
135	07.068 WASHER; LK,HOOK EXC. DUMP CHASSIS(V4D) 05.422 ID=14.2	9-09150-814-0	02	1	9811-0012						●
135	07.068 WASHER; LK,HOOK 05.422 ID=14.2	9-09150-814-0	02	1	9811-0012		●	●	●
135	07.068 WASHER; LK,HOOK EXC. DUMP CHASSIS(V4D) 05.422 ID=14.2	9-09150-814-0	02	1	0101-0105						●
135	07.068 WASHER; LK,HOOK EXC. BRAZIL EQUIPMENT(RWF) 05.422 ID=14.2	9-09150-814-0	02	1	0101-0105		●
135	07.068 WASHER; LK,HOOK 05.422 ID=14.2	9-09150-814-0	02	1	0101-0105			●	●
135	07.068 WASHER; LK,HOOK EXC. DUMP CHASSIS(V4D) 05.422 ID=14.2	9-09150-814-0	02	1	0106-0201						●
135	07.068 WASHER; LK,HOOK EXC. BRAZIL EQUIPMENT(RWF) 05.422 ID=14.2	9-09150-814-0	02	1	0106-0201		●	●
135	07.068 WASHER; LK,HOOK 05.422 ID=14.2	9-09150-814-0	02	1	0106-0201				●
135	07.068 WASHER; LK,HOOK RR BODY FLAT BED<RS6> 05.422 ID=14.2	9-09150-814-0	02	1	0202-			●			●
135	07.068 WASHER; LK,HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 05.422 ID=14.2	9-09150-814-0	02	1	0202-						●
135	07.068 WASHER; LK,HOOK EXC. BRAZIL EQUIPMENT(RWF) 05.422 ID=14.2	9-09150-814-0	02	1	0202-		●
135	07.068 WASHER; LK,HOOK EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 05.422 ID=14.2	9-09150-814-0	02	1	0202-			●
135	07.068 WASHER; LK,HOOK BUMPER REAR<7HZ> EXC. RR BODY FLAT BED<RS6>,BRAZIL EQUIPMENT(RWF) 05.422 ID=14.2	9-09150-814-0	02	1	0202-			●
135	07.068 WASHER; LK,HOOK 05.422 ID=14.2	9-09150-814-0	02	1	0202-				●
136	07.068 NUT; HOOK 00.002 M10	9-09110-510-0	02	1	9811-0105	●				●		●
136	07.068 NUT; HOOK EXC. BRAZIL EQUIPMENT(RWF) 00.002 M10	9-09110-510-0	02	1	0106-	●
136	07.068 NUT; HOOK 00.002 M10	9-09110-510-0	02	1	0106-					●		●
136	07.068 NUT; HOOK EXC. DUMP CHASSIS(V4D) 07.529 M14	9-99110-514-0	02	1	9811-0012						●
136	07.068 NUT; HOOK 07.529 M14	9-99110-514-0	02	1	9811-0012		●	●	●
136	07.068 NUT; HOOK EXC. DUMP CHASSIS(V4D) 07.529 M14	9-99110-514-0	02	1	0101-0105						●
136	07.068 NUT; HOOK EXC. BRAZIL EQUIPMENT(RWF) 07.529 M14	9-99110-514-0	02	1	0101-0105		●
136	07.068 NUT; HOOK 07.529 M14	9-99110-514-0	02	1	0101-0105			●	●
136	07.068 NUT; HOOK EXC. DUMP CHASSIS(V4D) 07.529 M14	9-99110-514-0	02	1	0106-0201						●
136	07.068 NUT; HOOK EXC. BRAZIL EQUIPMENT(RWF) 07.529 M14	9-99110-514-0	02	1	0106-0201		●	●
136	07.068 NUT; HOOK 07.529 M14	9-99110-514-0	02	1	0106-0201				●
136	07.068 NUT; HOOK RR BODY FLAT BED<RS6> 07.529 M14	9-99110-514-0	02	1	0202-			●			●
136	07.068 NUT; HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.529 M14	9-99110-514-0	02	1	0202-						●
136	07.068 NUT; HOOK EXC. BRAZIL EQUIPMENT(RWF) 07.529 M14	9-99110-514-0	02	1	0202-		●
136	07.068 NUT; HOOK BUMPER REAR<7HZ> EXC. SAUDI ARABIA EQUIPMENT(EU2),RR BODY FLAT BED<RS6>,BRAZIL EQUIPMENT(RWF) 07.529 M14	9-99110-514-0	02	1	0202-			●
136	07.068 NUT; HOOK EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	02	1	0202-			●
136	07.068 NUT; HOOK 07.529 M14	9-99110-514-0	02	1	0202-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
