6-80 — BACK PANEL (#21607) — 39 parça

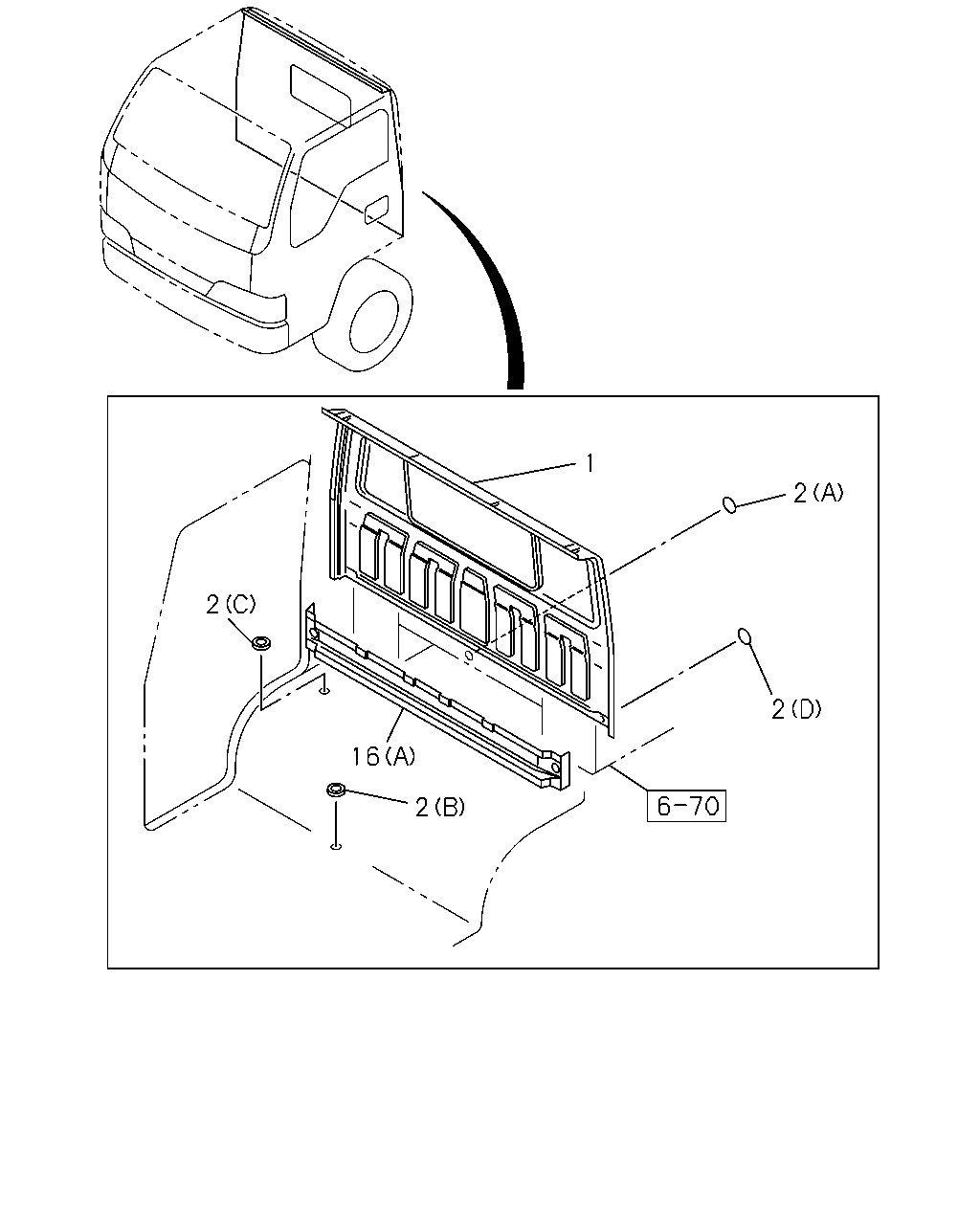

çizim 10110
1 2 2 2 16 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.587 PANEL; BACK OUTER
AIR INTAKE SYSTEM FRONT<6PC> 		8-97851-352-2 01 1 9811-0012 ● ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-352-2 01 1 9811-0012 ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 9811-0012 ● ● ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 9811-0012 ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97851-352-2 01 1 9811-0012 ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-352-2 01 1 9811-0012 ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 0101-0105 ● ● ● ● ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 0101-0105 ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 0106- ● ● ● ● ● ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 0106- ●
1 16.587 PANEL; BACK OUTER
4HF1 ENG(RLS) CAB-LOW ROOF<6XQ> 		8-97851-544-1 01 1 9811- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5 		8-94279-711-0 02 1 9811- ● ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2 		8-94492-493-0 02 1 9811- ● ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9811- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (D) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9811- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 9811- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 9811- ● ● ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-300-1 01 1 9811- ● ●

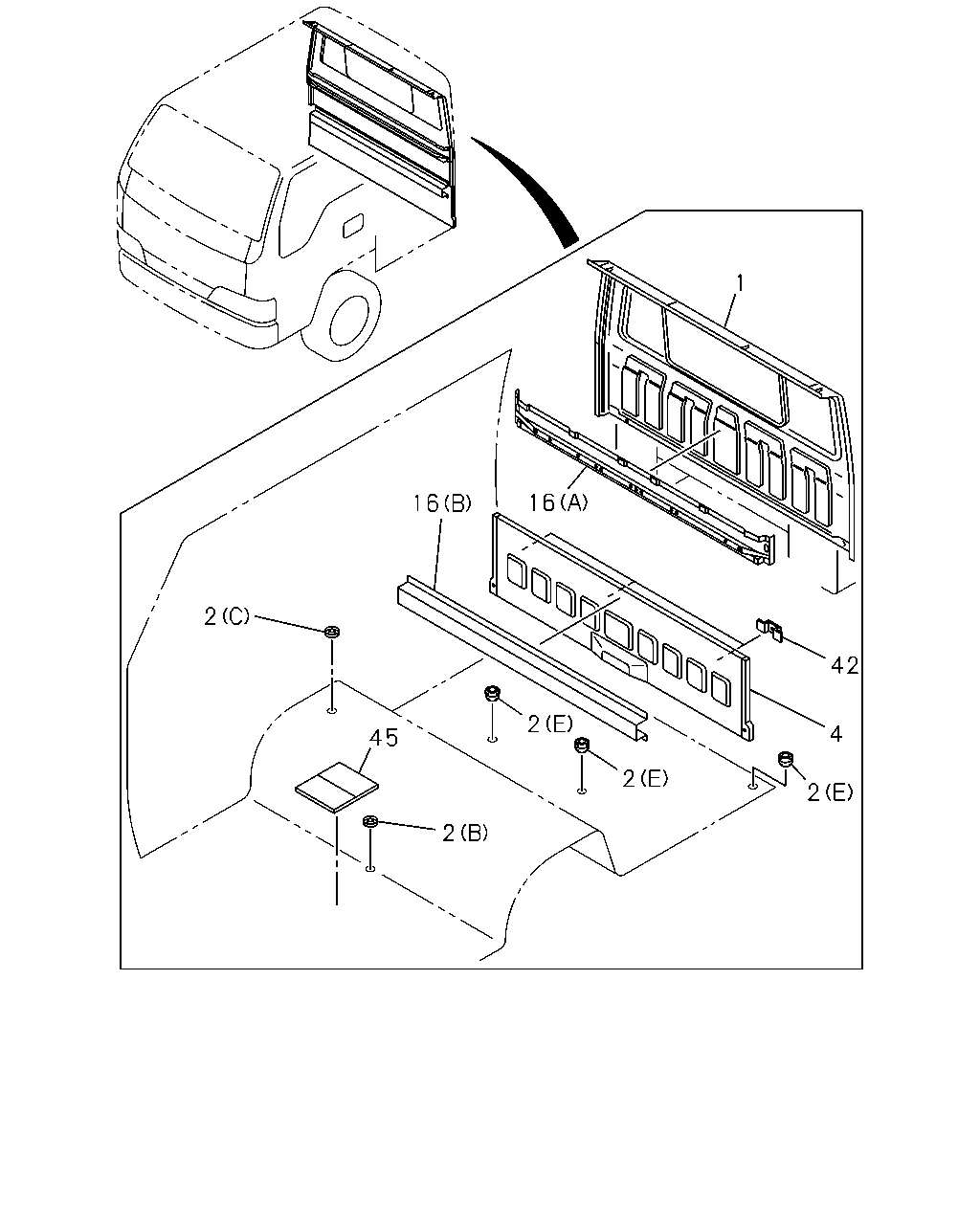

çizim 48553
1 16 16 2 42 2 45 4 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.587 PANEL; BACK OUTER
AIR INTAKE SYSTEM FRONT<6PC> 		8-97851-352-2 01 1 9811-0012 ● ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-352-2 01 1 9811-0012 ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 9811-0012 ● ● ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 9811-0012 ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97851-352-2 01 1 9811-0012 ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-352-2 01 1 9811-0012 ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 0101-0105 ● ● ● ● ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 0101-0105 ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 0106- ● ● ● ● ● ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 0106- ●
1 16.587 PANEL; BACK OUTER
4HF1 ENG(RLS) CAB-LOW ROOF<6XQ> 		8-97851-544-1 01 1 9811- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5 		8-94279-711-0 02 1 9811- ● ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2 		8-94492-493-0 02 1 9811- ● ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9811- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (D) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9811- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 9811- ● ●
4 16.575 PANEL; CAB BACK LWR 8-97851-145-6 01 1 9811- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 9811- ● ● ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-300-1 01 1 9811- ● ●
42 16.587 BRACKET; HEAT PROTECTOR
16.588 		8-94265-170-1 03 1 9811- ● ●
45 16.587 SHEET; MELTING,BACK PANEL
16.850 NON ASBESTOS 1000X600 T=1.5; PARTS O NLY 		8-94262-093-0 02 1 9811- ● ●
