Isuzu WW
▶
TRUCKS
▶
NKR
▶
50809 - NKR-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-78 - FLOOR HOLE PLUG
▶
6-78 — FLOOR HOLE PLUG
(#21606) — 13 parça
Tümü
A - NKB6SC
B - NKB6WC
C - NKC6SC
D - NKC6SD
E - NKC6SF
F - NKC6WF
G - NKN6SC
◀

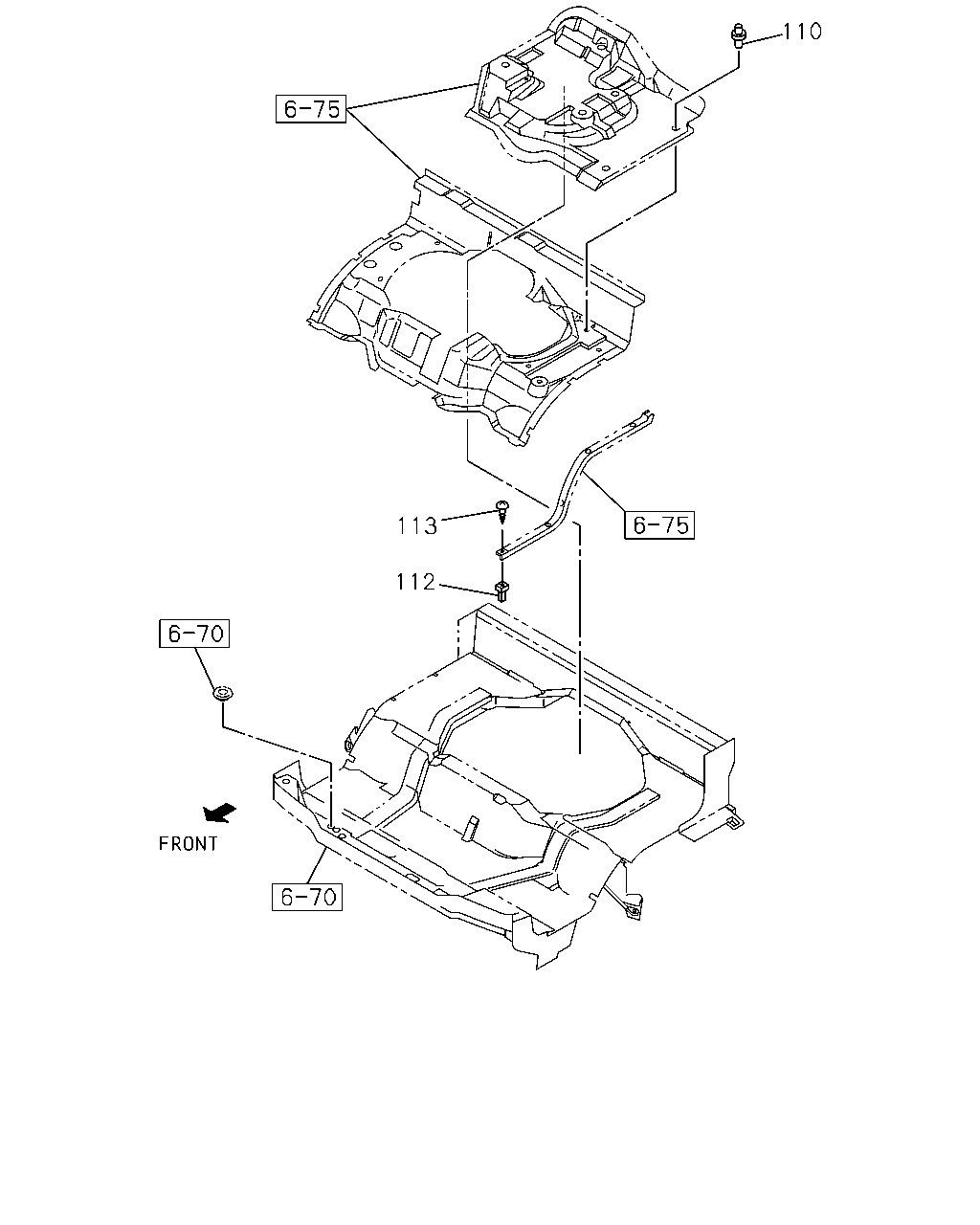

[678A] SGL CAB (5 parça)

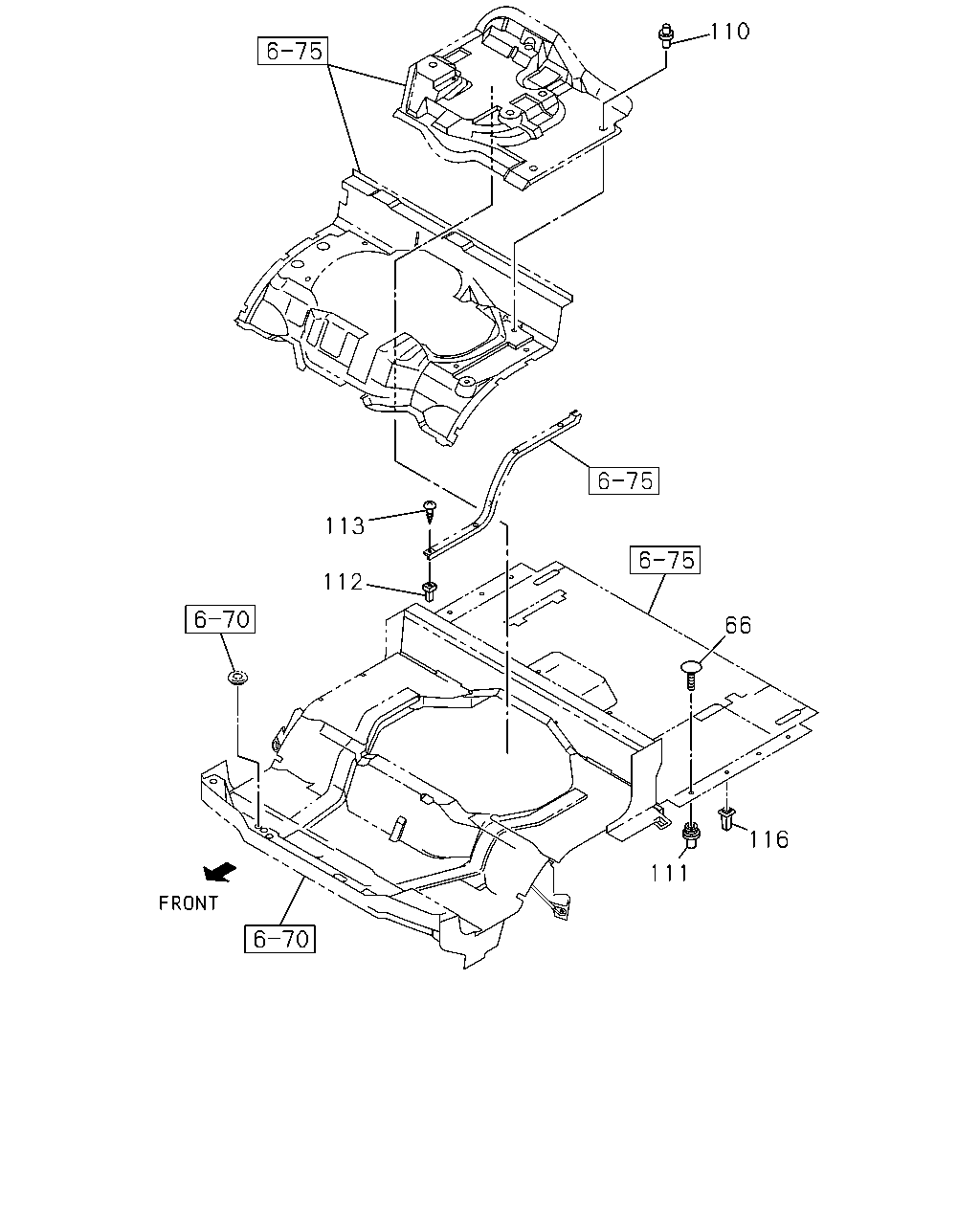

[678A] DBL CAB (8 parça)
▶
110
113
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
110
16.802 FASTENER; FLOOR MAT
BLACK
8-94279-089-0
13
1
9811-0211
●
●
●
●
●
●
●
110
16.802 FASTENER; FLOOR MAT
BLACK
8-94279-089-0
11
1
0212-
●
●
●
●
●
●
●
110
16.802 FASTENER; FLOOR MAT
BLACK
8-94279-089-0
04
1
9811-
●
●
112
16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15
8-94463-268-1
10
1
9811-
●
●
●
●
●
●
●
113
16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER
0-74110-514-0
10
1
9811-
●
●
●
●
●
●
●
110
113
112
66
116
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
66
16.800 PLUG; FLOOR MAT,CAB RR FLOOR
DARK GRAY
8-97867-158-0
04
1
9811-
●
●
110
16.802 FASTENER; FLOOR MAT
BLACK
8-94279-089-0
13
1
9811-0211
●
●
●
●
●
●
●
110
16.802 FASTENER; FLOOR MAT
BLACK
8-94279-089-0
11
1
0212-
●
●
●
●
●
●
●
110
16.802 FASTENER; FLOOR MAT
BLACK
8-94279-089-0
04
1
9811-
●
●
111
16.800 FASTENER; FLOOR MAT,CAB RR MTG
16.802 BLACK
8-94279-089-0
10
1
9811-
●
●
112
16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15
8-94463-268-1
10
1
9811-
●
●
●
●
●
●
●
113
16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER
0-74110-514-0
10
1
9811-
●
●
●
●
●
●
●
116
16.547 GROMMET; SCREW,FLOOR MAT
16.802 D=7.8X7.8 L=18 NATURAL
8-94279-043-0
08
1
9811-
●
●
