◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#2159) — 95 parça

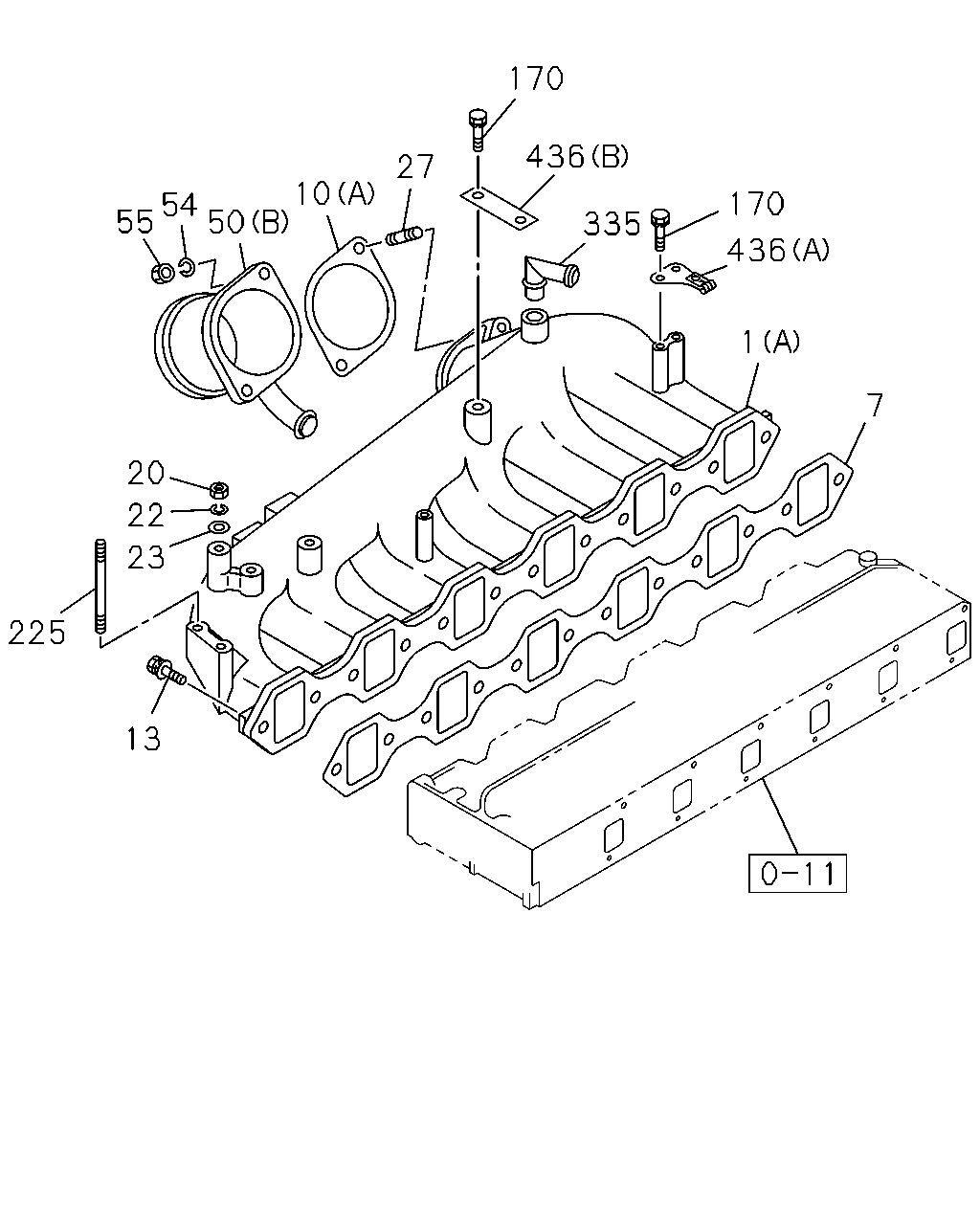

çizim 94590
170 436 27 10 54 55 50 170 335 436 1 7 20 22 23 225 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 MANIFOLD; INL
LEFT HAND DRIVE(MTR6FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E) (B) 		1-14111-900-7 01 1 9101-9108 ●
1 MANIFOLD; INL
LEFT HAND DRIVE(MTR6FB) (B) 		1-14111-900-7 01 1 9101-9108 ●
1 MANIFOLD; INL
LEFT HAND DRIVE(MTR6FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E) (B) 		1-14111-737-7 01 1 9109-0203 ●
1 MANIFOLD; INL
LEFT HAND DRIVE(MTR6FB) (B) 		1-14111-737-7 01 1 9109-0203 ●
1 MANIFOLD; INL
LEFT HAND DRIVE(MTR6FB) (B) 		1-14111-737-7 01 1 0204- ● ●
1 MANIFOLD; INL
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E) (A) 		1-14112-385-0 01 1 9101-9204 ● ●
1 MANIFOLD; INL
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),GLOW PLUG DELETE<E4D> (A) 		1-14112-385-0 01 1 9205-0203 ● ●
1 MANIFOLD; INL
RIGHT HAND DRIVE(MTR5FB) (A) 		1-14112-385-0 01 1 0204- ● ●
1 MANIFOLD; INL
RIGHT HAND DRIVE(MTR5FB) GLOW PLUG DELETE<E4D> (A) 		1-14112-386-0 01 1 9101-0203 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-052-0 01 1 9101-9510 ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-061-0 01 1 9511-0212 ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97235-788-1 03 1 0301-0312 ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-104-0 03 1 0401- ● ●
10 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) T=2.0 		1-09637-056-0 01 1 9101-9607 ● ●
10 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) T=1.5 		1-09637-061-0 01 1 9608- ● ●
10 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) LEFT HAND DRIVE(MTR6FB) (B) 		1-14115-054-0 01 1 9101-9510 ● ●
10 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) LEFT HAND DRIVE(MTR6FB) (B) 		1-14115-059-0 01 1 9511- ● ●
13 BOLT; INL MANIF
M8X28 W/LK&PL WASHER 		0-50140-828-0 09 1 9101-0212 ● ●
13 BOLT; INL MANIF
M8X28 W/LK&PL WASHER 		0-50140-828-0 06 1 0301- ● ●
20 NUT; INL MANIF
M8 		9-09110-408-0 03 1 9101-0212 ● ●
20 NUT; INL MANIF
M8 		9-09110-408-0 06 1 0301- ● ●
22 WASHER; LK,INL MANIF
ID=8.2 		9-09150-508-0 03 1 9101-0212 ● ●
22 WASHER; LK,INL MANIF
ID=8.2 		9-09150-508-0 06 1 0301- ● ●
23 WASHER; PL,INL MANIF
ID=8.4 		9-09160-508-0 03 1 9101-0212 ● ●
23 WASHER; PL,INL MANIF
ID=8.4 		9-09160-508-0 06 1 0301- ● ●
27 STUD; INL MANIF
LEFT HAND DRIVE(MTR6FB) M8X28 L=44 		9-04010-828-0 03 1 9101- ● ●
27 STUD; INL MANIF
RIGHT HAND DRIVE(MTR5FB) M10X20 L=35 		9-04411-020-0 02 1 9101- ● ●
50 PIPE; INL
RIGHT HAND DRIVE(MTR5FB) (B) 		1-14114-724-0 01 1 9101- ● ●
50 PIPE; INL
LEFT HAND DRIVE(MTR6FB) (A) 		1-14112-197-0 01 1 9101- ● ●
50 PIPE; INL
LEFT HAND DRIVE(MTR6FB) (B) 		1-14114-735-0 01 1 9101- ● ●
54 WASHER; LK,INL PIPE
ID=10.2 		9-09150-510-0 02 1 9101- ● ●
54 WASHER; LK,INL PIPE
LEFT HAND DRIVE(MTR6FB) ID=8.2 		9-09150-508-0 03 1 9101- ● ●
55 NUT; INL PIPE
M10 		9-09110-410-0 02 1 9101- ● ●
55 NUT; INL PIPE
LEFT HAND DRIVE(MTR6FB) M8 		9-09110-408-0 03 1 9101- ● ●
170 BOLT; BRKT
M6X16 W/LK WASHER 		0-50040-616-0 02 1 9101- ● ●
170 BOLT; BRKT
RIGHT HAND DRIVE(MTR5FB) M6X16 W/LK WASHER 		0-50040-616-0 01 1 9101- ● ●
170 BOLT; BRKT
LEFT HAND DRIVE(MTR6FB) M10X16 W/LK WASHER 		1-09030-086-0 01 1 9101-9204 ● ●
170 BOLT; BRKT
LEFT HAND DRIVE(MTR6FB) M10X16 W/LK WASHER 		0-50041-016-0 01 1 9205- ● ●
225 STUD; FUEL FILTER
LEFT HAND DRIVE(MTR6FB) M10X28 L=48 		9-04311-028-0 02 1 9101-9108 ● ●
225 STUD; FUEL FILTER
RIGHT HAND DRIVE(MTR5FB) M10X28 L=43 		9-04411-028-0 02 1 9101-9108 ● ●
225 STUD; FUEL FILTER
M10X28 L=43 		9-04411-028-0 02 1 9109- ● ●
335 JOINT; BREATHER
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),PARTIAL OILFILTER<KC1> 		1-09669-065-0 01 1 9101-9410 ● ●
335 JOINT; BREATHER
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),GLOW PLUG DELETE<E4D> 		1-09669-065-0 01 1 9411-0203 ● ●
335 JOINT; BREATHER
RIGHT HAND DRIVE(MTR5FB) 		1-09669-065-0 01 1 0204- ● ●
436 BRACKET; FUEL CUT
(A) 		1-14334-025-0 01 1 9101- ● ●
436 BRACKET; FUEL CUT
RIGHT HAND DRIVE(MTR5FB) (B) 		1-23335-266-0 01 1 9101- ● ●
436 BRACKET; FUEL CUT
LEFT HAND DRIVE(MTR6FB) (C) 		1-47475-938-0 01 1 9101- ● ●

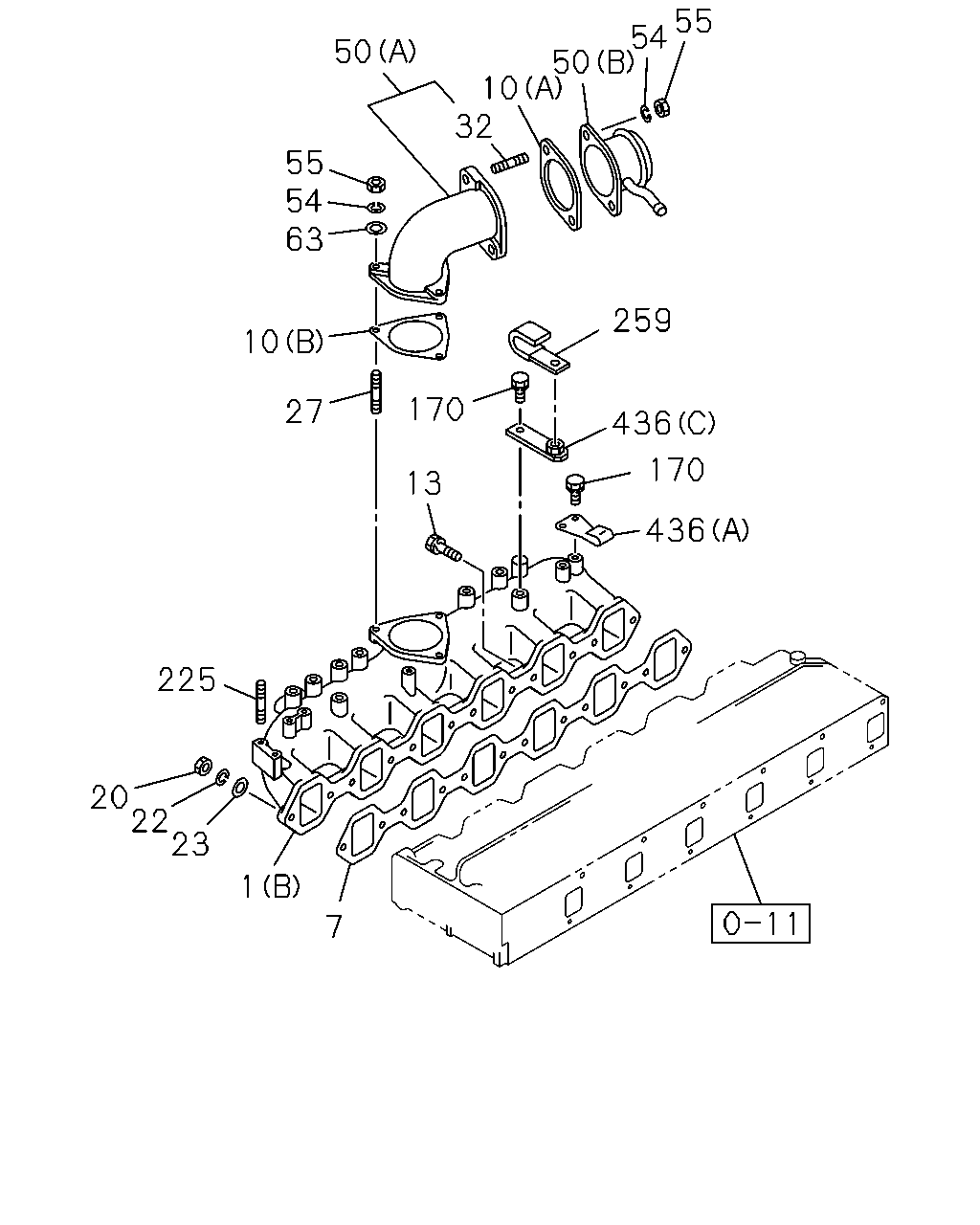

çizim 94977
55 54 50 50 10 32 55 54 63 259 10 170 27 436 170 13 436 225 20 22 23 1 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 MANIFOLD; INL
LEFT HAND DRIVE(MTR6FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E) (B) 		1-14111-900-7 01 1 9101-9108 ●
1 MANIFOLD; INL
LEFT HAND DRIVE(MTR6FB) (B) 		1-14111-900-7 01 1 9101-9108 ●
1 MANIFOLD; INL
LEFT HAND DRIVE(MTR6FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E) (B) 		1-14111-737-7 01 1 9109-0203 ●
1 MANIFOLD; INL
LEFT HAND DRIVE(MTR6FB) (B) 		1-14111-737-7 01 1 9109-0203 ●
1 MANIFOLD; INL
LEFT HAND DRIVE(MTR6FB) (B) 		1-14111-737-7 01 1 0204- ● ●
1 MANIFOLD; INL
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E) (A) 		1-14112-385-0 01 1 9101-9204 ● ●
1 MANIFOLD; INL
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),GLOW PLUG DELETE<E4D> (A) 		1-14112-385-0 01 1 9205-0203 ● ●
1 MANIFOLD; INL
RIGHT HAND DRIVE(MTR5FB) (A) 		1-14112-385-0 01 1 0204- ● ●
1 MANIFOLD; INL
RIGHT HAND DRIVE(MTR5FB) GLOW PLUG DELETE<E4D> (A) 		1-14112-386-0 01 1 9101-0203 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-052-0 01 1 9101-9510 ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-061-0 01 1 9511-0212 ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97235-788-1 03 1 0301-0312 ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-104-0 03 1 0401- ● ●
10 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) T=2.0 		1-09637-056-0 01 1 9101-9607 ● ●
10 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) T=1.5 		1-09637-061-0 01 1 9608- ● ●
10 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) LEFT HAND DRIVE(MTR6FB) (B) 		1-14115-054-0 01 1 9101-9510 ● ●
10 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) LEFT HAND DRIVE(MTR6FB) (B) 		1-14115-059-0 01 1 9511- ● ●
13 BOLT; INL MANIF
M8X28 W/LK&PL WASHER 		0-50140-828-0 09 1 9101-0212 ● ●
13 BOLT; INL MANIF
M8X28 W/LK&PL WASHER 		0-50140-828-0 06 1 0301- ● ●
20 NUT; INL MANIF
M8 		9-09110-408-0 03 1 9101-0212 ● ●
20 NUT; INL MANIF
M8 		9-09110-408-0 06 1 0301- ● ●
22 WASHER; LK,INL MANIF
ID=8.2 		9-09150-508-0 03 1 9101-0212 ● ●
22 WASHER; LK,INL MANIF
ID=8.2 		9-09150-508-0 06 1 0301- ● ●
23 WASHER; PL,INL MANIF
ID=8.4 		9-09160-508-0 03 1 9101-0212 ● ●
23 WASHER; PL,INL MANIF
ID=8.4 		9-09160-508-0 06 1 0301- ● ●
27 STUD; INL MANIF
LEFT HAND DRIVE(MTR6FB) M8X28 L=44 		9-04010-828-0 03 1 9101- ● ●
27 STUD; INL MANIF
RIGHT HAND DRIVE(MTR5FB) M10X20 L=35 		9-04411-020-0 02 1 9101- ● ●
32 STUD; INL PIPE
LEFT HAND DRIVE(MTR6FB) M10X20 L=35 		9-04411-020-0 02 1 9101- ● ●
50 PIPE; INL
RIGHT HAND DRIVE(MTR5FB) (B) 		1-14114-724-0 01 1 9101- ● ●
50 PIPE; INL
LEFT HAND DRIVE(MTR6FB) (A) 		1-14112-197-0 01 1 9101- ● ●
50 PIPE; INL
LEFT HAND DRIVE(MTR6FB) (B) 		1-14114-735-0 01 1 9101- ● ●
54 WASHER; LK,INL PIPE
ID=10.2 		9-09150-510-0 02 1 9101- ● ●
54 WASHER; LK,INL PIPE
LEFT HAND DRIVE(MTR6FB) ID=8.2 		9-09150-508-0 03 1 9101- ● ●
55 NUT; INL PIPE
M10 		9-09110-410-0 02 1 9101- ● ●
55 NUT; INL PIPE
LEFT HAND DRIVE(MTR6FB) M8 		9-09110-408-0 03 1 9101- ● ●
63 WASHER; PL,INL PIPE
LEFT HAND DRIVE(MTR6FB) ID=8.4 		9-09160-508-0 03 1 9101- ● ●
170 BOLT; BRKT
M6X16 W/LK WASHER 		0-50040-616-0 02 1 9101- ● ●
170 BOLT; BRKT
RIGHT HAND DRIVE(MTR5FB) M6X16 W/LK WASHER 		0-50040-616-0 01 1 9101- ● ●
170 BOLT; BRKT
LEFT HAND DRIVE(MTR6FB) M10X16 W/LK WASHER 		1-09030-086-0 01 1 9101-9204 ● ●
170 BOLT; BRKT
LEFT HAND DRIVE(MTR6FB) M10X16 W/LK WASHER 		0-50041-016-0 01 1 9205- ● ●
225 STUD; FUEL FILTER
LEFT HAND DRIVE(MTR6FB) M10X28 L=48 		9-04311-028-0 02 1 9101-9108 ● ●
225 STUD; FUEL FILTER
RIGHT HAND DRIVE(MTR5FB) M10X28 L=43 		9-04411-028-0 02 1 9101-9108 ● ●
225 STUD; FUEL FILTER
M10X28 L=43 		9-04411-028-0 02 1 9109- ● ●
259 CLIP; FUEL CUT CABLE
LEFT HAND DRIVE(MTR6FB) 		1-09700-160-0 01 1 9101-9401 ● ●
259 CLIP; FUEL CUT CABLE
LEFT HAND DRIVE(MTR6FB) ID=12 		9-09716-218-0 01 1 9402- ● ●
436 BRACKET; FUEL CUT
(A) 		1-14334-025-0 01 1 9101- ● ●
436 BRACKET; FUEL CUT
RIGHT HAND DRIVE(MTR5FB) (B) 		1-23335-266-0 01 1 9101- ● ●
436 BRACKET; FUEL CUT
LEFT HAND DRIVE(MTR6FB) (C) 		1-47475-938-0 01 1 9101- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
