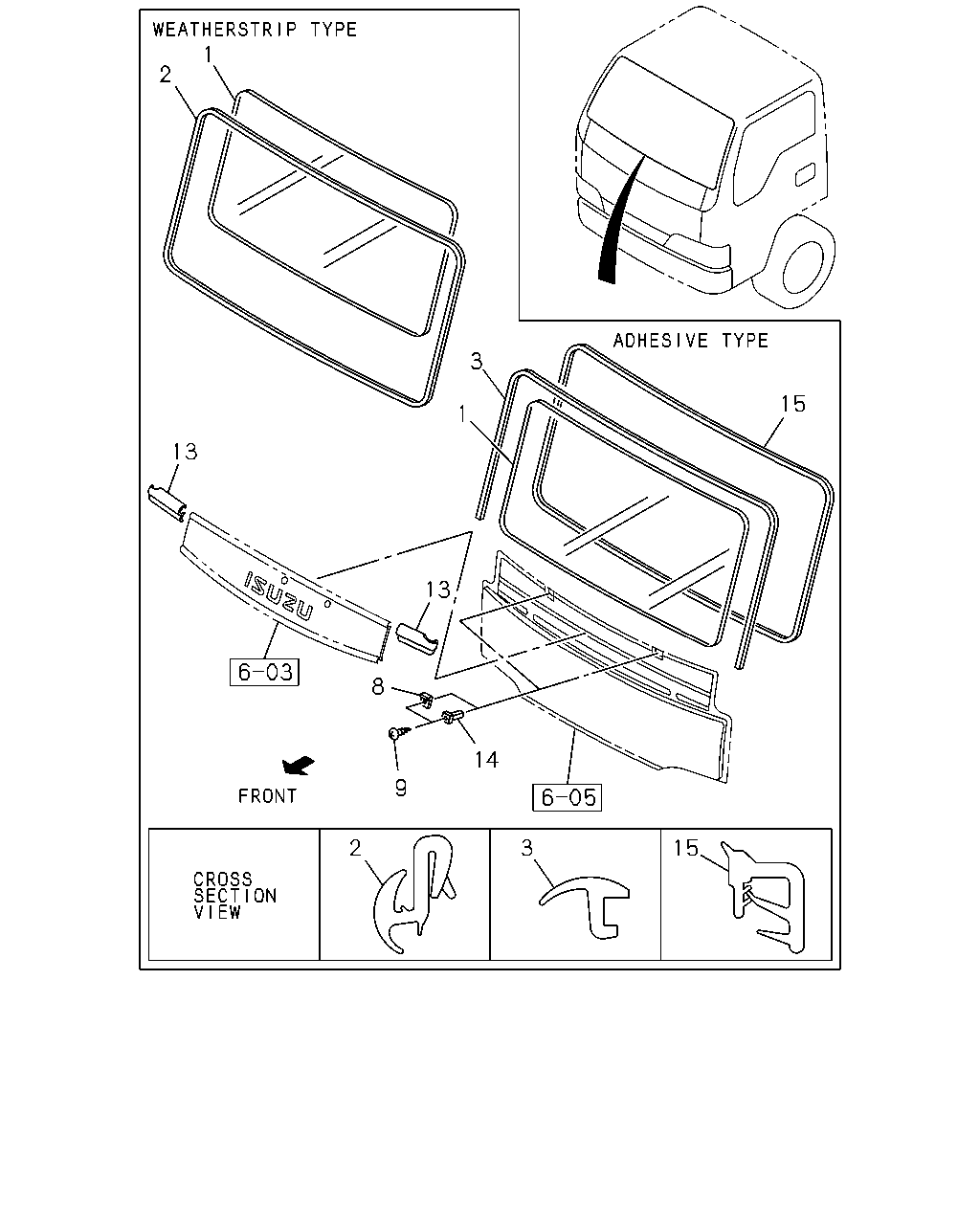

6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#21588) — 22 parça

1 2 3 15 1 13 13 8 14 9 2 3 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	16.005 GLASS; WINDSHIELD EXC. SAUDI ARABIA EQUIPMENT(EU2), TURKISH EQUIPMENT(S6S),CAB-LOW ROOF<6XQ>	8-97869-123-0	01	1	9811-0012	●	●	●	●	●	●	●
1	16.005 GLASS; WINDSHIELD EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF),TURKISH EQUIPMENT(S6S),CAB-LOW ROOF<6XQ>	8-97869-123-0	01	1	0101-	●	●	●	●	●	●	●
1	16.005 GLASS; WINDSHIELD SAUDI ARABIA EQUIPMENT(EU2),TURKISH EQUIPMENT(S6S)	8-97869-124-0	01	1	9811-0004	●		●		●	●
1	16.005 GLASS; WINDSHIELD SAUDI ARABIA EQUIPMENT(EU2),TURKISH EQUIPMENT(S6S)	8-97869-124-0	01	1	0005-0012	●		●		●	●	●
1	16.005 GLASS; WINDSHIELD SAUDI ARABIA EQUIPMENT(EU2),BRAZIL EQUIPMENT(RWF),TURKISH EQUIPMENT(S6S)	8-97869-124-0	01	1	0101-	●		●	●	●	●	●
1	16.005 GLASS; WINDSHIELD CAB-LOW ROOF<6XQ>	8-97869-121-0	01	1	9811-			●
2	16.040 WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-351-3	01	1	9811-	●	●		●	●	●	●
2	16.040 WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. CAB-LOW ROOF<6XQ>	8-97856-351-3	01	1	9811-			●
2	16.040 WEATHERSTRIP; WINDSHIELD GLASS CAB-LOW ROOF<6XQ> WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-349-3	01	1	9811-			●
3	16.470 MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-1	01	1	9811-	●	●		●	●	●	●
3	16.470 MOLDING; WINDSHIELD EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-1	01	1	9811-			●
3	16.470 MOLDING; WINDSHIELD CAB-LOW ROOF<6XQ>	8-97890-213-1	01	1	9811-			●
8	16.041 STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97859-215-0	02	1	9811-	●		●	●	●		●
8	16.041 STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-0	02	1	9811-		●				●
9	16.041 SCREW; STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14	8-94279-325-0	02	1	9811-	●	●	●	●	●	●	●
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-787-4	01	1	9811-	●	●	●	●	●	●	●
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-786-3	01	1	9811-	●	●	●	●	●	●	●
14	16.041 GROMMET; SCREW,STOPPER WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK	8-94279-714-0	04	1	9811-	●	●	●	●	●	●	●
14	16.041 GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	9811-		●				●
15	16.041 FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY	8-97859-856-4	01	1	9811-	●	●		●	●	●	●
15	16.041 FINISHER; WINDSHIELD EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY	8-97859-856-4	01	1	9811-			●
15	16.041 FINISHER; WINDSHIELD CAB-LOW ROOF<6XQ> DARK GRAY	8-97859-855-4	01	1	9811-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
