6-01 — FRONT BUMPER (#21584) — 90 parça

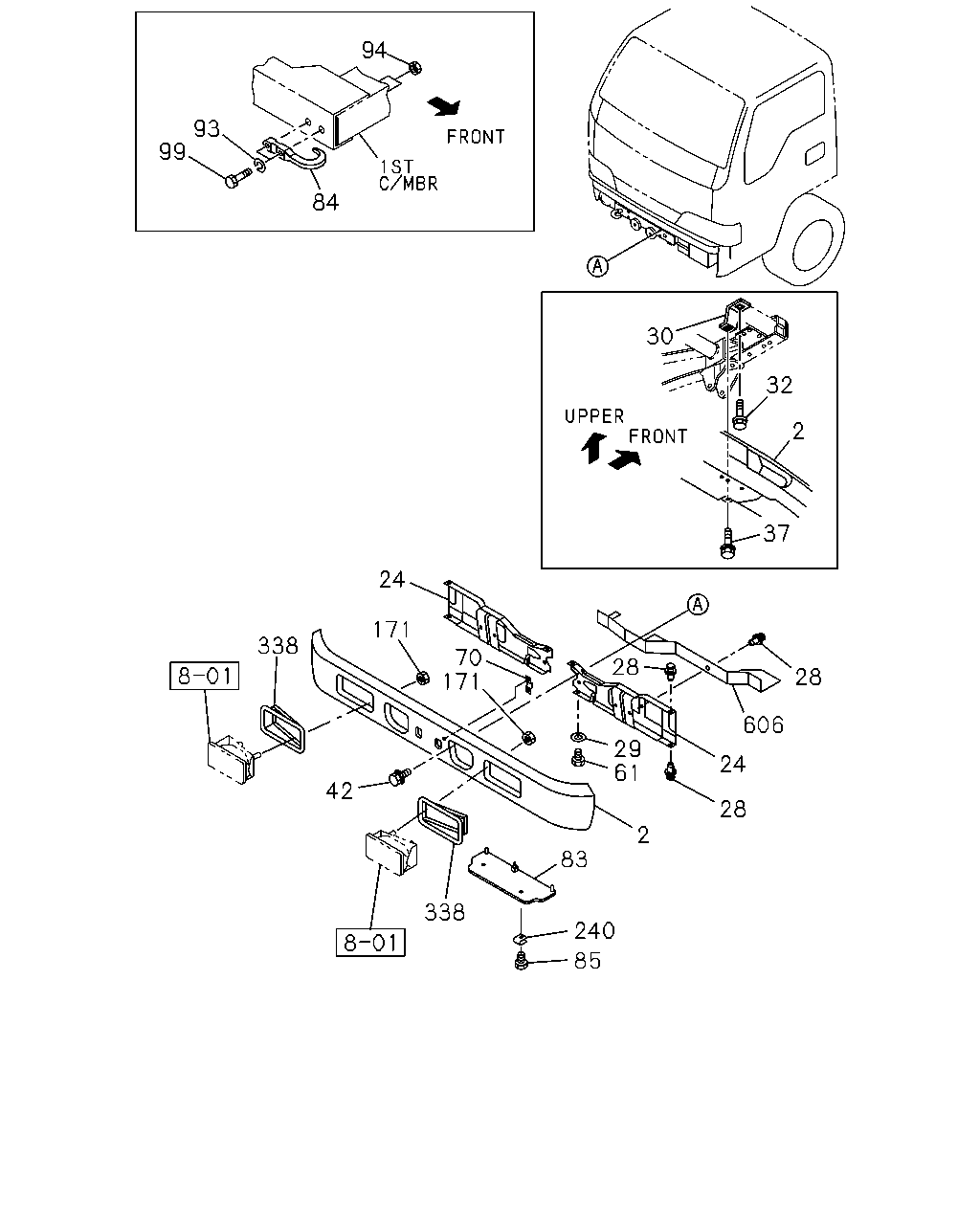

çizim 46067
94 93 99 84 30 32 2 37 24 171 70 171 28 28 606 29 61 24 42 28 2 83 338 240 85 338
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> DARK GRAY 		8-97196-159-0 01 1 9811-0205 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> DARK GRAY 		8-97999-023-0 01 1 0206- ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
EXC. FOG LAMP<T96> DARK GRAY 		8-97196-169-0 01 1 9811-0105 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FIRE TRUCK CHASSIS(V4F) EXC. FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> DARK GRAY 		8-97196-169-0 01 1 9811-0105 ●
2 07.831 BUMPER; FRT,CENTER
EXC. FOG LAMP<T96>,FIRE TRUCK CHASSIS(V4F) DARK GRAY 		8-97196-169-0 01 1 9811-0105 ●
2 07.831 BUMPER; FRT,CENTER
EXC. FOG LAMP<T96> DARK GRAY 		8-97196-169-0 01 1 0106-0205 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
EXC. FOG LAMP<T96> DARK GRAY 		8-97999-003-0 01 1 0206- ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRONT BUMPER PAINTED<VB5> FIRE TRUCK CHASSIS(V4F) EXC. FOG LAMP<T96> WHITE PRIMER 		8-97191-911-0 01 1 9811-0010 ●
2 07.831 BUMPER; FRT,CENTER
FRONT BUMPER PAINTED<VB5> FIRE TRUCK CHASSIS(V4F) EXC. FOG LAMP<T96> WHITE PRIMER 		8-97191-911-0 01 1 0011-0105 ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97070-818-3 01 1 9811-0105 ● ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-818-3 01 1 0106-0205 ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97070-818-4 01 1 0206- ● ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97070-817-3 01 1 9811-0105 ● ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-817-3 01 1 0106-0205 ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97070-817-4 01 1 0206- ● ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-817-3 02 1 0106-0205 ● ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-818-3 02 1 0106-0205 ● ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97035-752-6 01 1 9811- ● ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97035-751-6 01 1 9811- ● ● ● ● ● ● ●
28 07.833 FASTENER; BACK BAR
FOG LAMP<T96> 12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 12 1 9811- ● ● ● ● ● ● ●
28 07.833 FASTENER; BACK BAR
EXC. FOG LAMP<T96> 12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 08 1 9811- ● ● ● ● ● ● ●
29 07.833 WASHER; FRT BUMPER
ID=8.5 		8-94167-476-0 06 1 9811- ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER 8-97209-567-1 02 1 9811-9811 ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
EXC. FIRE TRUCK CHASSIS(V4F) 		8-97209-567-1 02 1 9811-9811 ●
30 07.869 BRACKET; FRT BUMPER
01.263 		8-97093-639-3 02 1 9812-0105 ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
EXC. FIRE TRUCK CHASSIS(V4F) 01.263 		8-97093-639-3 02 1 9812-0105 ●
30 07.869 BRACKET; FRT BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.263 		8-97093-639-3 02 1 0106- ●
30 07.869 BRACKET; FRT BUMPER
01.263 		8-97093-639-3 02 1 0106- ● ● ● ● ● ●
32 07.874 BOLT; BRKT,BUMPER
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-0105 ● ● ● ● ● ●
32 07.874 BOLT; BRKT,BUMPER
EXC. FIRE TRUCK CHASSIS(V4F) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-0105 ●
32 07.874 BOLT; BRKT,BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0106- ●
32 07.874 BOLT; BRKT,BUMPER
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ● ● ● ● ●
37 01.263 BOLT; BRKT TO BUMPER LWR
16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 9811-0105 ● ● ● ● ● ●
37 01.263 BOLT; BRKT TO BUMPER LWR
EXC. FIRE TRUCK CHASSIS(V4F) 16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 9811-0105 ●
37 01.263 BOLT; BRKT TO BUMPER LWR
EXC. FRT INDEPENDENT SUSPENSION(6PP) 16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 0106- ●
37 01.263 BOLT; BRKT TO BUMPER LWR
16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 0106- ● ● ● ● ● ●
42 07.874 BOLT; BUMPER
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 9811- ● ● ● ● ● ● ●
61 07.832 BOLT; BACK BAR
04.785 M8X18 W/LK WASHER 		0-50040-818-0 06 1 9811- ● ● ● ● ● ● ●
70 07.800 BRACKET; LICENSE PLATE,FRT 8-94151-164-1 02 1 9811- ● ● ● ● ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER 8-97076-832-2 01 1 9811-0010 ● ● ● ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER
EXC. FOG LAMP<T96>,FIRE TRUCK CHASSIS(V4F) 		8-97076-832-2 01 1 9811-0010 ●
83 07.833 GUIDE; AIR,FRT BUMPER
FOG LAMP<T96> 		8-97076-832-2 01 1 9811-0010 ●
83 07.833 GUIDE; AIR,FRT BUMPER
EXC. FIRE TRUCK CHASSIS(V4F) 		8-97076-832-2 01 1 0011-0105 ● ● ● ● ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97076-832-2 01 1 0106- ● ● ● ● ● ● ●
84 07.068 HOOK
FRT INDEPENDENT SUSPENSION(6PP) EXC. BRAZIL EQUIPMENT(RWF) 		8-94336-438-1 01 1 0110- ●
84 07.068 HOOK 8-94249-270-2 01 1 9811-0012 ● ● ● ● ● ● ●
84 07.068 HOOK 8-94249-270-2 01 1 0101-0105 ● ● ● ● ● ●
84 07.068 HOOK
EXC. BRAZIL EQUIPMENT(RWF) 		8-94249-270-2 01 1 0101-0105 ●
84 07.068 HOOK
EXC. BRAZIL EQUIPMENT(RWF),FRT INDEPENDENT SUSPENSION(6PP) 		8-94249-270-2 01 1 0106- ●
84 07.068 HOOK 8-94249-270-2 01 1 0106- ● ● ● ●
84 07.068 HOOK
EXC. BRAZIL EQUIPMENT(RWF) 		8-94249-270-2 01 1 0106- ● ●
85 07.874 BOLT; AIR GUIDE,FRT BUMPER
M6X22 W/PL WASHER 		8-97012-072-0 03 1 9811-0010 ● ● ● ● ● ●
85 07.874 BOLT; AIR GUIDE,FRT BUMPER
EXC. FOG LAMP<T96>,FIRE TRUCK CHASSIS(V4F) M6X22 W/PL WASHER 		8-97012-072-0 03 1 9811-0010 ●
85 07.874 BOLT; AIR GUIDE,FRT BUMPER
FOG LAMP<T96> M6X22 W/PL WASHER 		8-97012-072-0 03 1 9811-0010 ●
85 07.874 BOLT; AIR GUIDE,FRT BUMPER
EXC. FIRE TRUCK CHASSIS(V4F) M6X22 W/PL WASHER 		8-97012-072-0 03 1 0011-0105 ● ● ● ● ● ● ●
85 07.874 BOLT; AIR GUIDE,FRT BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP) M6X22 W/PL WASHER 		8-97012-072-0 03 1 0106- ● ● ● ● ● ● ●
93 07.068 WASHER; LK,HOOK
FRT INDEPENDENT SUSPENSION(6PP) EXC. BRAZIL EQUIPMENT(RWF) 00.002 ID=12.2 		9-09150-812-0 02 1 0106- ●
93 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 9811-0012 ● ● ● ● ● ● ●
93 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 0101-0105 ● ● ● ● ● ●
93 07.068 WASHER; LK,HOOK
EXC. BRAZIL EQUIPMENT(RWF) 05.422 ID=14.2 		9-09150-814-0 02 1 0101-0105 ●
93 07.068 WASHER; LK,HOOK
EXC. BRAZIL EQUIPMENT(RWF),FRT INDEPENDENT SUSPENSION(6PP) 05.422 ID=14.2 		9-09150-814-0 02 1 0106- ●
93 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 0106- ● ● ● ●
93 07.068 WASHER; LK,HOOK
EXC. BRAZIL EQUIPMENT(RWF) 05.422 ID=14.2 		9-09150-814-0 02 1 0106- ● ●
94 07.068 NUT; HOOK
07.529 M14 		9-99110-514-0 02 1 9811-0012 ● ● ● ● ● ● ●
94 07.068 NUT; HOOK
07.529 M14 		9-99110-514-0 02 1 0101-0105 ● ● ● ● ● ●
94 07.068 NUT; HOOK
EXC. BRAZIL EQUIPMENT(RWF) 07.529 M14 		9-99110-514-0 02 1 0101-0105 ●
94 07.068 NUT; HOOK
EXC. BRAZIL EQUIPMENT(RWF),FRT INDEPENDENT SUSPENSION(6PP) 07.529 M14 		9-99110-514-0 02 1 0106- ●
94 07.068 NUT; HOOK
07.529 M14 		9-99110-514-0 02 1 0106- ● ● ● ●
94 07.068 NUT; HOOK
EXC. BRAZIL EQUIPMENT(RWF) 07.529 M14 		9-99110-514-0 02 1 0106- ● ●
99 07.039 BOLT; HOOK
FRT INDEPENDENT SUSPENSION(6PP) EXC. BRAZIL EQUIPMENT(RWF) 04.103 M12X45 		0-10806-245-0 01 1 0106- ●
99 07.039 BOLT; HOOK
FRT INDEPENDENT SUSPENSION(6PP) EXC. BRAZIL EQUIPMENT(RWF) 02.042 M12X35 		0-20801-235-0 01 1 0106- ●
99 07.039 BOLT; HOOK
M14X50 		0-10806-450-0 02 1 9811-0012 ● ● ● ● ● ● ●
99 07.039 BOLT; HOOK
M14X50 		0-10806-450-0 02 1 0101-0105 ● ● ● ● ● ●
99 07.039 BOLT; HOOK
EXC. BRAZIL EQUIPMENT(RWF) M14X50 		0-10806-450-0 02 1 0101-0105 ●
99 07.039 BOLT; HOOK
EXC. BRAZIL EQUIPMENT(RWF),FRT INDEPENDENT SUSPENSION(6PP) M14X50 		0-10806-450-0 02 1 0106- ●
99 07.039 BOLT; HOOK
M14X50 		0-10806-450-0 02 1 0106- ● ● ● ●
99 07.039 BOLT; HOOK
EXC. BRAZIL EQUIPMENT(RWF) M14X50 		0-10806-450-0 02 1 0106- ● ●
171 07.869 NUT; BACK BAR
FOG LAMP<T96> 04.012 M8 FLANGE 		1-09464-018-1 04 1 9811- ● ● ● ● ● ● ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
M6 		8-94412-740-1 03 1 9811-0004 ● ● ● ● ● ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
EXC. FOG LAMP<T96>,FIRE TRUCK CHASSIS(V4F) M6 		8-94412-740-1 03 1 9811-0004 ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
FOG LAMP<T96> M6 		8-94412-740-1 03 1 9811-0004 ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
16.085 M6 SPIRE NUT 		8-97210-973-1 03 1 0005-0010 ● ● ● ● ● ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
EXC. FOG LAMP<T96>,FIRE TRUCK CHASSIS(V4F) 16.085 M6 SPIRE NUT 		8-97210-973-1 03 1 0005-0010 ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
FOG LAMP<T96> 16.085 M6 SPIRE NUT 		8-97210-973-1 03 1 0005-0010 ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
EXC. FIRE TRUCK CHASSIS(V4F) 16.085 M6 SPIRE NUT 		8-97210-973-1 03 1 0011-0105 ● ● ● ● ● ● ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 16.085 M6 SPIRE NUT 		8-97210-973-1 03 1 0106- ● ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> DARK GRAY 		8-97866-836-0 01 1 9811- ● ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> DARK GRAY 		8-97866-835-0 01 1 9811- ● ● ● ● ● ● ●
606 07.832 SEAL; BACK BAR
FOG LAMP<T96> 		8-97867-844-0 02 1 9811- ● ● ● ● ● ● ●
606 07.832 SEAL; BACK BAR
EXC. FOG LAMP<T96> 		8-97867-844-0 01 1 9811- ● ● ● ● ● ● ●
