◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#21579) — 522 parça

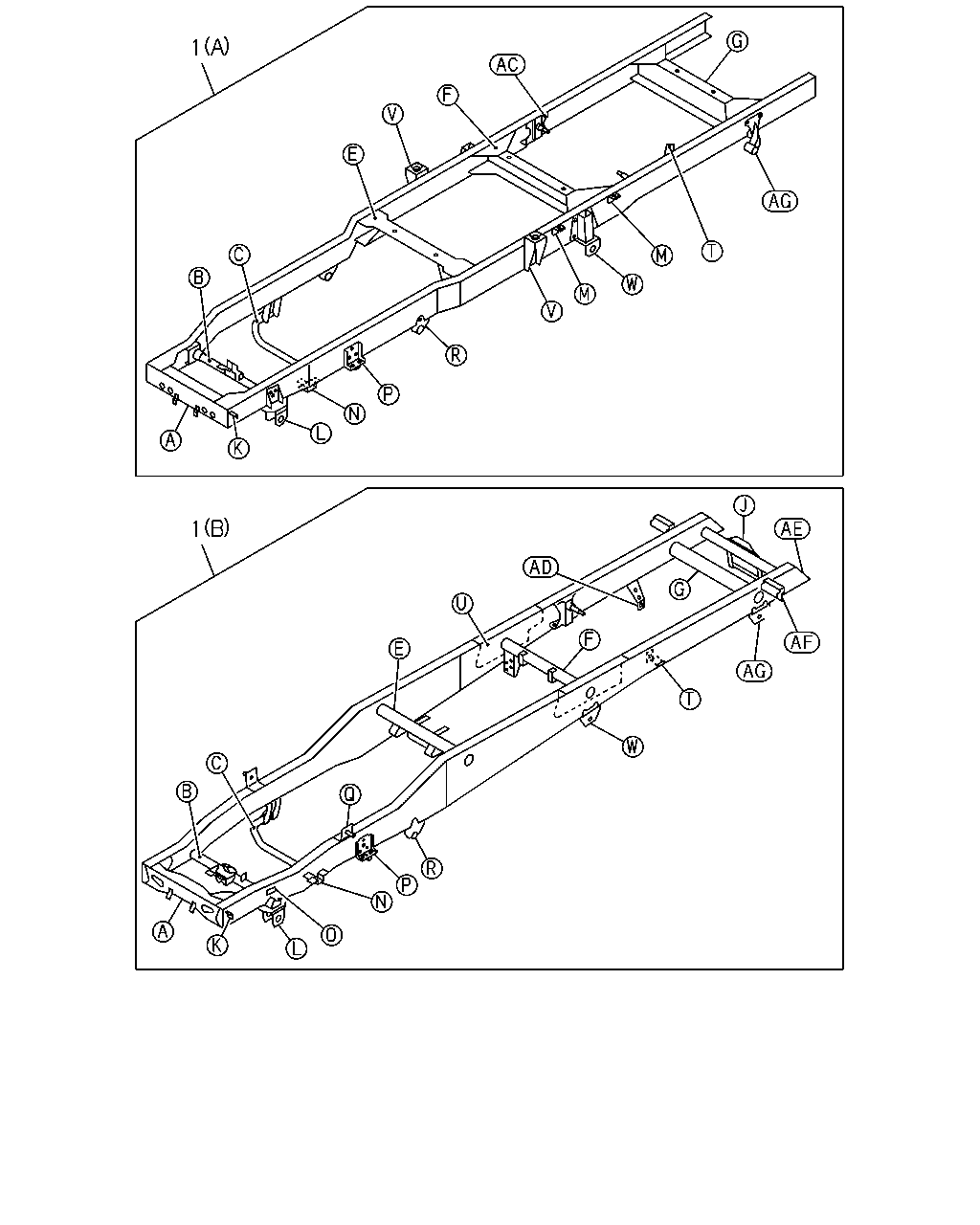

çizim 7711
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.003 FRAME ASM
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97305-461-1 01 1 0201- ●
1 07.003 FRAME ASM
4JH1 ENG(RJX) EXC. CHINA EQUIPMENT(YT2) (D) 		8-97260-208-0 01 1 0201- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) (A) 		8-97205-871-1 01 1 9811-0105 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97310-097-0 01 1 0106- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97205-869-1 01 1 9811-0105 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97205-869-1 01 1 0106- ●
1 07.003 FRAME ASM
RR BODY NON FLAT BED(RS5) (A) 		8-97205-872-1 01 1 9811- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97205-874-2 01 1 9811- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) REAR WIDE TREAD(V4T) (C) 		8-97205-876-1 01 1 9811-0105 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97202-999-3 01 1 0106- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FIRE TRUCK CHASSIS(V4F) (C) 		8-97205-875-1 01 1 9811-9901 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) RR BODY FLAT BED<RS6> REAR WIDE TREAD(V4T) EXC. FIRE TRUCK CHASSIS(V4F) (D) 		8-97224-409-0 01 1 9902-0105 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) RR BODY FLAT BED<RS6> REAR WIDE TREAD(V4T) (D) 		8-97224-409-0 01 1 0106- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED<RS6>,FIRE TRUCK CHASSIS(V4F) (D) 		8-97224-401-0 01 1 9902-0105 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED<RS6> (D) 		8-97224-401-0 01 1 0106- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (C) 		8-97205-873-1 01 1 9811- ●
1 07.003 FRAME ASM
(C) 		8-97205-877-1 01 1 9811-0012 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) (C) 		8-97205-877-1 01 1 0101- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) EXC. STABILIZER REAR<GN1> (E) 		8-97308-682-0 01 1 0101- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) STABILIZER REAR<GN1> BRAZIL EQUIPMENT(RWF) (E) 		8-97308-683-0 01 1 0101- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) (D) 		8-97205-880-1 01 1 9811- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) (D) 		8-97205-878-2 01 1 9811- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHINA EQUIPMENT(YT2) (D) 		8-97205-879-2 01 1 9811- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) (D) 		8-97205-882-1 01 1 9811-0105 ●
1 07.003 FRAME ASM
(D) 		8-97205-882-1 01 1 0106- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) (D) 		8-97205-881-1 01 1 9811-0105 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97205-883-1 01 1 9811-0105 ●
1 07.003 FRAME ASM
(A) 		8-97205-883-1 01 1 0106- ●

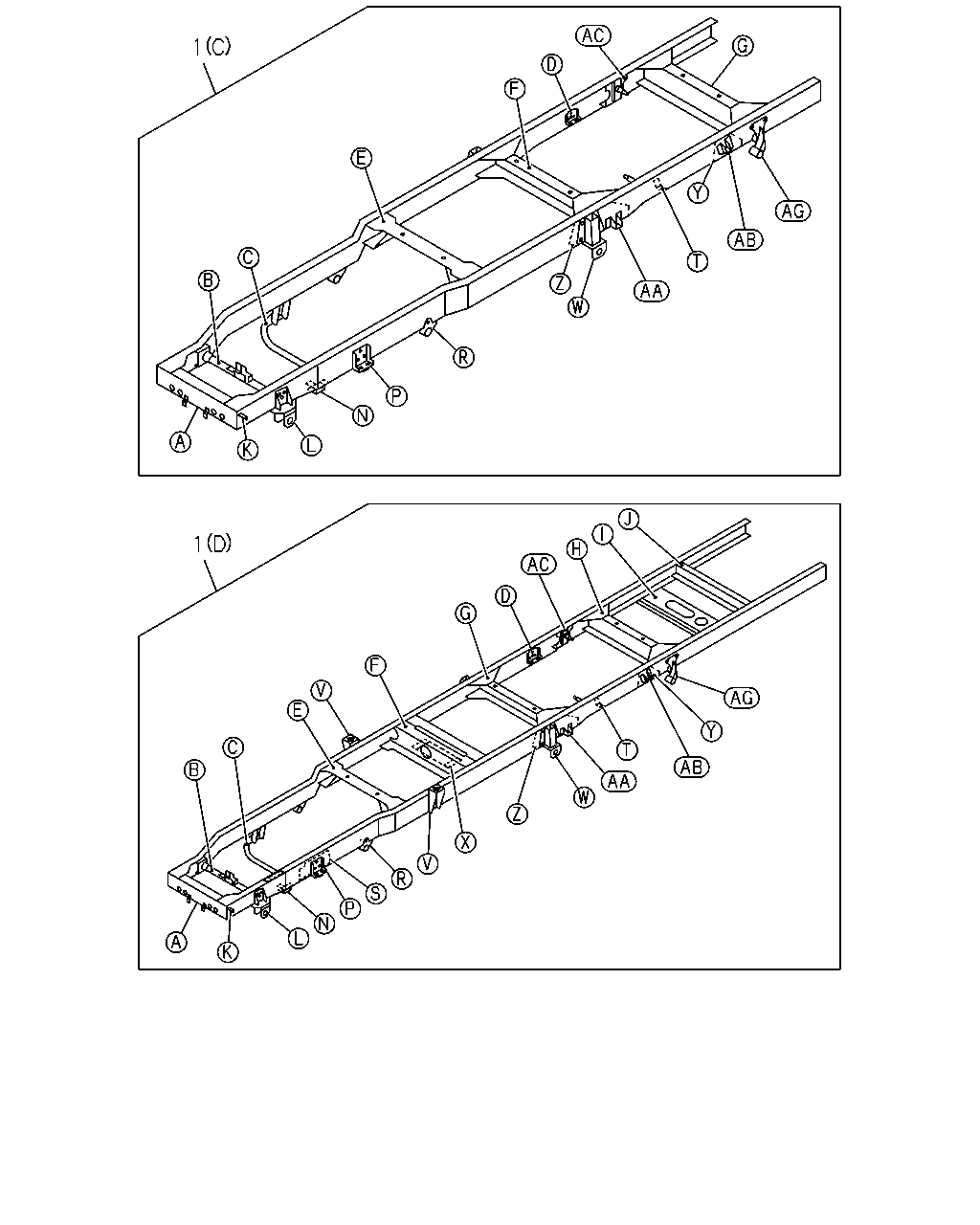

çizim 7965
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.003 FRAME ASM
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97305-461-1 01 1 0201- ●
1 07.003 FRAME ASM
4JH1 ENG(RJX) EXC. CHINA EQUIPMENT(YT2) (D) 		8-97260-208-0 01 1 0201- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) (A) 		8-97205-871-1 01 1 9811-0105 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97310-097-0 01 1 0106- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97205-869-1 01 1 9811-0105 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97205-869-1 01 1 0106- ●
1 07.003 FRAME ASM
RR BODY NON FLAT BED(RS5) (A) 		8-97205-872-1 01 1 9811- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97205-874-2 01 1 9811- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) REAR WIDE TREAD(V4T) (C) 		8-97205-876-1 01 1 9811-0105 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97202-999-3 01 1 0106- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FIRE TRUCK CHASSIS(V4F) (C) 		8-97205-875-1 01 1 9811-9901 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) RR BODY FLAT BED<RS6> REAR WIDE TREAD(V4T) EXC. FIRE TRUCK CHASSIS(V4F) (D) 		8-97224-409-0 01 1 9902-0105 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) RR BODY FLAT BED<RS6> REAR WIDE TREAD(V4T) (D) 		8-97224-409-0 01 1 0106- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED<RS6>,FIRE TRUCK CHASSIS(V4F) (D) 		8-97224-401-0 01 1 9902-0105 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED<RS6> (D) 		8-97224-401-0 01 1 0106- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (C) 		8-97205-873-1 01 1 9811- ●
1 07.003 FRAME ASM
(C) 		8-97205-877-1 01 1 9811-0012 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) (C) 		8-97205-877-1 01 1 0101- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) EXC. STABILIZER REAR<GN1> (E) 		8-97308-682-0 01 1 0101- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) STABILIZER REAR<GN1> BRAZIL EQUIPMENT(RWF) (E) 		8-97308-683-0 01 1 0101- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) (D) 		8-97205-880-1 01 1 9811- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) (D) 		8-97205-878-2 01 1 9811- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHINA EQUIPMENT(YT2) (D) 		8-97205-879-2 01 1 9811- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) (D) 		8-97205-882-1 01 1 9811-0105 ●
1 07.003 FRAME ASM
(D) 		8-97205-882-1 01 1 0106- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) (D) 		8-97205-881-1 01 1 9811-0105 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97205-883-1 01 1 9811-0105 ●
1 07.003 FRAME ASM
(A) 		8-97205-883-1 01 1 0106- ●
çizim 45664
105 105 215 215 105 105 5 226 196 368 369 328
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 07.010 MEMBER; CROSS,SUSPENSION
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97036-220-2 01 1 0106-0112 ●
5 07.010 MEMBER; CROSS,SUSPENSION
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97036-220-2 01 1 0201- ●
105 07.112 BRACKET; RR SPR,RR
(B) 		8-94126-621-1 01 1 9811-0105 ● ●
105 07.112 BRACKET; RR SPR,RR
(B) 		8-94126-621-1 01 1 0106- ●
105 07.112 BRACKET; RR SPR,RR
RR BODY NON FLAT BED(RS5) (B) 		8-94126-621-1 01 1 0106- ●
105 07.112 BRACKET; RR SPR,RR
(B) 		8-94126-620-1 01 1 9811-0105 ● ●
105 07.112 BRACKET; RR SPR,RR
(B) 		8-94126-620-1 01 1 0106- ●
105 07.112 BRACKET; RR SPR,RR
RR BODY NON FLAT BED(RS5) (B) 		8-94126-620-1 01 1 0106- ●
105 07.112 BRACKET; RR SPR,RR
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (D) 		8-97034-224-1 02 1 9811- ●
105 07.112 BRACKET; RR SPR,RR
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-94459-512-1 01 1 9811-0012 ● ●
105 07.112 BRACKET; RR SPR,RR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) 		8-94459-512-1 01 1 9811-0012 ● ●
105 07.112 BRACKET; RR SPR,RR
4JB1 ENG(RLF),4HF1 ENG(RLS) (A) 		8-94459-512-1 01 1 0101-0105 ●
105 07.112 BRACKET; RR SPR,RR
(A) 		8-94459-512-1 01 1 0101-0105 ● ● ●
105 07.112 BRACKET; RR SPR,RR
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-94459-512-1 01 1 0106- ●
105 07.112 BRACKET; RR SPR,RR
(A) 		8-94459-512-1 01 1 0106- ● ● ●
105 07.112 BRACKET; RR SPR,RR
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-94459-511-1 01 1 9811-0012 ● ●
105 07.112 BRACKET; RR SPR,RR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) 		8-94459-511-1 01 1 9811-0012 ● ●
105 07.112 BRACKET; RR SPR,RR
4JB1 ENG(RLF),4HF1 ENG(RLS) (A) 		8-94459-511-1 01 1 0101-0105 ●
105 07.112 BRACKET; RR SPR,RR
(A) 		8-94459-511-1 01 1 0101-0105 ● ● ●
105 07.112 BRACKET; RR SPR,RR
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-94459-511-1 01 1 0106- ●
105 07.112 BRACKET; RR SPR,RR
(A) 		8-94459-511-1 01 1 0106- ● ● ●
105 07.112 BRACKET; RR SPR,RR
4JG2 ENG(RJC),4JB1 ENG(RLF) (C) 		8-94109-312-0 02 1 9811-0105 ●
105 07.112 BRACKET; RR SPR,RR
(C) 		8-94109-312-0 02 1 0106- ●
196 07.242 BRACKET; STAB TO FRAME
4JG2 ENG(RJC) STABILIZER REAR<GN1> BRAZIL EQUIPMENT(RWF) 		8-97118-620-2 02 1 0101- ●
215 07.524 BUSHING; BRKT,RR SPRING
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) 		8-97184-699-1 04 1 9811- ●
215 07.524 BUSHING; BRKT,RR SPRING 8-97184-699-1 04 1 9811- ● ● ●
226 07.112 STIFFENER; HELPER RUBBER
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-94169-791-2 01 1 0106-0112 ●
226 07.112 STIFFENER; HELPER RUBBER
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-94169-791-2 01 1 0201- ●
226 07.112 STIFFENER; HELPER RUBBER
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-94111-942-2 01 1 0106-0112 ●
226 07.112 STIFFENER; HELPER RUBBER
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-94111-942-2 01 1 0201- ●
328 07.039 BRACKET; RELAY LEVER
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-650-3 01 1 0106-0112 ●
328 07.039 BRACKET; RELAY LEVER
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-650-3 01 1 0201- ●
328 07.039 BRACKET; RELAY LEVER
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-944-2 01 1 0106-0112 ●
328 07.039 BRACKET; RELAY LEVER
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-944-2 01 1 0201- ●
368 07.039 SEAT; TORSION BAR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-363-3 01 1 0106-0112 ●
368 07.039 SEAT; TORSION BAR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-363-4 01 1 0201- ●
368 07.039 SEAT; TORSION BAR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-362-1 01 1 0106-0112 ●
368 07.039 SEAT; TORSION BAR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-362-2 01 1 0201- ●
369 07.039 STOPPER; STEERING
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97092-869-1 01 1 0106-0112 ●
369 07.039 STOPPER; STEERING
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97092-869-1 01 1 0201- ●
çizim 45699
34 34 34 415 415 74 74 344 345 212 74 75 344 345 74 75
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
34 07.012 MEMBER; CROSS,3RD
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97039-668-1 01 1 0201- ●
34 07.012 MEMBER; CROSS,3RD
4HF1 ENG(RLS) (B) 		8-97072-553-1 01 1 9811-0105 ●
34 07.012 MEMBER; CROSS,3RD
4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97072-553-1 01 1 0106- ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97039-667-1 01 1 0106- ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME PRESS KOUGYOU<7RZ> (A) 		8-97039-670-1 01 1 9811- ● ● ●
34 07.012 MEMBER; CROSS,3RD
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (C) 		8-97033-226-5 01 1 9811- ●
34 07.012 MEMBER; CROSS,3RD
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) REAR WIDE TREAD(V4T) (B) 		8-97039-671-1 01 1 9811-0012 ●
34 07.012 MEMBER; CROSS,3RD
(B) 		8-97039-671-1 01 1 9811-0012 ●
34 07.012 MEMBER; CROSS,3RD
4HF1 ENG(RLS) (B) 		8-97039-671-1 01 1 9811-0012 ●
34 07.012 MEMBER; CROSS,3RD
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) REAR WIDE TREAD(V4T) (B) 		8-97039-671-1 01 1 0101-0105 ●
34 07.012 MEMBER; CROSS,3RD
4HF1 ENG(RLS) (B) 		8-97039-671-1 01 1 0101-0105 ● ●
34 07.012 MEMBER; CROSS,3RD
4HF1 ENG(RLS) (B) 		8-97039-671-1 01 1 0106- ● ●
34 07.012 MEMBER; CROSS,3RD
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FIRE TRUCK CHASSIS(V4F) (B) 		8-97047-768-1 01 1 9811-0105 ●
34 07.012 MEMBER; CROSS,3RD
4HF1 ENG(RLS) (B) 		8-97047-768-1 01 1 9811-0105 ●
34 07.012 MEMBER; CROSS,3RD
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-97047-768-1 01 1 0106-0112 ●
34 07.012 MEMBER; CROSS,3RD
(B) 		8-97047-768-1 01 1 0106-0112 ●
34 07.012 MEMBER; CROSS,3RD
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-97047-768-1 01 1 0201- ●
34 07.012 MEMBER; CROSS,3RD
4JH1 ENG(RJX) EXC. CHINA EQUIPMENT(YT2) (B) 		8-97047-768-1 01 1 0201- ●
34 07.012 MEMBER; CROSS,3RD
(B) 		8-97047-768-1 01 1 0201- ●
34 07.012 MEMBER; CROSS,3RD
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97115-578-0 01 1 9811-0012 ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97115-578-0 01 1 9811-0012 ● ●
34 07.012 MEMBER; CROSS,3RD
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97115-578-0 01 1 0101-0105 ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC) (A) 		8-97115-578-0 01 1 0101-0105 ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97115-578-0 01 1 0101-0105 ● ●
34 07.012 MEMBER; CROSS,3RD
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97115-578-0 01 1 0106- ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC) (A) 		8-97115-578-0 01 1 0106- ●

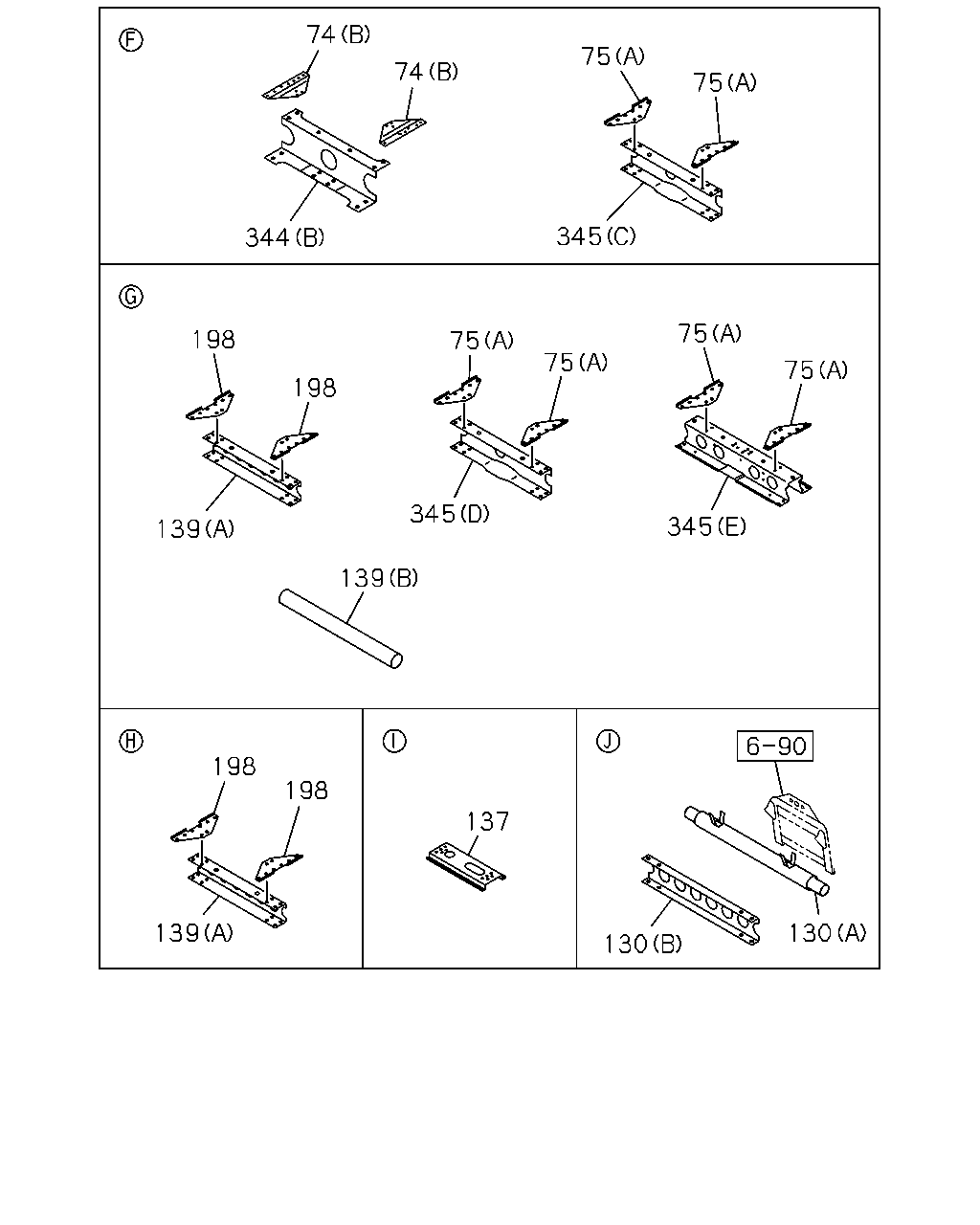

34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97115-578-0 01 1 0106- ●
74 07.039 GUSSET; 4TH C/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94258-075-3 02 1 0106-0112 ●
74 07.039 GUSSET; 4TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94258-075-3 02 1 0201- ●
74 07.039 GUSSET; 4TH C/MBR
EXC. FRAME PRESS KOUGYOU<7RZ> (A) RH-UPPER, LH-LOWER 		8-97101-837-0 02 1 9811-0105 ●
74 07.039 GUSSET; 4TH C/MBR
4JB1 ENG(RLF) EXC. FRAME PRESS KOUGYOU<7RZ> (A) RH-UPPER, LH-LOWER 		8-97101-837-0 02 1 9811-0105 ●
74 07.039 GUSSET; 4TH C/MBR
(A) RH-UPPER, LH-LOWER 		8-97101-837-1 02 1 0106- ●
74 07.039 GUSSET; 4TH C/MBR
EXC. FRAME PRESS KOUGYOU<7RZ> (A) RH-LOWER, LH-UPPER 		8-97101-838-0 02 1 9811-0105 ●
74 07.039 GUSSET; 4TH C/MBR
4JB1 ENG(RLF) EXC. FRAME PRESS KOUGYOU<7RZ> (A) RH-LOWER, LH-UPPER 		8-97101-838-0 02 1 9811-0105 ●
74 07.039 GUSSET; 4TH C/MBR
(A) RH-LOWER, LH-UPPER 		8-97101-838-1 02 1 0106- ●
74 07.039 GUSSET; 4TH C/MBR
4HF1 ENG(RLS) (B) 		8-97101-840-0 01 1 9811-0105 ●
74 07.039 GUSSET; 4TH C/MBR
(B) 		8-97101-840-0 01 1 0106- ●
74 07.039 GUSSET; 4TH C/MBR
4HF1 ENG(RLS) (B) 		8-97101-839-0 01 1 9811-0105 ●
74 07.039 GUSSET; 4TH C/MBR
(B) 		8-97101-839-0 01 1 0106- ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94258-081-1 02 1 0106-0112 ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94258-081-1 02 1 0201- ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-94258-075-3 02 1 9811-0105 ●
75 07.039 GUSSET; 5TH C/MBR
RR BODY NON FLAT BED(RS5) (B) 		8-94258-075-3 02 1 9811-0105 ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-075-3 02 1 0106- ●
75 07.039 GUSSET; 5TH C/MBR
RR BODY NON FLAT BED(RS5) (B) 		8-94258-075-3 02 1 0106- ●
75 07.039 GUSSET; 5TH C/MBR
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97062-499-0 02 1 9811- ●
75 07.039 GUSSET; 5TH C/MBR
(A) 		8-97062-499-0 02 1 9811- ● ● ● ●
75 07.039 GUSSET; 5TH C/MBR
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97062-500-0 02 1 9811- ●
75 07.039 GUSSET; 5TH C/MBR
(A) 		8-97062-500-0 02 1 9811- ● ● ● ●
212 03.704 BRACKET; EXH SILENCER
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 		8-97034-037-2 01 1 9811- ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97081-061-2 01 1 0106-0112 ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97081-061-2 01 1 0201- ●
344 07.012 MEMBER; CROSS,4TH
EXC. FRAME PRESS KOUGYOU<7RZ> (A) 		8-97078-707-3 01 1 9811-0105 ●
344 07.012 MEMBER; CROSS,4TH
4JB1 ENG(RLF) EXC. FRAME PRESS KOUGYOU<7RZ> (A) 		8-97078-707-3 01 1 9811-0105 ●
344 07.012 MEMBER; CROSS,4TH
(A) 		8-97078-707-3 01 1 0106- ●
344 07.012 MEMBER; CROSS,4TH
4HF1 ENG(RLS) (B) 		8-97101-836-0 01 1 9811-0105 ●
344 07.012 MEMBER; CROSS,4TH
(B) 		8-97101-836-0 01 1 0106- ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97045-542-2 01 1 0106-0112 ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97045-542-2 01 1 0201- ●
345 07.012 MEMBER; CROSS,5TH
(A) 		8-97081-061-2 01 1 9811-0105 ● ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97081-061-2 01 1 0106- ●
345 07.012 MEMBER; CROSS,5TH
RR BODY NON FLAT BED(RS5) (A) 		8-97081-061-2 01 1 0106- ●
345 07.012 MEMBER; CROSS,5TH
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97086-151-1 01 1 9811- ●
345 07.012 MEMBER; CROSS,5TH
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (D) 		8-97062-497-3 01 1 9811-0012 ● ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (D) 		8-97062-497-3 01 1 9811-0012 ● ●
345 07.012 MEMBER; CROSS,5TH
4JB1 ENG(RLF),4HF1 ENG(RLS) (D) 		8-97062-497-3 01 1 0101-0105 ●
345 07.012 MEMBER; CROSS,5TH
(D) 		8-97062-497-3 01 1 0101-0105 ● ● ●
345 07.012 MEMBER; CROSS,5TH
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (D) 		8-97062-497-3 01 1 0106- ●
345 07.012 MEMBER; CROSS,5TH
(D) 		8-97062-497-3 01 1 0106- ● ● ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4JB1 ENG(RLF) (C) 		8-97076-793-2 01 1 9811-0105 ●
345 07.012 MEMBER; CROSS,5TH
(C) 		8-97076-793-2 01 1 0106- ●
415 07.039 BRACKET; FUEL PIPE
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 		8-97076-569-1 02 1 9811- ●
çizim 46064
188 173 173 103 103 147 147 140 140 140 234 150 235
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
103 07.420 STOPPER; SUB SPR
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FIRE TRUCK CHASSIS(V4F) (A) 		8-97223-748-0 02 1 9902-9904 ●
103 07.420 STOPPER; SUB SPR
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97223-748-0 02 1 9905-0012 ● ●
103 07.420 STOPPER; SUB SPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) 		8-97223-748-0 02 1 9905-0012 ● ●
103 07.420 STOPPER; SUB SPR
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97223-748-0 02 1 0101- ●
103 07.420 STOPPER; SUB SPR
(A) 		8-97223-748-0 02 1 0101- ● ● ●
103 07.420 STOPPER; SUB SPR
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FIRE TRUCK CHASSIS(V4F) (B) 		8-97223-750-0 02 1 9902-9904 ●
103 07.420 STOPPER; SUB SPR
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-97223-750-0 02 1 9905-0012 ● ●
103 07.420 STOPPER; SUB SPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97223-750-0 02 1 9905-0012 ● ●
103 07.420 STOPPER; SUB SPR
4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97223-750-0 02 1 0101-0105 ●
103 07.420 STOPPER; SUB SPR
(B) 		8-97223-750-0 02 1 0101-0105 ● ● ●
103 07.420 STOPPER; SUB SPR
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-97223-750-0 02 1 0106- ●
103 07.420 STOPPER; SUB SPR
(B) 		8-97223-750-0 02 1 0106- ● ● ●
103 07.420 STOPPER; SUB SPR
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97040-628-0 02 1 9811-9901 ● ●
103 07.420 STOPPER; SUB SPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) 		8-97040-628-0 02 1 9811-9901 ● ●
103 07.420 STOPPER; SUB SPR
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) FIRE TRUCK CHASSIS(V4F) (A) 		8-97040-628-0 02 1 9902-9904 ●
103 07.420 STOPPER; SUB SPR
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97040-628-0 02 1 9902-9904 ●
103 07.420 STOPPER; SUB SPR
(A) 		8-97040-628-0 02 1 9902-9904 ● ● ●
103 07.420 STOPPER; SUB SPR
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-97040-629-0 02 1 9811-9901 ● ●
103 07.420 STOPPER; SUB SPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97040-629-0 02 1 9811-9901 ● ●
103 07.420 STOPPER; SUB SPR
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) FIRE TRUCK CHASSIS(V4F) (B) 		8-97040-629-0 02 1 9902-9904 ●
103 07.420 STOPPER; SUB SPR
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (B) 		8-97040-629-0 02 1 9902-9904 ●
103 07.420 STOPPER; SUB SPR
(B) 		8-97040-629-0 02 1 9902-9904 ● ● ●
140 07.112 BRACKET; S/ABS,RR
EXC. FRAME PRESS KOUGYOU<7RZ> (A) 		8-94258-104-1 01 1 9811-0105 ● ● ●
140 07.112 BRACKET; S/ABS,RR
(A) 		8-94258-104-1 01 1 0106- ● ●
140 07.112 BRACKET; S/ABS,RR
RR BODY NON FLAT BED(RS5) (A) 		8-94258-104-1 01 1 0106- ●
140 07.112 BRACKET; S/ABS,RR
EXC. FRAME PRESS KOUGYOU<7RZ> (A) 		8-94258-103-1 01 1 9811-0105 ● ● ●
140 07.112 BRACKET; S/ABS,RR
(A) 		8-94258-103-1 01 1 0106- ● ●
140 07.112 BRACKET; S/ABS,RR
RR BODY NON FLAT BED(RS5) (A) 		8-94258-103-1 01 1 0106- ●
140 07.112 BRACKET; S/ABS,RR
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-97012-285-0 01 1 9811-0012 ● ●
140 07.112 BRACKET; S/ABS,RR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97012-285-0 01 1 9811-0012 ● ●
140 07.112 BRACKET; S/ABS,RR
4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97012-285-0 01 1 0101-0105 ●
140 07.112 BRACKET; S/ABS,RR
(B) 		8-97012-285-0 01 1 0101-0105 ● ● ●
140 07.112 BRACKET; S/ABS,RR
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-97012-285-0 01 1 0106- ●
140 07.112 BRACKET; S/ABS,RR
(B) 		8-97012-285-0 01 1 0106- ● ● ●
140 07.112 BRACKET; S/ABS,RR
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) 07.395 (C) 		8-94101-303-0 01 1 9811-0012 ● ●
140 07.112 BRACKET; S/ABS,RR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 07.395 (C) 		8-94101-303-0 01 1 9811-0012 ● ●
140 07.112 BRACKET; S/ABS,RR
4JB1 ENG(RLF),4HF1 ENG(RLS) 07.395 (C) 		8-94101-303-0 01 1 0101-0105 ●
140 07.112 BRACKET; S/ABS,RR
07.395 (C) 		8-94101-303-0 01 1 0101-0105 ● ● ●
140 07.112 BRACKET; S/ABS,RR
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) 07.395 (C) 		8-94101-303-0 01 1 0106- ●
140 07.112 BRACKET; S/ABS,RR
07.395 (C) 		8-94101-303-0 01 1 0106- ● ● ●
147 07.535 RUBBER; SUB SPRING
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) 		8-94119-958-1 04 1 9811-0003 ● ●
147 07.535 RUBBER; SUB SPRING
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-94119-958-1 04 1 9811-0003 ● ●
147 07.535 RUBBER; SUB SPRING
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) 		8-97254-387-0 04 1 0004-0012 ● ●
147 07.535 RUBBER; SUB SPRING
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97254-387-0 04 1 0004-0012 ● ●
147 07.535 RUBBER; SUB SPRING
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) 		8-97254-387-0 04 1 0101- ●
147 07.535 RUBBER; SUB SPRING 8-97254-387-0 04 1 0101- ● ● ●
150 03.616 BRACKET; EXH PIPE
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 		8-94388-181-0 01 1 9811- ●
173 07.112 STIFFENER; RR SPRING
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-94372-324-1 02 1 9811-0012 ●
173 07.112 STIFFENER; RR SPRING
(A) 		8-94372-324-1 02 1 9811-0012 ●
173 07.112 STIFFENER; RR SPRING
4HF1 ENG(RLS) (A) 		8-94372-324-1 02 1 9811-0012 ● ●
173 07.112 STIFFENER; RR SPRING
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) (A) 		8-94372-324-1 02 1 9811-0012 ● ●
173 07.112 STIFFENER; RR SPRING
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-94372-324-1 02 1 0101-0105 ●
173 07.112 STIFFENER; RR SPRING
4HF1 ENG(RLS) (A) 		8-94372-324-1 02 1 0101-0105 ● ● ●
173 07.112 STIFFENER; RR SPRING
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) (A) 		8-94372-324-1 02 1 0101-0105 ● ●
173 07.112 STIFFENER; RR SPRING
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-94372-324-1 02 1 0106- ●
173 07.112 STIFFENER; RR SPRING
4HF1 ENG(RLS) (A) 		8-94372-324-1 02 1 0106- ● ●
173 07.112 STIFFENER; RR SPRING
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) (A) 		8-94372-324-1 02 1 0106- ●
173 07.112 STIFFENER; RR SPRING
(A) 		8-94372-324-1 02 1 0106- ●
173 07.112 STIFFENER; RR SPRING
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-94408-191-0 01 1 9811-0012 ●
173 07.112 STIFFENER; RR SPRING
(B) 		8-94408-191-0 01 1 9811-0012 ●
173 07.112 STIFFENER; RR SPRING
4HF1 ENG(RLS) (B) 		8-94408-191-0 01 1 9811-0012 ● ●
173 07.112 STIFFENER; RR SPRING
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) (B) 		8-94408-191-0 01 1 9811-0012 ● ●
173 07.112 STIFFENER; RR SPRING
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-94408-191-0 01 1 0101-0105 ●
173 07.112 STIFFENER; RR SPRING
4HF1 ENG(RLS) (B) 		8-94408-191-0 01 1 0101-0105 ● ● ●
173 07.112 STIFFENER; RR SPRING
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) (B) 		8-94408-191-0 01 1 0101-0105 ● ●
173 07.112 STIFFENER; RR SPRING
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-94408-191-2 01 1 0106- ●
173 07.112 STIFFENER; RR SPRING
4HF1 ENG(RLS) (B) 		8-94408-191-2 01 1 0106- ● ●
173 07.112 STIFFENER; RR SPRING
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) (B) 		8-94408-191-2 01 1 0106- ●
173 07.112 STIFFENER; RR SPRING
(B) 		8-94408-191-2 01 1 0106- ●
173 07.112 STIFFENER; RR SPRING
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-94403-508-1 01 1 9811-0012 ●
173 07.112 STIFFENER; RR SPRING
(B) 		8-94403-508-1 01 1 9811-0012 ●
173 07.112 STIFFENER; RR SPRING
4HF1 ENG(RLS) (B) 		8-94403-508-1 01 1 9811-0012 ● ●
173 07.112 STIFFENER; RR SPRING
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) (B) 		8-94403-508-1 01 1 9811-0012 ● ●
173 07.112 STIFFENER; RR SPRING
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-94403-508-1 01 1 0101-0105 ●
173 07.112 STIFFENER; RR SPRING
4HF1 ENG(RLS) (B) 		8-94403-508-1 01 1 0101-0105 ● ● ●
173 07.112 STIFFENER; RR SPRING
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) (B) 		8-94403-508-1 01 1 0101-0105 ● ●
173 07.112 STIFFENER; RR SPRING
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-94403-508-2 01 1 0106- ●
173 07.112 STIFFENER; RR SPRING
4HF1 ENG(RLS) (B) 		8-94403-508-2 01 1 0106- ● ●
173 07.112 STIFFENER; RR SPRING
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) (B) 		8-94403-508-2 01 1 0106- ●
173 07.112 STIFFENER; RR SPRING
(B) 		8-94403-508-2 01 1 0106- ●
188 07.039 BRACKET; SUPPORT,CTR BRG
EXC. FRAME PRESS KOUGYOU<7RZ> 		8-97078-869-0 01 1 9811-0105 ●
188 07.039 BRACKET; SUPPORT,CTR BRG
4JB1 ENG(RLF) EXC. FRAME PRESS KOUGYOU<7RZ> 		8-97078-869-0 01 1 9811-0105 ●
188 07.039 BRACKET; SUPPORT,CTR BRG 8-97078-869-1 01 1 0106- ●
188 07.039 BRACKET; SUPPORT,CTR BRG
4HF1 ENG(RLS) 		8-97035-996-0 01 1 9811-0105 ●
188 07.039 BRACKET; SUPPORT,CTR BRG 8-97035-996-0 01 1 0106- ●
234 07.006 COVER; END,S/MBR
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 		8-97033-249-0 02 1 9811- ●
235 07.039 BRACKET; COMB LAMP
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 		8-94115-653-4 02 1 9811- ●
çizim 46101
24 358 24 156 63 63 256 256 51 366 39 136 136
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97065-789-1 01 1 9811- ●
24 07.105 BRACKET; FRT SPR,FRT
RR BODY NON FLAT BED(RS5) (A) 		8-97065-789-1 01 1 9811- ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94366-818-1 01 1 9811- ●
24 07.105 BRACKET; FRT SPR,FRT
RR BODY NON FLAT BED(RS5) (A) 		8-94366-818-1 01 1 9811- ●
24 07.105 BRACKET; FRT SPR,FRT
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97033-232-1 01 1 9811- ●
24 07.105 BRACKET; FRT SPR,FRT
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97033-231-1 01 1 9811- ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97065-788-1 01 1 9811- ●
24 07.105 BRACKET; FRT SPR,FRT
(A) 		8-97065-788-1 01 1 9811- ● ● ● ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-94366-816-1 01 1 9811- ●
24 07.105 BRACKET; FRT SPR,FRT
(A) 		8-94366-816-1 01 1 9811- ● ● ● ●
39 07.112 BRACKET; FRT SPR,RR 8-94258-091-0 02 1 9811- ● ● ● ● ● ● ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
00.029 		8-94258-086-1 02 1 9811- ● ● ● ● ● ● ●
63 01.270 BRACKET; RAD MTG
(A) 		8-94257-950-1 01 1 9811-0105 ● ● ● ● ● ●
63 01.270 BRACKET; RAD MTG
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-94257-950-1 01 1 9811-0105 ●
63 01.270 BRACKET; RAD MTG
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94257-950-1 01 1 0106- ● ● ● ● ● ●
63 01.270 BRACKET; RAD MTG
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-94257-950-1 01 1 0106- ●
63 01.270 BRACKET; RAD MTG
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97072-648-0 01 1 9811-0105 ●
63 01.270 BRACKET; RAD MTG
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97072-648-0 01 1 0106-0112 ●
63 01.270 BRACKET; RAD MTG
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97072-648-0 01 1 0106-0112 ●
63 01.270 BRACKET; RAD MTG
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97072-648-0 01 1 0201- ●
63 01.270 BRACKET; RAD MTG
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97072-648-0 01 1 0201- ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME PRESS KOUGYOU<7RZ> (A) 		8-94370-228-1 01 1 9811-0006 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
EXC. FRAME PRESS KOUGYOU<7RZ> (A) 		8-94370-228-1 01 1 9811-0006 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) (A) 		8-94370-228-1 01 1 0007-0105 ● ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4HF1 ENG(RLS) (A) 		8-94370-228-1 01 1 0007-0105 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) (A) 		8-94370-228-1 01 1 0106-0112 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
(A) 		8-94370-228-1 01 1 0106-0112 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) (A) 		8-94370-228-1 01 1 0201- ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JH1 ENG(RJX) EXC. CHINA EQUIPMENT(YT2) (A) 		8-94370-228-1 01 1 0201- ●
136 07.006 REINFORCEMENT; ENG SUPPORT
(A) 		8-94370-228-1 01 1 0201- ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME PRESS KOUGYOU<7RZ> (B) 		8-97083-311-1 01 1 9811-0006 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
EXC. FRAME PRESS KOUGYOU<7RZ> (B) 		8-97083-311-1 01 1 9811-0006 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) (B) 		8-97083-311-1 01 1 0007-0105 ● ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4HF1 ENG(RLS) (B) 		8-97083-311-1 01 1 0007-0105 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) (B) 		8-97083-311-1 01 1 0106-0112 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
(B) 		8-97083-311-1 01 1 0106-0112 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) (B) 		8-97083-311-1 01 1 0201- ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JH1 ENG(RJX) EXC. CHINA EQUIPMENT(YT2) (B) 		8-97083-311-1 01 1 0201- ●
136 07.006 REINFORCEMENT; ENG SUPPORT
(B) 		8-97083-311-1 01 1 0201- ●
156 07.330 BRACKET; RR BODY MTG
RR BODY NON FLAT BED(RS5) 		8-94101-398-1 06 1 9811- ●
256 07.395 BRACKET; S/ABS
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97210-489-0 02 1 0201- ●
256 07.395 BRACKET; S/ABS
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97036-160-0 02 1 0106- ●
256 07.395 BRACKET; S/ABS
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (A) 		8-97041-076-0 02 1 9811- ●
358 07.039 BRACKET; CAB EARTH 8-97065-790-3 01 1 9811- ● ● ● ● ● ● ●
366 07.039 SPACER; BRKT
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 		8-97034-222-0 02 1 9811- ●
çizim 46376
376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 338 16 176 221 106 286 4 118 288 336
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
4 07.039 NUT; 1ST C/MBR TO S/MBR
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 01.540 M8 FLANGE 		0-91150-208-0 02 1 9811-0105 ●
4 07.039 NUT; 1ST C/MBR TO S/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE 		0-91150-208-0 02 1 0106-0112 ●
4 07.039 NUT; 1ST C/MBR TO S/MBR
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 01.540 M8 FLANGE 		0-91150-208-0 02 1 0106-0112 ●
4 07.039 NUT; 1ST C/MBR TO S/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE 		0-91150-208-0 02 1 0201-0207 ●
4 07.039 NUT; 1ST C/MBR TO S/MBR
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 01.540 M8 FLANGE 		0-91150-208-0 02 1 0201-0207 ●
16 07.039 BOLT; 1ST C/MBR TO S/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 01.531 M8X25 FLANGE 		0-28080-825-0 02 1 0106-0112 ●
16 07.039 BOLT; 1ST C/MBR TO S/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 01.531 M8X25 FLANGE 		0-28080-825-0 02 1 0201-0207 ●
16 07.039 BOLT; 1ST C/MBR TO S/MBR
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 9811-0207 ●
106 07.529 BOLT; BRKT
4HF1 ENG(RLS) RR BODY FLAT BED<RS6> REAR WIDE TREAD(V4T) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0112- ●
118 07.529 NUT; STOPPER
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) 07.633 M8 FLANGE 		0-91150-108-0 04 1 9811-0012 ● ●
118 07.529 NUT; STOPPER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 04 1 9811-0012 ● ●
118 07.529 NUT; STOPPER
4JB1 ENG(RLF),4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0101-0105 ●
118 07.529 NUT; STOPPER
07.633 M8 FLANGE 		0-91150-108-0 04 1 0101-0105 ● ● ●
118 07.529 NUT; STOPPER
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0106-0109 ●
118 07.529 NUT; STOPPER
07.633 M8 FLANGE 		0-91150-108-0 04 1 0106-0109 ● ● ●
118 07.529 NUT; STOPPER
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) 07.242 M8 LOCK NUT 		9-09131-508-0 04 1 0110- ●
118 07.529 NUT; STOPPER
07.242 M8 LOCK NUT 		9-09131-508-0 04 1 0110- ● ● ●
176 04.085 BOLT; C/MBR,ENG MTG
4JH1 ENG(RJX) EXC. CHINA EQUIPMENT(YT2) 00.685 M10X30 FLANGE 		0-28081-030-0 08 1 0201- ●
176 04.085 BOLT; C/MBR,ENG MTG
03.417 M10X25 FLANGE 		0-28081-025-0 08 1 9811- ● ● ● ● ● ● ●
221 01.270 BOLT; RAD MTG BRKT,FRAME
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 03.417 M10X25 FLANGE 		0-28081-025-0 02 1 9811-0105 ●
221 01.270 BOLT; RAD MTG BRKT,FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 03.417 M10X25 FLANGE 		0-28081-025-0 02 1 0106-0112 ●
221 01.270 BOLT; RAD MTG BRKT,FRAME
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 03.417 M10X25 FLANGE 		0-28081-025-0 02 1 0106-0112 ●
221 01.270 BOLT; RAD MTG BRKT,FRAME
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 03.417 M10X25 FLANGE 		0-28081-025-0 02 1 0201- ●
221 01.270 BOLT; RAD MTG BRKT,FRAME
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 03.417 M10X25 FLANGE 		0-28081-025-0 02 1 0201- ●
286 07.632 BOLT; SPARE TIRE BRKT
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED<RS6>,TAIWAN EQUIPMENT(RWV) 03.023 M10X30 FLANGE 		0-28691-030-0 06 1 9902-0105 ●
286 07.632 BOLT; SPARE TIRE BRKT
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED<RS6> 03.023 M10X30 FLANGE 		0-28691-030-0 06 1 0106- ●
288 07.632 NUT; SPARE TIRE BRKT
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED<RS6>,TAIWAN EQUIPMENT(RWV) 08.917 M10 FLANGE 		0-91150-210-0 06 1 9902-0105 ●
288 07.632 NUT; SPARE TIRE BRKT
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED<RS6> 08.917 M10 FLANGE 		0-91150-210-0 06 1 0106- ●
336 07.068 PLUG; HOLE
DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-97062-510-0 10 1 0002-0208 ●
338 04.085 BOLT; C/MBR,SUSPENSION
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 07.874 M12X30 W/LK&PL WASHER 		0-50141-230-0 12 1 0106-0112 ●
338 04.085 BOLT; C/MBR,SUSPENSION
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 07.874 M12X30 W/LK&PL WASHER 		0-50141-230-0 12 1 0201- ●
376 07.039 RIVET; FRAME
(A) D8X20 TAPER END 		9-06750-820-0 AR 1 9811- ● ● ● ● ● ● ●
376 07.039 RIVET; FRAME
07.011 (B) D8X22 TAPER END 		9-06750-822-0 AR 1 9811- ● ● ● ● ● ● ●
376 07.039 RIVET; FRAME
07.395 (C) D8X26 TAPER END 		9-06750-826-0 AR 1 9811- ● ● ● ● ● ● ●
376 07.039 RIVET; FRAME
07.395 (D) D8X28 TAPER END 		9-06750-828-0 AR 1 9811- ● ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(E) D10X24 TAPER END 		9-06751-024-0 AR 1 9811- ● ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(F) D10X26 TAPER END 		9-06751-026-0 AR 1 9811- ● ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(G) D10X28 TAPER END 		9-06751-028-0 AR 1 9811- ● ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(H) D10X30 TAPER END 		9-06751-030-0 AR 1 9811- ● ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(I) D10X32 TAPER END 		9-06751-032-0 AR 1 9811- ● ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(J) D10X34 TAPER END 		9-06751-034-0 AR 1 9811- ● ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(K) D10X36 TAPER END 		9-06751-036-0 AR 1 9811- ● ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(L) D11X26 TAPER END 		9-06751-126-0 AR 1 9811- ● ● ● ● ● ● ●
376 07.039 RIVET; FRAME
07.105 (M) D12X30 TAPER END 		9-06751-230-0 AR 1 9811- ● ● ● ● ● ● ●
376 07.039 RIVET; FRAME
07.535 (N) D12X34 TAPER END 		9-06751-234-0 AR 1 9811- ● ● ● ● ● ● ●
376 07.039 RIVET; FRAME
07.112 (O) D12X38 TAPER END 		9-06751-238-0 AR 1 9811- ● ● ● ● ● ● ●
çizim 48555
2 17 17 17 17 2 20 20 217 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 07.010 MEMBER; CROSS,1ST
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97113-624-2 01 1 0106- ●
2 07.010 MEMBER; CROSS,1ST
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97113-625-2 01 1 9811- ●
2 07.010 MEMBER; CROSS,1ST
(A) 		8-97034-332-2 01 1 9811-0105 ● ● ● ● ● ●
2 07.010 MEMBER; CROSS,1ST
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97034-332-2 01 1 9811-0105 ●
2 07.010 MEMBER; CROSS,1ST
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97034-332-2 01 1 0106- ● ● ● ● ● ●
2 07.010 MEMBER; CROSS,1ST
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97034-332-2 01 1 0106- ●
17 07.039 GUSSET; 1ST C/MBR
(A) 		8-97088-205-1 02 1 9811-0105 ● ● ● ● ● ●
17 07.039 GUSSET; 1ST C/MBR
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FIRE TRUCK CHASSIS(V4F) (A) 		8-97088-205-1 02 1 9811-0105 ●
17 07.039 GUSSET; 1ST C/MBR
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97088-205-1 02 1 0106- ● ● ● ● ● ●
17 07.039 GUSSET; 1ST C/MBR
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97088-205-1 02 1 0106- ●
17 07.039 GUSSET; 1ST C/MBR
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97035-998-2 01 1 9811-0105 ●
17 07.039 GUSSET; 1ST C/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-998-2 01 1 0106-0112 ●
17 07.039 GUSSET; 1ST C/MBR
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97035-998-2 01 1 0106-0112 ●
17 07.039 GUSSET; 1ST C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-998-2 01 1 0201- ●
17 07.039 GUSSET; 1ST C/MBR
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97035-998-2 01 1 0201- ●
17 07.039 GUSSET; 1ST C/MBR
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97039-568-2 01 1 9811-0105 ●
17 07.039 GUSSET; 1ST C/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97039-568-2 01 1 0106-0112 ●
17 07.039 GUSSET; 1ST C/MBR
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97039-568-2 01 1 0106-0112 ●
17 07.039 GUSSET; 1ST C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97039-568-2 01 1 0201- ●
17 07.039 GUSSET; 1ST C/MBR
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97039-568-2 01 1 0201- ●
17 07.039 GUSSET; 1ST C/MBR
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) REAR WIDE TREAD(V4T) (A) 		8-97090-759-0 02 1 9811-0105 ●
20 07.012 MEMBER; CROSS,2ND
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97072-002-4 01 1 0106-0112 ●
20 07.012 MEMBER; CROSS,2ND
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97072-002-4 01 1 0201- ●
20 07.012 MEMBER; CROSS,2ND
(B) 		8-97078-581-1 01 1 9811-0105 ● ● ● ● ● ●
20 07.012 MEMBER; CROSS,2ND
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-97078-581-1 01 1 9811-0105 ●
20 07.012 MEMBER; CROSS,2ND
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97078-581-1 01 1 0106- ● ● ● ● ● ●
20 07.012 MEMBER; CROSS,2ND
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-97078-581-1 01 1 0106- ●
20 07.012 MEMBER; CROSS,2ND
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (A) 		8-97101-835-1 01 1 9811- ●
42 07.011 MEMBER; CROSS,ENG MTG
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94246-127-7 01 1 9811-0012 ● ● ● ● ● ●
42 07.011 MEMBER; CROSS,ENG MTG
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94246-127-7 01 1 0101-0105 ● ● ● ● ● ● ●
42 07.011 MEMBER; CROSS,ENG MTG
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94246-127-7 01 1 0106- ● ● ● ● ● ●
42 07.011 MEMBER; CROSS,ENG MTG
4HF1 ENG(RLS) 		8-97165-923-1 01 1 9811-0112 ● ● ● ● ●
42 07.011 MEMBER; CROSS,ENG MTG
4HF1 ENG(RLS) 		8-97165-923-1 01 1 0201- ● ● ● ●
42 07.011 MEMBER; CROSS,ENG MTG
4JH1 ENG(RJX),4HF1 ENG(RLS) 		8-97165-923-1 01 1 0201- ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) 		8-94258-963-0 02 1 9811- ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING 8-94258-963-0 02 1 9811- ● ● ●
çizim 48568
74 75 74 75 345 344 75 198 75 75 75 198 345 345 139 139 198 198 137 139 130 130
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
74 07.039 GUSSET; 4TH C/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94258-075-3 02 1 0106-0112 ●
74 07.039 GUSSET; 4TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94258-075-3 02 1 0201- ●
74 07.039 GUSSET; 4TH C/MBR
EXC. FRAME PRESS KOUGYOU<7RZ> (A) RH-UPPER, LH-LOWER 		8-97101-837-0 02 1 9811-0105 ●
74 07.039 GUSSET; 4TH C/MBR
4JB1 ENG(RLF) EXC. FRAME PRESS KOUGYOU<7RZ> (A) RH-UPPER, LH-LOWER 		8-97101-837-0 02 1 9811-0105 ●
74 07.039 GUSSET; 4TH C/MBR
(A) RH-UPPER, LH-LOWER 		8-97101-837-1 02 1 0106- ●
74 07.039 GUSSET; 4TH C/MBR
EXC. FRAME PRESS KOUGYOU<7RZ> (A) RH-LOWER, LH-UPPER 		8-97101-838-0 02 1 9811-0105 ●
74 07.039 GUSSET; 4TH C/MBR
4JB1 ENG(RLF) EXC. FRAME PRESS KOUGYOU<7RZ> (A) RH-LOWER, LH-UPPER 		8-97101-838-0 02 1 9811-0105 ●
74 07.039 GUSSET; 4TH C/MBR
(A) RH-LOWER, LH-UPPER 		8-97101-838-1 02 1 0106- ●
74 07.039 GUSSET; 4TH C/MBR
4HF1 ENG(RLS) (B) 		8-97101-840-0 01 1 9811-0105 ●
74 07.039 GUSSET; 4TH C/MBR
(B) 		8-97101-840-0 01 1 0106- ●
74 07.039 GUSSET; 4TH C/MBR
4HF1 ENG(RLS) (B) 		8-97101-839-0 01 1 9811-0105 ●
74 07.039 GUSSET; 4TH C/MBR
(B) 		8-97101-839-0 01 1 0106- ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94258-081-1 02 1 0106-0112 ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94258-081-1 02 1 0201- ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-94258-075-3 02 1 9811-0105 ●
75 07.039 GUSSET; 5TH C/MBR
RR BODY NON FLAT BED(RS5) (B) 		8-94258-075-3 02 1 9811-0105 ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-075-3 02 1 0106- ●
75 07.039 GUSSET; 5TH C/MBR
RR BODY NON FLAT BED(RS5) (B) 		8-94258-075-3 02 1 0106- ●
75 07.039 GUSSET; 5TH C/MBR
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97062-499-0 02 1 9811- ●
75 07.039 GUSSET; 5TH C/MBR
(A) 		8-97062-499-0 02 1 9811- ● ● ● ●
75 07.039 GUSSET; 5TH C/MBR
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97062-500-0 02 1 9811- ●
75 07.039 GUSSET; 5TH C/MBR
(A) 		8-97062-500-0 02 1 9811- ● ● ● ●
130 07.014 MEMBER; CROSS,END
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (A) 		8-94388-995-3 01 1 9811- ●
130 07.014 MEMBER; CROSS,END
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHINA EQUIPMENT(YT2) (B) 		8-97106-992-0 01 1 9811-0112 ●
130 07.014 MEMBER; CROSS,END
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. CHINA EQUIPMENT(YT2) (B) 		8-97106-992-0 01 1 0201- ●
130 07.014 MEMBER; CROSS,END
4HF1 ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (B) 		8-94257-620-2 01 1 9811-0105 ● ●
130 07.014 MEMBER; CROSS,END
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) EXC. FRAME PRESS KOUGYOU<7RZ> (B) 		8-94257-620-2 01 1 9811-0105 ● ●
130 07.014 MEMBER; CROSS,END
4HF1 ENG(RLS) (B) 		8-94257-620-2 01 1 0106- ●
130 07.014 MEMBER; CROSS,END
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) (B) 		8-94257-620-2 01 1 0106- ●
130 07.014 MEMBER; CROSS,END
(B) 		8-94257-620-2 01 1 0106- ●
137 07.629 BRACKET; SPARE TIRE
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED<RS6>,TAIWAN EQUIPMENT(RWV) 		8-97224-384-0 01 1 9902-0001 ●
137 07.629 BRACKET; SPARE TIRE
4HF1 ENG(RLS) RR BODY FLAT BED<RS6> REAR WIDE TREAD(V4T) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97224-384-0 01 1 9902-0001 ●
137 07.629 BRACKET; SPARE TIRE
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED<RS6>,TAIWAN EQUIPMENT(RWV) 		8-97224-384-1 01 1 0002-0105 ●
137 07.629 BRACKET; SPARE TIRE
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED<RS6> 		8-97224-384-1 01 1 0106- ●
137 07.629 BRACKET; SPARE TIRE
4HF1 ENG(RLS) RR BODY FLAT BED<RS6> REAR WIDE TREAD(V4T) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97224-383-1 01 1 0002-0105 ●
137 07.629 BRACKET; SPARE TIRE
4HF1 ENG(RLS) RR BODY FLAT BED<RS6> REAR WIDE TREAD(V4T) 		8-97224-383-1 01 1 0106- ●
137 07.629 BRACKET; SPARE TIRE
EXC. FRAME PRESS KOUGYOU<7RZ> 		8-97076-885-1 01 1 9811-0012 ● ● ●
137 07.629 BRACKET; SPARE TIRE 8-97076-885-1 01 1 0101- ● ● ●
139 07.012 MEMBER; CROSS,6TH
EXC. FRAME PRESS KOUGYOU<7RZ> (A) 		8-97045-542-2 01 1 9811-0105 ● ● ●
139 07.012 MEMBER; CROSS,6TH
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97045-542-2 01 1 0106- ●
139 07.012 MEMBER; CROSS,6TH
RR BODY NON FLAT BED(RS5) (A) 		8-97045-542-2 01 1 0106- ●
139 07.012 MEMBER; CROSS,6TH
(A) 		8-97045-542-2 01 1 0106- ●
139 07.012 MEMBER; CROSS,6TH
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97033-229-1 01 1 9811- ●
139 07.012 MEMBER; CROSS,6TH
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97062-498-1 01 1 9811-0012 ● ●
139 07.012 MEMBER; CROSS,6TH
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) 		8-97062-498-1 01 1 9811-0012 ● ●
139 07.012 MEMBER; CROSS,6TH
4JB1 ENG(RLF),4HF1 ENG(RLS) (A) 		8-97062-498-1 01 1 0101-0105 ●
139 07.012 MEMBER; CROSS,6TH
(A) 		8-97062-498-1 01 1 0101-0105 ● ● ●
139 07.012 MEMBER; CROSS,6TH
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97062-498-1 01 1 0106- ●
139 07.012 MEMBER; CROSS,6TH
(A) 		8-97062-498-1 01 1 0106- ● ● ●
198 07.039 GUSSET; 6TH C/MBR
EXC. FRAME PRESS KOUGYOU<7RZ> 		8-94258-081-1 02 1 9811-0105 ● ● ●
198 07.039 GUSSET; 6TH C/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94258-081-1 02 1 0106- ●
198 07.039 GUSSET; 6TH C/MBR
RR BODY NON FLAT BED(RS5) 		8-94258-081-1 02 1 0106- ●
198 07.039 GUSSET; 6TH C/MBR 8-94258-081-1 02 1 0106- ●
198 07.039 GUSSET; 6TH C/MBR
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) 		8-97062-499-0 02 1 9811- ●
198 07.039 GUSSET; 6TH C/MBR 8-97062-499-0 02 1 9811- ● ● ●
198 07.039 GUSSET; 6TH C/MBR
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) 		8-97062-500-0 02 1 9811- ●
198 07.039 GUSSET; 6TH C/MBR 8-97062-500-0 02 1 9811- ● ● ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97081-061-2 01 1 0106-0112 ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97081-061-2 01 1 0201- ●
344 07.012 MEMBER; CROSS,4TH
EXC. FRAME PRESS KOUGYOU<7RZ> (A) 		8-97078-707-3 01 1 9811-0105 ●
344 07.012 MEMBER; CROSS,4TH
4JB1 ENG(RLF) EXC. FRAME PRESS KOUGYOU<7RZ> (A) 		8-97078-707-3 01 1 9811-0105 ●
344 07.012 MEMBER; CROSS,4TH
(A) 		8-97078-707-3 01 1 0106- ●
344 07.012 MEMBER; CROSS,4TH
4HF1 ENG(RLS) (B) 		8-97101-836-0 01 1 9811-0105 ●
344 07.012 MEMBER; CROSS,4TH
(B) 		8-97101-836-0 01 1 0106- ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97045-542-2 01 1 0106-0112 ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97045-542-2 01 1 0201- ●
345 07.012 MEMBER; CROSS,5TH
(A) 		8-97081-061-2 01 1 9811-0105 ● ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97081-061-2 01 1 0106- ●
345 07.012 MEMBER; CROSS,5TH
RR BODY NON FLAT BED(RS5) (A) 		8-97081-061-2 01 1 0106- ●
345 07.012 MEMBER; CROSS,5TH
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97086-151-1 01 1 9811- ●
345 07.012 MEMBER; CROSS,5TH
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (D) 		8-97062-497-3 01 1 9811-0012 ● ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (D) 		8-97062-497-3 01 1 9811-0012 ● ●
345 07.012 MEMBER; CROSS,5TH
4JB1 ENG(RLF),4HF1 ENG(RLS) (D) 		8-97062-497-3 01 1 0101-0105 ●
345 07.012 MEMBER; CROSS,5TH
(D) 		8-97062-497-3 01 1 0101-0105 ● ● ●
345 07.012 MEMBER; CROSS,5TH
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (D) 		8-97062-497-3 01 1 0106- ●
345 07.012 MEMBER; CROSS,5TH
(D) 		8-97062-497-3 01 1 0106- ● ● ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4JB1 ENG(RLF) (C) 		8-97076-793-2 01 1 9811-0105 ●
345 07.012 MEMBER; CROSS,5TH
(C) 		8-97076-793-2 01 1 0106- ●

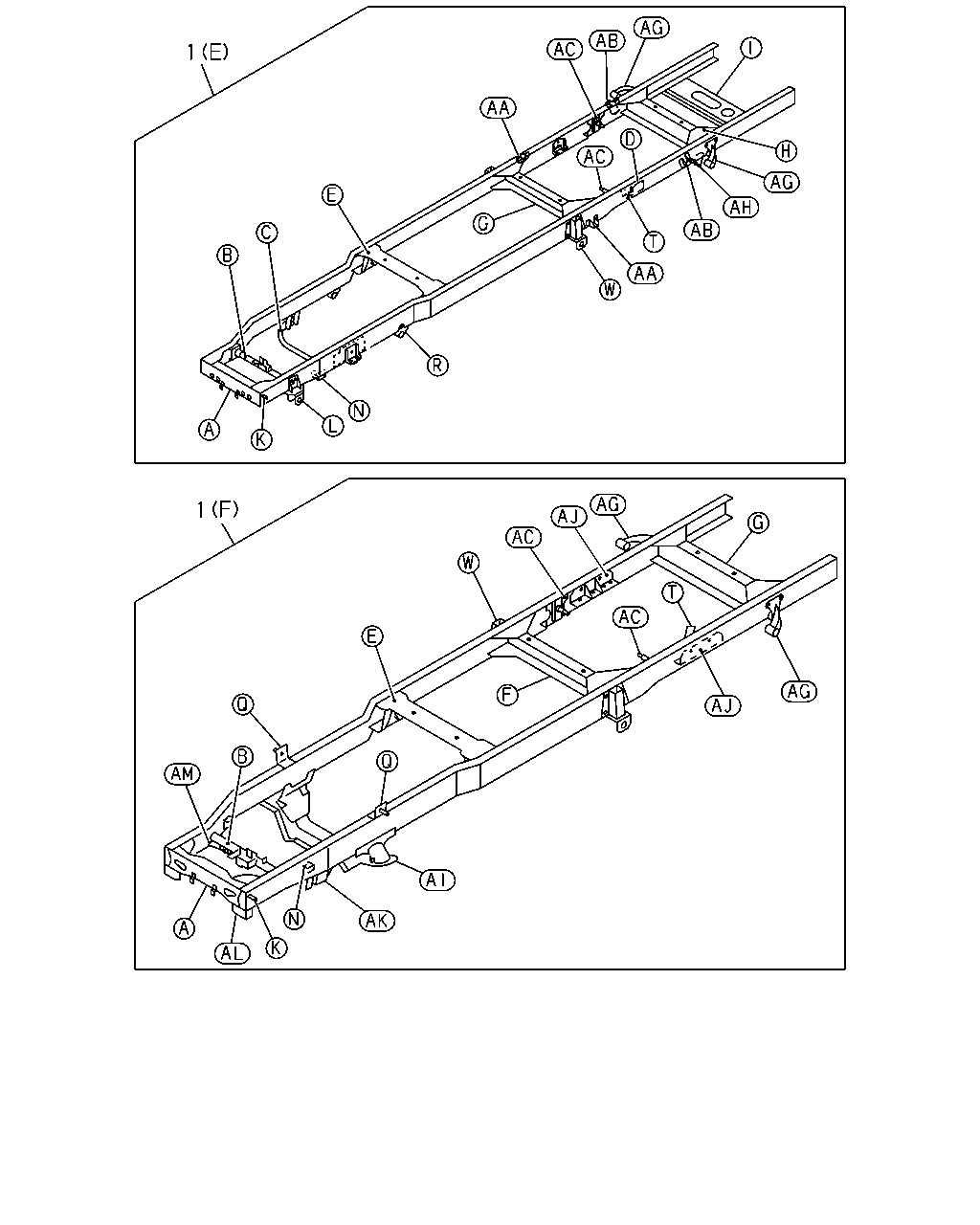

çizim 48571
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.003 FRAME ASM
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97305-461-1 01 1 0201- ●
1 07.003 FRAME ASM
4JH1 ENG(RJX) EXC. CHINA EQUIPMENT(YT2) (D) 		8-97260-208-0 01 1 0201- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) (A) 		8-97205-871-1 01 1 9811-0105 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97310-097-0 01 1 0106- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97205-869-1 01 1 9811-0105 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97205-869-1 01 1 0106- ●
1 07.003 FRAME ASM
RR BODY NON FLAT BED(RS5) (A) 		8-97205-872-1 01 1 9811- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (B) 		8-97205-874-2 01 1 9811- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) REAR WIDE TREAD(V4T) (C) 		8-97205-876-1 01 1 9811-0105 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97202-999-3 01 1 0106- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FIRE TRUCK CHASSIS(V4F) (C) 		8-97205-875-1 01 1 9811-9901 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) RR BODY FLAT BED<RS6> REAR WIDE TREAD(V4T) EXC. FIRE TRUCK CHASSIS(V4F) (D) 		8-97224-409-0 01 1 9902-0105 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) RR BODY FLAT BED<RS6> REAR WIDE TREAD(V4T) (D) 		8-97224-409-0 01 1 0106- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED<RS6>,FIRE TRUCK CHASSIS(V4F) (D) 		8-97224-401-0 01 1 9902-0105 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED<RS6> (D) 		8-97224-401-0 01 1 0106- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (C) 		8-97205-873-1 01 1 9811- ●
1 07.003 FRAME ASM
(C) 		8-97205-877-1 01 1 9811-0012 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) (C) 		8-97205-877-1 01 1 0101- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) EXC. STABILIZER REAR<GN1> (E) 		8-97308-682-0 01 1 0101- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) STABILIZER REAR<GN1> BRAZIL EQUIPMENT(RWF) (E) 		8-97308-683-0 01 1 0101- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) (D) 		8-97205-880-1 01 1 9811- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) (D) 		8-97205-878-2 01 1 9811- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHINA EQUIPMENT(YT2) (D) 		8-97205-879-2 01 1 9811- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) (D) 		8-97205-882-1 01 1 9811-0105 ●
1 07.003 FRAME ASM
(D) 		8-97205-882-1 01 1 0106- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) CHINA EQUIPMENT(YT2) (D) 		8-97205-881-1 01 1 9811-0105 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97205-883-1 01 1 9811-0105 ●
1 07.003 FRAME ASM
(A) 		8-97205-883-1 01 1 0106- ●
çizim 48920
142 142 142 142 142 43 365 43 101 101 101 101
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
43 09.003 BRACKET; CAB MTG,RR
RR BODY NON FLAT BED(RS5) (A) 		8-97042-541-0 01 1 9811- ●
43 09.003 BRACKET; CAB MTG,RR
RR BODY NON FLAT BED(RS5) (A) 		8-97042-540-0 01 1 9811- ●
43 09.003 BRACKET; CAB MTG,RR
EXC. FRAME PRESS KOUGYOU<7RZ> (B) 		8-94126-889-0 01 1 9811-0105 ●
43 09.003 BRACKET; CAB MTG,RR
(B) 		8-94126-889-0 01 1 0106- ●
43 09.003 BRACKET; CAB MTG,RR
EXC. FRAME PRESS KOUGYOU<7RZ> (B) 		8-94111-921-0 01 1 9811-9909 ●
43 09.003 BRACKET; CAB MTG,RR
EXC. FRAME PRESS KOUGYOU<7RZ> (B) 		8-97232-931-0 01 1 9910-0105 ●
43 09.003 BRACKET; CAB MTG,RR
(B) 		8-97232-931-0 01 1 0106- ●
101 07.112 BRACKET; RR SPR,FRT
(B) 		8-94258-093-1 02 1 9811-0105 ● ●
101 07.112 BRACKET; RR SPR,FRT
(B) 		8-94258-093-1 02 1 0106- ●
101 07.112 BRACKET; RR SPR,FRT
RR BODY NON FLAT BED(RS5) (B) 		8-94258-093-1 02 1 0106- ●
101 07.112 BRACKET; RR SPR,FRT
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (D) 		8-97034-223-1 02 1 9811- ●
101 07.112 BRACKET; RR SPR,FRT
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97034-156-1 02 1 9811-0012 ● ●
101 07.112 BRACKET; RR SPR,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) 		8-97034-156-1 02 1 9811-0012 ● ●
101 07.112 BRACKET; RR SPR,FRT
4JB1 ENG(RLF),4HF1 ENG(RLS) (A) 		8-97034-156-1 02 1 0101-0105 ●
101 07.112 BRACKET; RR SPR,FRT
(A) 		8-97034-156-1 02 1 0101-0105 ● ● ●
101 07.112 BRACKET; RR SPR,FRT
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A) 		8-97034-156-1 02 1 0106- ●
101 07.112 BRACKET; RR SPR,FRT
(A) 		8-97034-156-1 02 1 0106- ● ● ●
101 07.112 BRACKET; RR SPR,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF) (C) 		8-94376-080-0 02 1 9811-0105 ●
101 07.112 BRACKET; RR SPR,FRT
(C) 		8-94376-080-0 02 1 0106- ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97264-169-0 01 1 0201- ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4HF1 ENG(RLS) (B) 		8-97034-337-0 01 1 9811-0105 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME PRESS KOUGYOU<7RZ> (A) 		8-97047-775-1 01 1 9811-0105 ● ● ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97047-775-1 01 1 0106- ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
RR BODY NON FLAT BED(RS5) (A) 		8-97047-775-1 01 1 0106- ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
(A) 		8-97047-775-1 01 1 0106- ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4HF1 ENG(RLS) DUMP CHASSIS(V4D) (C) 		8-97200-748-0 01 1 9811- ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (D) 		8-97035-308-0 01 1 9811-0012 ● ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (D) 		8-97035-308-0 01 1 9811-0012 ● ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JB1 ENG(RLF),4HF1 ENG(RLS) (D) 		8-97035-308-0 01 1 0101-0105 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
(D) 		8-97035-308-0 01 1 0101-0105 ● ● ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (D) 		8-97035-308-0 01 1 0106- ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
(D) 		8-97035-308-0 01 1 0106- ● ● ●
365 07.039 REINFORCEMENT; TRUNNION
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 		8-97033-252-2 01 1 9811- ●
365 07.039 REINFORCEMENT; TRUNNION
4HF1 ENG(RLS) DUMP CHASSIS(V4D) 		8-97033-251-2 01 1 9811- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
