◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶

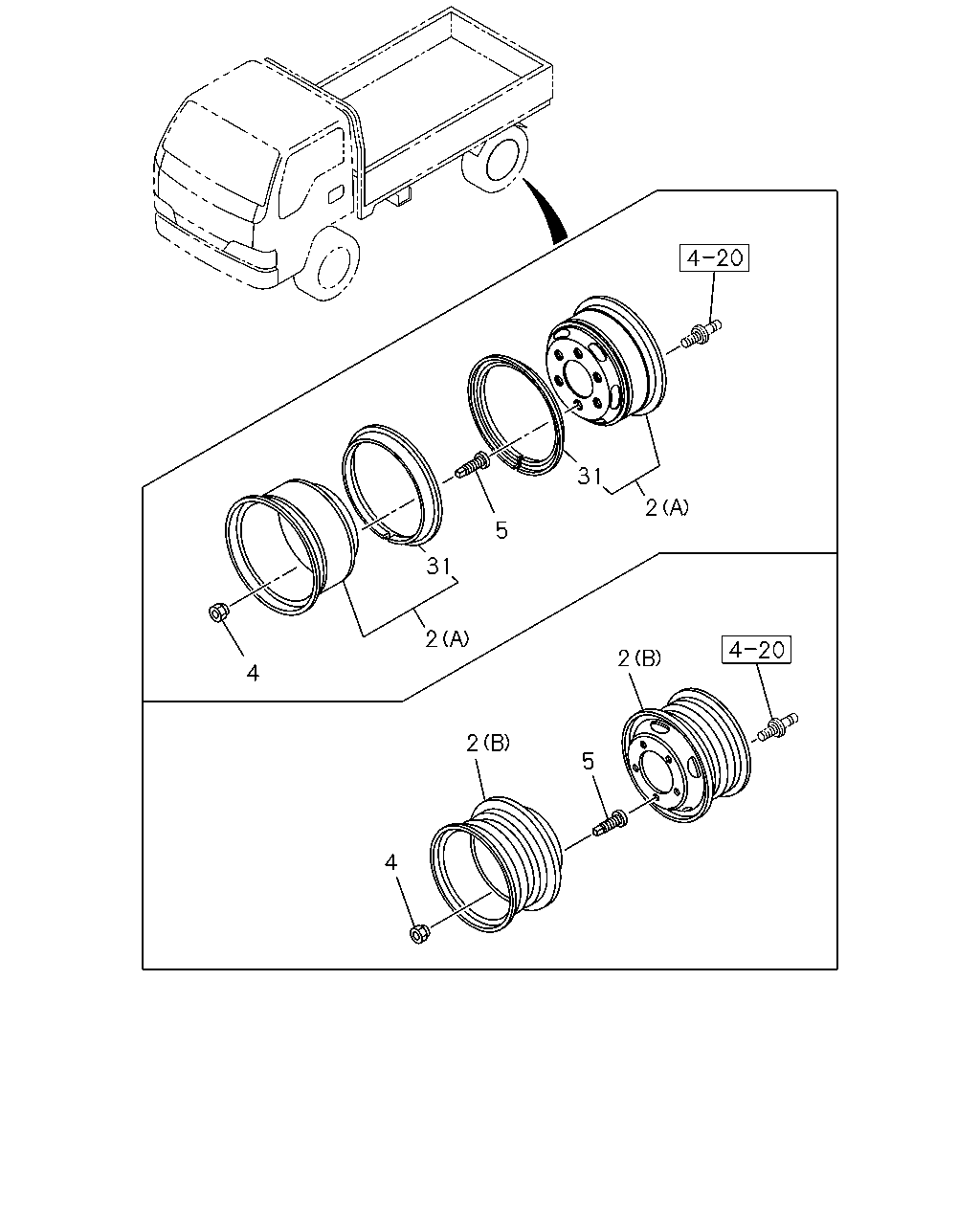

4-80 — ROAD WHEEL (#21578) — 568 parça
çizim 7781
31 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 05.803 WHEEL; DISC
(AQD),(09V),(22H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(25H),(26H),(29H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(31H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(25H),(26H),(29H),(46C), (92H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9811-0105 ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0106- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(25H),(26H),(29H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0106- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(46C),(92H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0106- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(25H),(26H),(29H),(31H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0106- ●
2 05.803 WHEEL; DISC
(A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0106- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(23H),(45C) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(23H),(45C) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0106- ●
2 05.803 WHEEL; DISC
(AQD),(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0106- ●
2 05.803 WHEEL; DISC
(A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0106- ●
2 05.803 WHEEL; DISC
(23H),(45C) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 9811- ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 9811- ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H),(31H),(46C),(92H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 9811- ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H) (A) FRONT 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9811- ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H),(31H),(46C),(92H) (A) FRONT 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9811- ●
2 05.803 WHEEL; DISC
(89C) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 9811- ●
2 05.803 WHEEL; DISC
(89C) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 9811- ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 9811-0012 ● ●
2 05.803 WHEEL; DISC
(50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0101-0105 ● ●
2 05.803 WHEEL; DISC
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0101-0105 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0101-0105 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0106-0106 ● ●
2 05.803 WHEEL; DISC
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0106-0106 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0106-0106 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0107- ● ● ● ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 9811-0012 ● ●
2 05.803 WHEEL; DISC
(50C),(94H),(95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0101-0105 ● ●
2 05.803 WHEEL; DISC
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0101-0105 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0101-0105 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0106-0106 ● ●
2 05.803 WHEEL; DISC
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0106-0106 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0106-0106 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0107- ● ● ● ●
2 05.803 WHEEL; DISC
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 9811-0012 ● ● ●
2 05.803 WHEEL; DISC
(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0101-0106 ● ● ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0101-0106 ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0107- ● ● ● ●
2 05.803 WHEEL; DISC
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 9811-0012 ● ● ●
2 05.803 WHEEL; DISC
(64H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0101-0106 ● ● ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0101-0106 ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0107- ● ● ● ●
2 05.803 WHEEL; DISC
(ANS) (A) SPARE 4.5JX14 OFFSET=100 BLACK 6-HOLE 		8-94385-056-1 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
(BPU) (A) FRONT,REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 04 1 0106- ●
2 05.803 WHEEL; DISC
(ANS) (A) REAR 4.5JX14 OFFSET=100 BLACK 6-HOLE 		8-94385-056-1 04 1 9811-0105 ●
2 05.803 WHEEL; DISC
(BPU) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 01 1 0106- ●
2 05.803 WHEEL; DISC
(37H) (B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
(B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 0106- ●
2 05.803 WHEEL; DISC
(37H) (B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 9811-0105 ●
2 05.803 WHEEL; DISC
(B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 9905-0012 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 9905-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 9905-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0101-0105 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0106-0106 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0107-0203 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(BPU),(BQN),(06H), (07H),(08V),(50C),(94H),(95H),(96H), (98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0107-0203 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 04 1 0106-0203 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9811-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(25H),(26H),(29H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9811-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(31H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9811-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(25H),(26H),(29H),(46C), (92H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9811-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9811-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(25H),(26H),(29H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(46C),(92H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(25H),(26H),(29H),(31H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(23H),(45C) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9811-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9811-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9811-0012 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9811-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9811-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(23H),(45C) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0101-0105 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(23H),(45C) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0106-0106 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(23H),(45C) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0107- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0107- ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0107- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0107- ●
31 05.839 RING; SIDE,DISC WHEEL
(23H),(45C) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 9811- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 9811- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(92H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 9811- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H) FRONT 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 9811- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(92H) FRONT 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 9811- ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 9811-0203 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU),(89C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9811-9904 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9905-0203 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU),(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(06H),(07H),(08V),(50C), (94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9811-9904 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 9905-0012 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0101-0105 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0106-0106 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0107-0203 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0204- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 9811-0012 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(64H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 9811-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0101-0106 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0101-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0107- ● ● ● ●
çizim 8611
3 31 2 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 05.803 WHEEL; DISC
(AQD),(09V),(22H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(25H),(26H),(29H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(31H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(25H),(26H),(29H),(46C), (92H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9811-0105 ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0106- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(25H),(26H),(29H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0106- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(46C),(92H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0106- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(25H),(26H),(29H),(31H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0106- ●
2 05.803 WHEEL; DISC
(A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0106- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(23H),(45C) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(23H),(45C) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0106- ●
2 05.803 WHEEL; DISC
(AQD),(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0106- ●
2 05.803 WHEEL; DISC
(A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0106- ●
2 05.803 WHEEL; DISC
(23H),(45C) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 9811- ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 9811- ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H),(31H),(46C),(92H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 9811- ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H) (A) FRONT 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9811- ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H),(31H),(46C),(92H) (A) FRONT 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9811- ●
2 05.803 WHEEL; DISC
(89C) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 9811- ●
2 05.803 WHEEL; DISC
(89C) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 9811- ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 9811-0012 ● ●
2 05.803 WHEEL; DISC
(50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0101-0105 ● ●
2 05.803 WHEEL; DISC
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0101-0105 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0101-0105 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0106-0106 ● ●
2 05.803 WHEEL; DISC
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0106-0106 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0106-0106 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0107- ● ● ● ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 9811-0012 ● ●
2 05.803 WHEEL; DISC
(50C),(94H),(95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0101-0105 ● ●
2 05.803 WHEEL; DISC
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0101-0105 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0101-0105 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0106-0106 ● ●
2 05.803 WHEEL; DISC
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0106-0106 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0106-0106 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0107- ● ● ● ●
2 05.803 WHEEL; DISC
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 9811-0012 ● ● ●
2 05.803 WHEEL; DISC
(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0101-0106 ● ● ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0101-0106 ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0107- ● ● ● ●
2 05.803 WHEEL; DISC
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 9811-0012 ● ● ●
2 05.803 WHEEL; DISC
(64H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0101-0106 ● ● ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0101-0106 ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0107- ● ● ● ●
2 05.803 WHEEL; DISC
(ANS) (A) SPARE 4.5JX14 OFFSET=100 BLACK 6-HOLE 		8-94385-056-1 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
(BPU) (A) FRONT,REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 04 1 0106- ●
2 05.803 WHEEL; DISC
(ANS) (A) REAR 4.5JX14 OFFSET=100 BLACK 6-HOLE 		8-94385-056-1 04 1 9811-0105 ●
2 05.803 WHEEL; DISC
(BPU) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 01 1 0106- ●
2 05.803 WHEEL; DISC
(37H) (B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
(B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 0106- ●
2 05.803 WHEEL; DISC
(37H) (B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 9811-0105 ●
2 05.803 WHEEL; DISC
(B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 0106- ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 LH THREAD 		5-42334-002-0 06 1 9811- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 RH THREAD 		5-42333-008-0 06 1 9811- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-94365-148-0 05 1 9811- ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-94365-147-0 05 1 9811- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 9905-0012 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 9905-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 9905-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0101-0105 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0106-0106 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0107-0203 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(BPU),(BQN),(06H), (07H),(08V),(50C),(94H),(95H),(96H), (98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0107-0203 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 04 1 0106-0203 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9811-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(25H),(26H),(29H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9811-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(31H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9811-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(25H),(26H),(29H),(46C), (92H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9811-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9811-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(25H),(26H),(29H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(46C),(92H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(25H),(26H),(29H),(31H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(23H),(45C) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9811-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9811-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9811-0012 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9811-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9811-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(23H),(45C) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0101-0105 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(23H),(45C) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0106-0106 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(23H),(45C) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0107- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0107- ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0107- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0107- ●
31 05.839 RING; SIDE,DISC WHEEL
(23H),(45C) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 9811- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 9811- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(92H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 9811- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H) FRONT 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 9811- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(92H) FRONT 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 9811- ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 9811-0203 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU),(89C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9811-9904 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9905-0203 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU),(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(06H),(07H),(08V),(50C), (94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9811-9904 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 9905-0012 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0101-0105 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0106-0106 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0107-0203 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0204- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 9811-0012 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(64H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 9811-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0101-0106 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0101-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0107- ● ● ● ●
çizim 46666
4 31 2 2 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 05.803 WHEEL; DISC
(AQD),(09V),(22H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(25H),(26H),(29H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(31H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(25H),(26H),(29H),(46C), (92H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9811-0105 ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0106- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(25H),(26H),(29H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0106- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(46C),(92H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0106- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(25H),(26H),(29H),(31H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0106- ●
2 05.803 WHEEL; DISC
(A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0106- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(23H),(45C) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(23H),(45C) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0106- ●
2 05.803 WHEEL; DISC
(AQD),(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0106- ●
2 05.803 WHEEL; DISC
(A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0106- ●
2 05.803 WHEEL; DISC
(23H),(45C) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 9811- ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 9811- ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H),(31H),(46C),(92H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 9811- ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H) (A) FRONT 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9811- ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H),(31H),(46C),(92H) (A) FRONT 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9811- ●
2 05.803 WHEEL; DISC
(89C) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 9811- ●
2 05.803 WHEEL; DISC
(89C) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 9811- ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 9811-0012 ● ●
2 05.803 WHEEL; DISC
(50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0101-0105 ● ●
2 05.803 WHEEL; DISC
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0101-0105 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0101-0105 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0106-0106 ● ●
2 05.803 WHEEL; DISC
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0106-0106 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0106-0106 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0107- ● ● ● ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 9811-0012 ● ●
2 05.803 WHEEL; DISC
(50C),(94H),(95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0101-0105 ● ●
2 05.803 WHEEL; DISC
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0101-0105 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0101-0105 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0106-0106 ● ●
2 05.803 WHEEL; DISC
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0106-0106 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0106-0106 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0107- ● ● ● ●
2 05.803 WHEEL; DISC
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 9811-0012 ● ● ●
2 05.803 WHEEL; DISC
(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0101-0106 ● ● ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0101-0106 ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0107- ● ● ● ●
2 05.803 WHEEL; DISC
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 9811-0012 ● ● ●
2 05.803 WHEEL; DISC
(64H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0101-0106 ● ● ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0101-0106 ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0107- ● ● ● ●
2 05.803 WHEEL; DISC
(ANS) (A) SPARE 4.5JX14 OFFSET=100 BLACK 6-HOLE 		8-94385-056-1 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
(BPU) (A) FRONT,REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 04 1 0106- ●
2 05.803 WHEEL; DISC
(ANS) (A) REAR 4.5JX14 OFFSET=100 BLACK 6-HOLE 		8-94385-056-1 04 1 9811-0105 ●
2 05.803 WHEEL; DISC
(BPU) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 01 1 0106- ●
2 05.803 WHEEL; DISC
(37H) (B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
(B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 0106- ●
2 05.803 WHEEL; DISC
(37H) (B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 9811-0105 ●
2 05.803 WHEEL; DISC
(B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 0106- ●
4 05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD 		5-42334-002-0 06 1 9811- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD 		5-42333-008-0 06 1 9811- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-94365-146-0 05 1 9811- ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-94365-145-0 05 1 9811- ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M25 LH THREAD 		9-42334-009-0 06 1 9811- ●
4 05.813 NUT; WHEEL,RR AXLE
M25 RH THREAD 		9-42333-015-0 06 1 9811- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 9905-0012 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 9905-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 9905-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0101-0105 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0106-0106 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0107-0203 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(BPU),(BQN),(06H), (07H),(08V),(50C),(94H),(95H),(96H), (98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0107-0203 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 04 1 0106-0203 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9811-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(25H),(26H),(29H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9811-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(31H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9811-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(25H),(26H),(29H),(46C), (92H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9811-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9811-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(25H),(26H),(29H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(46C),(92H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(25H),(26H),(29H),(31H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(23H),(45C) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9811-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9811-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9811-0012 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9811-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9811-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(23H),(45C) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0101-0105 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(23H),(45C) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0106-0106 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(23H),(45C) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0107- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0107- ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0107- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0107- ●
31 05.839 RING; SIDE,DISC WHEEL
(23H),(45C) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 9811- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 9811- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(92H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 9811- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H) FRONT 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 9811- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(92H) FRONT 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 9811- ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 9811-0203 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU),(89C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9811-9904 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9905-0203 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU),(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(06H),(07H),(08V),(50C), (94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9811-9904 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 9905-0012 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0101-0105 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0106-0106 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0107-0203 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0204- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 9811-0012 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(64H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 9811-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0101-0106 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0101-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0107- ● ● ● ●
çizim 47598
31 2 5 31 2 2 4 2 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 05.803 WHEEL; DISC
(AQD),(09V),(22H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(25H),(26H),(29H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(31H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(25H),(26H),(29H),(46C), (92H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9811-0105 ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0106- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(25H),(26H),(29H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0106- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(46C),(92H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0106- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(25H),(26H),(29H),(31H) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0106- ●
2 05.803 WHEEL; DISC
(A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0106- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(23H),(45C) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(23H),(45C) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0106- ●
2 05.803 WHEEL; DISC
(AQD),(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0106- ●
2 05.803 WHEEL; DISC
(A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0106- ●
2 05.803 WHEEL; DISC
(23H),(45C) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 9811- ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 9811- ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H),(31H),(46C),(92H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 9811- ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H) (A) FRONT 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9811- ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H),(31H),(46C),(92H) (A) FRONT 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9811- ●
2 05.803 WHEEL; DISC
(89C) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 9811- ●
2 05.803 WHEEL; DISC
(89C) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 9811- ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 9811-0012 ● ●
2 05.803 WHEEL; DISC
(50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0101-0105 ● ●
2 05.803 WHEEL; DISC
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0101-0105 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0101-0105 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0106-0106 ● ●
2 05.803 WHEEL; DISC
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0106-0106 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0106-0106 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0107- ● ● ● ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 9811-0012 ● ●
2 05.803 WHEEL; DISC
(50C),(94H),(95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0101-0105 ● ●
2 05.803 WHEEL; DISC
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0101-0105 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0101-0105 ●
2 05.803 WHEEL; DISC
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0106-0106 ● ●
2 05.803 WHEEL; DISC
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0106-0106 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0106-0106 ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0107- ● ● ● ●
2 05.803 WHEEL; DISC
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 9811-0012 ● ● ●
2 05.803 WHEEL; DISC
(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0101-0106 ● ● ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0101-0106 ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0107- ● ● ● ●
2 05.803 WHEEL; DISC
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 9811-0012 ● ● ●
2 05.803 WHEEL; DISC
(64H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 9811-0012 ●
2 05.803 WHEEL; DISC
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0101-0106 ● ● ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0101-0106 ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0107- ● ● ● ●
2 05.803 WHEEL; DISC
(ANS) (A) SPARE 4.5JX14 OFFSET=100 BLACK 6-HOLE 		8-94385-056-1 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
(BPU) (A) FRONT,REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 04 1 0106- ●
2 05.803 WHEEL; DISC
(ANS) (A) REAR 4.5JX14 OFFSET=100 BLACK 6-HOLE 		8-94385-056-1 04 1 9811-0105 ●
2 05.803 WHEEL; DISC
(BPU) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 01 1 0106- ●
2 05.803 WHEEL; DISC
(37H) (B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
(B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 0106- ●
2 05.803 WHEEL; DISC
(37H) (B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 9811-0105 ●
2 05.803 WHEEL; DISC
(B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 0106- ●
4 05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD 		5-42334-002-0 06 1 9811- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD 		5-42333-008-0 06 1 9811- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-94365-146-0 05 1 9811- ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-94365-145-0 05 1 9811- ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M25 LH THREAD 		9-42334-009-0 06 1 9811- ●
4 05.813 NUT; WHEEL,RR AXLE
M25 RH THREAD 		9-42333-015-0 06 1 9811- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD 		8-94365-144-1 05 1 9811- ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD 		8-94365-143-1 05 1 9811- ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 LH THREAD 		5-42336-001-1 06 1 9811- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 RH THREAD 		5-42335-001-1 06 1 9811- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 9905-0012 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 9905-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 9905-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0101-0105 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0106-0106 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0107-0203 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(BPU),(BQN),(06H), (07H),(08V),(50C),(94H),(95H),(96H), (98H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0107-0203 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 04 1 0106-0203 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9811-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(25H),(26H),(29H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9811-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(31H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9811-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(25H),(26H),(29H),(46C), (92H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9811-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9811-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(25H),(26H),(29H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(46C),(92H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(25H),(26H),(29H),(31H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(23H),(45C) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9811-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9811-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9811-0012 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9811-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9811-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(23H),(45C) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0101-0105 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(23H),(45C) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0106-0106 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(23H),(45C) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0107- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0107- ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0107- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0107- ●
31 05.839 RING; SIDE,DISC WHEEL
(23H),(45C) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 9811- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 9811- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(92H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 9811- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H) FRONT 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 9811- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(92H) FRONT 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 9811- ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 9811-0203 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU),(89C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9811-9904 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9905-0203 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPU),(89C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BQN),(06H),(07H),(08V),(50C), (94H),(95H),(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9811-9904 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 9905-0012 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0101-0105 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0101-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPL),(BPM),(BQN),(06H),(07H),(08V), (50C),(94H),(95H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0106-0106 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0106-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 0107-0203 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(BQN),(06H),(07H), (08V),(50C),(94H),(95H),(96H),(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0204- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 9811-0012 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(64H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 9811-0012 ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(BQM),(43C),(44C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0101-0106 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0101-0106 ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0107- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
