◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65G - REAR LEAF SPRING ▶
4-65G — REAR LEAF SPRING (#21577) — 19 parça

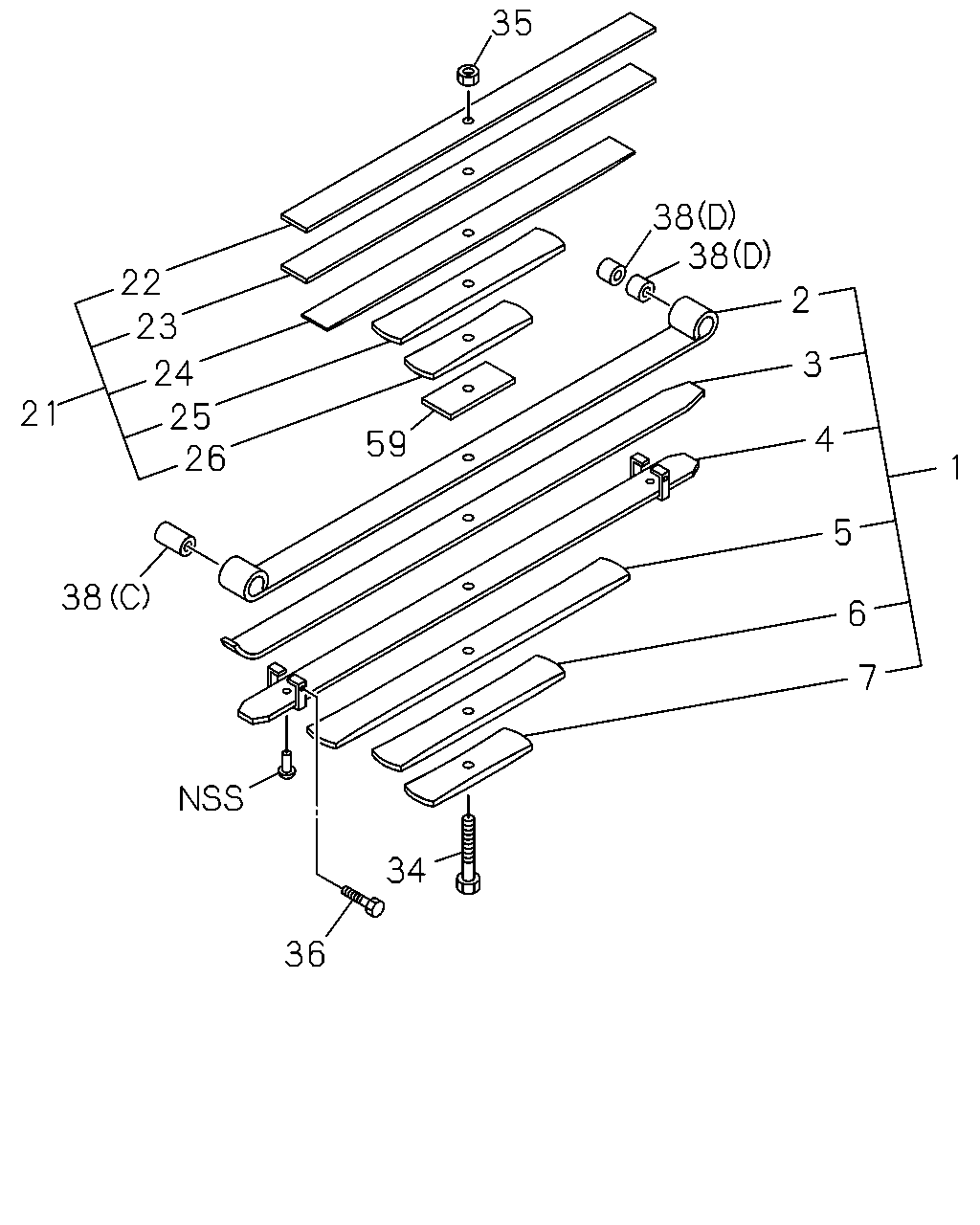

çizim 49620
35 38 38 22 2 23 3 24 25 26 21 4 59 1 5 38 6 7 34 36
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-97033-518-1, 97033518 		8-97083-943-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-97033-518-1, 97033518 		8-97083-944-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-97033-518-1, 97033518 		8-97083-945-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-97033-518-1, 97033518 		8-97083-946-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-97033-518-1, 97033518 		8-97083-947-0 01 1 -
6 07.505 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-97033-518-1, 97033518 		8-97083-948-0 01 1 -
7 07.505 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 8-97033-518-1, 97033518 		8-97083-949-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-97033-518-1, 97033518 		8-97083-950-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-97033-518-1, 97033518 		8-97083-951-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-97033-518-1, 97033518 		8-97083-952-0 01 1 -
24 07.505 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-97033-518-1, 97033518 		8-97083-953-0 01 1 -
25 07.505 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 8-97033-518-1, 97033518 		8-97083-954-0 01 1 -
26 07.505 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 8-97033-518-1, 97033518 		8-97083-955-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=140 ASM PART: A = 8-97033-518-1, 97033518 		8-94165-314-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-97033-518-1, 97033518 		9-99110-512-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X89 ASM PART: A = 8-97033-518-1, 97033518 		8-97129-689-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (D) ASM PART: A = 8-97033-518-1, 97033518 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(C), OD=42 L=81 ASM PART: A = 8-97033-518-1, 97033518 		8-97074-826-0 01 1 -
59 07.513 SEAT; RR SPRING,SUB
07.518, T=8 ASM PART: A = 8-97033-518-1, 97033518 		8-97084-668-0 01 1 -
