4-65D — REAR LEAF SPRING (#21574) — 15 parça

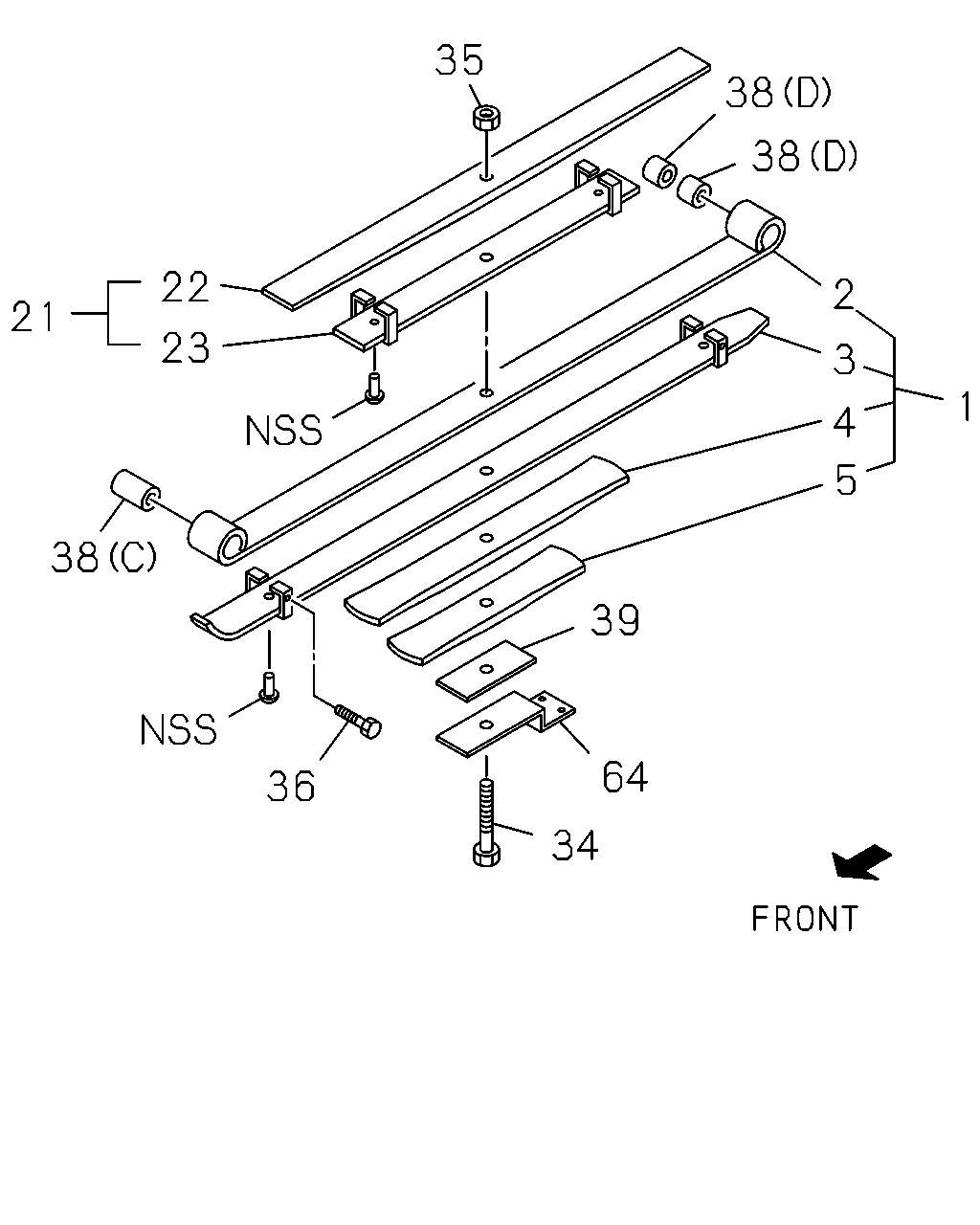

çizim 48590
35 38 38 22 2 21 23 3 1 4 5 38 39 64 36 34
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-97033-513-2, 97033513 		8-97083-902-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-97033-513-2, 97033513 		8-97083-903-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-97033-513-2, 97033513 		8-97083-904-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-97033-513-2, 97033513 		8-97083-905-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-97033-513-2, 97033513 		8-97083-906-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-97033-513-2, 97033513 		8-97083-907-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-97033-513-2, 97033513 		8-97083-908-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-97033-513-2, 97033513 		8-97083-909-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=110 ASM PART: A = 8-97033-513-2, 97033513 		8-94165-308-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-97033-513-2, 97033513 		9-99110-512-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X89 ASM PART: A = 8-97033-513-2, 97033513 		8-97129-689-0 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (D) ASM PART: A = 8-97033-513-2, 97033513 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(C), OD=42 L=81 ASM PART: A = 8-97033-513-2, 97033513 		8-97074-826-0 01 1 -
39 07.518 SEAT; LEAF SPR,RR MAIN
T=6 ASM PART: A = 8-97033-513-2, 97033513 		8-97084-846-0 01 1 -
64 07.513 SUPPORT; RR SPR
ASM PART: A = 8-97033-513-2, 97033513 		8-97044-353-1 01 1 -
