◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51040 - NKR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#21571) — 78 parça

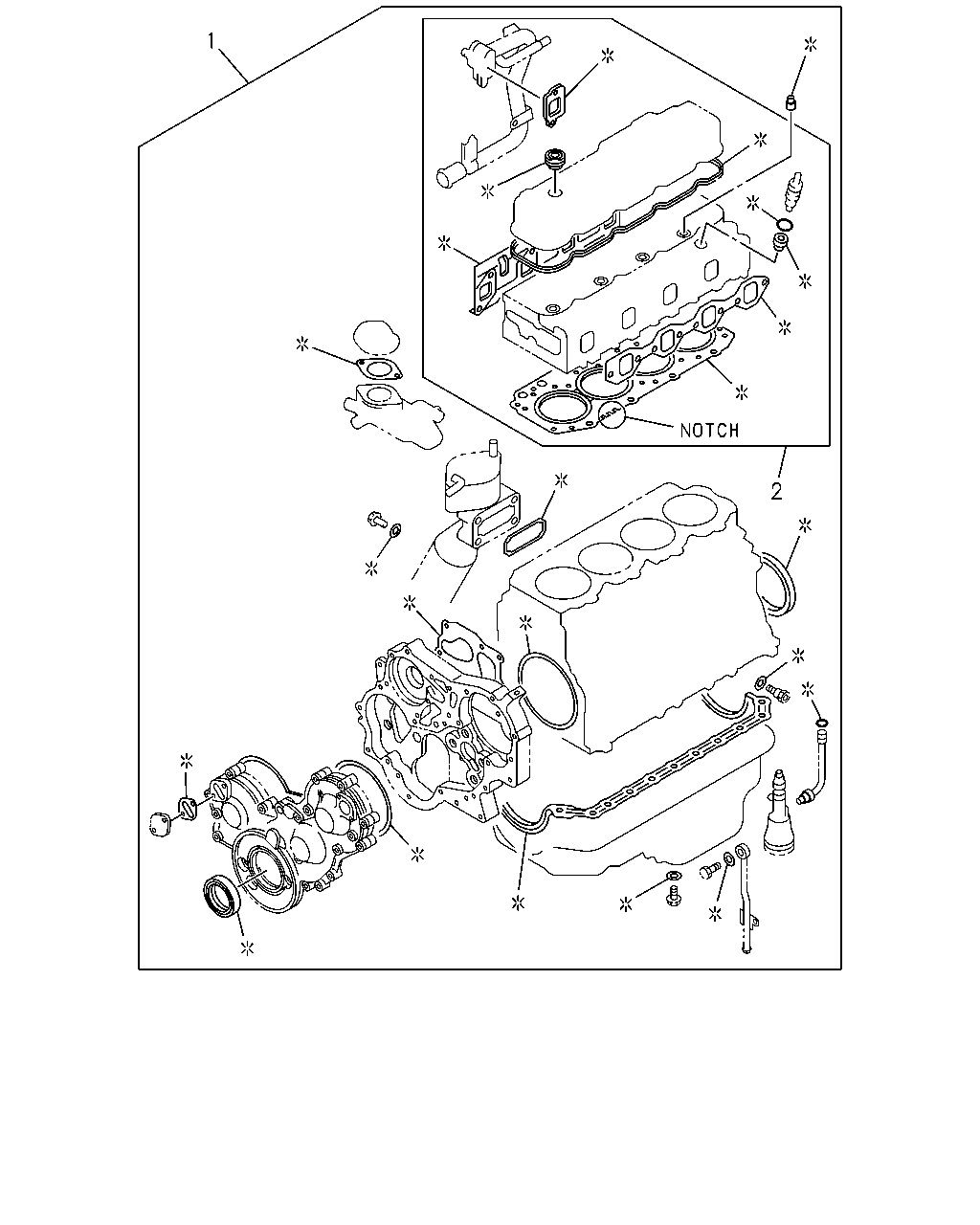

çizim 118775
1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-032-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-033-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-034-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-733-0 01 1 0508-0706 ●
1 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-175-3 01 1 0707- ●
1 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-734-0 01 1 0508-0706 ●
1 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-176-3 01 1 0707- ●
1 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-735-0 01 1 0508-0706 ●
1 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-177-3 01 1 0707- ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-350-3 01 1 0508-0902 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-494-1 01 1 0903-1006 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-706-0 01 1 1007-1101 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-032-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-351-3 01 1 0508-0902 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-495-1 01 1 0903-1006 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-707-0 01 1 1007-1101 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-033-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-352-3 01 1 0508-0902 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-496-1 01 1 0903-1006 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-708-0 01 1 1007-1101 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-034-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-038-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-039-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-040-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-711-7 01 1 0508- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-712-7 01 1 0508- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-713-7 01 1 0508- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 0508-1312 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-038-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 0508-1312 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-039-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 0508-1312 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-040-0 01 1 1401- ●
çizim 118787
1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-032-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-033-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-034-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-733-0 01 1 0508-0706 ●
1 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-175-3 01 1 0707- ●
1 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-734-0 01 1 0508-0706 ●
1 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-176-3 01 1 0707- ●
1 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-735-0 01 1 0508-0706 ●
1 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-177-3 01 1 0707- ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-350-3 01 1 0508-0902 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-494-1 01 1 0903-1006 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-706-0 01 1 1007-1101 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-032-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-351-3 01 1 0508-0902 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-495-1 01 1 0903-1006 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-707-0 01 1 1007-1101 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-033-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-352-3 01 1 0508-0902 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-496-1 01 1 0903-1006 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-708-0 01 1 1007-1101 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-034-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-038-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-039-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-040-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-711-7 01 1 0508- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-712-7 01 1 0508- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-713-7 01 1 0508- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 0508-1312 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-038-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 0508-1312 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-039-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 0508-1312 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-040-0 01 1 1401- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
