0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#2157) — 96 parça

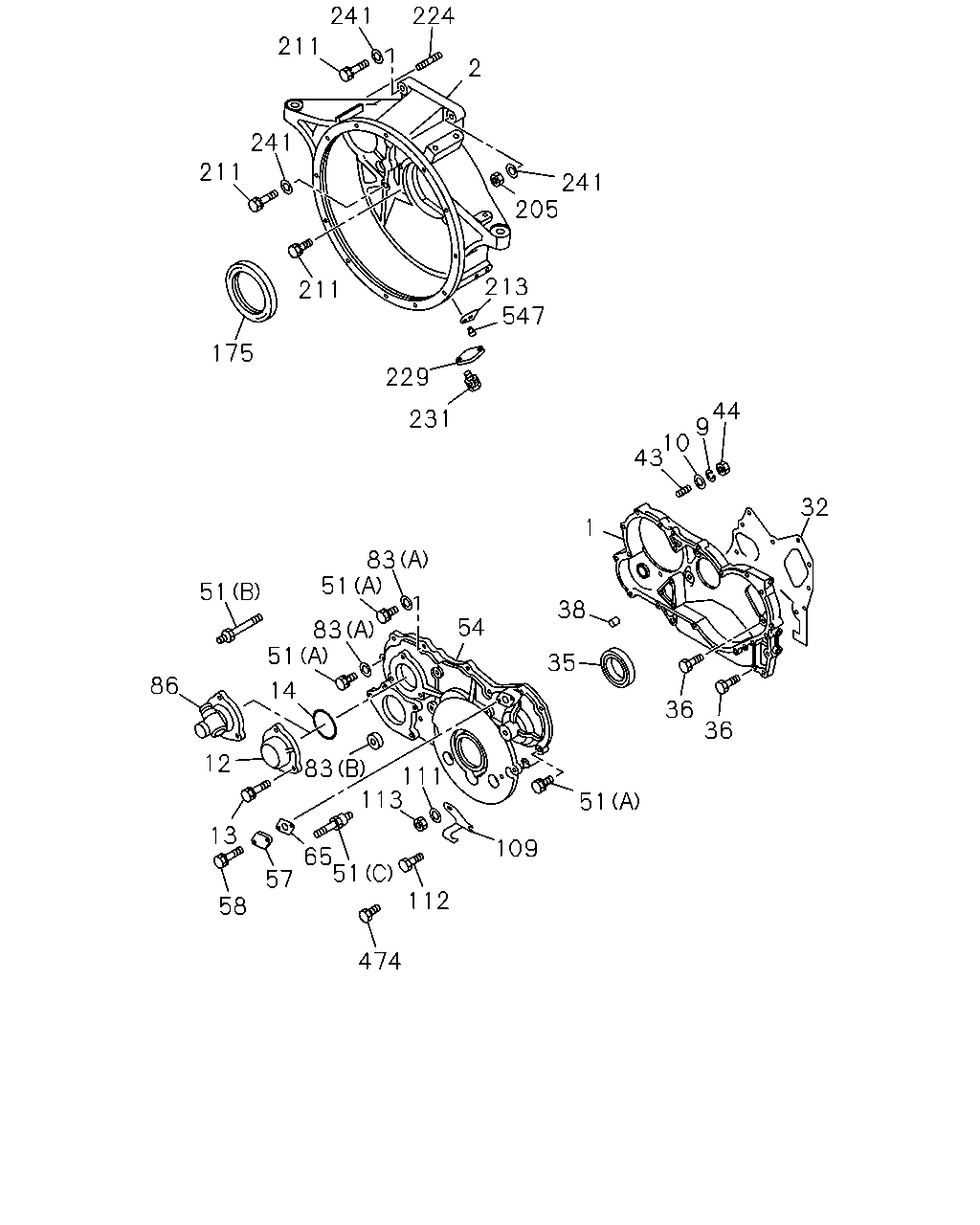

çizim 29152
241 224 211 2 241 211 241 205 213 547 211 175 229 44 9 10 43 231 32 1 83 51 51 38 54 83 51 35 86 14 36 36 111 113 12 83 51 13 109 65 51 57 112 58 474
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TIMING GEAR
POWER STEERING<N40> 		1-11311-042-1 01 1 9101-0203 ● ●
1 CASE; TIMING GEAR 1-11311-042-1 01 1 0204- ● ●
1 CASE; TIMING GEAR
EXC. POWER STEERING<N40> 		5-11311-011-3 01 1 9101-0203 ● ●
2 HOUSING; FLYWHEEL
EXC. FLYWHEEL HOUSING SAE #2<E4C> FOR 14" CLUTCH P.C.D.=428.6 		1-11341-345-2 01 1 9101-9103 ● ●
2 HOUSING; FLYWHEEL
RIGHT HAND DRIVE(MTR5FB) EXC. FLYWHEEL HOUSING SAE #2<E4C> FOR 14" CLUTCH P.C.D.=428.6 		1-11341-345-2 01 1 9104-0112 ● ●
2 HOUSING; FLYWHEEL
LEFT HAND DRIVE(MTR6FB) FOR 14" CLUTCH P.C.D.=428.6 		1-11341-345-2 01 1 9104-0112 ● ●
2 HOUSING; FLYWHEEL
RIGHT HAND DRIVE(MTR5FB) EXC. FLYWHEEL HOUSING SAE #2<E4C> FOR 14" CLUTCH 		1-11341-675-0 01 1 0201-0203 ● ●
2 HOUSING; FLYWHEEL
LEFT HAND DRIVE(MTR6FB) FOR 14" CLUTCH 		1-11341-675-0 01 1 0201-0203 ● ●
2 HOUSING; FLYWHEEL
RIGHT HAND DRIVE(MTR5FB) EXC. FLYWHEEL HOUSING SAE #2<E4C> FOR 14" CLUTCH 		1-11341-675-0 01 1 0204- ● ●
2 HOUSING; FLYWHEEL
RIGHT HAND DRIVE(MTR5FB) FLYWHEEL HOUSING SAE #2<E4C> FOR 15" CLUTCH P.C.D.=466.7 		1-11341-346-1 01 1 9101-0103 ● ●
2 HOUSING; FLYWHEEL
RIGHT HAND DRIVE(MTR5FB) FLYWHEEL HOUSING SAE #2<E4C> FOR 15" CLUTCH 		1-11341-652-1 01 1 0104-0203 ● ●
2 HOUSING; FLYWHEEL
RIGHT HAND DRIVE(MTR5FB) FLYWHEEL HOUSING SAE #2<E4C> FOR 15" CLUTCH 		1-11341-652-1 01 1 0204- ●
9 WASHER; LK,BRG COVER,RR
POWER STEERING<N40> ID=8.2 		9-09150-508-0 01 1 9101-0203 ● ●
9 WASHER; LK,BRG COVER,RR
ID=8.2 		9-09150-508-0 01 1 0204- ● ●
10 WASHER; PL,BRG COVER
ID=8.4 		9-09160-508-0 02 1 9101-9704 ● ●
12 COVER; BRG,GEAR CASE,FRT 5-11325-001-1 01 1 9101-9410 ● ●
12 COVER; BRG,GEAR CASE,FRT
EXC. TACHOMETER<UD7> 		5-11325-001-1 01 1 9411- ● ●
13 BOLT; BRG COVER
M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9101- ● ●
13 BOLT; BRG COVER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9101- ● ●
14 GASKET; BRG COVER TO GEAR CASE COVER 1-09623-215-0 01 1 9101- ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11312-014-0 01 1 9101-9510 ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-671-0 01 1 9511- ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-438-0 01 1 9101- ● ●
36 BOLT; GEAR CASE
M8X20 W/LK WASHER 		0-50040-820-0 04 1 9101-9704 ● ●
36 BOLT; GEAR CASE
M8X20 FLANGE 		0-28680-820-0 04 1 9705- ● ●
36 BOLT; GEAR CASE
M8X45 W/LK WASHER 		0-50040-845-0 02 1 9101-9704 ● ●
36 BOLT; GEAR CASE
M8X45 FLANGE 		0-28080-845-0 02 1 9705- ● ●
38 PIN; GEAR CASE COVER 9-08151-018-0 01 1 9101- ● ●
43 STUD; BRG COVER
POWER STEERING<N40> 		5-09302-003-0 01 1 9101-0203 ● ●
43 STUD; BRG COVER 5-09302-003-0 01 1 0204- ● ●
44 NUT; BRG COVER
POWER STEERING<N40> M8 		9-09110-408-0 01 1 9101-0203 ● ●
44 NUT; BRG COVER
M8 		9-09110-408-0 01 1 0204- ● ●
51 BOLT; GEAR CASE COVER
(A) M8X50 W/LK WASHER 		0-50040-850-0 01 1 9101- ● ●
51 BOLT; GEAR CASE COVER
(B) M8X20.3,M8X70 L=94 		1-09300-049-1 01 1 9101- ● ●
51 BOLT; GEAR CASE COVER
(C) M5X12,M8X55 L=79.8 		1-09309-013-1 01 1 9101- ● ●
51 BOLT; GEAR CASE COVER
(A) M8X55 W/LK WASHER 		5-09000-084-1 04 1 9101- ● ●
51 BOLT; GEAR CASE COVER
POWER STEERING<N40> (A) M8X25 W/LK WASHER 		0-50040-825-0 07 1 9101-0203 ● ●
51 BOLT; GEAR CASE COVER
(A) M8X25 W/LK WASHER 		0-50040-825-0 07 1 0204- ● ●
51 BOLT; GEAR CASE COVER
POWER STEERING<N40> (A) M8X65 W/LK WASHER 		8-94205-986-1 05 1 9101-0203 ● ●
51 BOLT; GEAR CASE COVER
(A) M8X65 W/LK WASHER 		8-94205-986-1 05 1 0204- ● ●
51 BOLT; GEAR CASE COVER
EXC. POWER STEERING<N40> (A) M8X25 W/LK&PL WASHER 		0-50140-825-0 06 1 9101-0203 ● ●
51 BOLT; GEAR CASE COVER
EXC. POWER STEERING<N40> (A) M8X65 W/LK WASHER 		8-94205-986-1 06 1 9101-0203 ● ●
54 COVER; GEAR CASE
POWER STEERING<N40> 		1-11321-048-1 01 1 9101-0203 ● ●
54 COVER; GEAR CASE 1-11321-048-1 01 1 0204- ● ●
54 COVER; GEAR CASE
EXC. POWER STEERING<N40> 		5-11321-025-2 01 1 9101-0203 ● ●
57 COVER; TIMING CHECK HOLE 5-11321-009-0 01 1 9101- ● ●
58 BOLT; CHECK HOLE COVER
M6X14 W/LK WASHER 		9-01900-614-0 02 1 9101-9204 ● ●
58 BOLT; CHECK HOLE COVER
M6X14 W/LK WASHER 		0-50040-614-0 02 1 9205-9704 ● ●
58 BOLT; CHECK HOLE COVER
M6X12 FLANGE 		0-28080-612-0 02 1 9705- ● ●
65 GASKET; COVER,TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11282-013-0 01 1 9101-9510 ● ●
65 GASKET; COVER,TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97027-601-1 01 1 9511- ● ●
83 WASHER; PL,COVER
EXC. POWER STEERING<N40> (A) ID=8.4 		9-09160-508-0 09 1 9101-0203 ● ●
83 WASHER; PL,COVER
POWER STEERING<N40> (A) ID=8.4 		9-09160-508-0 02 1 9101-0203 ● ●
83 WASHER; PL,COVER
(A) ID=8.4 		9-09160-508-0 02 1 0204- ● ●
83 WASHER; PL,COVER
RIGHT HAND DRIVE(MTR5FB) ENGINE OIL COOLER HEAVY DUTY(E1E) STARTER DENSO(RC6) GENERATOR DENSO 24V-40A 1KW(SC4) (B) ID=8.4 OD=19 		5-11779-001-0 02 1 9101-9204 ●
83 WASHER; PL,COVER
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) EXC. POWER STEERING<N40> (B) ID=8.4 OD=19 		5-11779-001-0 02 1 9205-0203 ●
83 WASHER; PL,COVER
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> POWER STEERING<N40> (B) ID=8.4 OD=19 		5-11779-001-0 02 1 9205-0203 ●
86 ELBOW; TACHOMETER DRIVE
POWER STEERING<N40> 		1-19310-007-1 01 1 9101-0203 ● ●
86 ELBOW; TACHOMETER DRIVE
TACHOMETER<UD7> 		1-19310-007-1 01 1 0204-0311 ●
86 ELBOW; TACHOMETER DRIVE
TACHOMETER<UD7> 		1-85860-049-0 01 1 0312- ●
109 POINTER; TIMING
L=40 		1-11342-014-0 01 1 9101- ● ●
111 WASHER; PL
ID=5.3 OD=12 		9-09164-605-0 02 1 9101- ● ●
112 BOLT; POINTER FIX
M5X10 		0-20800-510-0 01 1 9101- ● ●
113 NUT; POINTER FIX
M5 		9-99110-405-0 01 1 9101- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-439-1 01 1 9101- ● ●
205 NUT; HSG
M14 		9-99110-414-0 01 1 9101-9703 ● ●
205 NUT; HSG
M14 FLANGE 		0-91160-214-0 01 1 9704- ● ●
211 BOLT; HSG
M8X25 W/LK WASHER 		0-50040-825-0 07 1 9101- ● ●
211 BOLT; HSG
M14X50 		9-91066-450-0 05 1 9101-9608 ● ●
211 BOLT; HSG
EXC. FLYWHEEL HOUSING SAE #2<E4C> M14X50 		9-91066-450-0 05 1 9609-9701 ●
211 BOLT; HSG
M14X50 		9-91066-450-0 05 1 9609-9701 ●
211 BOLT; HSG
EXC. FLYWHEEL HOUSING SAE #2<E4C> M14X45 FLANGE 		0-28891-445-0 05 1 9702-0203 ●
211 BOLT; HSG
M14X45 FLANGE 		0-28891-445-0 05 1 9702-0203 ●
211 BOLT; HSG
RIGHT HAND DRIVE(MTR5FB) EXC. FLYWHEEL HOUSING SAE #2<E4C> M14X45 FLANGE 		0-28891-445-0 05 1 0204- ● ●
211 BOLT; HSG
M14X65 		9-91066-465-0 02 1 9101-9701 ● ●
211 BOLT; HSG
M14X60 FLANGE 		0-28891-460-0 02 1 9702- ● ●
211 BOLT; HSG
RIGHT HAND DRIVE(MTR5FB) ENGINE OIL COOLER HEAVY DUTY(E1E) M10X35 W/LK WASHER 		0-50041-035-0 02 1 9101-9204 ●
211 BOLT; HSG
RIGHT HAND DRIVE(MTR5FB) FLYWHEEL HOUSING SAE #2<E4C> M10X35 W/LK WASHER 		0-50041-035-0 02 1 9205-0203 ● ●
211 BOLT; HSG
RIGHT HAND DRIVE(MTR5FB) FLYWHEEL HOUSING SAE #2<E4C> M10X35 W/LK WASHER 		0-50041-035-0 02 1 0204- ●
211 BOLT; HSG
RIGHT HAND DRIVE(MTR5FB) ENGINE OIL COOLER HEAVY DUTY(E1E) M14X50 		9-91066-450-0 03 1 9101-9204 ●
211 BOLT; HSG
RIGHT HAND DRIVE(MTR5FB) FLYWHEEL HOUSING SAE #2<E4C> M14X50 		9-91066-450-0 03 1 9205-9701 ● ●
211 BOLT; HSG
RIGHT HAND DRIVE(MTR5FB) FLYWHEEL HOUSING SAE #2<E4C> M14X45 FLANGE 		0-28891-445-0 03 1 9702-0203 ● ●
211 BOLT; HSG
RIGHT HAND DRIVE(MTR5FB) FLYWHEEL HOUSING SAE #2<E4C> M14X45 FLANGE 		0-28891-445-0 03 1 0204- ●
213 POINTER; FLYWHEEL HSG 5-11342-004-0 01 1 9101- ● ●
224 STUD; STARTER
M12X35 L=53 		9-94411-235-0 03 1 9101- ● ●
229 COVER; TIMING CHECK HOLE 5-11321-009-0 01 1 9101- ● ●
231 BOLT; COVER
M6X14 W/LK WASHER 		9-01900-614-0 02 1 9101-9204 ● ●
231 BOLT; COVER
M6X14 W/LK WASHER 		0-50040-614-0 02 1 9205- ● ●
241 WASHER; PL,HSG
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),PARTIAL OILFILTER<KC1> ID=15 		9-09651-069-0 08 1 9101-9608 ● ●
241 WASHER; PL,HSG
LEFT HAND DRIVE(MTR6FB) EXC. STARTER DENSO(RC6) ID=15 		9-09651-069-0 08 1 9101-9608 ● ●
241 WASHER; PL,HSG
EXC. FLYWHEEL HOUSING SAE #2<E4C> ID=15 		9-09651-069-0 08 1 9609-9701 ●
241 WASHER; PL,HSG
ID=15 		9-09651-069-0 08 1 9609-9701 ●
241 WASHER; PL,HSG
RIGHT HAND DRIVE(MTR5FB) ENGINE OIL COOLER HEAVY DUTY(E1E) ID=15 		9-09651-069-0 06 1 9101-9204 ●
241 WASHER; PL,HSG
RIGHT HAND DRIVE(MTR5FB) FLYWHEEL HOUSING SAE #2<E4C> ID=15 		9-09651-069-0 06 1 9205-9701 ● ●
474 ADAPTER; ELBOW DRIVE 1-12539-011-0 01 1 9101- ● ●
547 RIVET; POINTER 9-06670-616-0 02 1 9101- ● ●
