◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50945 - NKR(EUROPE)-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#21568) — 79 parça
çizim 10681
274
BalonParca AdiParca NoAdetTipApplied Date A B C
274 08.808 PLATE; CAUTION,DPD
4JJ1 ENG(LFB) 		8-98049-618-0 01 1 0607- ● ● ●
çizim 12465
48 96 35 173 135
BalonParca AdiParca NoAdetTipApplied Date A B C
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-1 01 1 0302- ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 0302- ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 0302- ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) (B) 		8-97116-561-0 01 1 0302- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (A) 		8-94313-054-0 01 1 0302-0606 ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-94313-054-0 01 1 0607- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97387-811-0 01 1 0607- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (A) 		8-94469-277-0 01 1 0302-0606 ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-94469-277-0 01 1 0607- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CAUTION SPANISH<YN1> (C) 		8-97387-810-0 01 1 0607- ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JH1 ENG(RJX) 		8-97066-479-1 01 1 0302-0311 ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JH1 ENG(RJX) 		8-97092-930-1 01 1 0312-0506 ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JH1-TC ENG(RDM) 		8-97092-930-1 01 1 0507-0606 ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1 ENG(LFB) CAUTION SPANISH<YN1> 		8-98036-733-0 01 1 0607- ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1 ENG(LFB) EXC. CAUTION SPANISH<YN1> 		8-98036-732-0 01 1 0607- ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JH1 ENG(RJX) 		8-97383-253-0 01 1 0412-0506 ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JH1-TC ENG(RDM) 		8-97383-253-0 01 1 0507-0606 ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JJ1 ENG(LFB) CAUTION SPANISH<YN1> 		8-98036-112-0 01 1 0607- ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JJ1 ENG(LFB) EXC. CAUTION SPANISH<YN1> 		8-98036-111-1 01 1 0607- ● ● ●
173 08.808 PLATE; CAUTION,FUEL FILTER
4JJ1 ENG(LFB) CAUTION SPANISH<YN1> 		8-98036-253-0 01 1 0607-0705 ● ● ●
173 08.808 PLATE; CAUTION,FUEL FILTER
4JJ1 ENG(LFB) CAUTION SPANISH<YN1> 03.680 		8-98083-876-0 01 1 0706- ● ● ●
173 08.808 PLATE; CAUTION,FUEL FILTER
4JJ1 ENG(LFB) EXC. CAUTION SPANISH<YN1> 		8-98036-252-0 01 1 0607- ● ● ●

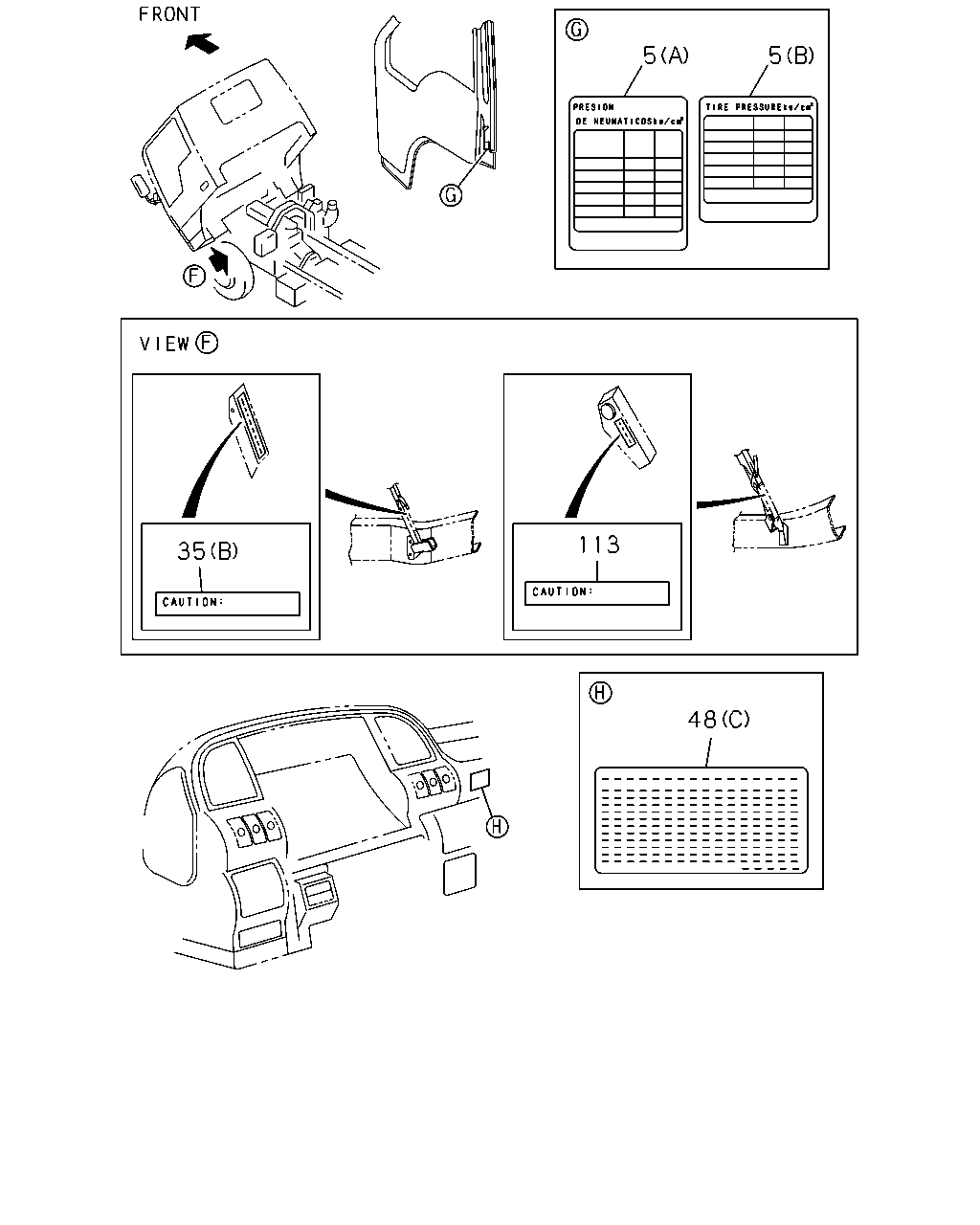

çizim 52910
5 5 113 35 48
BalonParca AdiParca NoAdetTipApplied Date A B C
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-832-0 01 1 0302-0302 ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-832-0 01 1 0303- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) CAUTION SPANISH<YN1> (A) 		8-97188-833-0 01 1 0302-0302 ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) CAUTION SPANISH<YN1> (A) 		8-97188-833-0 01 1 0303- ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-1 01 1 0302- ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 0302- ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 0302- ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) (B) 		8-97116-561-0 01 1 0302- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (A) 		8-94313-054-0 01 1 0302-0606 ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-94313-054-0 01 1 0607- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97387-811-0 01 1 0607- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (A) 		8-94469-277-0 01 1 0302-0606 ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-94469-277-0 01 1 0607- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CAUTION SPANISH<YN1> (C) 		8-97387-810-0 01 1 0607- ● ●
113 08.808 PLATE; CAUTION,CAB STAY
MANUAL TILT CAB<RWZ> 		8-97108-090-0 01 1 0302- ●
çizim 53698
261 261 190 9 279
BalonParca AdiParca NoAdetTipApplied Date A B C
9 08.808 PLATE; NAME,SPD RANGE
4JH1 ENG(RJX) CAUTION SPANISH<YN1> EXC. TACHOMETER<U16> 		8-94158-938-0 01 1 0302-0506 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1-TC ENG(RDM) CAUTION SPANISH<YN1> EXC. TACHOMETER<U16> 		8-94158-938-0 01 1 0507-0606 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1 ENG(RJX) EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 0302-0506 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1-TC ENG(RDM) EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 0507-0606 ● ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP) 		8-97200-740-0 01 1 0302-0303 ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97200-740-0 01 1 0302-0303 ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> LIMITED SLIP DIFF<6LV> 		8-97200-740-0 01 1 0302-0303 ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP) 		8-97200-740-0 01 1 0304-0506 ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> 		8-97200-740-0 01 1 0304-0506 ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP) 		8-97200-740-0 01 1 0507-0606 ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> 		8-97200-740-0 01 1 0507-0606 ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF<6LV> 		8-97200-740-0 01 1 0607- ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4JJ1 ENG(LFB) LIMITED SLIP DIFF<6LV> 		8-97200-740-0 01 1 0607- ● ●
261 08.808 PLATE; CAUTION,FUEL SYSTEM
4JH1 ENG(RJX) CAUTION SPANISH<YN1> (B) 		8-97319-705-0 01 1 0302-0506 ● ● ●
261 08.808 PLATE; CAUTION,FUEL SYSTEM
4JH1-TC ENG(RDM) CAUTION SPANISH<YN1> (B) 		8-97319-705-0 01 1 0507-0606 ● ● ●
261 08.808 PLATE; CAUTION,FUEL SYSTEM
4JH1 ENG(RJX) EXC. CAUTION SPANISH<YN1> (A) 		8-97315-725-0 01 1 0302-0506 ● ● ●
261 08.808 PLATE; CAUTION,FUEL SYSTEM
4JH1-TC ENG(RDM) EXC. CAUTION SPANISH<YN1> (A) 		8-97315-725-0 01 1 0507-0606 ● ● ●
279 08.808 PLATE; CAUTION,SLD
4JH1 ENG(RJX) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) SPEED LIMITER 90KM<NMJ> G.V.W. 5.0-5.5TON(RPT) 		8-97382-644-0 01 1 0408-0506 ●

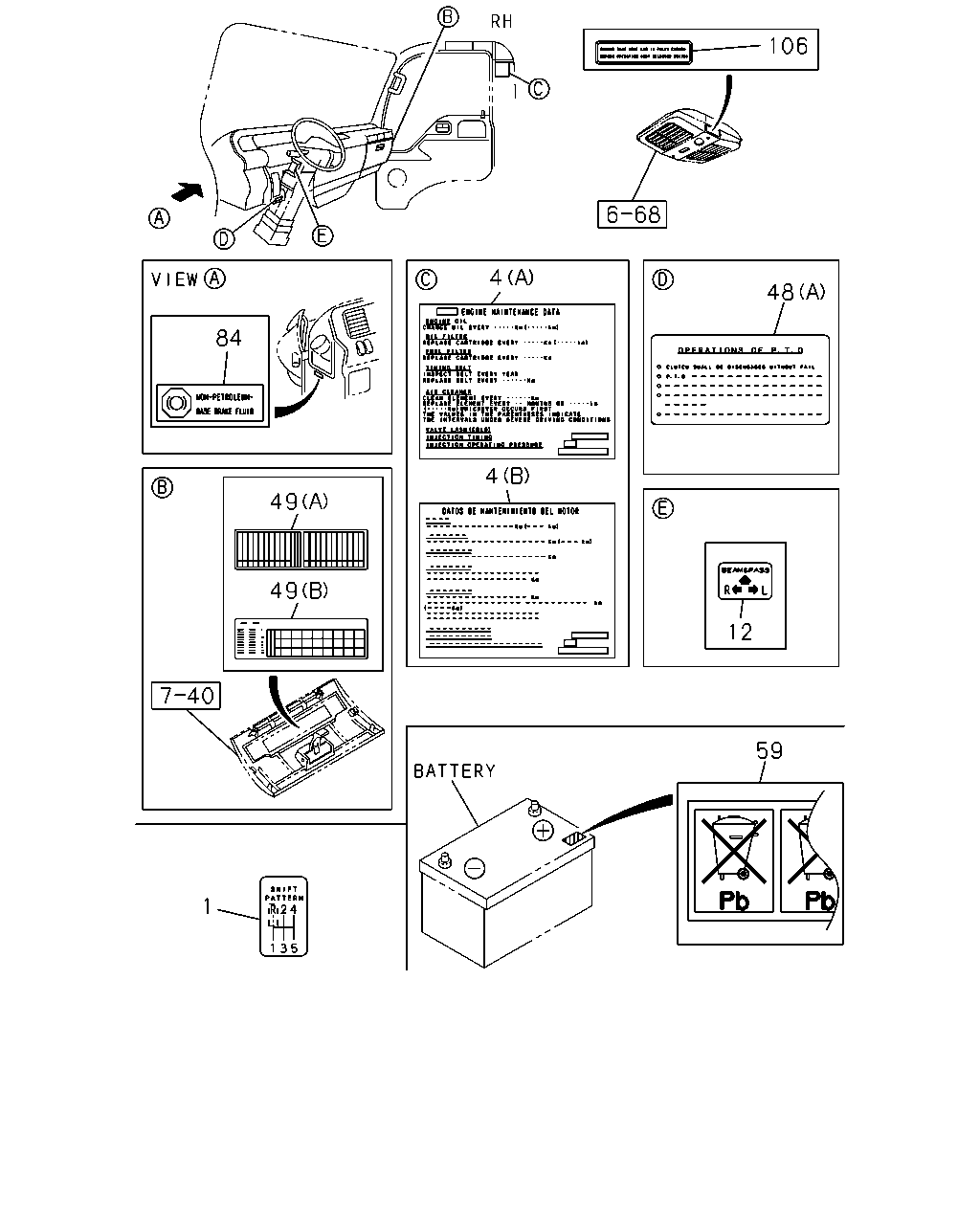

çizim 53731
106 4 48 84 4 49 49 12 59 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.017 PLATE; CAUTION,SHIFT PATTERN 8-97305-983-0 01 1 0302-0606 ● ● ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97305-983-0 01 1 0607- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JH1 ENG(RJX) CAUTION SPANISH<YN1> (B) 		8-97260-428-1 01 1 0302-0506 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JH1-TC ENG(RDM) CAUTION SPANISH<YN1> (B) 		8-97260-428-1 01 1 0507-0606 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1 ENG(LFB) CAUTION SPANISH<YN1> (B) 		8-98030-803-1 01 1 0607- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JH1 ENG(RJX) EXC. CAUTION SPANISH<YN1> (A) 		8-97260-427-1 01 1 0302-0506 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JH1-TC ENG(RDM) EXC. CAUTION SPANISH<YN1> (A) 		8-97260-427-1 01 1 0507-0606 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1 ENG(LFB) EXC. CAUTION SPANISH<YN1> (A) 		8-98030-757-0 01 1 0607- ● ● ●
12 02.459 LABEL; TURN 8-94273-445-0 01 1 0302- ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) (B) 		8-97116-561-0 01 1 0302- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (A) 		8-94313-054-0 01 1 0302-0606 ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-94313-054-0 01 1 0607- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97387-811-0 01 1 0607- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (A) 		8-94469-277-0 01 1 0302-0606 ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-94469-277-0 01 1 0607- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CAUTION SPANISH<YN1> (C) 		8-97387-810-0 01 1 0607- ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4JH1 ENG(RJX) (A) 		8-97260-561-0 01 1 0302-0506 ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4JH1-TC ENG(RDM) (B) 		8-97377-716-0 01 1 0507-0606 ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4JJ1 ENG(LFB) (B) 		8-98019-629-0 01 1 0607- ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
EXC. LEYLAND EQUIPMENT<S9Z> 10 PER 1 SHEET 		8-97116-760-0 02 1 0302- ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID 8-97062-755-2 01 1 0302- ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97580-590-0 01 1 0302- ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-97580-589-0 01 1 0302- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
