◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51103 - NPR/NQR(LHD) EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶

0-51 — OIL PUMP AND OIL STRAINER (#21567) — 34 parça

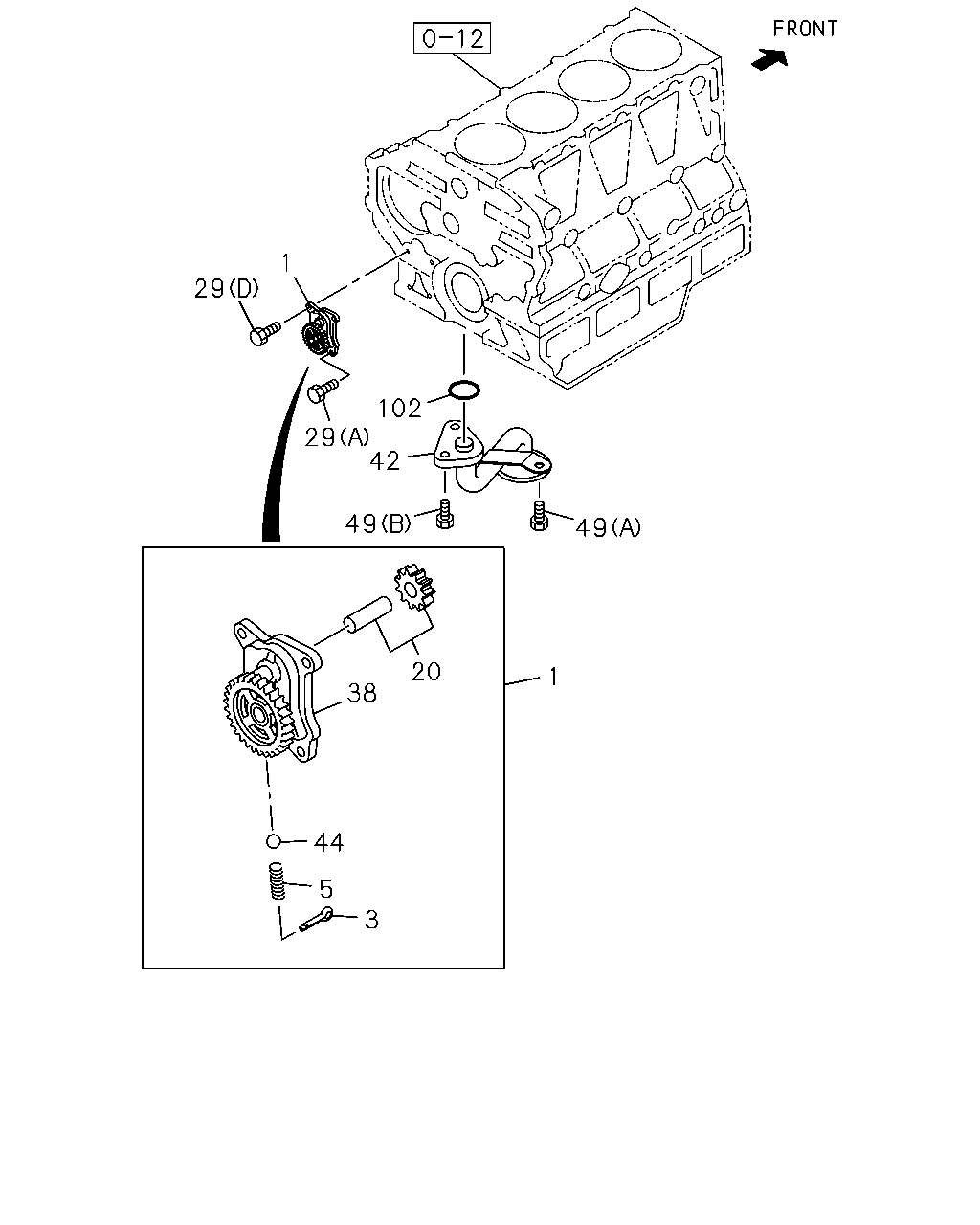

1 29 102 42 29 49 49 20 1 38 44 5 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.652 PUMP ASM; OIL	8-97381-553-3	01	1	0612-0907	●
1	01.652 PUMP ASM; OIL	8-98128-134-0	01	1	0908-	●
1	01.652 PUMP ASM; OIL	8-97075-283-2	01	1	0612-0906		●	●
1	01.652 PUMP ASM; OIL	8-98017-585-1	01	1	0907-		●	●
3	01.639 PIN; SPLIT 05.812 OD=3.7 L=30	0-81124-030-0	01	1	0612-0906		●	●
3	01.639 PIN; SPLIT 06.022 L=30	9-08104-030-0	01	1	0907-		●	●
5	01.609 SPRING; COIL	5-09580-098-0	01	1	0612-		●	●
20	01.639 GEAR; DRIVE,OIL PUMP Z=9	8-97078-736-0	01	1	0612-0906		●	●
20	01.639 GEAR; DRIVE,OIL PUMP	8-98059-192-0	01	1	0907-		●	●
29	01.652 BOLT; OIL PUMP 00.206 (B) M8X30 FLANGE	0-28050-830-0	04	1	0612-	●
29	01.652 BOLT; OIL PUMP 09.173 (C) M8X45 FLANGE	0-28050-845-0	02	1	0612-	●
29	01.652 BOLT; OIL PUMP 06.174 (D) M8X25 FLANGE	0-28060-825-0	02	1	0612-		●	●
29	01.652 BOLT; OIL PUMP (A) M8X30 FLANGE	0-28060-830-0	02	1	0612-		●	●
38	01.657 CASE; OIL STRAINER	8-97133-330-1	01	1	0612-0906		●	●
42	01.656 STRAINER; OIL,OIL PUMP	8-97373-119-0	01	1	0612-		●	●
44	01.609 BALL; RELIEF VLV	5-09843-003-0	01	1	0612-		●	●
49	01.531 BOLT; STRAINER,OIL PUMP 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0612-	●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X16 FLANGE	0-28060-816-0	02	1	0612-		●	●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M10X80	8-97071-956-0	01	1	0612-		●	●
102	01.656 GASKET; STRAINER ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=24.5	8-94399-398-0	01	1	0612-		●	●

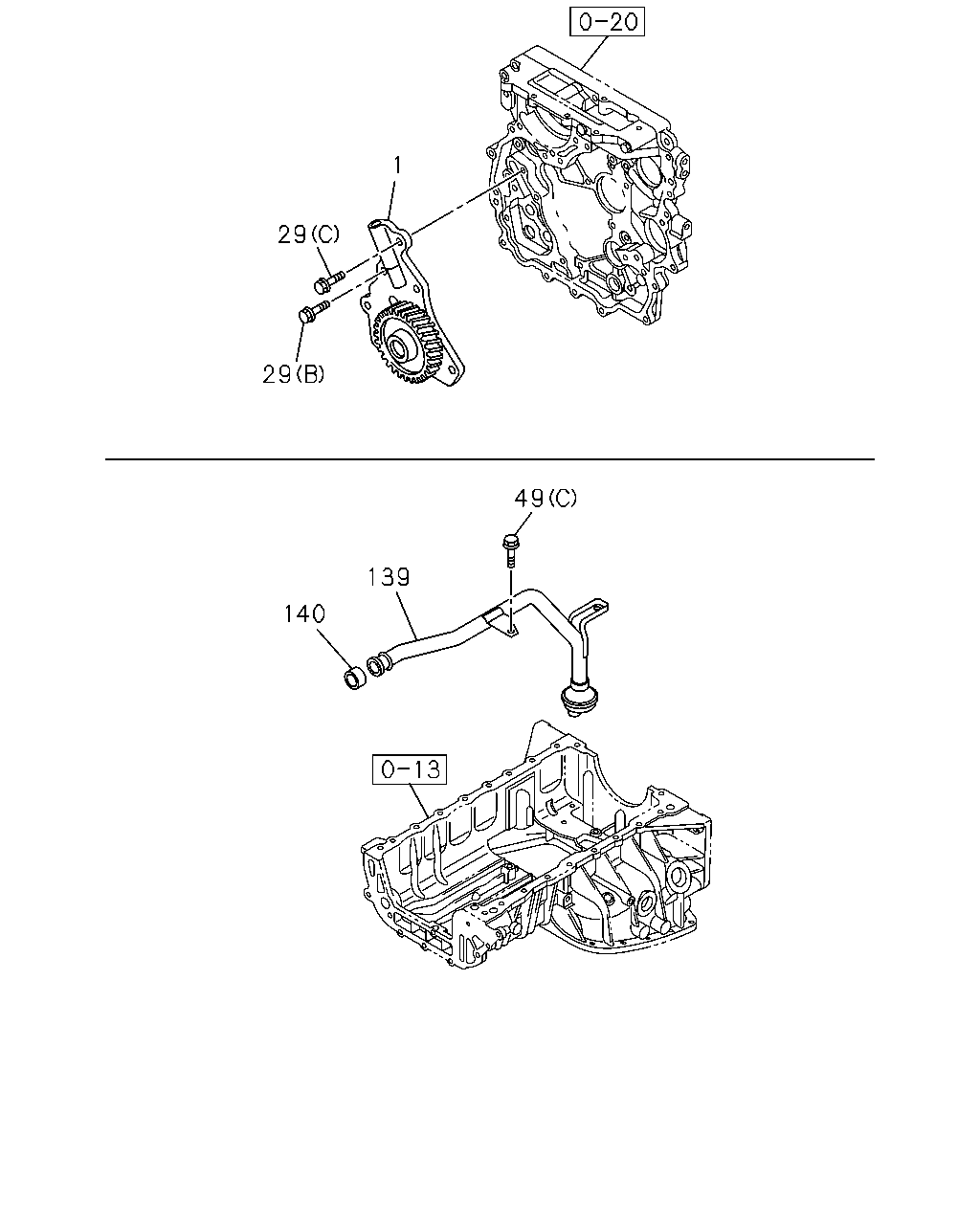

1 29 29 49 139 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.652 PUMP ASM; OIL	8-97381-553-3	01	1	0612-0907	●
1	01.652 PUMP ASM; OIL	8-98128-134-0	01	1	0908-	●
1	01.652 PUMP ASM; OIL	8-97075-283-2	01	1	0612-0906		●	●
1	01.652 PUMP ASM; OIL	8-98017-585-1	01	1	0907-		●	●
29	01.652 BOLT; OIL PUMP 00.206 (B) M8X30 FLANGE	0-28050-830-0	04	1	0612-	●
29	01.652 BOLT; OIL PUMP 09.173 (C) M8X45 FLANGE	0-28050-845-0	02	1	0612-	●
29	01.652 BOLT; OIL PUMP 06.174 (D) M8X25 FLANGE	0-28060-825-0	02	1	0612-		●	●
29	01.652 BOLT; OIL PUMP (A) M8X30 FLANGE	0-28060-830-0	02	1	0612-		●	●
49	01.531 BOLT; STRAINER,OIL PUMP 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0612-	●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X16 FLANGE	0-28060-816-0	02	1	0612-		●	●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M10X80	8-97071-956-0	01	1	0612-		●	●
139	01.639 PIPE; OIL STRAINER	8-98016-890-0	01	1	0612-1010	●
139	01.639 PIPE; OIL STRAINER	8-98149-035-0	01	1	1011-	●
140	01.639 GASKET; OIL STRAINER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97356-150-0	01	1	0612-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
