Isuzu WW
▶
TRUCKS
▶
NPR
▶
51103 - NPR/NQR(LHD) EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶

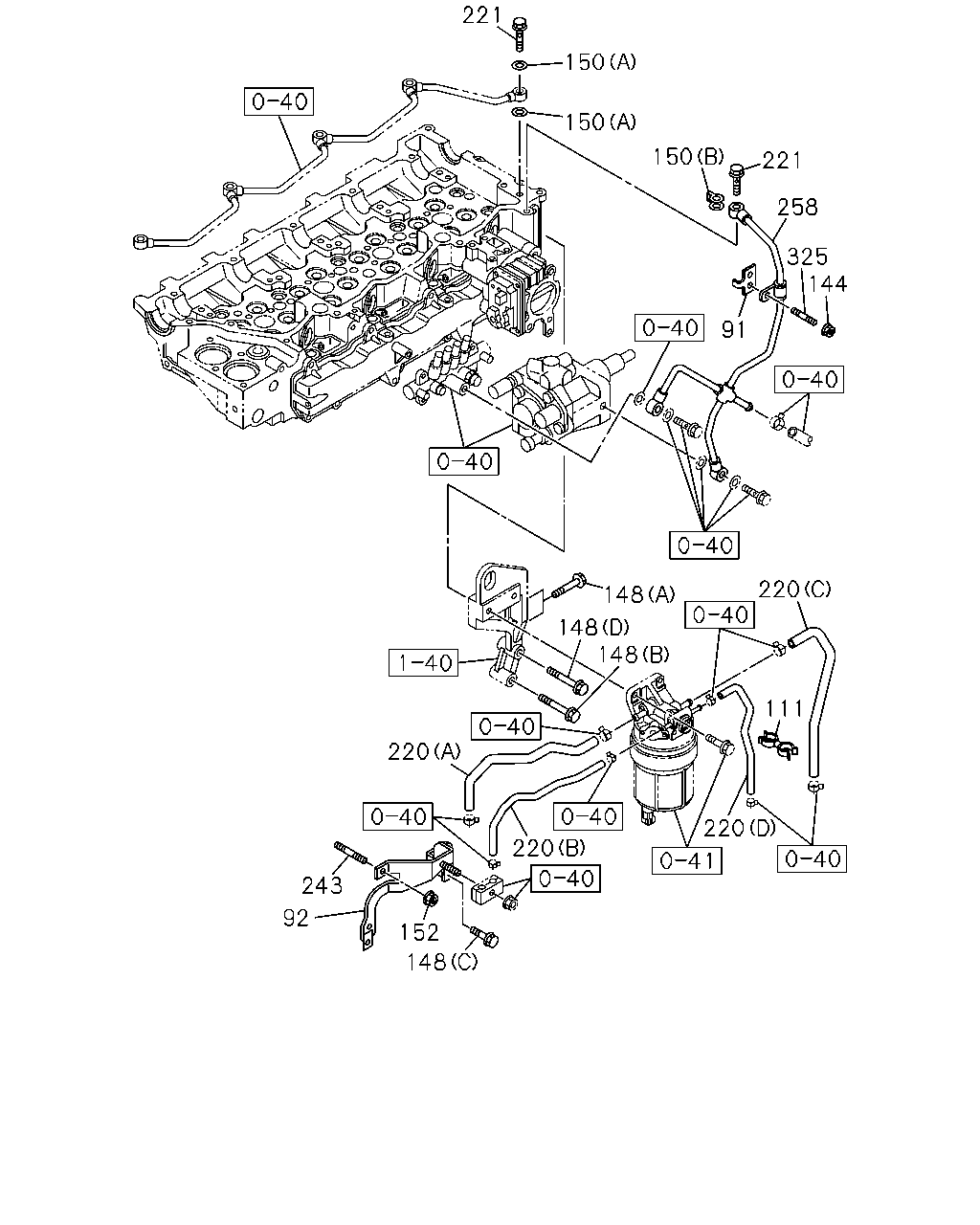

0-42 — FUEL PUMP AND PIPE
(#21565) — 21 parça
Tümü
A - 4HK1-TCN ENG
B - 4HK1-TCC ENG
221
150
150
150
221
258
325
144
91
220
148
148
148
111
220
220
220
243
92
152
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
91
03.162 BRACKET; FUEL PIPE TO INL MANIF
8-98033-979-0
01
1
0612-
●
●
92
03.162 BRACKET; FUEL PIPE
8-98033-839-1
01
1
0612-
●
●
111
03.162 CLIP; FUEL PIPE
02.589 ID=13 & 16.5
8-94169-028-0
02
1
0612-
●
●
144
03.162 NUT; CLIP
01.062 M6 FLANGE
0-91180-106-0
03
1
0612-
●
●
148
03.162 BOLT; BRKT
(C) M6X12 FLANGE
0-28050-612-0
03
1
0612-
●
●
148
03.162 BOLT; BRKT
02.510 (D) M12X100 FLANGE
0-28151-200-0
01
1
0612-
●
●
148
03.162 BOLT; BRKT
00.685 (A) M12X45 FLANGE
0-28151-245-0
02
1
0612-
●
●
148
03.162 BOLT; BRKT
00.206 (B) M12X70 FLANGE
0-28151-270-0
01
1
0612-
●
●
150
03.162 GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.531 (A) ID=10.2 OD=15.2
1-09630-083-0
02
1
0612-
●
●
150
03.162 GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.531 (B) ID=10.6
8-97240-975-0
01
1
0612-0908
●
●
150
03.162 GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17
8-98079-755-0
01
1
0909-
●
●
152
03.890 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
0612-
●
●
220
03.163 HOSE; FUEL
(A)
8-98036-178-1
01
1
0612-
●
●
220
03.163 HOSE; FUEL
(B)
8-98036-179-2
01
1
0612-
●
●
220
03.163 HOSE; FUEL
(C)
8-98036-203-1
01
1
0612-0812
●
●
220
03.163 HOSE; FUEL
(C)
8-98126-630-0
01
1
0901-
●
●
220
03.163 HOSE; FUEL
(D)
8-98036-204-1
01
1
0612-
●
●
221
03.163 BOLT; FUEL PIPE
01.531 M10X21 FLANGE
8-94396-711-0
02
1
0612-
●
●
243
03.278 STUD; BRKT
00.413 M8X15,M8X17 L=40
8-98009-913-0
01
1
0612-
●
●
258
03.163 PIPE ASM; FUEL,LEAK OFF
8-98033-718-0
01
1
0612-
●
●
325
03.278 STUD; CLIP
M6X40 L=50
0-41010-640-0
01
1
0612-
●
●
