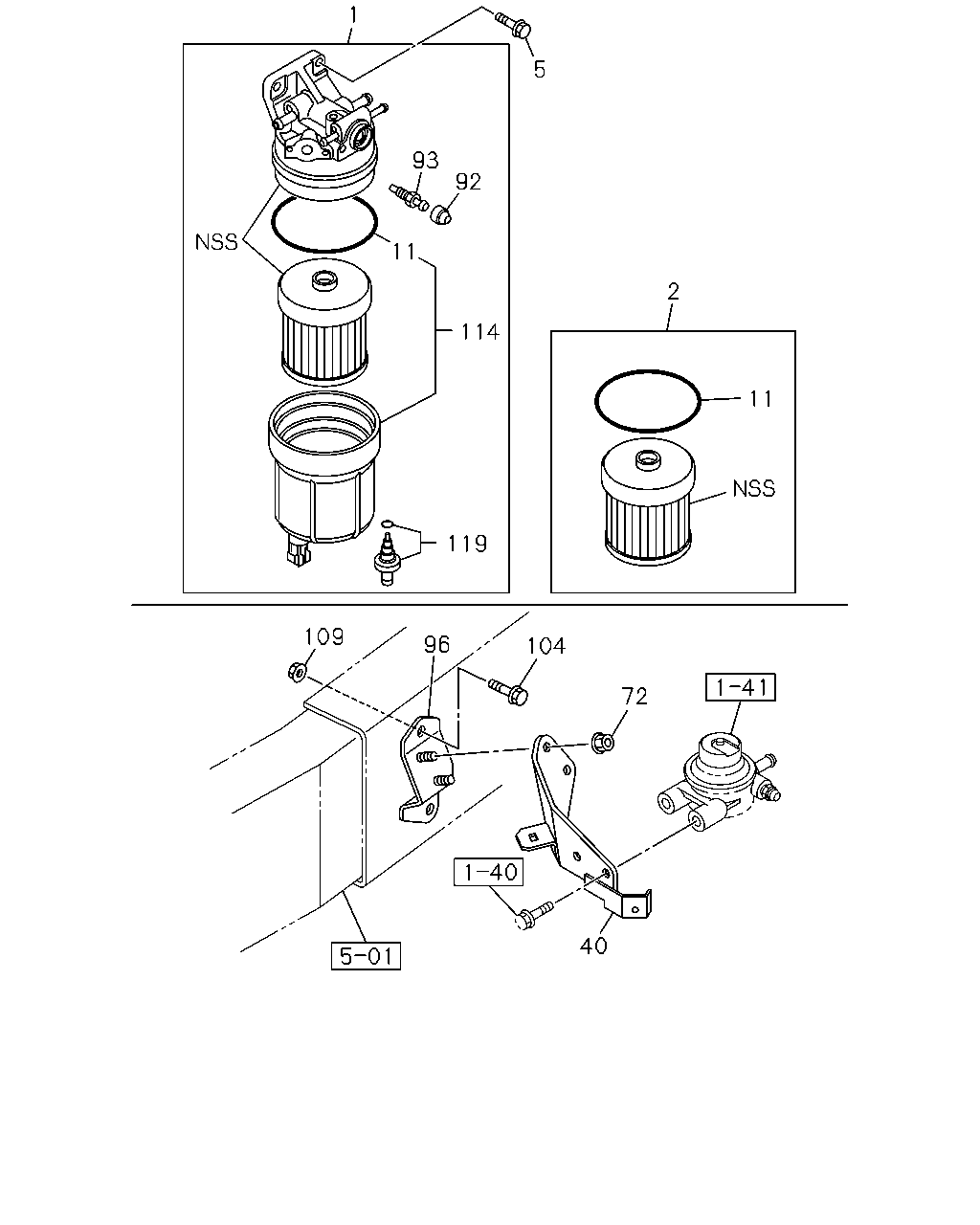

0-41 — FUEL FILTER AND BRACKET (#21564) — 21 parça

1 5 93 92 11 2 114 11 119 109 96 104 72 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.890 FILTER ASM; FUEL	8-98162-903-0	01	1	1001-1002	●	●
1	03.890 FILTER ASM; FUEL	8-98162-903-1	01	1	1003-	●	●	●
1	03.890 FILTER ASM; FUEL	8-98060-050-0	01	1	0612-0712			●
1	03.890 FILTER ASM; FUEL	8-98060-050-1	01	1	0801-0912	●	●	●
1	03.890 FILTER ASM; FUEL	8-98060-050-1	01	1	1001-1002			●
1	03.890 FILTER ASM; FUEL	8-97384-049-2	01	1	0612-0712	●	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-98162-897-0	01	1	1001-1002	●	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-98162-897-0	01	1	1003-	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-98037-011-0	01	1	0612-0912	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-98037-011-0	01	1	1001-1002			●
5	03.890 BOLT; FUEL FILTER 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0612-	●	●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98037-015-0	01	1	0612-	●	●	●
40	03.890 BRACKET; FUEL FILTER EXC. FRAME STRAIGHT TYPE<7KJ>	8-97329-135-0	01	1	0612-	●	●	●
72	03.890 NUT; BRKT,FUEL FILTER EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●	●
92	03.417 CAP; FUEL FILTER	8-98034-314-0	01	1	0612-	●	●	●
93	03.890 CONNECTOR; FUEL FILTER M8X10	8-98034-312-0	01	1	0612-	●	●	●
96	01.516 STAY; FUEL FILTER EXC. FRAME STRAIGHT TYPE<7KJ>	8-97329-138-0	01	1	0612-	●	●	●
104	03.890 BOLT; STAY EXC. FRAME STRAIGHT TYPE<7KJ> 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0612-	●	●	●
109	03.895 NUT; STAY EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-	●	●	●
114	03.890 CASE ASM; FUEL FILTER	8-98039-987-0	01	1	0612-	●	●	●
119	03.890 PLUG; DRAIN,FUEL FILTER	8-98037-095-0	01	1	0612-	●	●	●
