Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#21562) — 193 parça

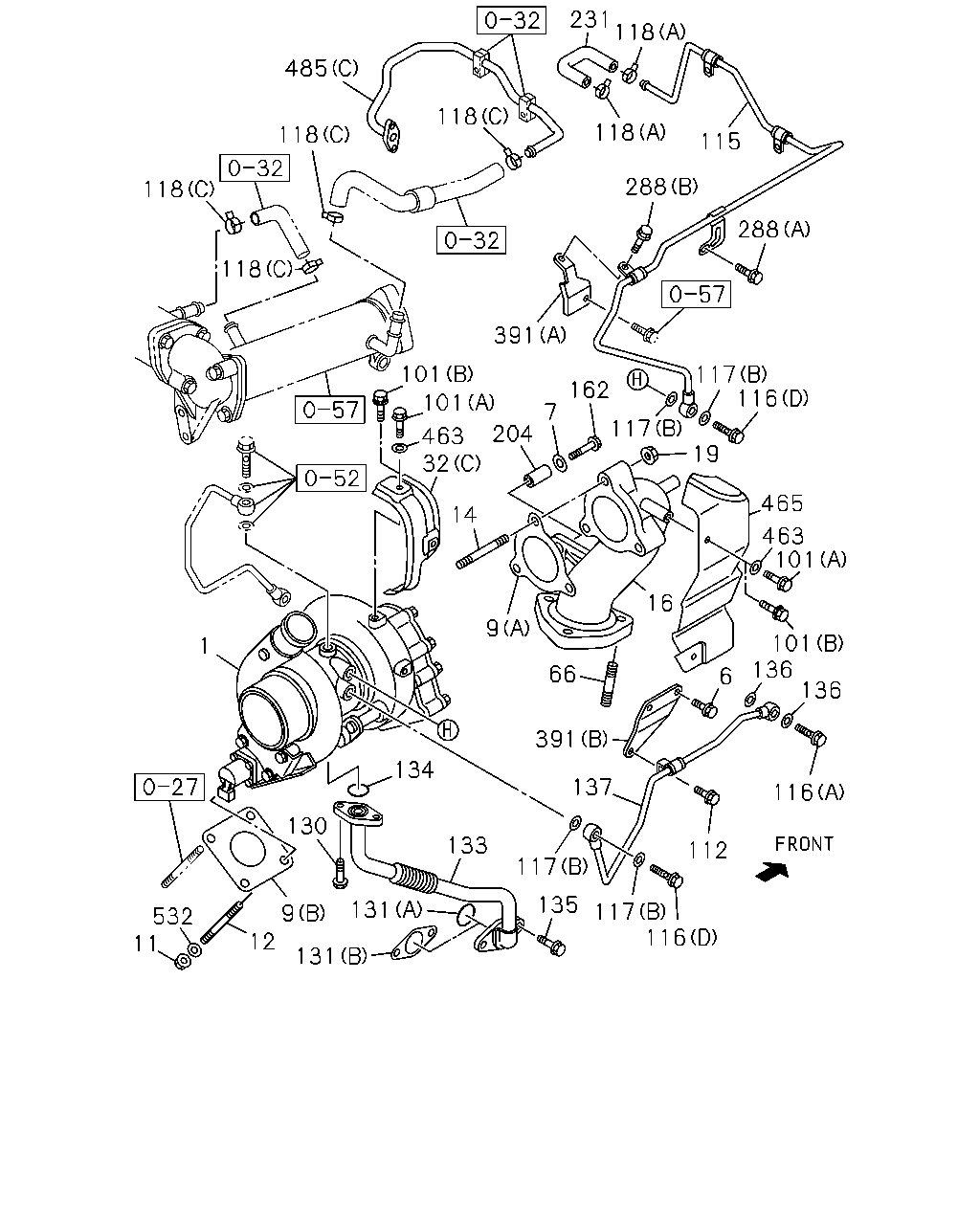

231 118 485 118 118 118 115 288 118 288 118 391 101 117 116 162 101 7 117 204 463 32 19 465 14 463 101 16 9 101 136 1 66 6 136 391 134 137 116 130 133 112 117 135 131 117 116 9 12 532 11 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM	8-97381-507-4	01	1	0612-	●
1	03.342 TURBOCHARGER ASM	8-98027-772-5	01	1	0612-		●	●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0612-		●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0612-		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611 (A)	8-98011-532-0	01	1	0612-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97376-758-0	01	1	0612-		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-98046-241-0	01	1	0612-		●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0612-	●
11	03.342 NUT; TURBOCHARGER M10	1-09420-005-0	04	1	0612-0805		●	●
11	03.342 NUT; TURBOCHARGER 03.604 M10 FLANGE	8-97381-617-0	04	1	0806-		●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0612-	●
12	03.342 STUD; TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	02	1	0612-0805		●	●
12	03.342 STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	0806-		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	03	1	0612-0903	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0904-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X49 L=63	8-97019-478-0	03	1	0612-		●	●
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0612-0910	●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	0911-	●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-3	01	1	0612-		●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	03	1	0612-		●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-990-3	01	1	0612-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	0612-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98031-888-3	01	1	0612-		●	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0612-	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0612-		●	●
101	03.602 BOLT; HEAT PROTECTOR 03.604 (A) M6X12 FLANGE	8-97108-669-0	06	1	0612-0708		●	●
101	03.602 BOLT; HEAT PROTECTOR (B) M6X12 W/PL WASHER	8-98054-289-0	06	1	0709-		●	●
112	03.417 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0612-		●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97381-648-2	01	1	0612-0708	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98091-838-0	01	1	0709-0802	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98113-333-0	01	1	0803-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98032-266-1	01	1	0612-0707		●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98085-187-0	01	1	0708-		●	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0612-		●	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0612-		●	●
116	03.342 BOLT; WATER PIPE 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	0612-		●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	0612-		●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	0905-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	0612-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0612-0904	●	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0905-		●	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=12.8	8-94367-943-0	04	1	0612-	●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=22	8-94382-401-0	06	1	0612-1003	●
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	06	1	1004-	●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20	1-09707-084-1	06	1	0612-		●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0612-		●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0612-		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0612-1006		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-		●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97386-642-1	01	1	0612-1006		●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-661-0	01	1	1007-		●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0612-		●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0612-		●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0612-		●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97381-650-0	01	1	0612-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	0612-		●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0612-		●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0612-		●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0612-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0612-		●	●
288	03.342 BOLT; WATER PIPE CLIP 03.407 (B) M8X10 FLANGE	0-28050-810-0	01	1	0612-		●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0612-0612		●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0701-		●	●
391	03.342 BRACKET; WATER PIPE (B)	8-97371-730-0	01	1	0612-		●	●
391	03.342 BRACKET; WATER PIPE (A)	8-98013-958-0	01	1	0612-		●	●
463	03.602 WASHER; PL,HEAT PROTECTOR 00.413 ID=6.4 OD=18	0-91610-706-0	06	1	0612-0708		●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER	8-98023-184-2	01	1	0612-0612		●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER 03.417	8-98052-394-0	01	1	0612-		●	●
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	0612-	●
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	0612-	●
485	01.097 PIPE; WATER EGR (C)	8-98032-267-0	01	1	0612-		●	●
485	01.097 PIPE; WATER EGR (D)	8-98041-637-1	01	1	0612-		●	●
532	03.407 WASHER; TURBOCHARGER 03.613 ID=10	1-09503-033-1	04	1	0612-0805		●	●

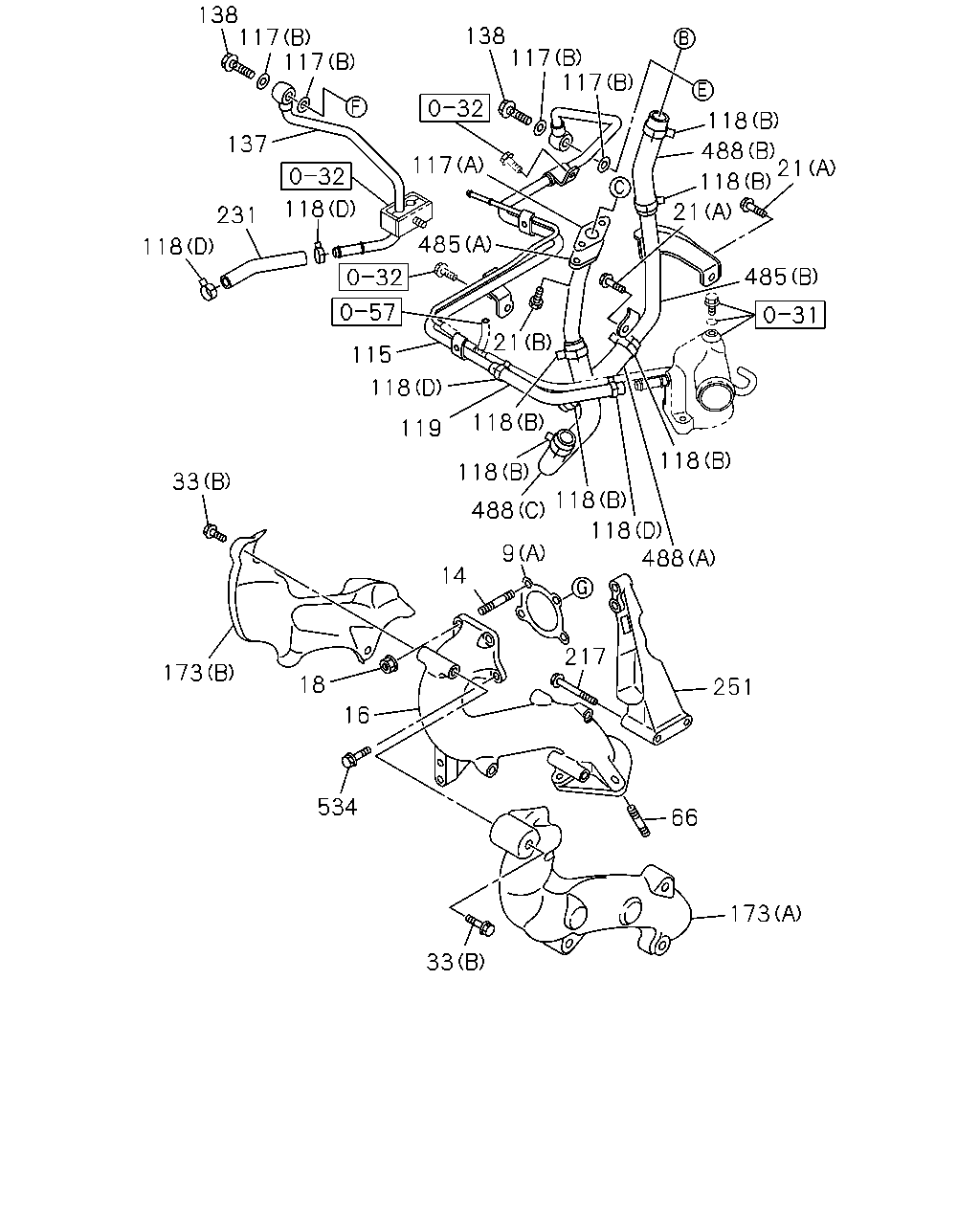

138 117 117 138 117 117 118 137 488 21 118 117 118 21 231 485 118 485 21 115 118 118 119 118 118 33 118 488 118 488 9 14 217 173 18 251 16 534 66 173 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611 (A)	8-98011-532-0	01	1	0612-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97376-758-0	01	1	0612-		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-98046-241-0	01	1	0612-		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	03	1	0612-0903	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0904-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X49 L=63	8-97019-478-0	03	1	0612-		●	●
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0612-0910	●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	0911-	●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-3	01	1	0612-		●	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	03	1	0612-0903	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	0904-	●
21	03.358 BOLT; PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0612-	●
21	03.358 BOLT; PIPE (B) M6X20 HEX SOCKET	0-58330-620-0	02	1	0612-0809	●
21	03.358 BOLT; PIPE 03.162 (B) M6X20 FLANGE	0-28650-620-0	02	1	0810-	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0612-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0612-	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0612-	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0612-		●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97381-648-2	01	1	0612-0708	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98091-838-0	01	1	0709-0802	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98113-333-0	01	1	0803-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98032-266-1	01	1	0612-0707		●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98085-187-0	01	1	0708-		●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	0905-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	0612-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0612-0904	●	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0905-		●	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=12.8	8-94367-943-0	04	1	0612-	●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=22	8-94382-401-0	06	1	0612-1003	●
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	06	1	1004-	●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20	1-09707-084-1	06	1	0612-		●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0612-		●	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98022-074-0	01	1	0612-0802	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	0803-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97381-650-0	01	1	0612-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	0612-		●	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0612-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	0612-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	0612-	●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	0612-	●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	0612-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0612-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0612-		●	●
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	0612-	●
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	0612-	●
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	0612-	●
485	01.097 PIPE; WATER EGR (C)	8-98032-267-0	01	1	0612-		●	●
485	01.097 PIPE; WATER EGR (D)	8-98041-637-1	01	1	0612-		●	●
488	03.163 HOSE; RUBBER 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	0612-	●
488	03.163 HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	0612-	●
488	03.163 HOSE; RUBBER (C)	8-98015-118-0	01	1	0612-	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	01	1	0612-0903	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	0904-	●

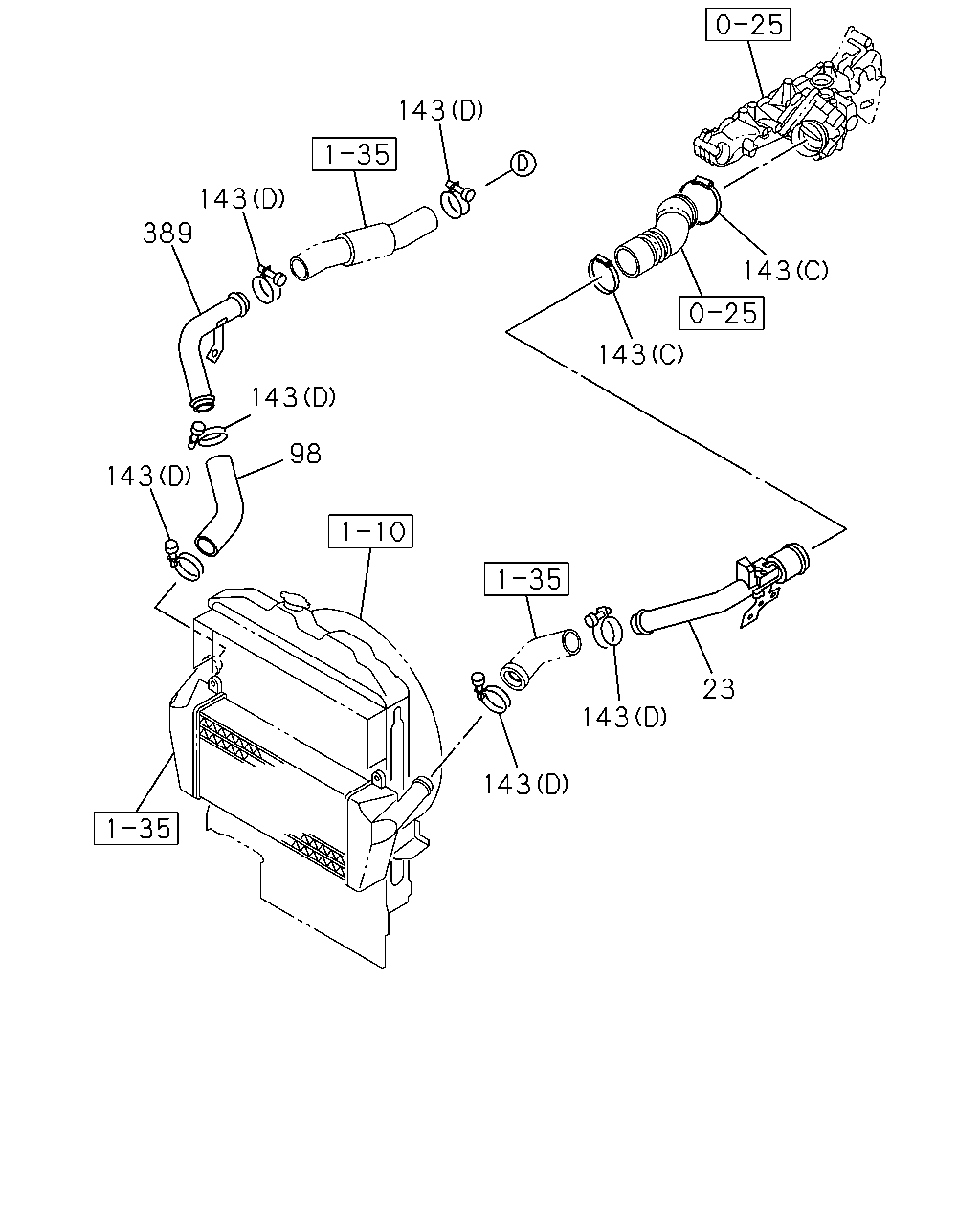

143 143 389 143 143 143 143 23 143 143 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98048-022-2	01	1	0612-	●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98019-694-2	01	1	0612-		●	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-98040-182-2	01	1	0612-	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-98053-759-0	01	1	0612-		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	02	1	0612-0810	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	02	1	0811-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	06	1	0612-0810	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	06	1	0811-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0612-0810		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=75-95	8-98133-357-0	01	1	0811-		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0612-0810		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	04	1	0811-		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0612-0811		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=55-75	8-98133-349-0	01	1	0812-		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0612-0810		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	02	1	0811-		●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98048-097-1	01	1	0612-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98019-693-0	01	1	0612-		●	●

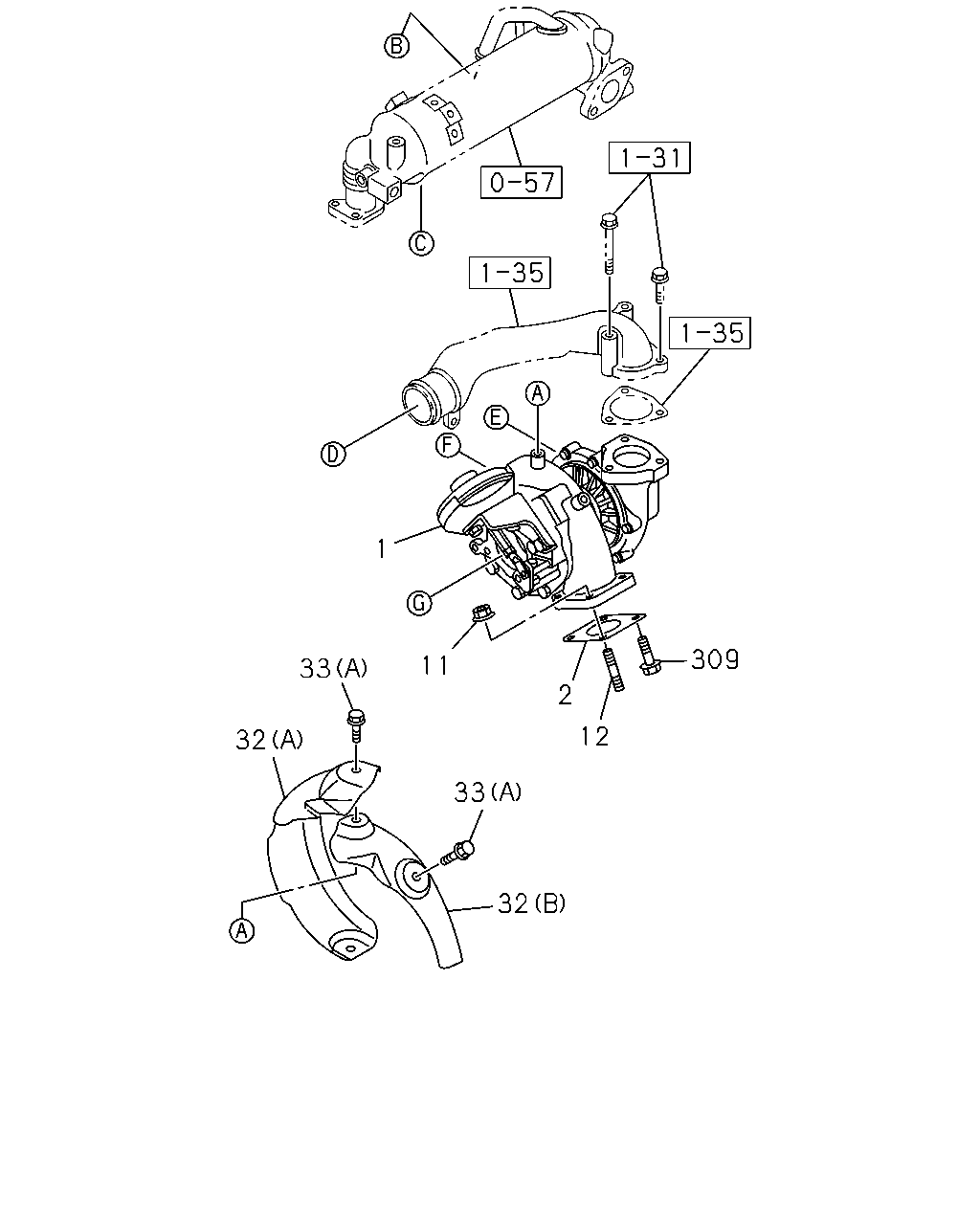

1 309 11 33 2 12 32 33 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM	8-97381-507-4	01	1	0612-	●
1	03.342 TURBOCHARGER ASM	8-98027-772-5	01	1	0612-		●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	0612-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0612-	●
11	03.342 NUT; TURBOCHARGER M10	1-09420-005-0	04	1	0612-0805		●	●
11	03.342 NUT; TURBOCHARGER 03.604 M10 FLANGE	8-97381-617-0	04	1	0806-		●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0612-	●
12	03.342 STUD; TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	02	1	0612-0805		●	●
12	03.342 STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	0806-		●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-990-3	01	1	0612-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	0612-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98031-888-3	01	1	0612-		●	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0612-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0612-	●
309	03.342 BOLT; TURBOCHARGER 02.277 M8X28 FLANGE	8-94396-974-0	02	1	0612-0701	●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	0702-	●

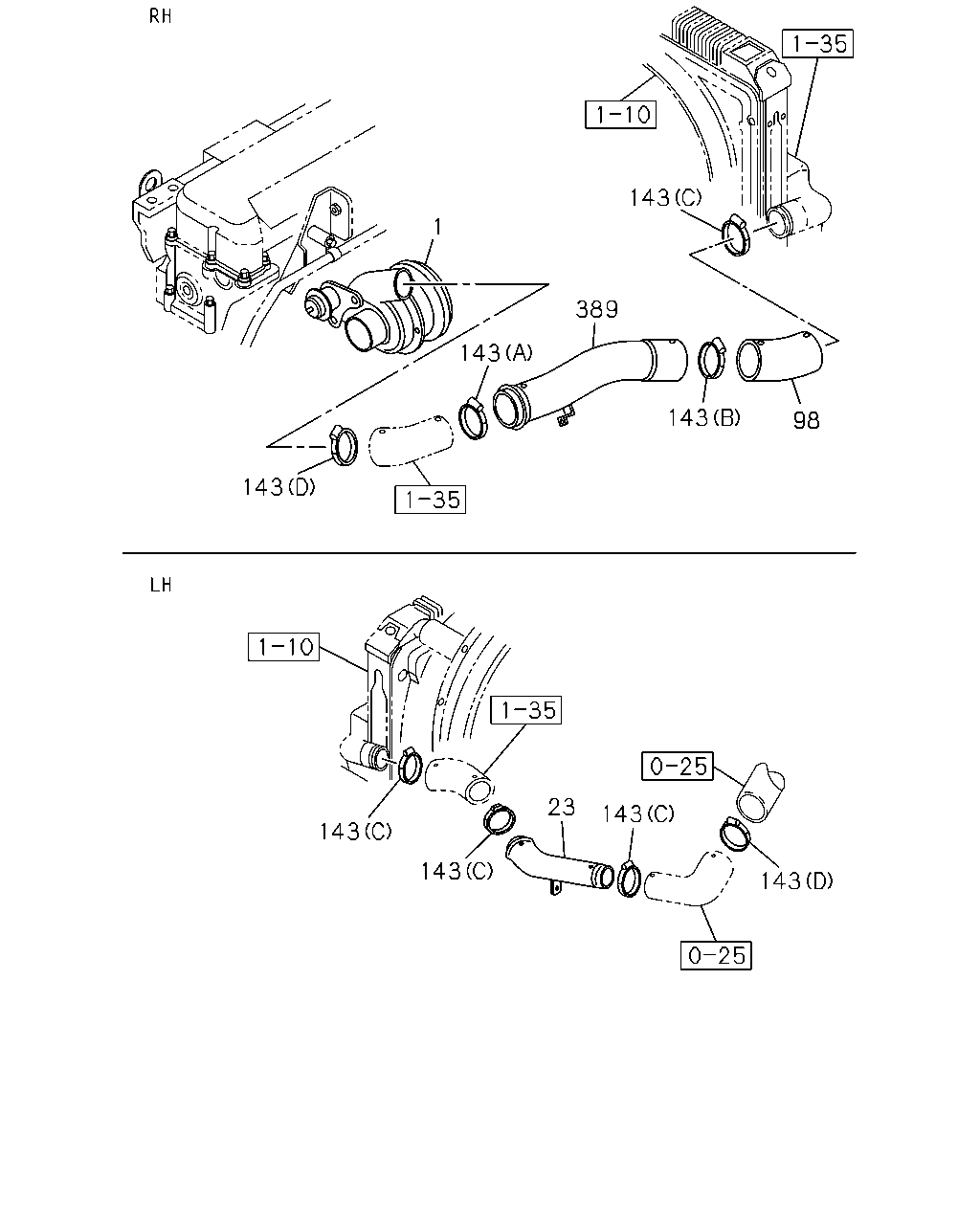

143 1 389 143 143 98 143 23 143 143 143 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM	8-97381-507-4	01	1	0612-	●
1	03.342 TURBOCHARGER ASM	8-98027-772-5	01	1	0612-		●	●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98048-022-2	01	1	0612-	●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98019-694-2	01	1	0612-		●	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-98040-182-2	01	1	0612-	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-98053-759-0	01	1	0612-		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	02	1	0612-0810	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	02	1	0811-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	06	1	0612-0810	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	06	1	0811-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0612-0810		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=75-95	8-98133-357-0	01	1	0811-		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0612-0810		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	04	1	0811-		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0612-0811		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=55-75	8-98133-349-0	01	1	0812-		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0612-0810		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	02	1	0811-		●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98048-097-1	01	1	0612-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98019-693-0	01	1	0612-		●	●

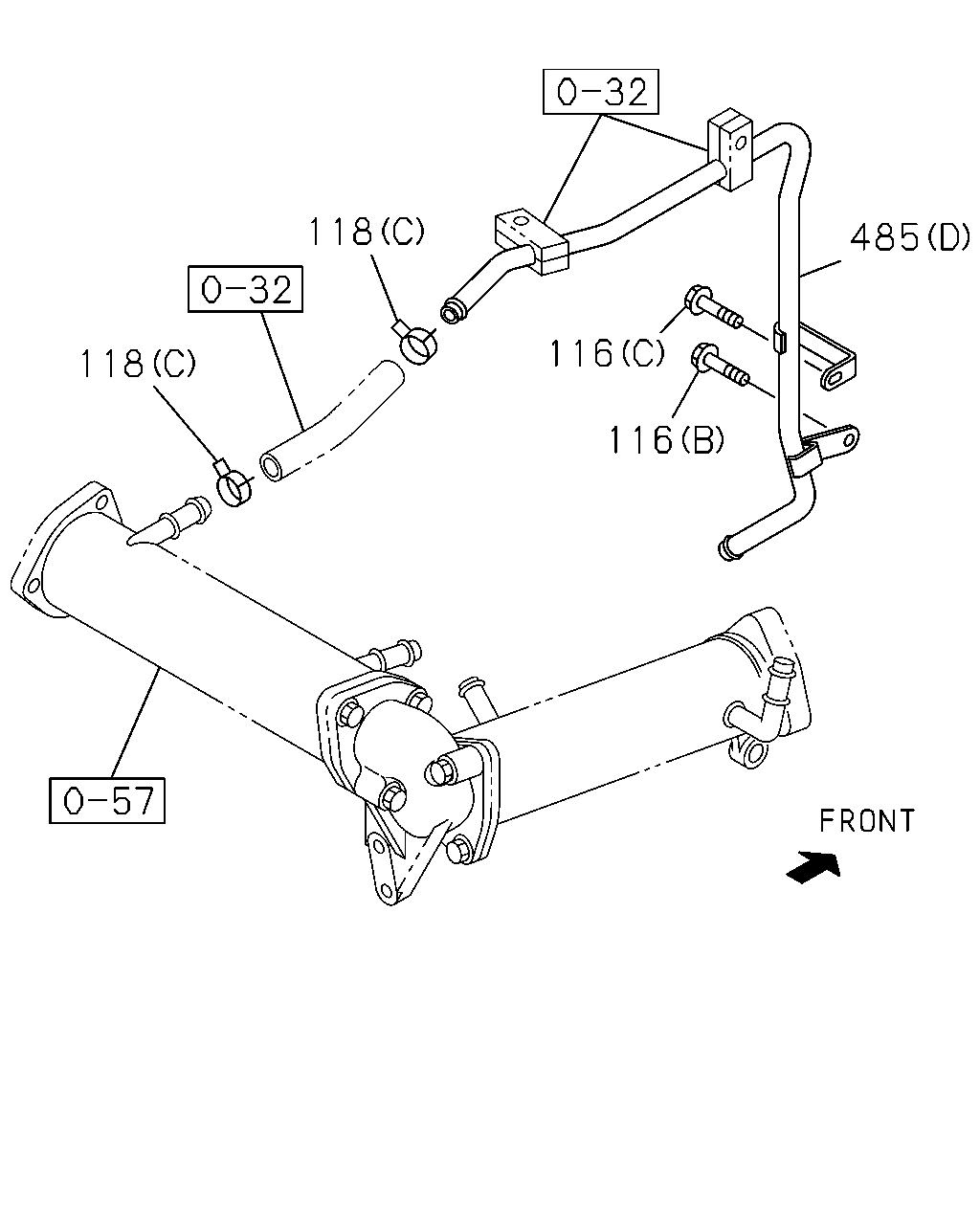

118 485 116 118 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0612-		●	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0612-		●	●
116	03.342 BOLT; WATER PIPE 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	0612-		●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	0612-		●	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=12.8	8-94367-943-0	04	1	0612-	●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=22	8-94382-401-0	06	1	0612-1003	●
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	06	1	1004-	●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20	1-09707-084-1	06	1	0612-		●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0612-		●	●
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	0612-	●
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	0612-	●
485	01.097 PIPE; WATER EGR (C)	8-98032-267-0	01	1	0612-		●	●
485	01.097 PIPE; WATER EGR (D)	8-98041-637-1	01	1	0612-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
