◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#2156) — 78 parça

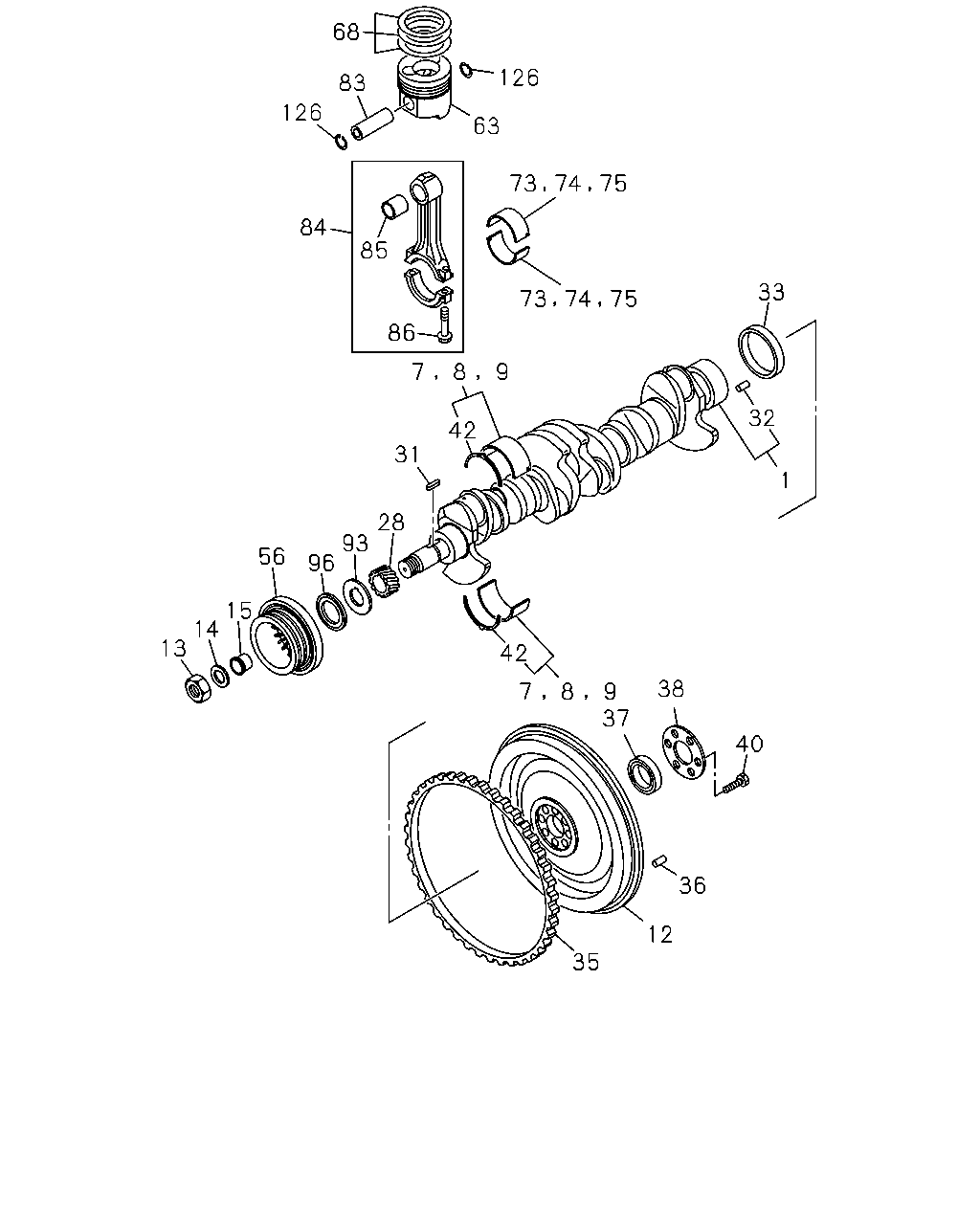

çizim 28591
68 126 83 126 63 74 84 85 33 74 86 7 8 9 32 42 31 1 28 93 96 56 15 14 13 42 38 7 8 9 37 40 36 12 35 73 75 73 75
BalonParca AdiParca NoAdetTipApplied Date A B
1 CRANKSHAFT 1-12310-448-0 01 1 9101- ●
1 CRANKSHAFT 1-12310-437-0 01 1 9101- ●
7 METAL KIT; CRANKSHAFT,STANDARD 1-11510-074-3 01 1 9101- ● ●
8 METAL KIT; CRANKSHAFT,U/S=0.25 1-11530-074-1 01 1 9101- ● ●
9 METAL KIT; CRANKSHAFT,U/S=0.50 1-11540-074-1 01 1 9101- ● ●
12 FLYWHEEL
EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),STARTER DENSO(RC6) FOR 14" CLUTCH 		1-12331-164-3 01 1 9101-9103 ●
12 FLYWHEEL
RIGHT HAND DRIVE(MTR5FB) STARTER DENSO(RC6) GLOW PLUG DELETE<E4D> EXC. ENGINE OIL COOLER HEAVY DUTY(E1E) FOR 14" CLUTCH 		1-12331-164-3 01 1 9101-9103 ●
12 FLYWHEEL
LEFT HAND DRIVE(MTR6FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),STARTER DENSO(RC6) FOR 14" CLUTCH 		1-12331-164-3 01 1 9101-9103 ●
12 FLYWHEEL
EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),STARTER DENSO(RC6) FOR 14" CLUTCH 		1-12331-164-3 01 1 9104-9204 ●
12 FLYWHEEL
RIGHT HAND DRIVE(MTR5FB) GLOW PLUG DELETE<E4D> FOR 14" CLUTCH 		1-12331-164-3 01 1 9104-9204 ●
12 FLYWHEEL
LEFT HAND DRIVE(MTR6FB) PARTIAL OIL FILTER<KC1> FOR 14" CLUTCH 		1-12331-164-3 01 1 9104-9204 ●
12 FLYWHEEL
LEFT HAND DRIVE(MTR6FB) EXC. STARTER DENSO(RC6) FOR 14" CLUTCH 		1-12331-164-3 01 1 9205-9303 ● ●
12 FLYWHEEL
RIGHT HAND DRIVE(MTR5FB) EXC. FLYWHEEL HOUSING SAE #2<E4C> FOR 14" CLUTCH 		1-12331-164-3 01 1 9205-9303 ●
12 FLYWHEEL
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),FLYWHEEL HOUSING SAE #2<E4C>,THAILAND EQUIPMENT(PM9),15 INCHCLUTCH<RE9> FOR 14" CLUTCH 		1-12331-164-3 01 1 9205-9303 ●
12 FLYWHEEL
LEFT HAND DRIVE(MTR6FB) EXC. STARTER DENSO(RC6) FOR 14" CLUTCH 		1-12331-164-3 01 1 9304-0203 ● ●
12 FLYWHEEL
RIGHT HAND DRIVE(MTR5FB) EXC. FLYWHEEL HOUSING SAE #2<E4C> FOR 14" CLUTCH 		1-12331-164-3 01 1 9304-0203 ●
12 FLYWHEEL
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),FLYWHEEL HOUSING SAE #2<E4C>,15 INCH CLUTCH<RE9> FOR 14" CLUTCH 		1-12331-164-3 01 1 9304-0203 ●
12 FLYWHEEL
RIGHT HAND DRIVE(MTR5FB) EXC. FLYWHEEL HOUSING SAE #2<E4C> FOR 14" CLUTCH 14" 		1-12331-164-3 01 1 0204- ● ●
12 FLYWHEEL
RIGHT HAND DRIVE(MTR5FB) ENGINE OIL COOLER HEAVY DUTY(E1E) FOR 14" CLUTCH 		1-12331-183-3 01 1 9101-9204 ●
12 FLYWHEEL
RIGHT HAND DRIVE(MTR5FB) FLYWHEEL HOUSING SAE #2<E4C> FOR 14" CLUTCH 		1-12331-183-3 01 1 9205-9410 ●
12 FLYWHEEL
RIGHT HAND DRIVE(MTR5FB) ENGINE OIL COOLER HEAVY DUTY(E1E) FLYWHEEL HOUSING SAE #2<E4C> THAILAND EQUIPMENT(PM9) EXC. 15 INCH CLUTCH<RE9> FOR 14" CLUTCH 		1-12331-183-3 01 1 9205-9410 ●
12 FLYWHEEL
RIGHT HAND DRIVE(MTR5FB) FLYWHEEL HOUSING SAE #2<E4C> EXC. 15 INCH CLUTCH<RE9> FOR 14" CLUTCH 		1-12331-183-3 01 1 9411-0203 ● ●
12 FLYWHEEL
RIGHT HAND DRIVE(MTR5FB) FLYWHEEL HOUSING SAE #2<E4C> FOR 14" CLUTCH 		1-12331-183-3 01 1 0204- ●
12 FLYWHEEL
RIGHT HAND DRIVE(MTR5FB) ENGINE OIL COOLER HEAVY DUTY(E1E) 15 INCH CLUTCH<RE9> FOR 15" CLUTCH 		1-12331-155-2 01 1 9103-0203 ●
13 NUT; STARTING HANDLE 9-09840-107-1 01 1 9101- ● ●
14 WASHER; PULLEY DAMPER 9-09851-431-0 01 1 9101- ● ●
15 BUSHING; TAPER,CR/SHF PULLEY 9-12379-045-0 01 1 9101- ● ●
28 GEAR; CR/SHF
Z=25 		1-12521-008-0 01 1 9101-9805 ● ●
28 GEAR; CR/SHF
Z=25 		8-97137-910-2 01 1 9806- ● ●
31 KEY; FEATHER,CR/SHF 5-09738-001-0 01 1 9101- ● ●
32 PIN; FLYWHEEL
OD=12 L=20 		9-08151-220-0 01 1 9101- ● ●
33 RING; WEAR,CR/SHF 5-12319-003-2 01 1 9101- ● ●
35 GEAR; RING
EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),STARTER DENSO(RC6) FOR 14" CLUTCH Z=129 		1-12333-017-0 01 1 9101-9103 ●
35 GEAR; RING
RIGHT HAND DRIVE(MTR5FB) STARTER DENSO(RC6) GLOW PLUG DELETE<E4D> EXC. ENGINE OIL COOLER HEAVY DUTY(E1E) FOR 14" CLUTCH Z=129 		1-12333-017-0 01 1 9101-9103 ●
35 GEAR; RING
LEFT HAND DRIVE(MTR6FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),STARTER DENSO(RC6) FOR 14" CLUTCH Z=129 		1-12333-017-0 01 1 9101-9103 ●
35 GEAR; RING
EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),STARTER DENSO(RC6) FOR 14" CLUTCH Z=129 		1-12333-017-0 01 1 9104-9204 ●
35 GEAR; RING
RIGHT HAND DRIVE(MTR5FB) GLOW PLUG DELETE<E4D> FOR 14" CLUTCH Z=129 		1-12333-017-0 01 1 9104-9204 ●
35 GEAR; RING
LEFT HAND DRIVE(MTR6FB) PARTIAL OIL FILTER<KC1> FOR 14" CLUTCH Z=129 		1-12333-017-0 01 1 9104-9204 ●
35 GEAR; RING
LEFT HAND DRIVE(MTR6FB) EXC. STARTER DENSO(RC6) FOR 14" CLUTCH Z=129 		1-12333-017-0 01 1 9205-9303 ● ●
35 GEAR; RING
RIGHT HAND DRIVE(MTR5FB) EXC. FLYWHEEL HOUSING SAE #2<E4C> FOR 14" CLUTCH Z=129 		1-12333-017-0 01 1 9205-9303 ●
35 GEAR; RING
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),FLYWHEEL HOUSING SAE #2<E4C>,THAILAND EQUIPMENT(PM9),15 INCHCLUTCH<RE9> FOR 14" CLUTCH Z=129 		1-12333-017-0 01 1 9205-9303 ●
35 GEAR; RING
LEFT HAND DRIVE(MTR6FB) EXC. STARTER DENSO(RC6) FOR 14" CLUTCH Z=129 		1-12333-017-0 01 1 9304-0203 ● ●
35 GEAR; RING
RIGHT HAND DRIVE(MTR5FB) EXC. FLYWHEEL HOUSING SAE #2<E4C> FOR 14" CLUTCH Z=129 		1-12333-017-0 01 1 9304-0203 ●
35 GEAR; RING
RIGHT HAND DRIVE(MTR5FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),FLYWHEEL HOUSING SAE #2<E4C>,15 INCH CLUTCH<RE9> FOR 14" CLUTCH Z=129 		1-12333-017-0 01 1 9304-0203 ●
35 GEAR; RING
RIGHT HAND DRIVE(MTR5FB) EXC. FLYWHEEL HOUSING SAE #2<E4C> FOR 14" CLUTCH Z=129 		1-12333-017-0 01 1 0204- ● ●
35 GEAR; RING
RIGHT HAND DRIVE(MTR5FB) ENGINE OIL COOLER HEAVY DUTY(E1E) FOR 15" CLUTCH Z=140 		1-12333-015-0 01 1 9101-9204 ●
35 GEAR; RING
RIGHT HAND DRIVE(MTR5FB) ENGINE OIL COOLER HEAVY DUTY(E1E) 15 INCH CLUTCH<RE9> FOR 15" CLUTCH Z=140 		1-12333-015-0 01 1 9205-9410 ●
35 GEAR; RING
RIGHT HAND DRIVE(MTR5FB) FLYWHEEL HOUSING SAE #2<E4C> FOR 15" CLUTCH Z=140 		1-12333-015-0 01 1 9411-0203 ● ●
35 GEAR; RING
RIGHT HAND DRIVE(MTR5FB) FLYWHEEL HOUSING SAE #2<E4C> FOR 15" CLUTCH Z=140 		1-12333-015-1 01 1 0204- ●
36 PIN; FLYWHEEL
OD=10 L=22 		9-08151-022-0 02 1 9101- ● ●
37 BEARING; PILOT,TOP GEAR SHAFT 1-09800-214-0 01 1 9101-9901 ● ●
37 BEARING; PILOT,TOP GEAR SHAFT 8-94392-288-0 01 1 9902- ● ●
38 WASHER; FLYWHEEL 5-12336-008-1 01 1 9101- ● ●
40 BOLT; FLYWHEEL
RIGHT HAND DRIVE(MTR5FB) EXC. USER DAEWOO MOTORS<D4S> 		9-92061-638-0 06 1 9101-9103 ● ●
40 BOLT; FLYWHEEL
LEFT HAND DRIVE(MTR6FB) EXC. ENGINE OIL COOLER HEAVY DUTY(E1E),PARTIAL OILFILTER<KC1>,STARTER DENSO(RC6) 		9-92061-638-0 06 1 9101-9103 ● ●
40 BOLT; FLYWHEEL
RIGHT HAND DRIVE(MTR5FB) EXC. 15 INCH CLUTCH<RE9> 		9-92061-638-0 06 1 9104-0203 ● ●
40 BOLT; FLYWHEEL
LEFT HAND DRIVE(MTR6FB) EXC. STARTER DENSO(RC6) 		9-92061-638-0 06 1 9104-0203 ● ●
40 BOLT; FLYWHEEL 9-92061-638-0 06 1 0204- ● ●
40 BOLT; FLYWHEEL
RIGHT HAND DRIVE(MTR5FB) 15 INCH CLUTCH<RE9> 		1-09000-375-1 06 1 9103-0203 ●
42 WASHER; THRUST,CR/SHF 1-11680-001-3 02 1 9101- ● ●
56 PULLEY; CR/SHF DAMPER
2-GROOVE 		1-12371-242-0 01 1 9101- ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		1-12111-781-0 06 1 9101- ●
63 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		1-12111-782-0 06 1 9101- ●
63 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		1-12111-773-0 06 1 9101- ●
63 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		1-12111-774-0 06 1 9101- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-065-1 06 1 9101-9202 ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-101-1 06 1 9203- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		5-12121-005-0 06 1 9101- ●
73 METAL SET; CONN ROD,STANDARD 9-12271-608-0 06 1 9101- ● ●
74 METAL SET; CONN ROD,U/S=0.25 9-12273-608-0 06 1 9101- ● ●
75 METAL SET; CONN ROD,U/S=0.50 9-12274-608-0 06 1 9101- ● ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		9-12211-604-1 06 1 9101- ● ●
84 ROD ASM; CONN 1-12230-104-1 06 1 9101- ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-027-0 06 1 9101- ● ●
86 BOLT; CONNROD
M20X49.5 		1-12235-027-1 12 1 9101- ● ●
93 THROWER; OIL,CR/SHF 1-12362-003-1 01 1 9101- ● ●
96 THROWER; DUST,CR/SHF 5-12362-003-1 01 1 9101- ● ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94107-575-1 12 1 9101- ● ●
