◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51103 - NPR/NQR(LHD) EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶
0-28 — VENTILATION SYSTEM (#21556) — 16 parça

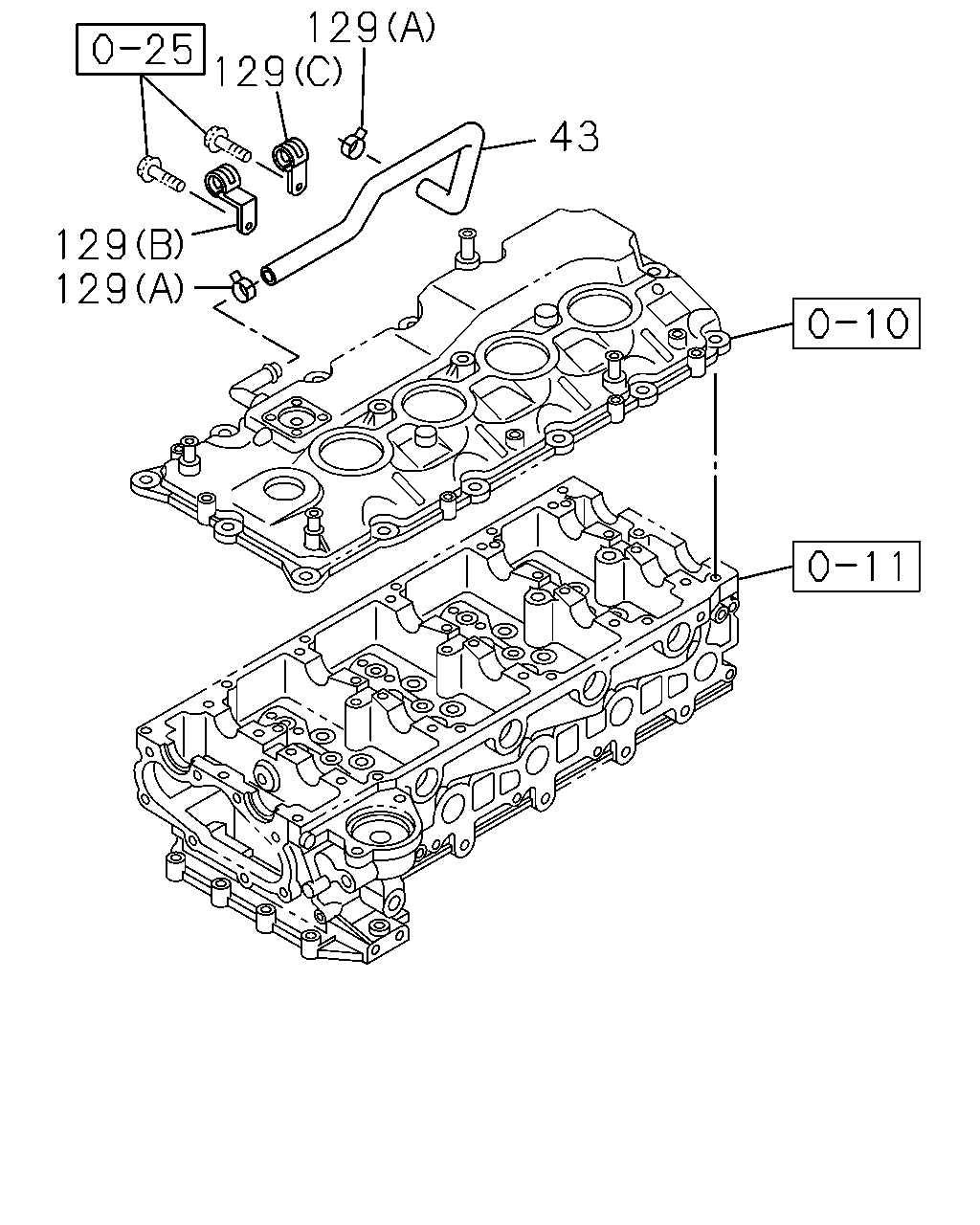

çizim 57655
129 129 43 129 129
BalonParca AdiParca NoAdetTipApplied Date A B C
43 03.278 HOSE; PCV 8-98045-343-0 01 1 0612- ●
129 03.278 CLIP; PCV
04.866 (B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0612-1001 ●
129 03.278 CLIP; PCV
(C) ID=22 L=22 		8-98120-916-0 01 1 1002- ●
129 03.278 CLIP; PCV
09.242 (C) ID=22 L=22 		5-83574-045-0 01 1 0612-1001 ●
129 03.278 CLIP; PCV
(B) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1002- ●
129 03.278 CLIP; PCV
08.846 (A) ID=21.7 		8-97203-074-0 02 1 0612- ●

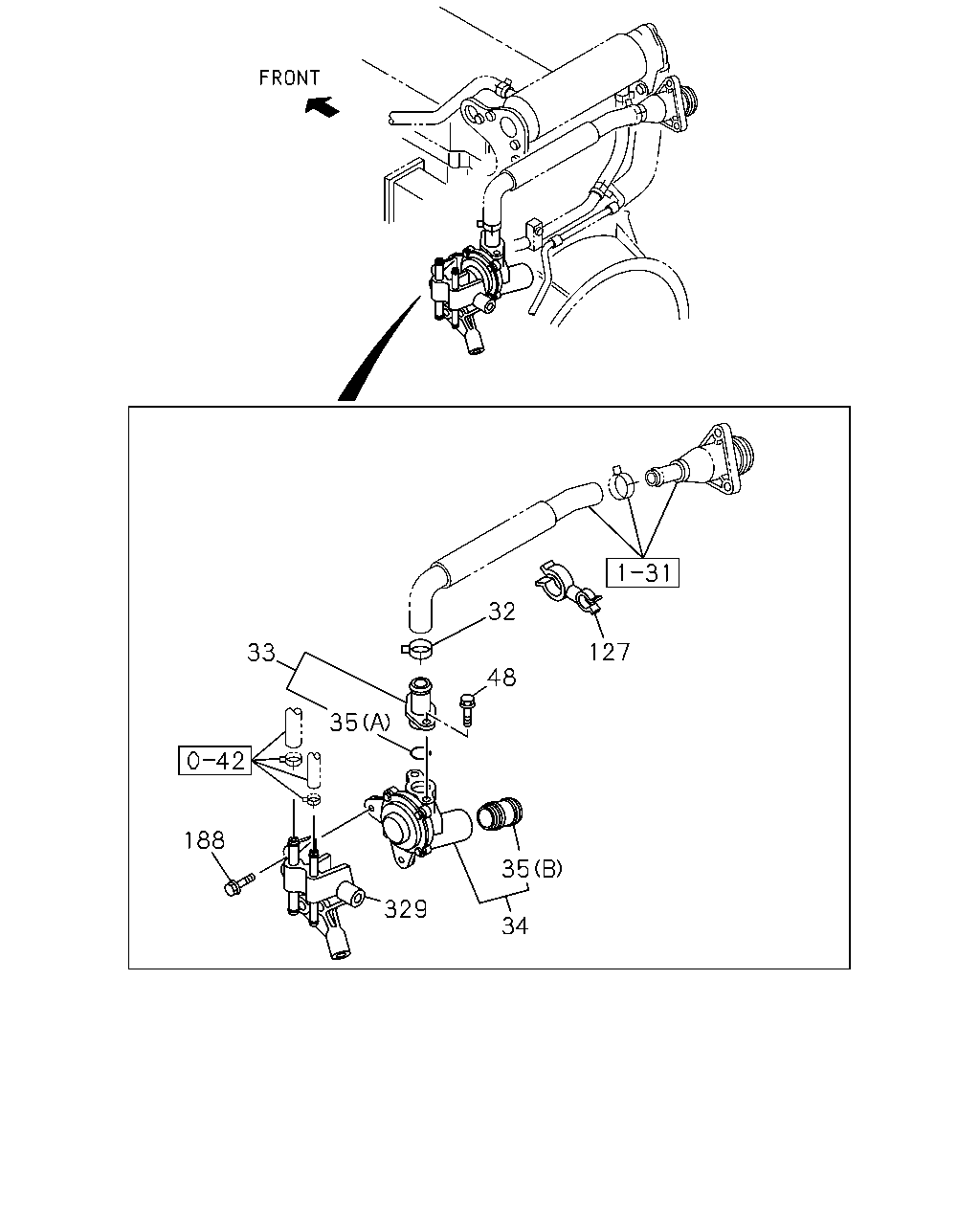

çizim 57838
32 127 33 48 35 188 35 329 34
BalonParca AdiParca NoAdetTipApplied Date A B C
32 03.417 CLIP; VENT HOSE
08.846 ID=21.7 		8-97203-074-0 01 1 0612- ● ●
33 03.278 PIPE; VENTILATOR 8-98037-732-2 01 1 0612- ● ●
34 03.415 VENTILATOR 8-98036-808-1 01 1 0612- ● ●
35 03.415 GASKET; VENTILATOR
01.550 (A) 		1-09623-588-0 01 1 0710- ● ●
35 03.415 GASKET; VENTILATOR
(B) 		8-98038-692-0 01 1 0612- ● ●
48 03.278 BOLT; PIPE
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 0612- ● ●
127 03.675 CLIP; RUBBER HOSE,PCV
HYDRO BRAKE BOOSTER<7QQ> 02.483 ID=25.5 & 13 		8-97181-208-0 01 1 0612- ● ●
188 01.780 BOLT; BRKT
00.206 M8X30 FLANGE 		0-28050-830-0 04 1 0612- ● ●
329 01.750 BRACKET; VENTILATOR 8-98036-160-0 01 1 0612-1009 ● ●
329 01.750 BRACKET; VENTILATOR 8-98171-059-0 01 1 1010- ● ●
