0-22 — ENGINE MOUNTING (#21553) — 67 parça

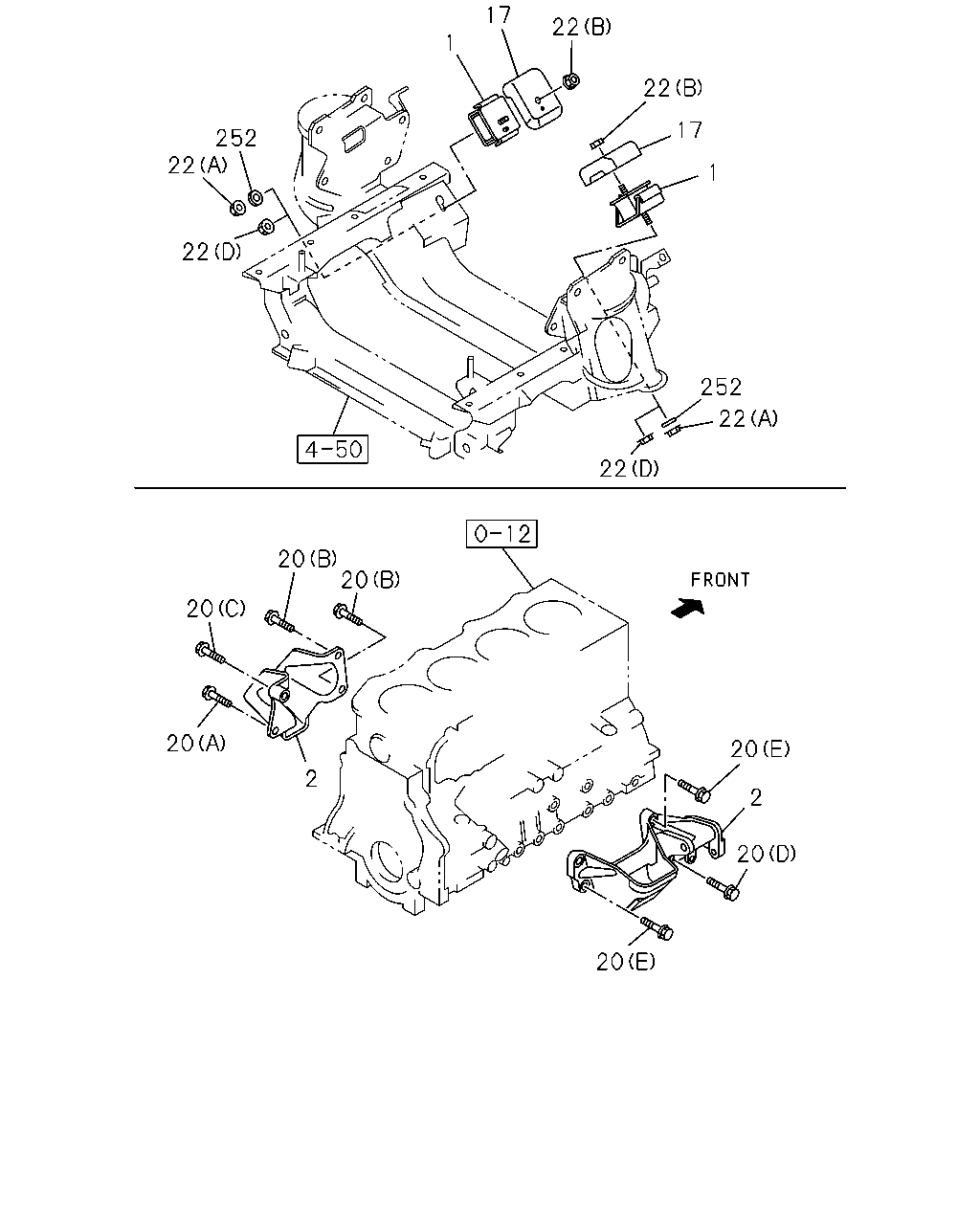

17 22 1 22 17 252 22 1 22 252 22 22 20 20 20 20 20 2 2 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.027 RUBBER; ENG FOOT,FRT	8-98043-001-0	01	1	0612-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-98043-000-0	01	1	0612-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97187-417-0	01	1	0612-		●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97187-416-0	01	1	0612-		●	●
2	00.029 FOOT; ENG	8-97381-513-1	01	1	0612-	●
2	00.029 FOOT; ENG	8-97381-514-2	01	1	0612-	●
2	00.029 FOOT; ENG	8-97228-669-2	02	1	0612-		●	●
17	00.027 COVER; CUSHION RUBBER,FRT	8-97229-825-0	01	1	0612-	●
17	00.027 COVER; CUSHION RUBBER,FRT	8-97383-796-0	01	1	0612-	●
20	00.029 BOLT; ENG FOOT 03.706 (D) M10X70 FLANGE	0-28051-070-0	01	1	0612-	●
20	00.029 BOLT; ENG FOOT 02.343 (A) M10X20 FLANGE	0-28651-020-0	01	1	0612-	●
20	00.029 BOLT; ENG FOOT (B) M10X25 FLANGE	0-28651-025-0	02	1	0612-	●
20	00.029 BOLT; ENG FOOT (E) M10X30 FLANGE	0-28651-030-0	03	1	0612-	●
20	00.029 BOLT; ENG FOOT 02.277 (C) M10X35 FLANGE	0-28651-035-0	01	1	0612-	●
20	00.029 BOLT; ENG FOOT (A) M10X20 FLANGE	0-28161-020-0	08	1	0612-		●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT (B) M12 FLANGE	8-98046-987-0	02	1	0612-	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.002 (A) M12	0-91110-512-0	02	1	0612-0612	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 02.042 (D) M12 FLANGE	0-91180-112-0	02	1	0701-	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 04.085 (C) M10 FLANGE	0-91180-210-0	04	1	0612-		●	●
252	00.002 WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	0612-0612	●	●	●

22 252 20 177 22 2 1 22 22 22 20 252 1 2 177 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.027 RUBBER; ENG FOOT,FRT	8-98043-001-0	01	1	0612-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-98043-000-0	01	1	0612-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97187-417-0	01	1	0612-		●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97187-416-0	01	1	0612-		●	●
2	00.029 FOOT; ENG	8-97381-513-1	01	1	0612-	●
2	00.029 FOOT; ENG	8-97381-514-2	01	1	0612-	●
2	00.029 FOOT; ENG	8-97228-669-2	02	1	0612-		●	●
20	00.029 BOLT; ENG FOOT 03.706 (D) M10X70 FLANGE	0-28051-070-0	01	1	0612-	●
20	00.029 BOLT; ENG FOOT 02.343 (A) M10X20 FLANGE	0-28651-020-0	01	1	0612-	●
20	00.029 BOLT; ENG FOOT (B) M10X25 FLANGE	0-28651-025-0	02	1	0612-	●
20	00.029 BOLT; ENG FOOT (E) M10X30 FLANGE	0-28651-030-0	03	1	0612-	●
20	00.029 BOLT; ENG FOOT 02.277 (C) M10X35 FLANGE	0-28651-035-0	01	1	0612-	●
20	00.029 BOLT; ENG FOOT (A) M10X20 FLANGE	0-28161-020-0	08	1	0612-		●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT (B) M12 FLANGE	8-98046-987-0	02	1	0612-	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.002 (A) M12	0-91110-512-0	02	1	0612-0612	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 02.042 (D) M12 FLANGE	0-91180-112-0	02	1	0701-	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 04.085 (C) M10 FLANGE	0-91180-210-0	04	1	0612-		●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0612-		●	●
252	00.002 WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	0612-0612	●	●	●

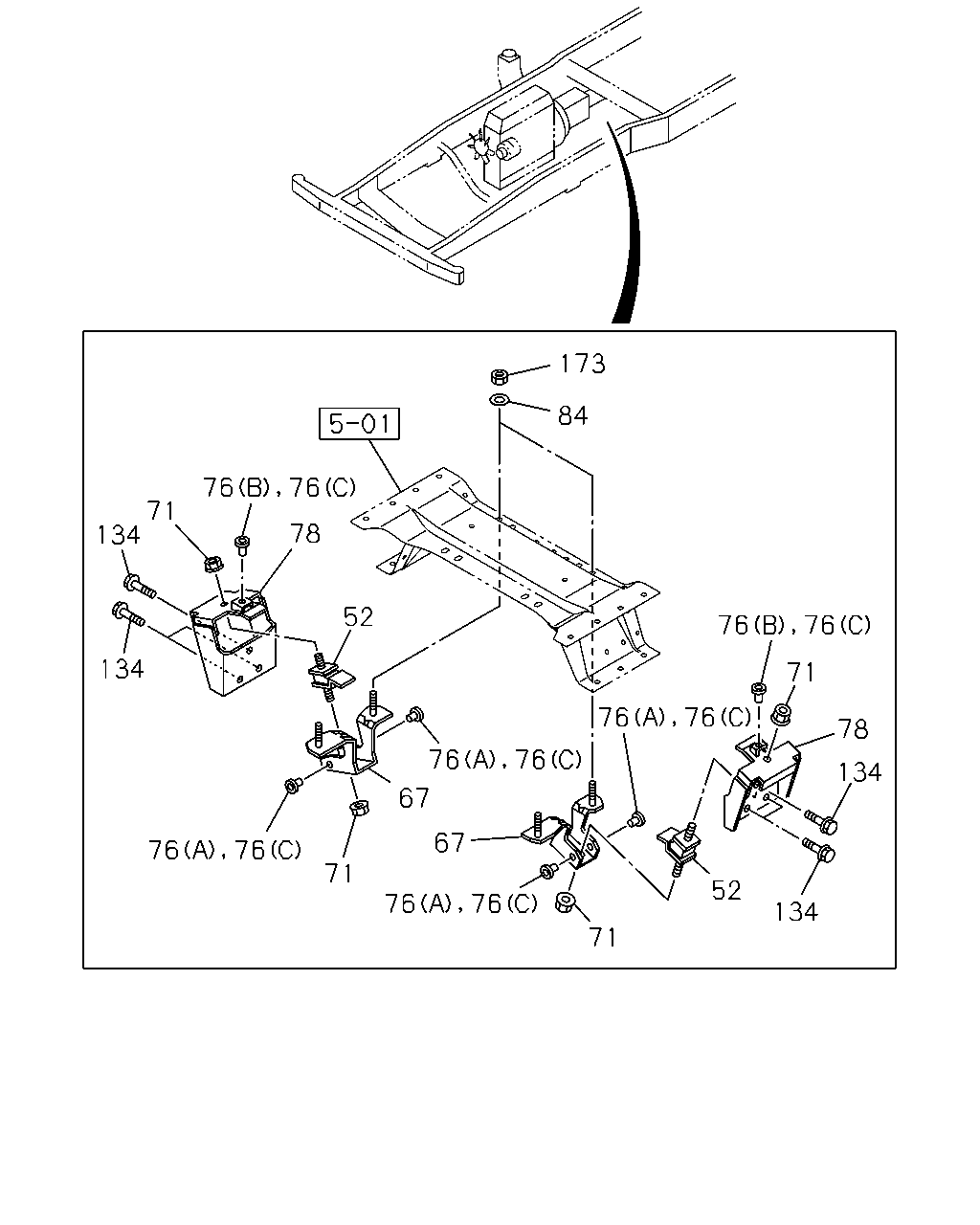

173 84 71 134 78 52 134 71 76 76 78 76 76 134 67 67 76 76 71 52 76 76 134 71 76 76 76 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MYY6S(RST)	8-94111-903-1	02	1	0612-	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97039-277-0	02	1	0612-		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MZZ6F(RSR)	8-97039-277-0	02	1	0612-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR M/T MYY6S(RST)	8-97371-919-0	01	1	0612-	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR M/T MYY6S(RST)	8-97325-569-0	01	1	0612-	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97039-282-2	02	1	0612-		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR M/T MZZ6F(RSR)	8-97039-282-2	02	1	0612-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR M/T MYY6S(RST)	8-97371-918-0	01	1	0612-		●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR M/T MYY6S(RST)	8-97325-567-0	01	1	0612-		●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT M/T MYY6S(RST) 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-		●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MYY6S(RST) 00.027 (C)	8-94111-904-0	06	1	0612-	●	●	●
76	00.002 STOPPER; ENG MTG RUBBER M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.027 (B)	8-94111-904-0	02	1	0612-		●
76	00.002 STOPPER; ENG MTG RUBBER M/T MZZ6F(RSR) 00.027 (B)	8-94111-904-0	02	1	0612-			●
76	00.002 STOPPER; ENG MTG RUBBER M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97039-947-1	02	1	0612-		●
76	00.002 STOPPER; ENG MTG RUBBER M/T MZZ6F(RSR) (A)	8-97039-947-1	02	1	0612-			●
78	00.029 BRACKET; ENG MTG,RR M/T MYY6S(RST)	8-97325-562-0	01	1	0612-	●
78	00.029 BRACKET; ENG MTG,RR M/T MYY6S(RST)	8-97325-563-0	01	1	0612-	●
78	00.029 BRACKET; ENG MTG,RR M/T MYY6S(RST)	8-97325-564-0	01	1	0612-		●	●
78	00.029 BRACKET; ENG MTG,RR M/T MYY6S(RST)	8-97325-565-0	01	1	0612-		●	●
78	00.029 BRACKET; ENG MTG,RR M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97307-777-0	01	1	0612-		●	●
78	00.029 BRACKET; ENG MTG,RR M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97172-399-1	01	1	0612-		●	●
78	00.029 BRACKET; ENG MTG,RR M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97378-619-0	01	1	0612-			●
78	00.029 BRACKET; ENG MTG,RR M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97378-618-0	01	1	0612-			●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	0612-	●	●	●
134	00.029 BOLT; SUPPORT BRKT FLOOR REMOTE SHIFT<M11> 09.181 M12X25 FLANGE	0-28751-225-0	06	1	0612-	●	●	●
173	00.002 NUT; ENG MTG RR TO FRAME 03.162 M10 FLANGE	0-91180-110-0	04	1	0612-	●	●	●
