0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#21552) — 154 parça

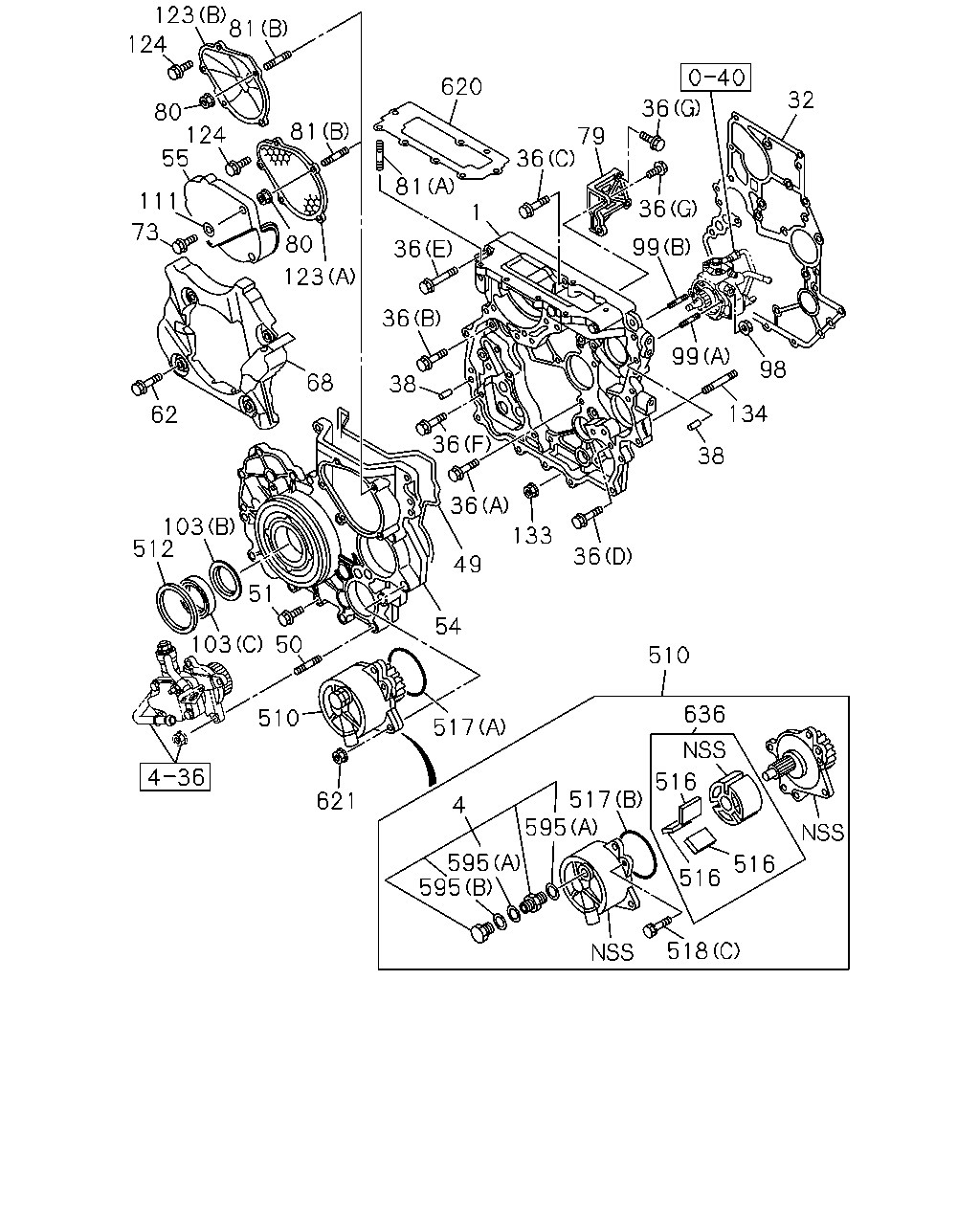

123 81 124 620 32 36 80 124 55 81 79 36 81 36 111 1 73 80 99 36 123 36 99 98 68 38 134 62 36 38 36 103 512 133 36 49 51 54 103 50 510 636 510 517 516 517 595 621 4 595 595 516 516 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.206 CASE; TIMING GEAR	8-97945-261-2	01	1	0612-	●
4	00.213 VALVE ASM; CHECK	8-98049-521-0	01	1	0612-	●	●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	0612-	●
36	00.206 BOLT; GEAR CASE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0612-	●
36	00.206 BOLT; GEAR CASE 04.338 (B) M8X20 FLANGE	0-28050-820-0	12	1	0612-	●
36	00.206 BOLT; GEAR CASE 03.162 (C) M8X35 FLANGE	0-28050-835-0	01	1	0612-	●
36	00.206 BOLT; GEAR CASE 09.173 (D) M8X45 FLANGE	0-28050-845-0	02	1	0612-	●
36	00.206 BOLT; GEAR CASE 04.686 (E) M8X60 FLANGE	0-28050-860-0	01	1	0612-	●
36	00.206 BOLT; GEAR CASE 06.216 (F) M8X25 FLANGE	0-28650-825-0	01	1	0612-	●
36	00.206 BOLT; GEAR CASE 03.403 (G) M8X30 FLANGE	0-28650-830-0	03	1	0612-	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0612-	●
49	00.206 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97945-298-0	01	1	0612-	●
50	00.206 STUD M8X27,M8X14 L=64.5	8-97354-808-2	06	1	0612-	●
51	00.206 BOLT; GEAR CASE COVER	8-97354-697-1	14	1	0612-	●
54	00.206 COVER; GEAR CASE	8-98012-960-2	01	1	0612-1007	●
54	00.206 COVER; GEAR CASE	8-98165-119-1	01	1	1008-	●
55	00.206 COVER; NOISE SHIELD	8-97375-190-1	01	1	0612-1006	●
62	00.206 BOLT; COVER 03.162 M6X20 FLANGE	0-28650-620-0	04	1	0612-	●
62	00.206 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	06	1	0612-		●	●
62	00.206 BOLT; COVER 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0612-		●	●
62	00.206 BOLT; COVER GENERATOR 24V50A(6QN) 01.060 M8X35 FLANGE	0-28650-835-0	05	1	0612-0705		●	●
62	00.206 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	06	1	0706-		●	●
62	00.206 BOLT; COVER GENERATOR 24V50A(6QN) 01.097 M8X65 FLANGE	1-09044-072-1	03	1	0612-0705		●	●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	02	1	0706-		●	●
62	00.206 BOLT; COVER GENERATOR 24V80A(7YN) 01.060 M8X35 FLANGE	0-28650-835-0	06	1	0612-0705		●	●
62	00.206 BOLT; COVER GENERATOR 24V80A(7YN) 01.097 M8X65 FLANGE	1-09044-072-1	02	1	0612-0705		●	●
68	00.206 COVER ASM; GEAR CASE COVER	8-98009-466-3	01	1	0612-	●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0612-1006	●
79	00.219 BRACKET; GEAR CASE COVER	8-97370-390-2	01	1	0612-	●
80	00.206 NUT; COVER 01.540 M6 FLANGE	0-91180-206-0	02	1	0612-	●
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25	0-41010-616-0	02	1	0612-	●
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48	0-49140-830-0	02	1	0612-	●
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	0612-	●
99	00.206 STUD; INJ PUMP (A) M8X30 L=41	8-97369-449-0	01	1	0612-	●
99	00.206 STUD; INJ PUMP (B) M8X45 L=56	8-97369-450-0	01	1	0612-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97382-606-0	01	1	0612-1007	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98158-110-0	01	1	1008-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97386-601-0	01	1	0612-1007	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97329-780-0	01	1	0612-		●	●
111	00.206 WASHER; PL 02.334 ID=6.4 OD=22	9-09164-806-0	02	1	0612-1006	●
123	00.206 COVER; TIMING,LWR (A)	8-97371-720-1	01	1	0612-1006	●
123	00.206 COVER; TIMING,LWR (B)	8-98158-145-0	01	1	1007-	●
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0612-	●
133	00.206 NUT; TIMING GEAR CASE 01.540 M8 FLANGE	0-91180-208-0	02	1	0612-	●
134	00.669 STUD; TIMING GEAR CASE 02.510 M8X20 L=32	0-41010-820-0	02	1	0612-	●
510	04.895 PUMP ASM; VACUUM	8-98005-250-0	01	1	0612-1005	●
510	04.895 PUMP ASM; VACUUM	8-98162-748-0	01	1	1006-	●
510	04.895 PUMP ASM; VACUUM 03.306	8-97388-589-6	01	1	0612-		●	●
512	04.895 RUBBER; SPACE	8-97322-675-0	01	1	0612-1007	●
512	04.895 RUBBER; SPACE	8-98165-120-0	01	1	1008-1011	●
516	04.895 VANE; VAC PUMP	8-98051-275-0	03	1	0612-	●
516	04.895 VANE; VAC PUMP	8-98051-279-0	03	1	0612-		●	●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98049-522-0	01	1	0612-	●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A)	9-09566-271-0	01	1	0612-	●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98051-280-0	01	1	0612-		●	●
518	04.895 BOLT; VAC PUMP (C)	8-98049-523-0	03	1	0612-	●
518	04.895 BOLT; VAC PUMP 01.531 (A) M6X25 W/LK&PL WASHER	0-50640-625-0	03	1	0612-		●	●
518	04.895 BOLT; VAC PUMP (B) M8X20	8-98051-277-0	02	1	0612-		●	●
595	00.213 GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12	8-98018-518-0	01	1	0612-	●	●	●
595	00.213 GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18	8-98018-519-0	02	1	0612-	●	●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 1-NOTCH	8-97328-828-2	01	1	0612-	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.45 2-NOTCH	8-97331-631-2	01	1	0612-	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.50 3-NOTCH	8-97331-632-2	01	1	0612-	●
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE	0-91180-208-0	03	1	0612-	●
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98049-520-0	01	1	0612-	●
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98051-281-0	01	1	0612-		●	●

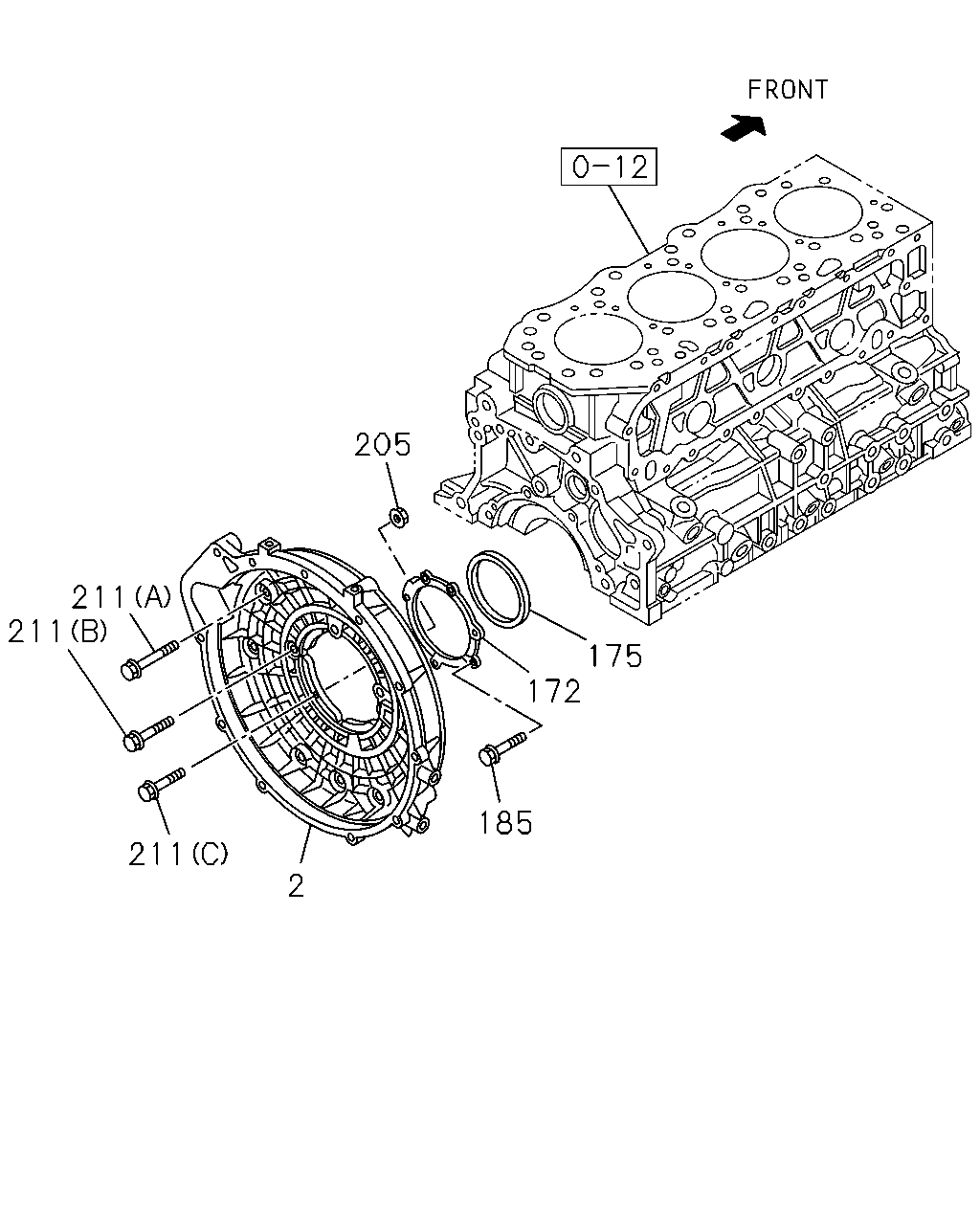

205 211 211 175 172 185 211 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	00.683 HOUSING; FLYWHEEL	8-97381-492-3	01	1	0612-	●
2	00.683 HOUSING; FLYWHEEL	8-97364-901-3	01	1	0612-		●	●
172	00.137 RETAINER; CR/SHF	8-97175-986-3	01	1	0612-1012	●
172	00.137 RETAINER; CR/SHF	8-97379-826-0	01	1	1101-	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0612-	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0612-		●	●
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0612-	●
205	00.669 NUT; HSG 04.085 M10 FLANGE	0-91180-210-0	01	1	0612-	●
211	00.669 BOLT; HSG 09.003 (A) M12X35 FLANGE	0-28651-235-0	06	1	0612-	●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0612-	●
211	00.669 BOLT; HSG 00.862 (C) M10X43	9-09606-535-0	01	1	0612-	●
211	00.669 BOLT; HSG 00.029 (D) M10X40 FLANGE	0-28751-040-0	01	1	0612-		●	●
211	00.669 BOLT; HSG (D) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0612-1102		●	●
211	00.669 BOLT; HSG (D) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	11	1	1103-		●	●
211	00.669 BOLT; HSG (D) M12X30 FLANGE	8-97135-419-0	02	1	0612-		●	●

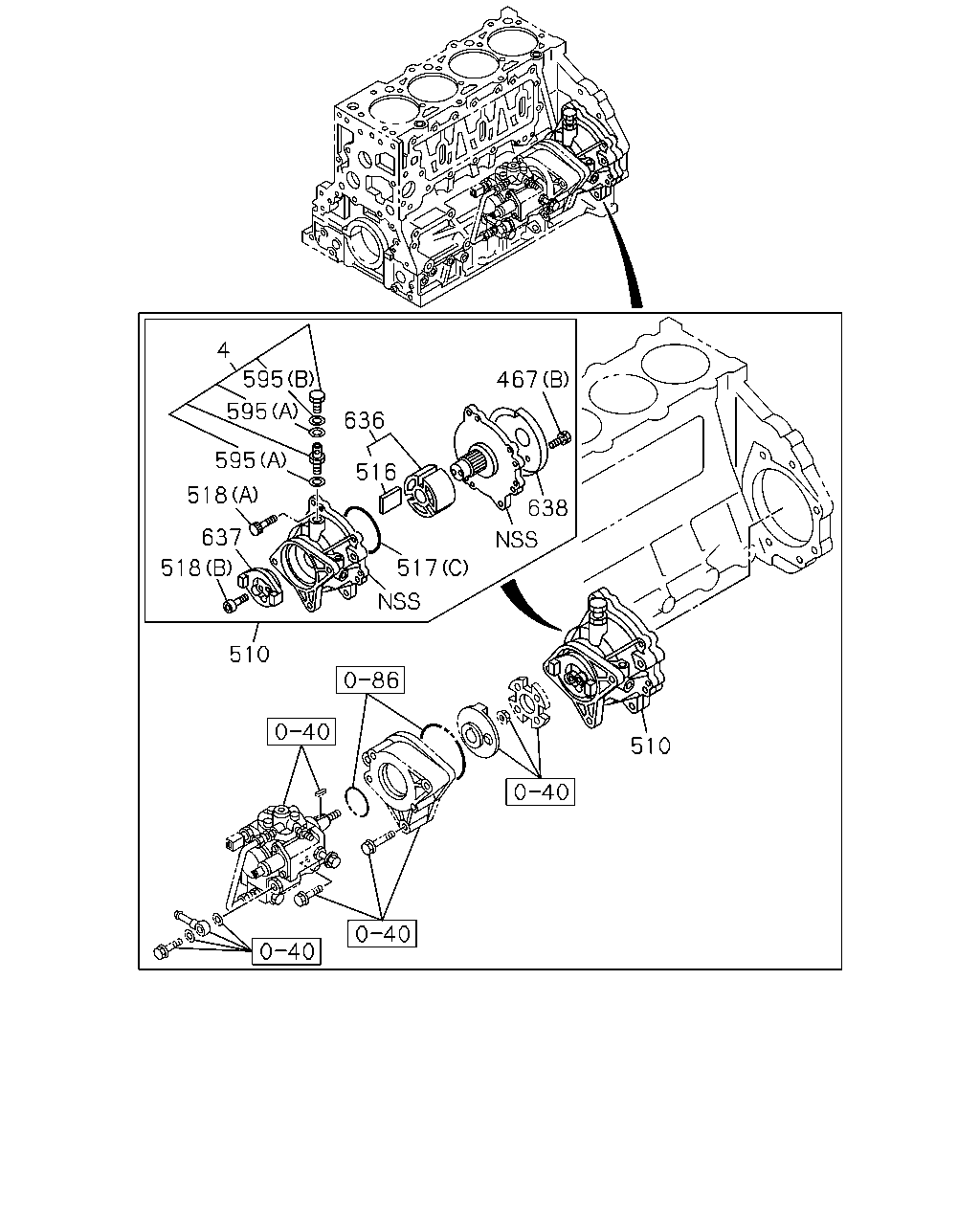

4 595 467 595 636 595 516 518 638 637 518 517 510 510

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	00.213 VALVE ASM; CHECK	8-98049-521-0	01	1	0612-	●	●	●
467	00.686 BOLT; PLATE 04.895 (B)	8-98049-523-0	02	1	0612-		●	●
467	00.686 BOLT; PLATE 05.815 (A) M6X10	0-20800-610-0	06	1	0612-0805		●	●
467	00.686 BOLT; PLATE 06.321 (A) M6X10	8-98030-649-0	06	1	0806-		●	●
510	04.895 PUMP ASM; VACUUM	8-98005-250-0	01	1	0612-1005	●
510	04.895 PUMP ASM; VACUUM	8-98162-748-0	01	1	1006-	●
510	04.895 PUMP ASM; VACUUM 03.306	8-97388-589-6	01	1	0612-		●	●
516	04.895 VANE; VAC PUMP	8-98051-275-0	03	1	0612-	●
516	04.895 VANE; VAC PUMP	8-98051-279-0	03	1	0612-		●	●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98049-522-0	01	1	0612-	●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A)	9-09566-271-0	01	1	0612-	●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98051-280-0	01	1	0612-		●	●
518	04.895 BOLT; VAC PUMP (C)	8-98049-523-0	03	1	0612-	●
518	04.895 BOLT; VAC PUMP 01.531 (A) M6X25 W/LK&PL WASHER	0-50640-625-0	03	1	0612-		●	●
518	04.895 BOLT; VAC PUMP (B) M8X20	8-98051-277-0	02	1	0612-		●	●
595	00.213 GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12	8-98018-518-0	01	1	0612-	●	●	●
595	00.213 GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18	8-98018-519-0	02	1	0612-	●	●	●
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98049-520-0	01	1	0612-	●
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98051-281-0	01	1	0612-		●	●
637	00.206 COUPLING; VAC PUMP	8-98051-278-0	01	1	0612-		●	●
638	00.206 PLATE KIT; VAC PUMP	8-98051-276-0	01	1	0612-		●	●

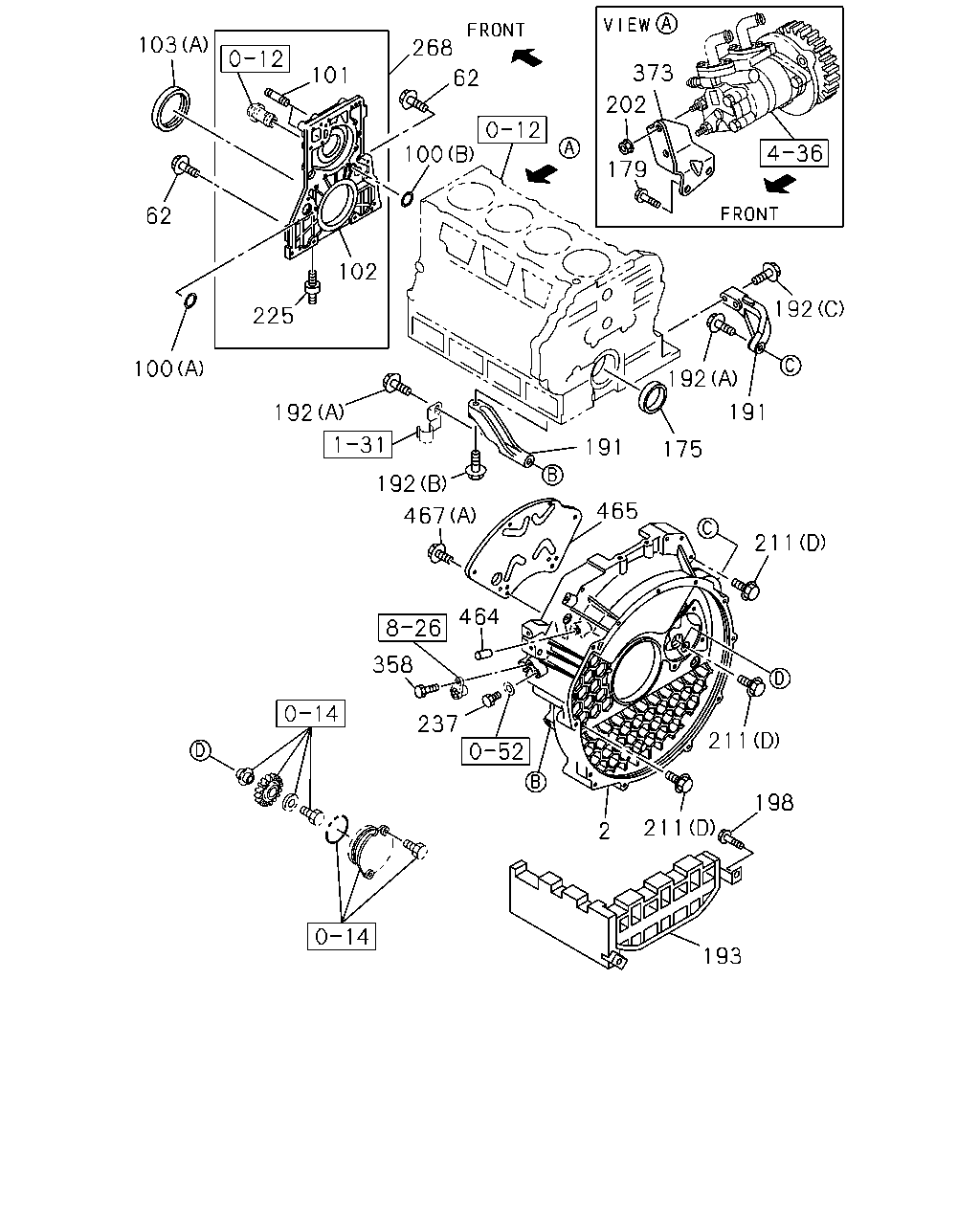

103 268 373 101 62 202 179 100 62 102 192 225 100 192 191 192 191 175 192 465 467 211 464 358 237 211 198 211 2 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	00.683 HOUSING; FLYWHEEL	8-97381-492-3	01	1	0612-	●
2	00.683 HOUSING; FLYWHEEL	8-97364-901-3	01	1	0612-		●	●
62	00.206 BOLT; COVER 03.162 M6X20 FLANGE	0-28650-620-0	04	1	0612-	●
62	00.206 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	06	1	0612-		●	●
62	00.206 BOLT; COVER 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0612-		●	●
62	00.206 BOLT; COVER GENERATOR 24V50A(6QN) 01.060 M8X35 FLANGE	0-28650-835-0	05	1	0612-0705		●	●
62	00.206 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	06	1	0706-		●	●
62	00.206 BOLT; COVER GENERATOR 24V50A(6QN) 01.097 M8X65 FLANGE	1-09044-072-1	03	1	0612-0705		●	●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	02	1	0706-		●	●
62	00.206 BOLT; COVER GENERATOR 24V80A(7YN) 01.060 M8X35 FLANGE	0-28650-835-0	06	1	0612-0705		●	●
62	00.206 BOLT; COVER GENERATOR 24V80A(7YN) 01.097 M8X65 FLANGE	1-09044-072-1	02	1	0612-0705		●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0612-		●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0612-		●	●
101	01.073 STUD; WATER PUMP 01.428 UPPER M8X18 L=30	0-41010-818-0	01	1	0612-		●	●
101	01.073 STUD; WATER PUMP 00.206 LOWER M8X18 L=29	8-97028-541-0	01	1	0612-		●	●
102	00.137 RETAINER; FRT GENERATOR 24V50A(6QN)	8-97148-938-1	01	1	0612-0705		●	●
102	00.137 RETAINER; FRT GENERATOR 24V80A(7YN)	8-98057-152-0	01	1	0612-0705		●	●
102	00.137 RETAINER; FRT	8-98039-932-2	01	1	0706-		●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97382-606-0	01	1	0612-1007	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98158-110-0	01	1	1008-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97386-601-0	01	1	0612-1007	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97329-780-0	01	1	0612-		●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0612-	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0612-		●	●
179	00.206 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 03.417 M10X20 FLANGE	0-28151-020-0	02	1	0612-		●	●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	0612-		●	●
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	0612-		●	●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28151-250-0	02	1	0612-		●	●
192	00.206 BOLT; STAY TO HSG 02.510 (B) M12X100 FLANGE	0-28151-200-0	01	1	0612-		●	●
192	00.206 BOLT; STAY TO HSG 09.171 (C) M10X40 FLANGE	0-28151-040-0	02	1	0612-		●	●
193	01.428 SPACER; STAY TO OIL,PAN NOISE PACK FOR REGULATION VAR.2<7TF>	8-97259-536-0	01	1	0612-		●	●
198	01.428 BOLT; STAY TO OIL PAN 03.162 M12X20 FLANGE	0-28151-220-0	02	1	0612-		●	●
202	00.206 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-		●	●
211	00.669 BOLT; HSG 09.003 (A) M12X35 FLANGE	0-28651-235-0	06	1	0612-	●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0612-	●
211	00.669 BOLT; HSG 00.862 (C) M10X43	9-09606-535-0	01	1	0612-	●
211	00.669 BOLT; HSG 00.029 (D) M10X40 FLANGE	0-28751-040-0	01	1	0612-		●	●
211	00.669 BOLT; HSG (D) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0612-1102		●	●
211	00.669 BOLT; HSG (D) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	11	1	1103-		●	●
211	00.669 BOLT; HSG (D) M12X30 FLANGE	8-97135-419-0	02	1	0612-		●	●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0612-		●	●
237	00.686 PLUG; FLYWHEEL HSG 06.225 M10X12 FLANGE	0-28051-012-0	01	1	0612-		●	●
268	00.206 COVER; FRT GENERATOR 24V50A(6QN)	8-97258-865-0	01	1	0612-0705		●	●
268	00.206 COVER; FRT	8-98039-931-2	01	1	0706-		●	●
268	00.206 COVER; FRT GENERATOR 24V80A(7YN)	8-98057-151-0	01	1	0612-0705		●	●
358	00.206 BOLT; ADAPTER 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0612-		●	●
373	00.206 BRACKET; PUMP HYDRO BRAKE BOOSTER<7QQ>	8-97149-333-0	01	1	0612-		●	●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0612-		●	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-823-0	01	1	0612-		●	●
467	00.686 BOLT; PLATE 04.895 (B)	8-98049-523-0	02	1	0612-		●	●
467	00.686 BOLT; PLATE 05.815 (A) M6X10	0-20800-610-0	06	1	0612-0805		●	●
467	00.686 BOLT; PLATE 06.321 (A) M6X10	8-98030-649-0	06	1	0806-		●	●
