Sayfa 0-15 - Isuzu EPC

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#21551) — 218 parça

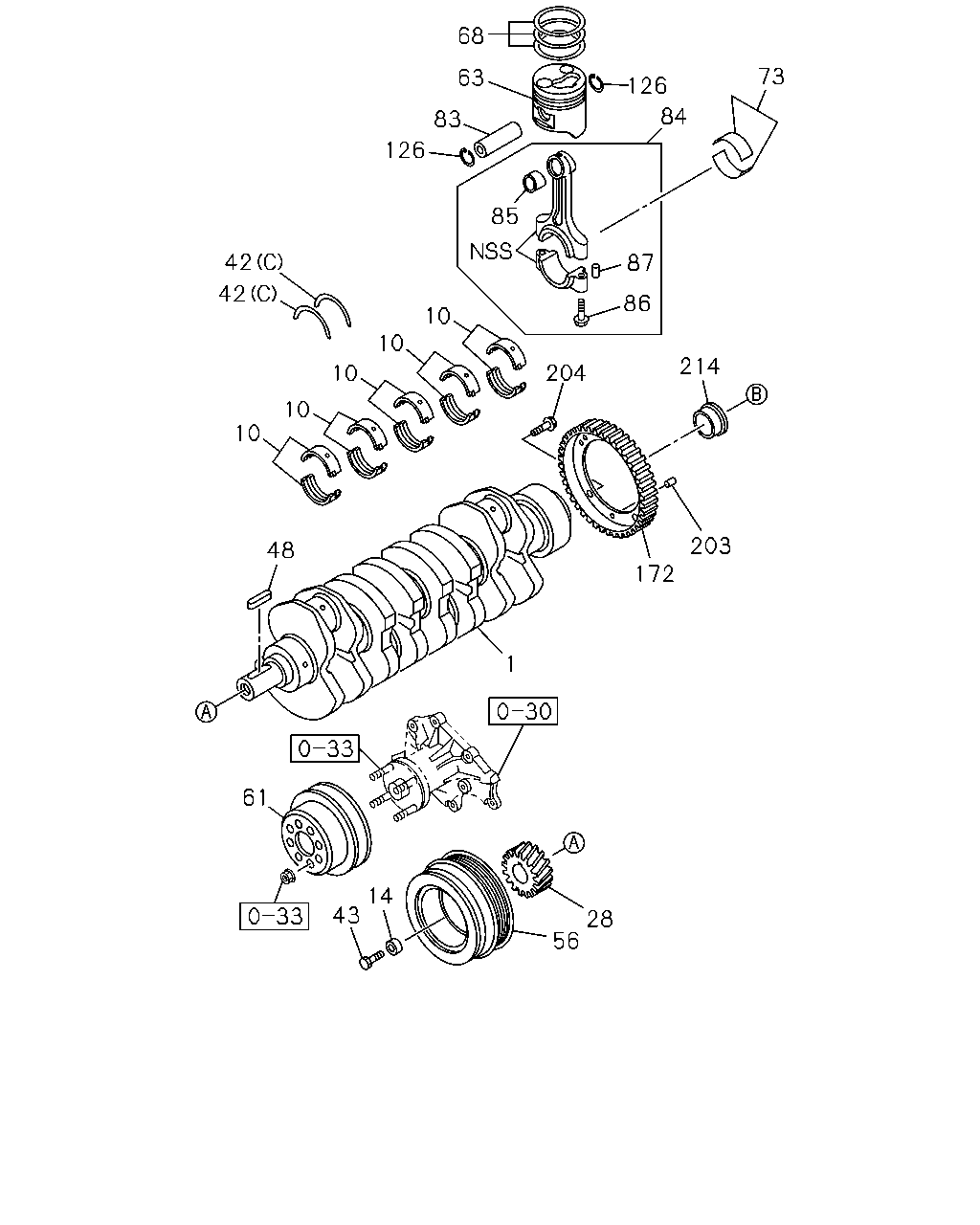

68 73 63 126 84 83 126 85 42 87 42 86 10 10 214 204 10 10 10 203 48 172 1 61 14 43 28 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.646 CRANKSHAFT	8-97388-828-4	01	1	0612-1007	●
1	00.646 CRANKSHAFT	8-98154-950-2	01	1	1008-	●
1	00.646 CRANKSHAFT	8-98029-270-0	01	1	0612-		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	0612-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	0612-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	0612-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	0612-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	0612-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	0612-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	0612-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	0612-		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	0612-		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	0612-		●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	0612-1007	●
14	00.662 WASHER; PULLEY DAMPER ID=23 OD=72 T=3	8-98165-125-0	01	1	1008-	●
28	00.728 GEAR; CR/SHF Z=44	8-97386-232-1	01	1	0612-1007	●
28	00.728 GEAR; CR/SHF Z=44	8-98154-945-1	01	1	1008-	●
28	00.728 GEAR; CR/SHF Z=42	8-94394-342-4	01	1	0612-		●	●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-98040-704-0	02	1	0612-	●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0612-		●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0612-		●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0612-1007	●
43	00.662 BOLT; CR/SHF PULLEY M10X90	8-98165-234-1	06	1	1008-	●
48	00.662 KEY; WOODRUFF,CR/SHF 00.729	8-94201-641-0	01	1	0612-	●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-97361-562-1	01	1	0612-1007	●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-98154-943-1	01	1	1008-	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-98004-024-3	01	1	0612-		●	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	0612-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-98003-384-1	01	1	0612-		●	●
63	00.629 PISTON GRADE=A	8-98043-703-0	04	1	0612-	●
63	00.629 PISTON GRADE=B	8-98043-704-0	04	1	0612-	●
63	00.629 PISTON GRADE=C	8-98043-705-0	04	1	0612-	●
63	00.629 PISTON NON GRADE ALSO INCLUDED IN LINER SET.	8-98041-141-0	04	1	0612-		●	●
68	00.643 RING SET; PISTON,STANDARD	8-98053-579-0	04	1	0612-1105	●
68	00.643 RING SET; PISTON,STANDARD	8-98185-780-0	04	1	1106-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	0612-		●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0612-	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	04	1	0612-0701		●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-98064-282-0	04	1	0702-0706		●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	0707-		●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	04	1	0612-0701		●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-98064-281-0	04	1	0702-0706		●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	0707-		●	●
83	00.636 PIN; PISTON	8-98015-193-1	04	1	0612-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	0612-		●	●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	0612-	●
84	00.603 ROD ASM; CONN	8-94391-791-1	04	1	0612-0706		●	●
84	00.603 ROD ASM; CONN	8-98018-425-2	04	1	0707-		●	●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	0612-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	0612-		●	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0612-0701	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	0702-	●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0612-1004		●	●
86	00.623 BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1005-		●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0612-	●
126	00.639 RING; SNAP,PISTON PIN	8-94460-687-0	08	1	0612-	●
126	00.639 RING; SNAP,PISTON PIN OD=43.7 ALSO INCLUDED IN LINER SET.	8-98006-828-0	08	1	0612-		●	●
172	02.383 ROTOR; CRANK SENSOR	8-97312-337-0	01	1	0612-1101	●
172	02.383 ROTOR; CRANK SENSOR	8-98163-693-0	01	1	1102-	●
203	01.150 PIN; ROTOR 00.613 OD=5 L=8	9-08160-508-0	01	1	0612-	●
204	01.150 BOLT; ROTOR 02.383	8-97213-333-0	03	1	0612-0805	●
204	01.150 BOLT; ROTOR 02.383	8-98038-343-0	03	1	0806-	●
214	00.724 STOPPER; BEARING EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-560-0	01	1	0612-0911	●

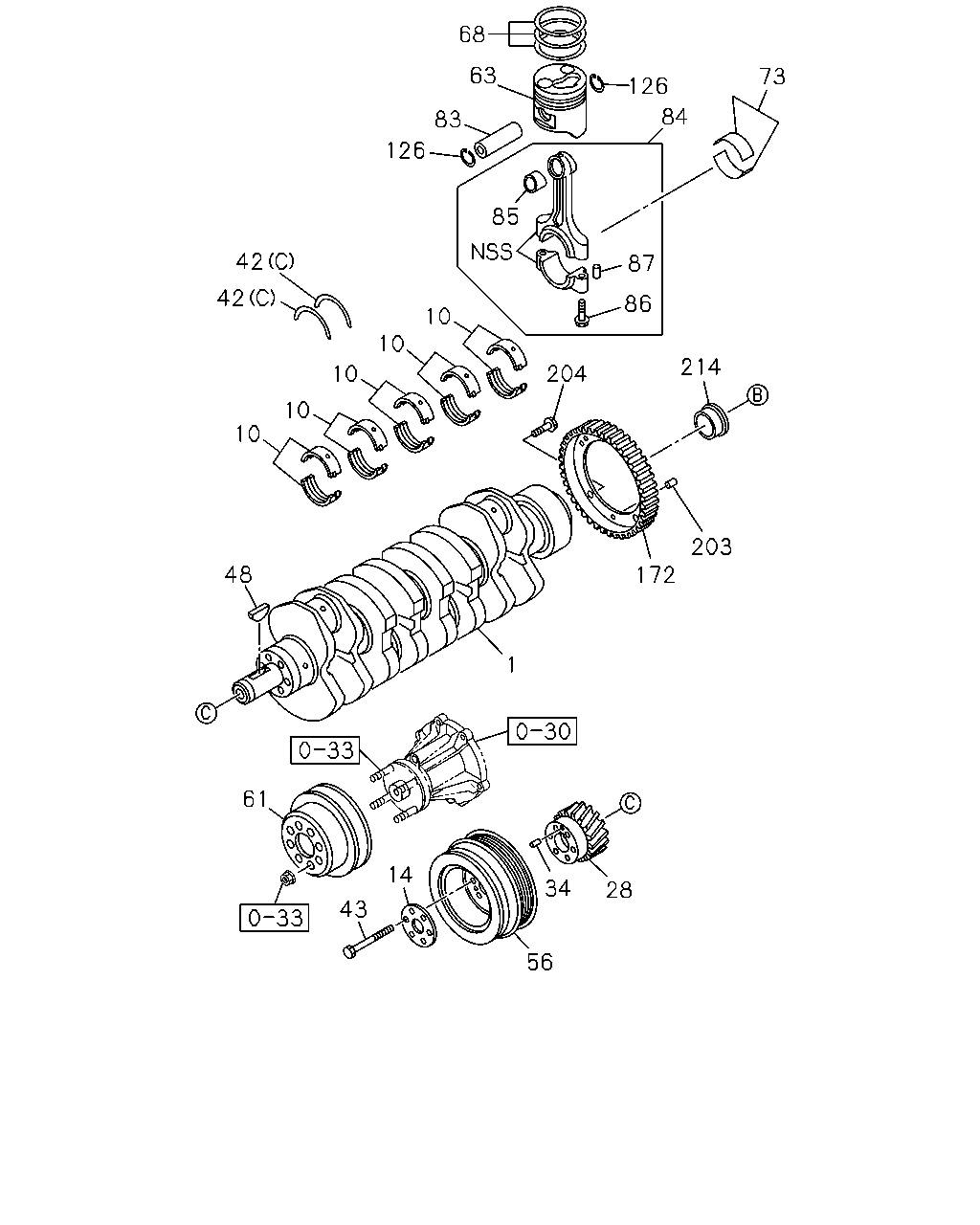

68 63 73 126 84 83 126 85 42 87 42 86 10 10 214 204 10 10 10 203 48 172 1 61 14 34 28 43 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.646 CRANKSHAFT	8-97388-828-4	01	1	0612-1007	●
1	00.646 CRANKSHAFT	8-98154-950-2	01	1	1008-	●
1	00.646 CRANKSHAFT	8-98029-270-0	01	1	0612-		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	0612-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	0612-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	0612-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	0612-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	0612-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	0612-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	0612-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	0612-		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	0612-		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	0612-		●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	0612-1007	●
14	00.662 WASHER; PULLEY DAMPER ID=23 OD=72 T=3	8-98165-125-0	01	1	1008-	●
28	00.728 GEAR; CR/SHF Z=44	8-97386-232-1	01	1	0612-1007	●
28	00.728 GEAR; CR/SHF Z=44	8-98154-945-1	01	1	1008-	●
28	00.728 GEAR; CR/SHF Z=42	8-94394-342-4	01	1	0612-		●	●
34	00.738 PIN; GEAR SETTING OD=5 L=10	9-08160-510-0	01	1	1008-	●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0612-		●	●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-98040-704-0	02	1	0612-	●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0612-		●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0612-		●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0612-1007	●
43	00.662 BOLT; CR/SHF PULLEY M10X90	8-98165-234-1	06	1	1008-	●
48	00.662 KEY; WOODRUFF,CR/SHF 00.729	8-94201-641-0	01	1	0612-	●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-97361-562-1	01	1	0612-1007	●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-98154-943-1	01	1	1008-	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-98004-024-3	01	1	0612-		●	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	0612-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-98003-384-1	01	1	0612-		●	●
63	00.629 PISTON GRADE=A	8-98043-703-0	04	1	0612-	●
63	00.629 PISTON GRADE=B	8-98043-704-0	04	1	0612-	●
63	00.629 PISTON GRADE=C	8-98043-705-0	04	1	0612-	●
63	00.629 PISTON NON GRADE ALSO INCLUDED IN LINER SET.	8-98041-141-0	04	1	0612-		●	●
68	00.643 RING SET; PISTON,STANDARD	8-98053-579-0	04	1	0612-1105	●
68	00.643 RING SET; PISTON,STANDARD	8-98185-780-0	04	1	1106-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	0612-		●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0612-	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	04	1	0612-0701		●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-98064-282-0	04	1	0702-0706		●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	0707-		●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	04	1	0612-0701		●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-98064-281-0	04	1	0702-0706		●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	0707-		●	●
83	00.636 PIN; PISTON	8-98015-193-1	04	1	0612-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	0612-		●	●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	0612-	●
84	00.603 ROD ASM; CONN	8-94391-791-1	04	1	0612-0706		●	●
84	00.603 ROD ASM; CONN	8-98018-425-2	04	1	0707-		●	●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	0612-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	0612-		●	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0612-0701	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	0702-	●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0612-1004		●	●
86	00.623 BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1005-		●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0612-	●
126	00.639 RING; SNAP,PISTON PIN	8-94460-687-0	08	1	0612-	●
126	00.639 RING; SNAP,PISTON PIN OD=43.7 ALSO INCLUDED IN LINER SET.	8-98006-828-0	08	1	0612-		●	●
172	02.383 ROTOR; CRANK SENSOR	8-97312-337-0	01	1	0612-1101	●
172	02.383 ROTOR; CRANK SENSOR	8-98163-693-0	01	1	1102-	●
203	01.150 PIN; ROTOR 00.613 OD=5 L=8	9-08160-508-0	01	1	0612-	●
204	01.150 BOLT; ROTOR 02.383	8-97213-333-0	03	1	0612-0805	●
204	01.150 BOLT; ROTOR 02.383	8-98038-343-0	03	1	0806-	●
214	00.724 STOPPER; BEARING EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-560-0	01	1	0612-0911	●

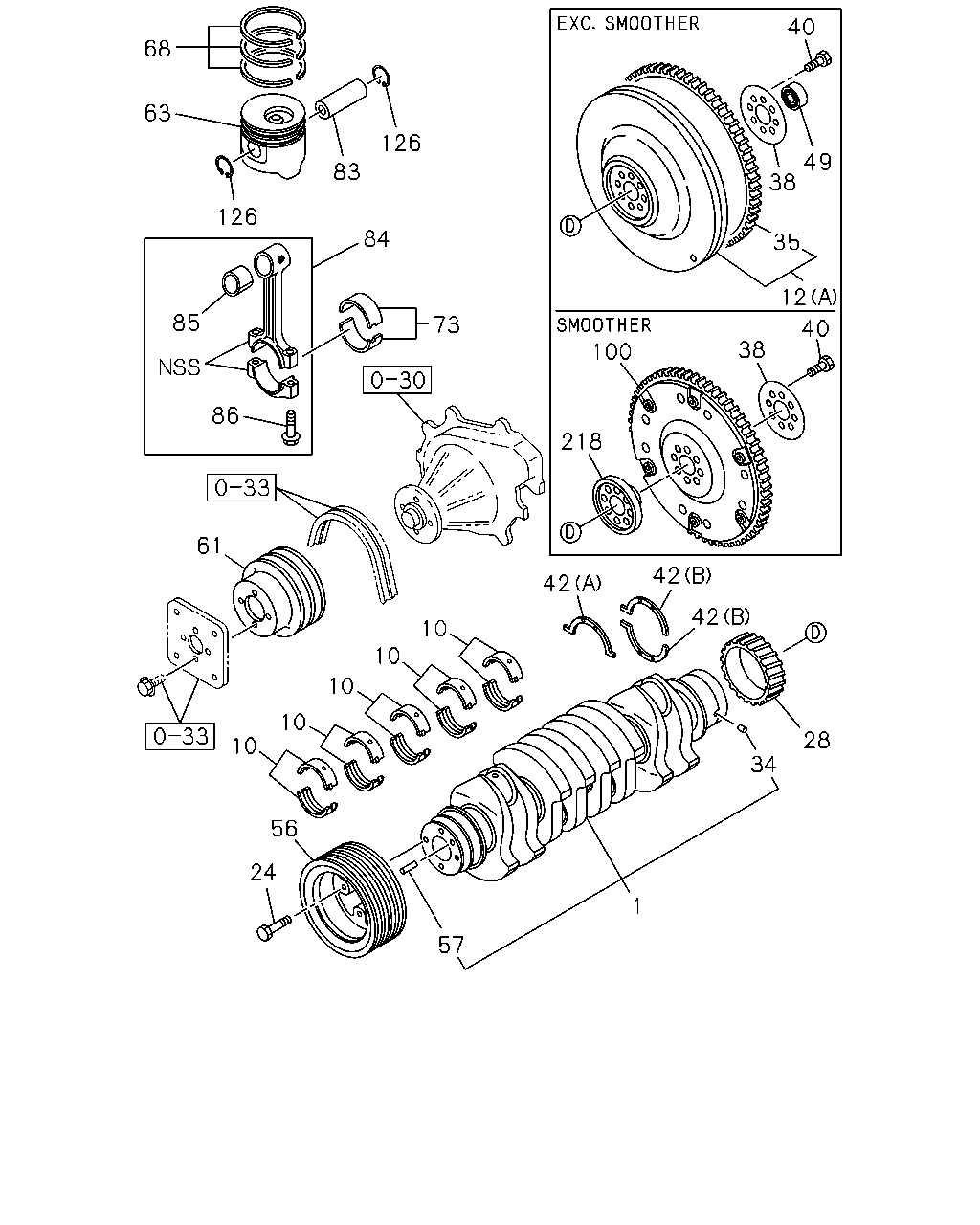

40 68 63 126 49 38 83 126 84 35 12 85 73 100 40 38 86 218 61 42 42 42 10 10 10 10 28 10 34 56 24 1 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.646 CRANKSHAFT	8-97388-828-4	01	1	0612-1007	●
1	00.646 CRANKSHAFT	8-98154-950-2	01	1	1008-	●
1	00.646 CRANKSHAFT	8-98029-270-0	01	1	0612-		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	0612-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	0612-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	0612-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	0612-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	0612-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	0612-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	0612-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	0612-		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	0612-		●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	0612-		●	●
12	00.666 FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98029-611-0	01	1	0612-	●
12	00.666 FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98012-825-2	01	1	0612-0911	●
12	00.666 FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98148-063-1	01	1	0912-	●
12	00.666 FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97326-227-2	01	1	0612-		●	●
24	00.659 BOLT; DAMPER M16X42	8-97028-733-0	04	1	0612-		●	●
28	00.728 GEAR; CR/SHF Z=44	8-97386-232-1	01	1	0612-1007	●
28	00.728 GEAR; CR/SHF Z=44	8-98154-945-1	01	1	1008-	●
28	00.728 GEAR; CR/SHF Z=42	8-94394-342-4	01	1	0612-		●	●
34	00.738 PIN; GEAR SETTING OD=5 L=10	9-08160-510-0	01	1	1008-	●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0612-		●	●
35	00.673 GEAR; RING EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=138	8-97046-366-1	01	1	0612-	●	●	●
38	00.862 WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97386-162-2	01	1	0612-	●
38	00.862 WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.669	8-94133-970-1	01	1	0612-1005	●
38	00.862 WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98171-700-0	01	1	1006-	●
38	00.862 WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) ID=50 OD=120	8-98001-510-0	01	1	0612-1009		●	●
38	00.862 WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) ID=50 OD=140	8-98176-366-0	01	1	1010-		●	●
38	00.862 WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=55 OD=110	8-94397-496-1	01	1	0612-		●	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	0612-	●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	0612-		●	●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-98040-704-0	02	1	0612-	●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0612-		●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0612-		●	●
49	00.669 BEARING; PILOT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97325-153-0	01	1	0612-	●
49	00.669 BEARING; PILOT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97258-239-0	01	1	0612-		●	●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-97361-562-1	01	1	0612-1007	●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-98154-943-1	01	1	1008-	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-98004-024-3	01	1	0612-		●	●
57	00.662 PIN; PULLEY 00.862 OD=8 L=20	9-08150-820-0	02	1	0612-		●	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	0612-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-98003-384-1	01	1	0612-		●	●
63	00.629 PISTON GRADE=A	8-98043-703-0	04	1	0612-	●
63	00.629 PISTON GRADE=B	8-98043-704-0	04	1	0612-	●
63	00.629 PISTON GRADE=C	8-98043-705-0	04	1	0612-	●
63	00.629 PISTON NON GRADE ALSO INCLUDED IN LINER SET.	8-98041-141-0	04	1	0612-		●	●
68	00.643 RING SET; PISTON,STANDARD	8-98053-579-0	04	1	0612-1105	●
68	00.643 RING SET; PISTON,STANDARD	8-98185-780-0	04	1	1106-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	0612-		●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0612-	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	04	1	0612-0701		●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-98064-282-0	04	1	0702-0706		●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	0707-		●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	04	1	0612-0701		●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-98064-281-0	04	1	0702-0706		●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	0707-		●	●
83	00.636 PIN; PISTON	8-98015-193-1	04	1	0612-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	0612-		●	●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	0612-	●
84	00.603 ROD ASM; CONN	8-94391-791-1	04	1	0612-0706		●	●
84	00.603 ROD ASM; CONN	8-98018-425-2	04	1	0707-		●	●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	0612-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	0612-		●	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0612-0701	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	0702-	●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0612-1004		●	●
86	00.623 BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1005-		●	●
100	00.666 PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-612-1	01	1	0612-	●
100	00.666 PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97362-336-3	01	1	0612-		●	●
126	00.639 RING; SNAP,PISTON PIN	8-94460-687-0	08	1	0612-	●
126	00.639 RING; SNAP,PISTON PIN OD=43.7 ALSO INCLUDED IN LINER SET.	8-98006-828-0	08	1	0612-		●	●
218	00.662 SPACER; CRANK END TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97332-858-1	01	1	0612-		●	●

40 49 38 35 12 40 38 100 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	00.666 FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98029-611-0	01	1	0612-	●
12	00.666 FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98012-825-2	01	1	0612-0911	●
12	00.666 FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98148-063-1	01	1	0912-	●
12	00.666 FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97326-227-2	01	1	0612-		●	●
35	00.673 GEAR; RING EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=138	8-97046-366-1	01	1	0612-	●	●	●
38	00.862 WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97386-162-2	01	1	0612-	●
38	00.862 WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.669	8-94133-970-1	01	1	0612-1005	●
38	00.862 WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98171-700-0	01	1	1006-	●
38	00.862 WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) ID=50 OD=120	8-98001-510-0	01	1	0612-1009		●	●
38	00.862 WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) ID=50 OD=140	8-98176-366-0	01	1	1010-		●	●
38	00.862 WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=55 OD=110	8-94397-496-1	01	1	0612-		●	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	0612-	●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	0612-		●	●
49	00.669 BEARING; PILOT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97325-153-0	01	1	0612-	●
49	00.669 BEARING; PILOT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97258-239-0	01	1	0612-		●	●
100	00.666 PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-612-1	01	1	0612-	●
100	00.666 PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97362-336-3	01	1	0612-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
