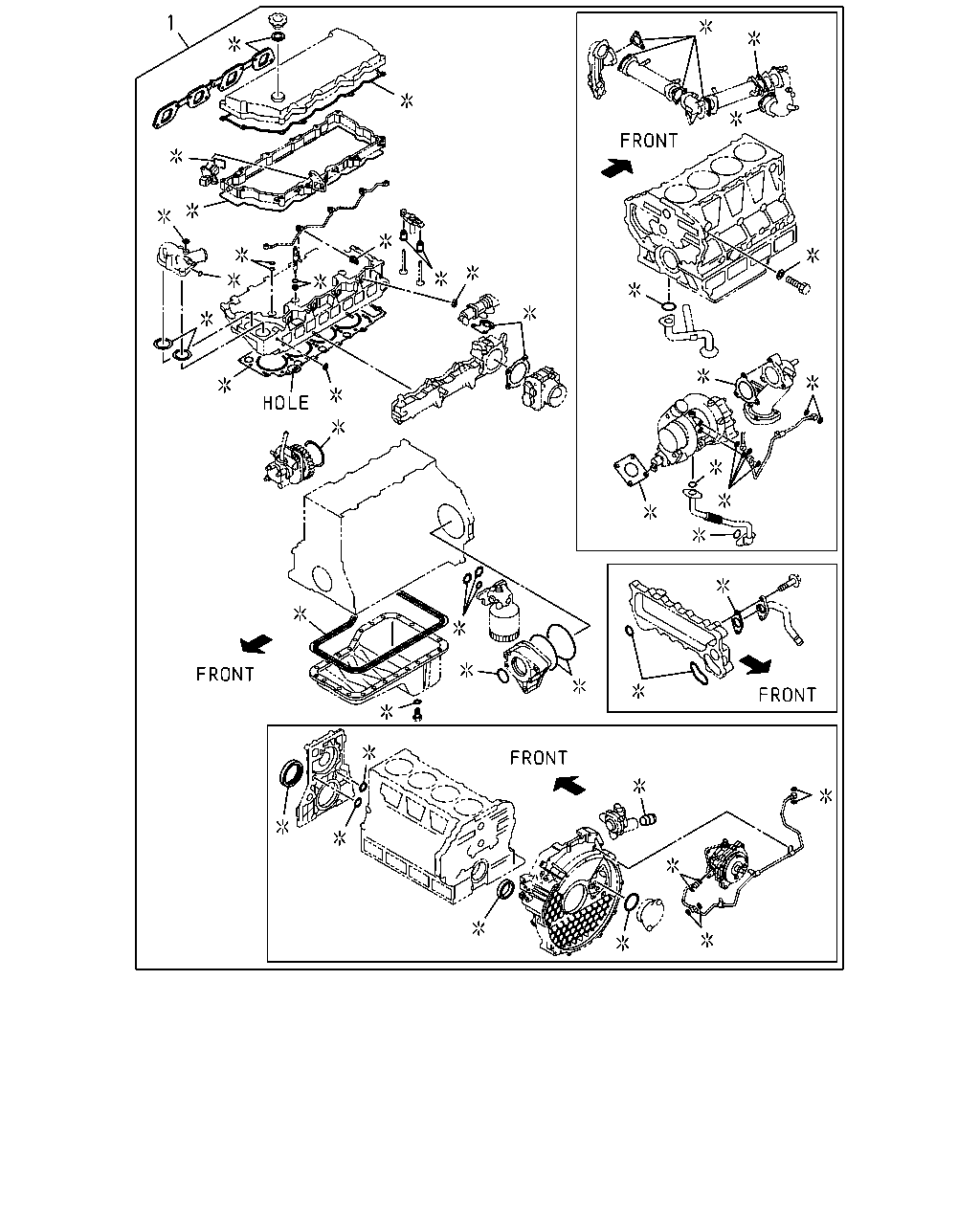

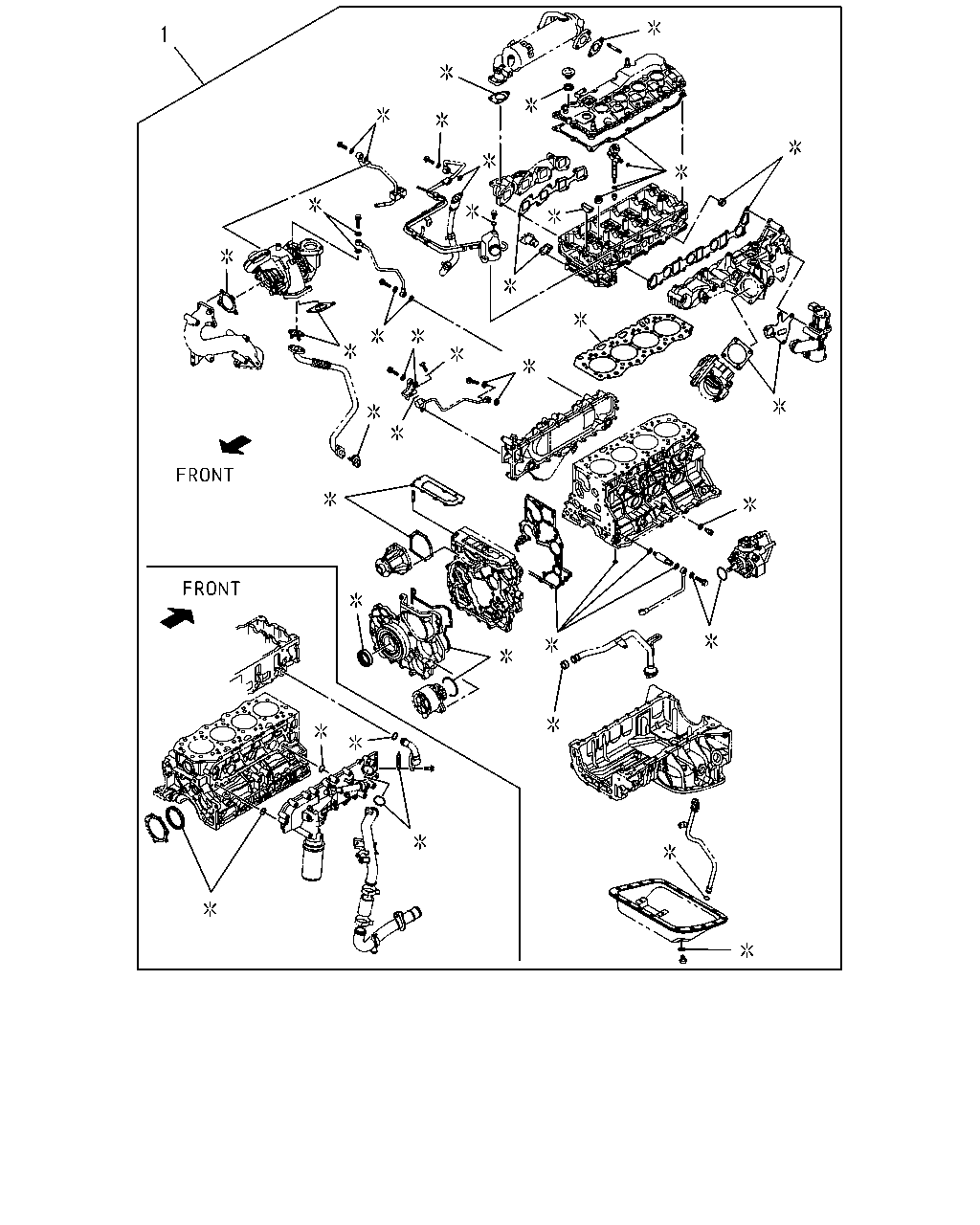

0-05 — ENGINE GASKET KIT (#21545) — 102 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH GRADE A	5-87815-038-0	01	1	0612-0702	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH GRADE A	5-87815-048-0	01	1	0703-0708	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH GRADE A	5-87815-242-1	01	1	0709-0805	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH GRADE A	5-87815-358-2	01	1	0806-1007	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH GRADE A	5-87815-755-0	01	1	1008-1012	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH GRADE A	5-87815-903-0	01	1	1101-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH GRADE B	5-87815-039-0	01	1	0612-0702	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH GRADE B	5-87815-049-0	01	1	0703-0708	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH GRADE B	5-87815-243-1	01	1	0709-0805	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH GRADE B	5-87815-359-2	01	1	0806-1007	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH GRADE B	5-87815-756-0	01	1	1008-1012	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH GRADE B	5-87815-904-0	01	1	1101-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH GRADE C	5-87815-040-0	01	1	0612-0702	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH GRADE C	5-87815-050-0	01	1	0703-0708	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH GRADE C	5-87815-244-1	01	1	0709-0805	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH GRADE C	5-87815-360-2	01	1	0806-1007	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH GRADE C	5-87815-757-0	01	1	1008-1012	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH GRADE C	5-87815-905-0	01	1	1101-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87814-984-2	01	1	0612-0707		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-390-2	01	1	0708-0908		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-550-1	01	1	0909-1006		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-804-1	01	1	1007-		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87814-985-2	01	1	0612-0707		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-391-2	01	1	0708-0908		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-551-1	01	1	0909-1006		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-805-1	01	1	1007-		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87814-986-2	01	1	0612-0707		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-392-2	01	1	0708-0908		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-552-1	01	1	0909-1006		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-806-1	01	1	1007-		●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

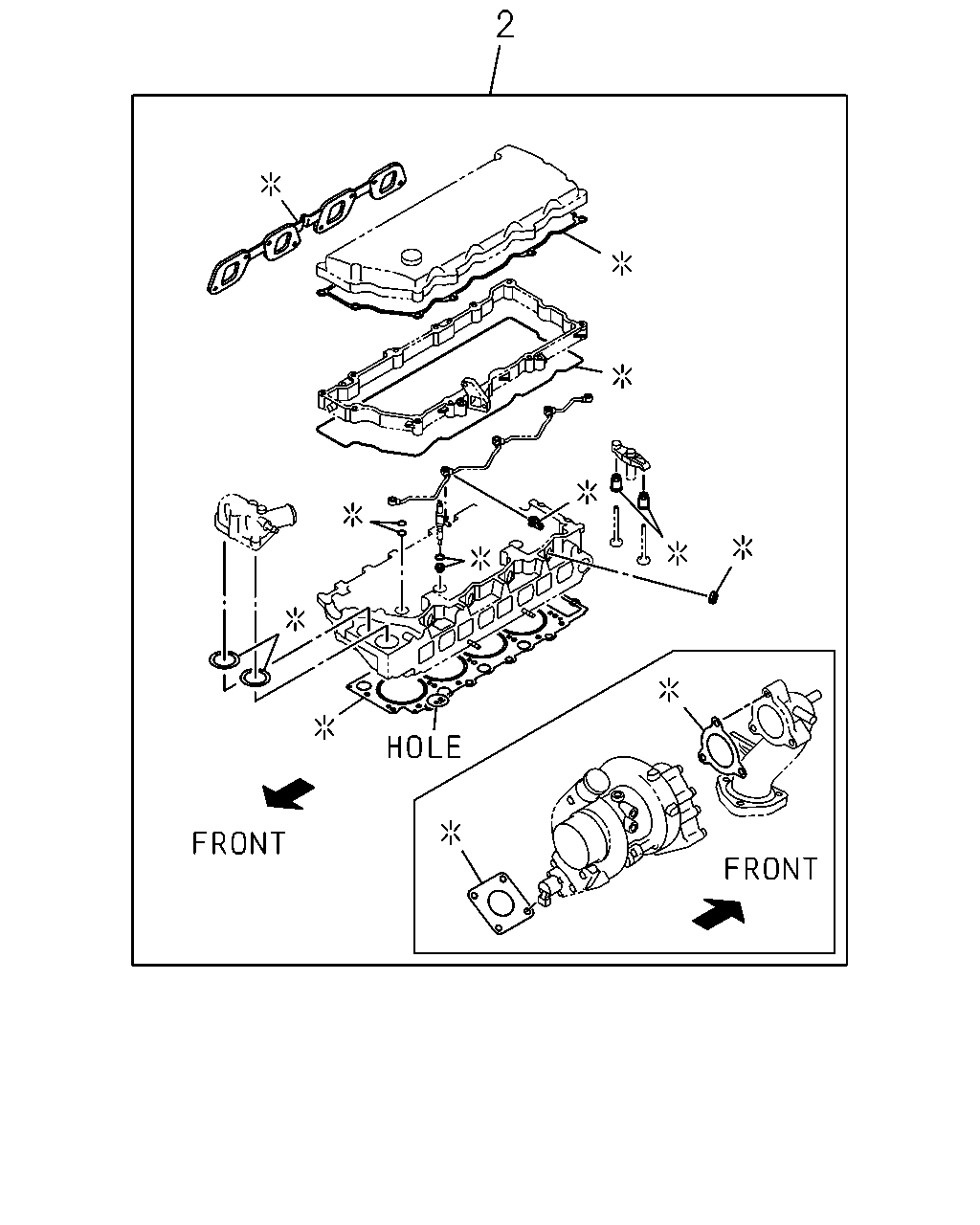

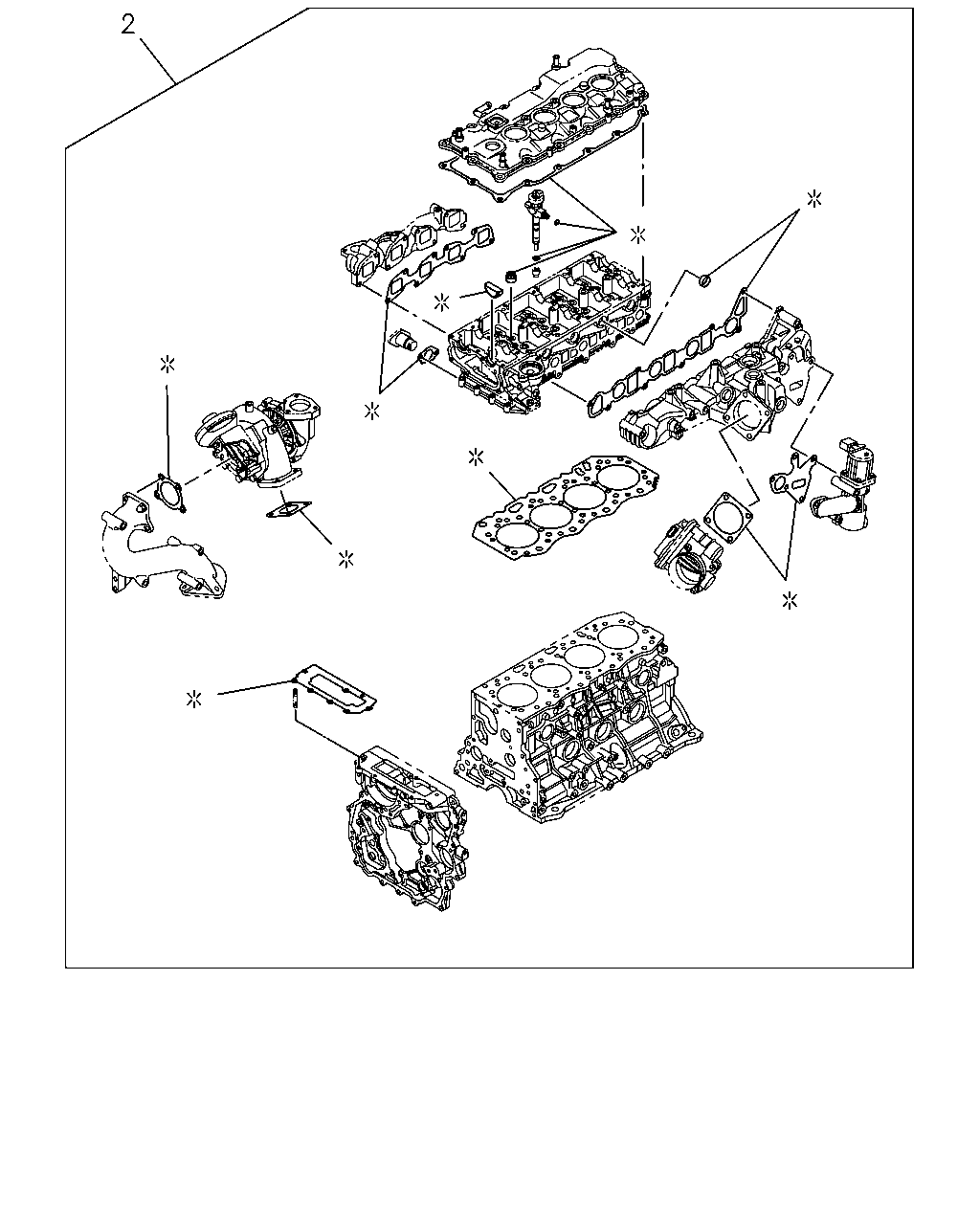

2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH GRADE A	5-87814-972-1	01	1	0612-0702	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH GRADE A	5-87815-057-0	01	1	0703-0805	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH GRADE A	5-87815-370-1	01	1	0806-1012	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH GRADE A	5-87815-888-0	01	1	1101-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH GRADE B	5-87814-973-1	01	1	0612-0702	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH GRADE B	5-87815-058-0	01	1	0703-0805	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH GRADE B	5-87815-371-1	01	1	0806-1012	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH GRADE B	5-87815-889-0	01	1	1101-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH GRADE C	5-87814-974-1	01	1	0612-0702	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH GRADE C	5-87815-059-0	01	1	0703-0805	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH GRADE C	5-87815-372-1	01	1	0806-1012	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH GRADE C	5-87815-890-0	01	1	1101-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87814-987-1	01	1	0612-0707		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87815-142-1	01	1	0708-0908		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87815-526-2	01	1	0909-		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87814-988-1	01	1	0612-0707		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87815-143-1	01	1	0708-0908		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87815-527-2	01	1	0909-		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87814-989-1	01	1	0612-0707		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87815-144-1	01	1	0708-0908		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87815-528-2	01	1	0909-		●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH GRADE A	5-87815-038-0	01	1	0612-0702	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH GRADE A	5-87815-048-0	01	1	0703-0708	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH GRADE A	5-87815-242-1	01	1	0709-0805	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH GRADE A	5-87815-358-2	01	1	0806-1007	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH GRADE A	5-87815-755-0	01	1	1008-1012	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH GRADE A	5-87815-903-0	01	1	1101-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH GRADE B	5-87815-039-0	01	1	0612-0702	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH GRADE B	5-87815-049-0	01	1	0703-0708	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH GRADE B	5-87815-243-1	01	1	0709-0805	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH GRADE B	5-87815-359-2	01	1	0806-1007	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH GRADE B	5-87815-756-0	01	1	1008-1012	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH GRADE B	5-87815-904-0	01	1	1101-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH GRADE C	5-87815-040-0	01	1	0612-0702	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH GRADE C	5-87815-050-0	01	1	0703-0708	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH GRADE C	5-87815-244-1	01	1	0709-0805	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH GRADE C	5-87815-360-2	01	1	0806-1007	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH GRADE C	5-87815-757-0	01	1	1008-1012	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH GRADE C	5-87815-905-0	01	1	1101-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87814-984-2	01	1	0612-0707		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-390-2	01	1	0708-0908		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-550-1	01	1	0909-1006		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-804-1	01	1	1007-		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87814-985-2	01	1	0612-0707		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-391-2	01	1	0708-0908		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-551-1	01	1	0909-1006		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-805-1	01	1	1007-		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87814-986-2	01	1	0612-0707		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-392-2	01	1	0708-0908		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-552-1	01	1	0909-1006		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-806-1	01	1	1007-		●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH GRADE A	5-87814-972-1	01	1	0612-0702	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH GRADE A	5-87815-057-0	01	1	0703-0805	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH GRADE A	5-87815-370-1	01	1	0806-1012	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH GRADE A	5-87815-888-0	01	1	1101-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH GRADE B	5-87814-973-1	01	1	0612-0702	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH GRADE B	5-87815-058-0	01	1	0703-0805	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH GRADE B	5-87815-371-1	01	1	0806-1012	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH GRADE B	5-87815-889-0	01	1	1101-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH GRADE C	5-87814-974-1	01	1	0612-0702	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH GRADE C	5-87815-059-0	01	1	0703-0805	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH GRADE C	5-87815-372-1	01	1	0806-1012	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH GRADE C	5-87815-890-0	01	1	1101-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87814-987-1	01	1	0612-0707		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87815-142-1	01	1	0708-0908		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87815-526-2	01	1	0909-		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87814-988-1	01	1	0612-0707		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87815-143-1	01	1	0708-0908		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87815-527-2	01	1	0909-		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87814-989-1	01	1	0612-0707		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87815-144-1	01	1	0708-0908		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87815-528-2	01	1	0909-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
