◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51038 - NQR(IRAN) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#21541) — 113 parça

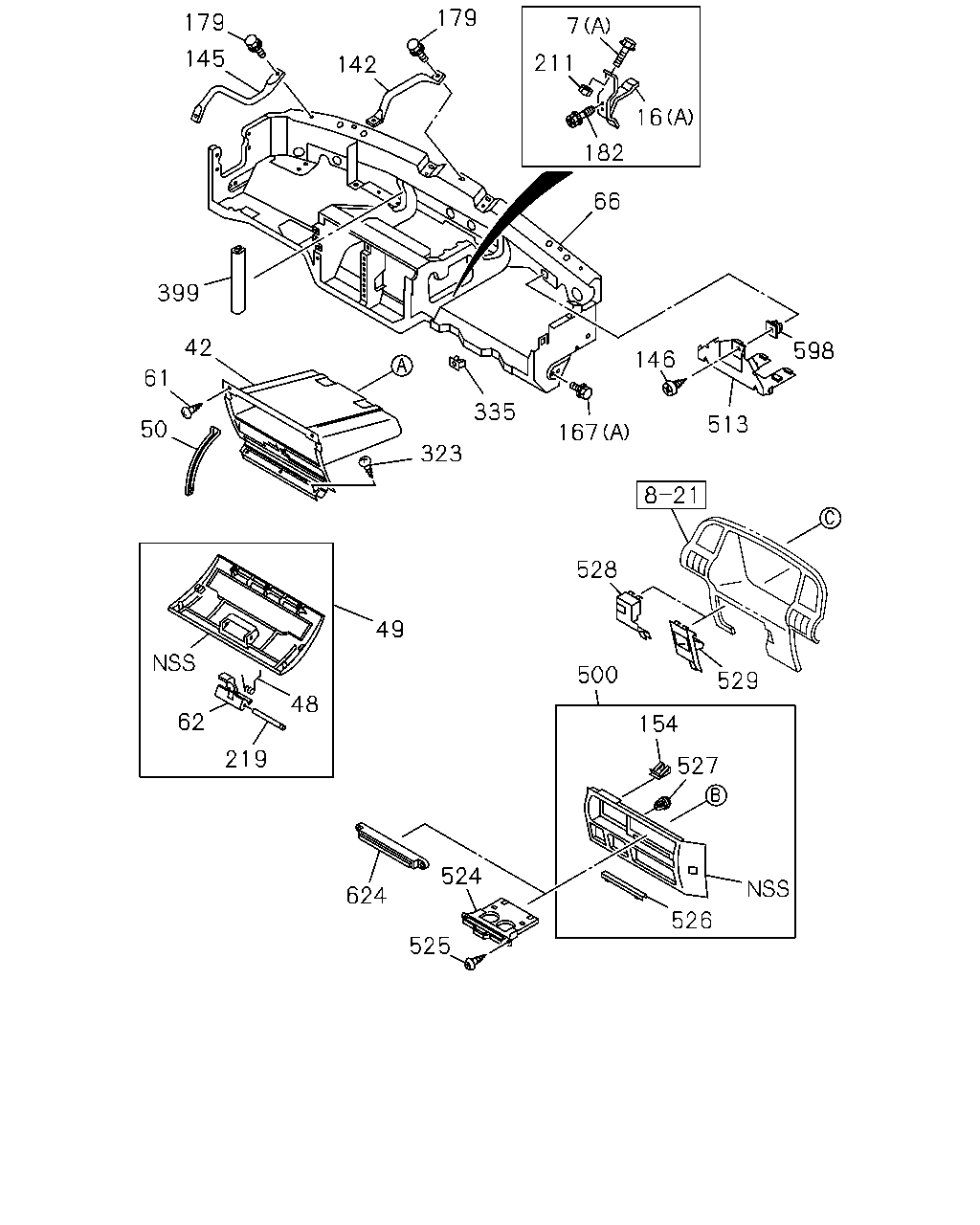

çizim 57814
179 179 7 145 211 142 16 182 66 399 42 598 146 61 335 513 50 167 323 528 49 500 529 48 62 154 219 527 524 624 526 525
BalonParca AdiParca NoAdetTipApplied Date
7 BOLT; SUPPORT,INST PNL
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0504-0512
7 BOLT; SUPPORT,INST PNL
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
7 BOLT; SUPPORT,INST PNL
(B) M8X23 FLANGE 		8-97264-766-0 04 1 0504-
16 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0504-
16 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0504-
16 BRACKET; INST PNL
4HE1 ENG(RLY) (A) 		8-97853-306-7 01 1 0504-0609
16 BRACKET; INST PNL
(A) 		8-97853-306-7 01 1 0610-
42 BOX; GLOVE,INST PNL 8-97853-281-6 01 1 0504-
48 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 0504-
49 LID; GLOVE BOX
DARK GRAY 		8-97857-496-4 01 1 0504-0609
49 LID; GLOVE BOX
DARK GRAY 		8-97582-808-4 01 1 0610-
50 STOPPER; LID,GLOVE BOX,INST CLUSTER 8-97853-152-0 02 1 0504-
61 SCREW; GLOVE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0504-0604
61 SCREW; GLOVE BOX
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0605-0612
61 SCREW; GLOVE BOX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0701-1101
61 SCREW; GLOVE BOX
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212
61 SCREW; GLOVE BOX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
62 KNOB; GLOVE BOX LID
DARK GRAY 		8-97857-498-1 01 1 0504-0609
62 KNOB; GLOVE BOX LID
DARK GRAY 		8-97582-487-1 01 1 0610-
66 REINFORCEMENT; INST PANEL 8-97898-465-5 01 1 0504-0506
66 REINFORCEMENT; INST PANEL 8-98021-525-0 01 1 0507-0507
66 REINFORCEMENT; INST PANEL 8-98021-526-1 01 1 0508-
142 STAY; INST PANEL 8-97856-460-2 01 1 0504-
145 STAY; INST PANEL SIDE 8-97856-461-3 01 1 0504-
146 SCREW; TAP
4HE1 ENG(RLY) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0504-0604
146 SCREW; TAP
4HE1 ENG(RLY) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605-0609
154 NUT
M6 SPIRE NUT 		8-97210-973-1 04 1 0504-0609
154 NUT
M6 SPIRE NUT 		8-97210-973-1 01 1 0610-
154 NUT
M6 SPIRE NUT 		8-97210-973-1 03 1 0610-
167 BOLT; REINF TO INST
(A) M6X25 		8-94279-204-0 04 1 0504-
167 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 0504-
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 0504-0512
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50640-612-0 02 1 0601-
182 BOLT; BRKT,INST PANEL
M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0504-
211 NUT; BRKT TO INST
M6 FLANGE 		0-91150-106-0 02 1 0504-0602
211 NUT; BRKT TO INST
M6 FLANGE 		0-91180-106-0 02 1 0603-
219 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 0504-
323 SCREW; GLOVE BOX LK
M5X14 		8-94279-325-0 03 1 0504-0612
323 SCREW; GLOVE BOX LK
M5X14 TAPPING W/TORQUES 		8-98061-856-0 03 1 0701-
335 GROMMET; GLOVE BOX LK
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0504-
399 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 0504-
500 CLUSTER; INST CENTER
DARK GRAY 		8-97857-501-8 01 1 0504-0609
500 CLUSTER; INST CENTER
DARK GRAY 		8-97585-434-8 01 1 0610-
513 BRACKET; RELAY
4HE1 ENG(RLY) 		8-97859-391-2 01 1 0504-0609
524 STAND ASM; CUP,INST 8-97853-172-8 01 1 0504-0609
524 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-97853-172-8 01 1 0610-
525 SCREW; CUP STAND
M5X14 		8-94279-325-0 02 1 0504-0612
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101
525 SCREW; CUP STAND
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
526 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97857-503-1 01 1 0504-0609
526 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97582-490-1 01 1 0610-
527 CLIP; INST CLUSTER 8-97853-169-0 04 1 0504-
528 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66) BLACK 		8-97868-448-0 01 1 0610-
529 POCKET; COIN
EXC. PTO TRANSMISSION SIDE(V66) BLACK 		8-97867-543-5 01 1 0504-
598 GROMMET; SCREW
4HE1 ENG(RLY) D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 0504-0609
624 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> 		1-72438-139-1 01 1 0610-

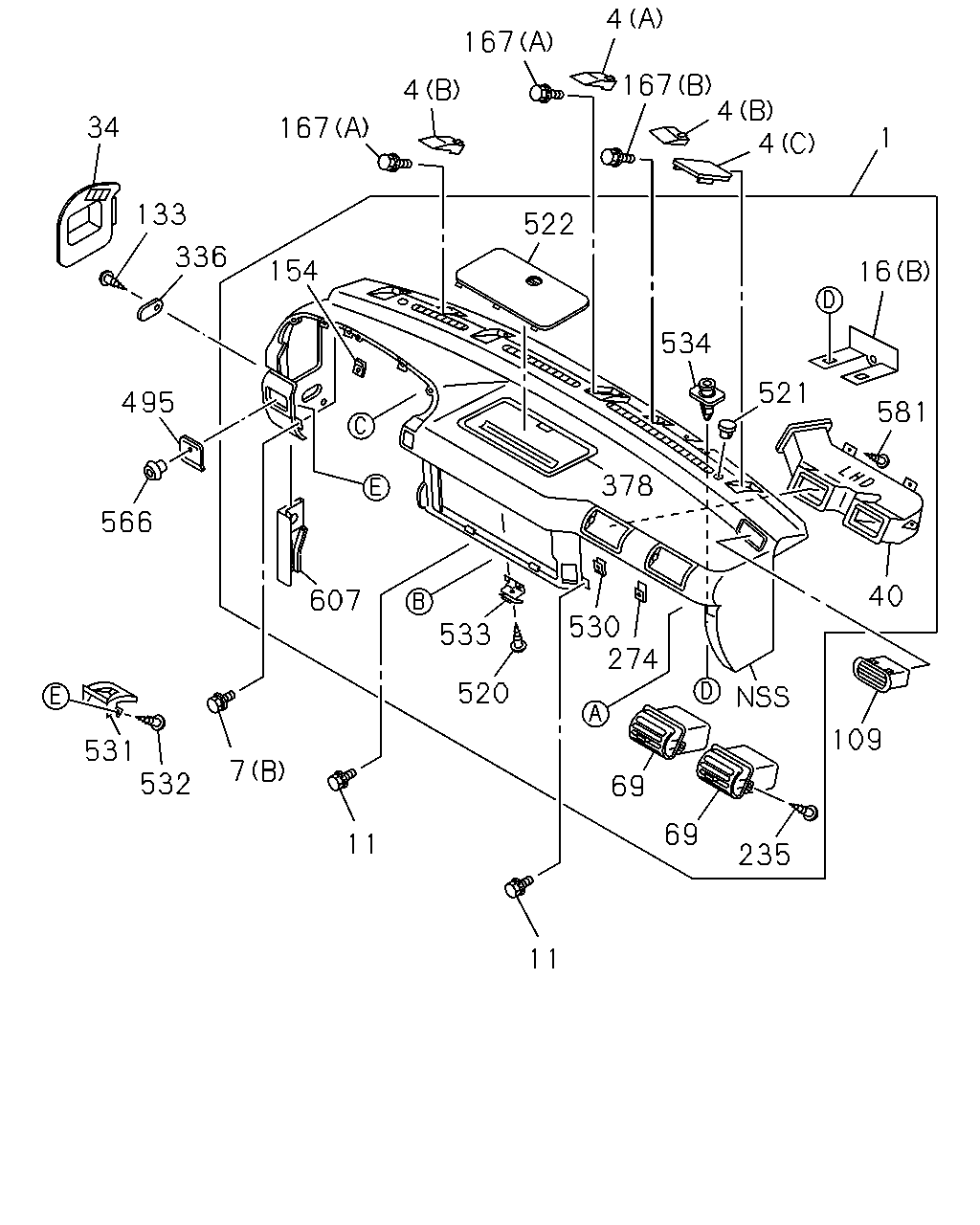

çizim 100646
4 167 167 4 4 4 34 167 1 133 522 336 154 16 534 521 495 581 378 566 40 607 530 274 533 520 109 531 532 7 69 69 11 235 11
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
DARK GRAY 		8-97195-962-1 01 1 0504-0609
1 PANEL; INST
DARK GRAY 		8-97585-435-1 01 1 0610-
4 COVER; INST PNL
(A) DARK GRAY 		8-97857-523-3 02 1 0504-0609
4 COVER; INST PNL
(A) DARK GRAY 		8-97582-215-3 02 1 0610-
4 COVER; INST PNL
(B) DARK GRAY 		8-97857-525-3 01 1 0504-0609
4 COVER; INST PNL
(B) DARK GRAY 		8-97582-217-3 01 1 0610-
4 COVER; INST PNL
(C) DARK GRAY 		8-97857-527-1 01 1 0504-0609
4 COVER; INST PNL
(C) DARK GRAY 		8-97582-813-1 01 1 0610-
4 COVER; INST PNL
(B) DARK GRAY 		8-97857-524-3 01 1 0504-0609
4 COVER; INST PNL
(B) DARK GRAY 		8-97582-216-3 01 1 0610-
4 COVER; INST PNL
(C) DARK GRAY 		8-97857-526-1 01 1 0504-0609
4 COVER; INST PNL
(C) DARK GRAY 		8-97582-812-1 01 1 0610-
7 BOLT; SUPPORT,INST PNL
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0504-0512
7 BOLT; SUPPORT,INST PNL
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
7 BOLT; SUPPORT,INST PNL
(B) M8X23 FLANGE 		8-97264-766-0 04 1 0504-
11 BOLT; INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0504-1210
11 BOLT; INST PNL
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 1211-
16 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0504-
16 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0504-
16 BRACKET; INST PNL
4HE1 ENG(RLY) (A) 		8-97853-306-7 01 1 0504-0609
16 BRACKET; INST PNL
(A) 		8-97853-306-7 01 1 0610-
34 LID; OIL TANK
DARK GRAY 		8-97857-499-5 01 1 0504-0609
34 LID; OIL TANK
DARK GRAY 		8-97585-433-5 01 1 0610-
40 DUCT; VENT,SIDE CLUSTER BEZEL 8-97262-699-0 01 1 0504-
69 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97890-631-0 02 1 0504-0609
69 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97582-612-0 02 1 0610-
109 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97857-530-0 01 1 0504-0609
109 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97585-436-0 01 1 0610-
133 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 0504-0604
133 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74160-520-0 02 1 0605-0612
133 SCREW; COVER,INST PNL
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0701-
154 NUT
M6 SPIRE NUT 		8-97210-973-1 04 1 0504-0609
154 NUT
M6 SPIRE NUT 		8-97210-973-1 01 1 0610-
154 NUT
M6 SPIRE NUT 		8-97210-973-1 03 1 0610-
167 BOLT; REINF TO INST
(A) M6X25 		8-94279-204-0 04 1 0504-
167 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 0504-
235 SCREW; GRILLE
M5X14 		8-94279-325-0 04 1 0504-
274 NUT; GLOVE BOX
M5 SPIRE NUT 		8-94279-051-0 02 1 0504-
336 COVER; INST PANEL SIDE
DARK GRAY 		8-97857-528-4 02 1 0504-0609
336 COVER; INST PANEL SIDE
DARK GRAY 		8-97582-218-4 02 1 0610-
378 SEAL; INST PANEL 8-97209-399-0 01 1 0504-
495 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97582-214-4 01 1 0610-
520 SCREW; CLIP,SPRING
M5X14 		8-94279-325-0 03 1 0504-
521 COVER; SUN SENSOR
DARK GRAY 		8-97857-529-2 01 1 0504-0609
521 COVER; SUN SENSOR
DARK GRAY 		8-97582-334-2 01 1 0610-
522 LID; RELAY BOX
DARK GRAY 		8-97857-520-6 01 1 0504-0609
522 LID; RELAY BOX
DARK GRAY 		8-97582-494-6 01 1 0610-
530 CLIP; GLOVE BOX 8-97856-135-0 01 1 0504-
531 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 		8-97853-130-0 01 1 0504-
532 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> M5X14 		8-94279-325-0 02 1 0504-0612
532 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> M5X14 TAPPING W/TORQUES 		8-98061-856-0 02 1 0701-
533 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 0504-
534 CLIP; BRKT 8-97856-276-0 04 1 0504-
566 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97582-247-0 01 1 0610-
581 SCREW
M5X14 		8-94279-325-0 03 1 0504-
607 FIXING ASM; CLIP INST TO M/CSTR 8-97857-893-2 01 1 0504-
