◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#2154) — 12 parça

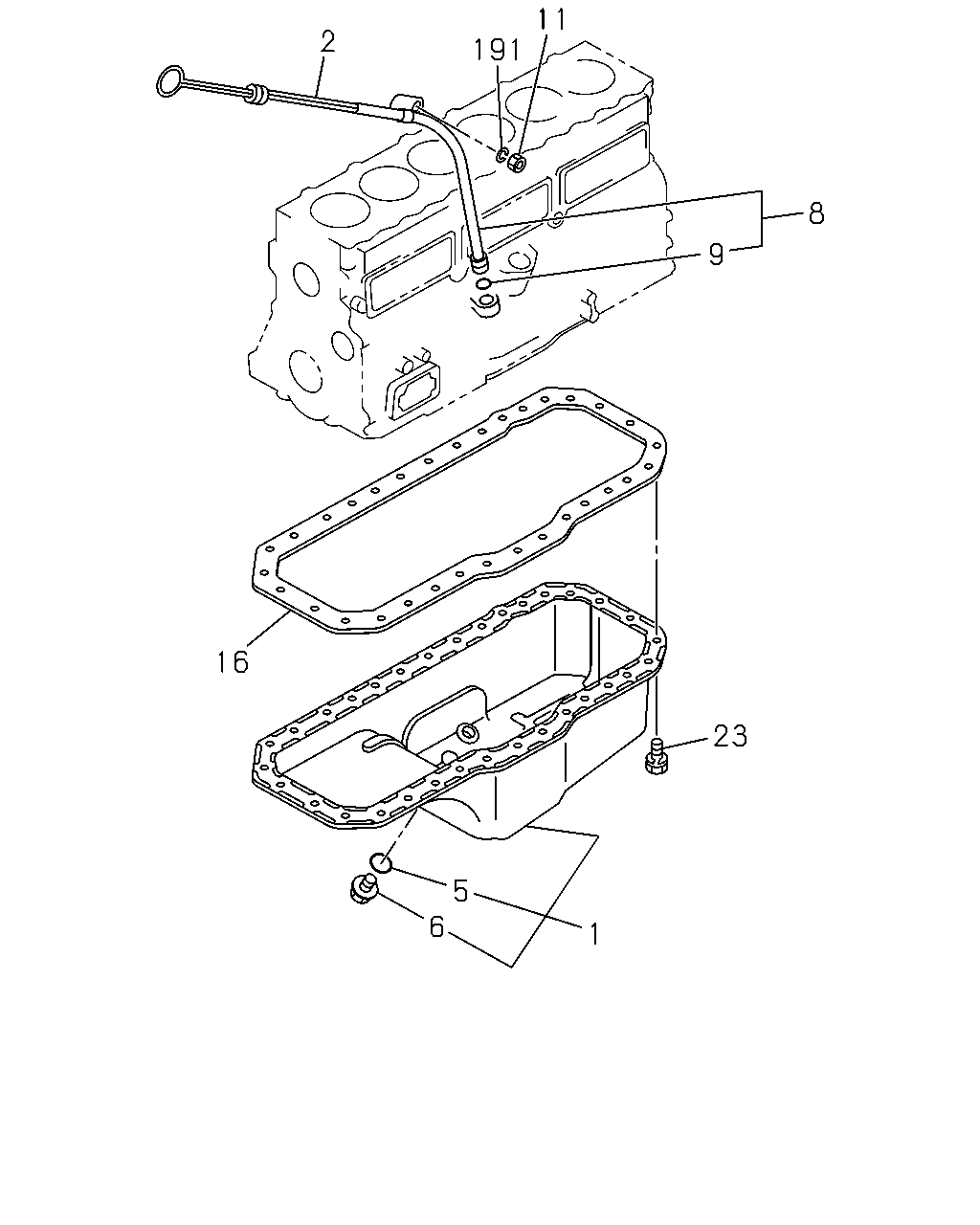

çizim 94570
11 2 191 8 9 16 23 5 6 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 5-11360-377-1 01 1 9101- ● ●
2 GAUGE; OIL LEVEL 1-11760-246-0 01 1 9101- ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 9101- ● ●
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 9101- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 1-11766-268-1 01 1 9101- ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 01 1 9101- ● ●
11 NUT; GUIDE,OIL LEVEL GAUGE
M8 		9-09110-508-0 01 1 9101- ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-096-1 01 1 9101-9510 ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-100-0 01 1 9511-0211 ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-132-0 01 1 0212- ● ●
23 BOLT; OIL PAN
M8X18 W/LK WASHER 		0-50040-818-0 32 1 9101- ● ●
191 WASHER; LK,GUIDE TUBE,OIL LEVEL GAUGE
ID=8.2 		9-09150-508-0 01 1 9101- ● ●
