◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51038 - NQR(IRAN) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#21531) — 27 parça

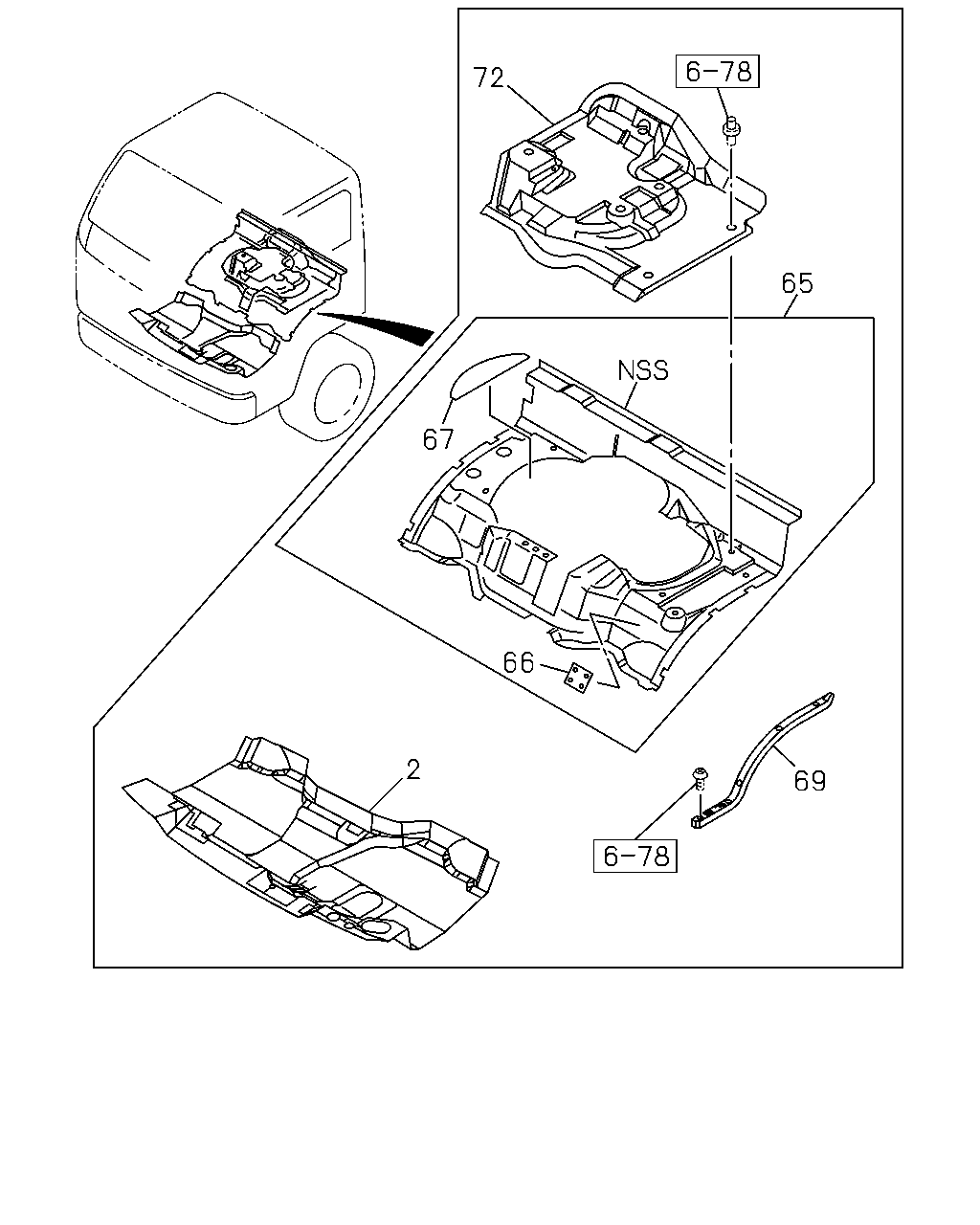

çizim 100618
72 65 67 66 2 69
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
DARK GRAY 		8-97581-123-2 01 1 0504-0609
2 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97588-994-3 01 1 0610-
2 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97588-993-3 01 1 0610-
65 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97997-864-1 01 1 0504-0609
65 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> GRAY 		8-97589-113-2 01 1 0610-
65 MAT ASM; SILENCER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> GRAY 		8-97589-102-1 01 1 0610-
66 HOOK; COVER
EXC. MANUAL TILT CAB<RWZ> GRAY 		8-97583-948-0 02 1 0610-
67 LID; COVER
EXC. MANUAL TILT CAB<RWZ> GRAY 		8-97587-505-0 01 1 0610-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-552-1 01 1 0504-0609
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-229-1 01 1 0610-0702
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-479-0 01 1 0703-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-551-1 01 1 0504-0609
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-228-1 01 1 0610-0702
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-478-0 01 1 0703-
72 MAT; SILENCER,ENG COVER
EXC. MANUAL TILT CAB<RWZ> GRAY 		8-97589-119-1 01 1 0610-

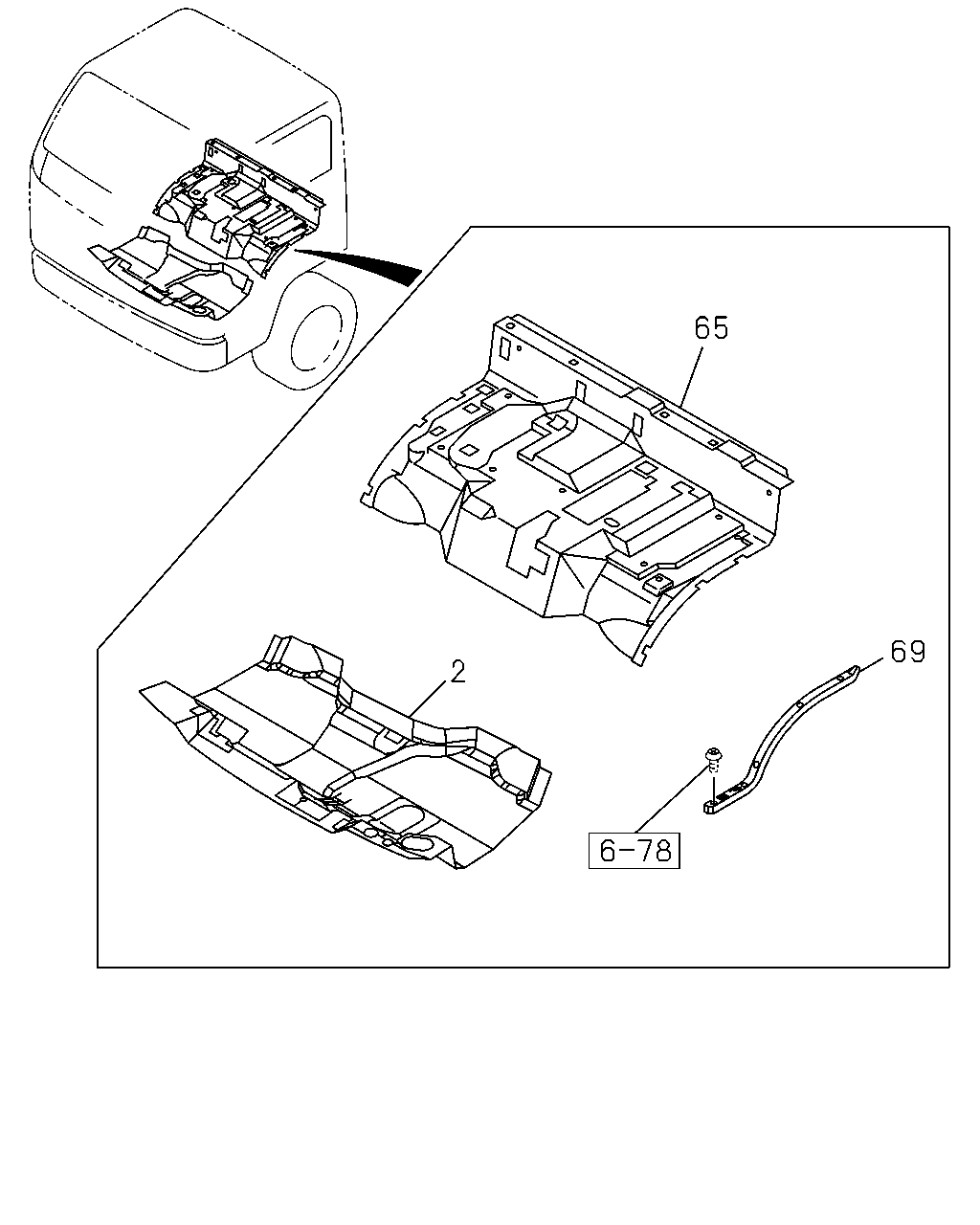

çizim 100619
65 69 2
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
DARK GRAY 		8-97581-123-2 01 1 0504-0609
2 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97588-994-3 01 1 0610-
2 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97588-993-3 01 1 0610-
65 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97997-864-1 01 1 0504-0609
65 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> GRAY 		8-97589-113-2 01 1 0610-
65 MAT ASM; SILENCER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> GRAY 		8-97589-102-1 01 1 0610-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-552-1 01 1 0504-0609
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-229-1 01 1 0610-0702
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-479-0 01 1 0703-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-551-1 01 1 0504-0609
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-228-1 01 1 0610-0702
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-478-0 01 1 0703-
