0-12 — CYLINDER BLOCK (#2153) — 120 parça

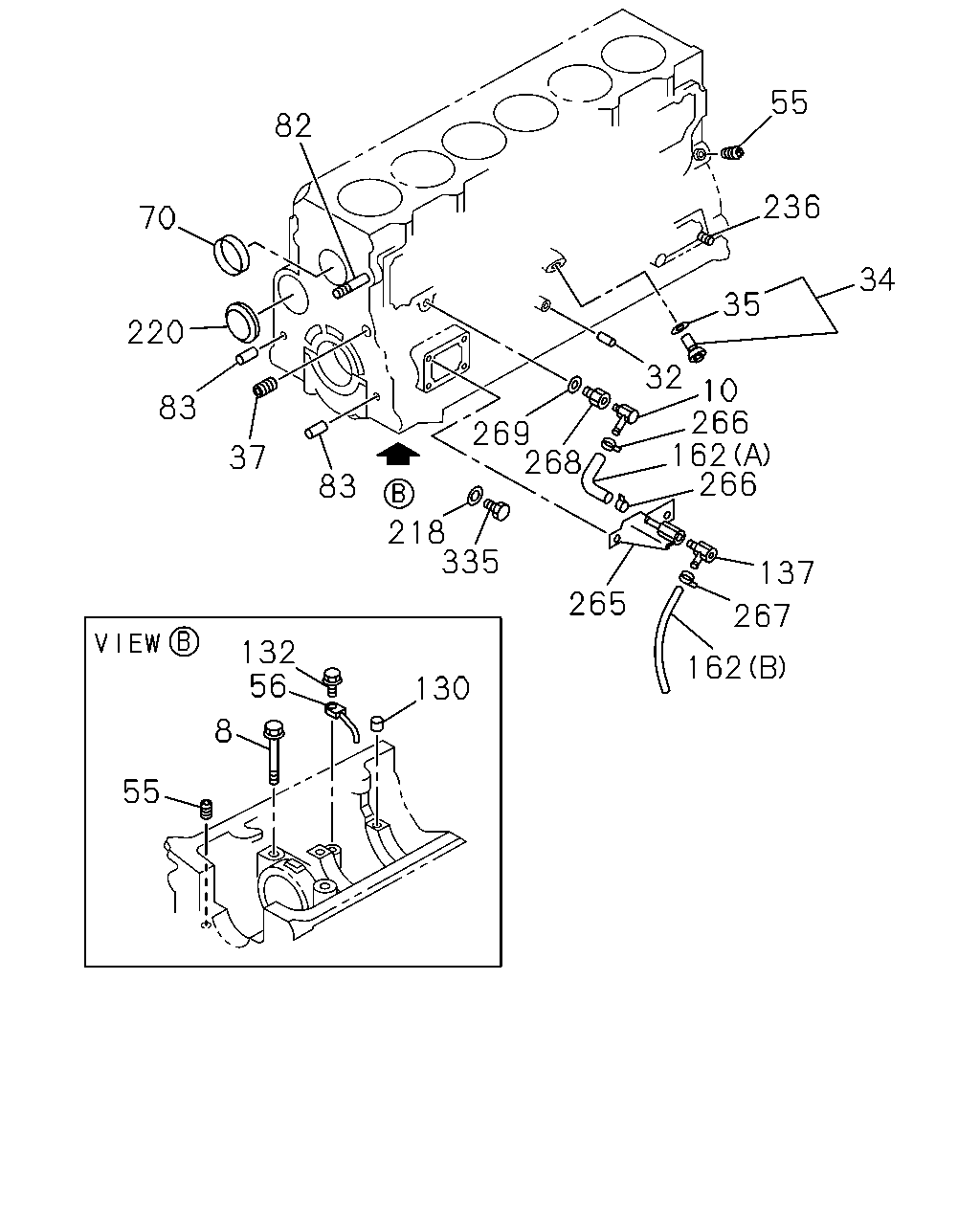

55 82 236 70 34 35 220 32 10 266 162 266 83 269 268 37 83 218 335 137 265 267 132 56 162 130 8 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BOLT; BRG CAP M16X119	1-09000-469-2	14	1	9101-	●	●
10	CONNECTOR; WATER DRAIN	1-09660-174-2	01	1	9101-	●	●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	9101-	●	●
34	VALVE; OIL RELIEF	1-13160-019-1	01	1	9101-	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9101-	●	●
37	PLUG; OIL GALLERY	1-09605-068-1	02	1	9101-	●	●
55	PLUG; OIL GALLERY PT3/8 T=8.0	1-09605-066-0	01	1	9101-	●	●
55	PLUG; OIL GALLERY PT1/8 T=8.0	1-09605-079-0	01	1	9101-	●	●
55	PLUG; OIL GALLERY PT1/8 L=8 (SQUARE HEAD)	5-09605-018-0	01	1	9101-	●	●
56	JET; OIL,PISTON COOLING	1-13342-110-0	06	1	9101-	●
70	CUP; SEALING,FRT & RR OD=60	1-09600-052-0	02	1	9101-	●	●
82	STUD; FLYWHEEL HSG M14X44 L=65	5-09300-023-1	01	1	9101-	●	●
83	PIN; FLYWHEEL HSG OD=10 L=18	9-08151-018-0	02	1	9101-	●	●
130	DOWEL; BRG CAP	5-11257-001-1	01	1	9101-	●	●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	9101-	●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	9101-	●	●
162	HOSE; WATER DRAIN,C/BL (A) L=120	8-94235-652-1	01	1	9101-	●	●
162	HOSE; WATER DRAIN,C/BL (B) L=350 SERVICED BY L=10000	9-09914-701-0	01	1	9101-	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). OD=20.0 ID=14.2 T=1.5	9-09571-414-0	02	1	9101-9803	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). OD=20.0 ID=14.2 T=1.5	9-09571-414-0	01	1	9804-	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). OD=23.0 ID=14.2 T=3.2	9-09572-014-0	01	1	9804-	●	●
220	PLUG; PLATE,CM/SHF,RR OD=67	9-09860-019-0	01	1	9101-	●	●
236	STUD; ENG FOOT M10X18.5 L=33	1-09300-053-0	01	1	9101-	●	●
265	PIPE ASM; WATER DRAIN	1-13721-255-0	01	1	9101-	●	●
266	CLIP; HOSE ID=12 WO/PVC COATING	8-94123-526-1	02	1	9101-	●	●
267	CLIP; DRAIN HOSE ID=13.5	8-97015-754-1	01	1	9101-	●	●
268	NIPPLE; WATER DRAIN PIPE	1-09666-036-0	01	1	9101-	●	●
269	GASKET; NIPPLE,C/BL	1-09630-115-0	01	1	9101-	●	●
335	PLUG; C/BL,SIDE PT1/8 T=8.0	1-09605-079-1	01	1	9101-	●	●
335	PLUG; C/BL,SIDE PT1/8 L=8 (SQUARE HEAD)	5-09605-018-0	11	1	9101-	●	●
335	PLUG; C/BL,SIDE M14X9	9-99202-314-0	02	1	9101-	●	●

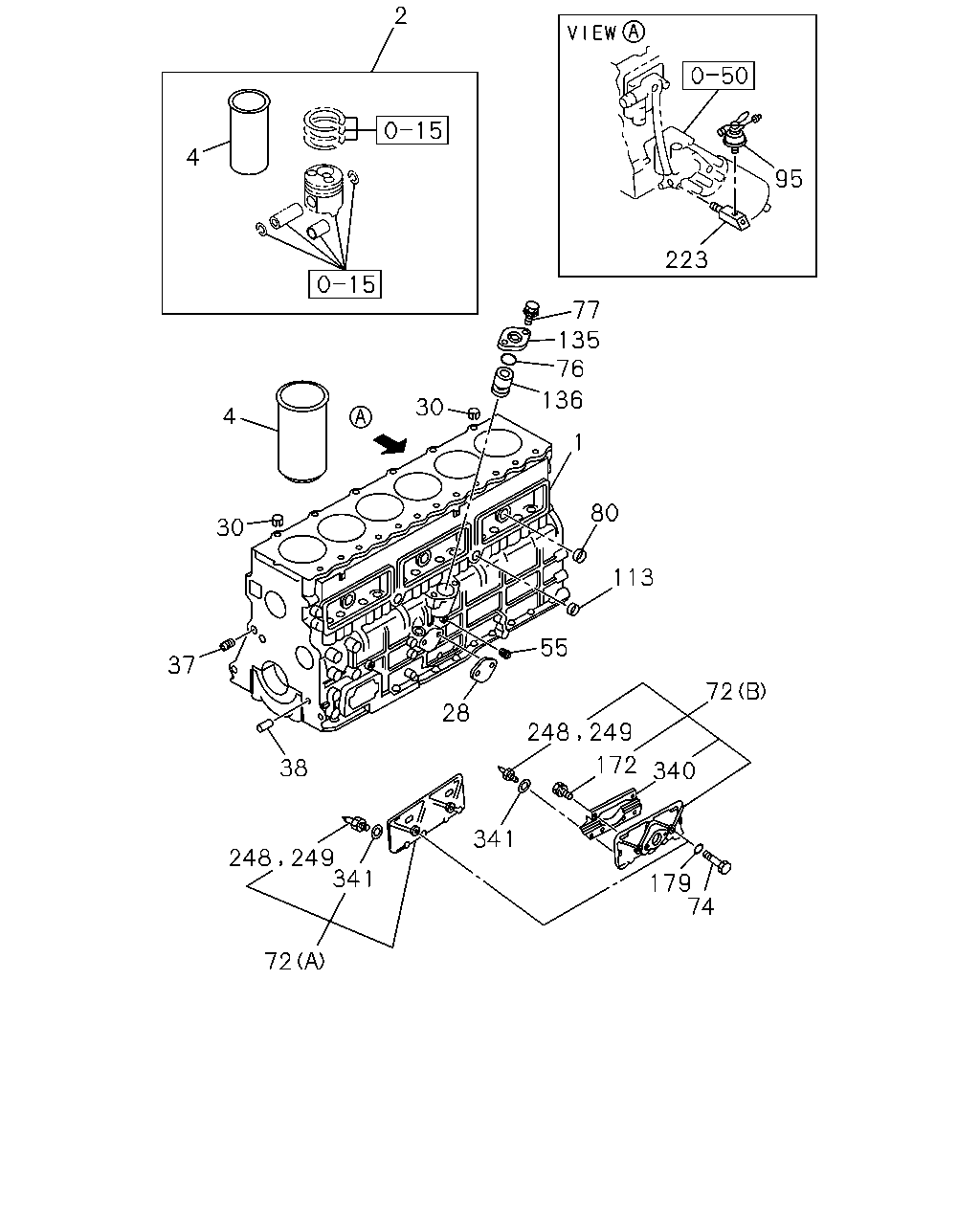

2 4 95 223 77 135 76 136 30 4 1 80 30 113 55 37 72 28 248 172 38 340 341 248 341 179 74 72 249 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	1-11210-444-8	01	1	9101-	●
1	BLOCK ASM; CYL	1-11210-448-3	01	1	9101-		●
2	LINER SET; ENG CYL GRADE=1	1-87811-418-0	06	1	9101-9812	●
2	LINER SET; ENG CYL GRADE=1	1-87811-932-2	06	1	9901-	●
2	LINER SET; ENG CYL GRADE=2	1-87811-419-0	06	1	9101-9812	●
2	LINER SET; ENG CYL GRADE=2	1-87811-933-2	06	1	9901-	●
2	LINER SET; ENG CYL GRADE=3	1-87811-420-0	06	1	9101-9812	●
2	LINER SET; ENG CYL GRADE=3	1-87811-934-2	06	1	9901-	●
2	LINER SET; ENG CYL GRADE=4	1-87811-421-0	06	1	9101-9812	●
2	LINER SET; ENG CYL GRADE=4	1-87811-935-2	06	1	9901-	●
2	LINER SET; ENG CYL GRADE=1	1-87811-353-1	06	1	9101-		●
2	LINER SET; ENG CYL GRADE=2	1-87811-354-1	06	1	9101-		●
2	LINER SET; ENG CYL GRADE=3	1-87811-355-1	06	1	9101-		●
2	LINER SET; ENG CYL GRADE=4	1-87811-356-1	06	1	9101-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	1-11261-248-0	06	1	9101-9812	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	1-11261-382-1	06	1	9901-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	1-11261-249-0	06	1	9101-9812	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	1-11261-383-1	06	1	9901-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	1-11261-250-0	06	1	9101-9812	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	1-11261-384-1	06	1	9901-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	1-11261-251-0	06	1	9101-9812	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	1-11261-385-1	06	1	9901-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	1-11261-252-0	06	1	9101-9812	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	1-11261-386-1	06	1	9901-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	1-11261-253-0	06	1	9101-9812	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	1-11261-387-1	06	1	9901-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	1-11261-254-0	06	1	9101-9812	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	1-11261-388-1	06	1	9901-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	1-11261-255-0	06	1	9101-9812	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	1-11261-389-1	06	1	9901-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	1-11261-240-0	06	1	9101-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	1-11261-241-0	06	1	9101-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	1-11261-242-0	06	1	9101-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	1-11261-243-0	06	1	9101-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	1-11261-244-0	06	1	9101-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	1-11261-245-0	06	1	9101-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	1-11261-246-0	06	1	9101-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	1-11261-247-0	06	1	9101-		●
28	COVER; OIL PORT	1-11219-163-0	01	1	9101-	●	●
30	PIN; CYL HD GASKET SETTING OD=16	8-94148-079-0	02	1	9101-	●	●
37	PLUG; OIL GALLERY	1-09605-068-1	02	1	9101-	●	●
38	PIN; TIMING GEAR CASE OD=10 L=50	9-08151-050-0	01	1	9101-9104	●	●
38	PIN; TIMING GEAR CASE OD=10 L=50	1-09740-078-0	01	1	9105-	●	●
55	PLUG; OIL GALLERY PT3/8 T=8.0	1-09605-066-0	01	1	9101-	●	●
55	PLUG; OIL GALLERY PT1/8 T=8.0	1-09605-079-0	01	1	9101-	●	●
55	PLUG; OIL GALLERY PT1/8 L=8 (SQUARE HEAD)	5-09605-018-0	01	1	9101-	●	●
72	COVER; TAPPET CHAMBER EXC. STARTER DENSO(RC6) (A)	1-11290-240-1	03	1	9101-9204	●	●
72	COVER; TAPPET CHAMBER RIGHT HAND DRIVE(MTR5FB) EXC. GLOW PLUG DELETE<E4D> (A)	1-11290-240-1	03	1	9205-9608	●	●
72	COVER; TAPPET CHAMBER LEFT HAND DRIVE(MTR6FB) EXC. STARTER DENSO(RC6) (A)	1-11290-240-1	03	1	9205-9608	●	●
72	COVER; TAPPET CHAMBER (A)	1-11290-240-1	03	1	9609-0203	●
72	COVER; TAPPET CHAMBER RIGHT HAND DRIVE(MTR5FB) EXC. GLOW PLUG DELETE<E4D>,STARTER DENSO(RC6) (A)	1-11290-240-1	03	1	9609-0203		●
72	COVER; TAPPET CHAMBER LEFT HAND DRIVE(MTR6FB) (A)	1-11290-240-1	03	1	9609-0203		●
72	COVER; TAPPET CHAMBER (A)	1-11290-240-1	03	1	0204-	●	●
72	COVER; TAPPET CHAMBER RIGHT HAND DRIVE(MTR5FB) STARTER DENSO(RC6) (A)	1-11290-240-1	02	1	9101-9204		●
72	COVER; TAPPET CHAMBER RIGHT HAND DRIVE(MTR5FB) GLOW PLUG DELETE<E4D> STARTER DENSO(RC6) (A)	1-11290-240-1	02	1	9205-0203		●
72	COVER; TAPPET CHAMBER RIGHT HAND DRIVE(MTR5FB) STARTER DENSO(RC6) (B)	1-11290-241-1	01	1	9101-9204		●
72	COVER; TAPPET CHAMBER RIGHT HAND DRIVE(MTR5FB) GLOW PLUG DELETE<E4D> STARTER DENSO(RC6) (B)	1-11290-241-1	01	1	9205-0203		●
74	BOLT; COVER TO C/BL	1-09052-031-0	06	1	9101-	●	●
76	GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=47.7	1-09623-465-0	01	1	9101-	●	●
77	BOLT; COVER TO C/BL M8X22 W/LK WASHER	0-50040-822-0	02	1	9101-	●	●
80	CUP; SEALING,TAPPET CHAMBER OD=32	1-09600-012-1	03	1	9101-	●	●
95	PRESSURE UNIT; OIL	1-83151-006-1	01	1	9101-	●	●
113	CUP; SEALING OD=28	5-11219-014-0	02	1	9101-	●	●
135	COVER; OIL PUMP	1-11219-129-1	01	1	9101-	●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	9-11224-602-1	01	1	9101-	●	●
172	BOLT; BAFFLE PLATE RIGHT HAND DRIVE(MTR5FB) GLOW PLUG DELETE<E4D>	0-50140-612-0	02	1	9101-0203		●
179	GASKET; COVER TO BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=17	9-09572-008-0	06	1	9101-	●	●
223	CONNECTOR; OIL PRESSURE	1-09659-041-0	01	1	9101-	●	●
248	BOLT; TAPPET GUIDE RIGHT HAND DRIVE(MTR5FB) STARTER DENSO(RC6)	1-09009-154-0	04	1	9101-9204		●
248	BOLT; TAPPET GUIDE RIGHT HAND DRIVE(MTR5FB) GLOW PLUG DELETE<E4D> STARTER DENSO(RC6)	1-09009-154-0	04	1	9205-0203		●
249	BOLT; TAPPET GUIDE EXC. STARTER DENSO(RC6)	1-09009-154-0	12	1	9101-9204	●	●
249	BOLT; TAPPET GUIDE RIGHT HAND DRIVE(MTR5FB) EXC. GLOW PLUG DELETE<E4D>	1-09009-154-0	12	1	9205-9608	●	●
249	BOLT; TAPPET GUIDE LEFT HAND DRIVE(MTR6FB) EXC. STARTER DENSO(RC6)	1-09009-154-0	12	1	9205-9608	●	●
249	BOLT; TAPPET GUIDE	1-09009-154-0	12	1	9609-0203	●
249	BOLT; TAPPET GUIDE RIGHT HAND DRIVE(MTR5FB) EXC. GLOW PLUG DELETE<E4D>,STARTER DENSO(RC6)	1-09009-154-0	12	1	9609-0203		●
249	BOLT; TAPPET GUIDE LEFT HAND DRIVE(MTR6FB)	1-09009-154-0	12	1	9609-0203		●
249	BOLT; TAPPET GUIDE	1-09009-154-0	12	1	0204-	●	●
249	BOLT; TAPPET GUIDE RIGHT HAND DRIVE(MTR5FB) STARTER DENSO(RC6)	1-09009-154-0	08	1	9101-9204		●
249	BOLT; TAPPET GUIDE RIGHT HAND DRIVE(MTR5FB) GLOW PLUG DELETE<E4D> STARTER DENSO(RC6)	1-09009-154-0	08	1	9205-0203		●
340	PLATE; GUIDE,TAPPET CHAMBER RIGHT HAND DRIVE(MTR5FB) GLOW PLUG DELETE<E4D>	1-11299-010-1	01	1	9101-0203		●
341	WASHER; PL,TAPPET GUIDE BOLT EXC. STARTER DENSO(RC6) ID=8.4	9-09160-508-0	12	1	9101-9204	●	●
341	WASHER; PL,TAPPET GUIDE BOLT RIGHT HAND DRIVE(MTR5FB) EXC. GLOW PLUG DELETE<E4D> ID=8.4	9-09160-508-0	12	1	9205-9608	●	●
341	WASHER; PL,TAPPET GUIDE BOLT LEFT HAND DRIVE(MTR6FB) EXC. STARTER DENSO(RC6) ID=8.4	9-09160-508-0	12	1	9205-9608	●	●
341	WASHER; PL,TAPPET GUIDE BOLT ID=8.4	9-09160-508-0	12	1	9609-0203	●
341	WASHER; PL,TAPPET GUIDE BOLT RIGHT HAND DRIVE(MTR5FB) EXC. GLOW PLUG DELETE<E4D>,STARTER DENSO(RC6) ID=8.4	9-09160-508-0	12	1	9609-0203		●
341	WASHER; PL,TAPPET GUIDE BOLT LEFT HAND DRIVE(MTR6FB) ID=8.4	9-09160-508-0	12	1	9609-0203		●
341	WASHER; PL,TAPPET GUIDE BOLT ID=8.4	9-09160-508-0	12	1	0204-	●	●
341	WASHER; PL,TAPPET GUIDE BOLT RIGHT HAND DRIVE(MTR5FB) STARTER DENSO(RC6) ID=8.4	9-09160-508-0	08	1	9101-9204		●
341	WASHER; PL,TAPPET GUIDE BOLT RIGHT HAND DRIVE(MTR5FB) GLOW PLUG DELETE<E4D> STARTER DENSO(RC6) ID=8.4	9-09160-508-0	08	1	9205-0203		●
