Isuzu WW
▶
TRUCKS
▶
NQR
▶
51038 - NQR(IRAN)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-43 - SIDE TRIM
▶

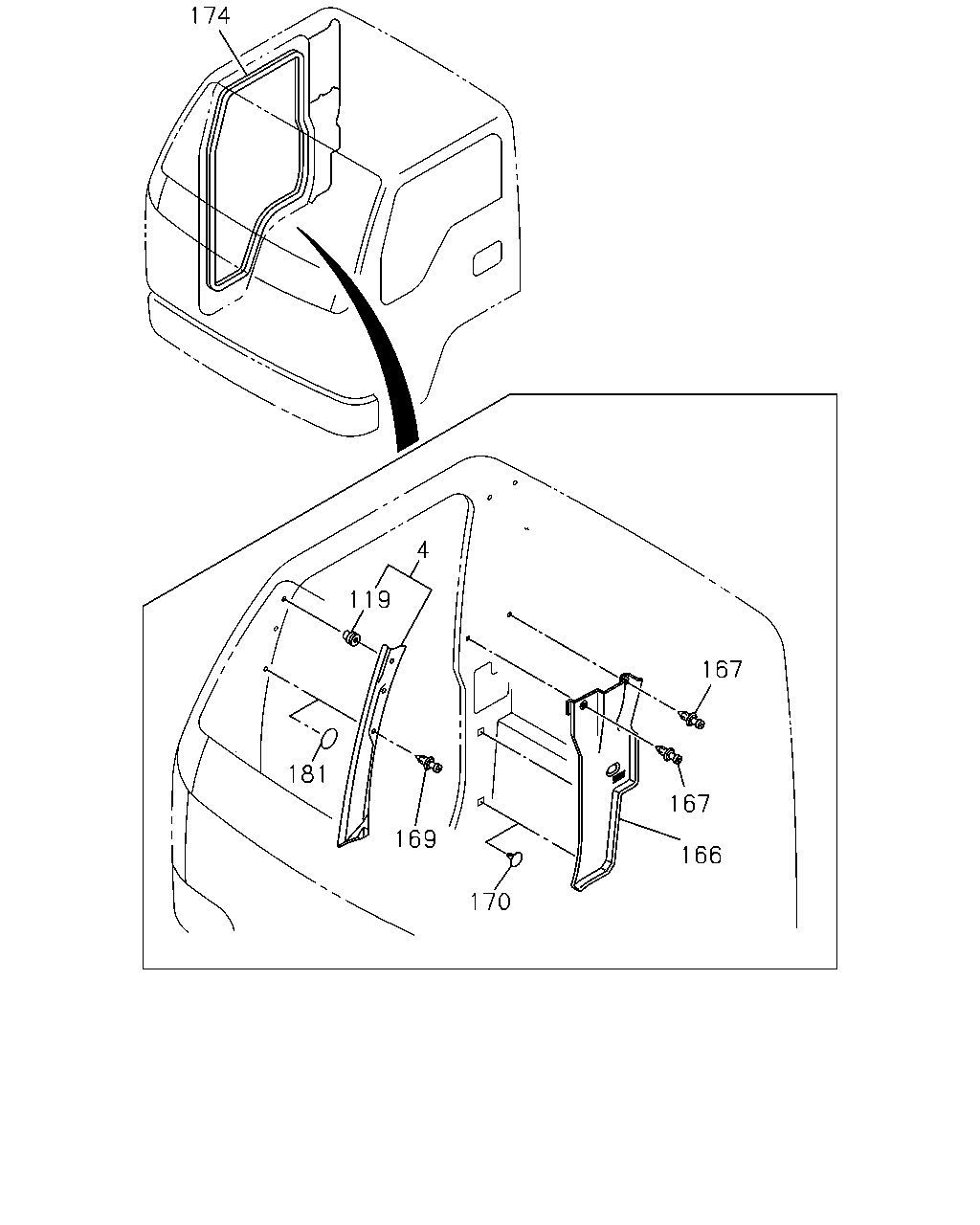

6-43 — SIDE TRIM
(#21525) — 23 parça
174
119
167
181
167
169
166
170
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> DARK GRAY
8-97859-853-3
01
1
0504-0609
4
COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> GRAY
8-97582-198-3
01
1
0610-
4
COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> DARK GRAY
8-97859-852-3
01
1
0504-0609
4
COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> GRAY
8-97582-197-3
01
1
0610-
119
CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ>
1-73318-278-0
02
1
0504-0609
119
CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ>
1-73318-278-0
02
1
0610-
166
TRIM; RR PILLAR
DARK GRAY
8-97859-870-5
01
1
0504-0609
166
TRIM; RR PILLAR
GRAY
8-97582-260-5
01
1
0610-
166
TRIM; RR PILLAR
DARK GRAY
8-97868-653-3
01
1
0504-0609
166
TRIM; RR PILLAR
GRAY
8-97582-262-3
01
1
0610-
167
CLIP; TRIM,RR PILLAR
DARK GRAY
8-97857-211-0
04
1
0504-0609
167
CLIP; TRIM,RR PILLAR
GRAY
8-97582-265-0
04
1
0610-0610
167
CLIP; TRIM,RR PILLAR
GRAY
8-97406-439-0
04
1
0611-
169
CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X19 PUSH RIVET
8-97857-210-0
02
1
0504-0609
169
CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X16 PUSH RIVET
8-97582-245-0
02
1
0610-
170
CLIP; HOLE
EXC. TRAY ROOF HEAD<7EJ>
8-94244-922-0
02
1
0610-
174
FINISHER; BODY SIDE
L=2982 DARK GRAY
8-97857-206-5
01
1
0504-0609
174
FINISHER; BODY SIDE
L=2982 GRAY
8-97582-256-5
01
1
0610-
174
FINISHER; BODY SIDE
L=2982 DARK GRAY
8-97857-205-5
01
1
0504-0609
174
FINISHER; BODY SIDE
L=2982 GRAY
8-97582-255-5
01
1
0610-
181
SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE
8-97856-832-2
02
1
0610-0610
181
SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE
8-98059-421-0
02
1
0611-
181
SEAL; FRT PILLAR
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK
5-76777-036-0
02
1
0610-
