0-11 — CYLINDER HEAD (#2152) — 63 parça

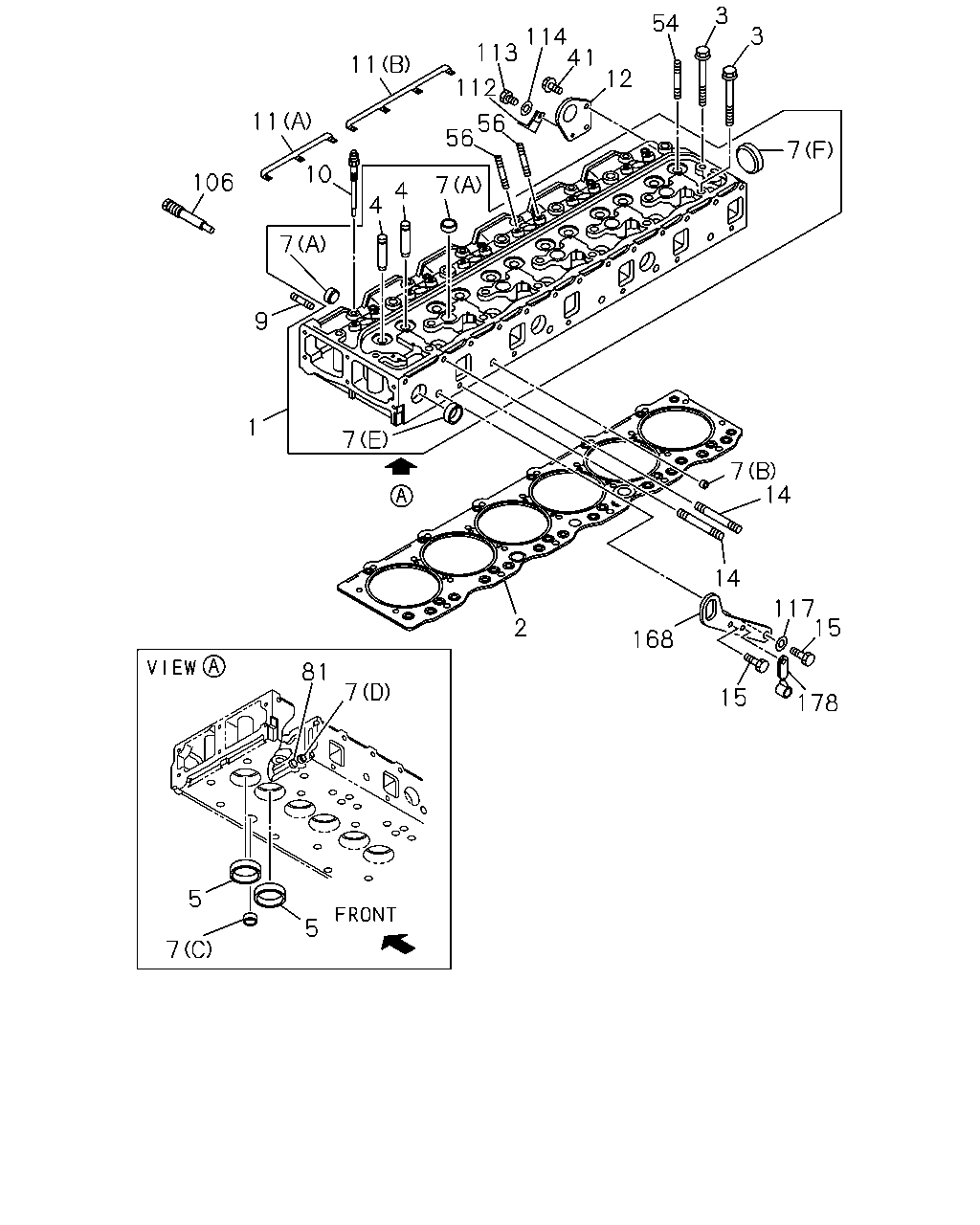

çizim 27779
3 54 3 114 113 41 11 12 112 11 56 56 7 10 106 7 4 4 7 9 1 7 7 14 14 117 15 2 168 81 7 15 178 5 5 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 1-11110-600-3 01 1 9101- ●
1 HEAD ASM; CYL 1-11110-614-3 01 1 9101-0308 ●
1 HEAD ASM; CYL 1-11110-842-2 01 1 0309- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-196-1 01 1 9101- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-195-1 01 1 9101- ●
3 BOLT; CYL HD TO BLOCK
M12X100 		1-09070-100-1 06 1 9101- ● ●
3 BOLT; CYL HD TO BLOCK
M12X113 		1-09070-101-1 20 1 9101- ● ●
4 GUIDE; VLV 5-11721-001-0 12 1 9101-0307 ● ●
4 GUIDE; VLV 1-11721-013-0 12 1 0308- ● ●
5 SEAT; VLV INSERT
EXHAUST 		1-11711-043-0 06 1 9101- ● ●
5 SEAT; VLV INSERT
INLET 		1-11715-054-0 06 1 9101- ● ●
7 CUP; SEALING,CYL HEAD
(F) OD=45 		1-09600-005-2 01 1 9101- ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=25 		1-09600-016-0 11 1 9101- ● ●
7 CUP; SEALING,CYL HEAD
(D) OD=12.3 		5-09600-013-0 06 1 9101- ● ●
7 CUP; SEALING,CYL HEAD
(E) OD=32 		5-11219-015-0 03 1 9101- ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=20 		9-11129-128-0 03 1 9101- ● ●
7 CUP; SEALING,CYL HEAD
(B) OD=12.5 		9-11129-601-0 05 1 9101- ● ●
9 STUD; INL MANIF
M8X25 L=37 		9-04110-825-0 03 1 9101-0212 ● ●
9 STUD; INL MANIF
M8X25 L=37 		9-04110-825-0 06 1 0301- ● ●
10 PLUG; GLOW
EXC. STARTER DENSO(RC6) 		9-82513-928-8 06 1 9101-9204 ● ●
10 PLUG; GLOW
RIGHT HAND DRIVE(MTR5FB) EXC. GLOW PLUG DELETE<E4D> 		9-82513-928-8 06 1 9205-9608 ● ●
10 PLUG; GLOW
LEFT HAND DRIVE(MTR6FB) EXC. STARTER DENSO(RC6) 		9-82513-928-8 06 1 9205-9608 ● ●
10 PLUG; GLOW 9-82513-928-9 06 1 9609-9809 ●
10 PLUG; GLOW
RIGHT HAND DRIVE(MTR5FB) EXC. GLOW PLUG DELETE<E4D>,STARTER DENSO(RC6) 		9-82513-928-9 06 1 9609-9809 ●
10 PLUG; GLOW
LEFT HAND DRIVE(MTR6FB) 		9-82513-928-9 06 1 9609-9809 ●
10 PLUG; GLOW 1-82513-043-0 06 1 9810-0203 ●
10 PLUG; GLOW
RIGHT HAND DRIVE(MTR5FB) EXC. GLOW PLUG DELETE<E4D>,STARTER DENSO(RC6) 		1-82513-043-0 06 1 9810-0203 ●
10 PLUG; GLOW
LEFT HAND DRIVE(MTR6FB) 		1-82513-043-0 06 1 9810-0203 ●
10 PLUG; GLOW 1-82513-043-0 06 1 0204- ● ●
11 CONNECTOR; GLOW PLUG
EXC. STARTER DENSO(RC6) (A) L=236 		5-19732-001-0 01 1 9101-9204 ● ●
11 CONNECTOR; GLOW PLUG
RIGHT HAND DRIVE(MTR5FB) EXC. GLOW PLUG DELETE<E4D> (A) L=236 		5-19732-001-1 01 1 9205-9608 ● ●
11 CONNECTOR; GLOW PLUG
LEFT HAND DRIVE(MTR6FB) EXC. STARTER DENSO(RC6) (A) L=236 		5-19732-001-1 01 1 9205-9608 ● ●
11 CONNECTOR; GLOW PLUG
(A) L=236 		5-19732-001-1 01 1 9609-0203 ●
11 CONNECTOR; GLOW PLUG
RIGHT HAND DRIVE(MTR5FB) EXC. GLOW PLUG DELETE<E4D>,STARTER DENSO(RC6) (A) L=236 		5-19732-001-1 01 1 9609-0203 ●
11 CONNECTOR; GLOW PLUG
LEFT HAND DRIVE(MTR6FB) (A) L=236 		5-19732-001-1 01 1 9609-0203 ●
11 CONNECTOR; GLOW PLUG
(A) L=236 		5-19732-001-1 01 1 0204- ● ●
11 CONNECTOR; GLOW PLUG
EXC. STARTER DENSO(RC6) (B) L=354 		5-19732-002-0 01 1 9101-9204 ● ●
11 CONNECTOR; GLOW PLUG
RIGHT HAND DRIVE(MTR5FB) EXC. GLOW PLUG DELETE<E4D> (B) L=354 		5-19732-002-1 01 1 9205-9608 ● ●
11 CONNECTOR; GLOW PLUG
LEFT HAND DRIVE(MTR6FB) EXC. STARTER DENSO(RC6) (B) L=354 		5-19732-002-1 01 1 9205-9608 ● ●
11 CONNECTOR; GLOW PLUG
(B) L=354 		5-19732-002-1 01 1 9609-0203 ●
11 CONNECTOR; GLOW PLUG
RIGHT HAND DRIVE(MTR5FB) EXC. GLOW PLUG DELETE<E4D>,STARTER DENSO(RC6) (B) L=354 		5-19732-002-1 01 1 9609-0203 ●
11 CONNECTOR; GLOW PLUG
LEFT HAND DRIVE(MTR6FB) (B) L=354 		5-19732-002-1 01 1 9609-0203 ●
11 CONNECTOR; GLOW PLUG
(B) L=354 		5-19732-002-1 01 1 0204- ● ●
12 HANGER; ENG,RR 1-11777-084-0 01 1 9101- ● ●
14 STUD; EXH MANIF
M8X50 L=61 		8-94109-890-0 11 1 9101- ● ●
14 STUD; EXH MANIF
M8X60 L=72 		8-94156-940-0 01 1 9101- ● ●
15 BOLT; HANGER,FRT
M14X25 		0-20801-425-0 01 1 9101- ● ●
15 BOLT; HANGER,FRT
M10X22 W/LK WASHER 		0-50041-022-0 01 1 9101- ● ●
41 BOLT; ENG HANGER
RIGHT HAND DRIVE(MTR5FB) M10X25 W/LK WASHER 		0-50041-025-0 01 1 9101- ● ●
41 BOLT; ENG HANGER
LEFT HAND DRIVE(MTR6FB) M10X22 W/LK WASHER 		0-50041-022-0 01 1 9101-9701 ● ●
41 BOLT; ENG HANGER
LEFT HAND DRIVE(MTR6FB) M10X20 FLANGE 		0-28681-020-0 01 1 9702- ● ●
54 STUD; ROCKER ARM
M8X83 L=96 		9-09830-163-0 04 1 9101- ● ●
56 STUD; NOZZLE HOLDER
M8X40 L=58 		1-09300-018-0 12 1 9101- ● ●
81 PLUG; PLATE,DRILLED PASSAGE 9-09660-034-0 06 1 9101- ● ●
106 PLUG; GLOW PLUG HOLE
RIGHT HAND DRIVE(MTR5FB) GLOW PLUG DELETE<E4D> 		5-11119-007-1 06 1 9101-0203 ●
112 CLIP; HANGER,GLOW HARNESS 9-09916-755-0 01 1 9101- ● ●
113 BOLT; CLIP
M6X10 		9-02040-610-0 01 1 9101-9204 ● ●
113 BOLT; CLIP
M6X10 		0-20800-610-0 01 1 9205-9701 ● ●
113 BOLT; CLIP
M6X10 FLANGE 		0-28080-610-0 01 1 9702- ● ●
114 WASHER; LK,CLIP 9-09150-506-0 01 1 9101-9703 ● ●
117 WASHER; LK,HANGER 9-09150-514-0 01 1 9101- ● ●
168 HANGER; ENG,FRT 5-11777-055-1 01 1 9101- ● ●
178 CLIP; ENG HARNESS 1-09700-522-0 01 1 9101- ● ●
