Isuzu WW
▶
TRUCKS
▶
NQR
▶
51038 - NQR(IRAN)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

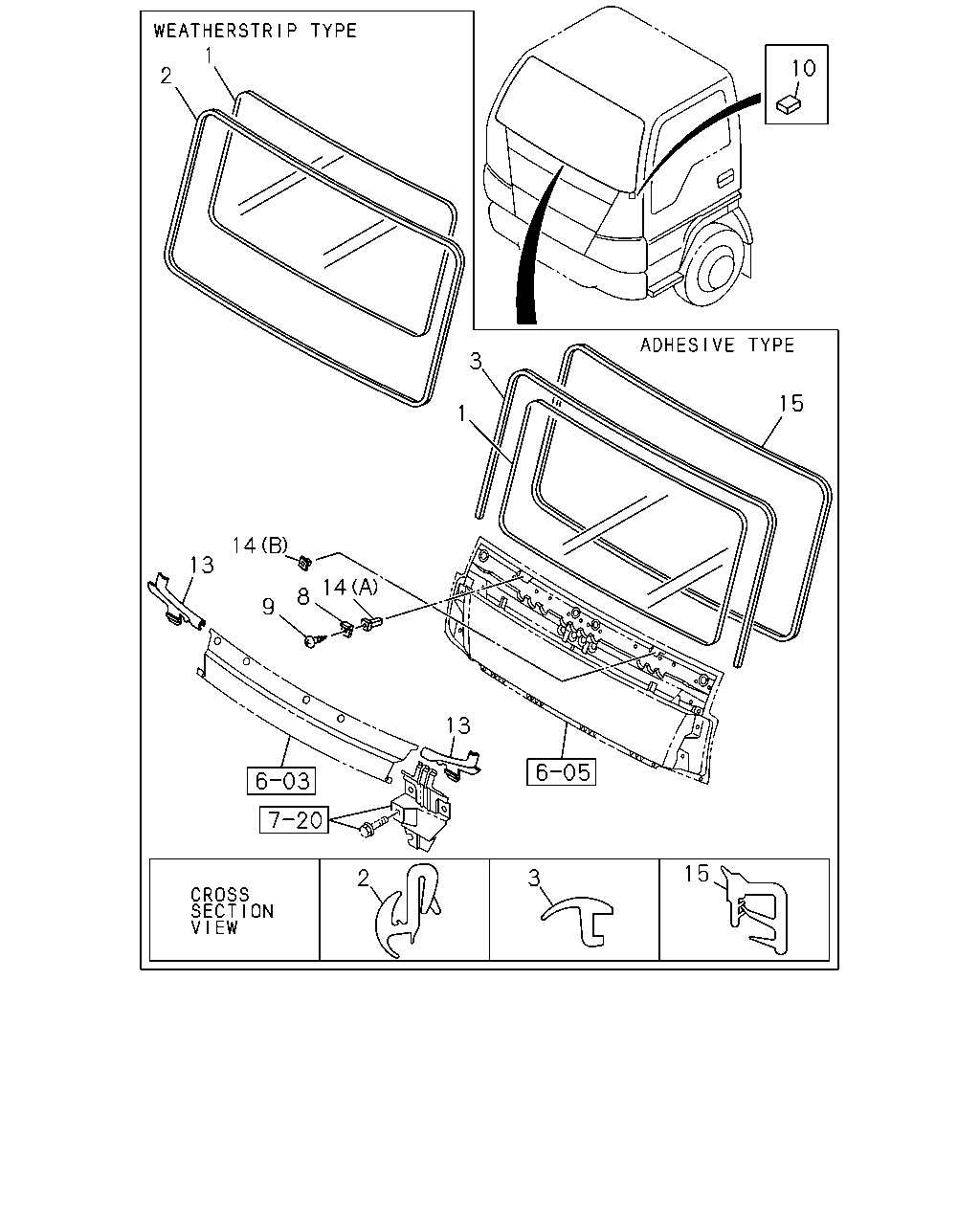

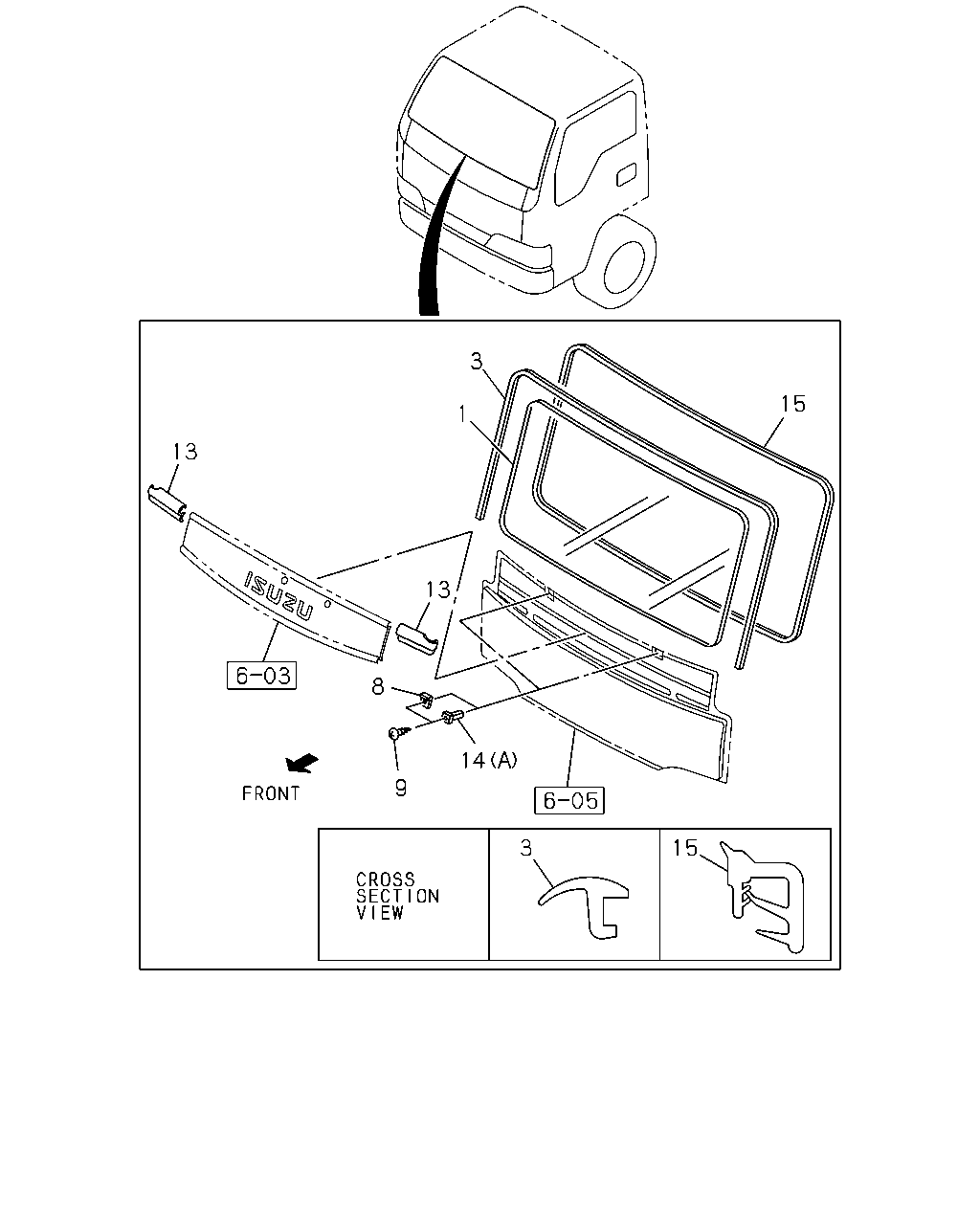

6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP
▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP
(#21519) — 44 parça
◀
[607A] -'06/9 (21 parça)
[607A] '06/10- (23 parça)
▶
3
15
1
13
13
8
14
9
3
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; WINDSHIELD
T=6.3
8-97869-127-1
01
1
0504-0805
1
GLASS; WINDSHIELD
T=6.3
8-97997-945-2
01
1
0806-
3
MOLDING; WINDSHIELD
8-97890-215-3
01
1
0504-0609
3
MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-624-3
01
1
0610-
8
STOPPER; WINDSHIELD GLASS
8-97853-733-1
02
1
0504-0609
8
STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-733-1
02
1
0610-1304
8
STOPPER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-733-1
02
1
1305-
9
SCREW; STOPPER
M5X14
8-94279-325-0
02
1
0504-0609
9
SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> M5X14
8-94279-325-0
02
1
0610-1304
9
SCREW; STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> M5X14
8-94279-325-0
02
1
1305-
13
MOLDING; BRKT,OUTSIDE MIRROR
8-97853-787-4
01
1
0504-0609
13
MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-618-3
01
1
0610-
13
MOLDING; BRKT,OUTSIDE MIRROR
8-97853-786-3
01
1
0504-0609
13
MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-617-4
01
1
0610-
14
GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>,KD PREPARATORY PACK VAR.4<7TV> (B) D=7.9X7.9 L=11.4 M5
8-94367-528-0
02
1
1305-
14
GROMMET; SCREW,STOPPER
(A) D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
0504-0609
14
GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
0610-1304
14
GROMMET; SCREW,STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
1305-
14
GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 14.5X14.5 BLACK
8-94279-714-0
04
1
0610-
15
FINISHER; WINDSHIELD
DARK GRAY
8-97857-048-7
01
1
0504-0609
15
FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY
8-97582-815-7
01
1
0610-
2
1
13
14
14
8
9
13
2
3
15
15
3
1
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; WINDSHIELD
T=6.3
8-97869-127-1
01
1
0504-0805
1
GLASS; WINDSHIELD
T=6.3
8-97997-945-2
01
1
0806-
2
WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97856-350-4
01
1
0610-
3
MOLDING; WINDSHIELD
8-97890-215-3
01
1
0504-0609
3
MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-624-3
01
1
0610-
8
STOPPER; WINDSHIELD GLASS
8-97853-733-1
02
1
0504-0609
8
STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-733-1
02
1
0610-1304
8
STOPPER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-733-1
02
1
1305-
9
SCREW; STOPPER
M5X14
8-94279-325-0
02
1
0504-0609
9
SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> M5X14
8-94279-325-0
02
1
0610-1304
9
SCREW; STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> M5X14
8-94279-325-0
02
1
1305-
10
SPACER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 10X10
8-94174-466-0
01
1
0610-
13
MOLDING; BRKT,OUTSIDE MIRROR
8-97853-787-4
01
1
0504-0609
13
MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-618-3
01
1
0610-
13
MOLDING; BRKT,OUTSIDE MIRROR
8-97853-786-3
01
1
0504-0609
13
MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-617-4
01
1
0610-
14
GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>,KD PREPARATORY PACK VAR.4<7TV> (B) D=7.9X7.9 L=11.4 M5
8-94367-528-0
02
1
1305-
14
GROMMET; SCREW,STOPPER
(A) D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
0504-0609
14
GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
0610-1304
14
GROMMET; SCREW,STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
1305-
14
GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 14.5X14.5 BLACK
8-94279-714-0
04
1
0610-
15
FINISHER; WINDSHIELD
DARK GRAY
8-97857-048-7
01
1
0504-0609
15
FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY
8-97582-815-7
01
1
0610-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
