◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51038 - NQR(IRAN) ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#21514) — 53 parça

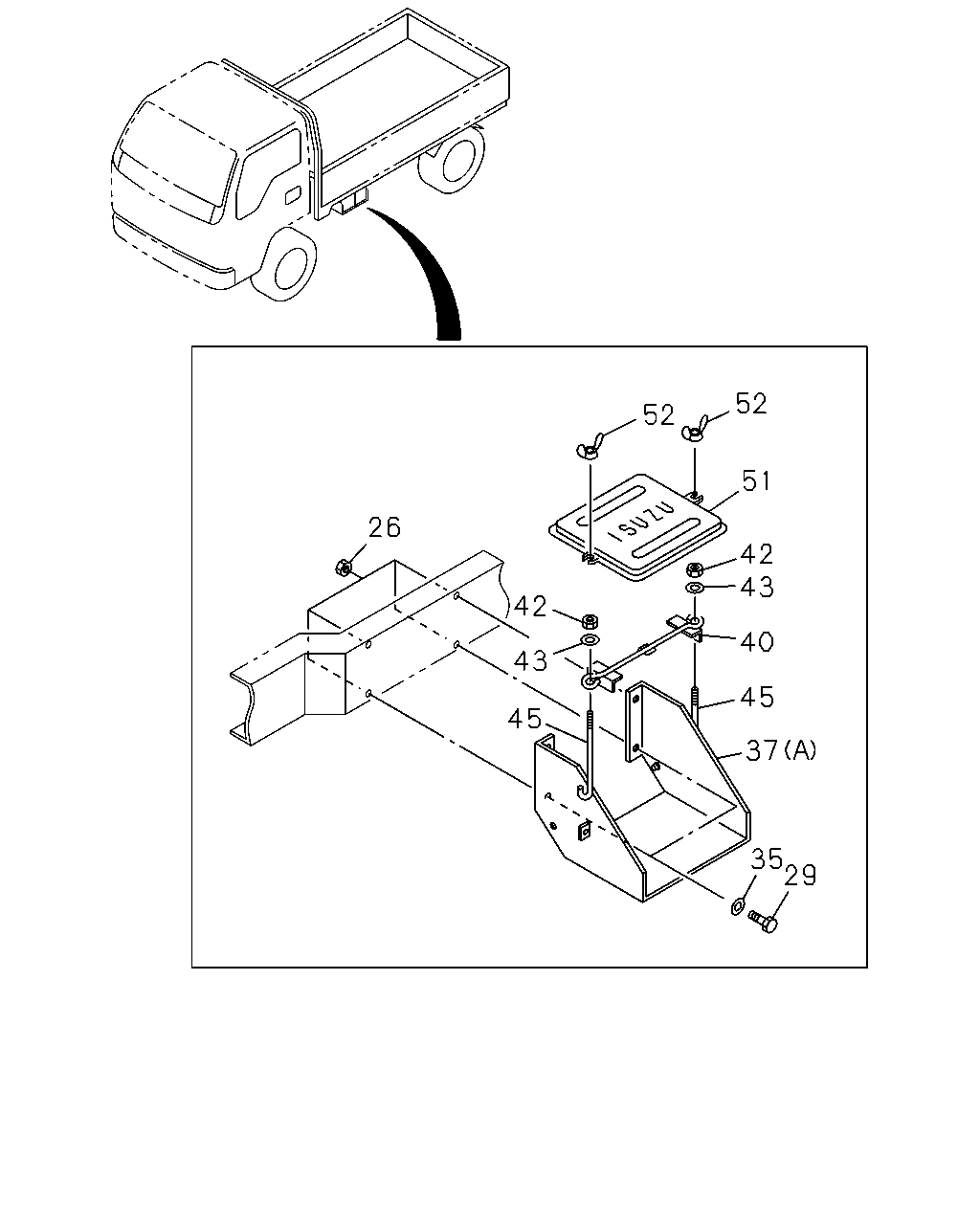

çizim 56061
52 52 51 26 42 43 42 40 43 45 45 37 35 29
BalonParca AdiParca NoAdetTipApplied Date
26 NUT; BRKT
4HE1 ENG(RLY) M10 FLANGE 		0-91150-210-0 02 1 0504-0602
26 NUT; BRKT
4HE1 ENG(RLY) M10 FLANGE 		0-91180-210-0 02 1 0603-0609
26 NUT; BRKT
4HE1-TCN ENG(RDR) M10 FLANGE 		0-91180-210-0 02 1 0610-
29 BOLT; BRKT TO FRAME
BATTERY 115E41R<6XD> M10X35 FLANGE 		0-28661-035-0 04 1 0610-
29 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) M10X30 W/LK WASHER 		0-50041-030-0 04 1 0504-0512
29 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) M10X30 W/LK WASHER 		0-50541-030-0 04 1 0601-0609
29 BOLT; BRKT TO FRAME
EXC. BATTERY 115E41R<6XD> M10X30 W/LK WASHER 		0-50541-030-0 04 1 0610-
35 WASHER; PL,BATTERY CARRIER
4HE1 ENG(RLY) ID=10.5 OD=22 		9-09160-610-0 04 1 0504-0605
35 WASHER; PL,BATTERY CARRIER
4HE1 ENG(RLY) ID=10.5 OD=22 T=1.6 		0-91610-610-0 04 1 0606-0609
35 WASHER; PL,BATTERY CARRIER
EXC. BATTERY 115E41R<6XD> ID=10.5 OD=22 T=1.6 		0-91610-610-0 04 1 0610-
37 BRACKET; BATTERY
BATTERY 115E41R<6XD> (B) 		8-97134-838-0 01 1 0610-0706
37 BRACKET; BATTERY
BATTERY 115E41R<6XD> (B) 		8-98091-497-0 01 1 0707-
37 BRACKET; BATTERY
4HE1 ENG(RLY) (A) 		8-97356-174-0 01 1 0504-0609
37 BRACKET; BATTERY
EXC. BATTERY 115E41R<6XD> (A) 		8-97356-174-0 01 1 0610-0610
37 BRACKET; BATTERY
EXC. BATTERY 115E41R<6XD> (A) 		8-97384-068-2 01 1 0611-0612
37 BRACKET; BATTERY
EXC. BATTERY 115E41R<6XD> (A) 		8-97384-067-2 01 1 0701-
40 CLAMP; BATTERY
4HE1 ENG(RLY) 		5-53615-004-1 01 1 0504-0609
40 CLAMP; BATTERY
EXC. BATTERY 115E41R<6XD> 		5-53615-004-1 01 1 0610-
42 NUT; CLAMP
4HE1 ENG(RLY) M8 		9-09110-408-0 02 1 0504-0512
42 NUT; CLAMP
4HE1 ENG(RLY) M8 		0-91110-508-0 02 1 0601-0609
42 NUT; CLAMP
EXC. BATTERY 115E41R<6XD> M8 		0-91110-508-0 02 1 0610-
43 WASHER; PL,CLAMP
4HE1 ENG(RLY) ID=8.4 OD=22 		9-09164-708-0 02 1 0504-0605
43 WASHER; PL,CLAMP
4HE1 ENG(RLY) ID=8.4 OD=22 		0-91614-708-0 02 1 0606-0609
43 WASHER; PL,CLAMP
EXC. BATTERY 115E41R<6XD> ID=8.4 OD=22 		0-91614-708-0 02 1 0610-
45 ROD; TENSION,BATTERY
BATTERY 115E41R<6XD> 		8-97134-740-0 02 1 0610-
45 ROD; TENSION,BATTERY
4HE1 ENG(RLY) 		9-53616-615-0 02 1 0504-0609
45 ROD; TENSION,BATTERY
EXC. BATTERY 115E41R<6XD> 		9-53616-615-0 02 1 0610-
51 COVER; BATTERY
BATTERY 115E41R<6XD> 		9-53612-072-1 01 1 0610-
51 COVER; BATTERY
4HE1 ENG(RLY) 		8-97120-747-0 01 1 0504-0609
51 COVER; BATTERY
EXC. BATTERY 115E41R<6XD> 		8-97120-747-0 01 1 0610-
52 NUT; WING,COVER FIX
4HE1 ENG(RLY) M8 WING NUT 		9-09118-408-0 02 1 0504-0512
52 NUT; WING,COVER FIX
4HE1 ENG(RLY) M8 WING NUT 		0-91118-408-0 02 1 0601-0609
52 NUT; WING,COVER FIX
EXC. BATTERY 115E41R<6XD> M8 WING NUT 		0-91118-408-0 02 1 0610-

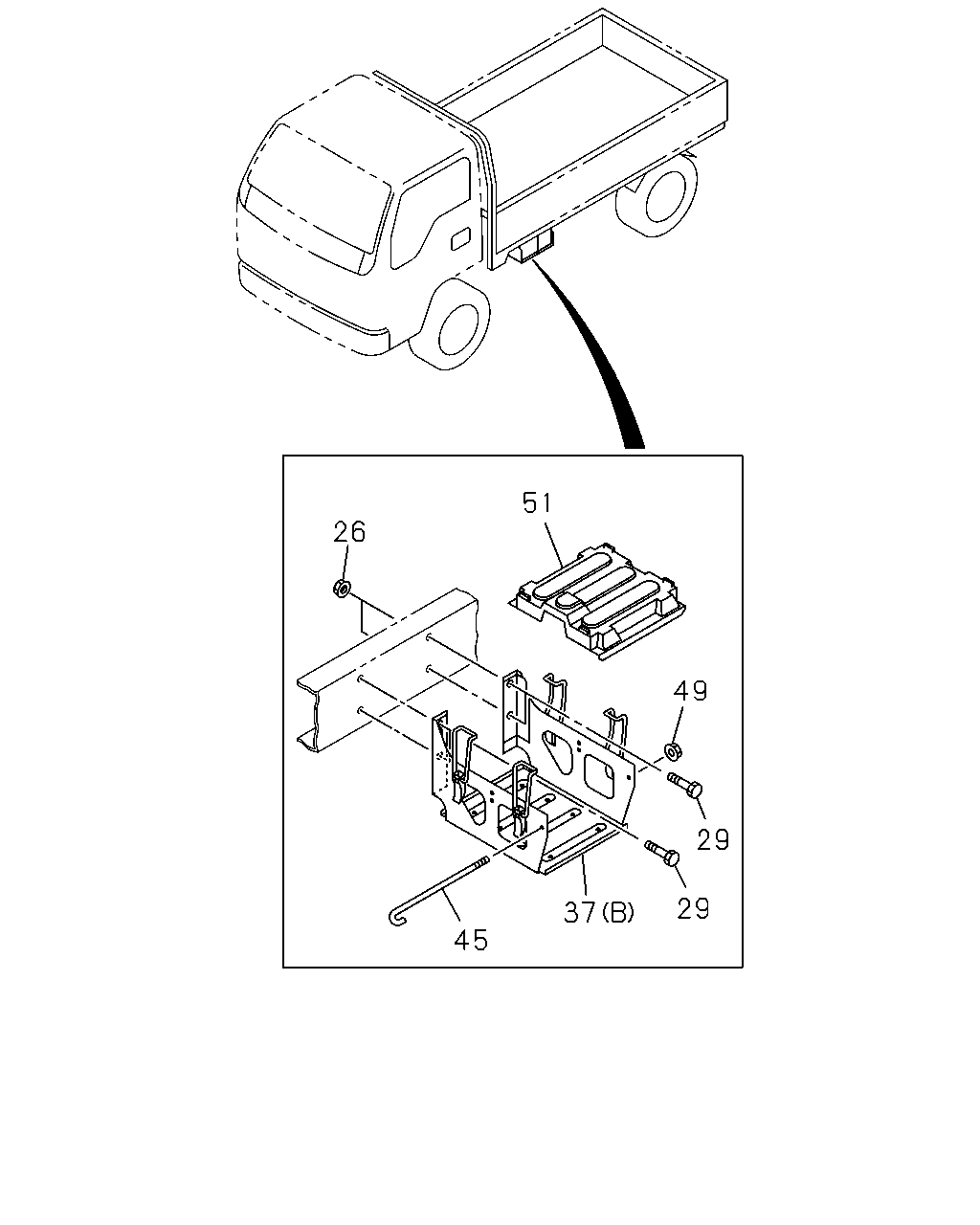

çizim 56064
51 26 49 29 29 37 45
BalonParca AdiParca NoAdetTipApplied Date
26 NUT; BRKT
4HE1 ENG(RLY) M10 FLANGE 		0-91150-210-0 02 1 0504-0602
26 NUT; BRKT
4HE1 ENG(RLY) M10 FLANGE 		0-91180-210-0 02 1 0603-0609
26 NUT; BRKT
4HE1-TCN ENG(RDR) M10 FLANGE 		0-91180-210-0 02 1 0610-
29 BOLT; BRKT TO FRAME
BATTERY 115E41R<6XD> M10X35 FLANGE 		0-28661-035-0 04 1 0610-
29 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) M10X30 W/LK WASHER 		0-50041-030-0 04 1 0504-0512
29 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) M10X30 W/LK WASHER 		0-50541-030-0 04 1 0601-0609
29 BOLT; BRKT TO FRAME
EXC. BATTERY 115E41R<6XD> M10X30 W/LK WASHER 		0-50541-030-0 04 1 0610-
37 BRACKET; BATTERY
BATTERY 115E41R<6XD> (B) 		8-97134-838-0 01 1 0610-0706
37 BRACKET; BATTERY
BATTERY 115E41R<6XD> (B) 		8-98091-497-0 01 1 0707-
37 BRACKET; BATTERY
4HE1 ENG(RLY) (A) 		8-97356-174-0 01 1 0504-0609
37 BRACKET; BATTERY
EXC. BATTERY 115E41R<6XD> (A) 		8-97356-174-0 01 1 0610-0610
37 BRACKET; BATTERY
EXC. BATTERY 115E41R<6XD> (A) 		8-97384-068-2 01 1 0611-0612
37 BRACKET; BATTERY
EXC. BATTERY 115E41R<6XD> (A) 		8-97384-067-2 01 1 0701-
45 ROD; TENSION,BATTERY
BATTERY 115E41R<6XD> 		8-97134-740-0 02 1 0610-
45 ROD; TENSION,BATTERY
4HE1 ENG(RLY) 		9-53616-615-0 02 1 0504-0609
45 ROD; TENSION,BATTERY
EXC. BATTERY 115E41R<6XD> 		9-53616-615-0 02 1 0610-
49 NUT; ROD,BATTERY
BATTERY 115E41R<6XD> M8 FLANGE 		0-91180-108-0 02 1 0610-
51 COVER; BATTERY
BATTERY 115E41R<6XD> 		9-53612-072-1 01 1 0610-
51 COVER; BATTERY
4HE1 ENG(RLY) 		8-97120-747-0 01 1 0504-0609
51 COVER; BATTERY
EXC. BATTERY 115E41R<6XD> 		8-97120-747-0 01 1 0610-
