5-01 — FRAME AND OTHER PARTS (#21511) — 94 parça

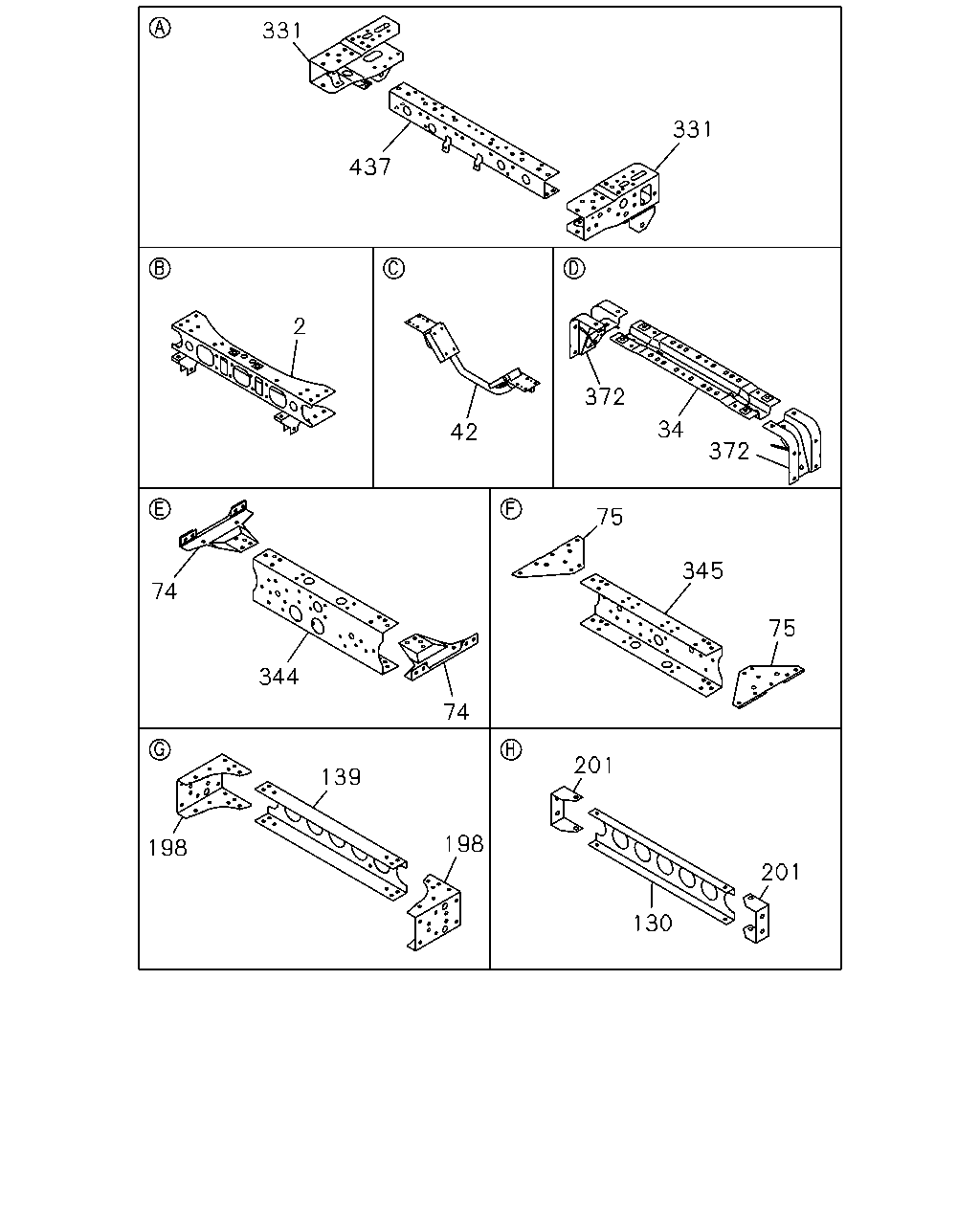

331 331 437 2 372 34 42 372 75 345 74 75 344 74 201 139 198 198 201 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST 4HE1 ENG(RLY)	8-97080-862-4	01	1	0504-0609
2	MEMBER; CROSS,1ST 4HE1-TCN ENG(RDR)	8-97080-862-4	01	1	0610-
34	MEMBER; CROSS,3RD 4HE1 ENG(RLY)	8-97096-875-2	01	1	0504-0609
34	MEMBER; CROSS,3RD 4HE1-TCN ENG(RDR)	8-97096-875-2	01	1	0610-
42	MEMBER; CROSS,ENG MTG 4HE1 ENG(RLY)	8-97080-868-0	01	1	0504-0609
42	MEMBER; CROSS,ENG MTG 4HE1-TCN ENG(RDR)	8-97080-868-0	01	1	0610-
74	GUSSET; 4TH C/MBR 4HE1 ENG(RLY) UPPER	8-97080-878-0	01	1	0504-0609
74	GUSSET; 4TH C/MBR 4HE1-TCN ENG(RDR) UPPER	8-97080-878-0	01	1	0610-
74	GUSSET; 4TH C/MBR 4HE1 ENG(RLY) LOWER	8-97118-876-1	01	1	0504-0609
74	GUSSET; 4TH C/MBR 4HE1-TCN ENG(RDR) LOWER	8-97118-876-1	01	1	0610-
74	GUSSET; 4TH C/MBR 4HE1 ENG(RLY) UPPER	8-97109-777-0	01	1	0504-0609
74	GUSSET; 4TH C/MBR 4HE1-TCN ENG(RDR) UPPER	8-97109-777-0	01	1	0610-
74	GUSSET; 4TH C/MBR 4HE1 ENG(RLY) LOWER	8-97118-875-1	01	1	0504-0609
74	GUSSET; 4TH C/MBR 4HE1-TCN ENG(RDR) LOWER	8-97118-875-1	01	1	0610-
75	GUSSET; 5TH C/MBR 4HE1 ENG(RLY) LOWER	8-97080-878-0	01	1	0504-0609
75	GUSSET; 5TH C/MBR 4HE1-TCN ENG(RDR) LOWER	8-97080-878-0	01	1	0610-
75	GUSSET; 5TH C/MBR 4HE1 ENG(RLY) UPPER	8-97118-876-1	01	1	0504-0609
75	GUSSET; 5TH C/MBR 4HE1-TCN ENG(RDR) UPPER	8-97118-876-1	01	1	0610-
75	GUSSET; 5TH C/MBR 4HE1 ENG(RLY) LOWER	8-97109-777-0	01	1	0504-0609
75	GUSSET; 5TH C/MBR 4HE1-TCN ENG(RDR) LOWER	8-97109-777-0	01	1	0610-
75	GUSSET; 5TH C/MBR 4HE1 ENG(RLY) UPPER	8-97118-875-1	01	1	0504-0609
75	GUSSET; 5TH C/MBR 4HE1-TCN ENG(RDR) UPPER	8-97118-875-1	01	1	0610-
130	MEMBER; CROSS,END 4HE1 ENG(RLY)	8-97080-872-0	01	1	0504-0609
130	MEMBER; CROSS,END 4HE1-TCN ENG(RDR)	8-97080-872-0	01	1	0610-
139	MEMBER; CROSS,6TH 4HE1 ENG(RLY)	8-97107-384-0	01	1	0504-0609
139	MEMBER; CROSS,6TH 4HE1-TCN ENG(RDR)	8-97107-384-0	01	1	0610-
198	GUSSET; 6TH C/MBR 4HE1 ENG(RLY)	8-97080-882-1	02	1	0504-0609
198	GUSSET; 6TH C/MBR 4HE1-TCN ENG(RDR)	8-97080-882-1	02	1	0610-
201	GUSSET; C/MBR 4HE1 ENG(RLY)	8-97096-871-0	02	1	0504-0609
201	GUSSET; C/MBR 4HE1-TCN ENG(RDR)	8-97096-871-0	02	1	0610-
331	BRACKET; STRG UNIT 4HE1 ENG(RLY)	8-97096-865-1	01	1	0504-0609
331	BRACKET; STRG UNIT 4HE1-TCN ENG(RDR)	8-97096-865-1	01	1	0610-
331	BRACKET; STRG UNIT 4HE1 ENG(RLY)	8-97096-864-0	01	1	0504-0609
331	BRACKET; STRG UNIT 4HE1-TCN ENG(RDR)	8-97096-864-0	01	1	0610-
344	MEMBER; CROSS,4TH 4HE1 ENG(RLY)	8-97175-993-3	01	1	0504-0609
344	MEMBER; CROSS,4TH 4HE1-TCN ENG(RDR)	8-97175-993-3	01	1	0610-
345	MEMBER; CROSS,5TH 4HE1 ENG(RLY)	8-97175-993-3	01	1	0504-0609
345	MEMBER; CROSS,5TH 4HE1-TCN ENG(RDR)	8-97175-993-3	01	1	0610-
372	BRACKET 4HE1 ENG(RLY)	8-97139-128-0	02	1	0504-0609
372	BRACKET 4HE1-TCN ENG(RDR)	8-97139-128-0	02	1	0610-
437	MEMBER; CROSS,BUMPER 4HE1 ENG(RLY)	8-97100-041-1	01	1	0504-0609
437	MEMBER; CROSS,BUMPER 4HE1-TCN ENG(RDR)	8-97100-041-1	01	1	0610-

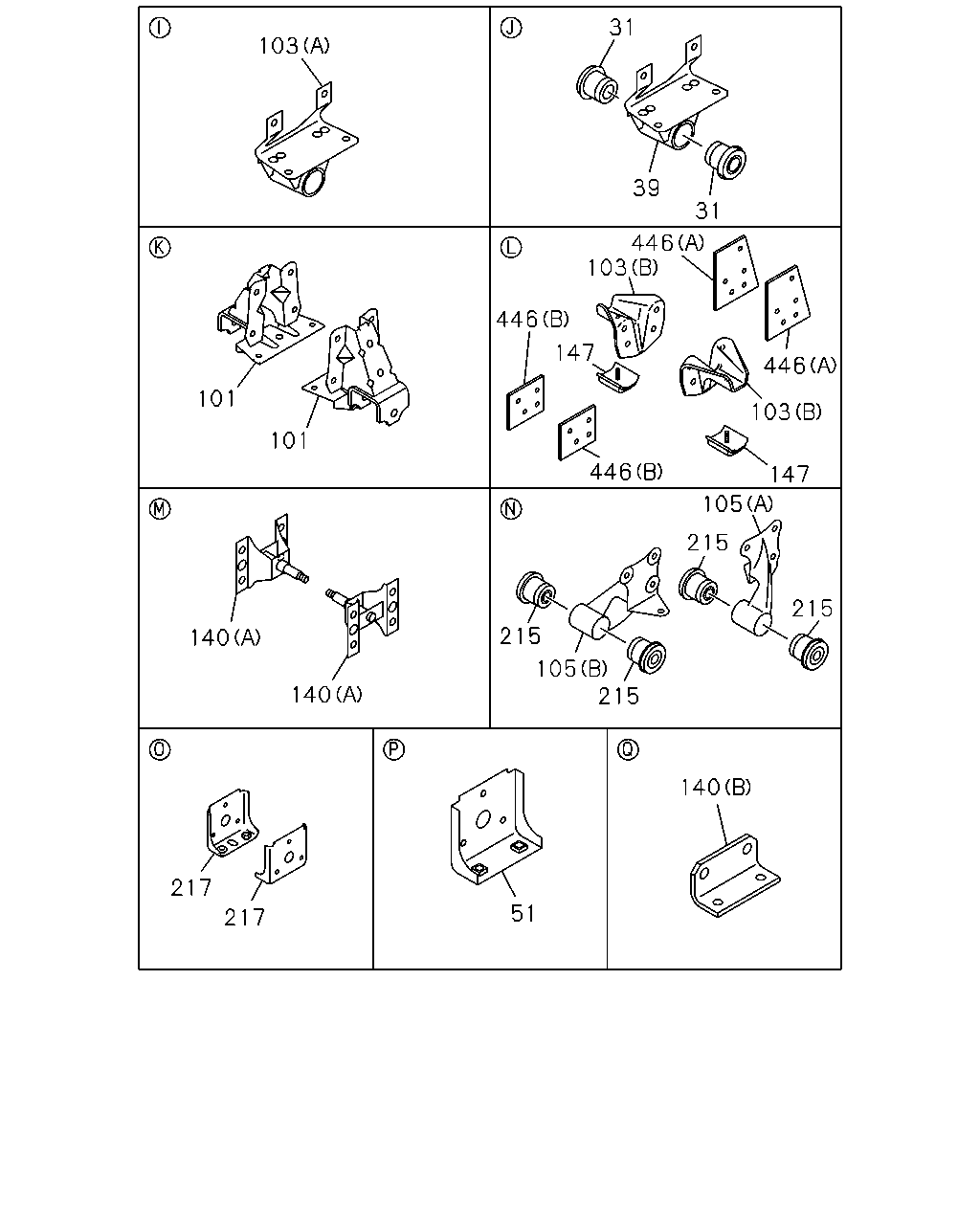

31 103 39 31 446 103 446 147 446 101 103 101 446 147 105 215 215 215 140 105 215 140 140 217 51 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BUSHING; FRT SPR,RR 4HE1 ENG(RLY)	8-97184-699-1	04	1	0504-0609
31	BUSHING; FRT SPR,RR 4HE1-TCN ENG(RDR)	8-97184-699-1	04	1	0610-
39	BRACKET; FRT SPR,RR 4HE1 ENG(RLY)	8-97079-495-1	02	1	0504-0609
39	BRACKET; FRT SPR,RR 4HE1-TCN ENG(RDR)	8-97079-495-1	02	1	0610-
51	BRACKET; ENG SUPPORT,OUTER 4HE1 ENG(RLY)	8-97202-415-1	02	1	0504-0609
51	BRACKET; ENG SUPPORT,OUTER 4HE1-TCN ENG(RDR) EXC. FRAME PRESS KOUGYOU<7RZ>	8-97202-415-1	02	1	0610-
51	BRACKET; ENG SUPPORT,OUTER 4HE1-TCN ENG(RDR) FRAME PRESS KOUGYOU<7RZ>	8-97046-284-1	02	1	0610-
101	BRACKET; RR SPR,FRT 4HE1 ENG(RLY)	8-97042-245-1	02	1	0504-0609
101	BRACKET; RR SPR,FRT 4HE1-TCN ENG(RDR)	8-97042-245-1	02	1	0610-
103	STOPPER; SUB SPR 4HE1 ENG(RLY) (A)	8-97079-659-1	02	1	0504-0609
103	STOPPER; SUB SPR 4HE1-TCN ENG(RDR) (A)	8-97079-659-1	02	1	0610-
103	STOPPER; SUB SPR 4HE1 ENG(RLY) (B)	8-97223-748-0	04	1	0504-0609
103	STOPPER; SUB SPR 4HE1-TCN ENG(RDR) (B)	8-97223-748-0	04	1	0610-
105	BRACKET; RR SPR,RR 4HE1 ENG(RLY) (B)	8-94459-512-1	01	1	0504-0609
105	BRACKET; RR SPR,RR 4HE1-TCN ENG(RDR) (B)	8-94459-512-1	01	1	0610-
105	BRACKET; RR SPR,RR 4HE1 ENG(RLY) (A)	8-94459-511-1	01	1	0504-0609
105	BRACKET; RR SPR,RR 4HE1-TCN ENG(RDR) (A)	8-94459-511-1	01	1	0610-
140	BRACKET; S/ABS,RR 4HE1 ENG(RLY) (B)	8-97302-511-0	02	1	0504-0609
140	BRACKET; S/ABS,RR 4HE1-TCN ENG(RDR) (B)	8-97302-511-0	02	1	0610-
140	BRACKET; S/ABS,RR 4HE1 ENG(RLY) (A)	8-97080-884-0	02	1	0504-0609
140	BRACKET; S/ABS,RR 4HE1-TCN ENG(RDR) (A)	8-97080-884-1	02	1	0610-
147	RUBBER; SUB SPRING 4HE1 ENG(RLY)	8-97254-387-0	04	1	0504-0609
147	RUBBER; SUB SPRING 4HE1-TCN ENG(RDR)	8-97254-387-0	04	1	0610-
215	BUSHING; BRKT,RR SPRING 4HE1 ENG(RLY)	8-97184-699-1	04	1	0504-0609
215	BUSHING; BRKT,RR SPRING 4HE1-TCN ENG(RDR)	8-97184-699-1	04	1	0610-
217	BRACKET; HELPER RUBBER,RR SPRING 4HE1 ENG(RLY)	8-97202-417-0	02	1	0504-0609
217	BRACKET; HELPER RUBBER,RR SPRING 4HE1-TCN ENG(RDR) EXC. FRAME PRESS KOUGYOU<7RZ>	8-97202-417-0	02	1	0610-
217	BRACKET; HELPER RUBBER,RR SPRING 4HE1-TCN ENG(RDR) FRAME PRESS KOUGYOU<7RZ>	8-94258-963-0	02	1	0610-
446	STIFFENER; SPRING STOPPER 4HE1 ENG(RLY) (B) REAR	8-97170-790-0	02	1	0504-0609
446	STIFFENER; SPRING STOPPER 4HE1-TCN ENG(RDR) (B) REAR	8-97170-790-0	02	1	0610-
446	STIFFENER; SPRING STOPPER 4HE1 ENG(RLY) (A) FRONT	8-97180-433-0	02	1	0504-0609
446	STIFFENER; SPRING STOPPER 4HE1-TCN ENG(RDR) (A) FRONT	8-97180-433-0	02	1	0610-

376 376 376 376 376 376 376 376 376 376 376 176 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
118	NUT; STOPPER 4HE1 ENG(RLY) M8 LOCK NUT	9-09131-508-0	02	1	0504-0603
118	NUT; STOPPER 4HE1 ENG(RLY) M8 LOCK NUT	0-91370-008-0	02	1	0604-0609
118	NUT; STOPPER 4HE1-TCN ENG(RDR) M8 LOCK NUT	0-91370-008-0	02	1	0610-
176	BOLT; C/MBR,ENG MTG 4HE1 ENG(RLY) M10X25 FLANGE	0-28081-025-0	08	1	0504-0512
176	BOLT; C/MBR,ENG MTG 4HE1 ENG(RLY) M10X25 FLANGE	0-28051-025-0	08	1	0601-0609
176	BOLT; C/MBR,ENG MTG 4HE1-TCN ENG(RDR) M10X25 FLANGE	0-28051-025-0	08	1	0610-
376	RIVET; FRAME (A) D8X26 TAPER END	9-06750-826-0	AR	1	0504-
376	RIVET; FRAME (B) D10X24 TAPER END	9-06751-024-0	AR	1	0504-
376	RIVET; FRAME (C) D10X26 TAPER END	9-06751-026-0	AR	1	0504-
376	RIVET; FRAME (D) D10X28 TAPER END	9-06751-028-0	AR	1	0504-
376	RIVET; FRAME (E) D10X32 TAPER END	9-06751-032-0	AR	1	0504-
376	RIVET; FRAME (F) D10X36 TAPER END	9-06751-036-0	AR	1	0504-
376	RIVET; FRAME (G) D11X26 TAPER END	9-06751-126-0	AR	1	0504-
376	RIVET; FRAME (H) D11X30 TAPER END	9-06751-130-0	AR	1	0504-
376	RIVET; FRAME (I) D12X30 TAPER END	9-06751-230-0	AR	1	0504-
376	RIVET; FRAME (J) D12X36 TAPER END	9-06751-236-0	AR	1	0504-
376	RIVET; FRAME (K) D12X40 TAPER END	9-06751-240-0	AR	1	0504-

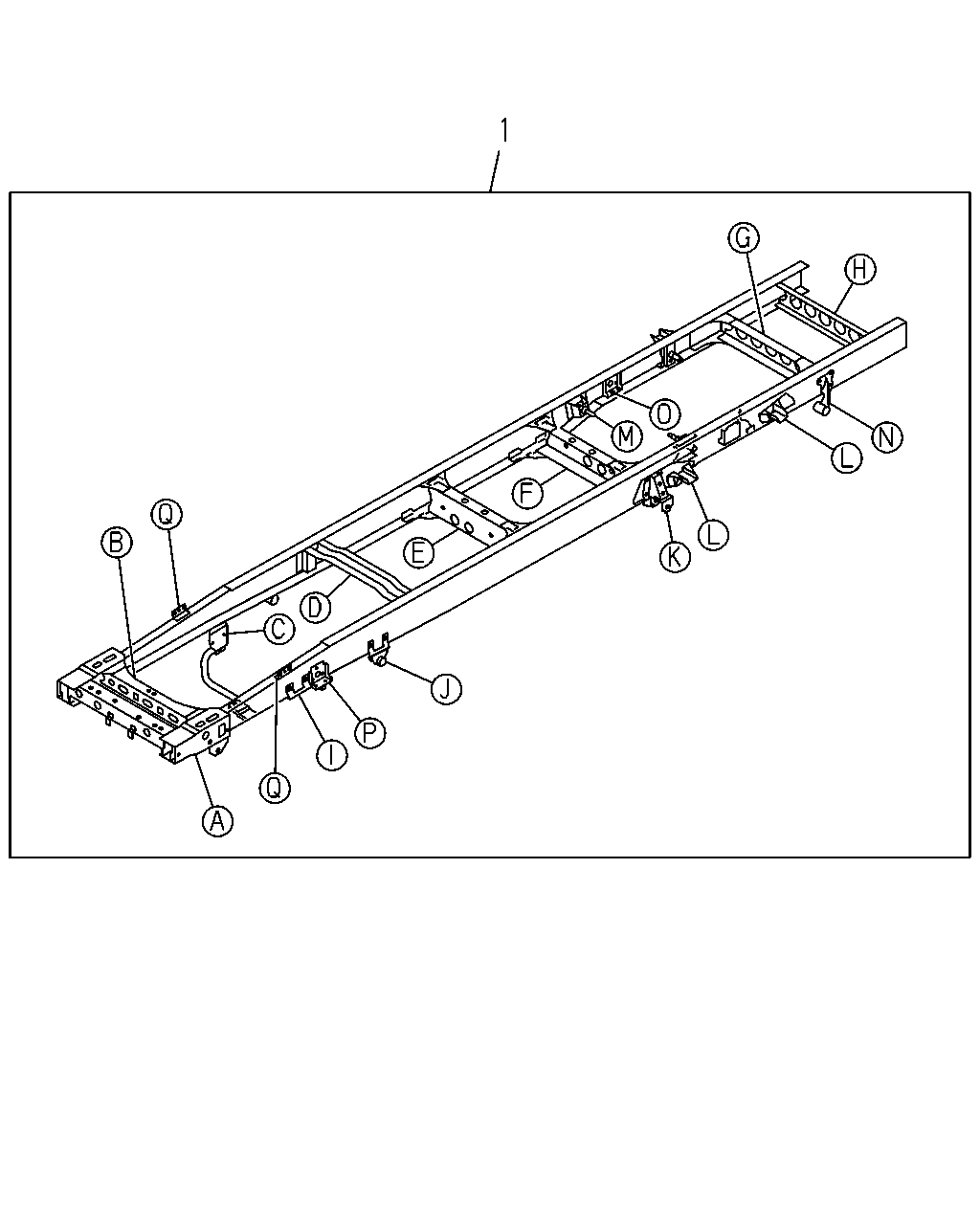

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FRAME ASM 4HE1 ENG(RLY)	8-98003-463-0	01	1	0504-0609
1	FRAME ASM 4HE1-TCN ENG(RDR) EXC. FRAME PRESS KOUGYOU<7RZ>	8-98003-463-0	01	1	0610-
1	FRAME ASM 4HE1-TCN ENG(RDR) FRAME PRESS KOUGYOU<7RZ>	8-98003-506-2	01	1	0610-
