4-80 — ROAD WHEEL (#21510) — 20 parça

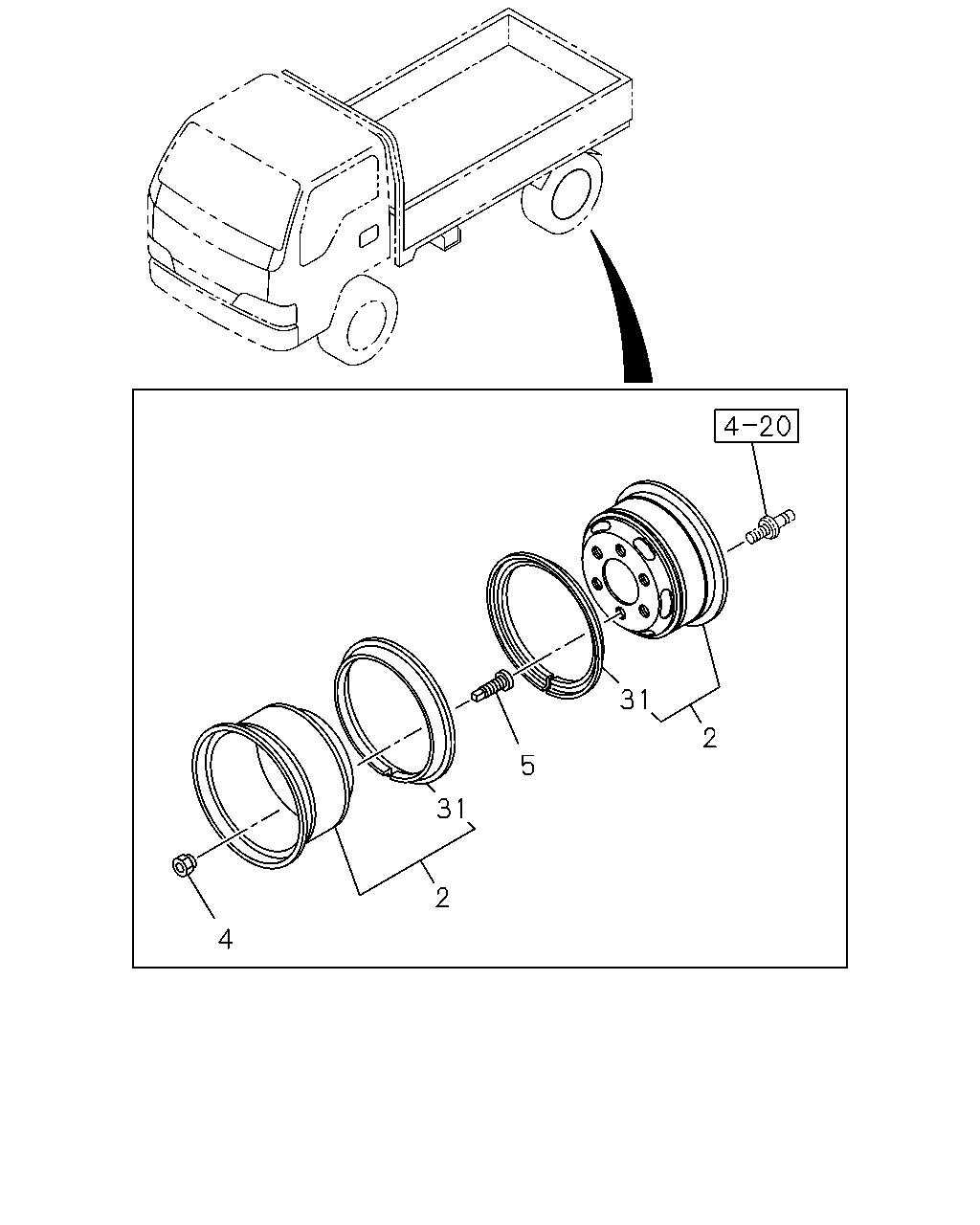

31 2 5 31 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	01	1	0504-
2	WHEEL; DISC FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	06	1	0504-
4	NUT; WHEEL,RR AXLE M30 LH THREAD	1-42334-023-0	06	1	0504-0610
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	06	1	0611-
4	NUT; WHEEL,RR AXLE M30	1-42333-023-0	06	1	0504-0610
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	06	1	0611-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-1	06	1	0504-0610
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	0611-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-1	06	1	0504-0610
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	0611-
31	RING; SIDE,DISC WHEEL SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	0504-
31	RING; SIDE,DISC WHEEL FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	0504-

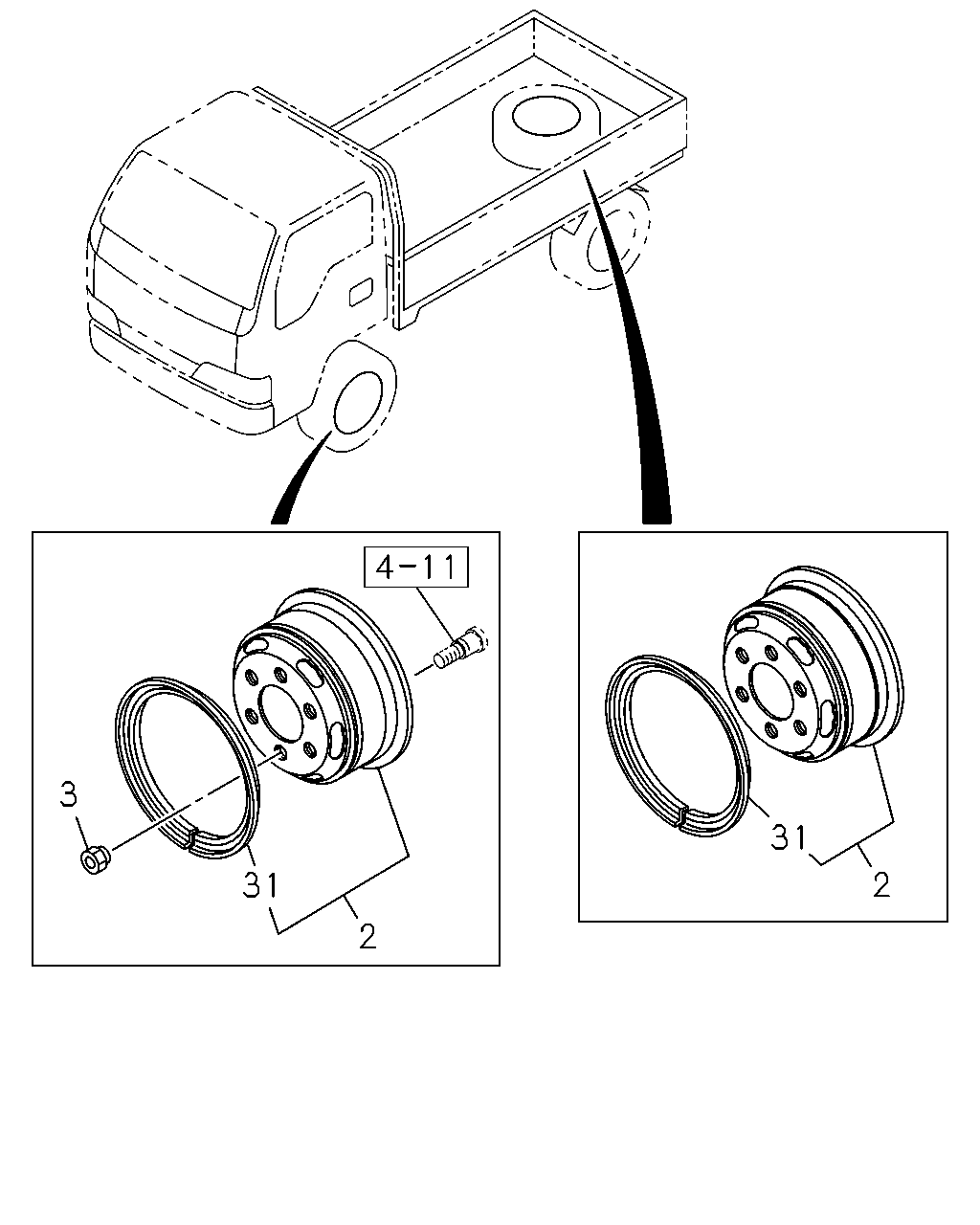

3 31 31 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	01	1	0504-
2	WHEEL; DISC FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	06	1	0504-
3	NUT; WHEEL,FRT AXLE M20 LH THREAD	8-94427-549-1	06	1	0504-0610
3	NUT; WHEEL,FRT AXLE M20 LH THREAD	8-97359-808-0	06	1	0611-
3	NUT; WHEEL,FRT AXLE M20 RH THREAD	8-94427-548-1	06	1	0504-0610
3	NUT; WHEEL,FRT AXLE M20 RH THREAD	8-97359-807-0	06	1	0611-
31	RING; SIDE,DISC WHEEL SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	0504-
31	RING; SIDE,DISC WHEEL FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	0504-
