◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51038 - NQR(IRAN) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶

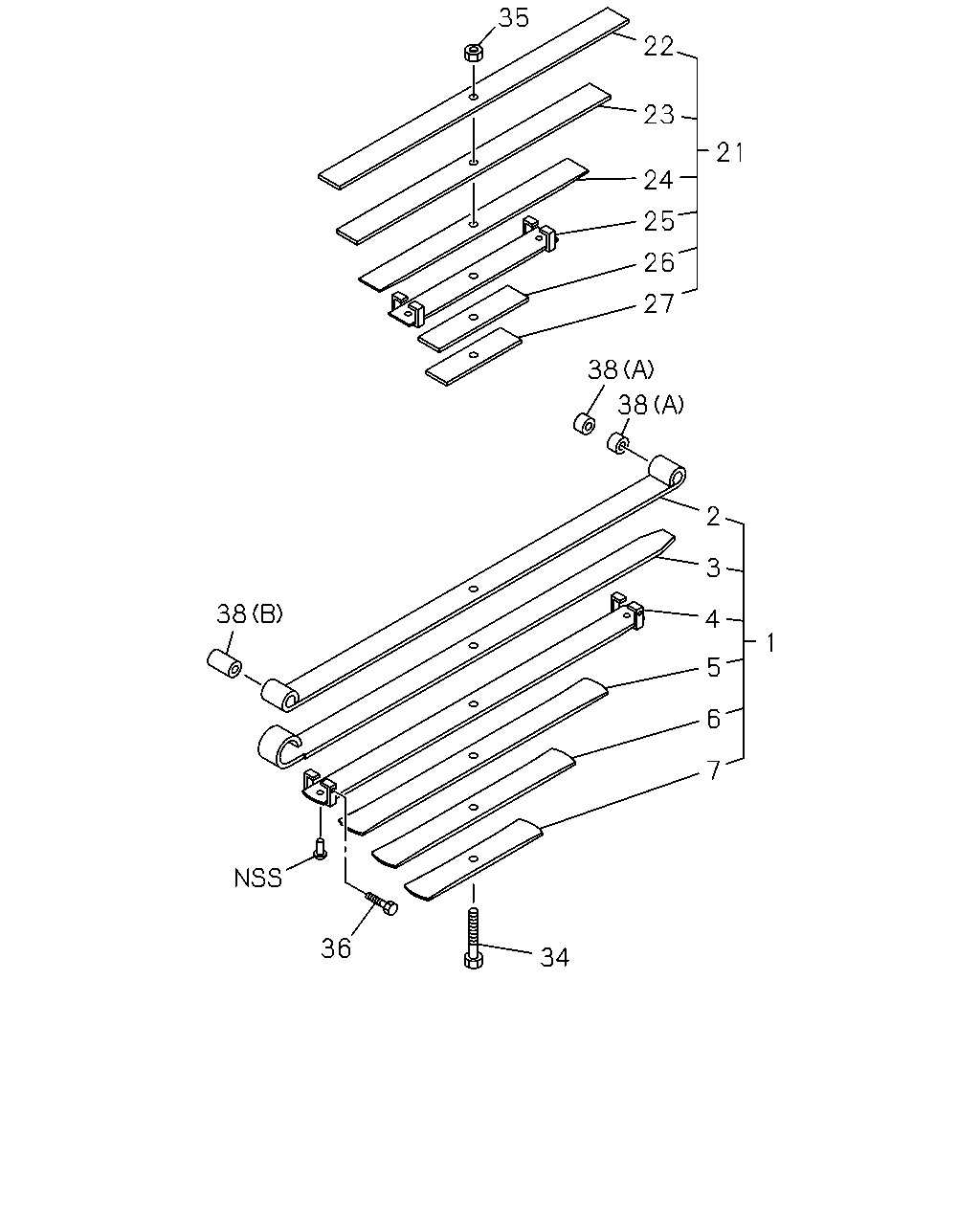

4-65 — REAR LEAF SPRING (#21509) — 20 parça
çizim 55947
35 22 23 21 24 25 26 27 38 38 2 3 38 4 1 5 6 7 36 34
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-97096-576-0 		8-97135-465-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-97096-576-0 		8-97135-459-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-97096-576-0 		8-97135-460-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-97096-576-0 		8-97135-461-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-97096-576-0 		8-97135-462-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-97096-576-0 		8-97135-463-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 8-97096-576-0 		8-97135-464-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-97096-576-0 		8-97135-472-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-97096-576-0 		8-97135-466-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-97096-576-0 		8-97135-467-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-97096-576-0 		8-97135-468-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 8-97096-576-0 		8-97135-469-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 8-97096-576-0 		8-97135-470-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 8-97096-576-0 		8-97135-471-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=150 ASM PART: A = 8-97096-576-0 		8-94165-316-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-97096-576-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X90.5 ASM PART: A = 8-97096-576-0 		8-94407-133-0 03 1 -
38 BUSHING; LEAF SPR,RR
(B), BEST VALUE PARTS ASM PART: A = 8-97096-576-0 		5-87610-163-0 01 1 -
38 BUSHING; LEAF SPR,RR
(A), OD=40 L=43.7 ASM PART: A = 8-97096-576-0 		8-94118-588-1 02 1 -
38 BUSHING; LEAF SPR,RR
(B), OD=42 L=81 ASM PART: A = 8-97096-576-0 		8-97074-826-0 01 1 -
