Isuzu WW
▶
TRUCKS
▶
NQR
▶
51038 - NQR(IRAN)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶

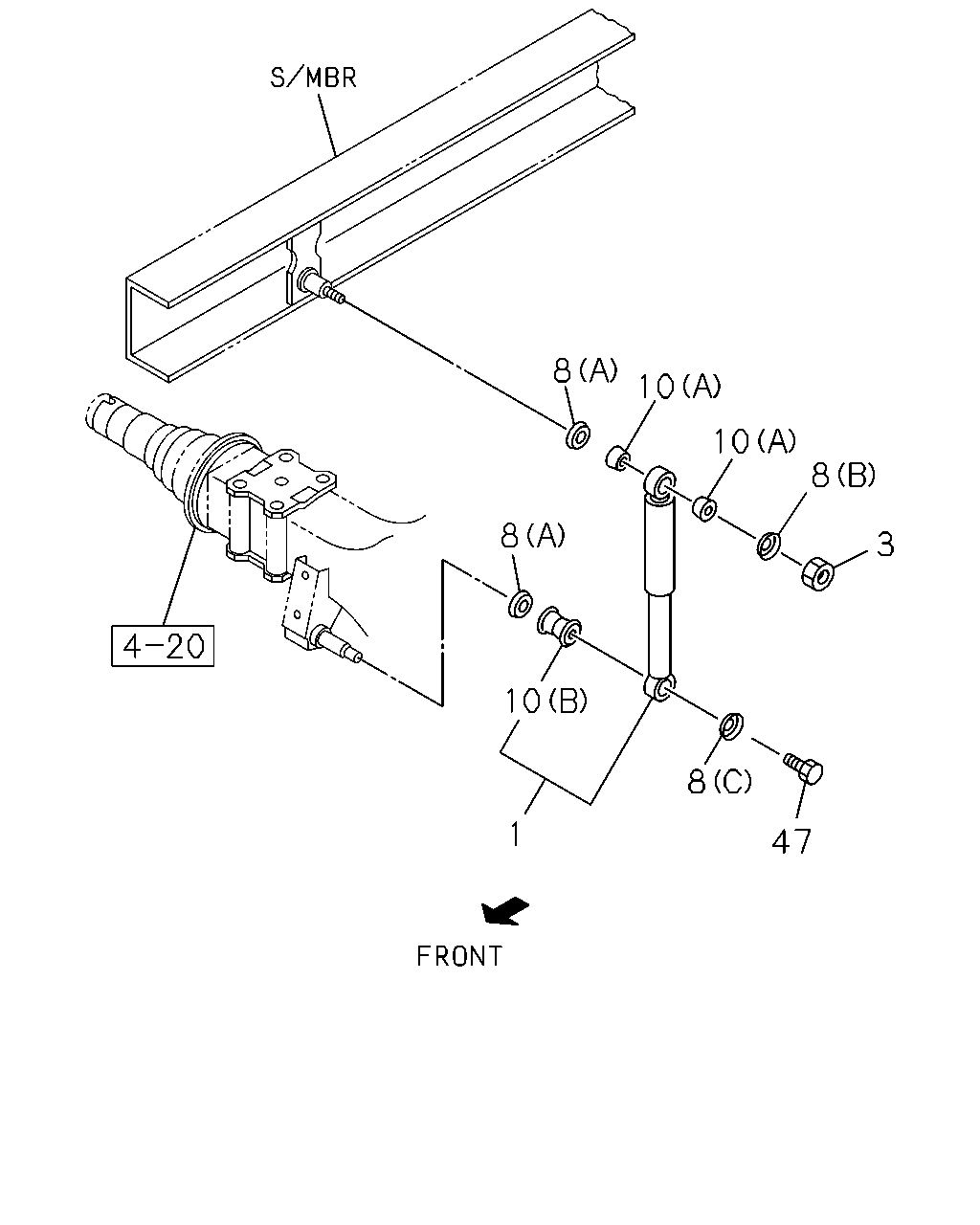

4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#21508) — 19 parça
8
10
10
8
8
3
10
8
1
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ABSORBER ASM; SHOCK,RR
8-97253-651-0
02
1
0504-0609
1
ABSORBER ASM; SHOCK,RR
8-97253-651-2
02
1
0610-1506
1
ABSORBER ASM; SHOCK,RR
8-98316-233-0
02
1
1507-
1
ABSORBER ASM; SHOCK,RR
BEST VALUE PARTS
5-87610-132-0
02
1
1105-1506
3
NUT; S/ABS
M14
9-99111-414-0
02
1
0504-0512
3
NUT; S/ABS
M14
0-91111-514-0
02
1
0601-0609
3
NUT; S/ABS
M14
0-91111-514-0
02
1
0610-0612
3
NUT; S/ABS
M14
0-91110-514-0
02
1
0701-
8
WASHER; S/ABS
(B) ID=15.0
9-51679-012-0
02
1
0504-0611
8
WASHER; S/ABS
(B) ID=15
8-97360-056-0
02
1
0612-
8
WASHER; S/ABS
(A) ID=20.0
9-51679-013-0
04
1
0504-0611
8
WASHER; S/ABS
(A) ID=20.0
8-97360-057-0
04
1
0612-
8
WASHER; S/ABS
(C) ID=10.5
9-51679-603-0
02
1
0504-0611
8
WASHER; S/ABS
(C) ID=10.5
8-97360-058-0
02
1
0612-
10
BUSHING; RUBBER,S/ABS
(B) TOKICO
8-94382-149-0
02
1
0504-0609
10
BUSHING; RUBBER,S/ABS
(B) TOKICO
8-94382-149-0
02
1
0610-
10
BUSHING; RUBBER,S/ABS
(A) TOKICO
9-51631-014-0
04
1
0504-
47
PIN; S/ABS SETTING
M10X16 FLANGE
0-28081-016-0
02
1
0504-0512
47
PIN; S/ABS SETTING
M10X16 FLANGE
0-28051-016-0
02
1
0601-
