Isuzu WW
▶
TRUCKS
▶
NQR
▶
51038 - NQR(IRAN)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

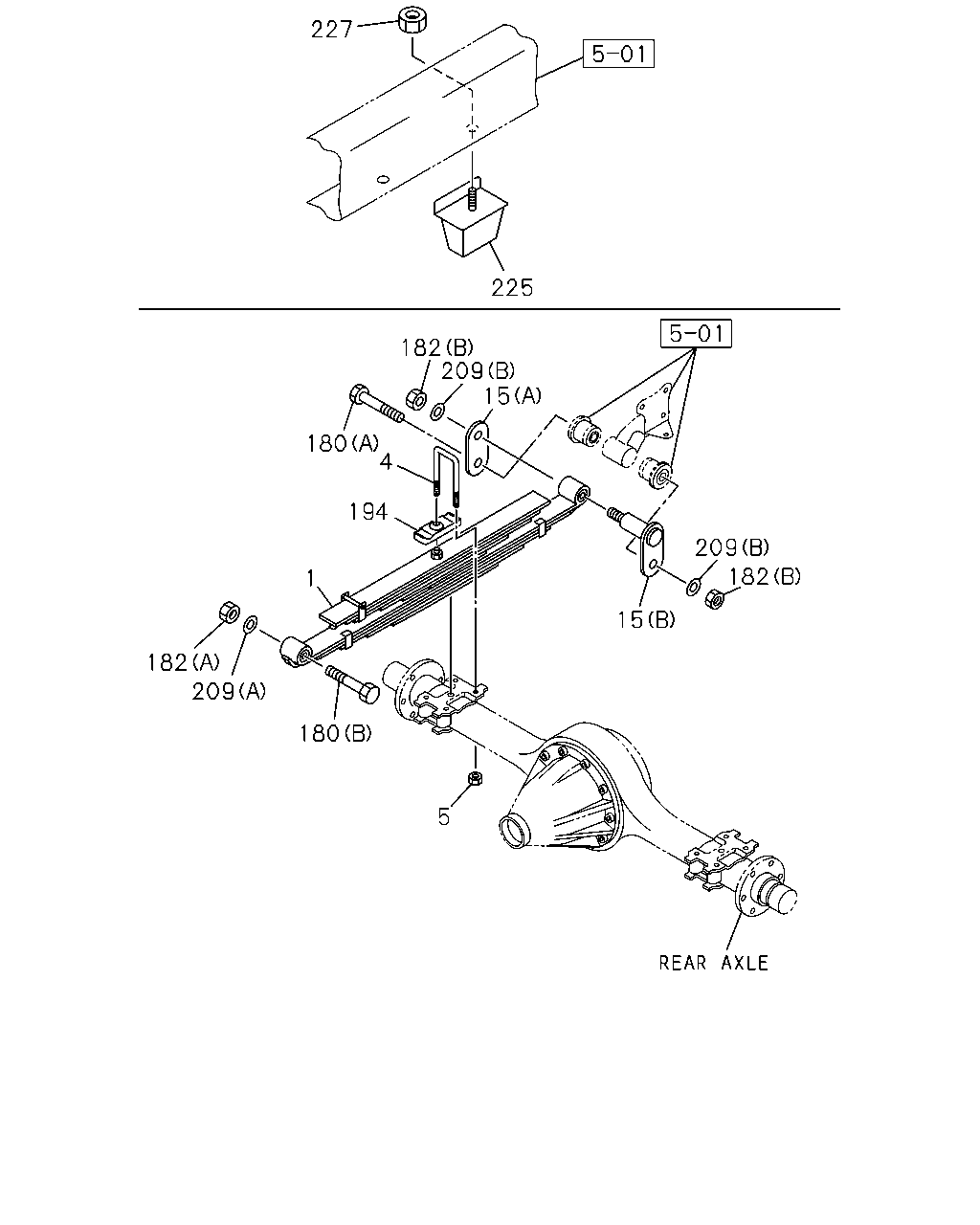

4-60 — REAR SUSPENSION
(#21507) — 31 parça
227
225
182
209
15
180
4
194
209
182
1
15
182
209
180
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 12-LEAF
8-97096-576-0
02
1
0504-
4
U-BOLT; RR SPR
L=345
1-51371-195-2
04
1
0504-
5
NUT; U-BOLT,RR SPR
M18 FLANGE
1-09440-039-1
08
1
0504-
15
SHACKLE; RR SPR
(A)
8-94118-511-3
02
1
0504-
15
SHACKLE; RR SPR
(B)
8-94118-512-4
02
1
0504-0609
15
SHACKLE; RR SPR
(B)
8-94118-512-4
02
1
0610-0611
15
SHACKLE; RR SPR
(B)
8-97360-011-0
02
1
0612-
180
PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130
8-97033-967-0
02
1
0504-0611
180
PIN; RR SPR
KD PREPARATORY PACK<6HF> (A) M16X122
8-98011-487-0
02
1
0612-
180
PIN; RR SPR
KD PREPARATORY PACK<6HF> (A) M16X122
9-51361-602-2
02
1
0504-0611
180
PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130
8-98011-488-0
02
1
0612-
180
PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE
8-97076-848-0
02
1
0610-0610
180
PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE
8-97360-110-0
02
1
0611-
180
PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE
8-97076-850-2
02
1
0610-0610
180
PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE
8-97360-112-0
02
1
0611-
182
NUT; PIN,RR SPR
(A) M18
9-99110-518-0
02
1
0504-0512
182
NUT; PIN,RR SPR
(A) M18
0-91110-518-0
02
1
0601-
182
NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> (B) M16
9-99110-516-0
04
1
0504-0512
182
NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> (B) M16
0-91110-516-0
04
1
0601-
182
NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M16 FLANGE
8-97147-389-0
04
1
0610-0610
182
NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M16 FLANGE
8-97360-125-0
04
1
0611-
194
PAD; CONTACT
1-51372-059-0
02
1
0504-
209
WASHER; PL
(A) ID=19
8-97073-435-1
02
1
0504-0609
209
WASHER; PL
(A) ID=19
8-97073-435-1
02
1
0610-0611
209
WASHER; PL
(A) ID=19
8-97360-119-0
02
1
0612-
209
WASHER; PL
KD PREPARATORY PACK<6HF> (B) ID=16.5
8-97070-925-1
04
1
0504-0611
209
WASHER; PL
KD PREPARATORY PACK<6HF> (B) ID=16.5
8-98011-489-0
04
1
0612-
225
RUBBER; CUSHION,RR SPR
8-94379-470-1
02
1
0504-1103
225
RUBBER; CUSHION,RR SPR
8-98187-342-0
02
1
1104-
227
NUT; CUSHION RUBBER
M12 FLANGE
0-91150-112-0
02
1
0504-0602
227
NUT; CUSHION RUBBER
M12 FLANGE
0-91180-112-0
02
1
0603-
