4-55 — FRONT LEAF SPRING (#21506) — 19 parça

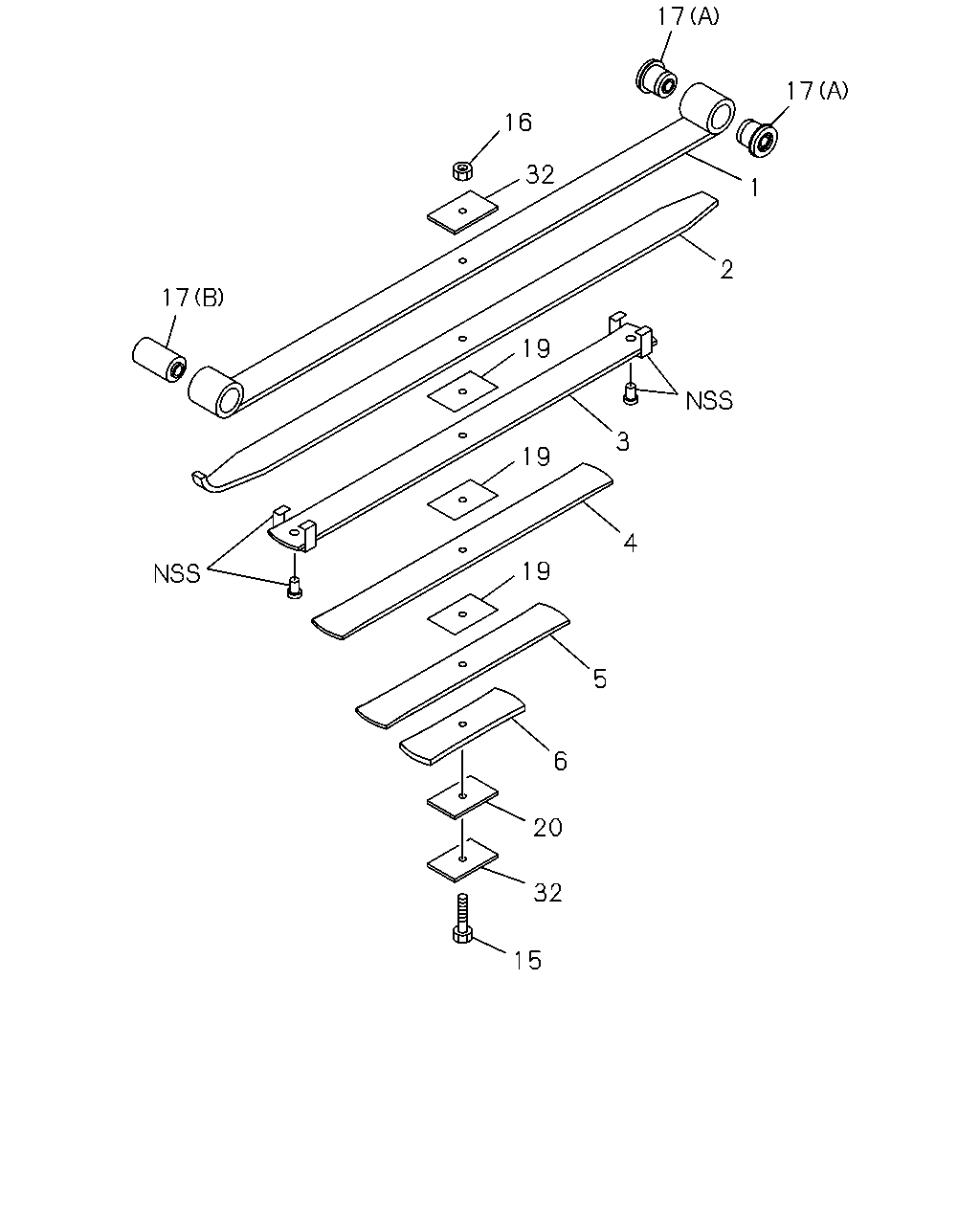

çizim 56279
17 17 16 32 1 2 17 19 3 19 4 19 5 6 20 32 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-97096-544-2 		8-97133-074-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-97122-381-2 		8-97133-117-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-97096-544-2 		8-97133-075-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-97122-381-2 		8-97133-118-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-97096-544-2 		8-97133-076-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-97122-381-2 		8-97133-119-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-97096-544-2 		8-97133-077-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: B = 8-97122-381-2 		8-97133-120-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: A = 8-97096-544-2 		8-97133-078-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-97122-381-2 		8-97133-127-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: A = 8-97096-544-2 		8-97133-079-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: B = 8-97122-381-2 		8-97133-128-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=95 ASM PART: A = 8-97096-544-2, B = 8-97122-381-2 		8-97108-550-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-97096-544-2, B = 8-97122-381-2 		1-09400-055-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=40 L=43.7 ASM PART: A = 8-97096-544-2, B = 8-97122-381-2 		8-94118-588-1 02 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=42 L=81 ASM PART: A = 8-97096-544-2, B = 8-97122-381-2 		8-94130-354-0 01 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-97096-544-2, B = 8-97122-381-2 		8-97084-845-0 03 1 -
20 SEAT; LEAF SPR,FRT
T=8 ASM PART: A = 8-97096-544-2, B = 8-97122-381-2 		8-97084-891-0 01 1 -
32 PLATE; CASTER
ASM PART: A = 8-97096-544-2, B = 8-97122-381-2 		8-97164-386-2 02 1 -
