Sayfa 4-20 - Isuzu EPC

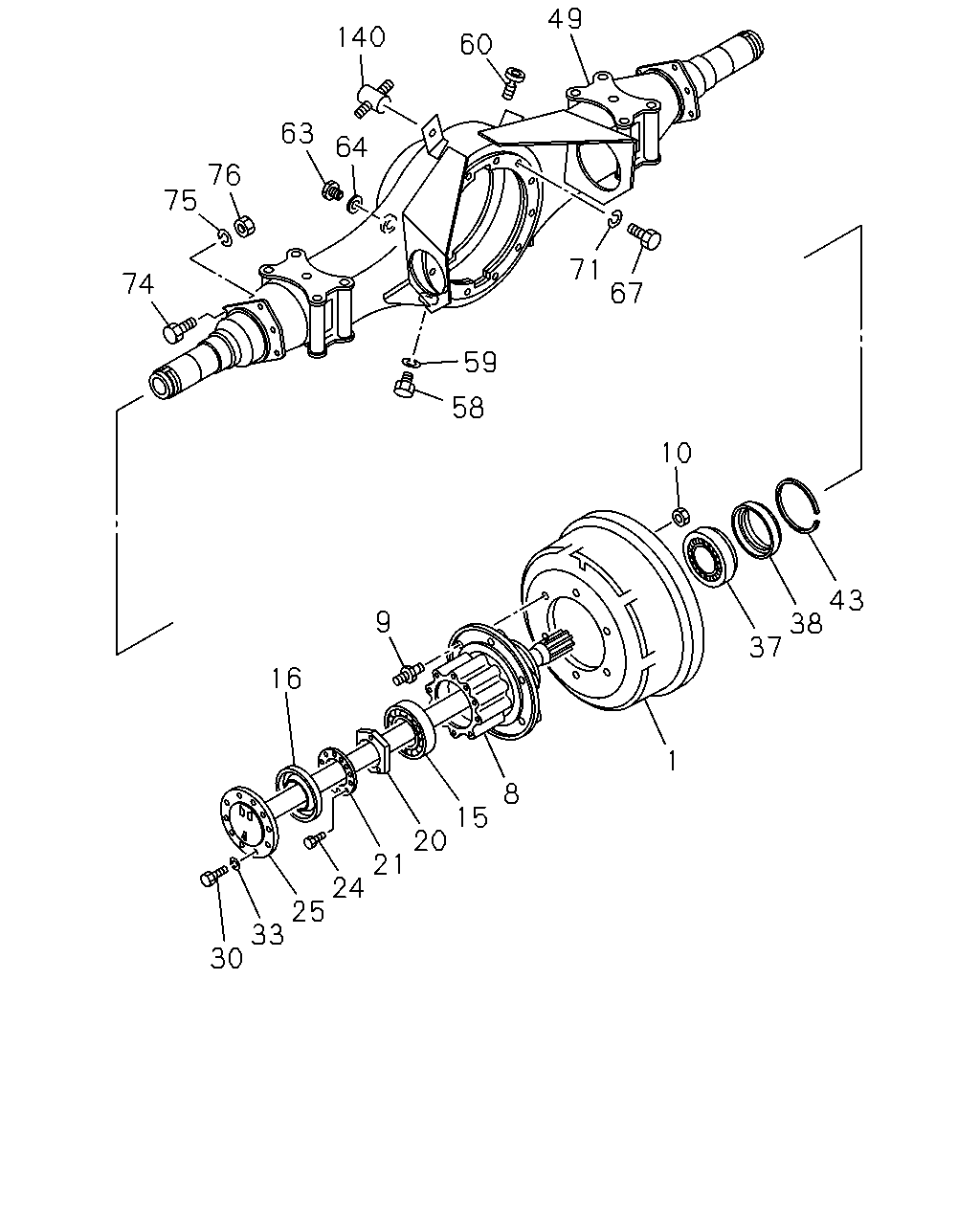

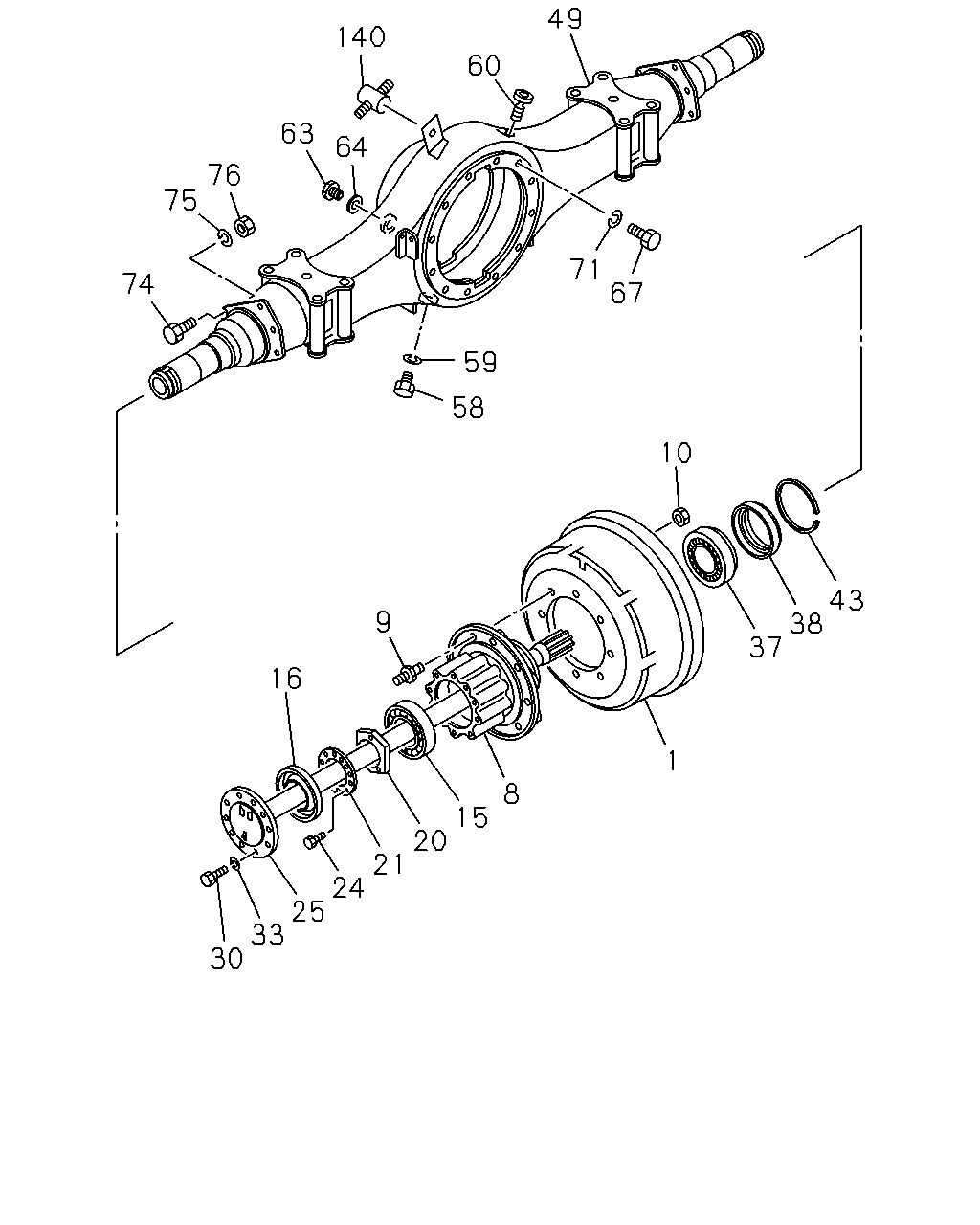

4-20 — REAR AXLE CASE AND SHAFT (#215) — 254 parça

49 140 60 63 64 76 75 71 74 67 59 58 10 43 38 37 9 16 1 8 15 20 21 24 25 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRUM; BRK,RR FINAL GEAR 13.5"<B3Z>	1-42315-328-1	02	1	9212-9310
1	DRUM; BRK,RR FINAL GEAR 13.5"<B3Z>	1-42315-340-0	02	1	9311-
1	DRUM; BRK,RR FINAL GEAR 14.5"<B2V>	1-42315-266-1	02	1	9212-
1	DRUM; BRK,RR FINAL GEAR 15.5"<B2X> H=195	1-42315-208-1	02	1	9212-
8	HUB; RR AXLE FINAL GEAR 13.5"<B3Z>	1-42311-009-6	02	1	9212-
8	HUB; RR AXLE FINAL GEAR 14.5"<B2V>	1-42311-021-1	02	1	9212-
8	HUB; RR AXLE FINAL GEAR 15.5"<B2X>	1-42311-041-2	02	1	9212-
9	PIN; WHEEL,RR AXLE FINAL GEAR 13.5"<B3Z> L=82	1-42332-106-0	06	1	9212-
9	PIN; WHEEL,RR AXLE FINAL GEAR 13.5"<B3Z> L=82	1-42331-106-0	06	1	9212-
9	PIN; WHEEL,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 15.5"<B2X> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9212-
9	PIN; WHEEL,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 15.5"<B2X> M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9212-
10	NUT; WHEEL PIN,RR AXLE FINAL GEAR 13.5"<B3Z> M22	9-09110-522-0	12	1	9212-
10	NUT; WHEEL PIN,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 15.5"<B2X> M22	9-09110-522-0	16	1	9212-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> KOYO	1-09812-049-0	02	1	9212-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> NSK	9-00093-159-0	02	1	9212-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 15.5"<B2X> NSK	1-09812-153-0	02	1	9212-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 15.5"<B2X> KOYO	1-09812-154-0	02	1	9212-
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> TKK	1-09625-331-0	02	1	9212-
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 15.5"<B2X> NOK	9-09924-468-0	02	1	9212-
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 15.5"<B2X> TKK	9-09924-470-0	02	1	9212-
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 15.5"<B2X> KOYO	9-09924-499-0	02	1	9212-
20	NUT; BRG,RR HUB FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> M64	9-09843-721-2	02	1	9212-
20	NUT; BRG,RR HUB FINAL GEAR 15.5"<B2X> M74.6	9-09843-064-2	02	1	9212-
21	WASHER; LK,BRG NUT FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> ID=64	9-09854-122-0	02	1	9212-
21	WASHER; LK,BRG NUT FINAL GEAR 15.5"<B2X> ID=74.6	1-09533-008-0	02	1	9212-
24	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	06	1	9212-
25	SHAFT; AXLE,RR FINAL GEAR 13.5"<B3Z>	1-42171-348-0	02	1	9212-
25	SHAFT; AXLE,RR FINAL GEAR 14.5"<B2V>	1-42171-260-0	02	1	9212-
25	SHAFT; AXLE,RR FINAL GEAR 15.5"<B2X>	1-42171-288-0	02	1	9212-
30	BOLT; HUB TO AXLE SHAFT FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> M12X45	9-09804-239-1	20	1	9212-
30	BOLT; HUB TO AXLE SHAFT FINAL GEAR 15.5"<B2X> M14X58	1-09020-095-1	20	1	9212-
33	WASHER; AXLE SHAFT FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> ID=12.2	9-09150-812-0	20	1	9212-
33	WASHER; AXLE SHAFT FINAL GEAR 15.5"<B2X> ID=14.2	9-09150-814-0	20	1	9212-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> KOYO	1-09812-044-0	02	1	9212-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> NACHI	1-09812-053-0	02	1	9212-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> NSK	9-00093-161-0	02	1	9212-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 15.5"<B2X> NSK	1-09812-150-0	02	1	9212-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 15.5"<B2X> NACHI	1-09812-151-0	02	1	9212-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> TKK	1-09625-043-0	02	1	9212-9310
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> TKK	1-09625-569-0	02	1	9311-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 15.5"<B2X> TKK	9-09924-415-0	02	1	9212-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 15.5"<B2X> NOK	9-09924-416-0	02	1	9212-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 15.5"<B2X> KOYO	9-09924-417-0	02	1	9212-
43	RING; SNAP,HUB SEAL,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z>	9-09950-201-0	02	1	9212-
43	RING; SNAP,HUB SEAL,RR AXLE FINAL GEAR 15.5"<B2X>	9-09950-147-0	02	1	9212-
49	CASE; RR AXLE FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42150-576-2	01	1	9212-
49	CASE; RR AXLE FINAL GEAR 13.5"<B3Z> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42150-577-1	01	1	9212-
49	CASE; RR AXLE FINAL GEAR 14.5"<B2V> P30 PROP SHAFT(B2F)	1-42150-578-2	01	1	9212-
49	CASE; RR AXLE FINAL GEAR 14.5"<B2V> P46 PROP SHAFT(C4Z)	1-42150-579-2	01	1	9212-
49	CASE; RR AXLE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42150-580-3	01	1	9212-
49	CASE; RR AXLE FINAL GEAR 15.5"<B2X> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42150-160-4	01	1	9212-
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9212-
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9212-
60	BREATHER; RR AXLE CASE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09893-003-0	01	1	9212-
60	BREATHER; RR AXLE CASE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09893-003-0	01	1	9212-
60	BREATHER; RR AXLE CASE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09893-016-0	01	1	9212-
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-021-0	01	1	9212-9307
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	9308-
64	GASKET; OIL FILLER,AXLE CASE ID=24.5 OD=32.5	9-09920-392-0	01	1	9212-9307
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	9308-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 13.5"<B3Z> M10X35	1-09000-398-0	08	1	9212-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 13.5"<B3Z> M10X55	1-09000-429-1	04	1	9212-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 14.5"<B2V> M12X55	9-91066-255-0	04	1	9212-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 14.5"<B2V> M12X35	9-92061-235-0	08	1	9212-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 15.5"<B2X> M14X65	9-91066-465-0	04	1	9212-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 15.5"<B2X> M14X40	9-92061-440-0	08	1	9212-
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 13.5"<B3Z> ID=10.2	9-09150-610-0	12	1	9212-9401
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 13.5"<B3Z> ID=10.2	9-09150-810-0	12	1	9402-
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 14.5"<B2V> ID=12.2	9-09150-812-0	12	1	9212-
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 15.5"<B2X> ID=14.2	9-09150-814-0	12	1	9212-
74	BOLT; RR BRK ASM SETTING FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	12	1	9212-
74	BOLT; RR BRK ASM SETTING FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	9-91061-450-0	12	1	9212-9401
74	BOLT; RR BRK ASM SETTING FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	9-92061-450-0	12	1	9402-
74	BOLT; RR BRK ASM SETTING FINAL GEAR 14.5"<B2V> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X56	1-09060-004-0	04	1	9212-
74	BOLT; RR BRK ASM SETTING FINAL GEAR 15.5"<B2X> M14X50	1-09040-066-0	16	1	9212-
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 13.5"<B3Z> ID=14.2	9-09150-614-0	12	1	9212-9401
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 13.5"<B3Z> ID=14.2	9-09150-814-0	12	1	9402-
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 14.5"<B2V>,FINAL GEAR 15.5"<B2X> ID=14.2	9-09150-614-0	16	1	9212-9401
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 14.5"<B2V>,FINAL GEAR 15.5"<B2X> ID=14.2	9-09150-814-0	16	1	9402-
76	NUT; RR BRK ASM SETTING FINAL GEAR 13.5"<B3Z> M14	9-99110-514-0	12	1	9212-
76	NUT; RR BRK ASM SETTING FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-514-0	10	1	9212-
76	NUT; RR BRK ASM SETTING FINAL GEAR 14.5"<B2V> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-514-0	16	1	9212-
76	NUT; RR BRK ASM SETTING FINAL GEAR 15.5"<B2X> M14	9-99110-514-0	16	1	9212-
140	CONNECTOR; AXLE CASE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z>	1-09656-239-3	01	1	9212-

49 140 60 63 64 76 75 71 74 67 59 58 10 43 38 37 9 16 1 8 15 20 21 24 25 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRUM; BRK,RR FINAL GEAR 13.5"<B3Z>	1-42315-328-1	02	1	9212-9310
1	DRUM; BRK,RR FINAL GEAR 13.5"<B3Z>	1-42315-340-0	02	1	9311-
1	DRUM; BRK,RR FINAL GEAR 14.5"<B2V>	1-42315-266-1	02	1	9212-
1	DRUM; BRK,RR FINAL GEAR 15.5"<B2X> H=195	1-42315-208-1	02	1	9212-
8	HUB; RR AXLE FINAL GEAR 13.5"<B3Z>	1-42311-009-6	02	1	9212-
8	HUB; RR AXLE FINAL GEAR 14.5"<B2V>	1-42311-021-1	02	1	9212-
8	HUB; RR AXLE FINAL GEAR 15.5"<B2X>	1-42311-041-2	02	1	9212-
9	PIN; WHEEL,RR AXLE FINAL GEAR 13.5"<B3Z> L=82	1-42332-106-0	06	1	9212-
9	PIN; WHEEL,RR AXLE FINAL GEAR 13.5"<B3Z> L=82	1-42331-106-0	06	1	9212-
9	PIN; WHEEL,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 15.5"<B2X> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9212-
9	PIN; WHEEL,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 15.5"<B2X> M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9212-
10	NUT; WHEEL PIN,RR AXLE FINAL GEAR 13.5"<B3Z> M22	9-09110-522-0	12	1	9212-
10	NUT; WHEEL PIN,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 15.5"<B2X> M22	9-09110-522-0	16	1	9212-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> KOYO	1-09812-049-0	02	1	9212-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> NSK	9-00093-159-0	02	1	9212-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 15.5"<B2X> NSK	1-09812-153-0	02	1	9212-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 15.5"<B2X> KOYO	1-09812-154-0	02	1	9212-
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> TKK	1-09625-331-0	02	1	9212-
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 15.5"<B2X> NOK	9-09924-468-0	02	1	9212-
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 15.5"<B2X> TKK	9-09924-470-0	02	1	9212-
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 15.5"<B2X> KOYO	9-09924-499-0	02	1	9212-
20	NUT; BRG,RR HUB FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> M64	9-09843-721-2	02	1	9212-
20	NUT; BRG,RR HUB FINAL GEAR 15.5"<B2X> M74.6	9-09843-064-2	02	1	9212-
21	WASHER; LK,BRG NUT FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> ID=64	9-09854-122-0	02	1	9212-
21	WASHER; LK,BRG NUT FINAL GEAR 15.5"<B2X> ID=74.6	1-09533-008-0	02	1	9212-
24	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	06	1	9212-
25	SHAFT; AXLE,RR FINAL GEAR 13.5"<B3Z>	1-42171-348-0	02	1	9212-
25	SHAFT; AXLE,RR FINAL GEAR 14.5"<B2V>	1-42171-260-0	02	1	9212-
25	SHAFT; AXLE,RR FINAL GEAR 15.5"<B2X>	1-42171-288-0	02	1	9212-
30	BOLT; HUB TO AXLE SHAFT FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> M12X45	9-09804-239-1	20	1	9212-
30	BOLT; HUB TO AXLE SHAFT FINAL GEAR 15.5"<B2X> M14X58	1-09020-095-1	20	1	9212-
33	WASHER; AXLE SHAFT FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> ID=12.2	9-09150-812-0	20	1	9212-
33	WASHER; AXLE SHAFT FINAL GEAR 15.5"<B2X> ID=14.2	9-09150-814-0	20	1	9212-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> KOYO	1-09812-044-0	02	1	9212-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> NACHI	1-09812-053-0	02	1	9212-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> NSK	9-00093-161-0	02	1	9212-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 15.5"<B2X> NSK	1-09812-150-0	02	1	9212-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 15.5"<B2X> NACHI	1-09812-151-0	02	1	9212-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> TKK	1-09625-043-0	02	1	9212-9310
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> TKK	1-09625-569-0	02	1	9311-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 15.5"<B2X> TKK	9-09924-415-0	02	1	9212-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 15.5"<B2X> NOK	9-09924-416-0	02	1	9212-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 15.5"<B2X> KOYO	9-09924-417-0	02	1	9212-
43	RING; SNAP,HUB SEAL,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z>	9-09950-201-0	02	1	9212-
43	RING; SNAP,HUB SEAL,RR AXLE FINAL GEAR 15.5"<B2X>	9-09950-147-0	02	1	9212-
49	CASE; RR AXLE FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42150-576-2	01	1	9212-
49	CASE; RR AXLE FINAL GEAR 13.5"<B3Z> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42150-577-1	01	1	9212-
49	CASE; RR AXLE FINAL GEAR 14.5"<B2V> P30 PROP SHAFT(B2F)	1-42150-578-2	01	1	9212-
49	CASE; RR AXLE FINAL GEAR 14.5"<B2V> P46 PROP SHAFT(C4Z)	1-42150-579-2	01	1	9212-
49	CASE; RR AXLE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42150-580-3	01	1	9212-
49	CASE; RR AXLE FINAL GEAR 15.5"<B2X> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42150-160-4	01	1	9212-
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9212-
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9212-
60	BREATHER; RR AXLE CASE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09893-003-0	01	1	9212-
60	BREATHER; RR AXLE CASE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09893-003-0	01	1	9212-
60	BREATHER; RR AXLE CASE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09893-016-0	01	1	9212-
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-021-0	01	1	9212-9307
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	9308-
64	GASKET; OIL FILLER,AXLE CASE ID=24.5 OD=32.5	9-09920-392-0	01	1	9212-9307
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	9308-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 13.5"<B3Z> M10X35	1-09000-398-0	08	1	9212-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 13.5"<B3Z> M10X55	1-09000-429-1	04	1	9212-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 14.5"<B2V> M12X55	9-91066-255-0	04	1	9212-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 14.5"<B2V> M12X35	9-92061-235-0	08	1	9212-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 15.5"<B2X> M14X65	9-91066-465-0	04	1	9212-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 15.5"<B2X> M14X40	9-92061-440-0	08	1	9212-
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 13.5"<B3Z> ID=10.2	9-09150-610-0	12	1	9212-9401
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 13.5"<B3Z> ID=10.2	9-09150-810-0	12	1	9402-
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 14.5"<B2V> ID=12.2	9-09150-812-0	12	1	9212-
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 15.5"<B2X> ID=14.2	9-09150-814-0	12	1	9212-
74	BOLT; RR BRK ASM SETTING FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	12	1	9212-
74	BOLT; RR BRK ASM SETTING FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	9-91061-450-0	12	1	9212-9401
74	BOLT; RR BRK ASM SETTING FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	9-92061-450-0	12	1	9402-
74	BOLT; RR BRK ASM SETTING FINAL GEAR 14.5"<B2V> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X56	1-09060-004-0	04	1	9212-
74	BOLT; RR BRK ASM SETTING FINAL GEAR 15.5"<B2X> M14X50	1-09040-066-0	16	1	9212-
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 13.5"<B3Z> ID=14.2	9-09150-614-0	12	1	9212-9401
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 13.5"<B3Z> ID=14.2	9-09150-814-0	12	1	9402-
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 14.5"<B2V>,FINAL GEAR 15.5"<B2X> ID=14.2	9-09150-614-0	16	1	9212-9401
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 14.5"<B2V>,FINAL GEAR 15.5"<B2X> ID=14.2	9-09150-814-0	16	1	9402-
76	NUT; RR BRK ASM SETTING FINAL GEAR 13.5"<B3Z> M14	9-99110-514-0	12	1	9212-
76	NUT; RR BRK ASM SETTING FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-514-0	10	1	9212-
76	NUT; RR BRK ASM SETTING FINAL GEAR 14.5"<B2V> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-514-0	16	1	9212-
76	NUT; RR BRK ASM SETTING FINAL GEAR 15.5"<B2X> M14	9-99110-514-0	16	1	9212-
140	CONNECTOR; AXLE CASE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z>	1-09656-239-3	01	1	9212-

60 49 97 96 63 64 76 75 71 74 67 59 58 10 43 38 37 9 16 1 8 15 20 21 24 25 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRUM; BRK,RR FINAL GEAR 13.5"<B3Z>	1-42315-328-1	02	1	9212-9310
1	DRUM; BRK,RR FINAL GEAR 13.5"<B3Z>	1-42315-340-0	02	1	9311-
1	DRUM; BRK,RR FINAL GEAR 14.5"<B2V>	1-42315-266-1	02	1	9212-
1	DRUM; BRK,RR FINAL GEAR 15.5"<B2X> H=195	1-42315-208-1	02	1	9212-
8	HUB; RR AXLE FINAL GEAR 13.5"<B3Z>	1-42311-009-6	02	1	9212-
8	HUB; RR AXLE FINAL GEAR 14.5"<B2V>	1-42311-021-1	02	1	9212-
8	HUB; RR AXLE FINAL GEAR 15.5"<B2X>	1-42311-041-2	02	1	9212-
9	PIN; WHEEL,RR AXLE FINAL GEAR 13.5"<B3Z> L=82	1-42332-106-0	06	1	9212-
9	PIN; WHEEL,RR AXLE FINAL GEAR 13.5"<B3Z> L=82	1-42331-106-0	06	1	9212-
9	PIN; WHEEL,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 15.5"<B2X> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9212-
9	PIN; WHEEL,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 15.5"<B2X> M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9212-
10	NUT; WHEEL PIN,RR AXLE FINAL GEAR 13.5"<B3Z> M22	9-09110-522-0	12	1	9212-
10	NUT; WHEEL PIN,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 15.5"<B2X> M22	9-09110-522-0	16	1	9212-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> KOYO	1-09812-049-0	02	1	9212-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> NSK	9-00093-159-0	02	1	9212-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 15.5"<B2X> NSK	1-09812-153-0	02	1	9212-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 15.5"<B2X> KOYO	1-09812-154-0	02	1	9212-
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> TKK	1-09625-331-0	02	1	9212-
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 15.5"<B2X> NOK	9-09924-468-0	02	1	9212-
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 15.5"<B2X> TKK	9-09924-470-0	02	1	9212-
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 15.5"<B2X> KOYO	9-09924-499-0	02	1	9212-
20	NUT; BRG,RR HUB FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> M64	9-09843-721-2	02	1	9212-
20	NUT; BRG,RR HUB FINAL GEAR 15.5"<B2X> M74.6	9-09843-064-2	02	1	9212-
21	WASHER; LK,BRG NUT FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> ID=64	9-09854-122-0	02	1	9212-
21	WASHER; LK,BRG NUT FINAL GEAR 15.5"<B2X> ID=74.6	1-09533-008-0	02	1	9212-
24	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	06	1	9212-
25	SHAFT; AXLE,RR FINAL GEAR 13.5"<B3Z>	1-42171-348-0	02	1	9212-
25	SHAFT; AXLE,RR FINAL GEAR 14.5"<B2V>	1-42171-260-0	02	1	9212-
25	SHAFT; AXLE,RR FINAL GEAR 15.5"<B2X>	1-42171-288-0	02	1	9212-
30	BOLT; HUB TO AXLE SHAFT FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> M12X45	9-09804-239-1	20	1	9212-
30	BOLT; HUB TO AXLE SHAFT FINAL GEAR 15.5"<B2X> M14X58	1-09020-095-1	20	1	9212-
33	WASHER; AXLE SHAFT FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> ID=12.2	9-09150-812-0	20	1	9212-
33	WASHER; AXLE SHAFT FINAL GEAR 15.5"<B2X> ID=14.2	9-09150-814-0	20	1	9212-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> KOYO	1-09812-044-0	02	1	9212-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> NACHI	1-09812-053-0	02	1	9212-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> NSK	9-00093-161-0	02	1	9212-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 15.5"<B2X> NSK	1-09812-150-0	02	1	9212-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 15.5"<B2X> NACHI	1-09812-151-0	02	1	9212-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> TKK	1-09625-043-0	02	1	9212-9310
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> TKK	1-09625-569-0	02	1	9311-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 15.5"<B2X> TKK	9-09924-415-0	02	1	9212-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 15.5"<B2X> NOK	9-09924-416-0	02	1	9212-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 15.5"<B2X> KOYO	9-09924-417-0	02	1	9212-
43	RING; SNAP,HUB SEAL,RR AXLE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z>	9-09950-201-0	02	1	9212-
43	RING; SNAP,HUB SEAL,RR AXLE FINAL GEAR 15.5"<B2X>	9-09950-147-0	02	1	9212-
49	CASE; RR AXLE FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42150-576-2	01	1	9212-
49	CASE; RR AXLE FINAL GEAR 13.5"<B3Z> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42150-577-1	01	1	9212-
49	CASE; RR AXLE FINAL GEAR 14.5"<B2V> P30 PROP SHAFT(B2F)	1-42150-578-2	01	1	9212-
49	CASE; RR AXLE FINAL GEAR 14.5"<B2V> P46 PROP SHAFT(C4Z)	1-42150-579-2	01	1	9212-
49	CASE; RR AXLE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42150-580-3	01	1	9212-
49	CASE; RR AXLE FINAL GEAR 15.5"<B2X> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42150-160-4	01	1	9212-
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9212-
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9212-
60	BREATHER; RR AXLE CASE FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09893-003-0	01	1	9212-
60	BREATHER; RR AXLE CASE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09893-003-0	01	1	9212-
60	BREATHER; RR AXLE CASE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09893-016-0	01	1	9212-
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-021-0	01	1	9212-9307
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	9308-
64	GASKET; OIL FILLER,AXLE CASE ID=24.5 OD=32.5	9-09920-392-0	01	1	9212-9307
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	9308-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 13.5"<B3Z> M10X35	1-09000-398-0	08	1	9212-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 13.5"<B3Z> M10X55	1-09000-429-1	04	1	9212-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 14.5"<B2V> M12X55	9-91066-255-0	04	1	9212-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 14.5"<B2V> M12X35	9-92061-235-0	08	1	9212-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 15.5"<B2X> M14X65	9-91066-465-0	04	1	9212-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 15.5"<B2X> M14X40	9-92061-440-0	08	1	9212-
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 13.5"<B3Z> ID=10.2	9-09150-610-0	12	1	9212-9401
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 13.5"<B3Z> ID=10.2	9-09150-810-0	12	1	9402-
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 14.5"<B2V> ID=12.2	9-09150-812-0	12	1	9212-
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 15.5"<B2X> ID=14.2	9-09150-814-0	12	1	9212-
74	BOLT; RR BRK ASM SETTING FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	12	1	9212-
74	BOLT; RR BRK ASM SETTING FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	9-91061-450-0	12	1	9212-9401
74	BOLT; RR BRK ASM SETTING FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	9-92061-450-0	12	1	9402-
74	BOLT; RR BRK ASM SETTING FINAL GEAR 14.5"<B2V> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X56	1-09060-004-0	04	1	9212-
74	BOLT; RR BRK ASM SETTING FINAL GEAR 15.5"<B2X> M14X50	1-09040-066-0	16	1	9212-
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 13.5"<B3Z> ID=14.2	9-09150-614-0	12	1	9212-9401
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 13.5"<B3Z> ID=14.2	9-09150-814-0	12	1	9402-
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 14.5"<B2V>,FINAL GEAR 15.5"<B2X> ID=14.2	9-09150-614-0	16	1	9212-9401
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 14.5"<B2V>,FINAL GEAR 15.5"<B2X> ID=14.2	9-09150-814-0	16	1	9402-
76	NUT; RR BRK ASM SETTING FINAL GEAR 13.5"<B3Z> M14	9-99110-514-0	12	1	9212-
76	NUT; RR BRK ASM SETTING FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-514-0	10	1	9212-
76	NUT; RR BRK ASM SETTING FINAL GEAR 14.5"<B2V> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-514-0	16	1	9212-
76	NUT; RR BRK ASM SETTING FINAL GEAR 15.5"<B2X> M14	9-99110-514-0	16	1	9212-
96	BRACKET; LSPV,AXLE CASE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-073-0	01	1	9212-
97	BOLT; BRKT,LSPV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50040-818-0	02	1	9212-9409
97	BOLT; BRKT,LSPV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28080-816-0	02	1	9410-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
